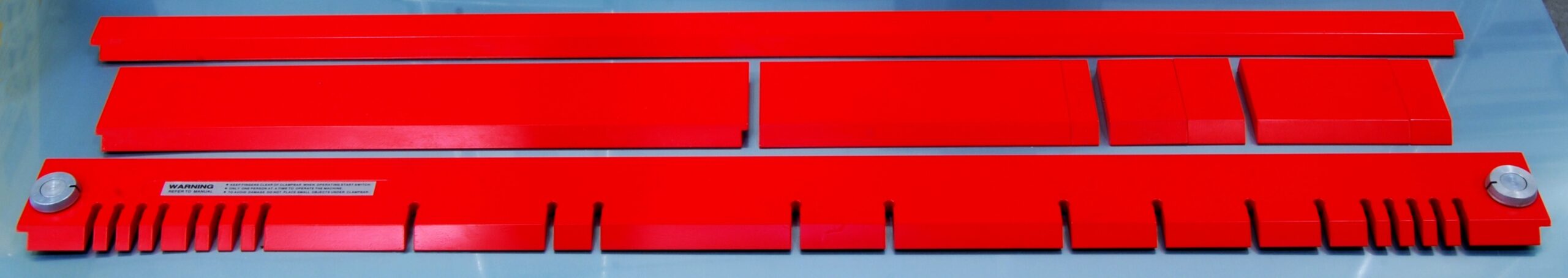

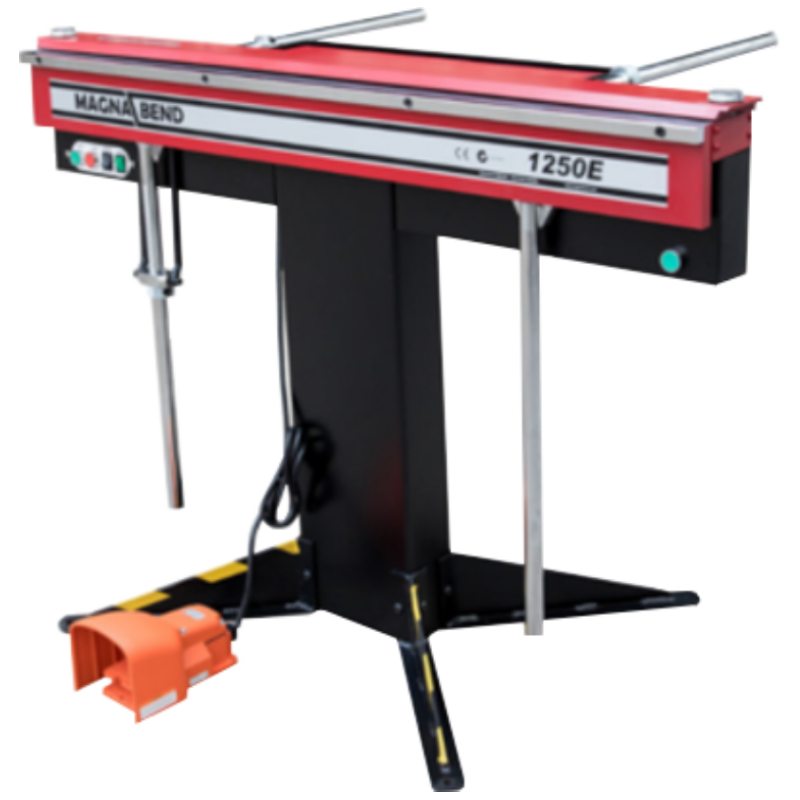

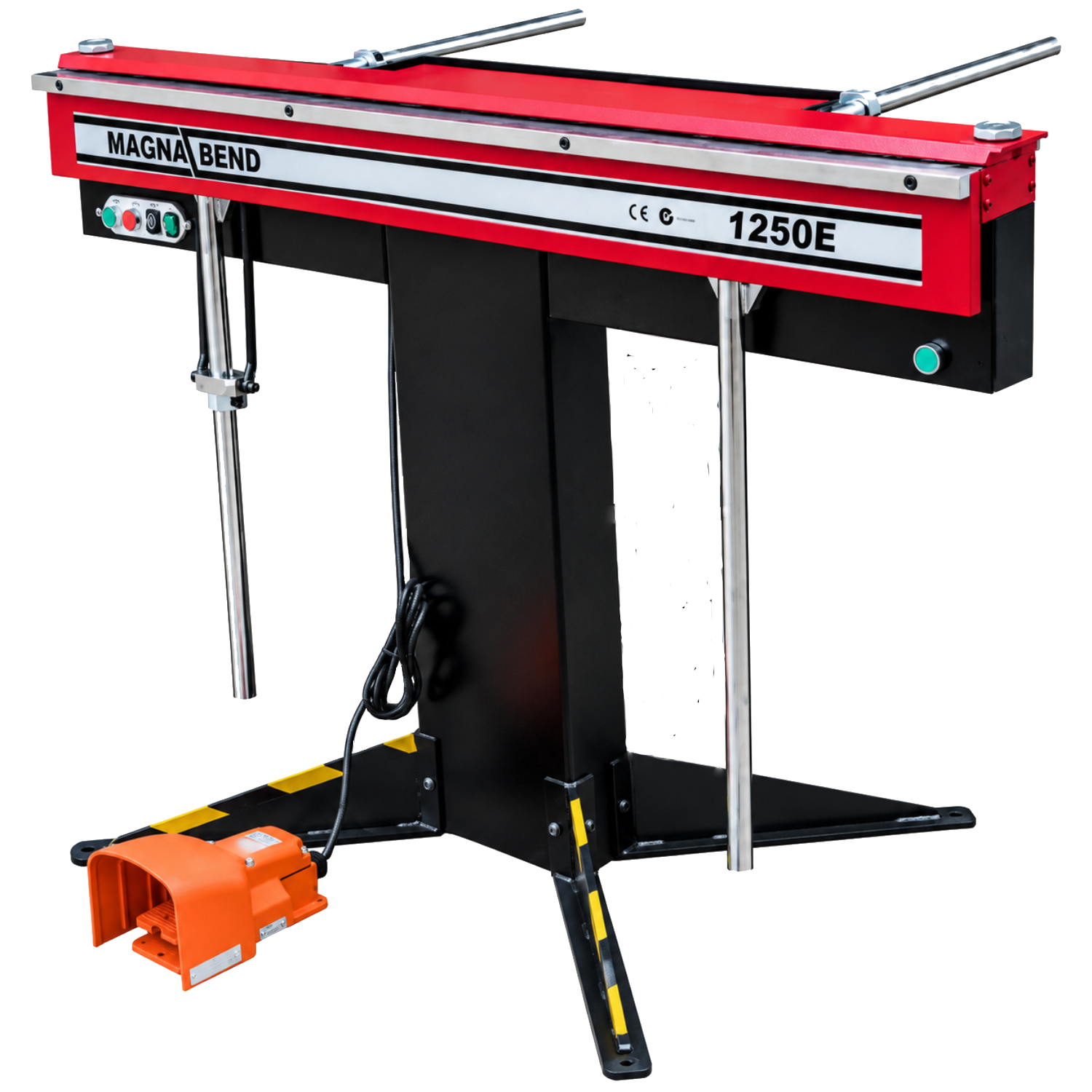

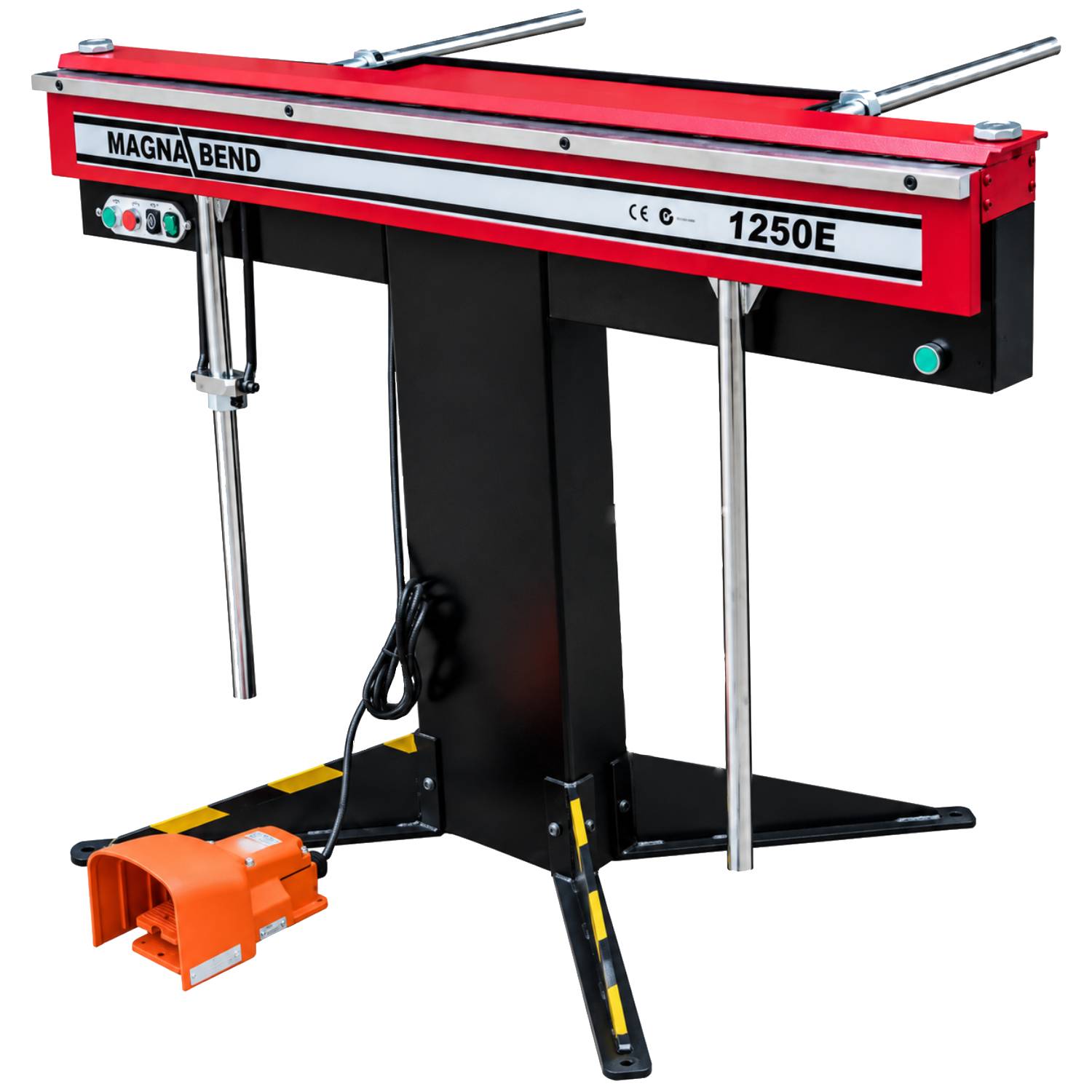

JORG MAGNABEND MAGNETIC FOLDERS (JMF1250) are versatile and easy to use folding machines. Suitable for folding various types of sheet including aluminium, copper, steel, stainless steel and coated materials. Manufactured with an electromagnetic clamping system. A powerful electromagnet pulls on the upper beam, so that the sheet is clamped, as clamping takes place across the entire width, there is minimal deviation. As the upper bar is always a flat strip, closed tubes or high boxes can be folded. The clamping bar of the Magnabend can be easily removed and replaced for a different type, such as a narrow or segmented bar (please see photograph for reference). These machines are manufactured with 230v, single phase electrics.
Other Models Available:
1000mm Folding Length x 1.2mm Capacity Mild Steel
2000mm Folding Length x 1.6mm Capacity Mild Steel
2500mm Folding Length x 1.2mm Capacity Mild Steel
3200mm Folding Length x 1.0mm Capacity Mild Steel
| SPECIFICATIONS | |
| Model: | JMF1250 |
| Folding Length: | 1250mm |
| Maximum Thickness: | 1.6mm Capacity Mild Steel |
| Wide Clamping Bar: | 100mm |
| Narrow Clamping Bar: | 50mm |
| Segmented Clamping Bars (x 7): | 25mm, 38mm, 52mm, 70mm, 140mm, 280mm & 597mm |
| Slotted Clamping Bar – Shallow Boxes: | 15-1265mm Tray Length |
| 40mm Maximum Tray Depth | |
| Supply Voltage: | 230v, Single Phase Electrics |
| Dimensions – machine (apx): | 1400mm x 800mm x 900mm (l x w x h) |
| Dimensions – packing (apx): | 1450mm x 800mm x 1050mm (l x w x h) |
| Weights – net/gross (apx): | 150Kg/175Kg |
Â
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
