KINGSLAND 50P HYDRAULIC PUNCHING MACHINE (HP50P-KLAND) has wide applications for large hole punching, crimping, tube notching, bar and sheet bending. This machine is a single cylinder hydraulically operated punch machine. It is a versatile machine with many attachments available. It is fitted with a universal die bolster for punching up to 38mm diameter as standard, with the option to go to 110mm diameter using optional attachments. Tube Notching, Sheet Bending, Bar Bending and Twin Hole Punching are just some of the options available.
It is a low maintenance machine and easy to use machine operated by a foot pedal command, has a rated capacity of 50 Ton and a throat depth of 280mm. The machine has full stroke adjustment, low power inching and removable table block for overhang channel/joist punching.Â
Standard Equipment
• Easy Change Punch Holder, Retaining Ring and Adaptors.
• Swing away Punch Stripper Unit.
• Universal Die Bolster for punching of flats, angle and flanges of Channel and I Beam
• Punch Table with movable guides
• Shielded Foot Pedal
• Power Inching and Adjustable Stroke
• Automatic Overload Relief on Hydraulic System
• 3 kW electric IP 55 Class `F’ T.E.F.C. Tropicalized Motor
• Starter, Isolator and Inch Switch Controls
• Low Volt Electrical Control Circuit
• Service Tool Kit
• User Manual
Optional Extras

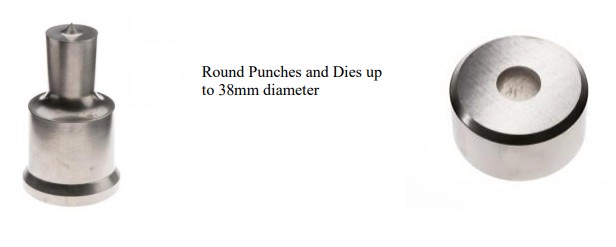

• Round punch & die set (up to 30mm)
• Offset Round Dies
• Elongated punch & die set (up to 30mm)

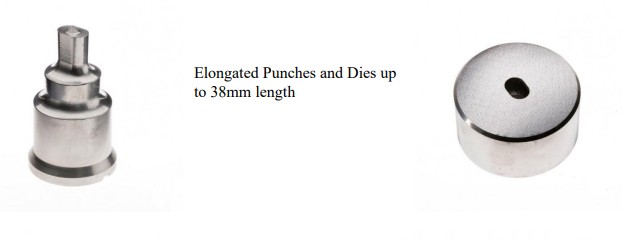

• Elongated punch & die set (up to 38mm)

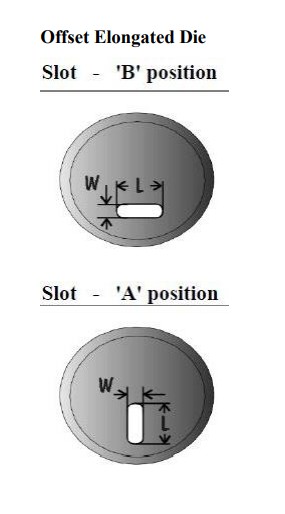

• Elongated Offset Die Position A or B

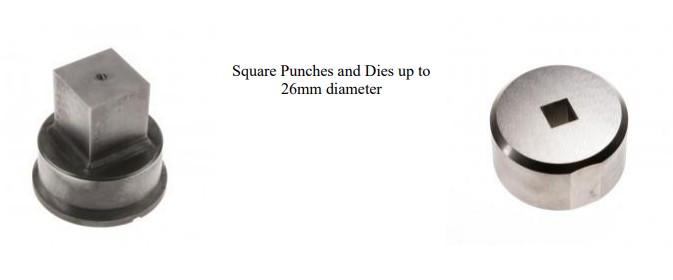

• Square punch & die set (up to 26mm)
| SPECIFICATIONS | |
| Model: | HP50P-KLAND |
| Maximum Thickness: | 24mm x 15mm |
| Throat Depth: | 280mm |
| Diameter x Thickness: | 36mm x 10mm |
| Largest Hole Diameter: | 38mm Standard, 110mm Optional |
| Maximum Stroke Length: | 60mm |
| Speed 20mm Travel: | 25.5 Full Cycle |
| Working Height: | 1070mm |
| Motor Power: | 3.0kW |
| Dimensions – machine (apx): | 1060mm x 570mm x 1760mm (l x w x h) |
| Dimensions – packing (apx): | 1150mm x 640mm x 1960mm (l x w x h) |
| Weights – net/gross (apx): | 600Kg/680Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
