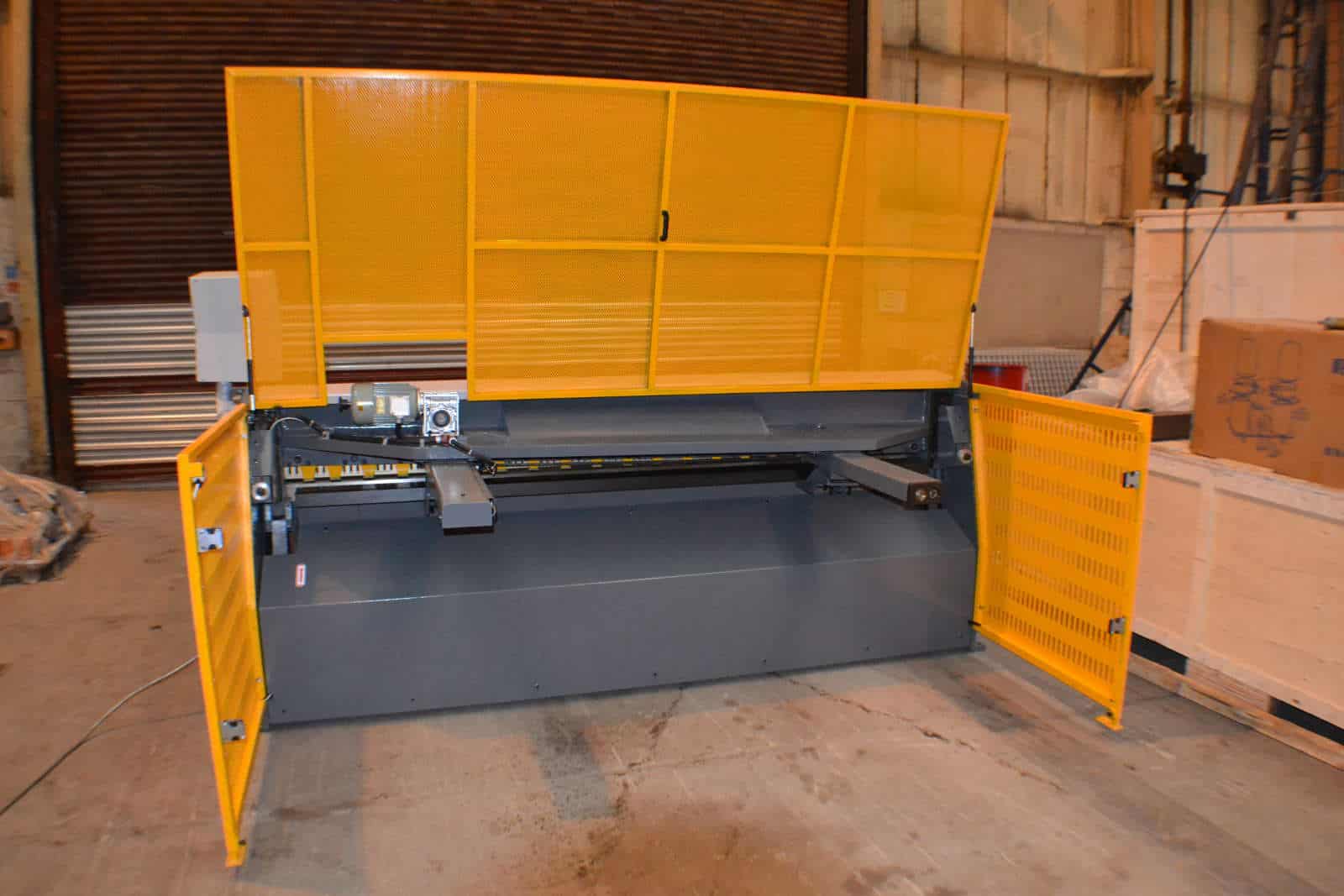

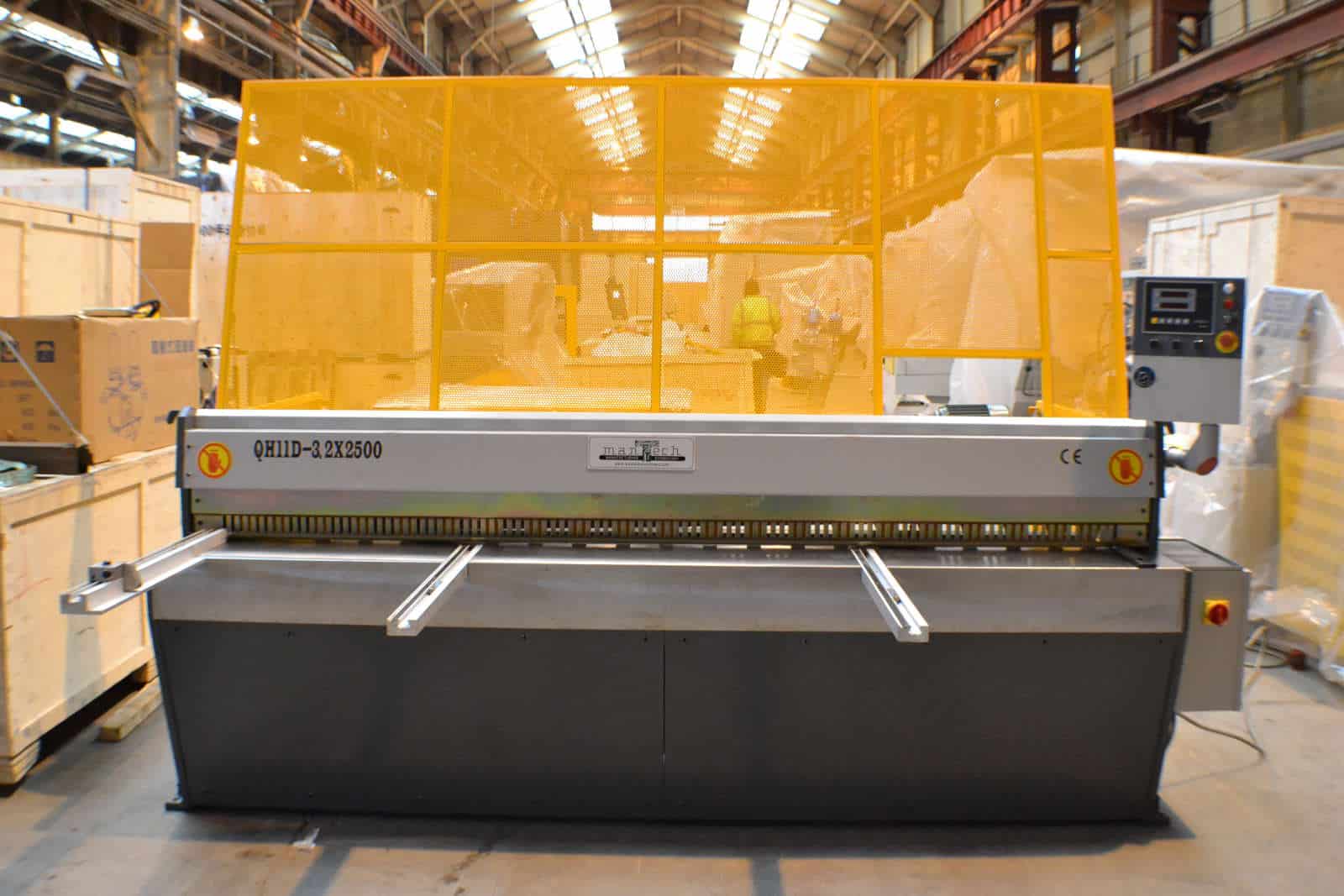

These Power/Mechanically Operated Guillotines (MAG) are lightweight, robust machines designed for precision and durability – achieving superior, precise cuts with minimal effort. Available in 4 size options, these machines are equipped to meet a range of cutting needs. Each model comes with a 1000 mm squaring arm featuring a rule and flip-up stops and front 1000 mm support arms to facilitate ease of operation. The E21S Control System enhances operational efficiency with features like “Go To” positioning, programmable steps, a stock counter, one-side positioning, and a retract facility for increased productivity.
These machines operate on a 400V/3PH/50Hz electrical setup and come standard with optoelectrical rear guards and an electric footswitch.
Designed for demanding environments, these mechanical guillotines are built to withstand heavy-duty use, making them ideal for industrial applications. Engineered with durable components, they deliver consistent performance and long-lasting reliability, even under continuous operation.
Constructed with high-quality materials, these machines offer exceptional stability and strength. The solid build minimises vibrations and ensures precise cutting every time, allowing you to handle a wide range of materials with confidence.
Models Available:
3050mm Blade Length x 3.2mm Capacity (MAG3050)
2500mm Blade Length x 3.2mm Capacity (MAG2500)
2000mm Blade Length x 3.2mm Capacity (MAG2000)
1250mm Blade Length x 3.5mm Capacity (MAG1250)
| SPECIFICATIONS | |
| Model: | MAG3050 |
| Cutting Length: | 3050mm |
| Maximum Thickness: | 3.2mm Capacity |
| Back Guard: | Up to 650mm |
| Cutting Angle: | 1°30 |
| Number of Strokes: | 47/min |
| Motor Power: | 11.0kW |
| Supply Voltage: | 400v, 3 Phase Electrics, 50Hz |
| Machine Dimensions (apx): | 3630mm x 2250mm x 1400mm (l x w x h) |
| Weight – Net (apx): | 3950Kg |
| SPECIFICATIONS | |
| Model: | MAG2500 |
| Cutting Length: | 2500mm |
| Maximum Thickness: | 3.2mm Capacity |
| Back Guard: | Up to 650mm |
| Cutting Angle: | 1°18 |
| Number of Strokes: | 47/min |
| Motor Power: | 7.5kW |
| Supply Voltage: | 400v, 3 Phase Electrics, 50Hz |
| Machine Dimensions (apx): | 3124mm x 2210mm x 1180mm (l x w x h) |
| Weight – Net (apx): | 2200Kg |
| SPECIFICATIONS | |
| Model: | MAG2000 |
| Cutting Length: | 2000mm |
| Maximum Thickness: | 3.2mm Capacity |
| Back Guard: | Up to 650mm |
| Cutting Angle: | 1°45 |
| Number of Strokes: | 47/min |
| Motor Power: | 7.5kW |
| Supply Voltage: | 400v, 3 Phase Electrics, 50Hz |
| Machine Dimensions (apx): | 2624mm x 2210mm x 1180mm (l x w x h) |
| Weight – Net (apx): | 1800Kg |
| SPECIFICATIONS | |
| Model: | MAG1250 |
| Cutting Length: | 1250mm |
| Maximum Thickness: | 3.5mm Capacity |
| Back Guard: | Up to 650mm |
| Cutting Angle: | 1°30 |
| Number of Strokes: | 47/min |
| Motor Power: | 5.5kW |
| Supply Voltage: | 400v, 3 Phase Electrics, 50 Hz |
| Machine Dimensions (apx): | 1860mm x 2210mm x 1180mm (l x w x h) |
| Weight – Net (apx): | 1450Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
