WNS 1000mm 3 in 1 Combination Machine

3 in 1 Combination Machines


Description

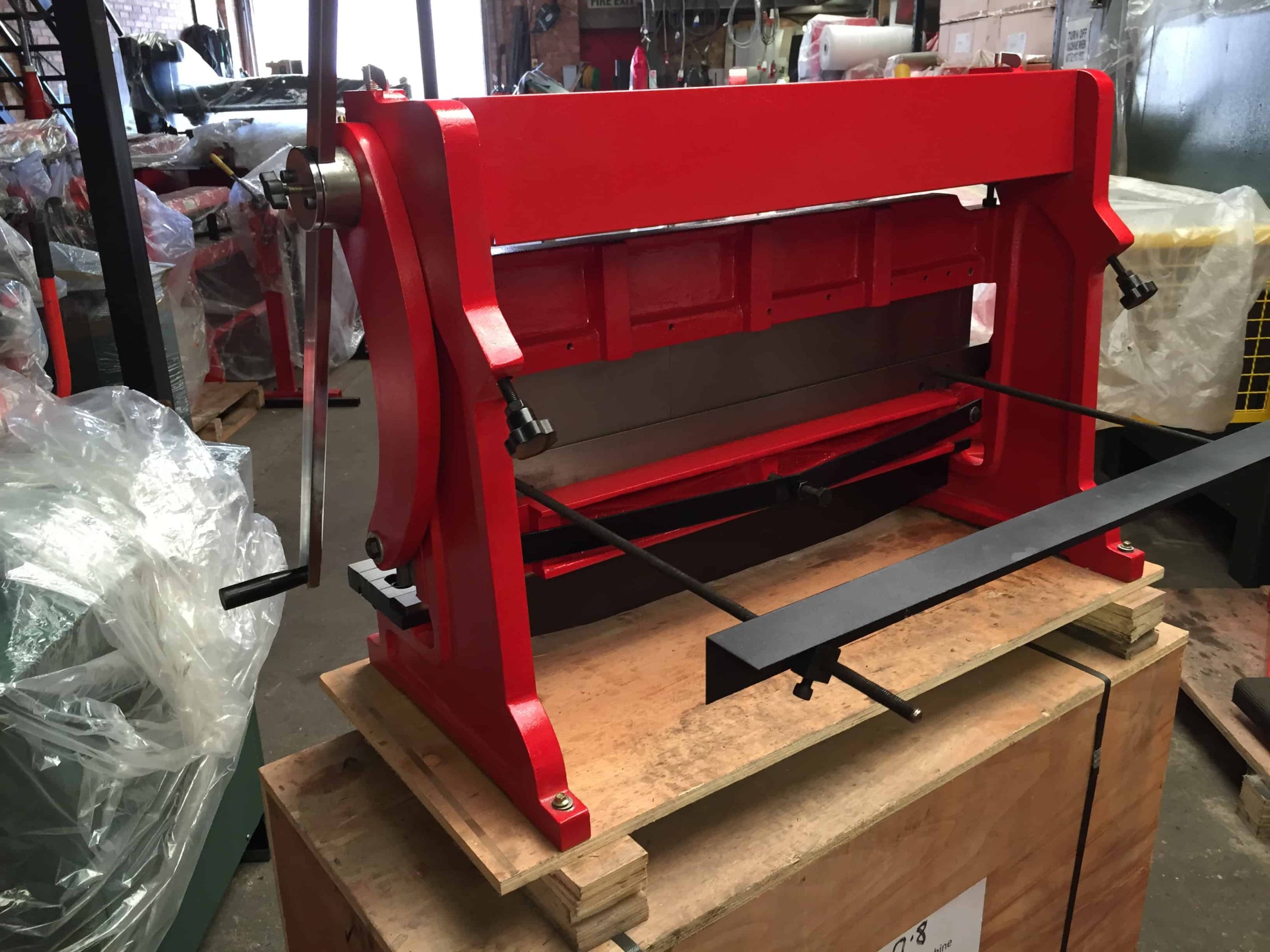

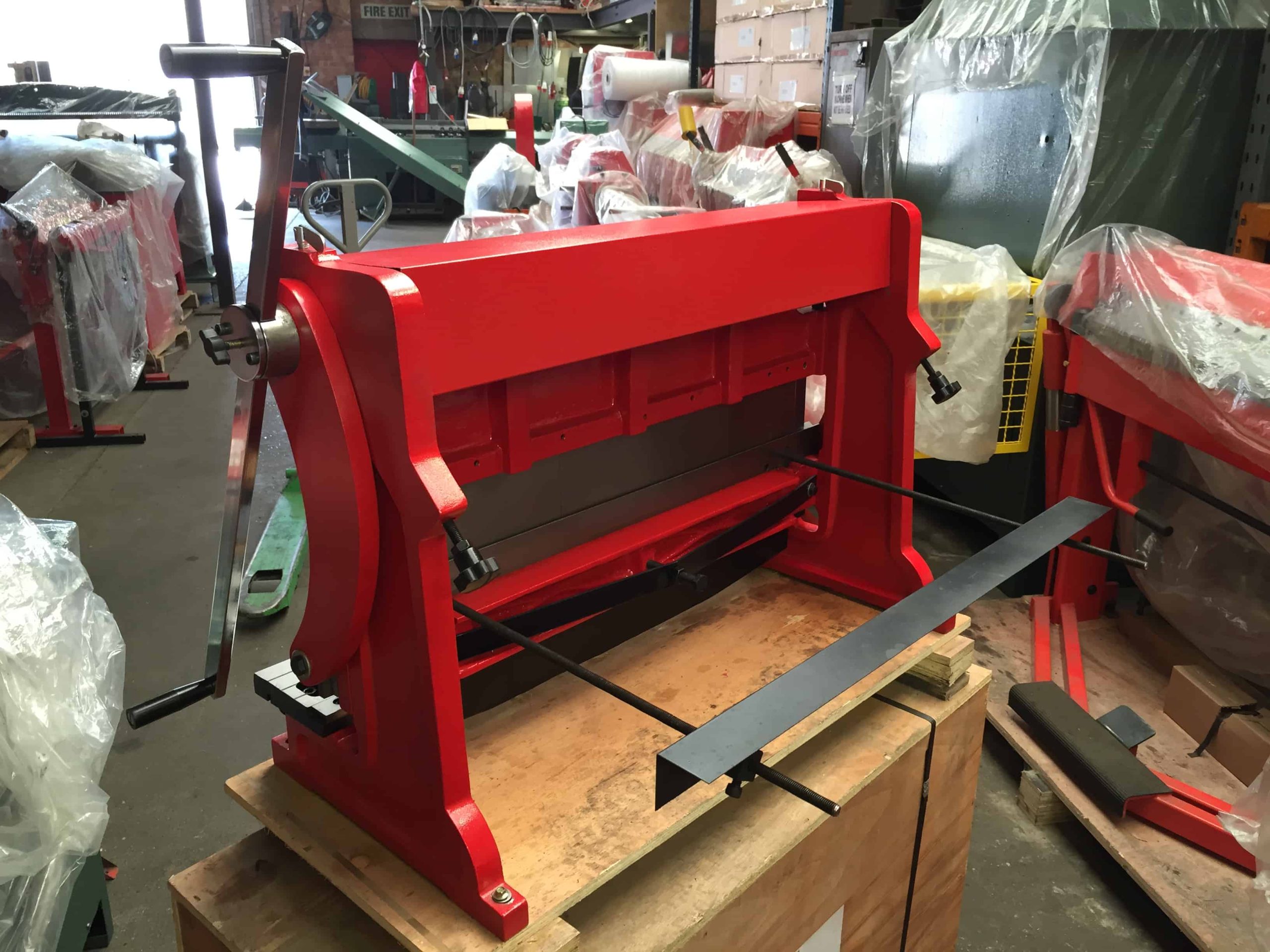

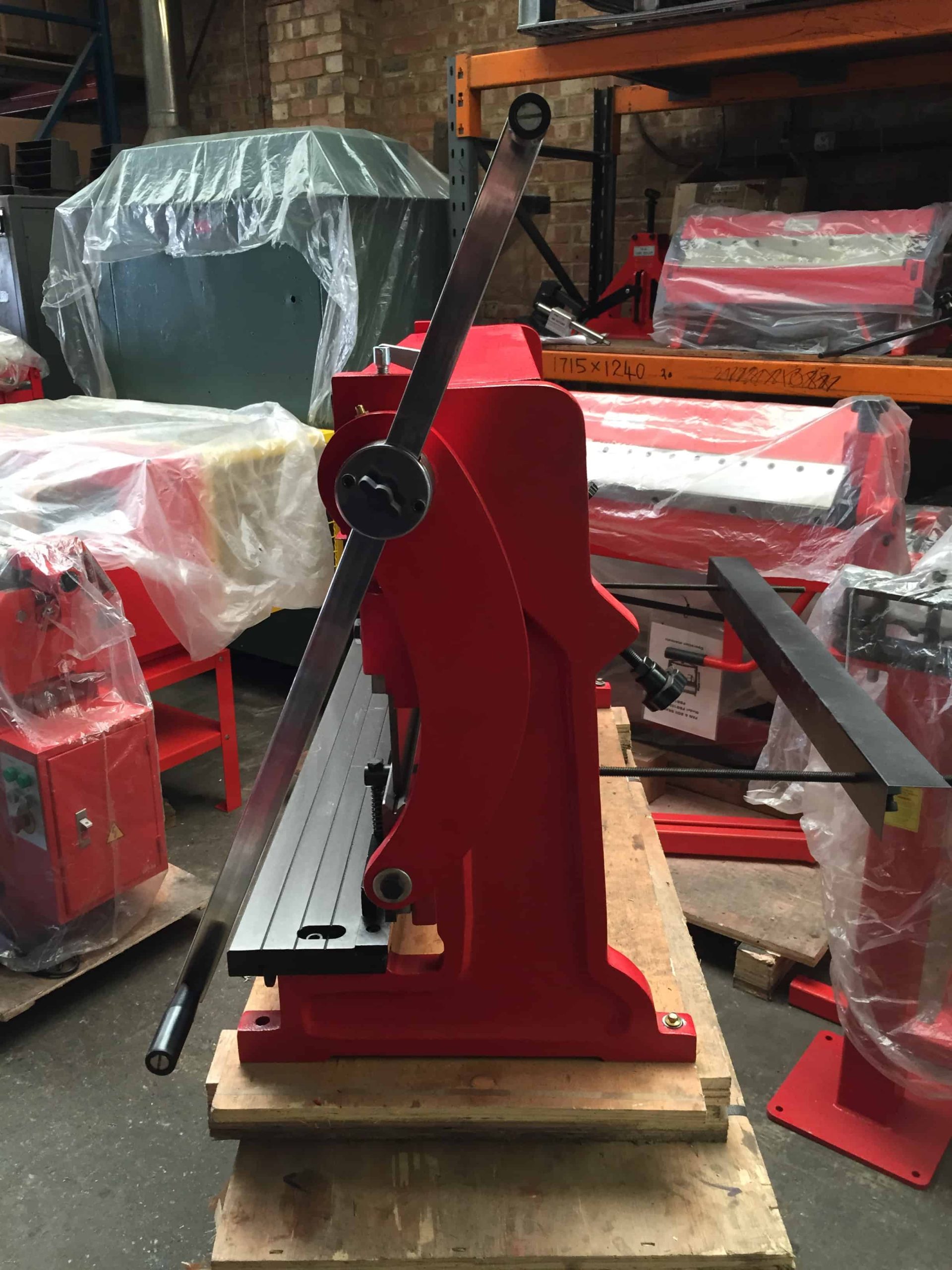

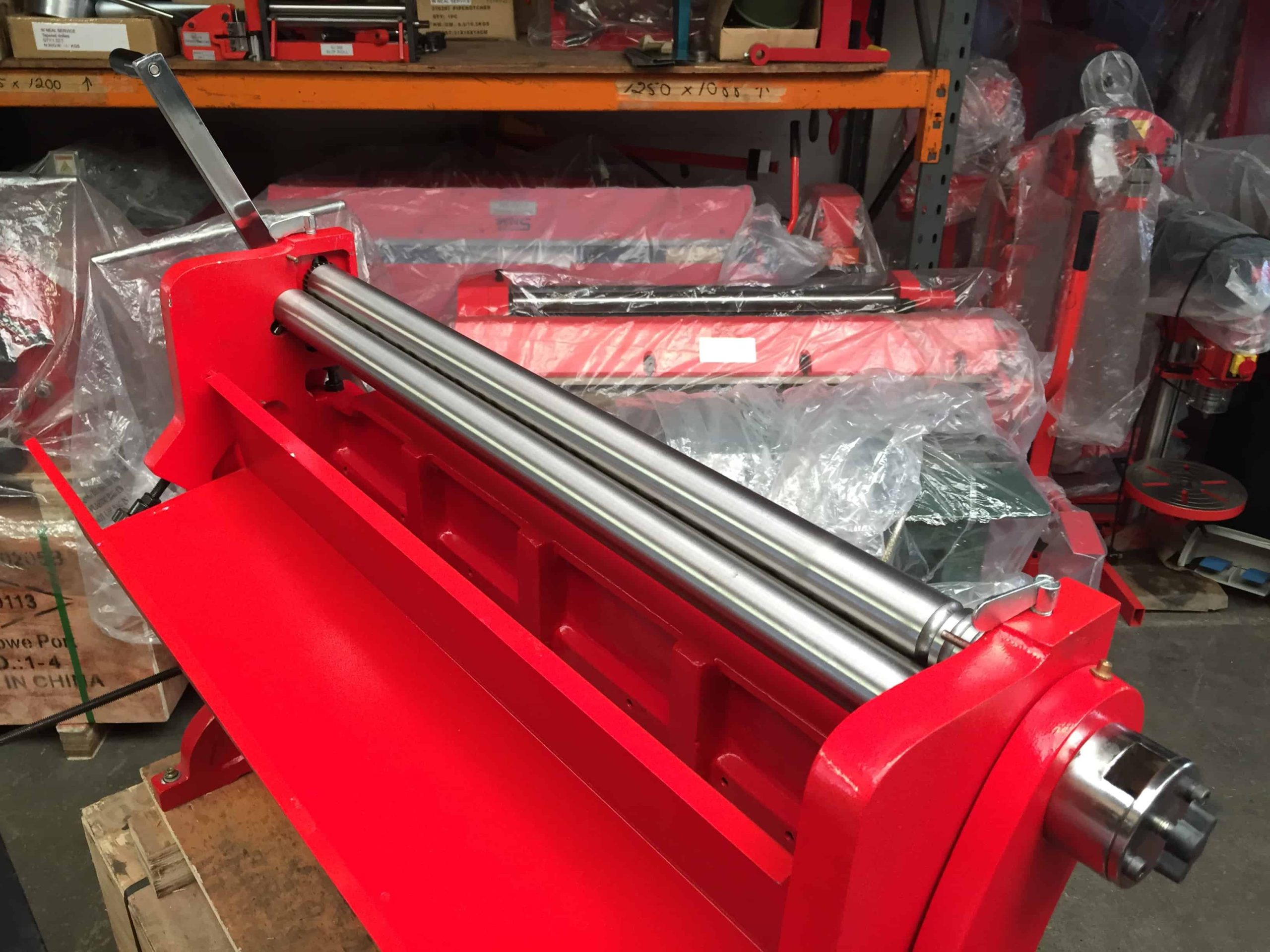

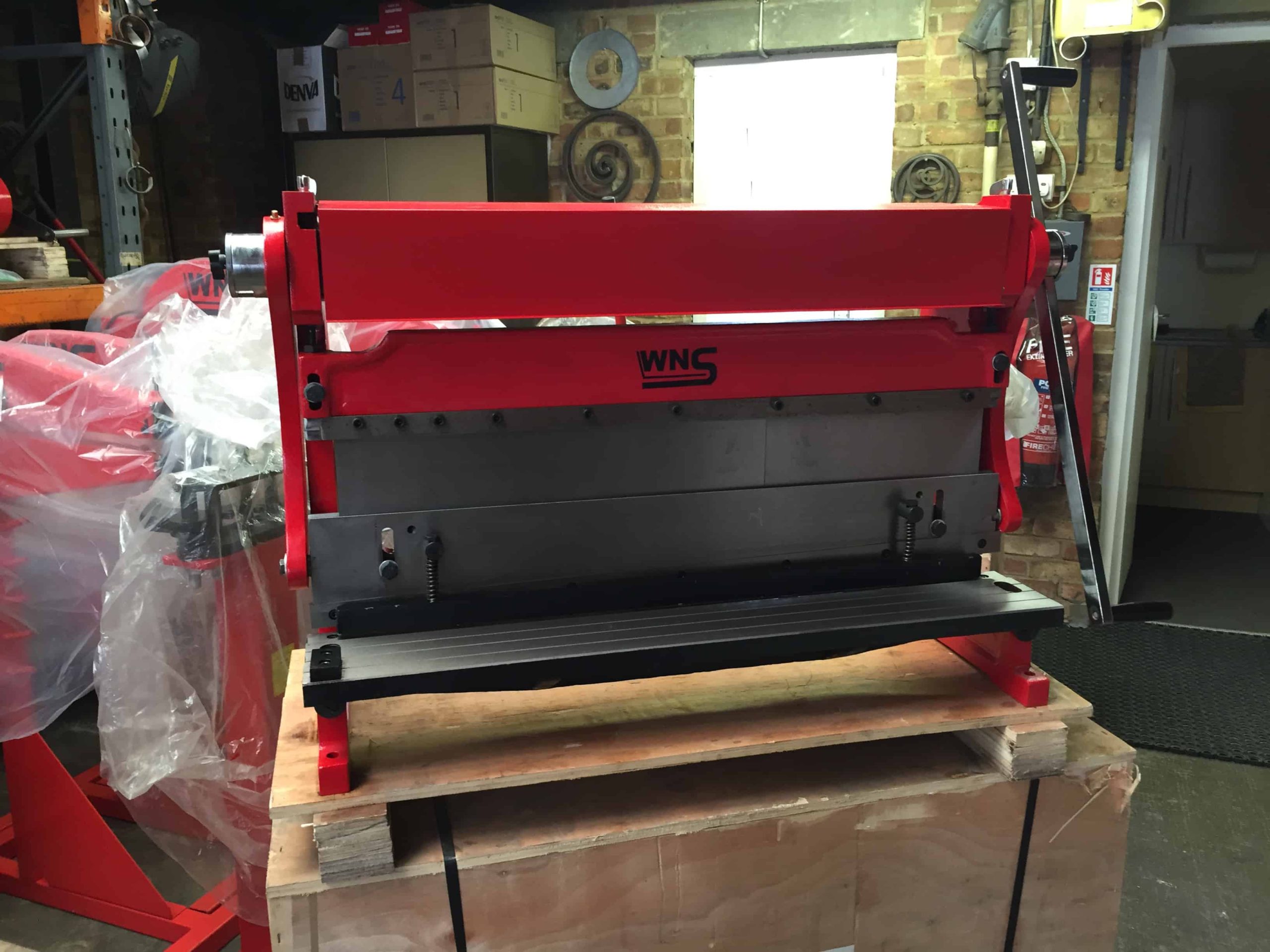

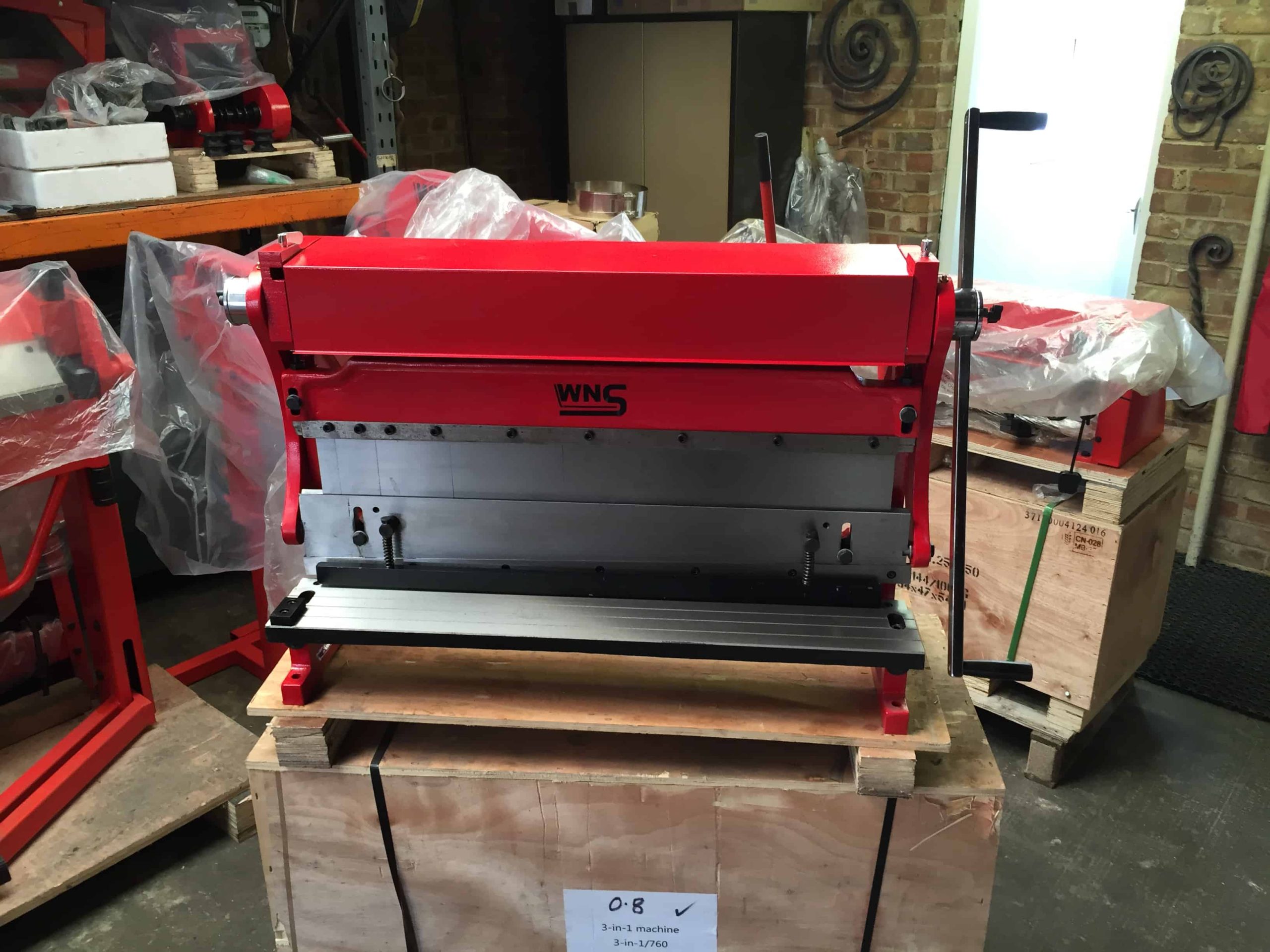

WNS 3 in 1 COMBINATION MACHINE (CM1000) includes Bending Rolls, a Box Pan Folder & a Guillotine. This machine can be bench mounted or fixed to a stand (not included). The Bending Rolls form tubes and (limited) coning and have 3 wiring grooves that will form wire loops. The Folder will form over the full width of the bed and sectional fingers allow box & pan work by increments. The Guillotine accommodates cutting over the full length of the machine.
Please note for harder material the capacity must be reduced.


View Literature



Additional information

Weight 500 kg
SPECIFICATIONS
Model: CM1000
Maximum Thickness: 0.8mm Mild Steel
Rolling Size: 1040mm Length x 42mm Diameter
Wiring Grooves (x 3): 5.0mm
7.0mm
8.0mm
Folding Length: 1000mm
Folding Angle: Up to 90˚


Finger Sizes:



1 x 25mm
1 x 38mm
1 x 51mm
1 x 102mm
1 x 178mm
1 x 254mm
1 x 381mm
Back Stop Range (apx): 100mm – 400mm
Cutting Length: 1020mm
Dimensions – machine (apx): 1200mm x 370mm x 560mm (l x w x h)
Dimensions – packing (apx): 1350mm x 450mm x 680mm (l x w x h)
Weights – net/gross (apx): 176Kg/206Kg

All capacities are based on the use of Rollforming quality Mild Steel unless otherwise stated. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full Terms & Conditions. E&OE.

SKU: CM1000

WNS 1000mm 3 in 1 Combination Machine

BACK IN STOCK SOON….
Contact us to register your interest and we will let you know as soon as new stock arrives.
​​​​😊

  • 3 in 1 Machine
  • 1000mm Long Bed
  • 0.8mm Capacity Mild Steel
  • Bending Rolls
  • 3 x Wiring Grooves
  • Box & Pan Folder
  • 7 x Fingers
  • Back Stop Range 100mm – 400mm
  • Guillotine

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
