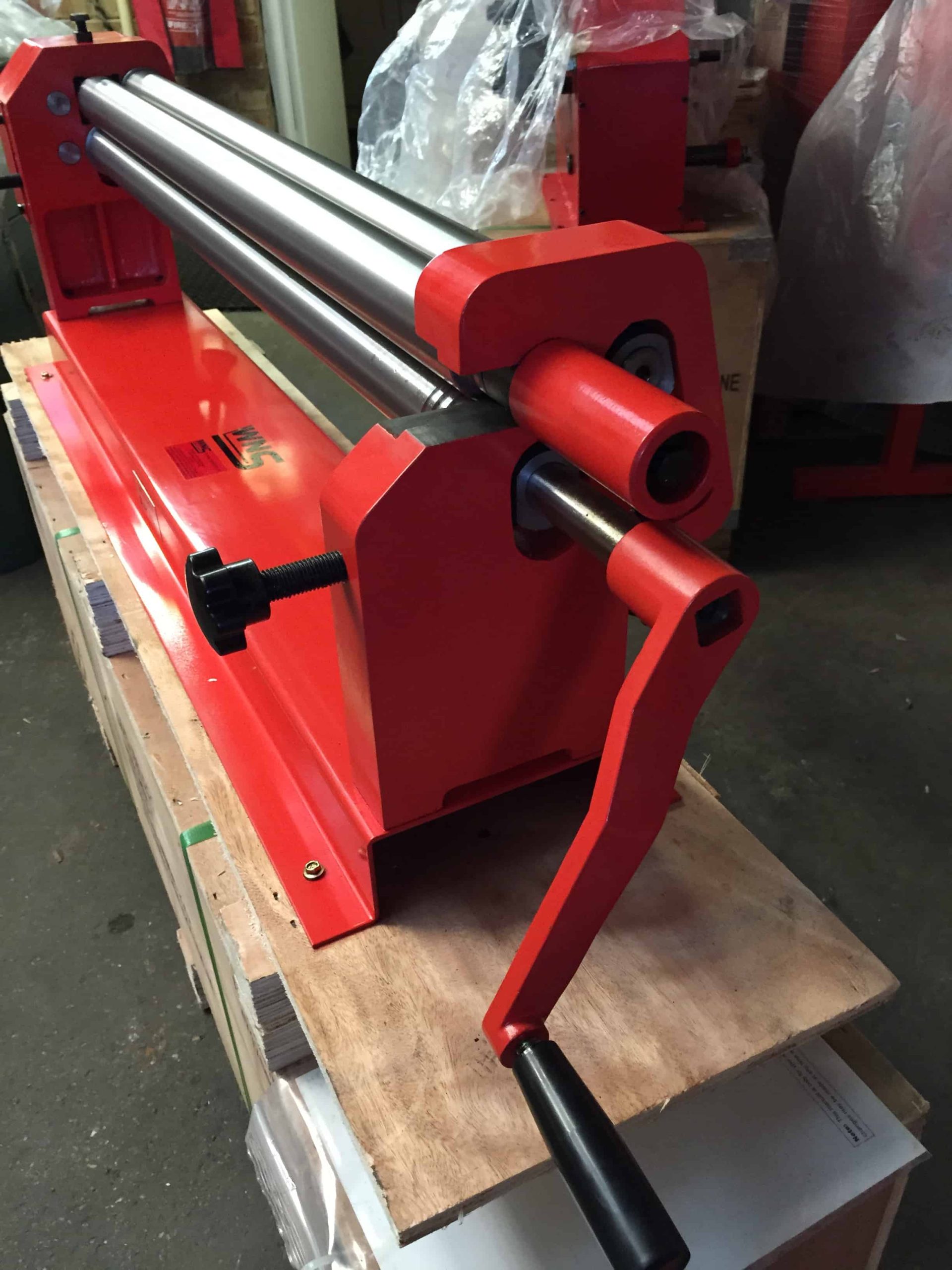

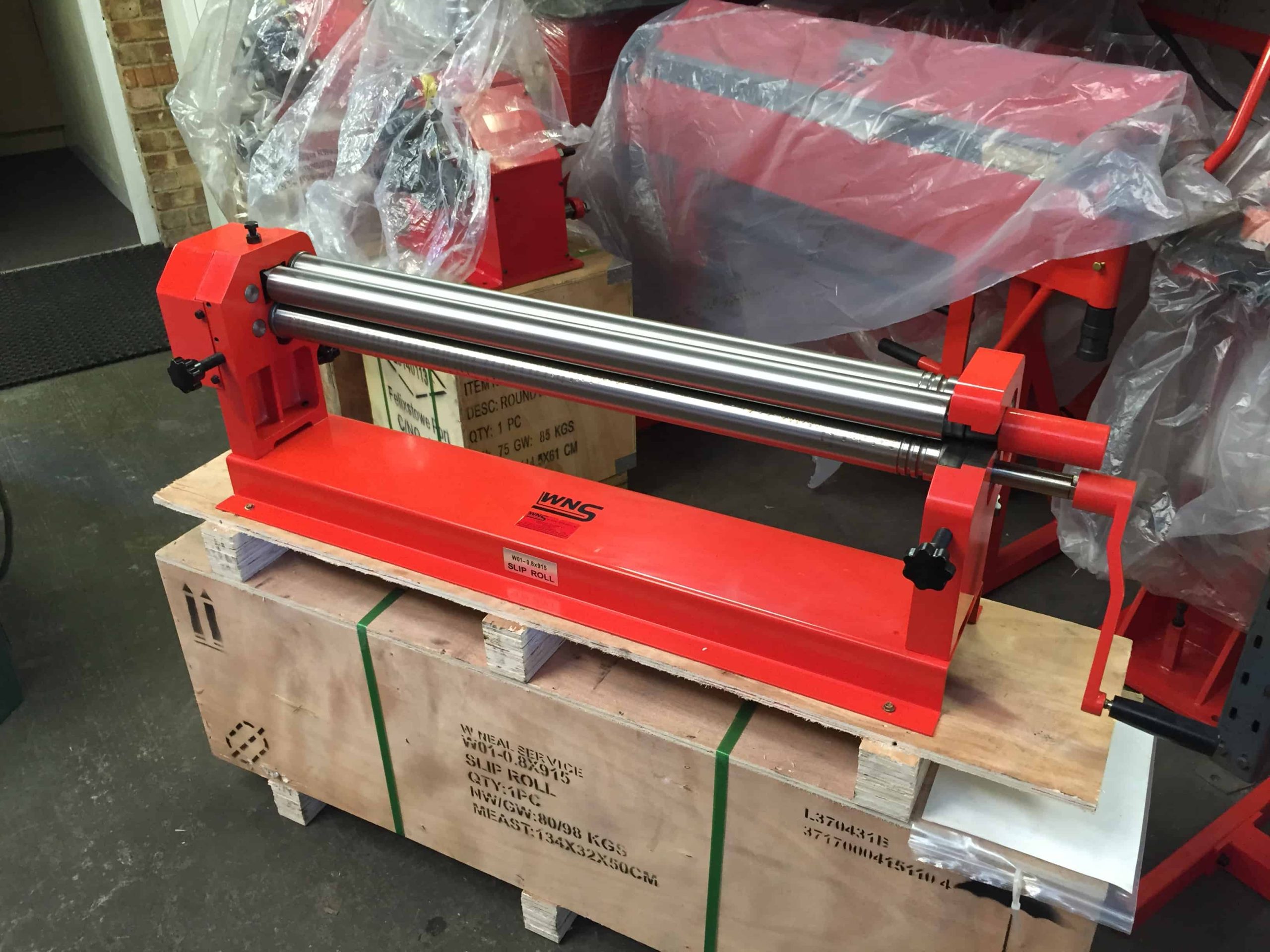

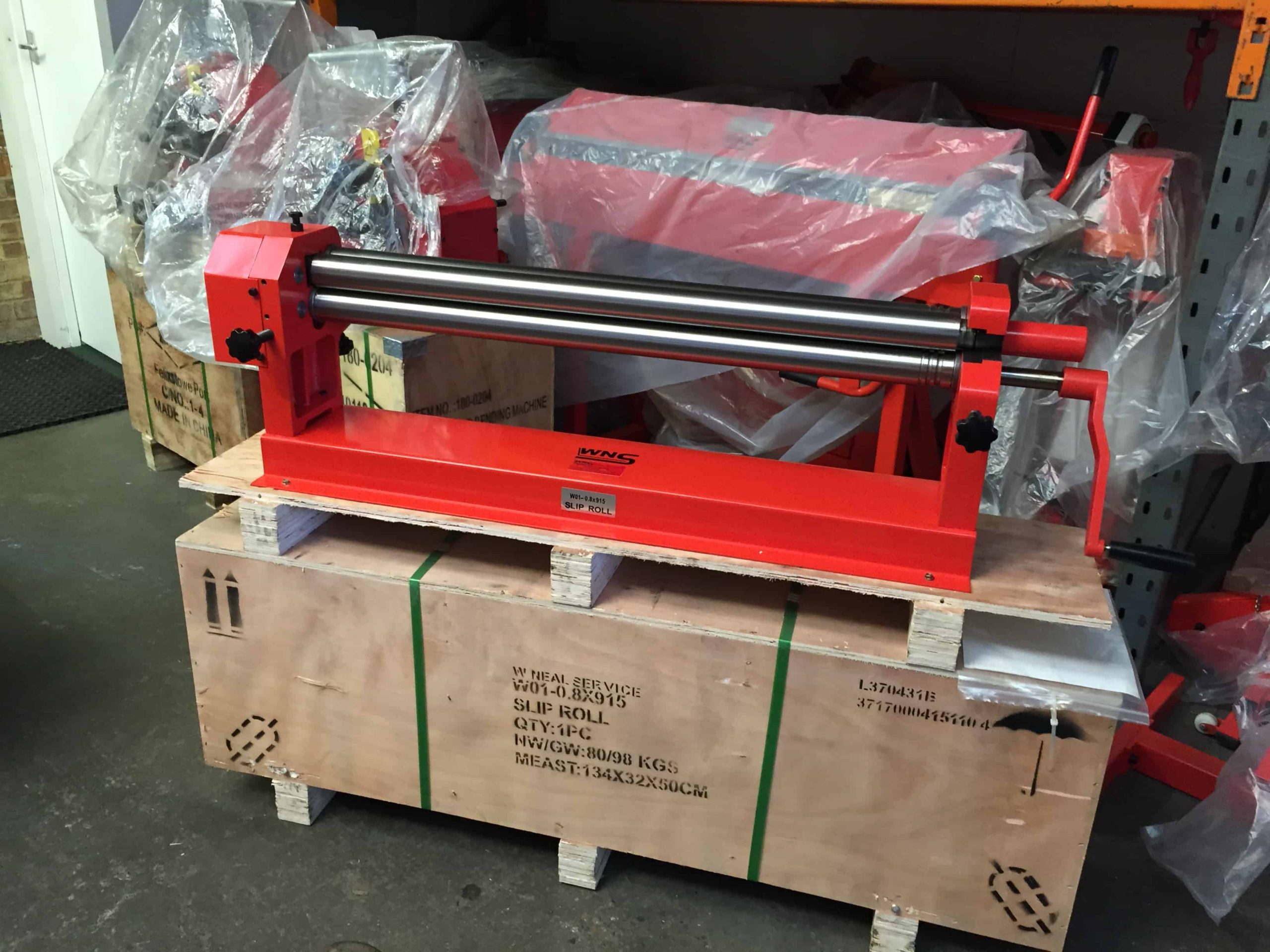

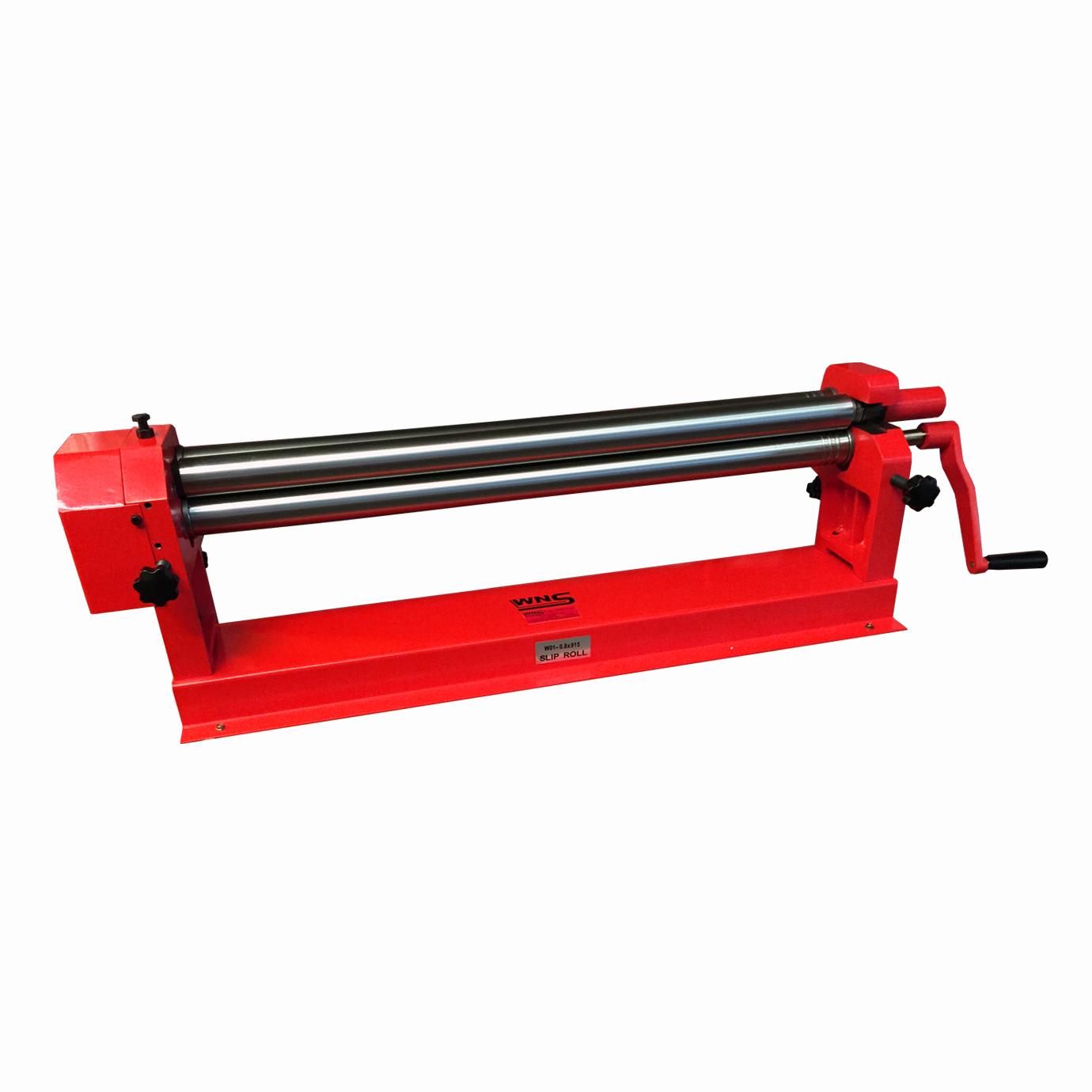

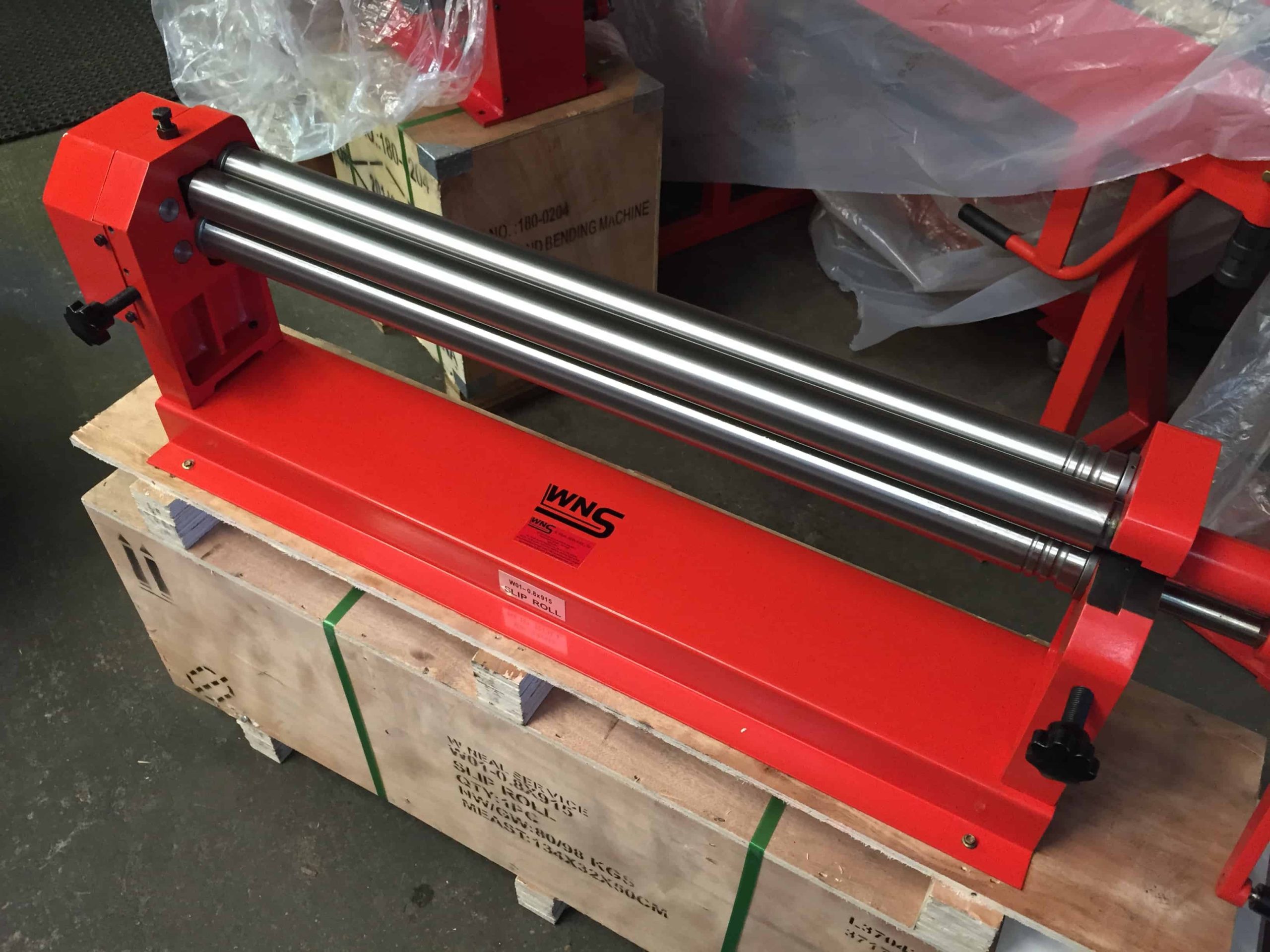

WNS Bench Bending Rolls 915mm x 50mm

  • Bench Mount
  • 915mm Roll Length x 50mm Roll Diameter
  • 1.2mm Capacity Mild Steel

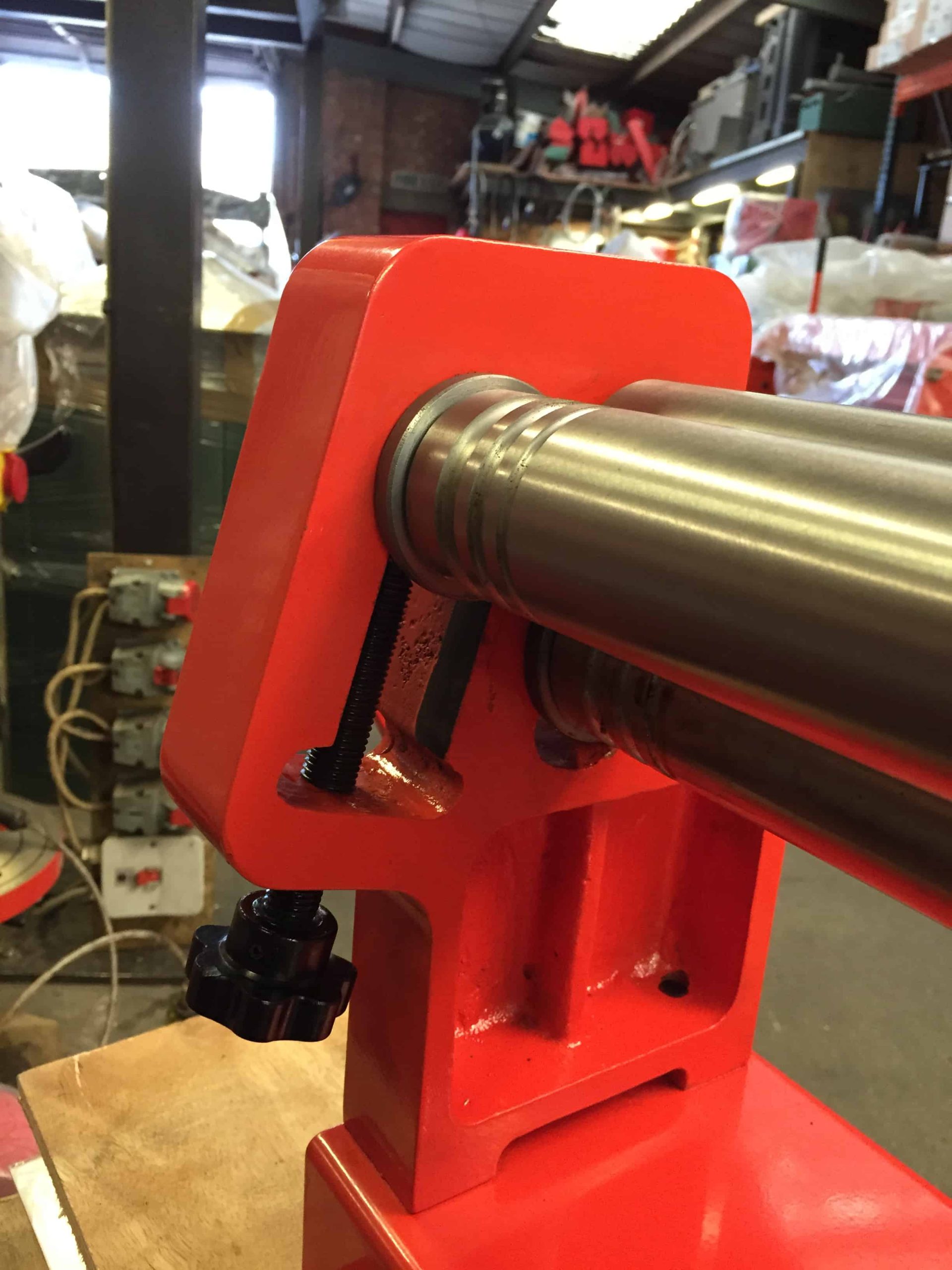

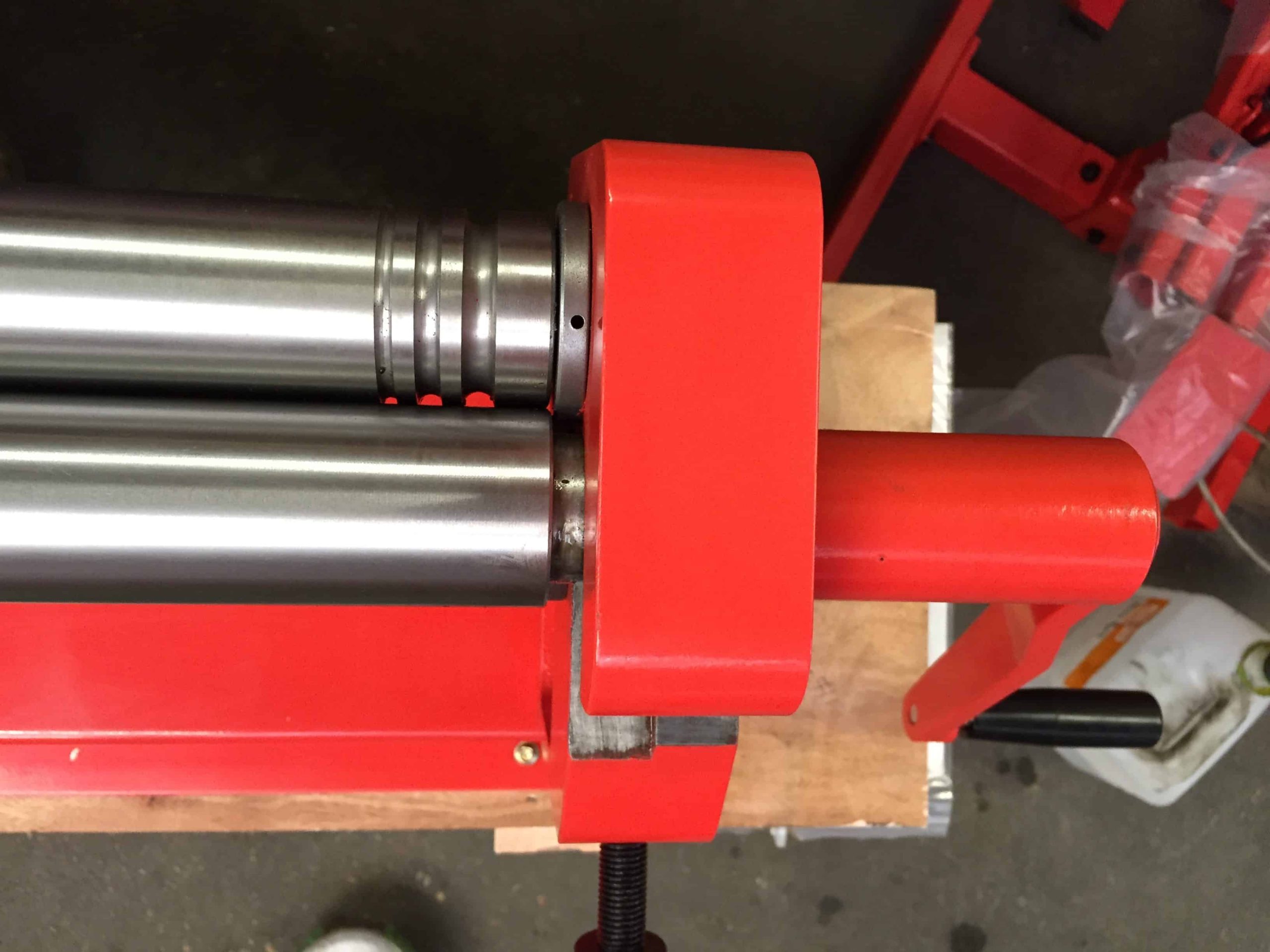

  • 3 x Wiring Grooves

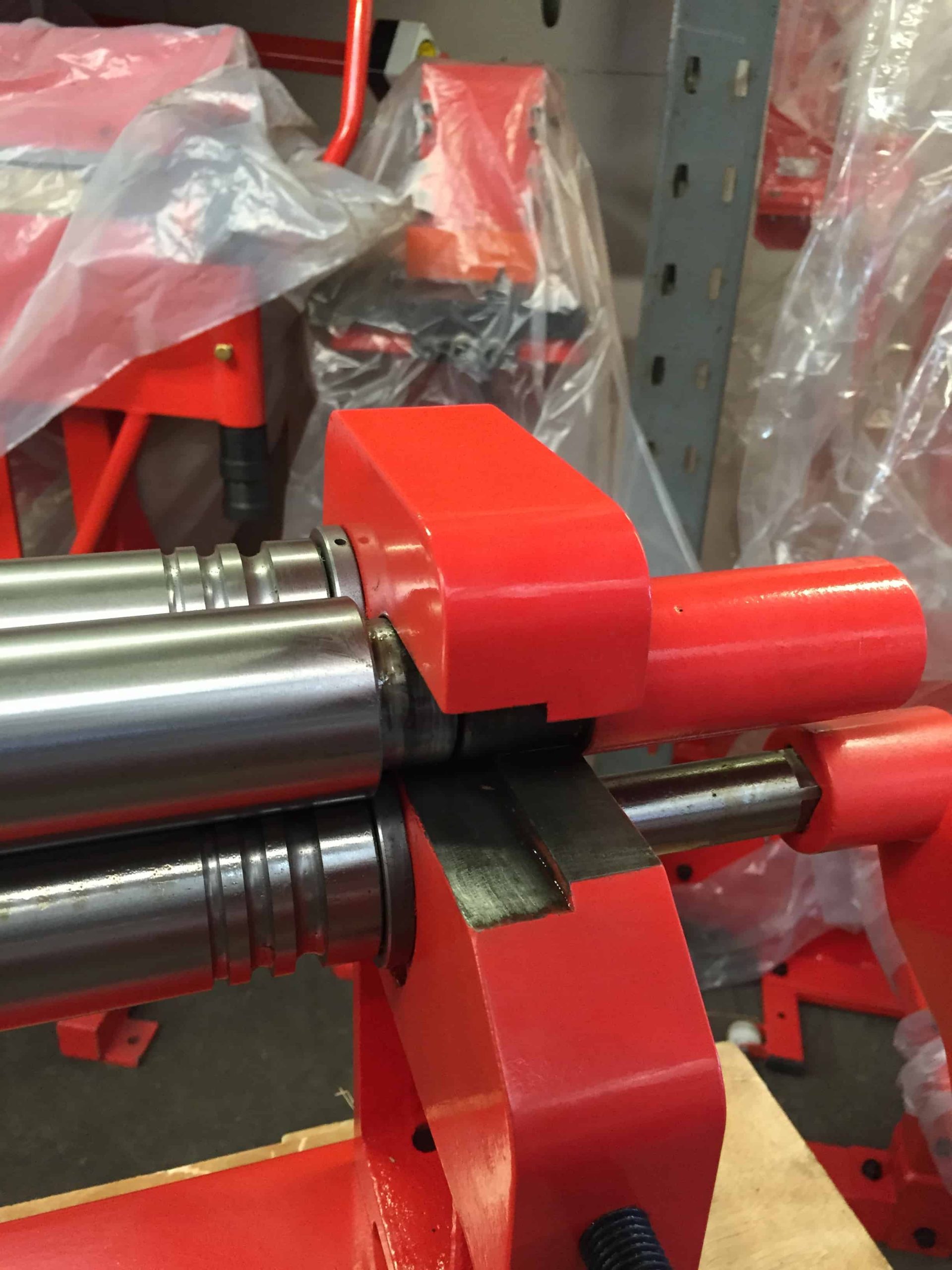

  • Top Slip with Quick Release Top Roll
  • Cast Iron End Frame

Description

WNS INITIAL PINCH BENCH BENDING ROLLS (BR915/50) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR915/50 has a 915mm roll length, 50mm roll diameter and can accommodate mild steel up to 1.2mm thick. These rolls are equipped with 3 wiring grooves and have the following features: top slip with a quick release top roll, independent back roll adjustment and a cast iron end frame.





Additional information

Weight 98 kg
SPECIFICATIONS
Model: BR915/50
Rolling Size: 915mm Roll Length x 50mm Roll Diameter
Maximum Thickness: 1.2mm Mild Steel
Rolls: Top Slip
Wiring Grooves (x 3): 4.0mm
6.0mm
8.0mm
Dimensions – machine (apx): 1230mm x 270mm x 380mm (l x w x h)
Dimensions – packing (apx): 1340mm x 340mm x 500mm (l x w x h)
Weight (apx): 98Kg



All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
