WNS 300mm 3 in 1 Combination Machine (CM300)

3 in 1 Combination Machines


Description

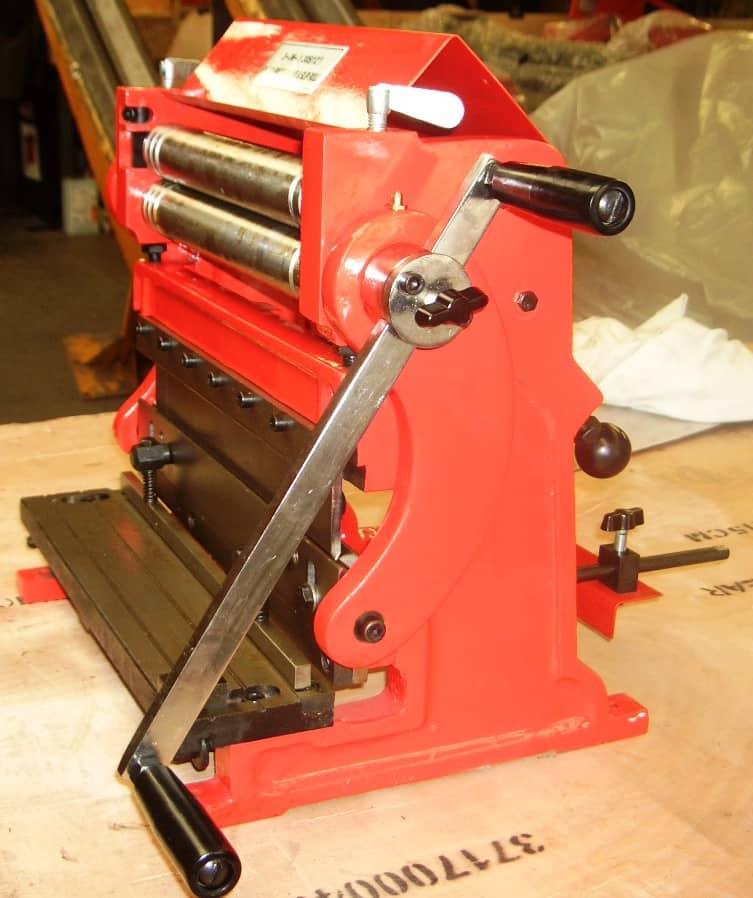

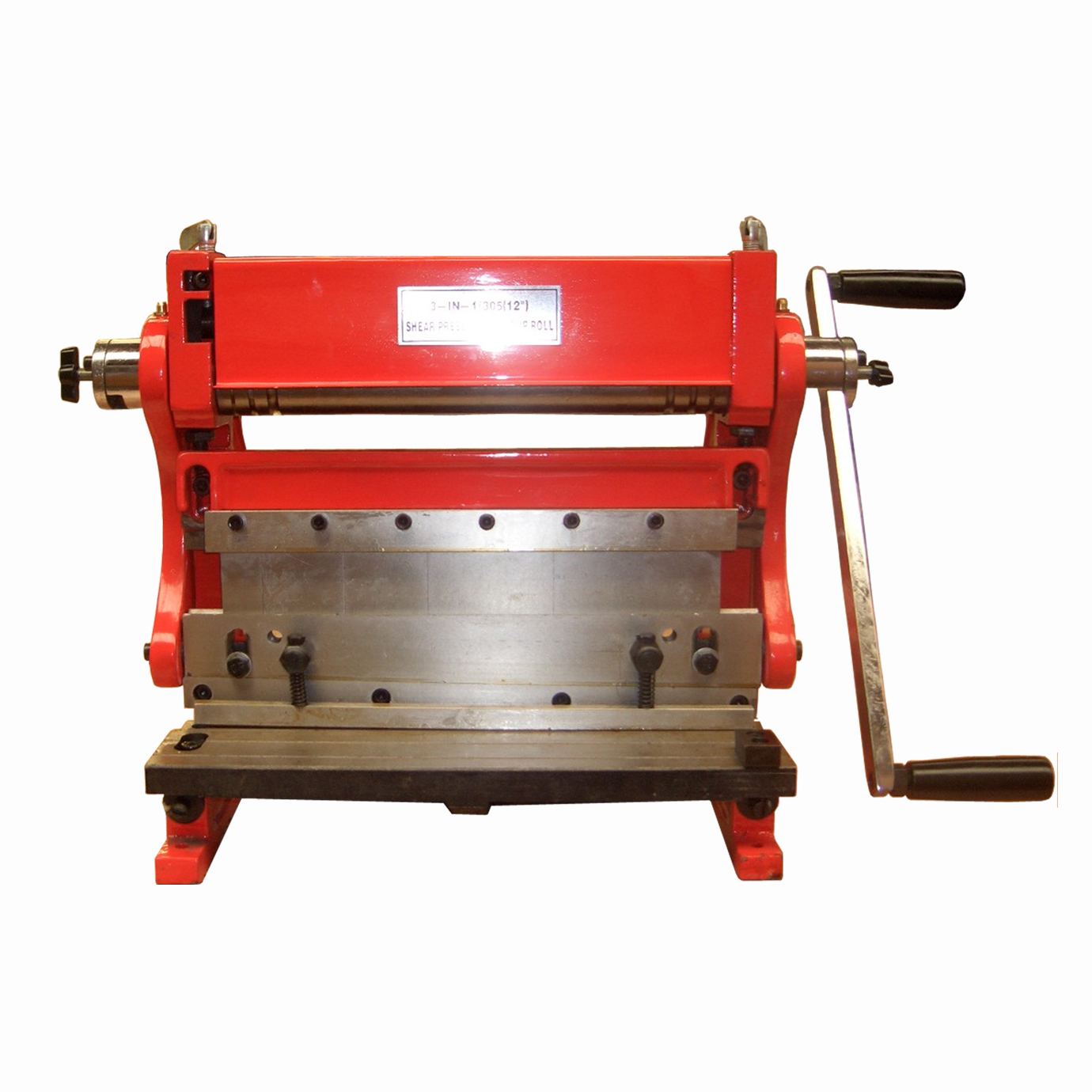

WNS 3 in 1 COMBINATION MACHINE (CM300) includes Bending Rolls, a Box Pan Folder & a Guillotine. This machine can be bench mounted or fixed to a stand (not included). The Bending Rolls form tubes and (limited) coning and have 6 wiring grooves that will form wire loops. The Folder will form over the full width of the bed and sectional fingers allow box & pan work by increments. The Guillotine accommodates cutting over the full length of the machine.
Please note for harder material the capacity must be reduced.


View Literature



Additional information

Weight 45 kg
SPECIFICATIONS
Model: CM300
Maximum Thickness: 0.8mm Mild Steel
Rolling Size: 300mm Length x 39mm Diameter
Wiring Grooves (x 6): 2.0mm
2.5mm
3.0mm
4.0mm
5.0mm
6.0mm
Folding Length: 300mm
Folding Angle: Up to 90˚
Finger Sizes (x 5): 1 x 25mm
2 x 51mm
1 x 76mm
1 x 102mm
 Back Stop Range: 12mm – 406mm
Cutting Length: 300mm
Dimensions – machine (apx): 370mm x 290mm x 390mm (l x w x h)
Dimensions – packing (apx): 490mm x 330mm x 420mm (l x w x h)
Weights – net/gross (apx): 43Kg/45Kg

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications.Please note products are not to scale. E&OE.

SKU: CM300

WNS 300mm 3 in 1 Combination Machine (CM300)

£305.00 excluding VAT

2 in stock

  • 3 in 1 Machine
  • 300mm Long Bed
  • 0.8mm Capacity Mild Steel
  • Bending Rolls
  • 6 x Wiring Grooves
  • Box & Pan Folder
  • 5 x Fingers
  • Back Stop Range 12mm – 406mm
  • Guillotine

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
