£95.00
If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:
Manufactured by W. NEAL SERVICES LTD since 1981.
*indicates standard rolls. **fees apply.
W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery since 1981.

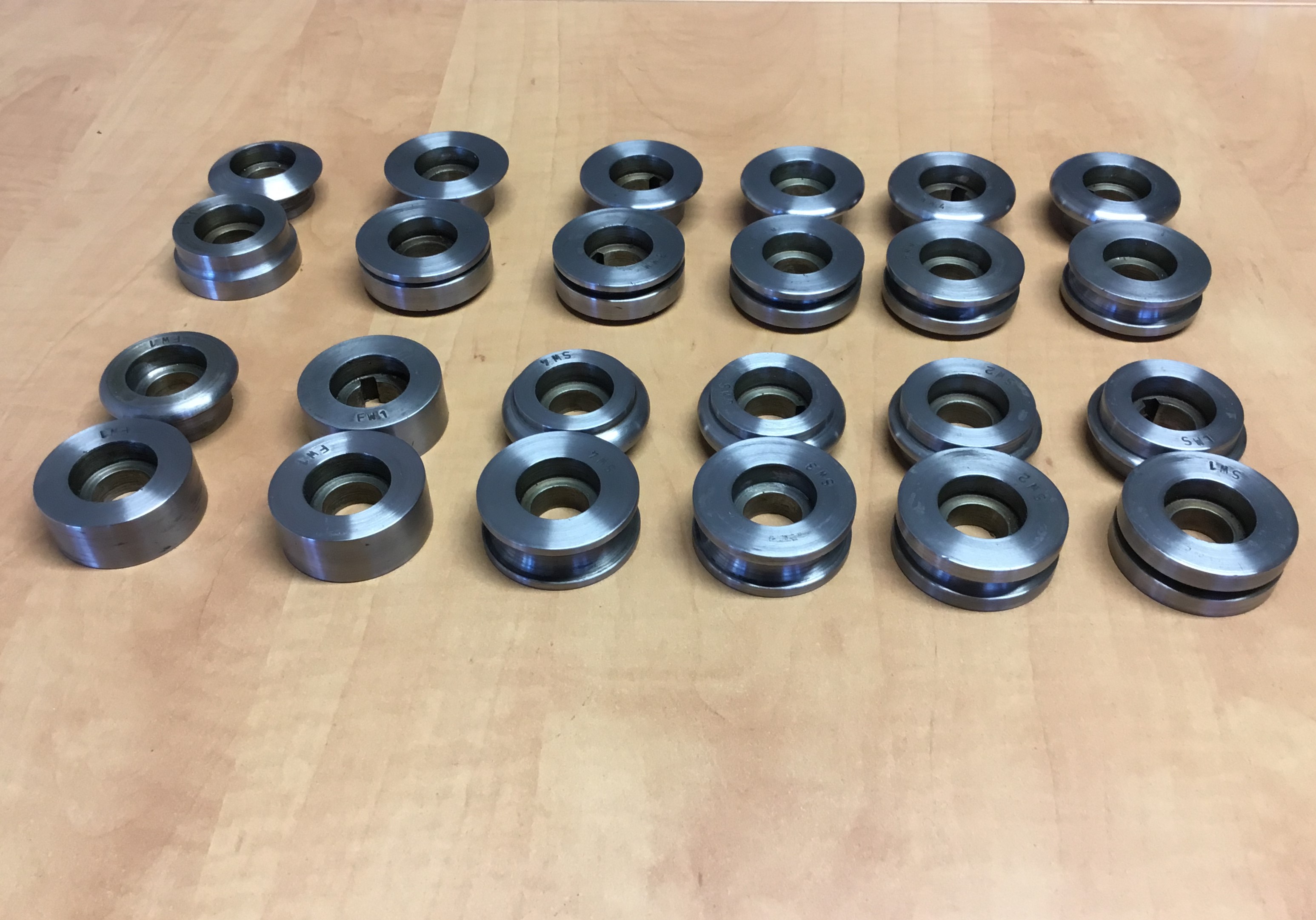

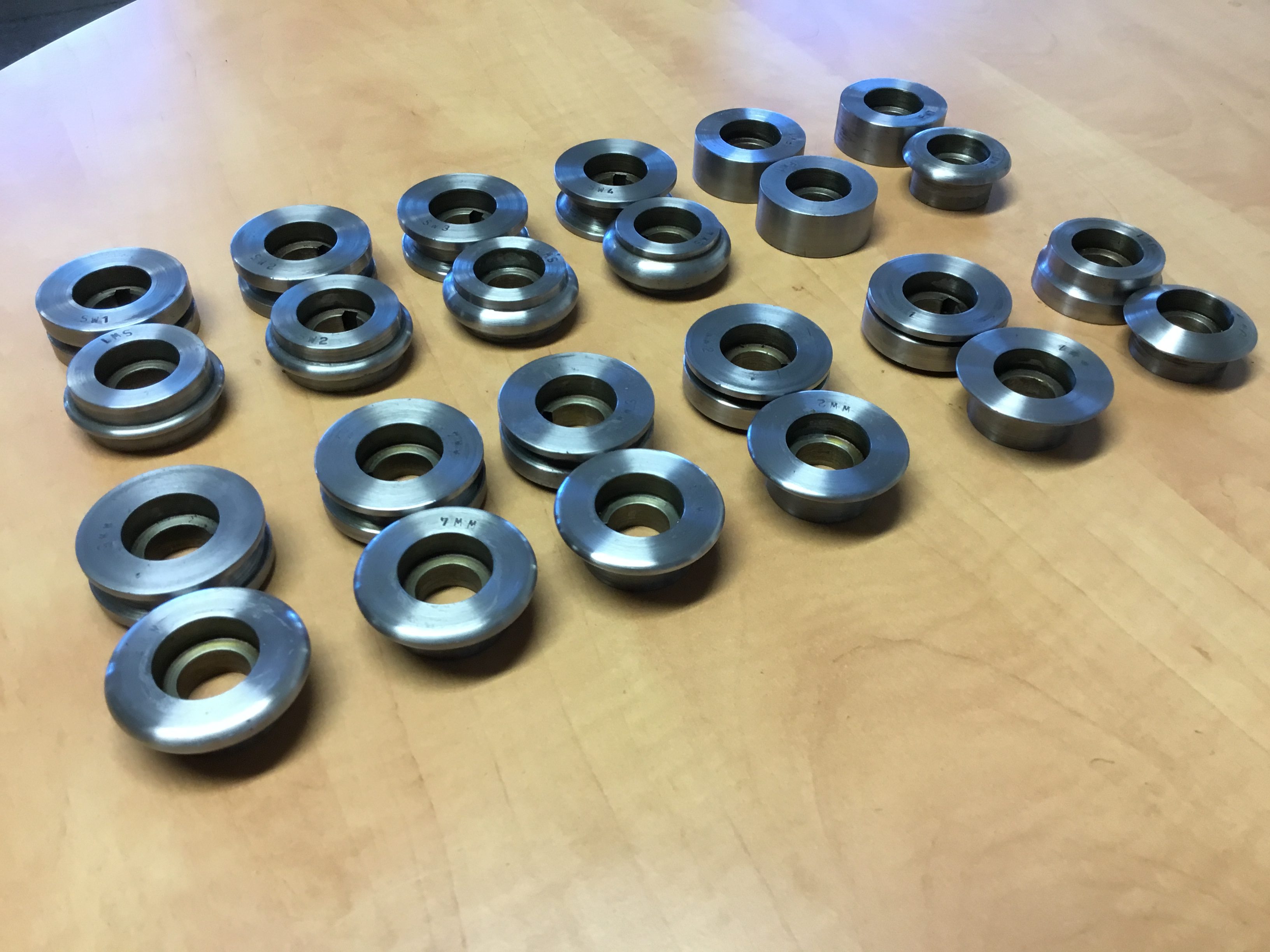

WNS 18mm SWAGER ROLLS (CMZ4-ROLLS) are designed specifically for CMZ 4 manual swagers. Rolls available include swage rolls (wheels), jenny/flange rolls (wheels), wire rolls (wheels), flat/plain rolls (wheels) and closing rolls (wheels).
Alternative & additional swager roll sets also available and stocked, including:
Please do not hesitate to contact us should you require assistance in choosing the correct rolls on 01702 542554 | 01702 542558.
Please note: photographs are as a guide only.
| Weight | N/A |
|---|

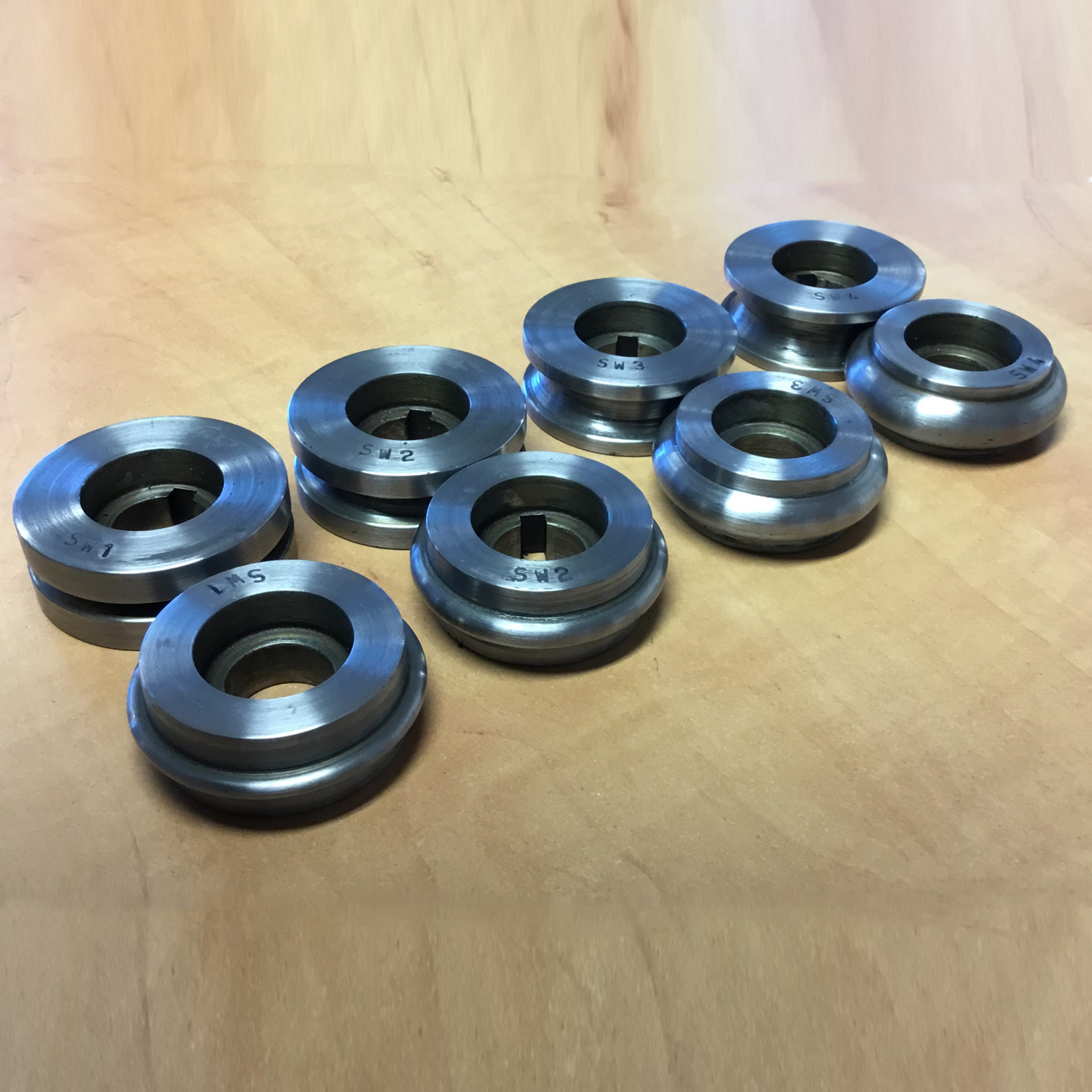

| SWAGING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Diameter: |
| Swaging – SW1 | SW1-170 |
3.0mm |
| Swaging – SW2 | SW2-170 | 6.0mm |
| Swaging – SW3 | SW3-170 | 10mm |
| Swaging – SW4 | SW4-170 | 12mm |
| JENNY/FLANGING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Step: |
| Jenny – JW1 | JW1-170 |
1.5mm |

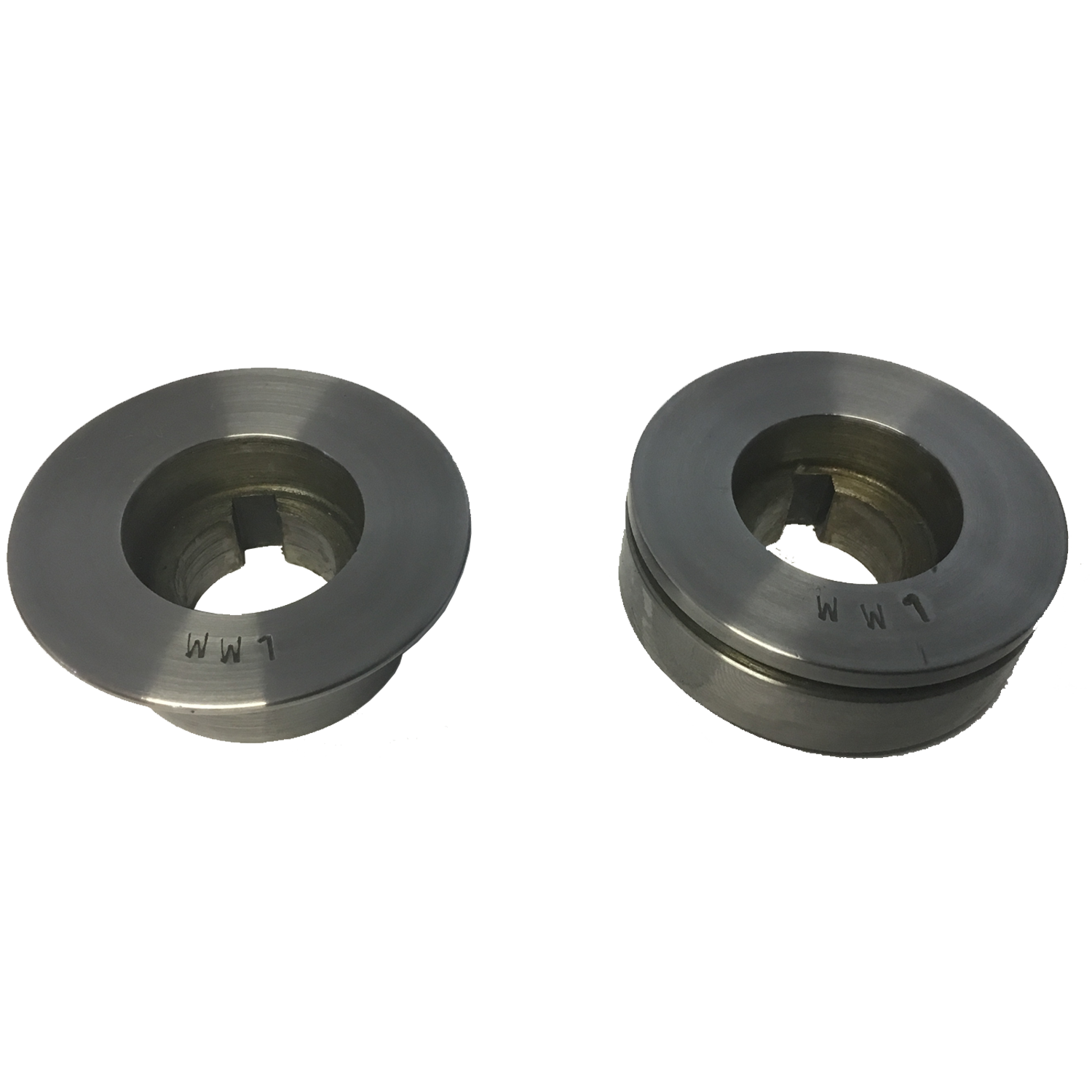

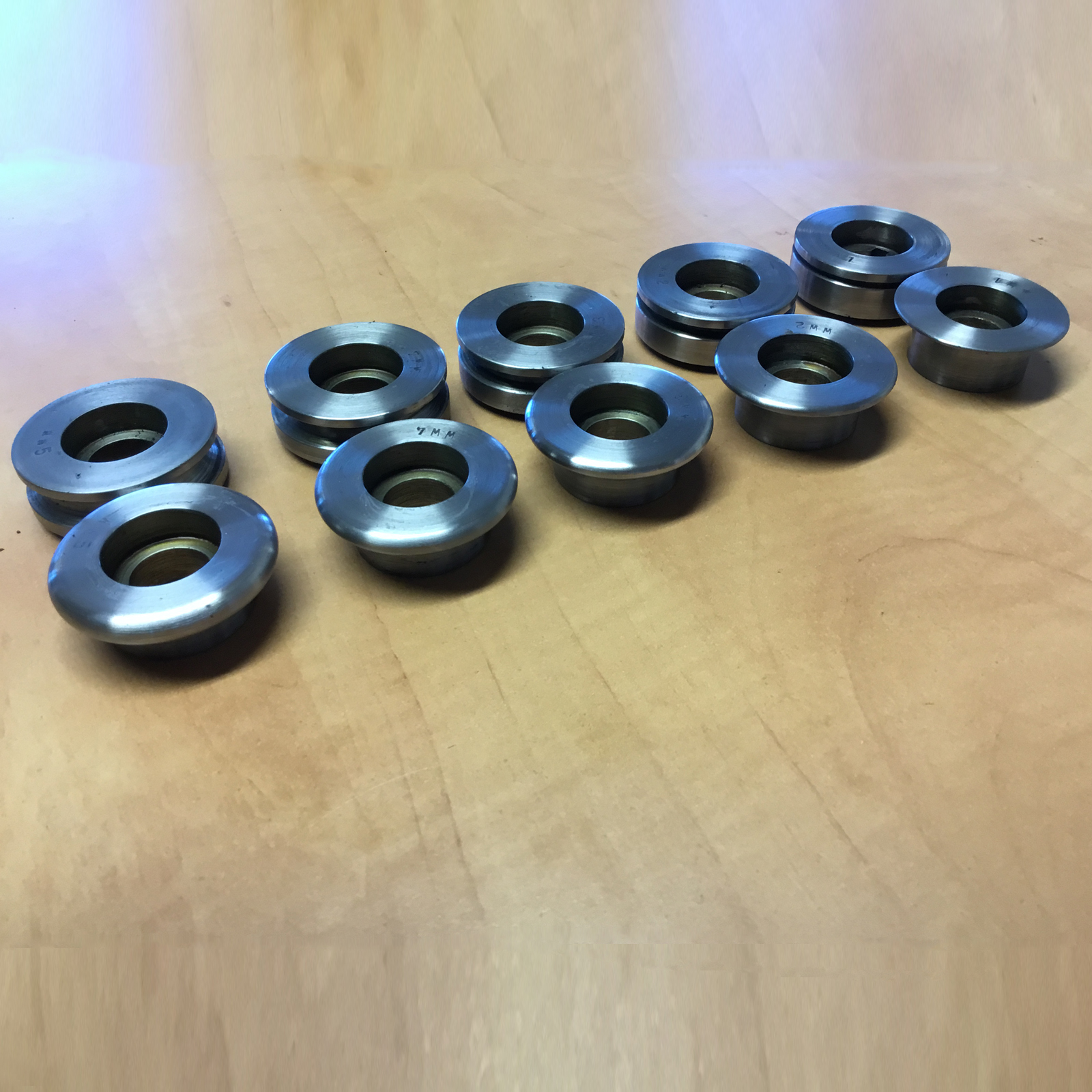

| WIRING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Diameter: |
| Wiring – WW1 | WW1-170 | 1.5mm |
| Wiring – WW2 | WW2-170 | 3.0mm |
| Wiring – WW3 | WW3-170 | 5.0mm |
| Wiring – WW4 | WW4-170 | 6.0mm |
| Wiring – WW5 | WW5-170 | 8.0mm |

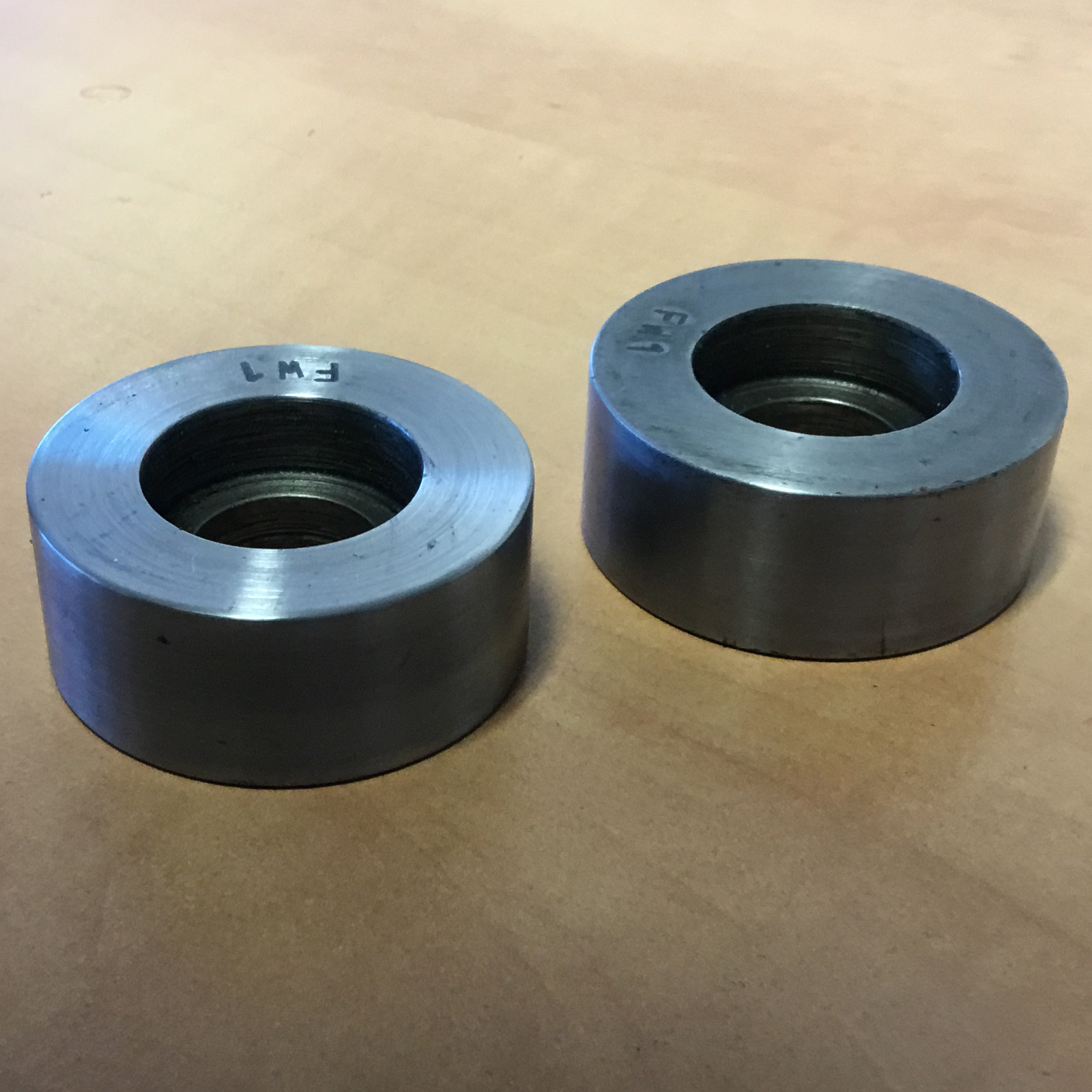

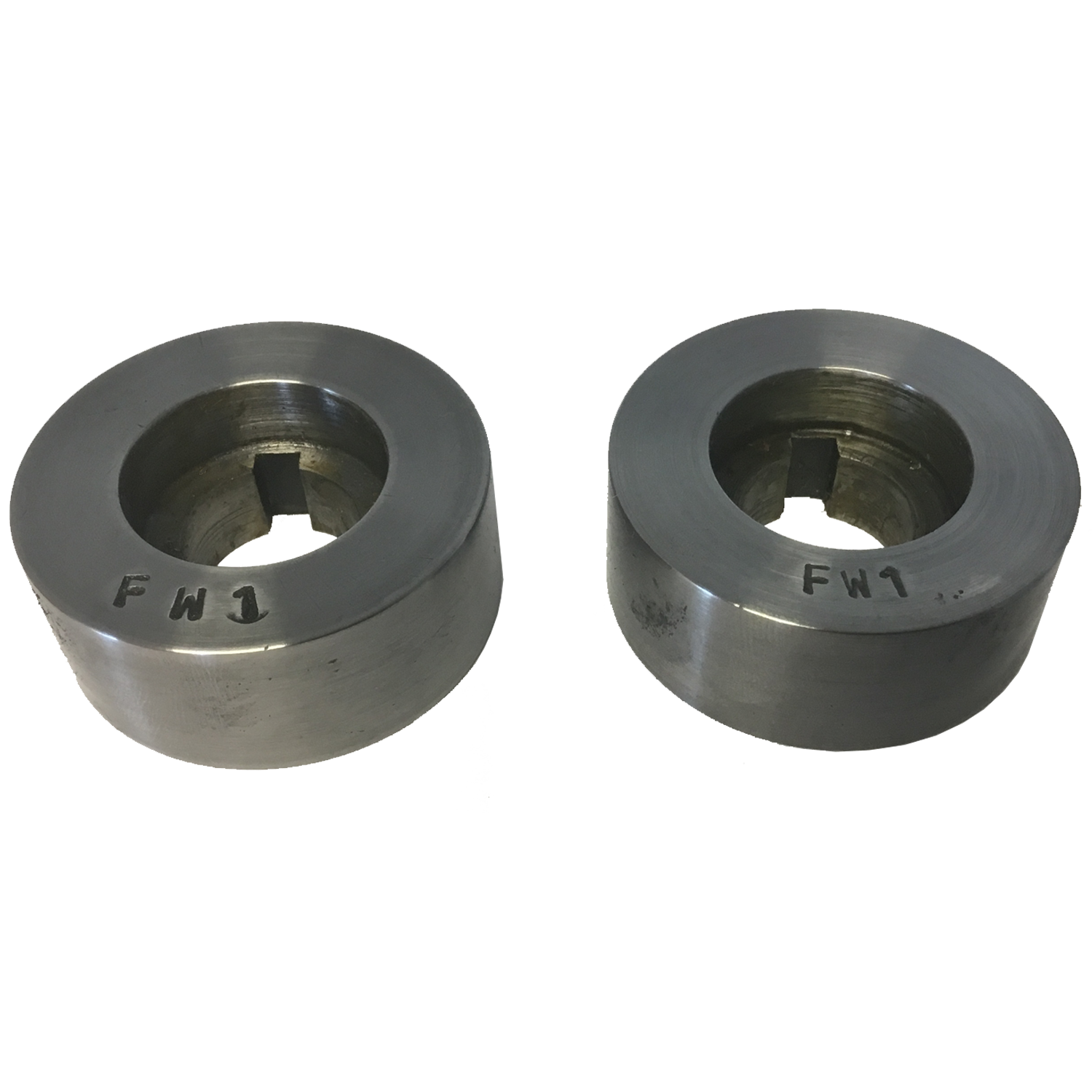

| FLAT/PLAIN ROLLS SPECIFICATIONS |
|||
| Roll: | Model: | Diameter: | Width: |
| Flat/Plain – FW1 | FW1-170 | 47mm | 19mm |

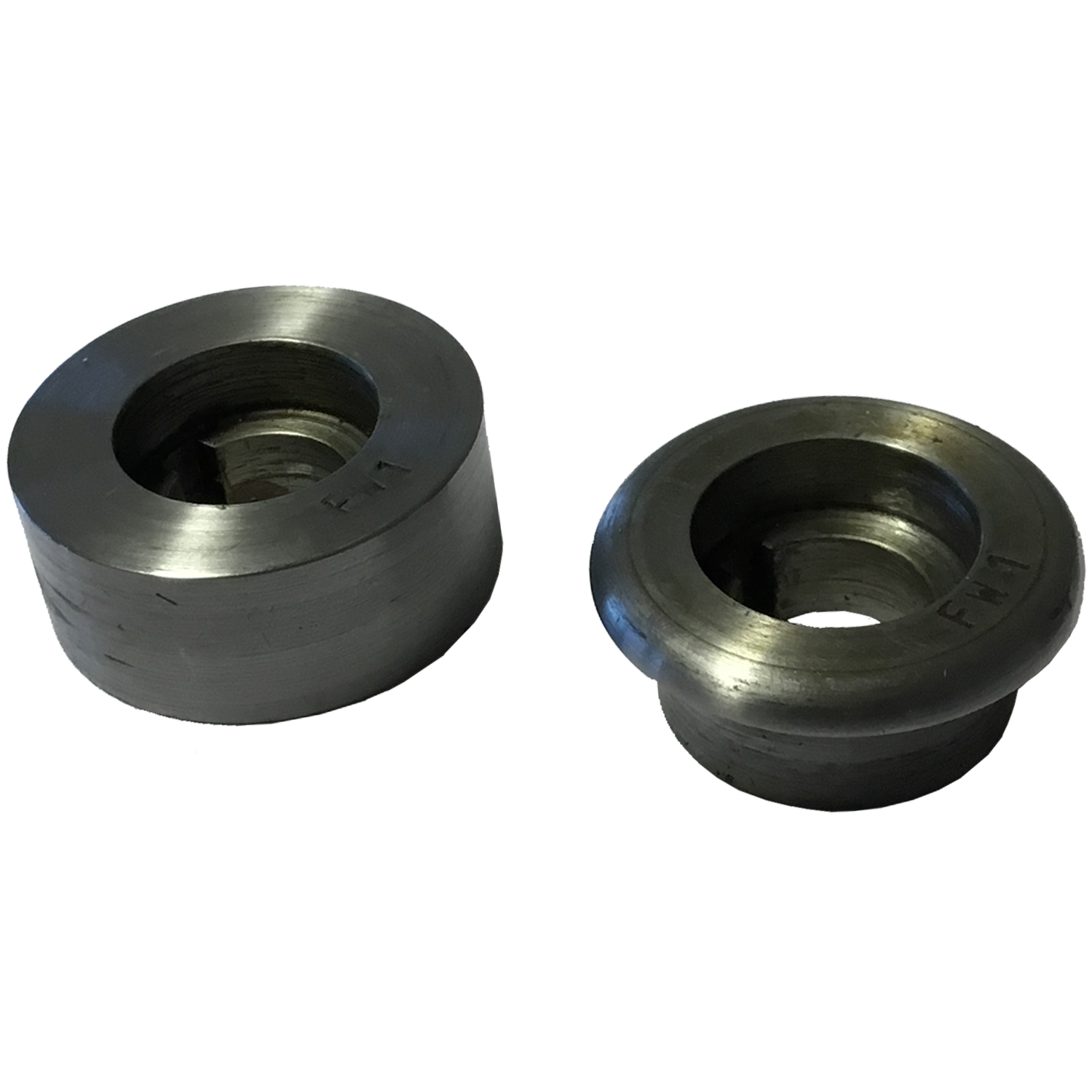

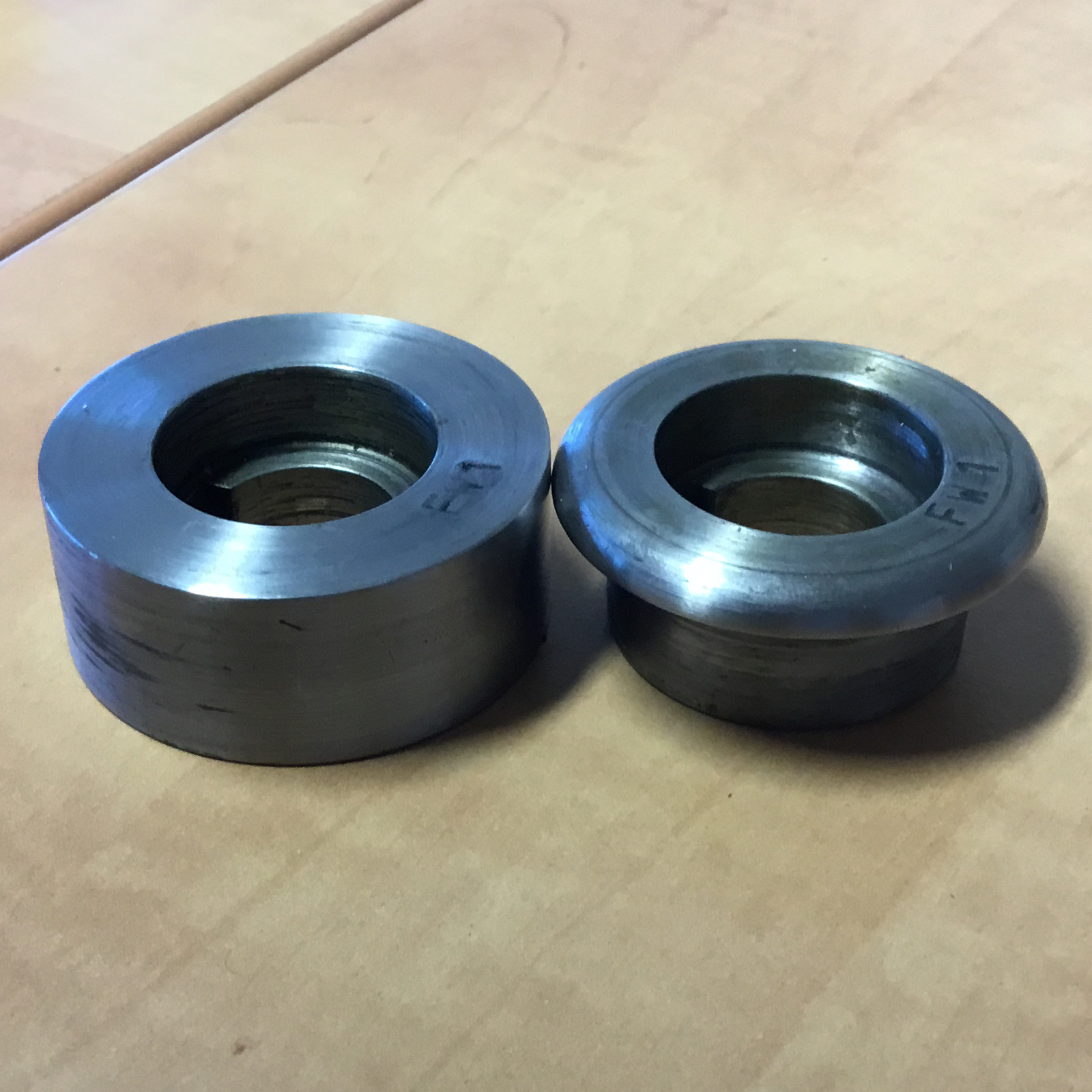

| CLOSING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Inside Radius: |
| Closing – CW1 | CW1-170 |
5.0mm |
*fees apply.
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
