W. NEAL SERVICES LTD – Manufacturing & Supplying Rollforming & Sheet Metal Working Machinery since 1981.

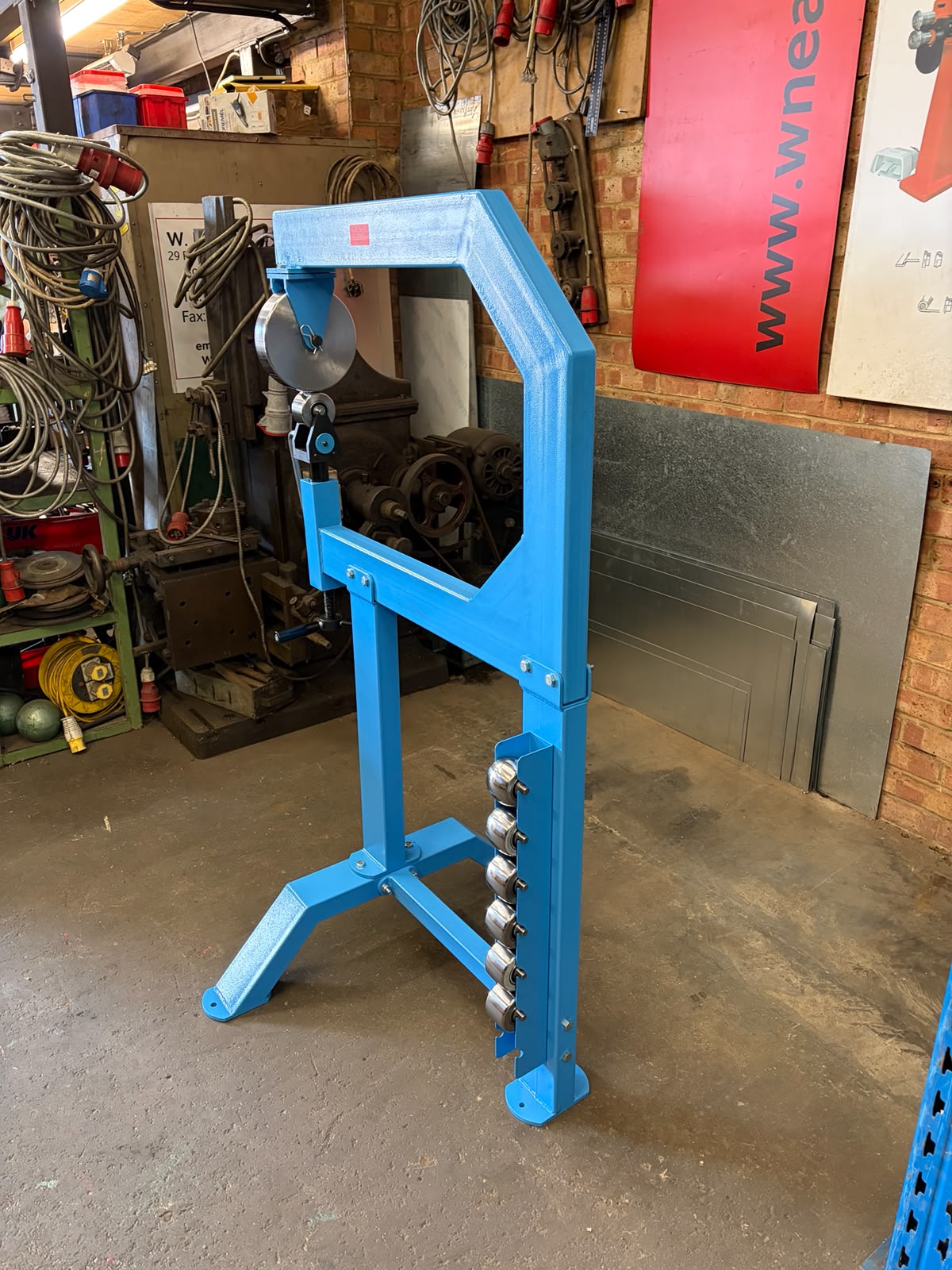

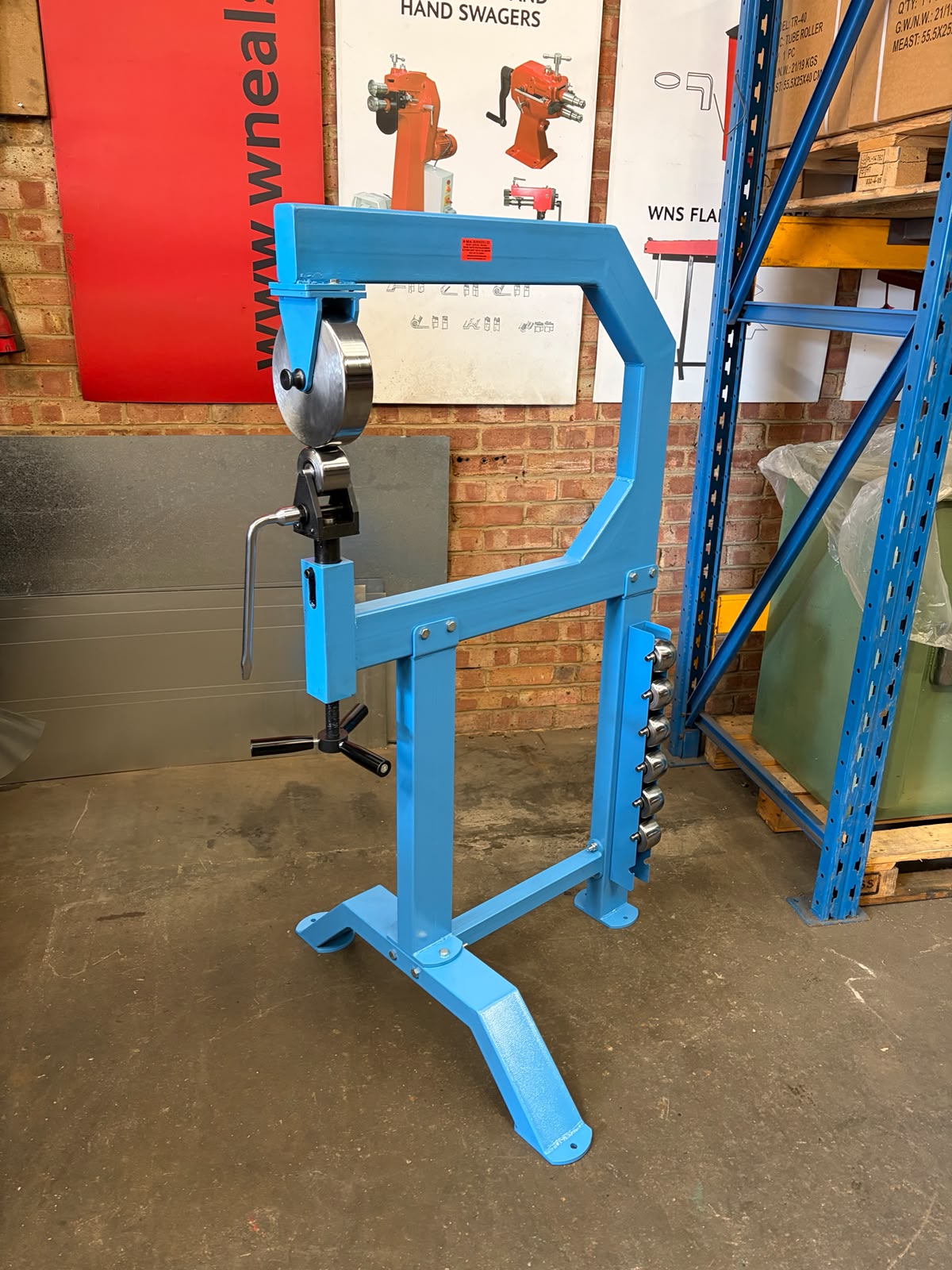

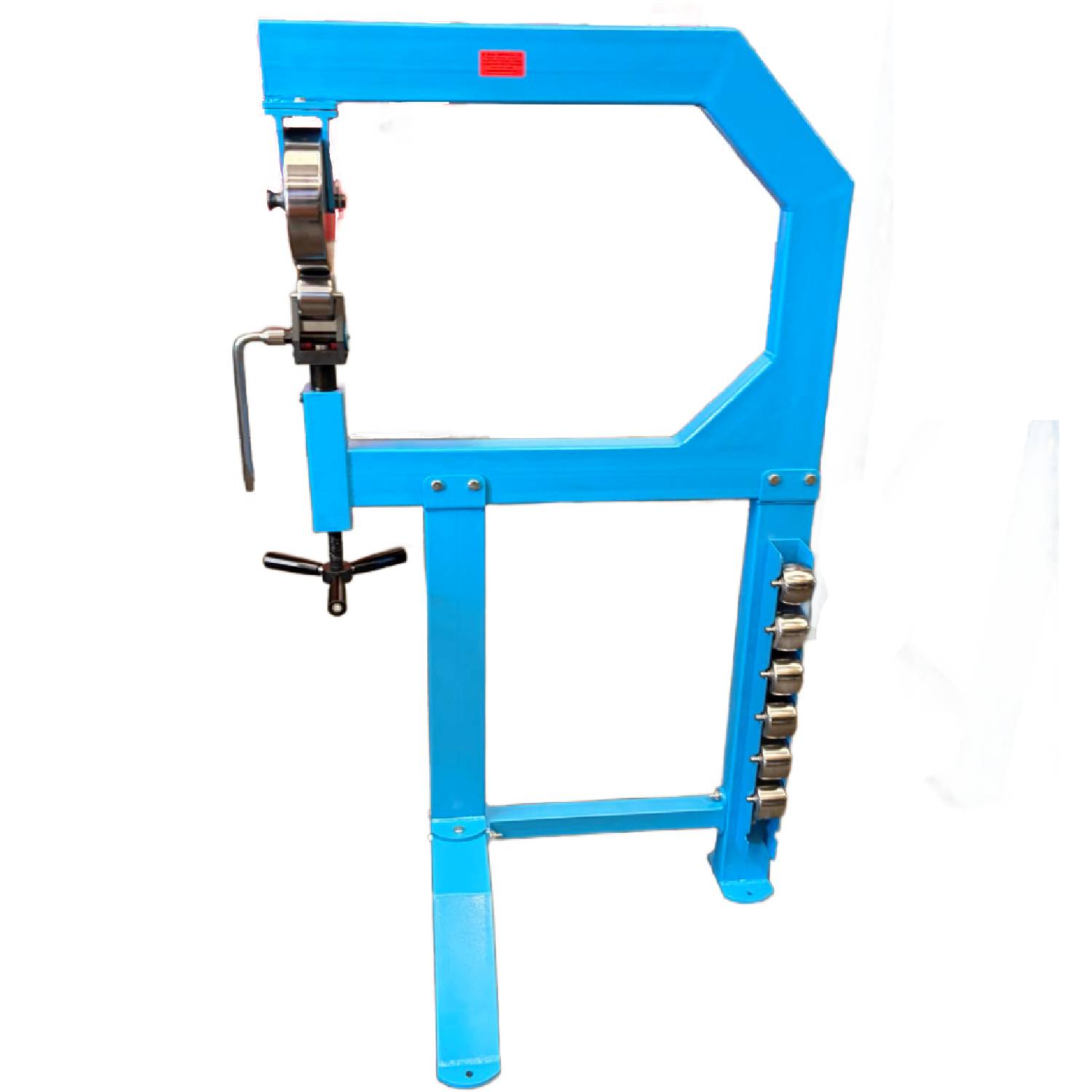

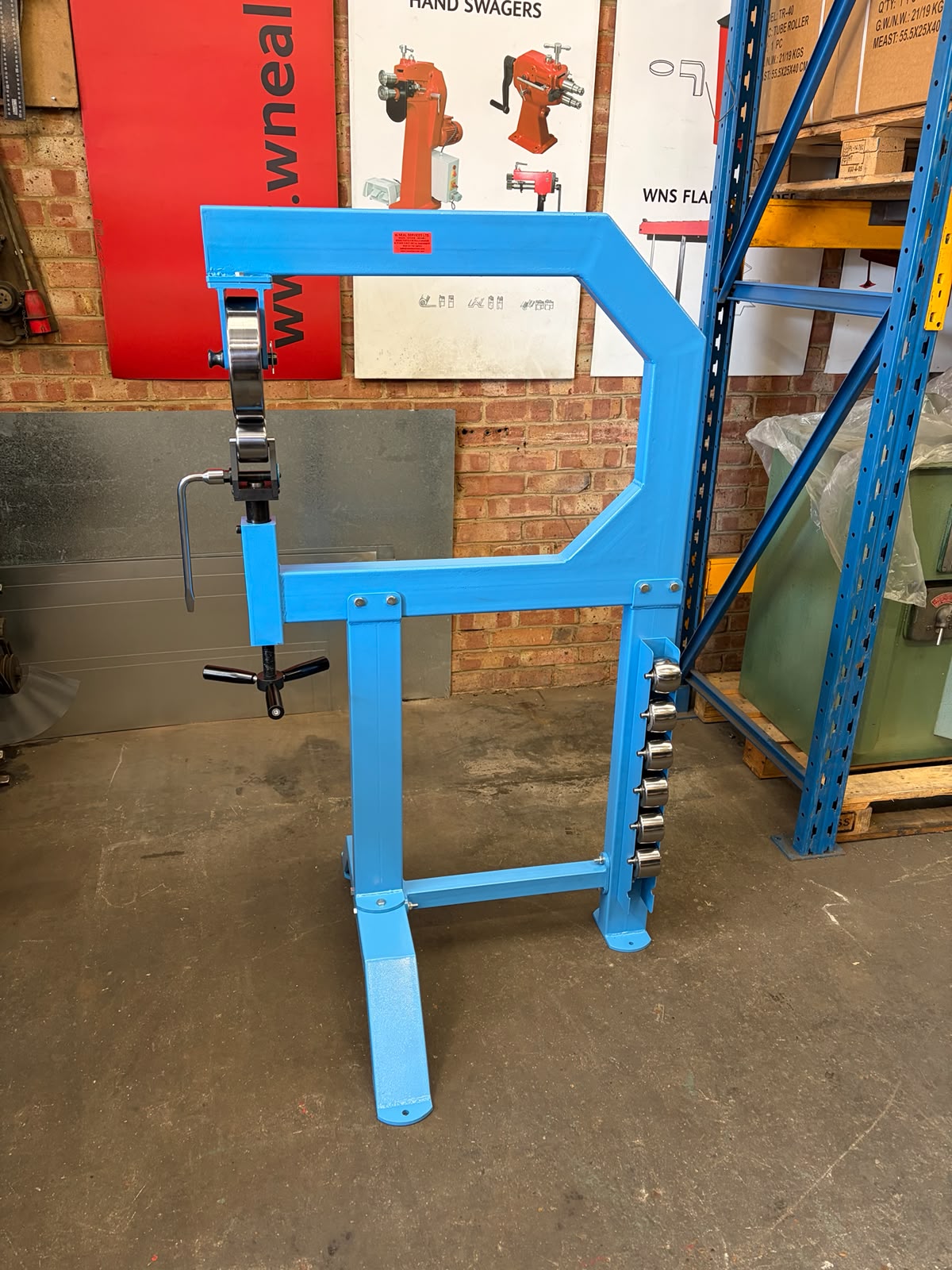

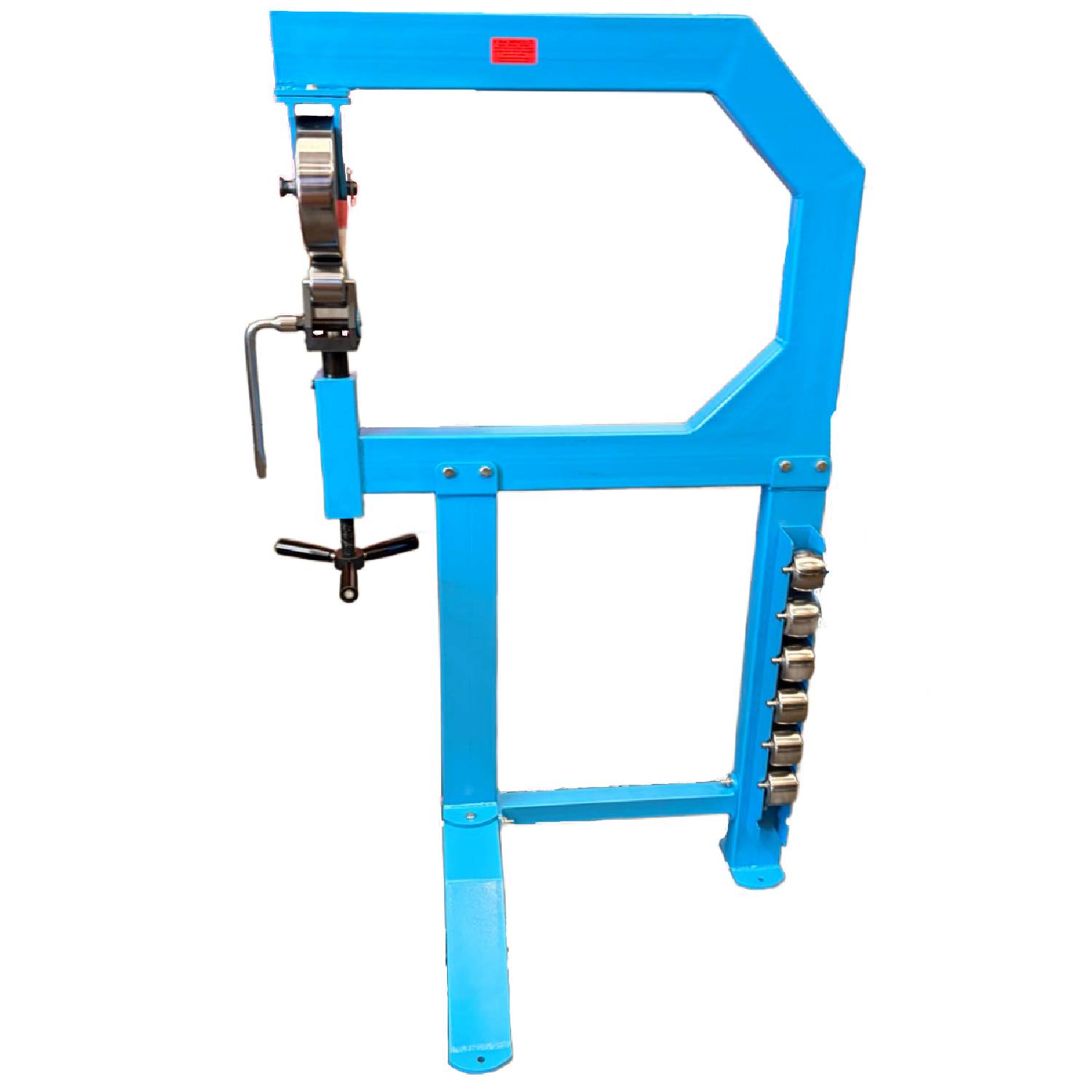

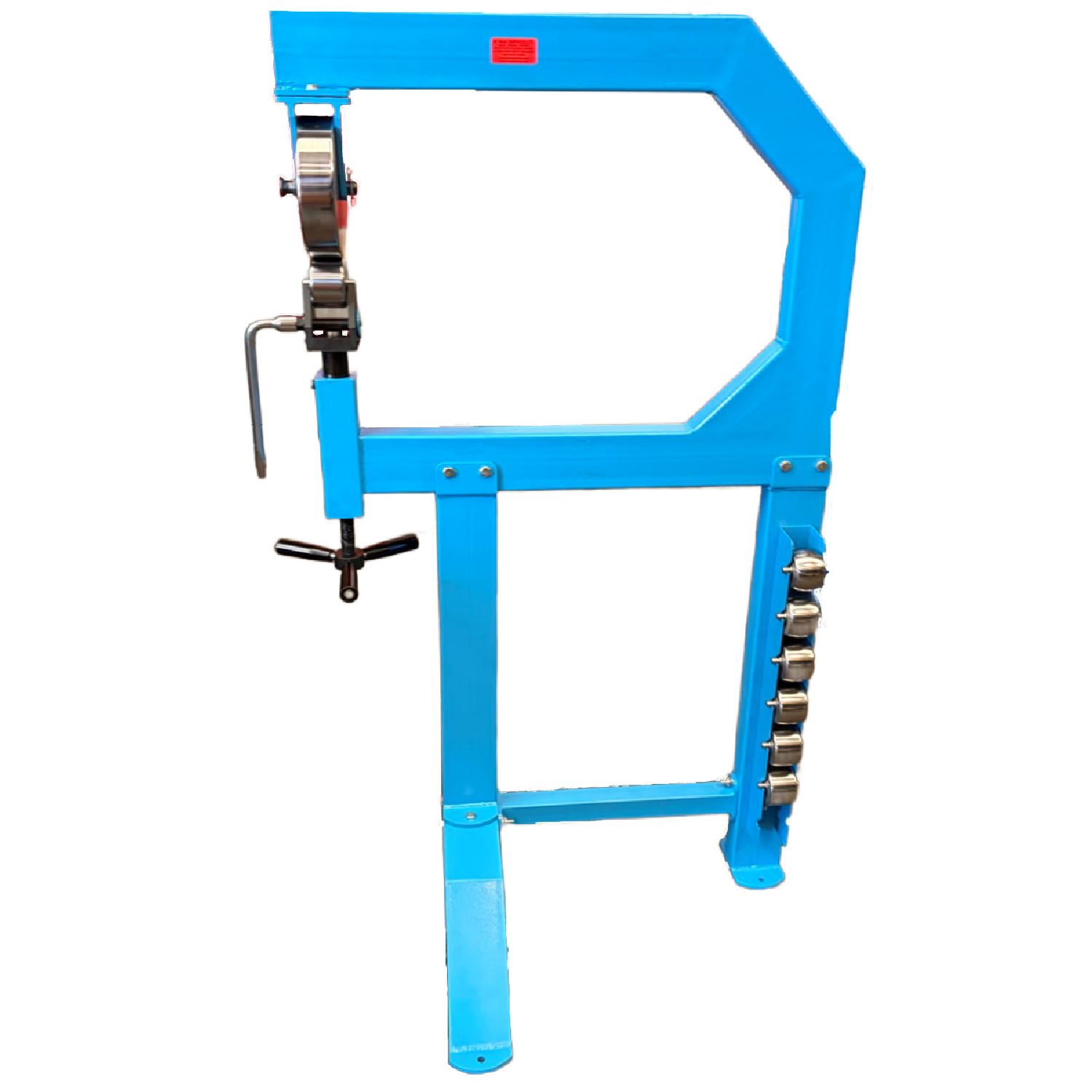

WNS FABRICATED ENGLISH WHEELING MACHINE (EW710B) is used predominantly for the restoration of bodywork on cars, planes and motorcycles, though can be used for many other purposes. This machine has a 710mm throat and can accommodate mild steel sheet up to 1.5mm thick. The EW710B comes complete with 1 top wheel, 7 lower wheels & stand.
To view all of our english wheeling machines & planishing hammers, please click here.
To view all of our used/reconditioned machines please click here.
| Weight | 250 kg |
|---|
| SPECIFICATIONS | ||
| Model: | EW710B | |
| Throat Depth: | 710mm | |
| Maximum Thickness: | 1.5mm Capacity Mild Steel | |

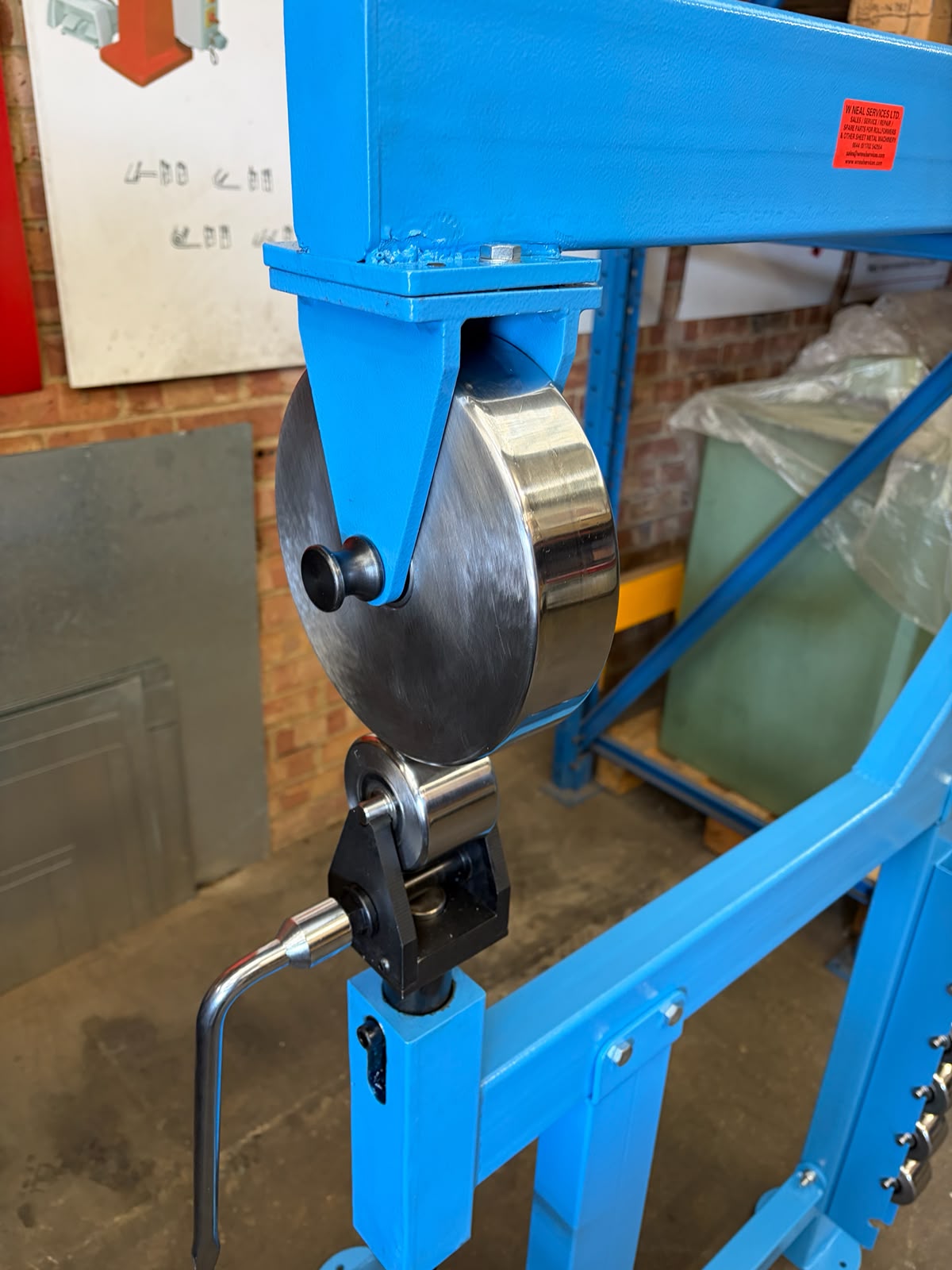

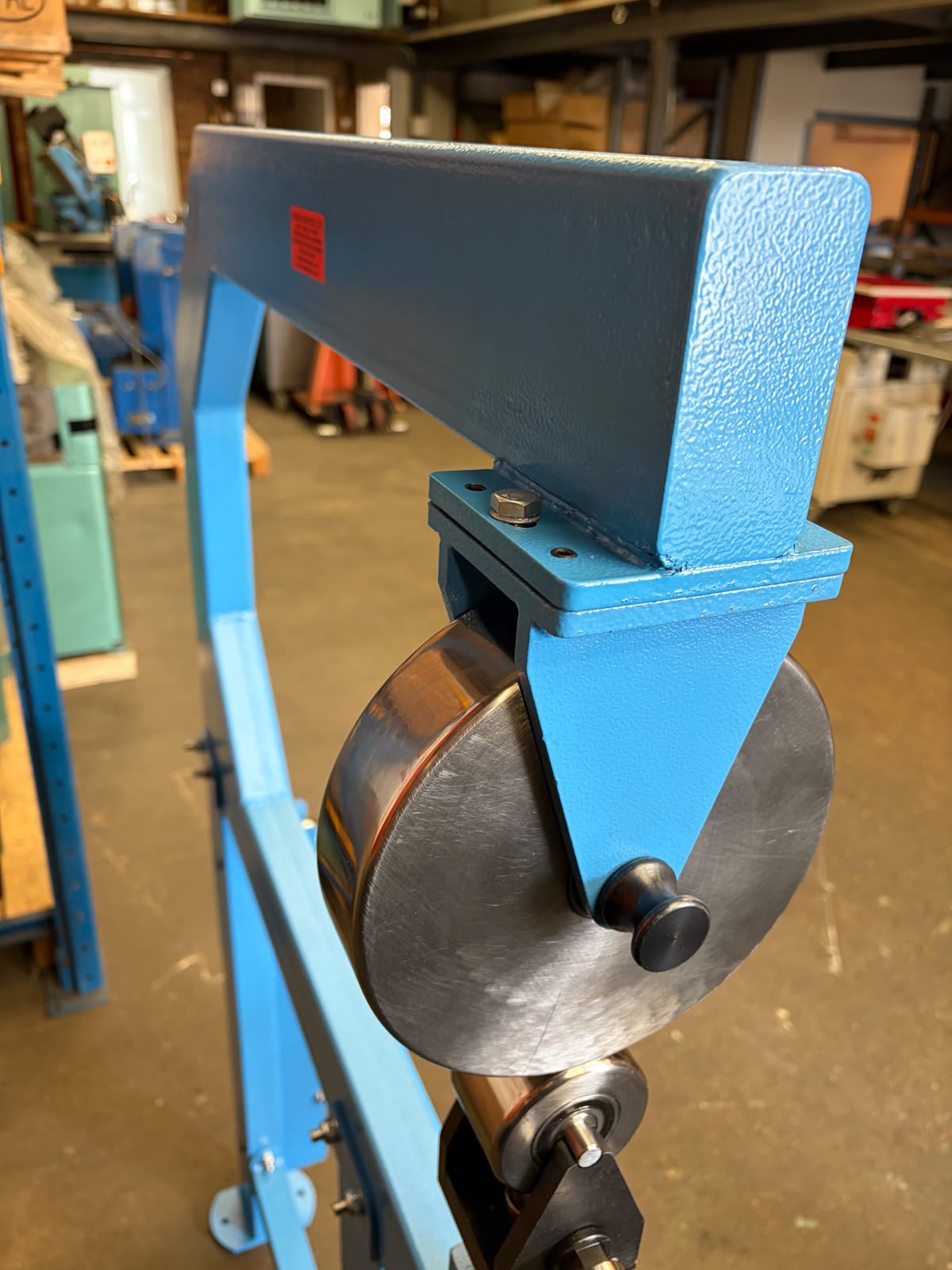

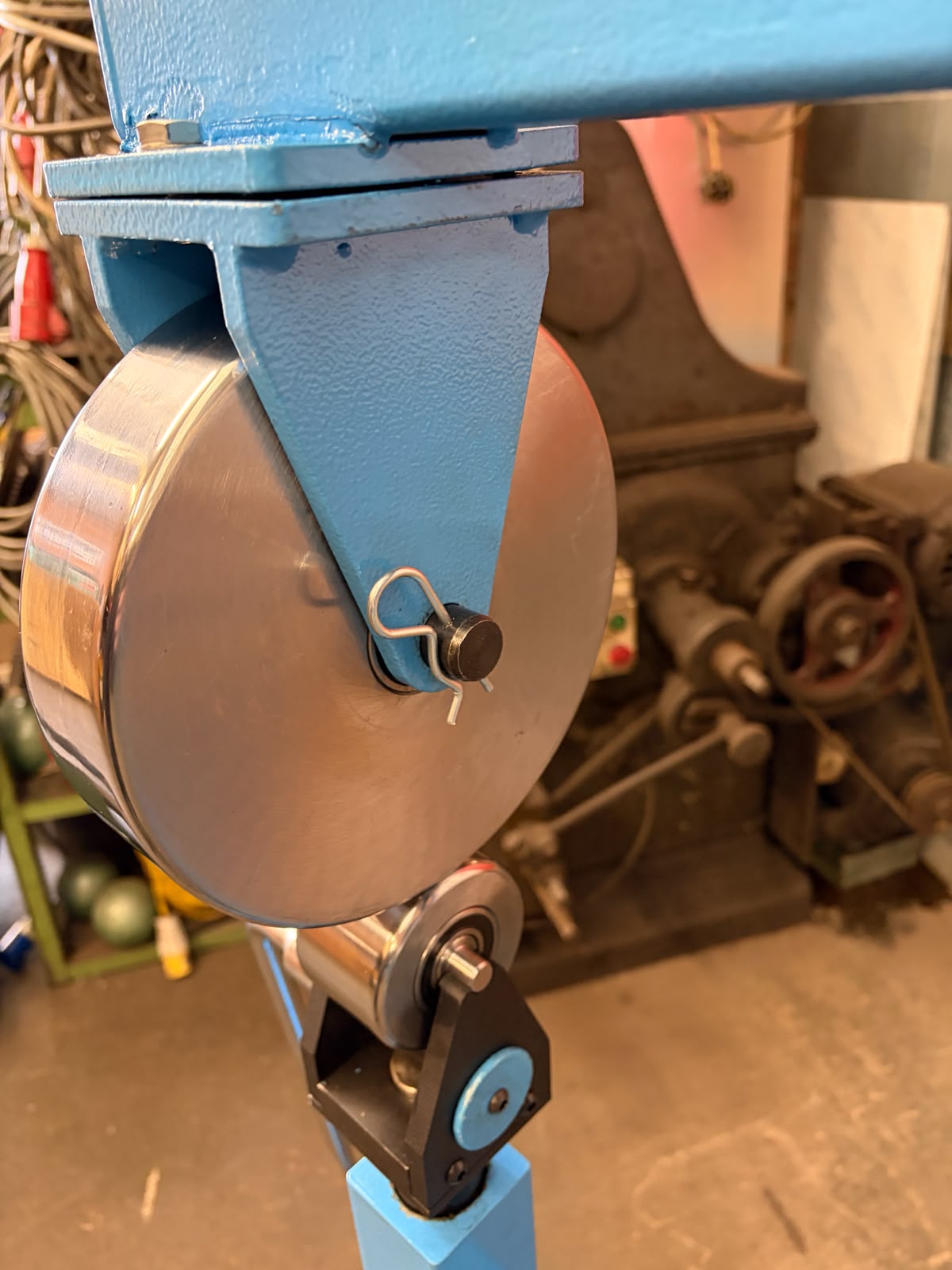

| Top Wheel (x 1): | 197mm (7 3/4″) | |

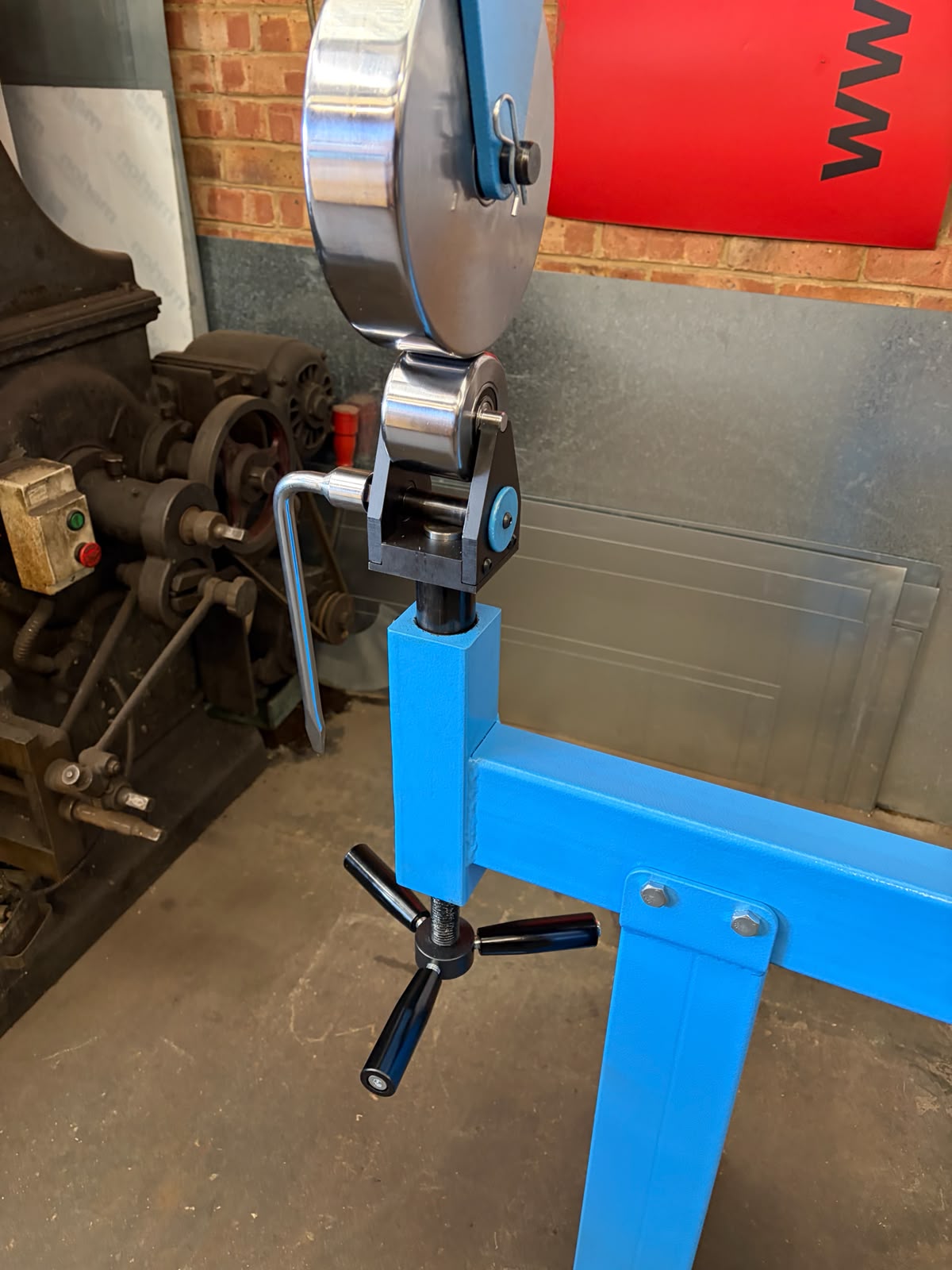

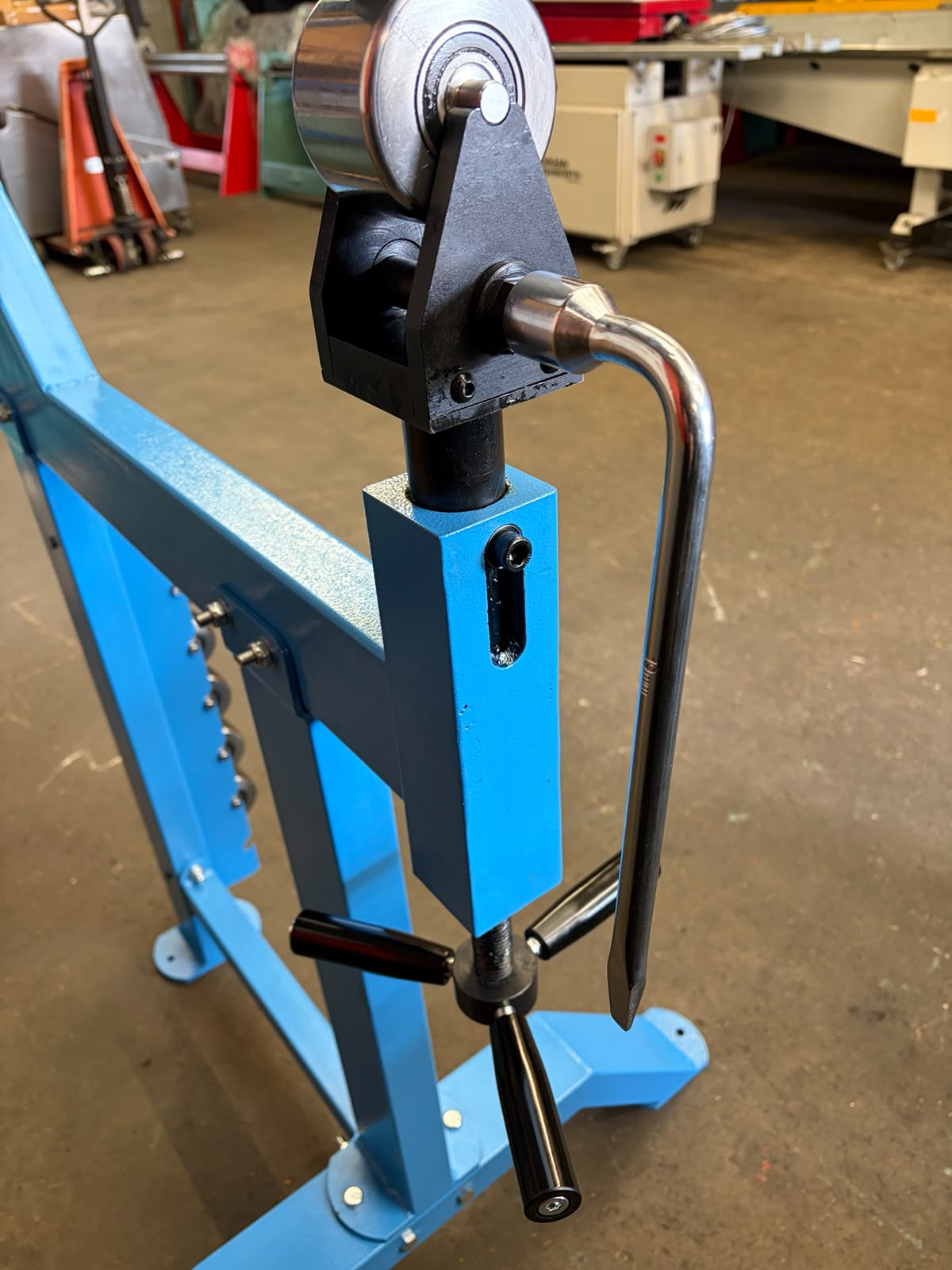

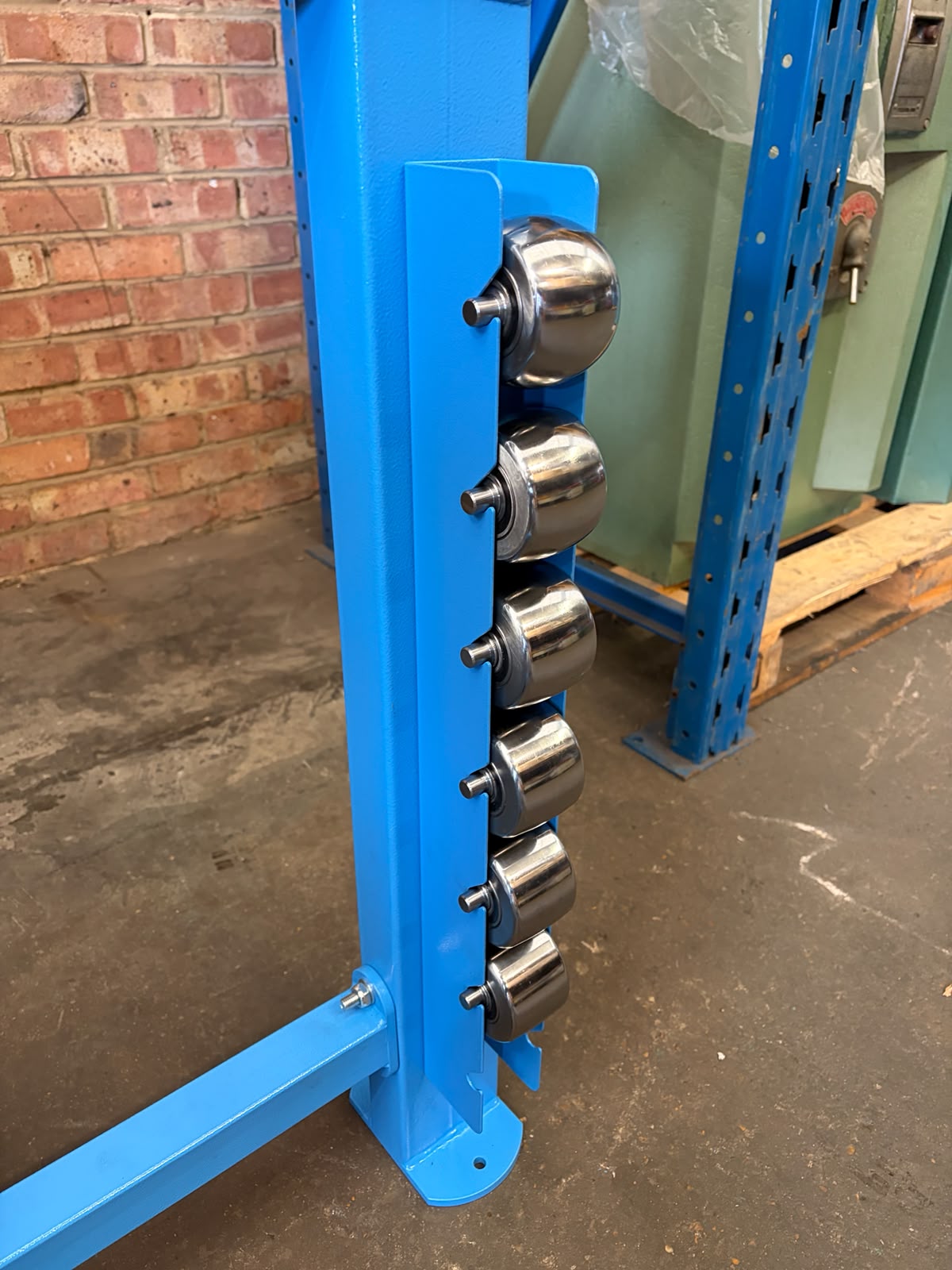

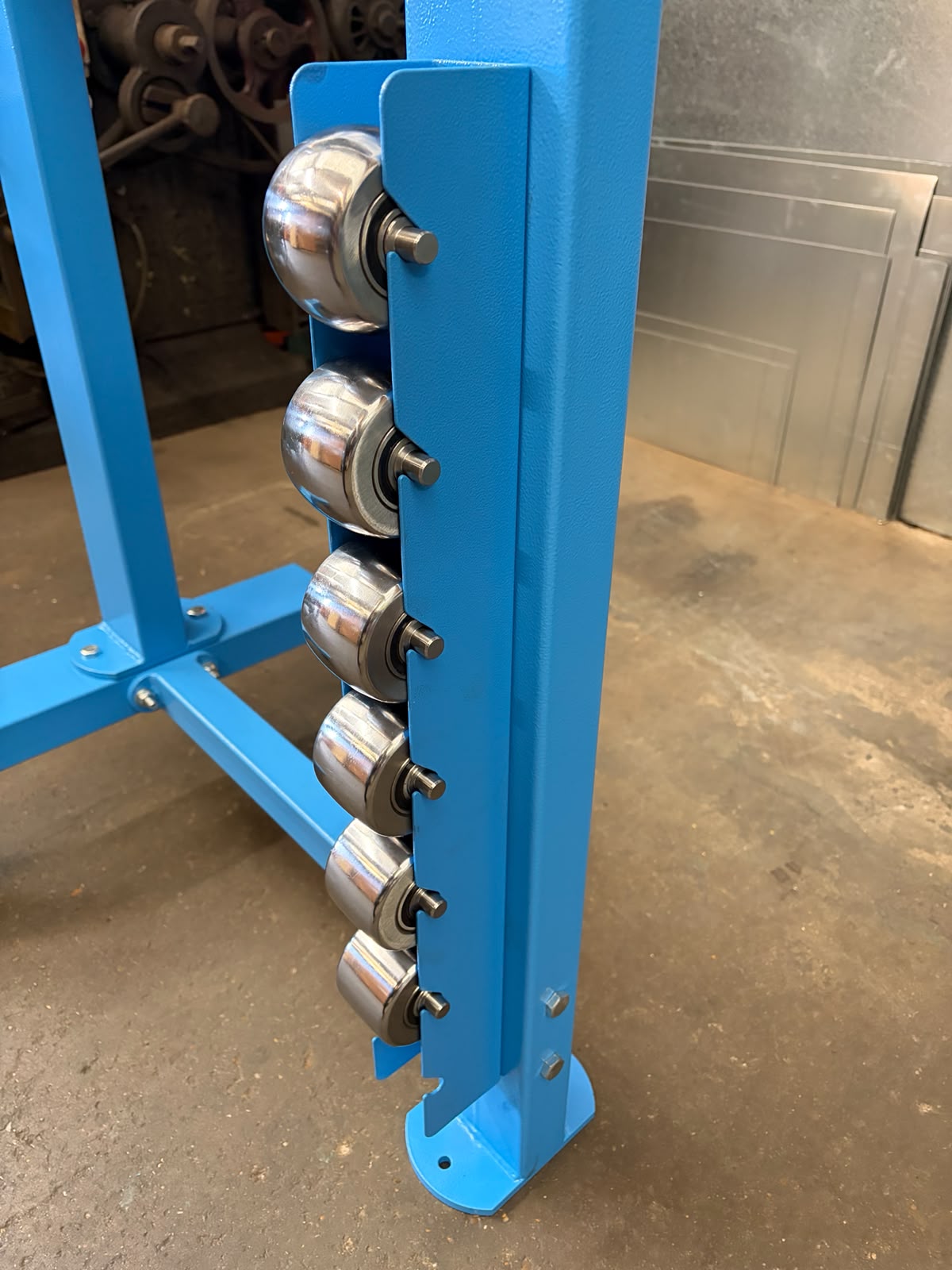

Lower Wheels (x 7): |
50.8mm Wide x 76.2mm Diameter |
2″ Radius |
| 3″ Radius | ||
| 4″ Radius | ||
| 6″ Radius | ||
| 8″ Radius | ||
| 12″ Radius | ||
| Flat | ||
| Frame: | 4.0mm Thick Steel Side Frames | |
| Dimensions – machine (apx): | 890mm x 860mm x 1510mm (l x w x h) | |
| Dimensions – packing (apx): | 890mm x 780mm x 190mm (l x w x h) | |
| Weights – net/gross (apx): | 72Kg/75Kg | |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
