W. NEAL SERVICES LTD – Manufacturing & Supplying Rollforming & Sheet Metal Working Machinery since 1981.

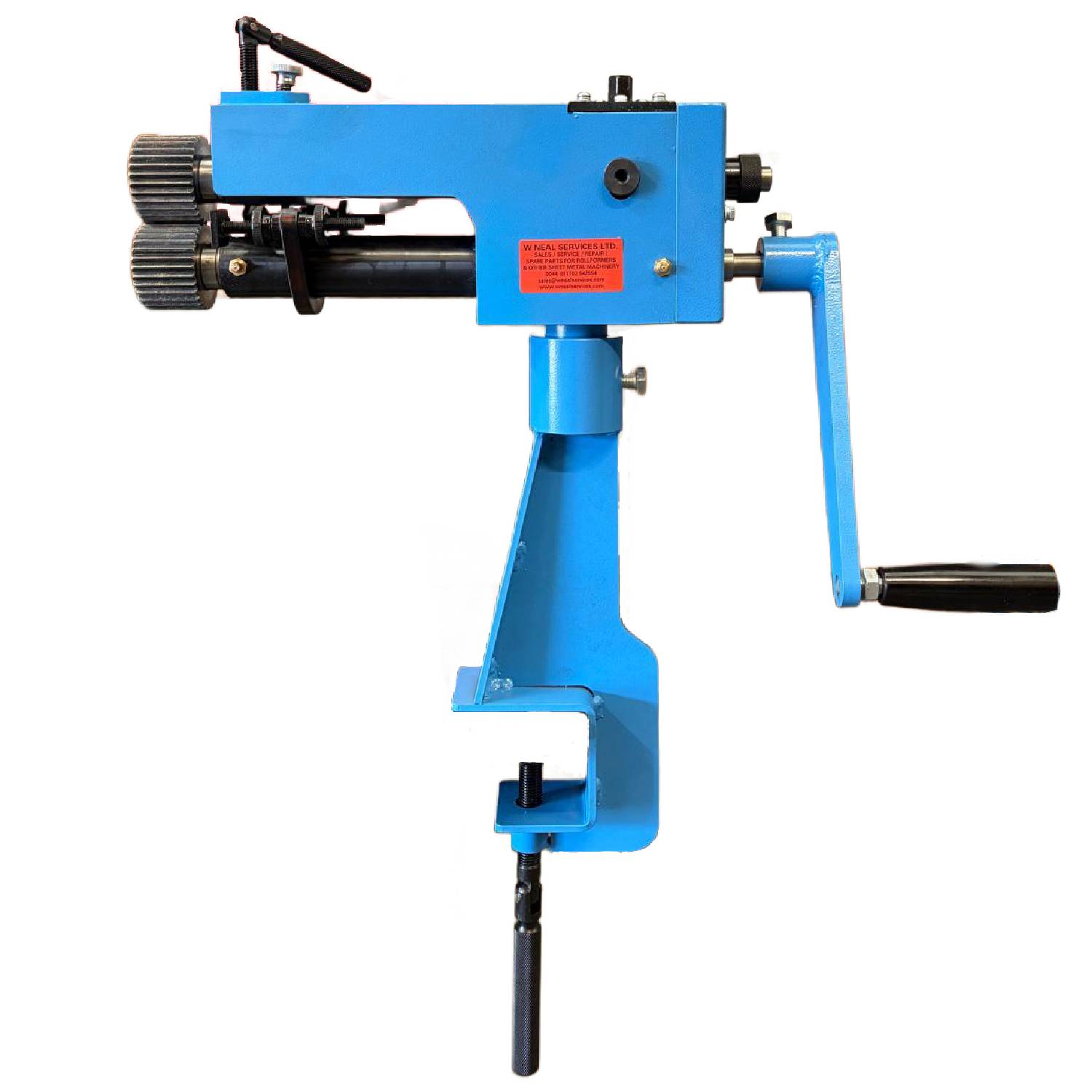

WNS HAND SWAGERS / SWAGING MACHINES (HS177B) are principally used for swaging, beading, wiring, crimping, and forming of sheet metal. They are ideal for light sheet metal forming applications, including vehicle body work and repair and can be bench mounted for extra stability. This hand swager has a 177mm (7”) throat and can accommodate mild steel sheet up to 0.8mm thick*. This machine comes complete with 7 set of rolls.
To view all of our swagers, please click here.
To view all of our used/reconditioned machines please click here.
| Weight | 18 kg |
|---|
| SPECIFICATIONS | |
| Model: | HS177B |
| Throat Depth: | 177mm (7″) |
| Maximum Thickness: | 0.8mm Capacity Mild Steel* |
| Rolls Included (x 7): | 1 x Set of Crimping Rolls |
| 1 x Set of Step Rolls (Burring B) | |
| 1 x Set of 3.0mm Wiring Rolls (Turning A) | |
| 1 x Set of 5.0mm Wiring Rolls (Turning B) | |
| 1 x Set of Closing Rolls (Wiring) | |
| 1 x Set of Ogee Rolls (Ogee Bead) | |
| 1 x Set of Flange Rolls (Burring A) | |
| Roll – Inside Diameter (apx): | 20mm |
| Shaft Size: | 20mm |
| Handle Length: | 240mm |
| Frame: | Cast Steel |
| Dimensions – machine (apx): | 400mm x 100mm x 450mm (l x w x h) |
| Dimensions – packing (apx): | 500mm x 450mm x 160mm (l x w x h) |
| Weights – net/gross (apx): | 23Kg/25Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
