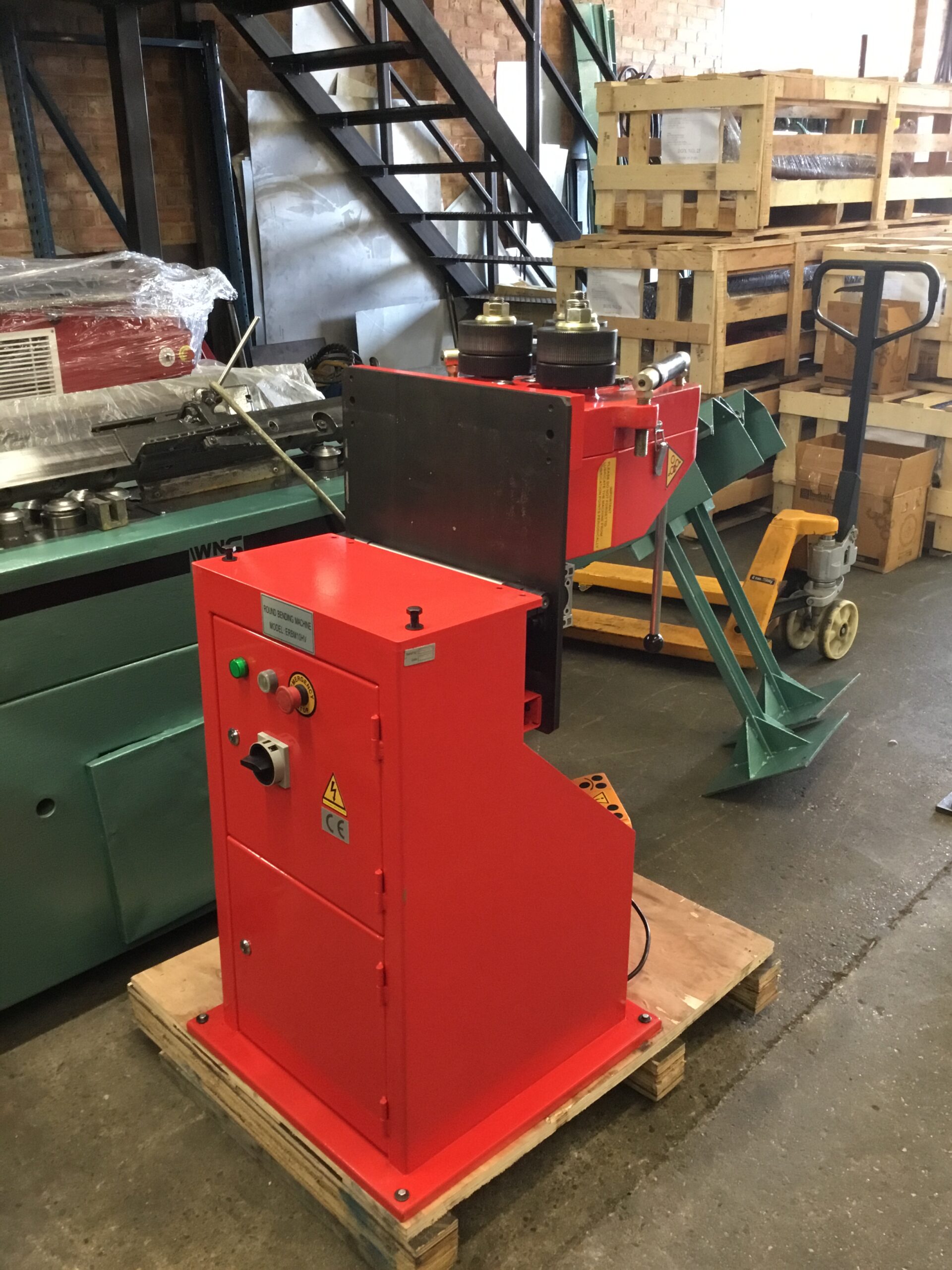

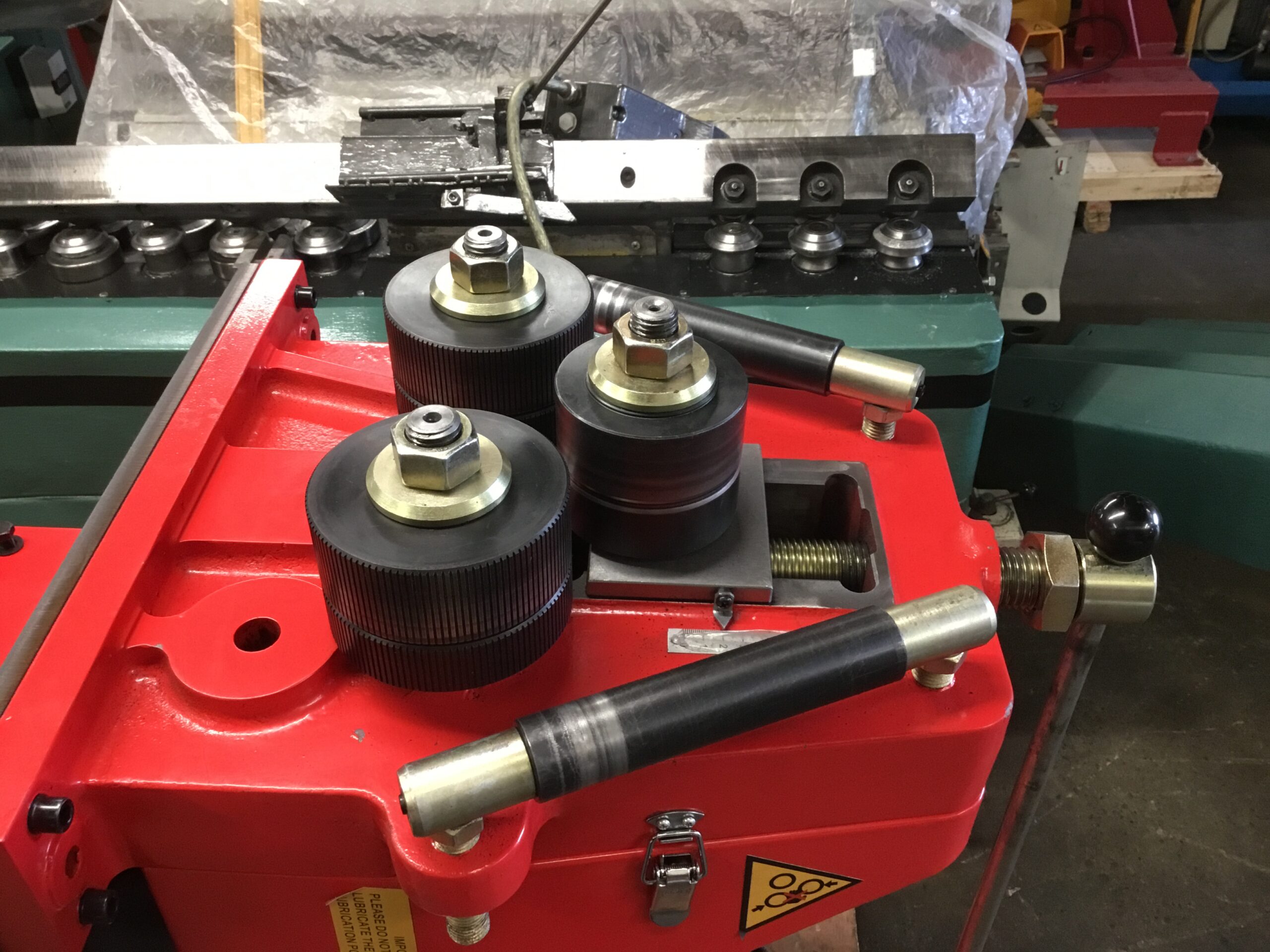

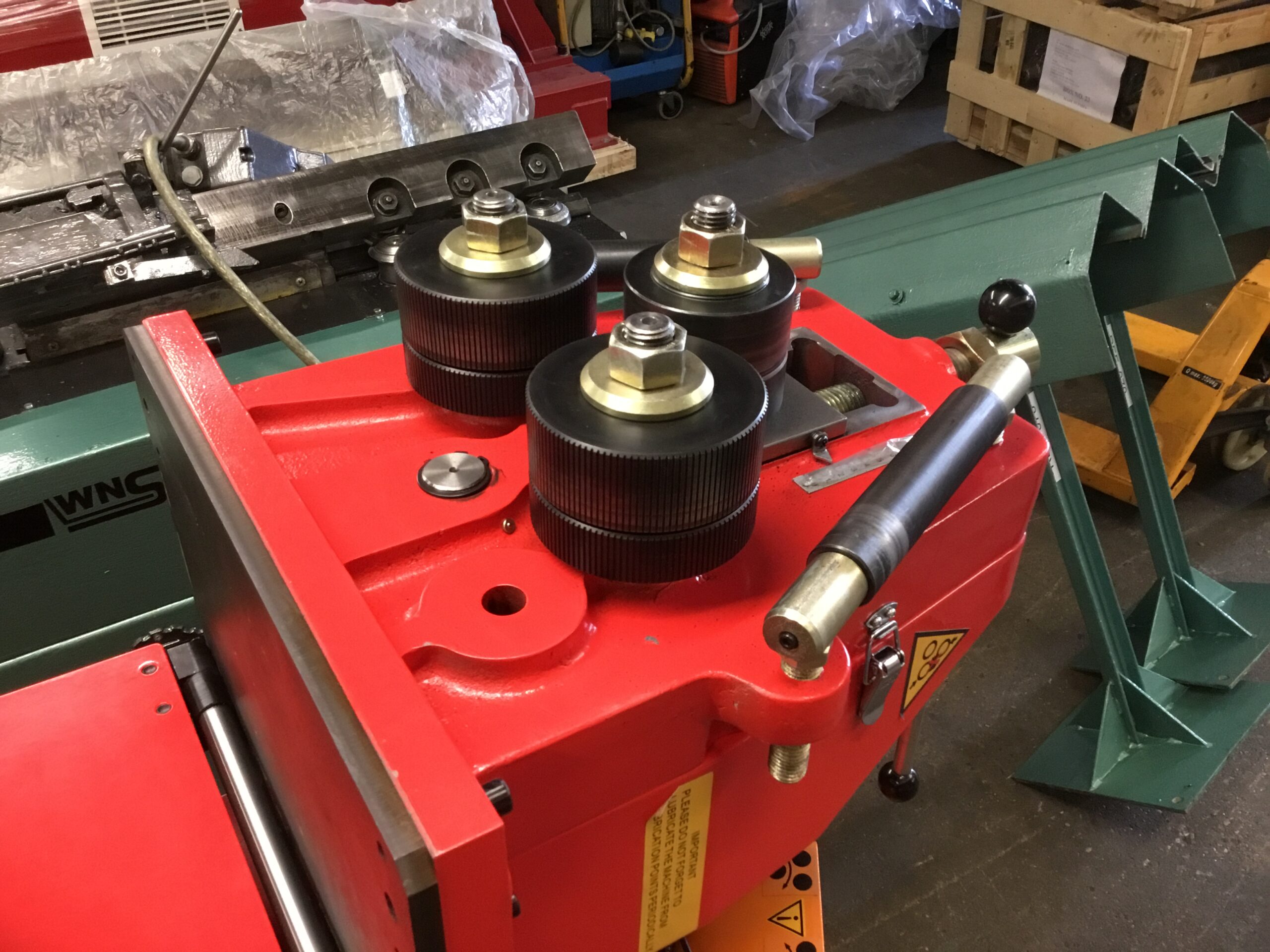

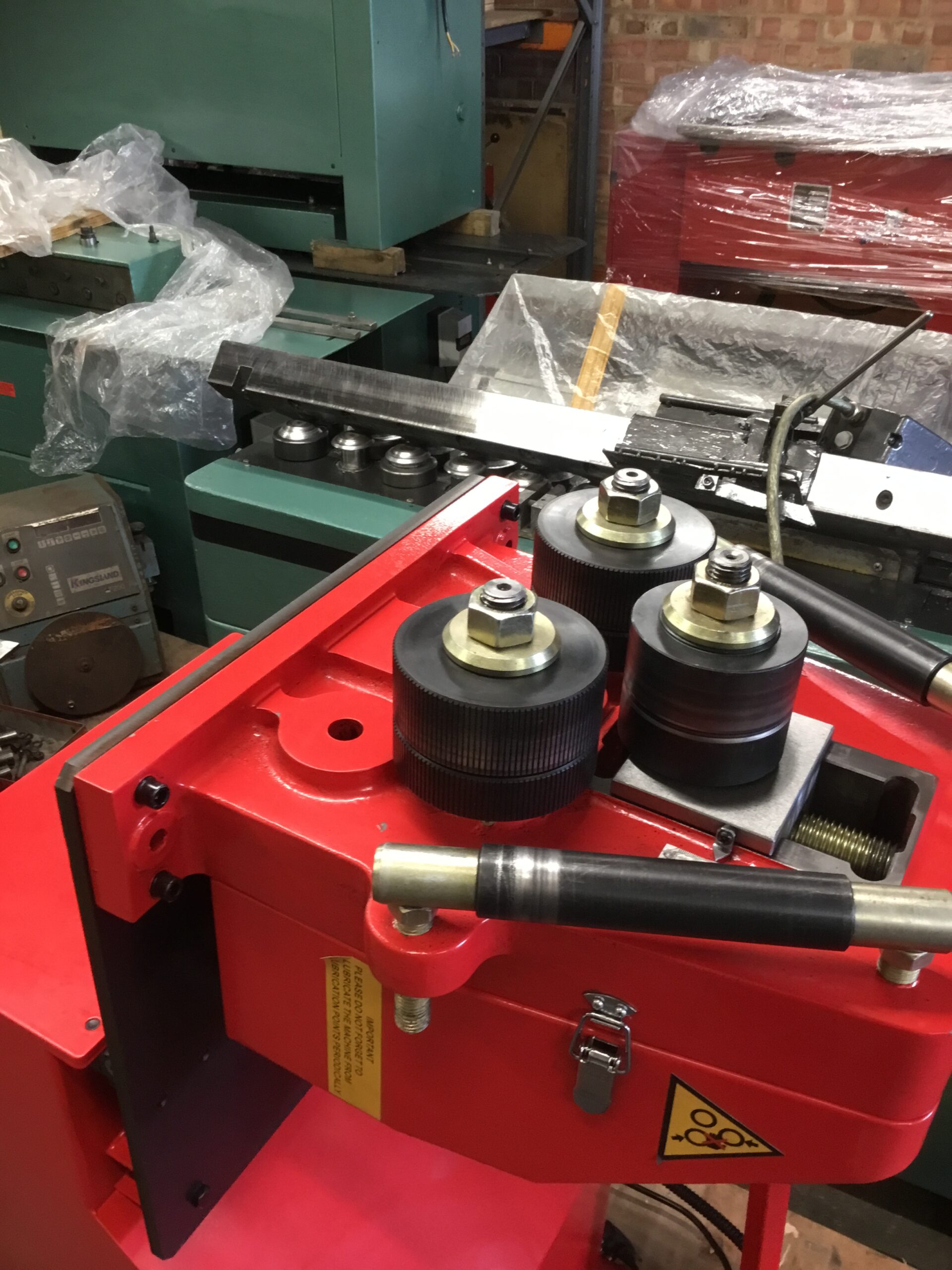

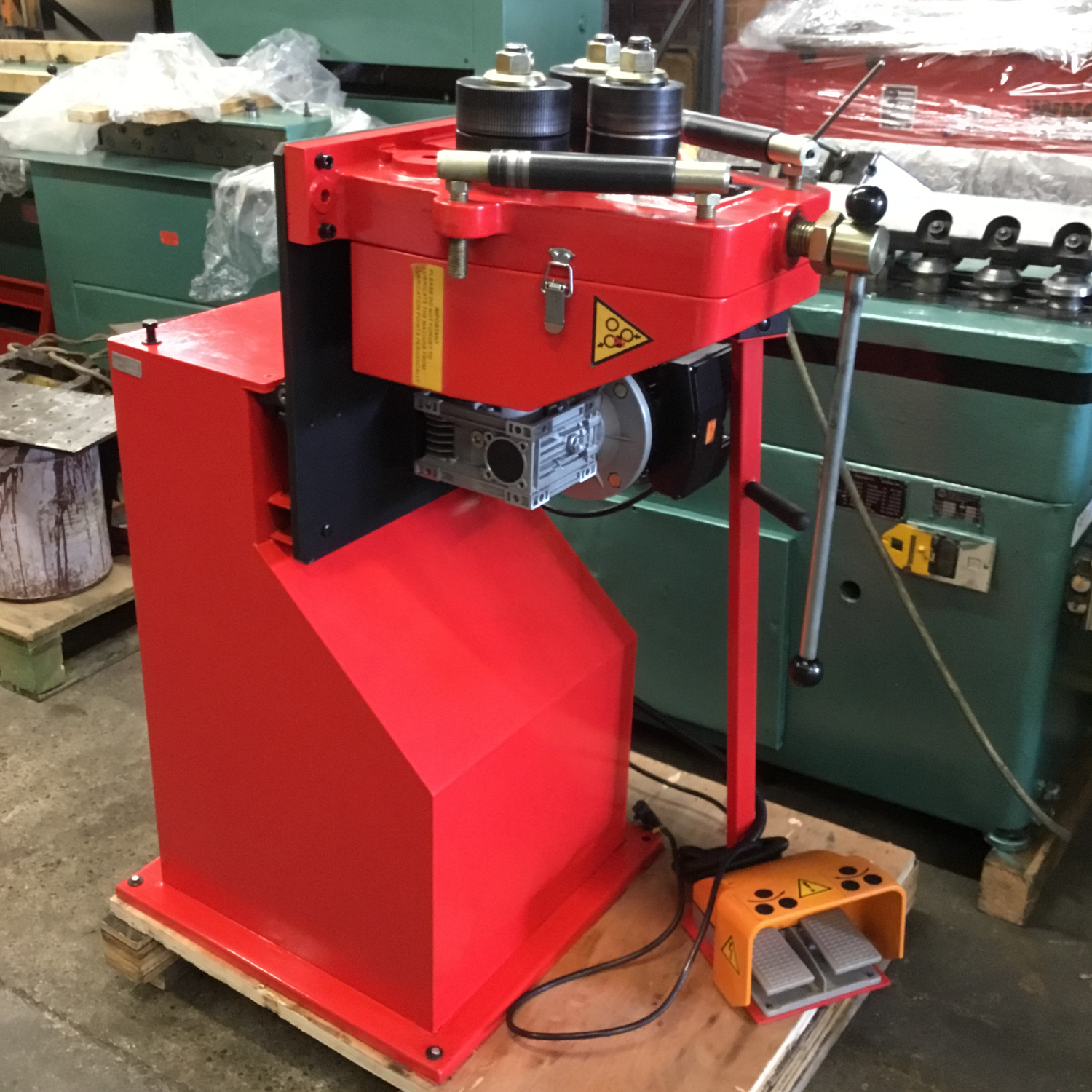

WNS POWER RING SECTION ROLLERS (PRR75sp-EX) are capable of rolling full circles of different materials and thicknesses because of their open face design. These section roll machines have a reduction gear box, 30mm hardened shafts running in bronze bushes, heavy cast frame construction to assist with bending functions and come complete with a base/storage cabinet & standard rolls. These machines can form radius’ in flat bar, flat bar on edge, round bar, square bar, box section and tube depending on material size and thickness. Material can be formed quickly and easily or progressively on heavier sections. This machine comes complete with 20mm diameter dies and has 240v, single phase electrics
Dies for round tube/pipe available – ranging from 15mm – 60mm diameters (RR75-DIES)
Universal Die Set available (RR75-UDS)
EX-DEMO
This is a nearly new machine, used a handful of times for demonstration purposes and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our ring rollers, please click here.
To view all of our used/reconditioned machines please click here.
| Voltage | 415v, 3 Phase Electrics (PRR75), 240v, Single Phase Electrics (PRR75sp) |
|---|
| SPECIFICATIONS | ||
| Model: | PRR75sp-EX | |
| Maximum Thickness (with standard tooling): |
Flat Bar (on Flat): | 50mm x 10mm. 350mm Min Diameter |
| Flat Bar (on Edge): | 20mm x 5.0mm. 190mm Min Diameter | |
| 30mm x 10mm. 500mm Min Diameter | ||
| Angle Iron: | 35mm x 35mm x 4.5mm. 600mm Min Diameter | |
| 30mm x 30mm x 4.0mm. 400mm Min Diameter | ||
| Round Bar: | Up to 25mm. 600mm Min Diameter | |
| Square Bar: | Up to 20mm. 500mm Min Diameter | |
| Square (RHS) Tube: | 35mm x 35mm x 2.0mm. 1000mm Min Diameter | |
| 40mm x 20mm x 2.0mm. 1200mm Min Diameter | ||
| Spindle Speed: | 17.5r/min | |
| Top Roll (x 1): | 75mm Wide x 98mm Diameter | |
| Bottom Roll (x 2): | 75mm Wide x 118mm Diameter | |
| Motor Power: | 1.1kW, 1.5Hp | |
| Supply Voltage: | 240v, Single Phase Electrics | |
| Dimensions – machine horizontal (apx): | 900mm x 580mm x 1220mm (l x w x h) | |
| Dimensions – machine vertical (apx): | 550mm x 580mm x 1450mm (l x w x h) | |
| Dimensions – packing (apx): | 1200mm x 1200mm x 1350mm (l x w x h) | |
| Weights – net/gross (apx): | 230Kg/280Kg | |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
