W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery since 1981.

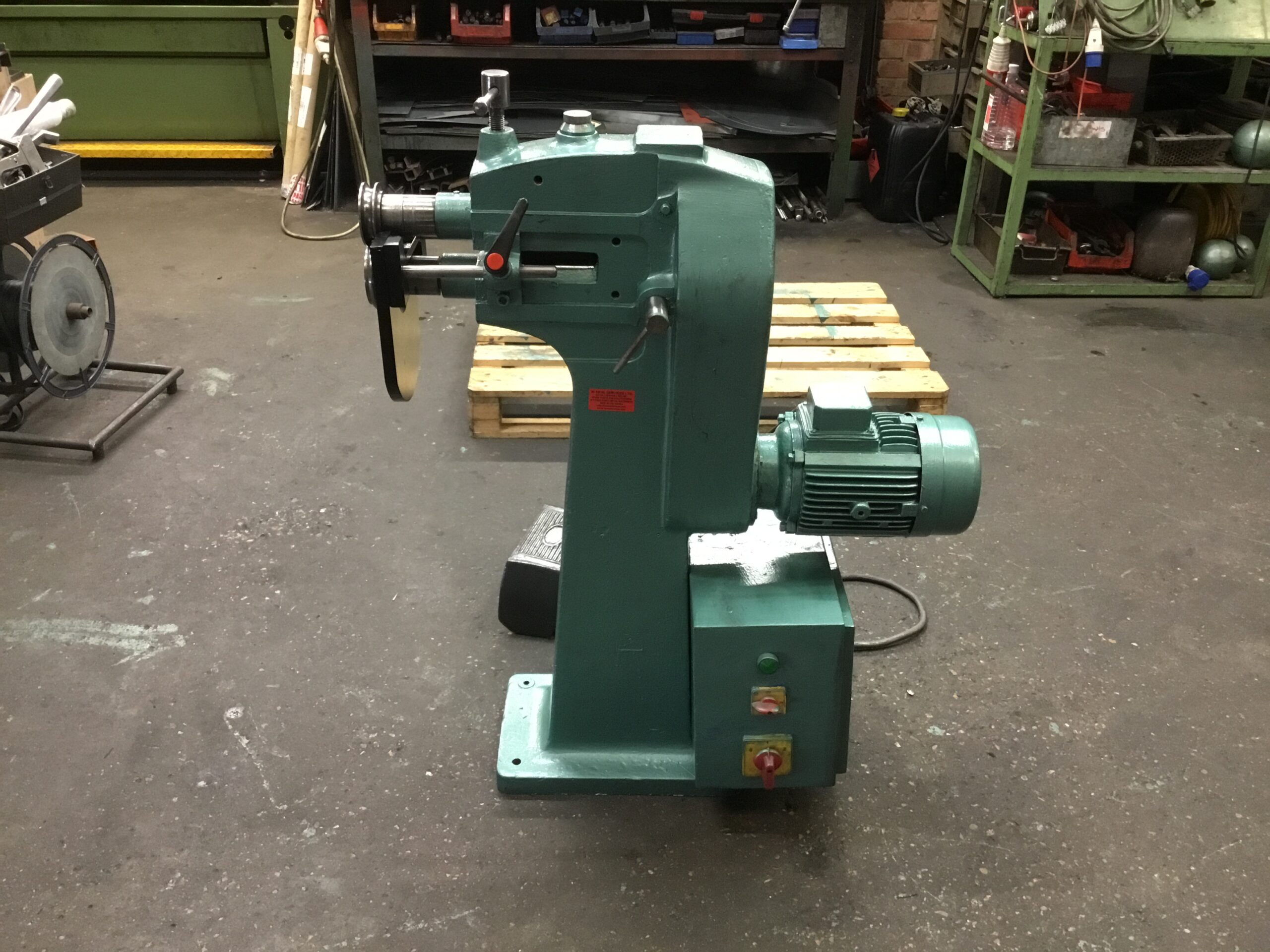

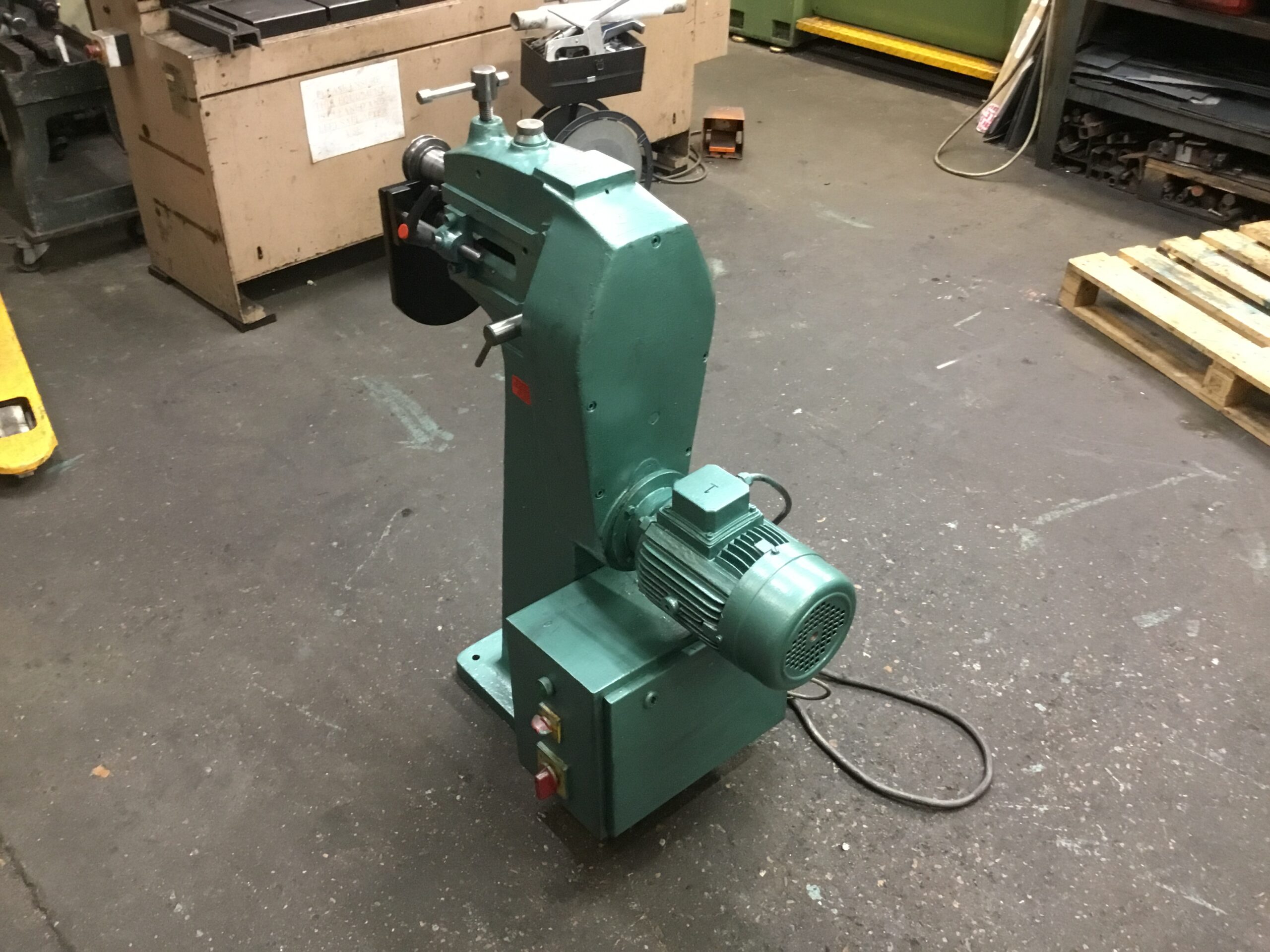

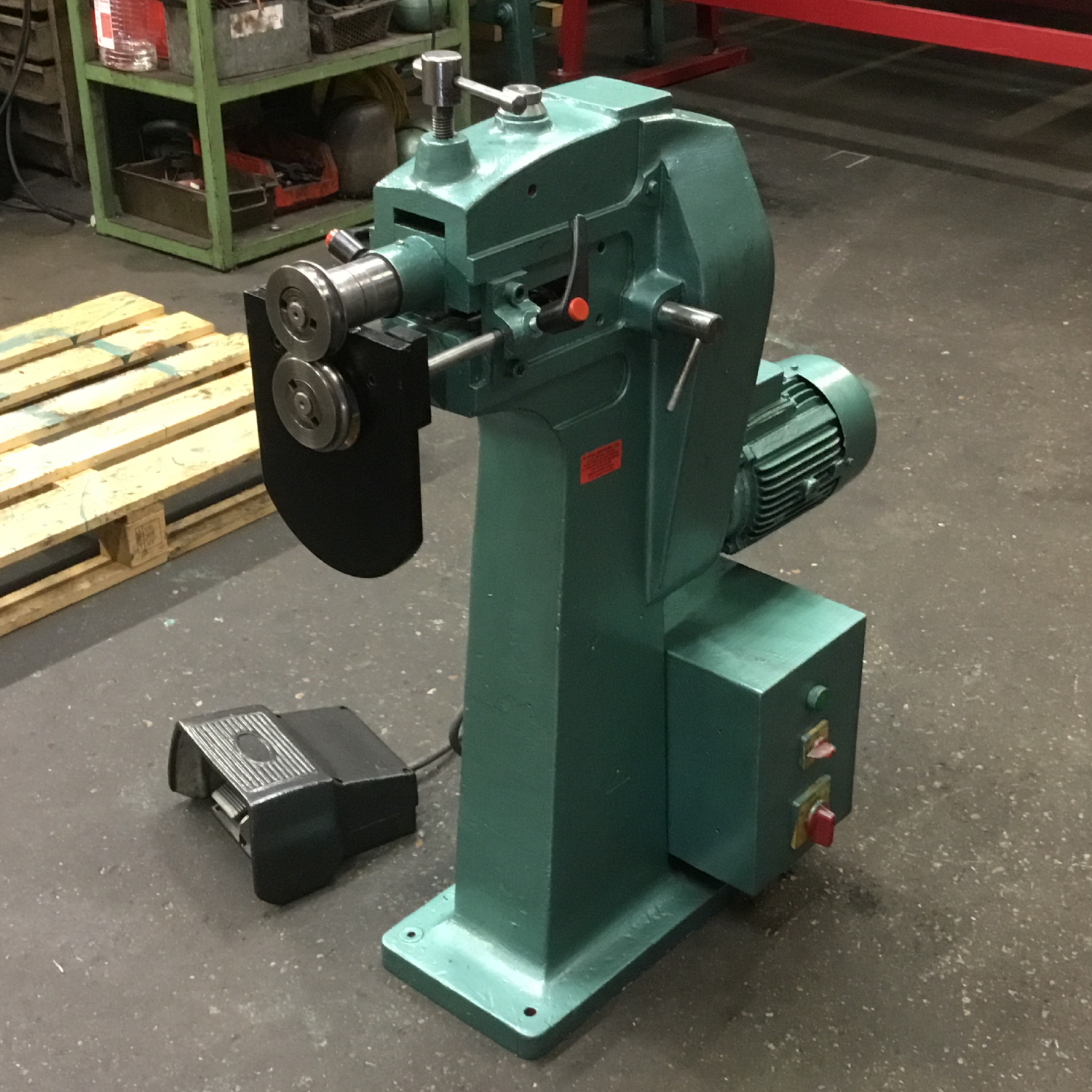

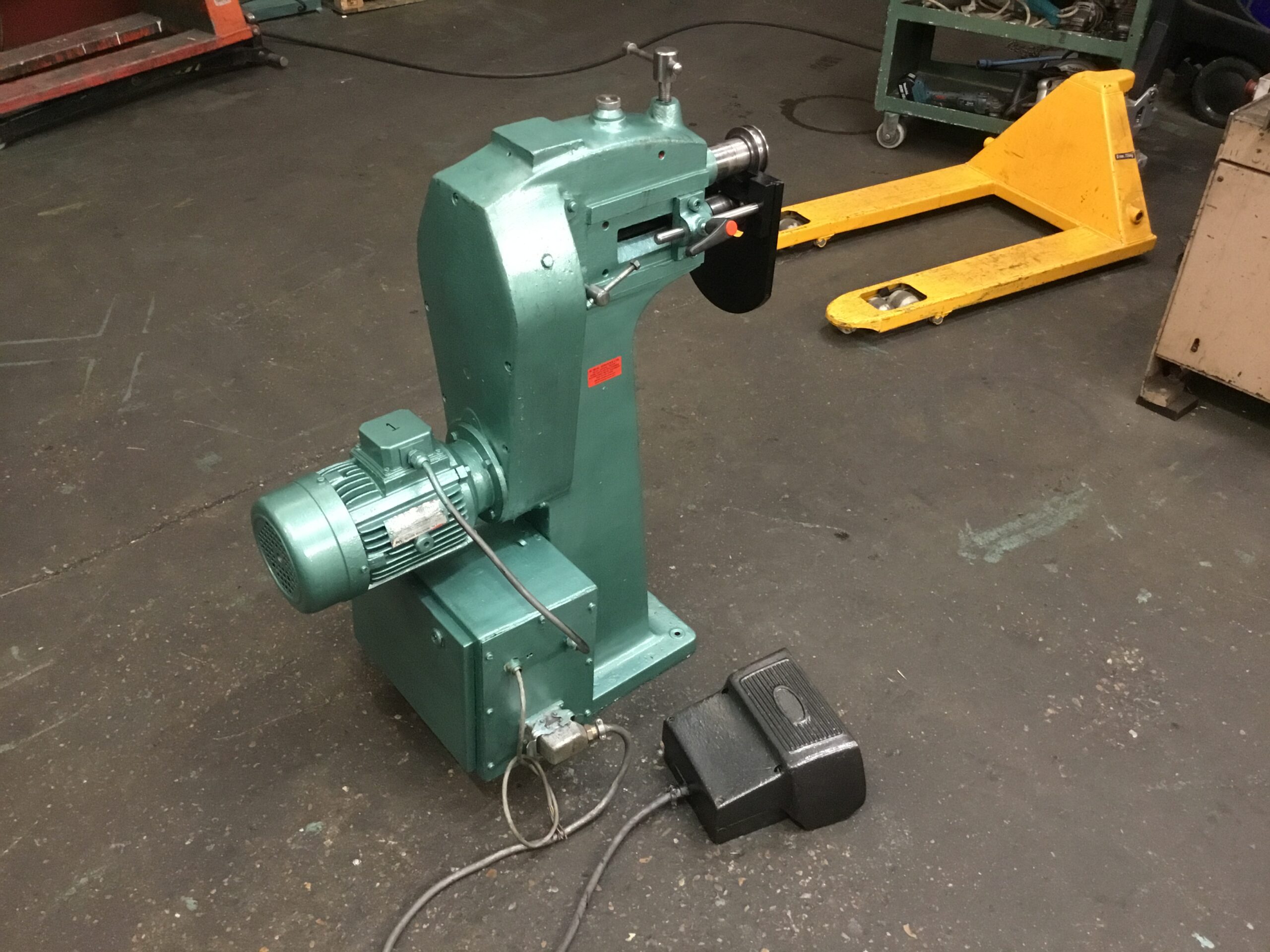

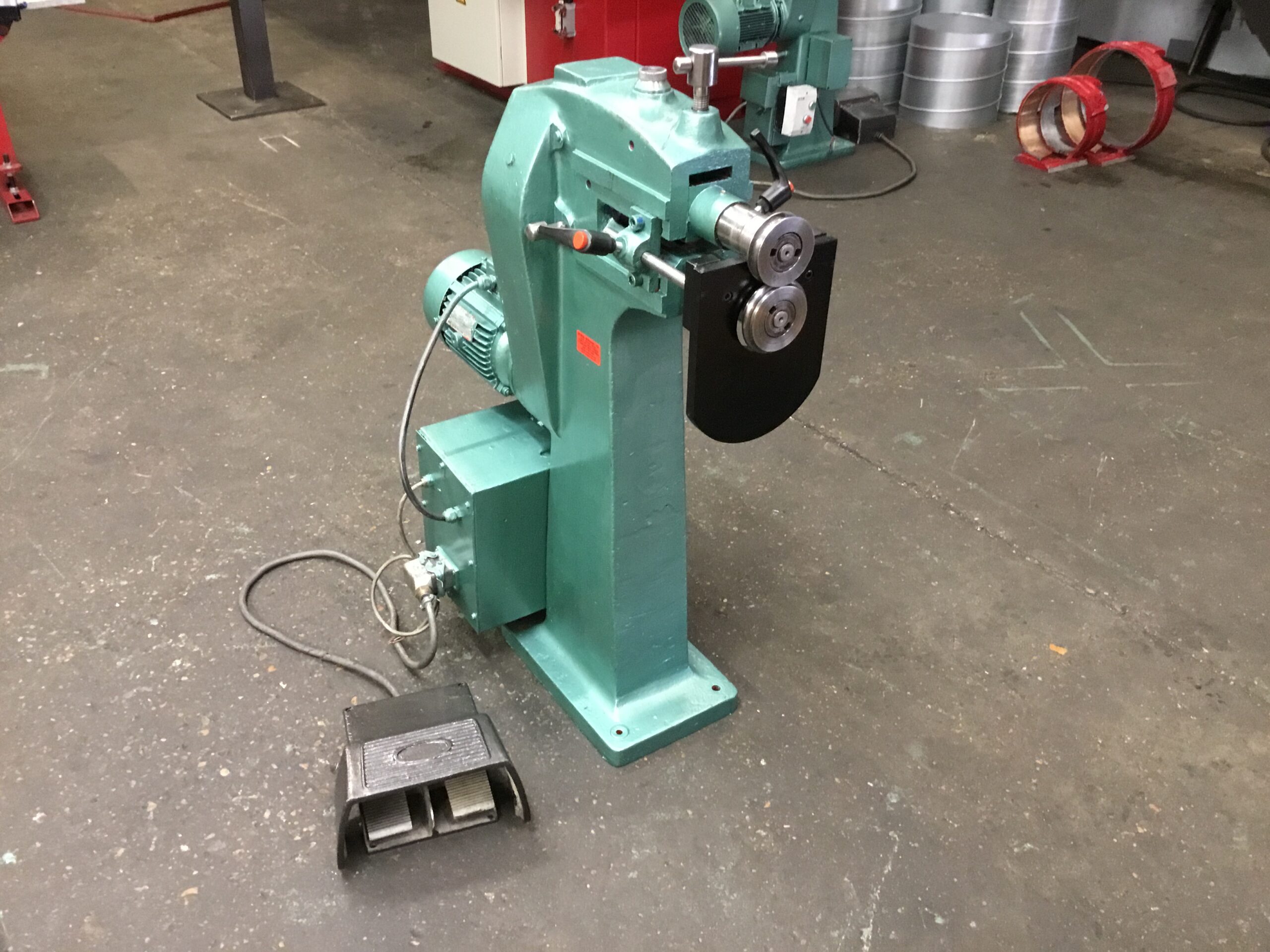

WNS POWER SWAGERS / SWAGING MACHINES (PS280V01) are principally used for swaging, beading, wiring, crimping, and forming of sheet metal. These power swagers have a 280mm throat and can accommodate mild steel sheet up to 2.0mm thick. These PS280V01 come complete with 1 set of 10mm swage rolls, has a variable speed and a low voltage forward & reverse foot pedal. This machine has 415v, 3 phase electrics.
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
Additional rolls sets available and stocked, including:
>
| SPECIFICATIONS | |
| Model: | PS280V01 |
| Throat Depth: | 280mm |
| Maximum Thickness: | 2.0mm Capacity Mild Steel* |
| Rolls Included: | 1 x Set of 10mm (S5) Swage Rolls |
| Roll – Inside Roll Diameter (apx): | 30mm |
| Roll – Outside Diameter (apx): | 80mm/85mm |
| Direction: | Forward & Reverse Foot Pedal |
| Speed: | Variable – 0-40rpm |
| Motor Power: | 0.75kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 900mm x 560mm x 1110mm (l x w x h) |
| Weight – net (apx): | 165Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
