£120.00 – £260.00
If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:
Manufactured by W. NEAL SERVICES LTD since 1981.
*indicates standard rolls. **fees apply.
W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery since 1981.

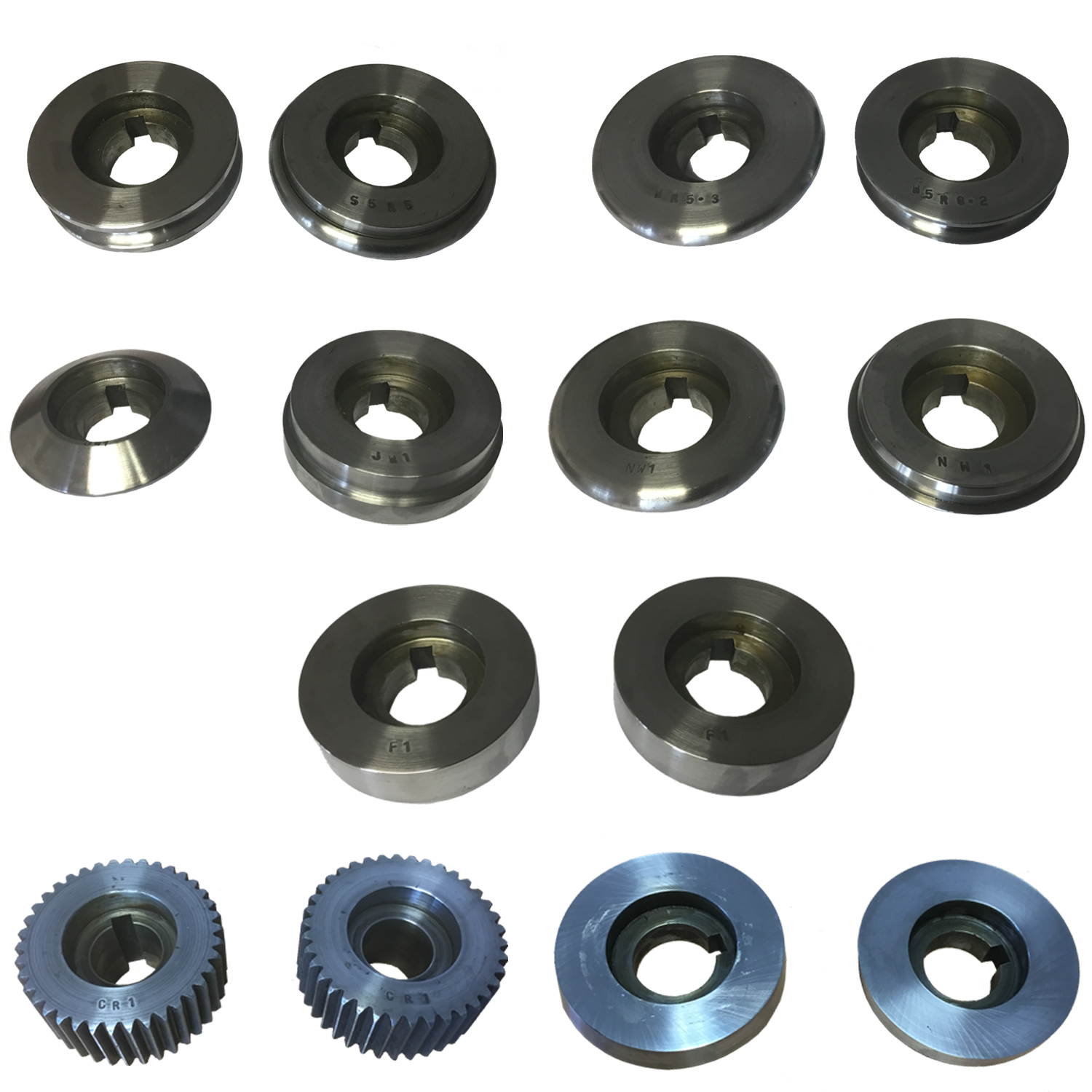

WNS 30mm SWAGER ROLLS (PS280-ROLLS) are suitable for all WNS 280mm throat power swagers, including PS280V & PS280S. Rolls available include swage rolls (wheels), jenny/flange rolls (wheels), wire rolls (wheels), necking rolls (wheels), crimping rolls (wheels), screw in rolls (wheels), flat/plain rolls (wheels) and shearing/cutting rolls (wheels). These swager dies are also compatible with CMZ 7, CMZ 7R & CMZ 8, CMZ 8R & CMZ 9R swaging machines.
Alternative & additional swager roll sets also available and stocked, including:
Please do not hesitate to contact us should you require assistance in choosing the correct rolls on 01702 542554 | 01702 542558.
Please note: photographs are as a guide only.
| Weight | N/A |
|---|

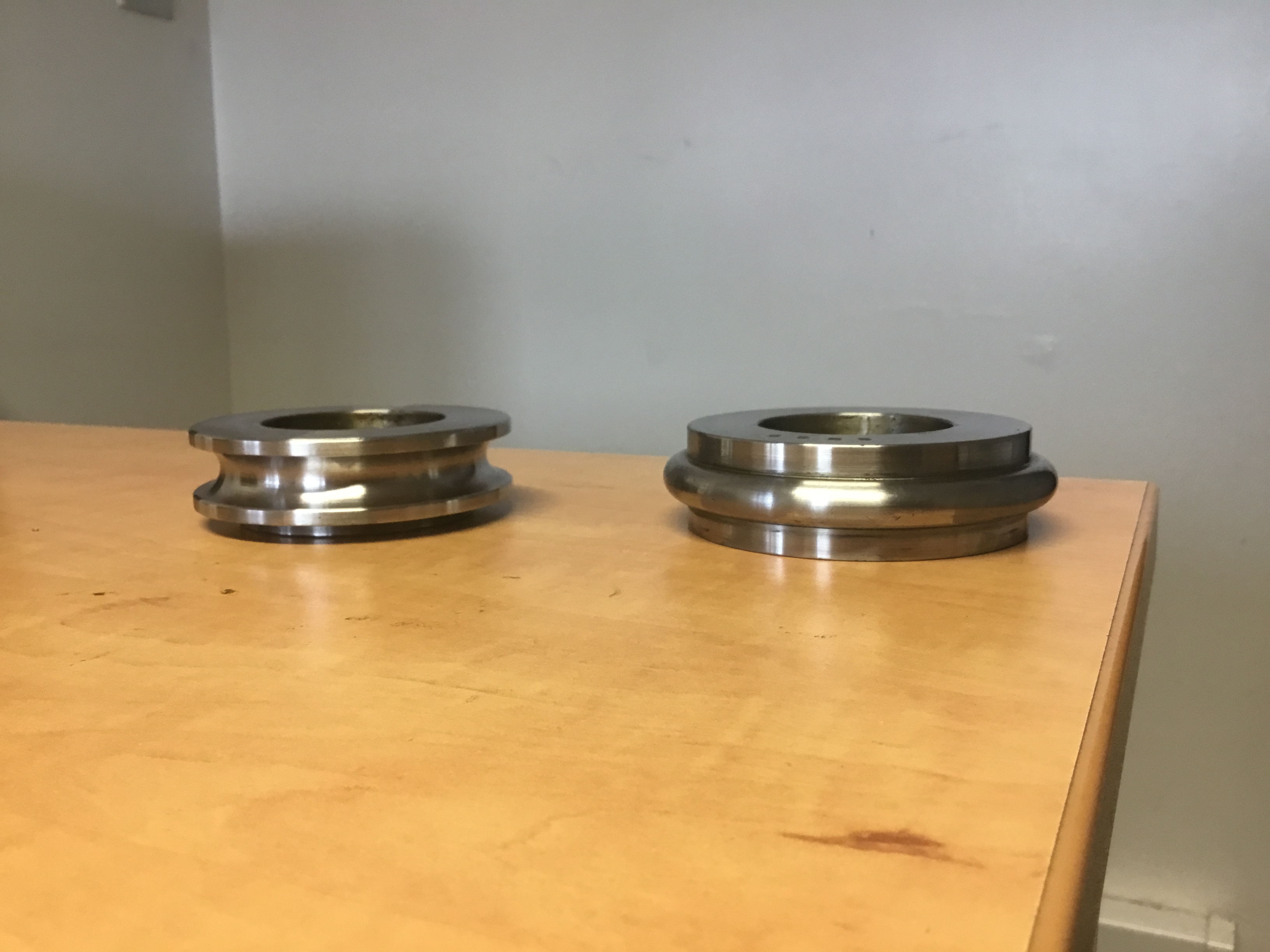

| SWAGING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Diameter: |
| Swaging – S1 | PS280-ROLLS-S1 |
3.0mm |
| Swaging – S2 | PS280-ROLLS-S2 | 5.0mm |
| Swaging – S3 | PS280-ROLLS-S3 | 6.0mm |
| Swaging – S4 | PS280-ROLLS-S4 | 8.0mm |

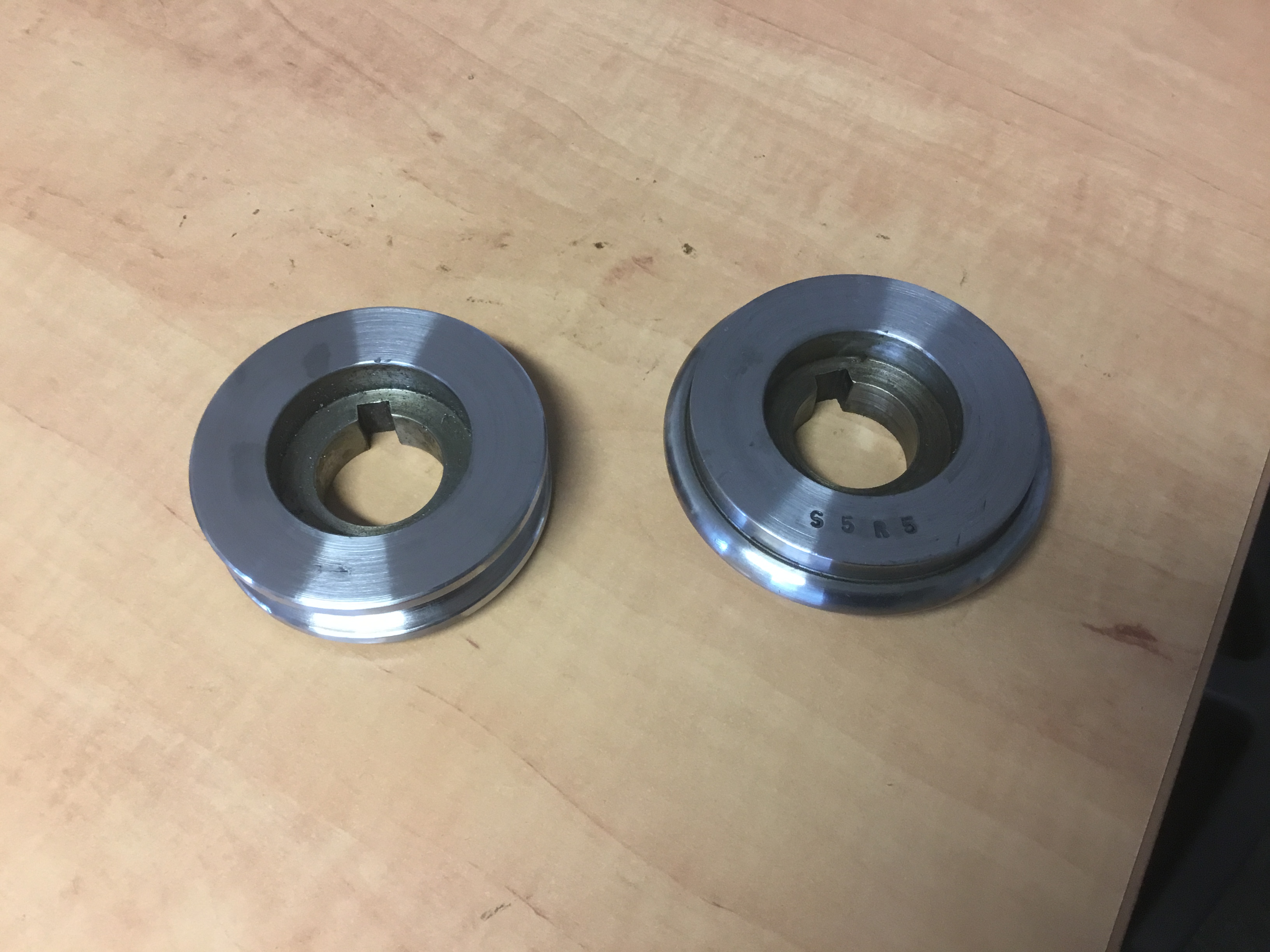

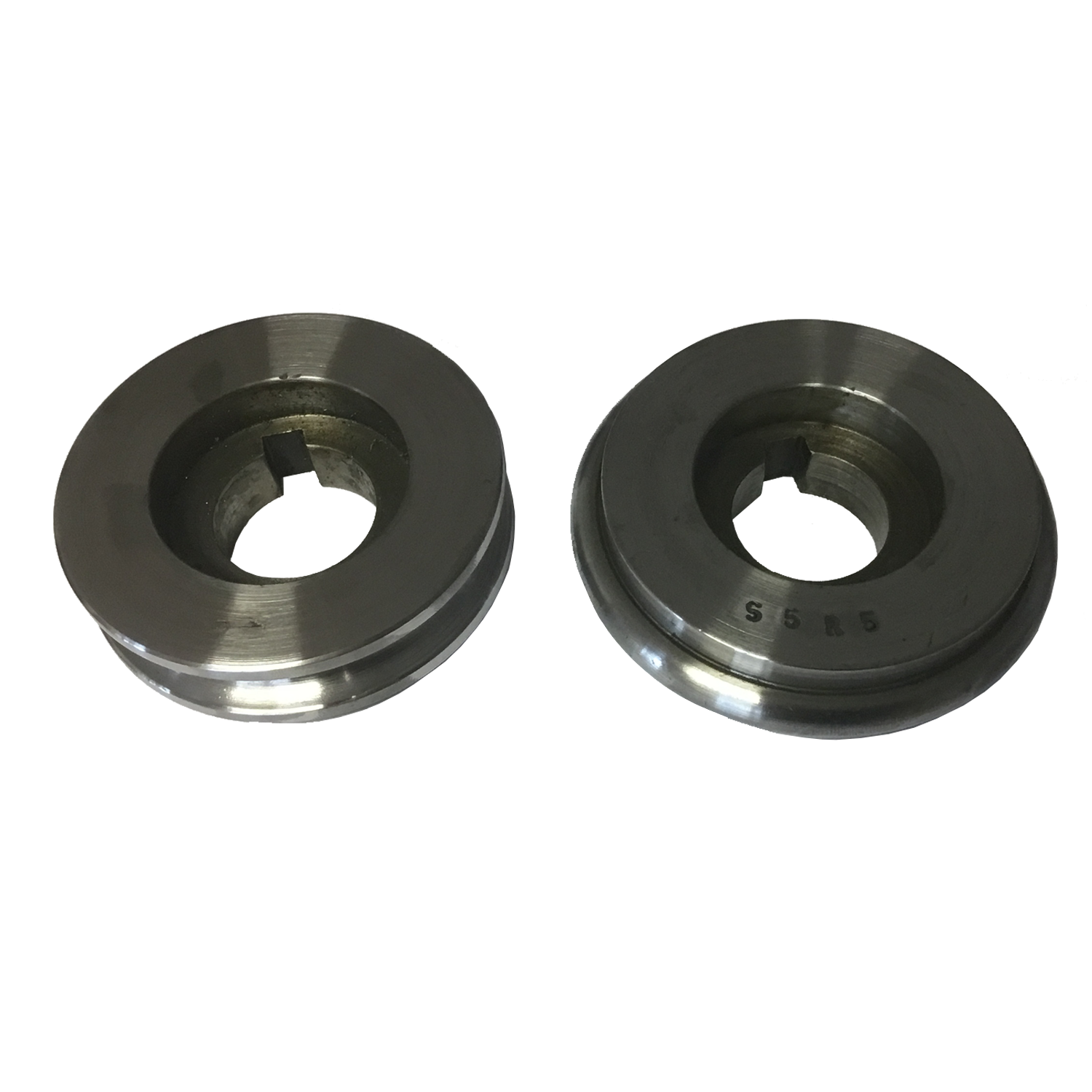

| Swaging – S5 | PS280-ROLLS-S5 | 10mm |
| Swaging – S6 | PS280-ROLLS-S6 | 12mm |
| Swaging – S7 | PS280-ROLLS-S7 | 14mm |

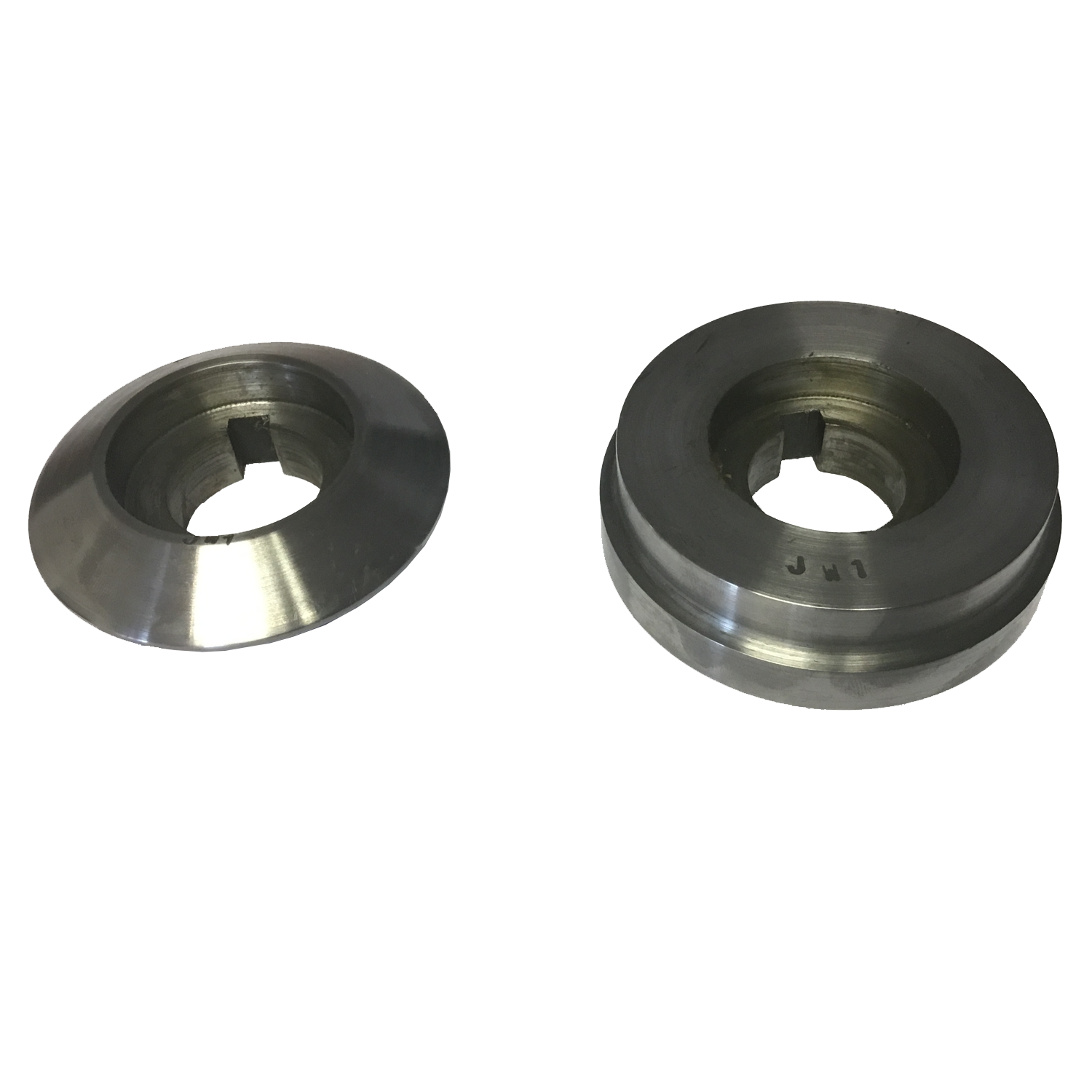

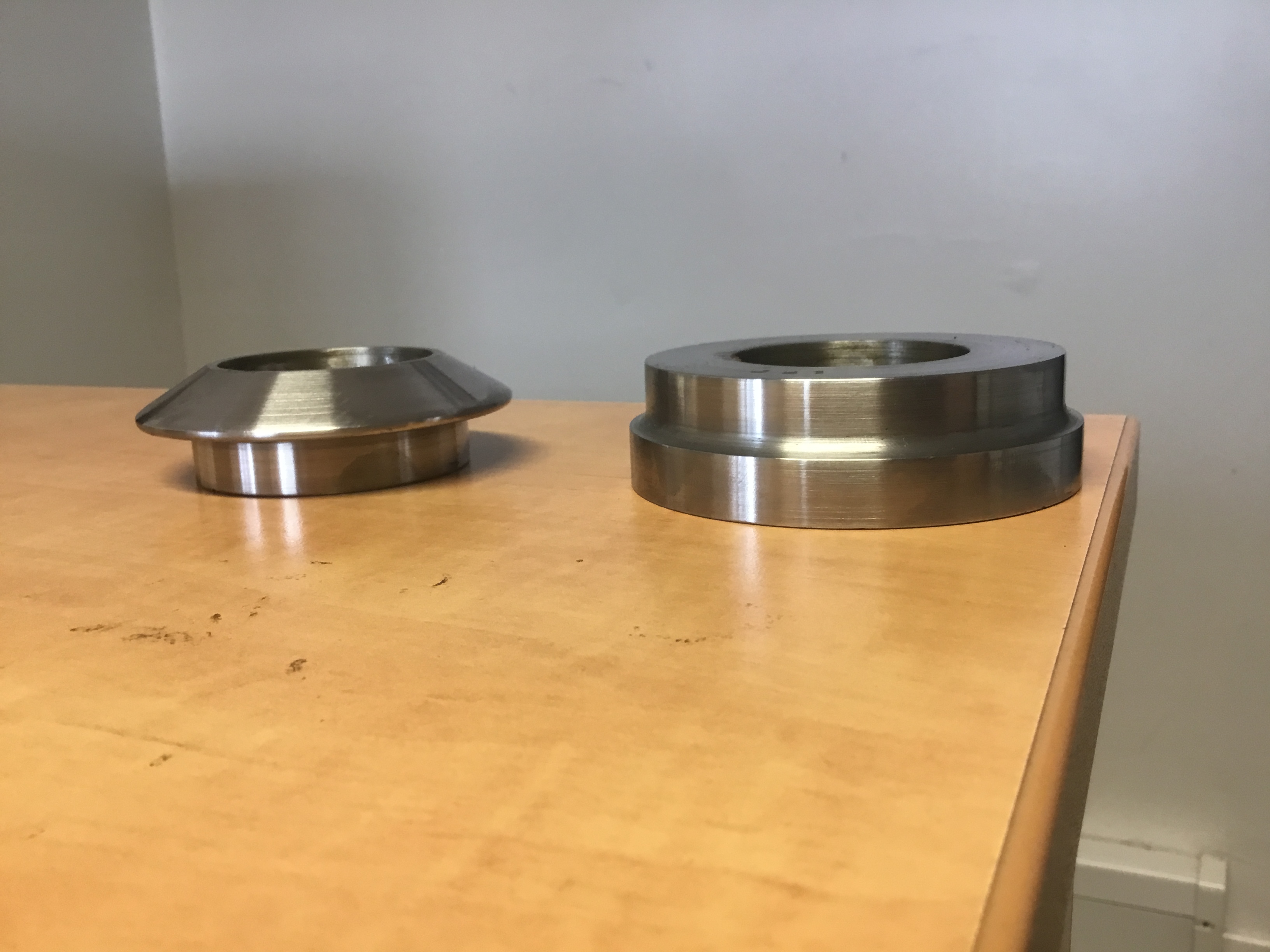

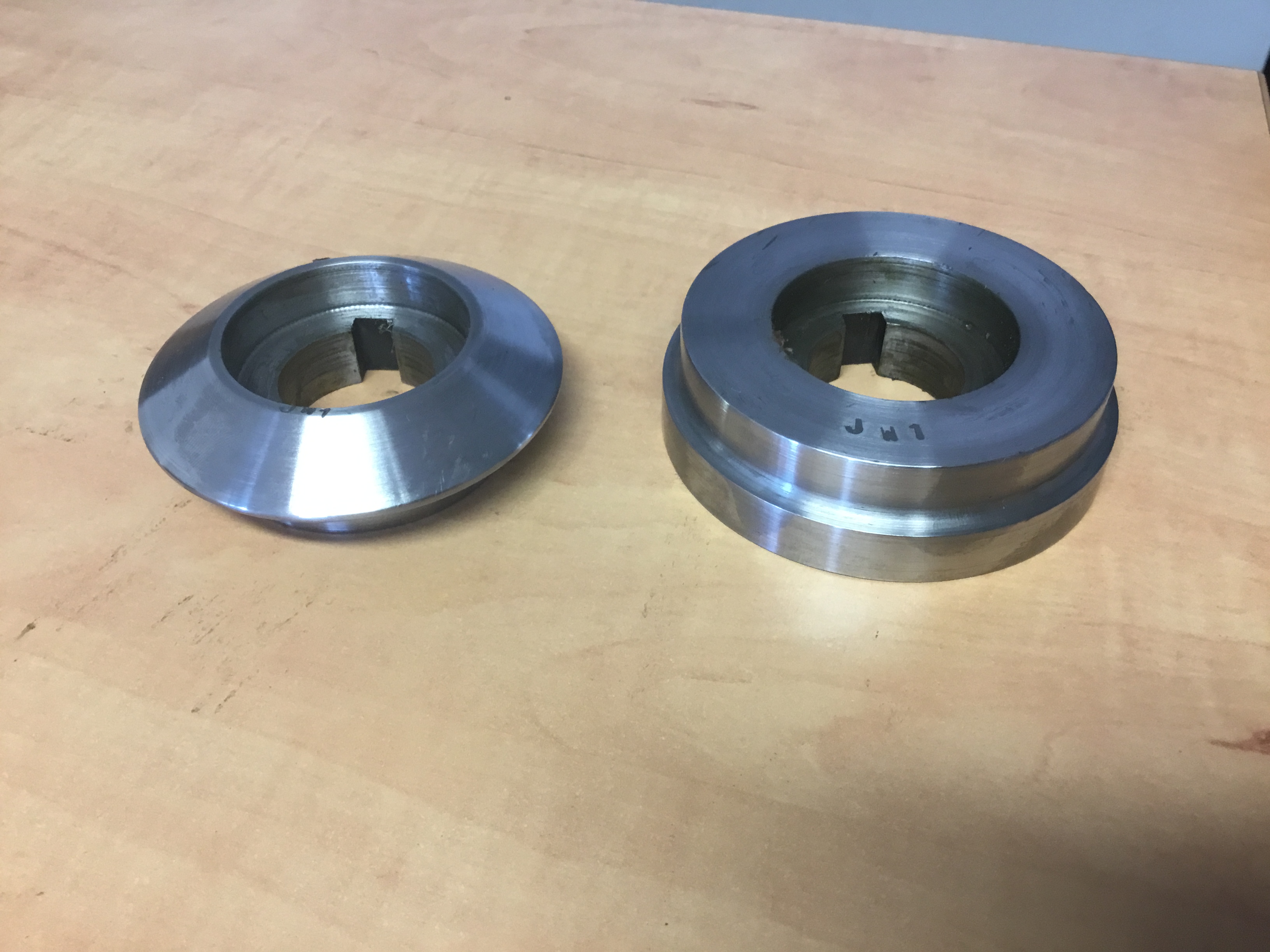

| JENNY/FLANGING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Step: |
| Jenny – JW1 | PS280-ROLLS-JW1 |
3.0mm |

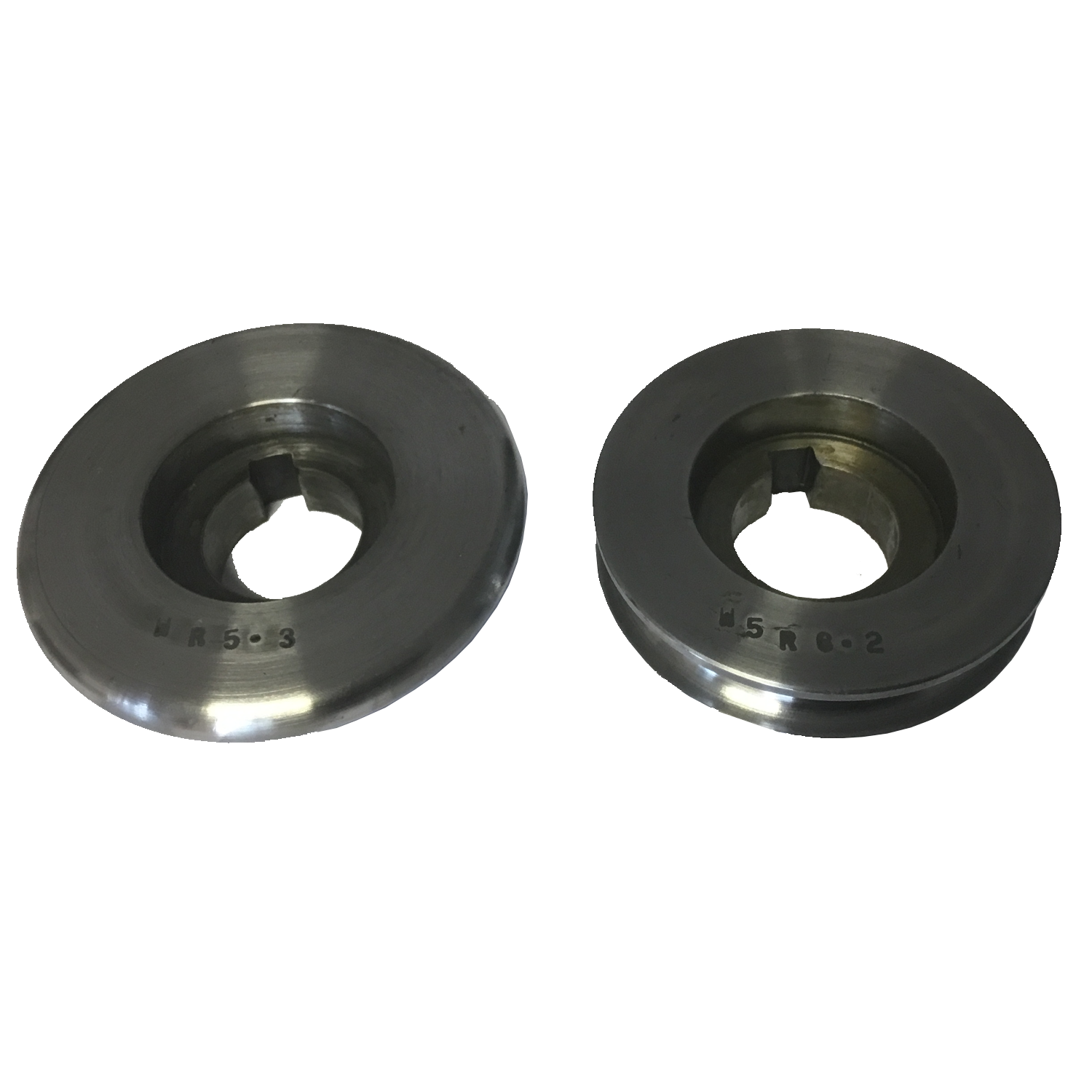

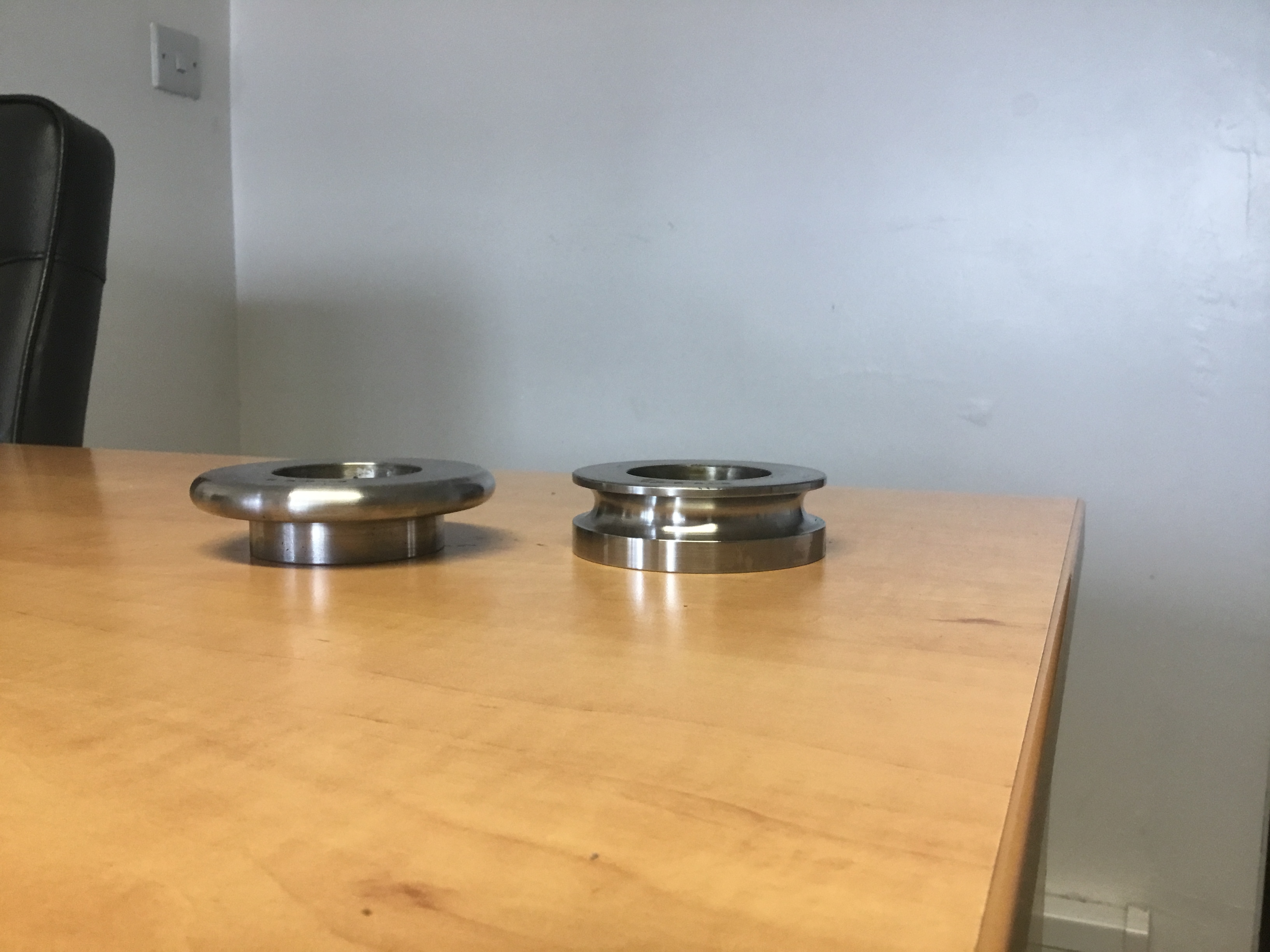

| WIRING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Diameter: |
| Wiring – W1 | PS280-ROLLS-W1 |
3.0mm |
| Wiring – W2 | PS280-ROLLS-W2 | 5.0mm |
| Wiring – W3 | PS280-ROLLS-W3 | 6.0mm |
| Wiring – W4 | PS280-ROLLS-W4 | 8.0mm |

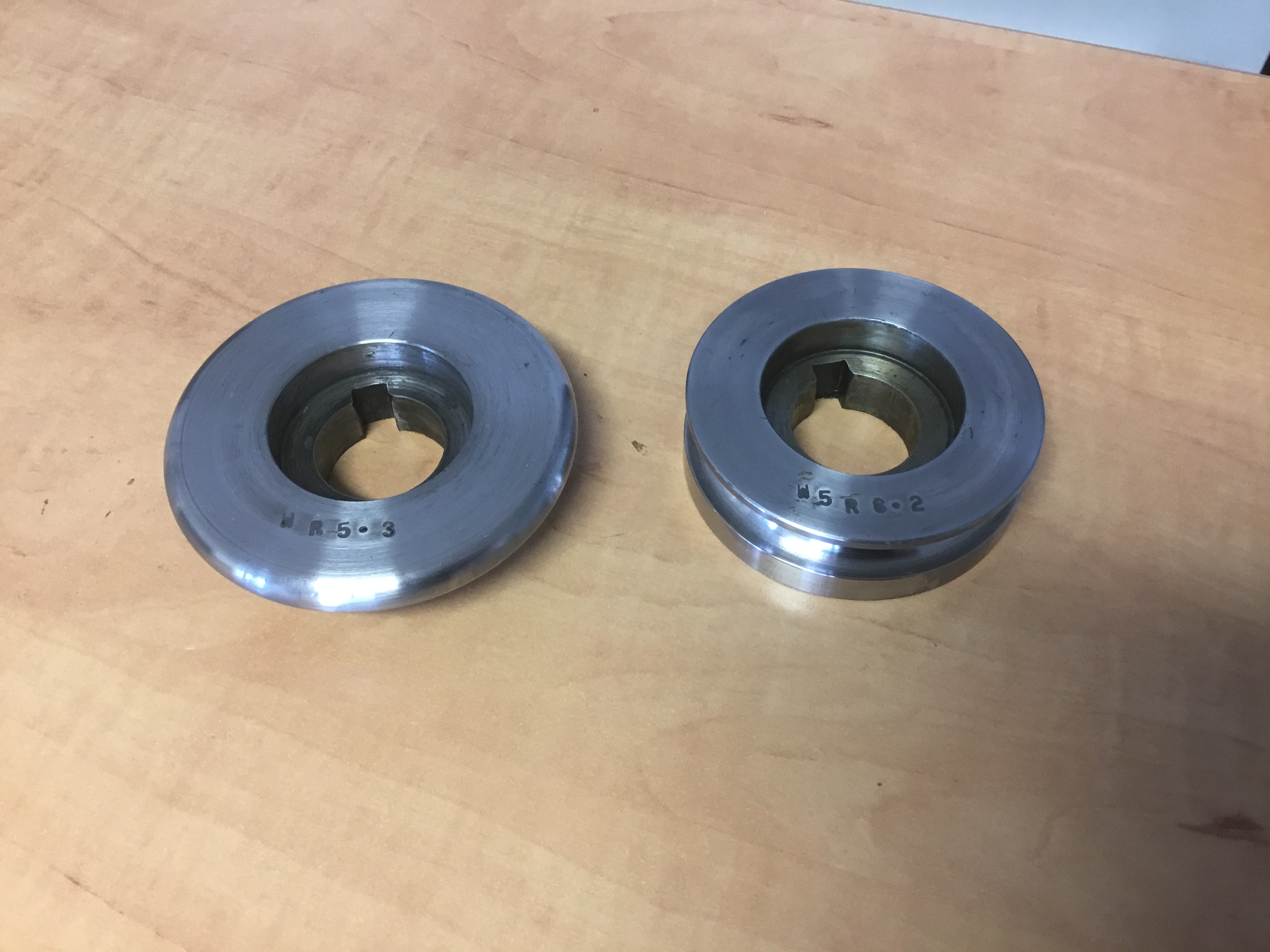

| Wiring – W5 | PS280-ROLLS-W5 | 10mm |
| Wiring – W6 | PS280-ROLLS-W6 | 12mm |

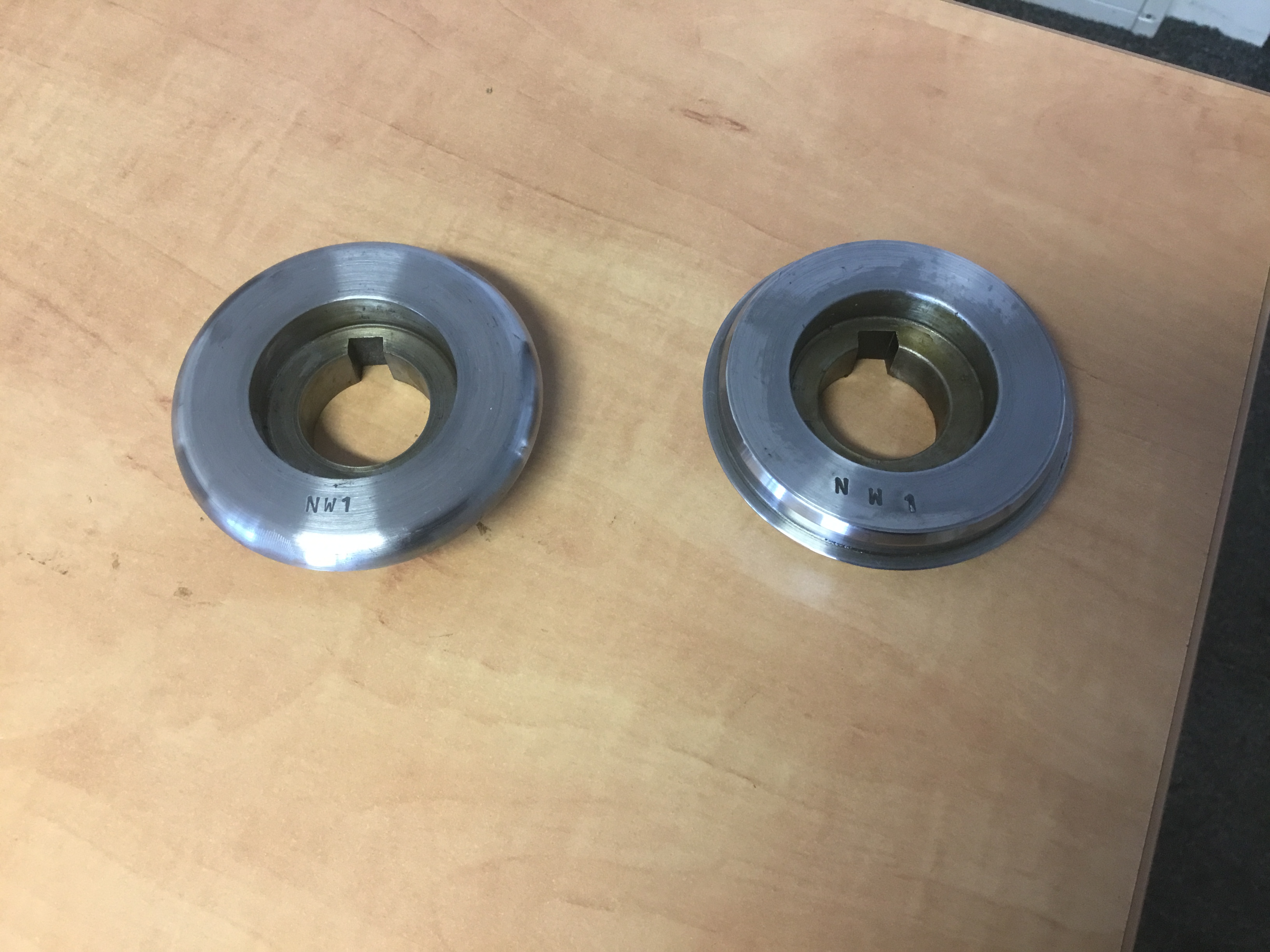

| NECKING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Step: |

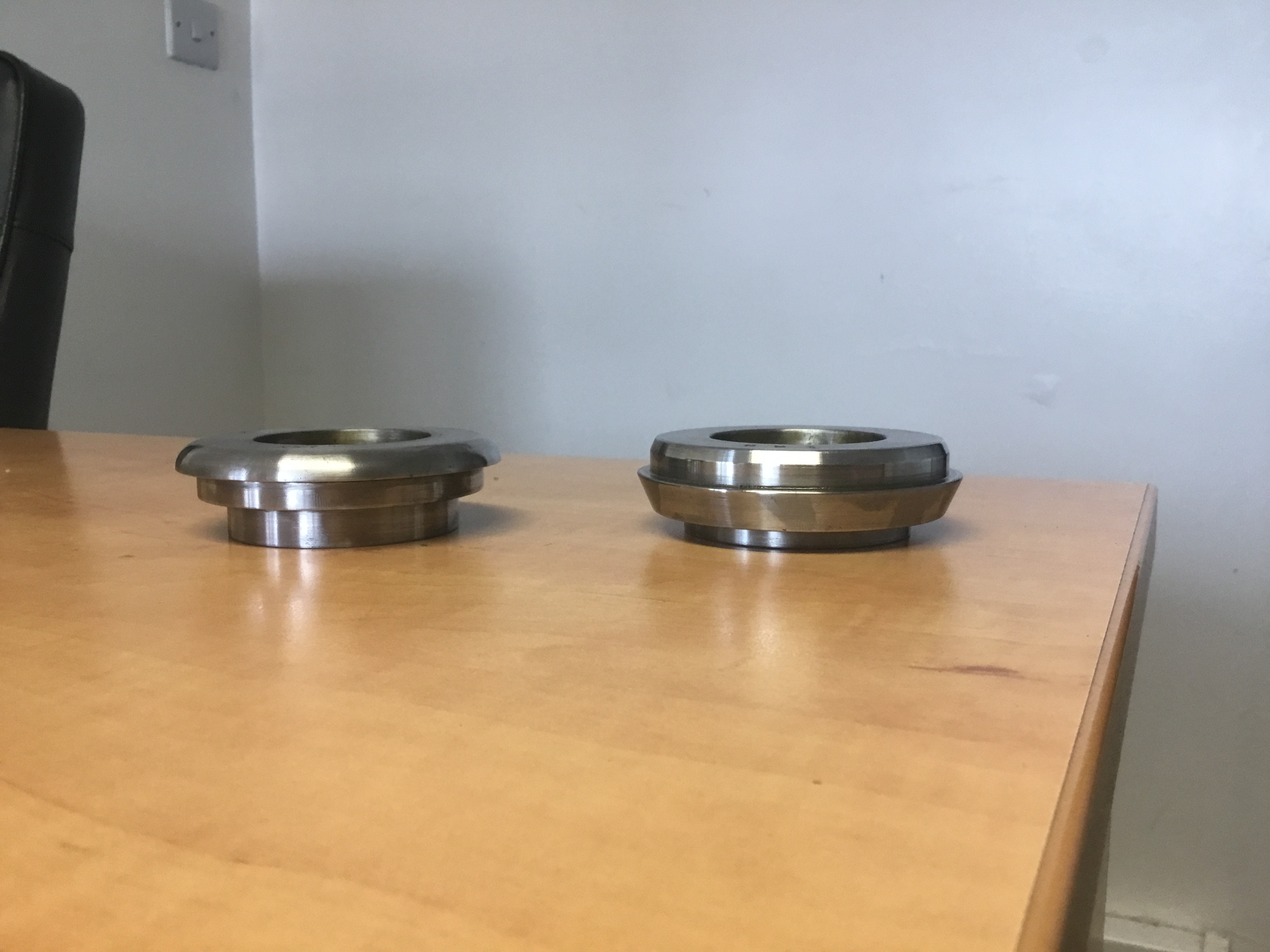

| Necking – NW1 | PS280-ROLLS-NW1 |
4.0mm |

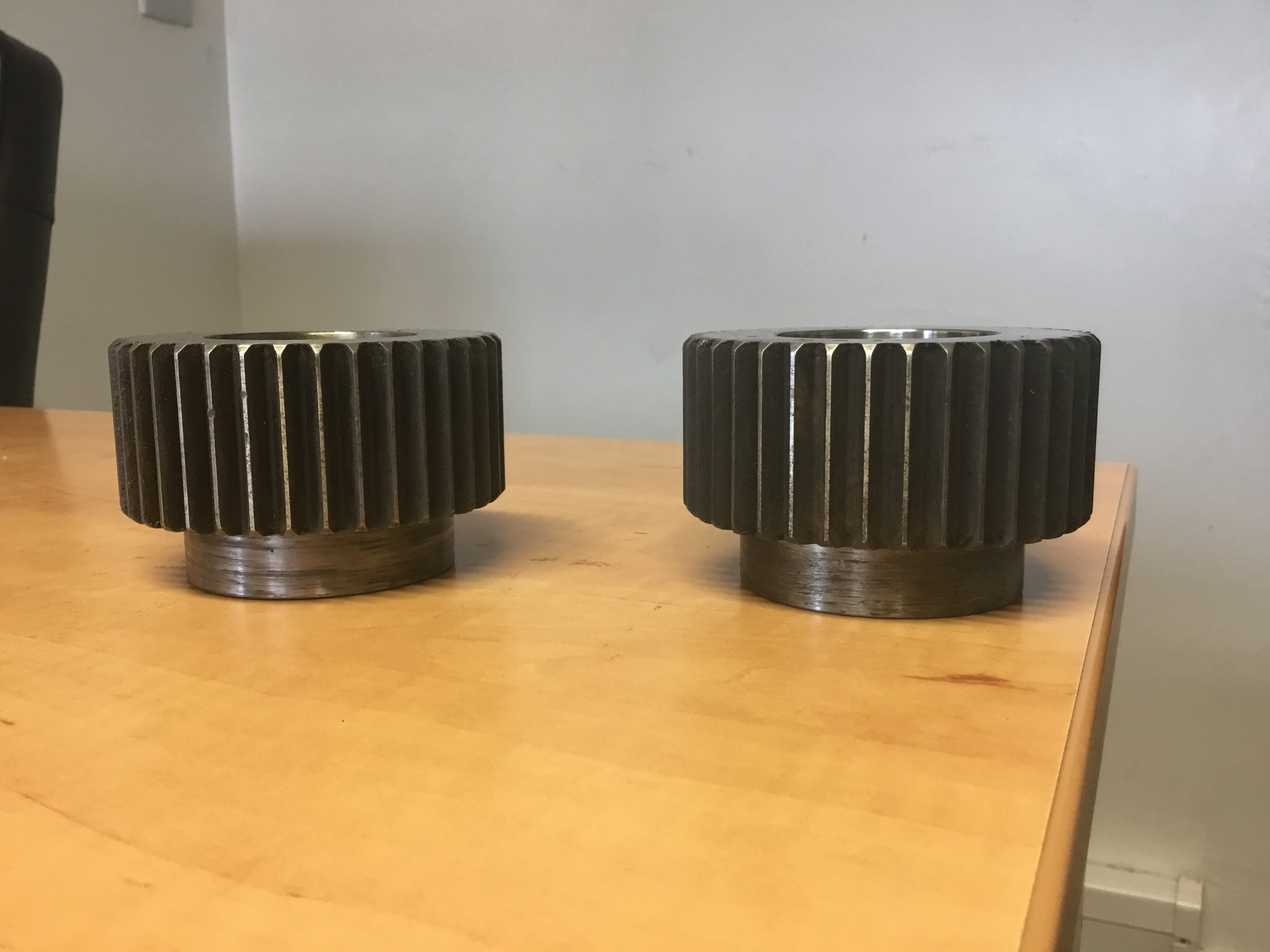

| CRIMPING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Width: |

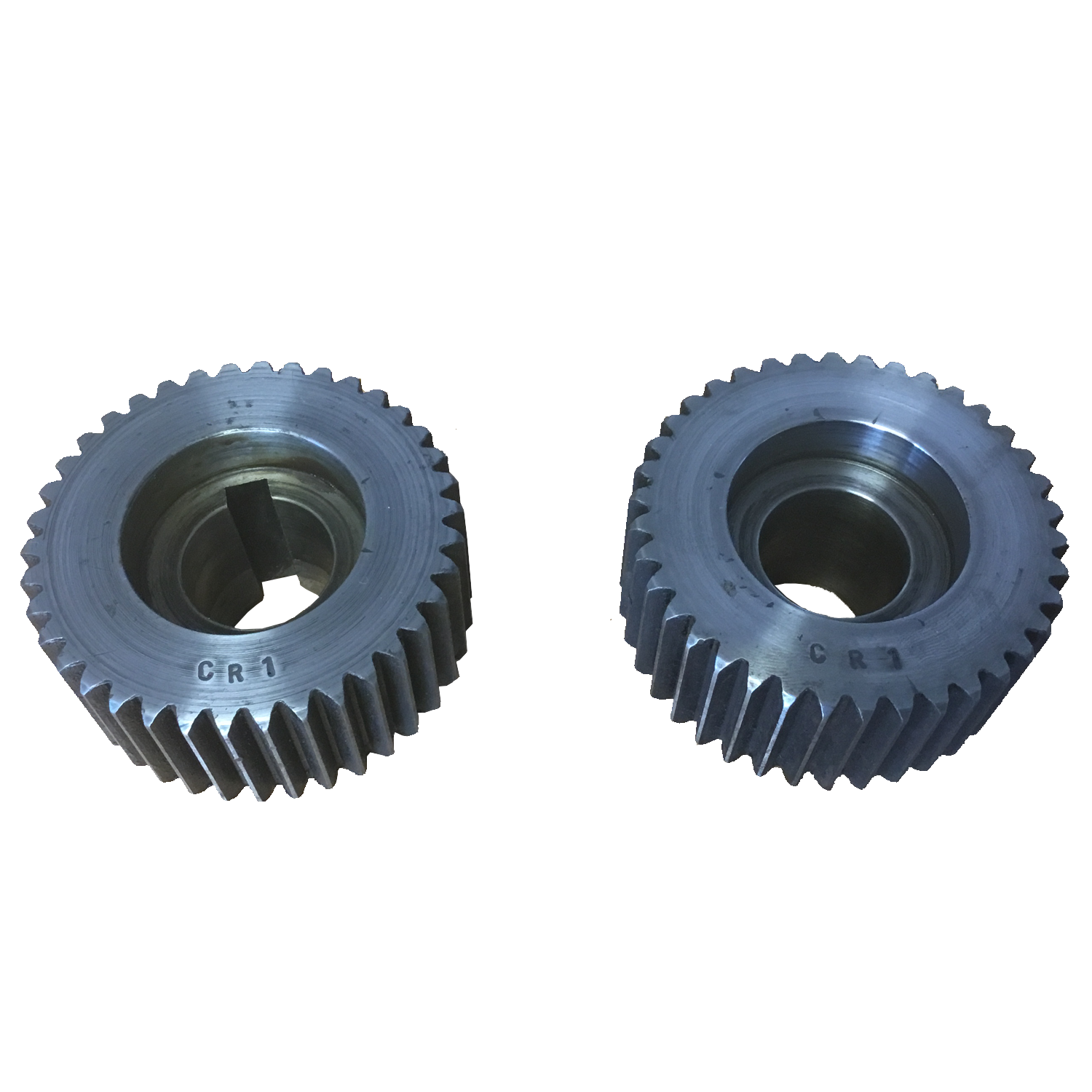

| Crimping – CR1 | PS280-ROLLS-CR1 | 38mm |
| SCREW IN ROLLS SPECIFICATIONS |
|||
| Roll: | Model: | Diameter: | Flange Height: |
| Screw In – SR1 | PS280-ROLLS-SR1 | 6.0mm | 7.0mm |

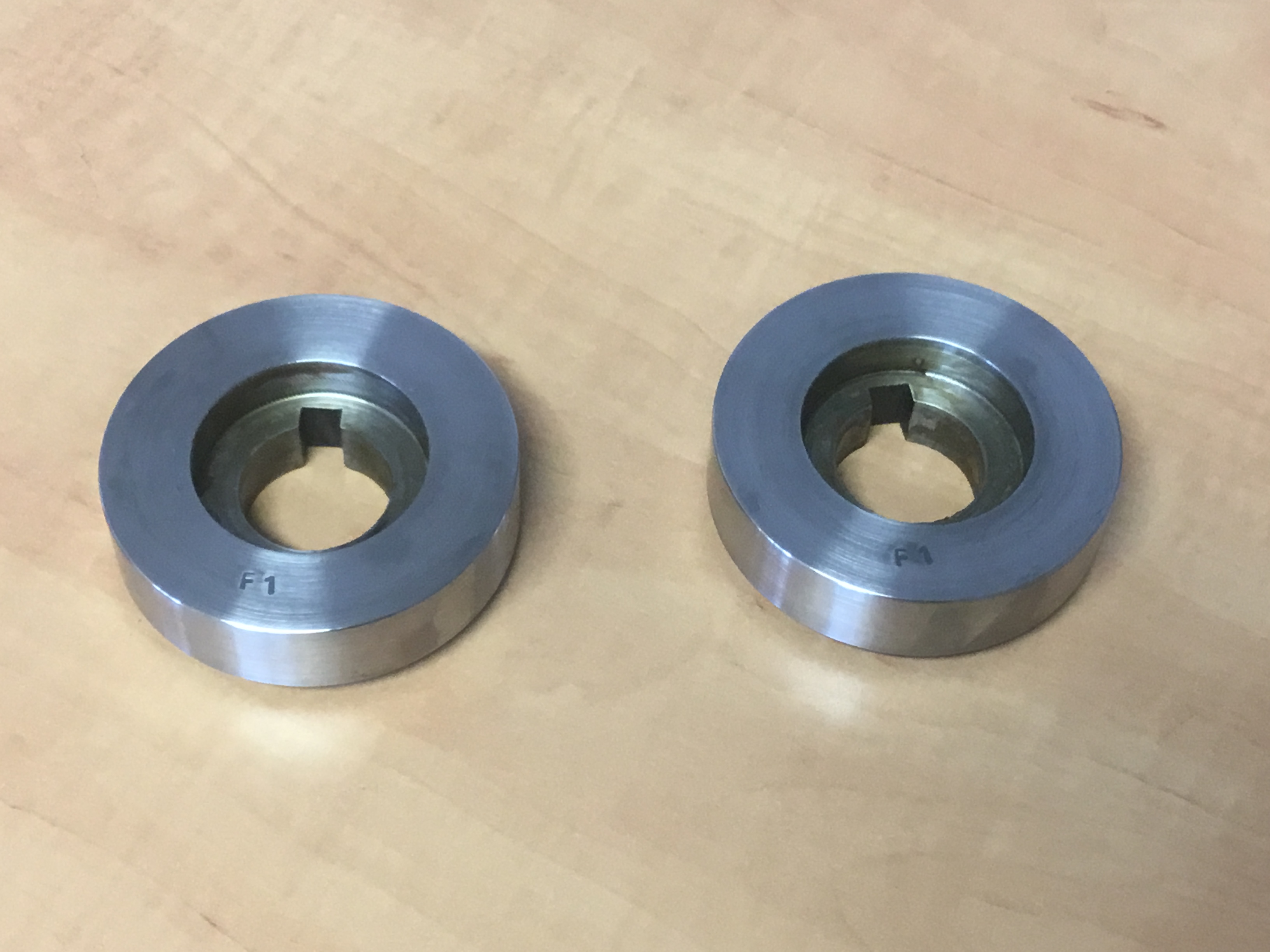

| FLAT/PLAIN ROLLS SPECIFICATIONS |
|||
| Roll: | Model: | Diameter: | Width: |

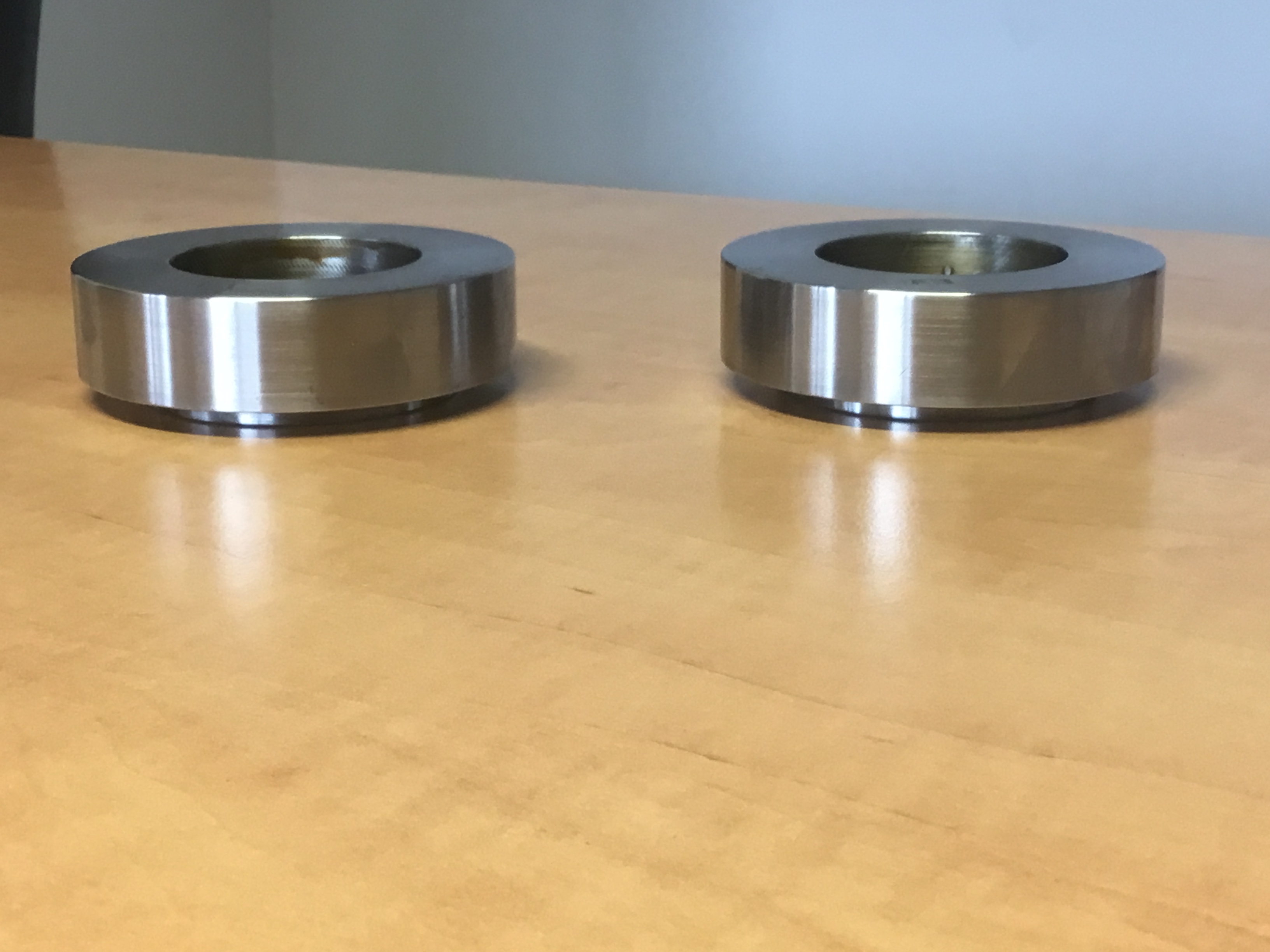

| Flat/Plain – F1 | PS280-ROLLS-F1 | 81mm | 20mm |

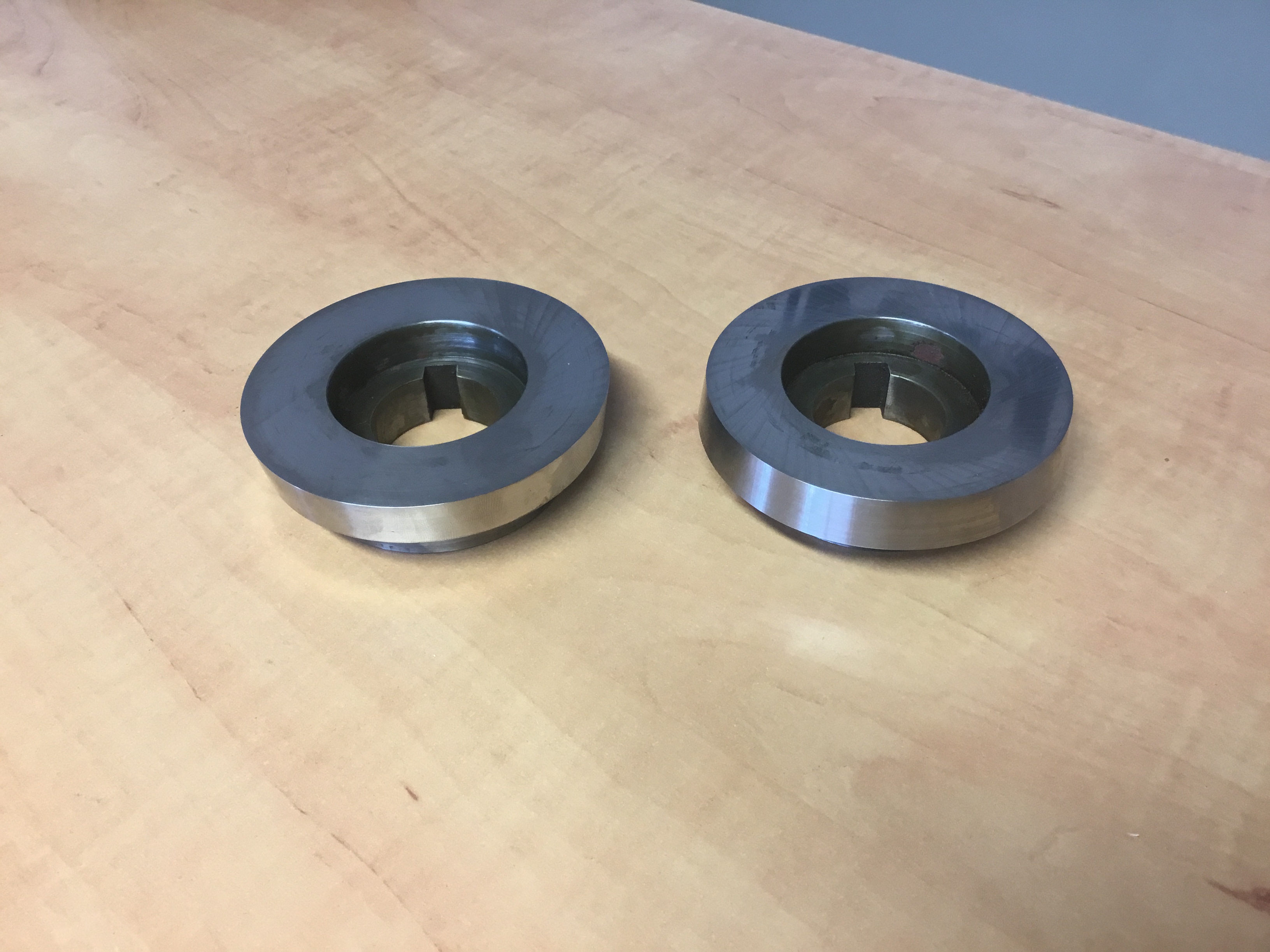

| SHEARING ROLLS SPECIFICATIONS |
||
| Roll: | Model: | Diameter: |

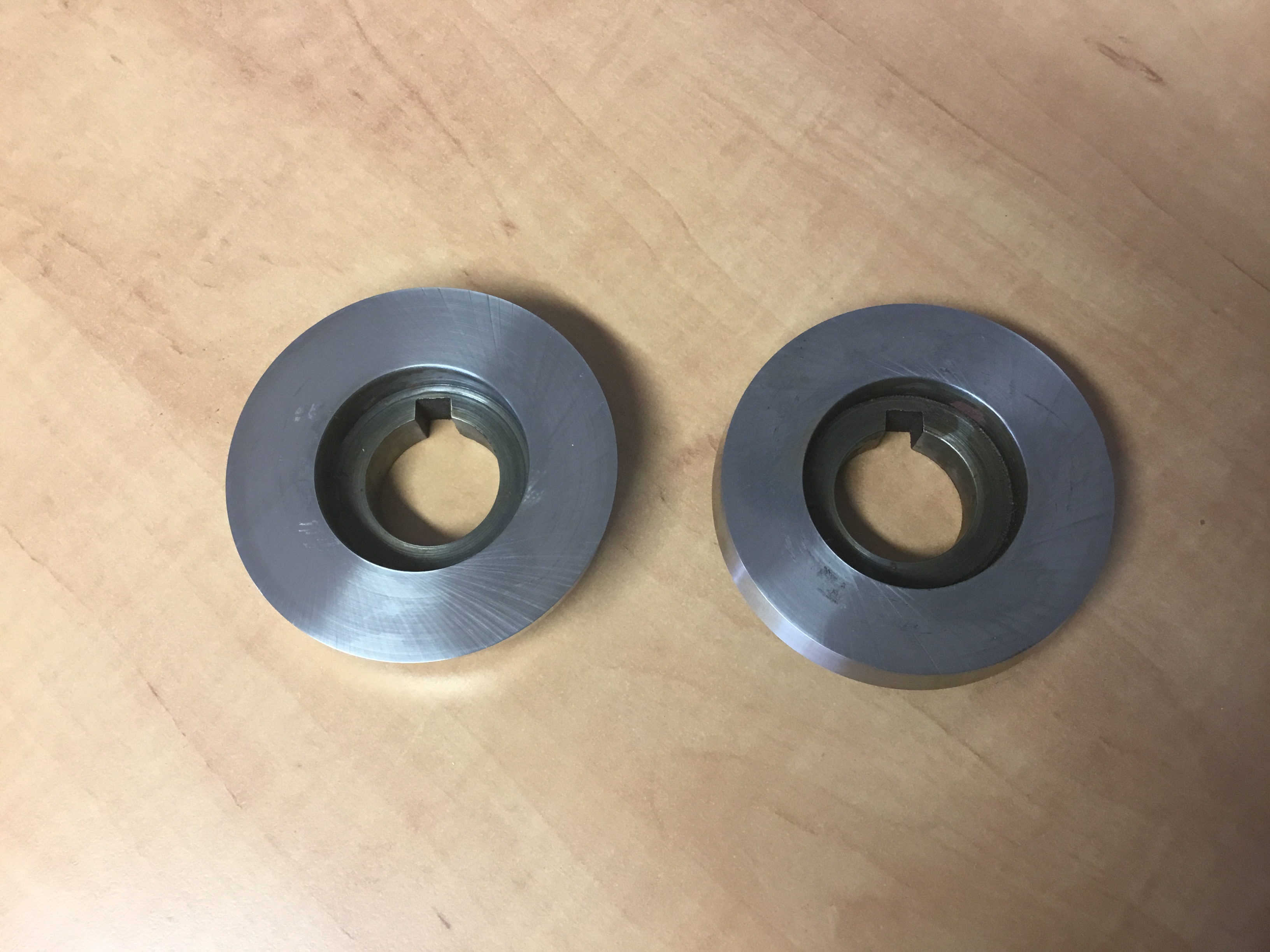

| Shearing- SL1 | PS280-ROLLS-SL1 | 84mm |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
