WNS 20swg Flat ‘S’ Cleat Rollformer

WNS 20swg Flat ‘S’ Cleat Rollformer

WNS 20swg Flat ‘S’ Cleat Rollformer

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

Manufactured by W. NEAL SERVICES LTD for over 35 years.
  • 20swg (1.0mm) Capacity Mild Steel
  • Double Extended Shafts
  • 9 Stations
  • Industry Standard Sized Joints & Locks
  • Hardened Guide

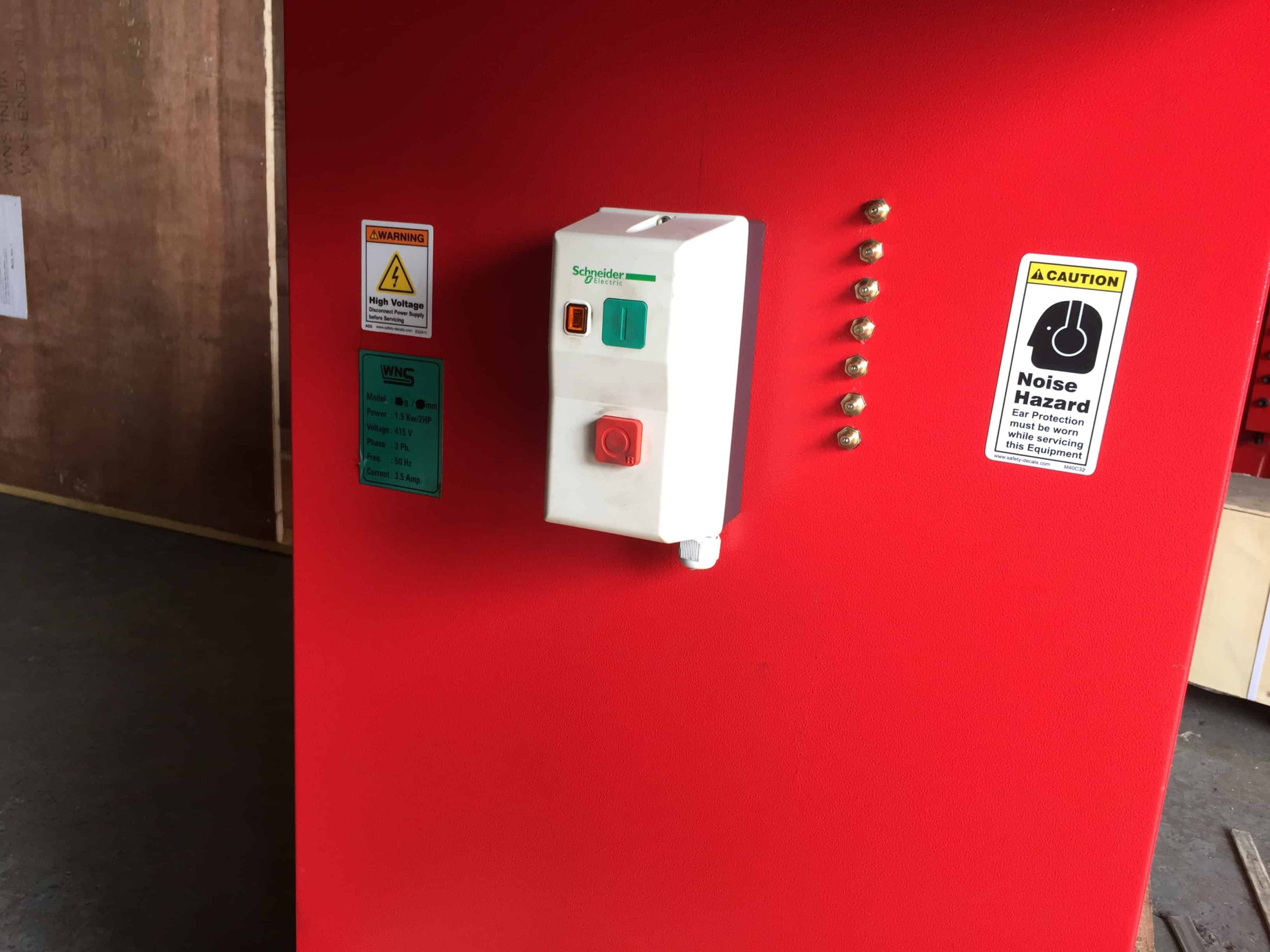

  • DOL Starter & Isolator
  • Separate Emergency Stop
  • 415v, 3 Phase Electrics
  • Quality Design & Build
  • Original & Traditional Pittsburgh Lock Lockformer Design
  • Industry Standard Sized Parts & Components
  • British Standard – CE Marked
  • 12 Month’s Warranty**
  • Worldwide Delivery***
  • Additional Auxiliary Rolls Available
  • Spare Parts Stocked


Description

W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery for over 35 years.

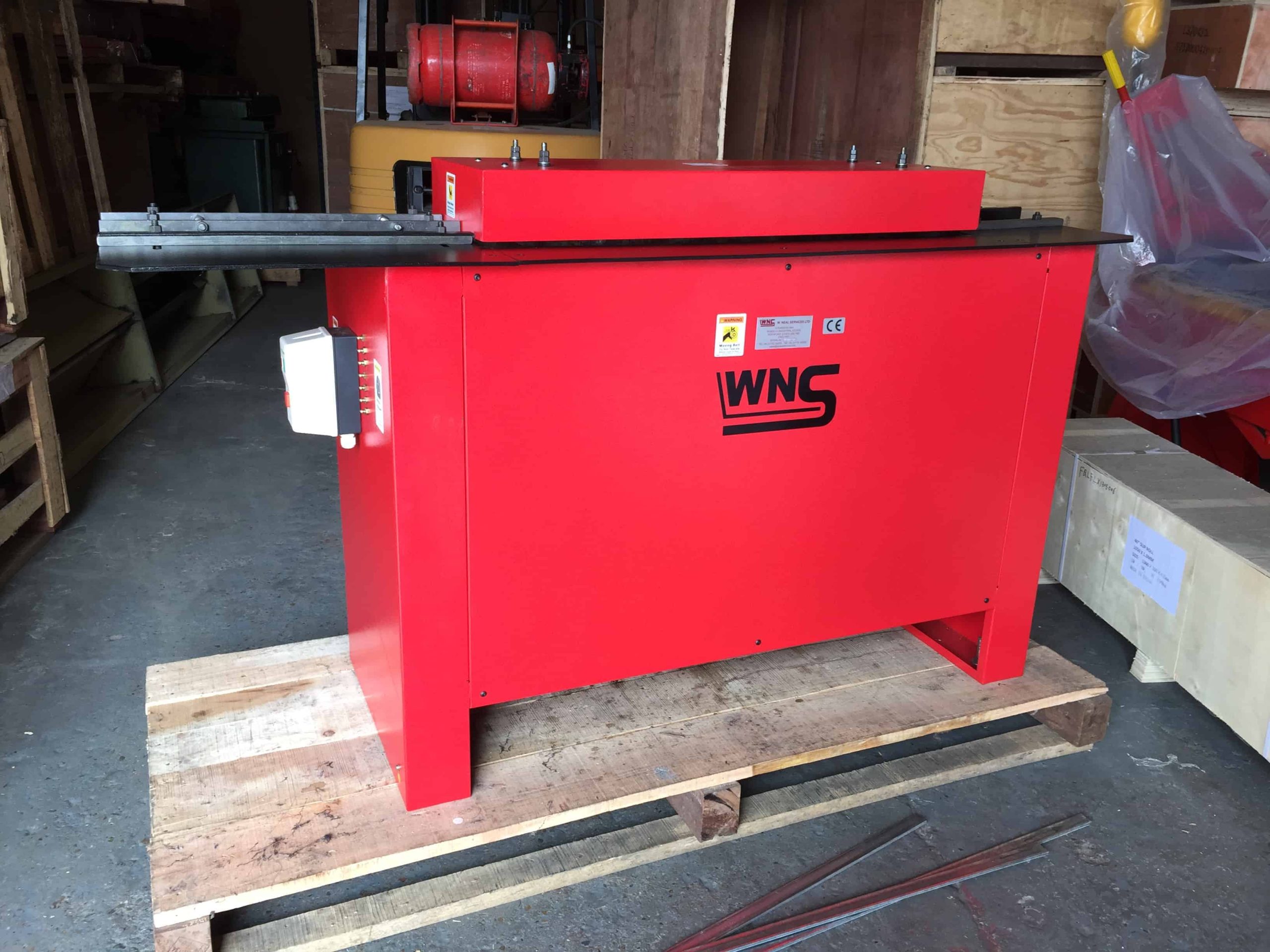

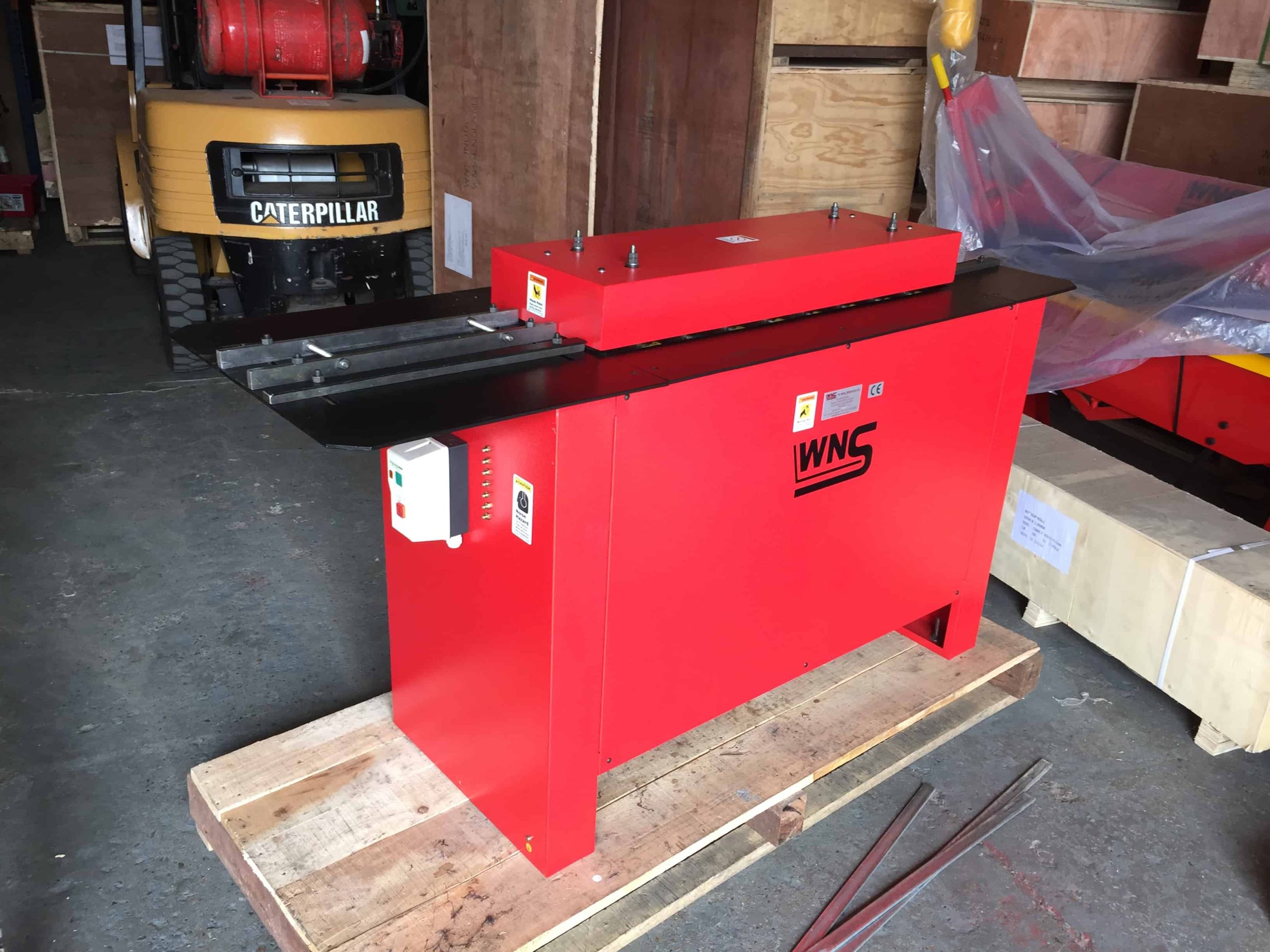

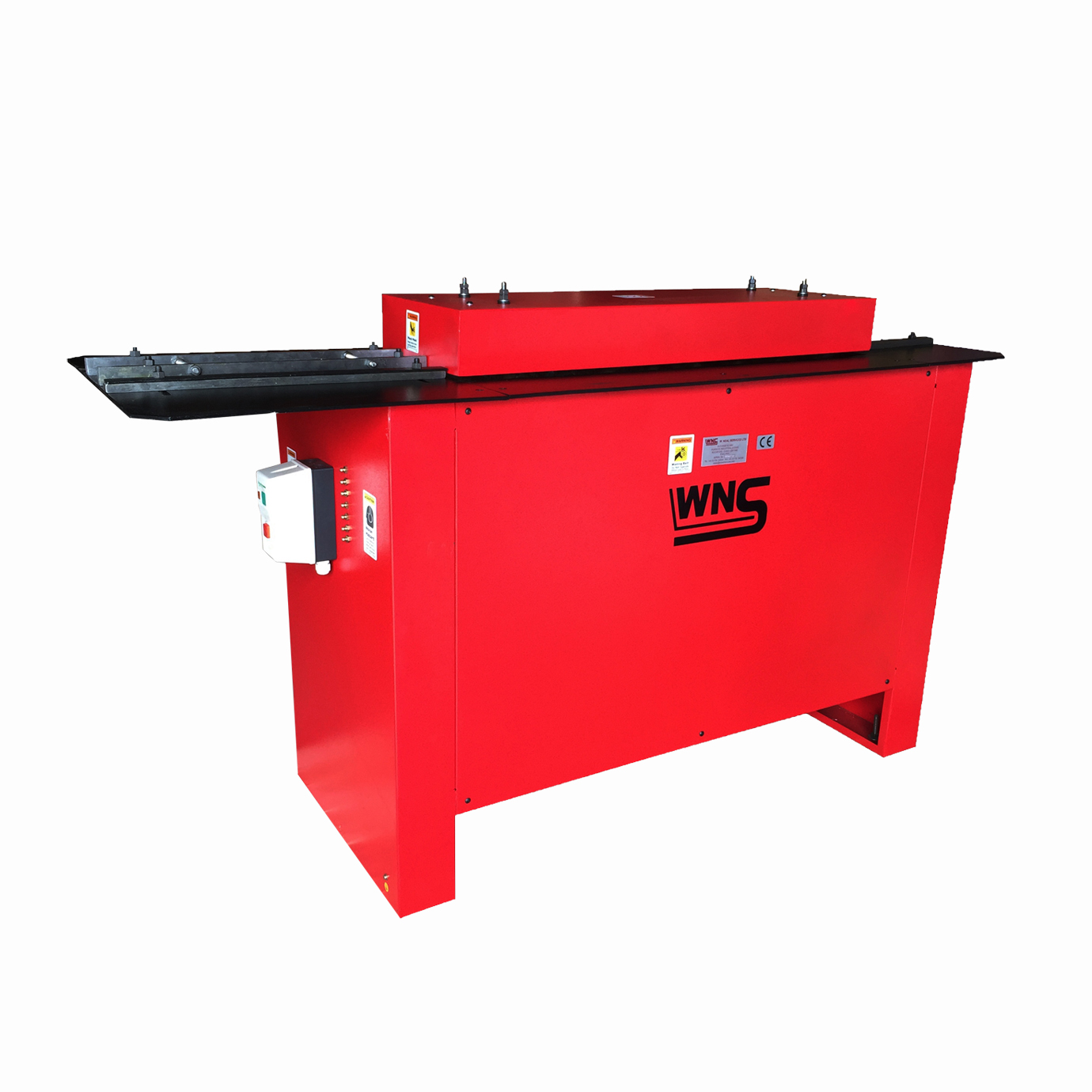

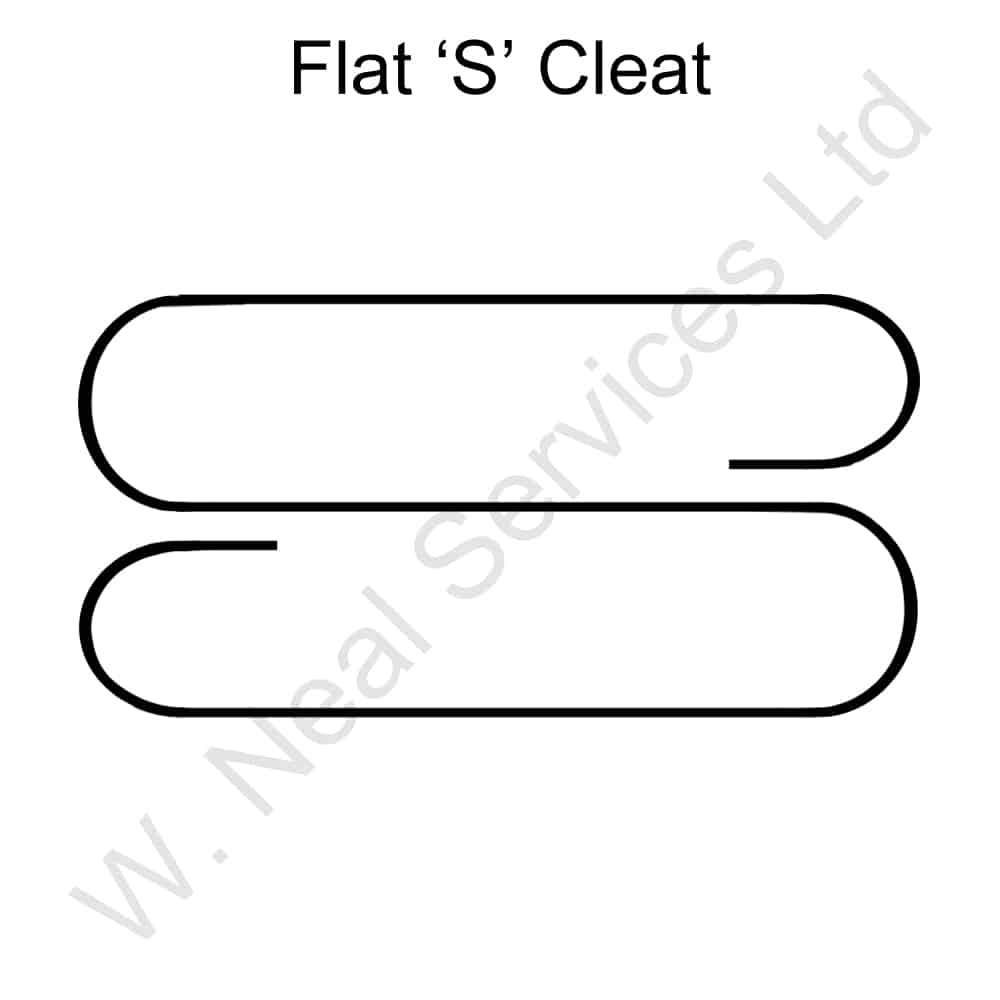

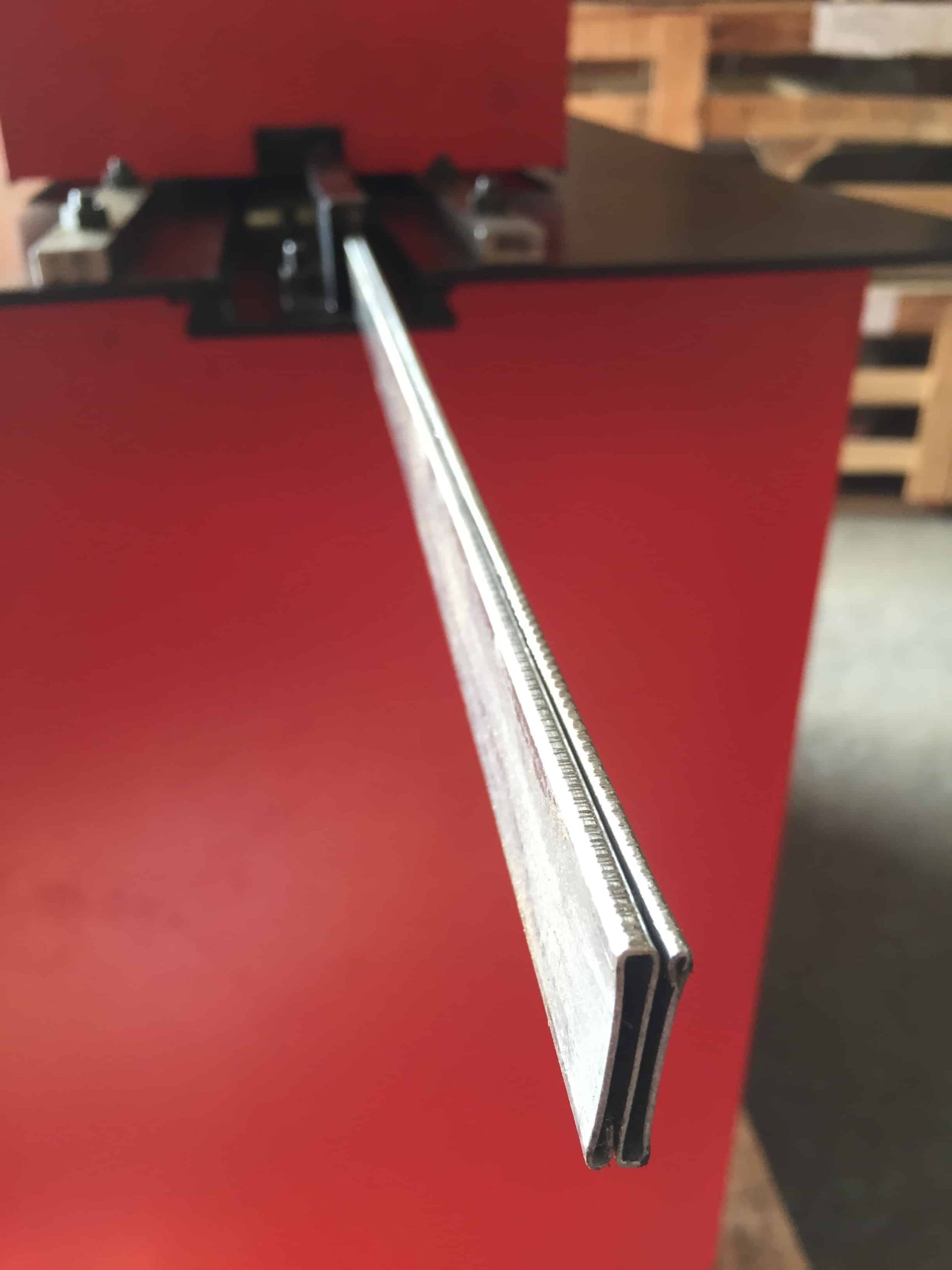

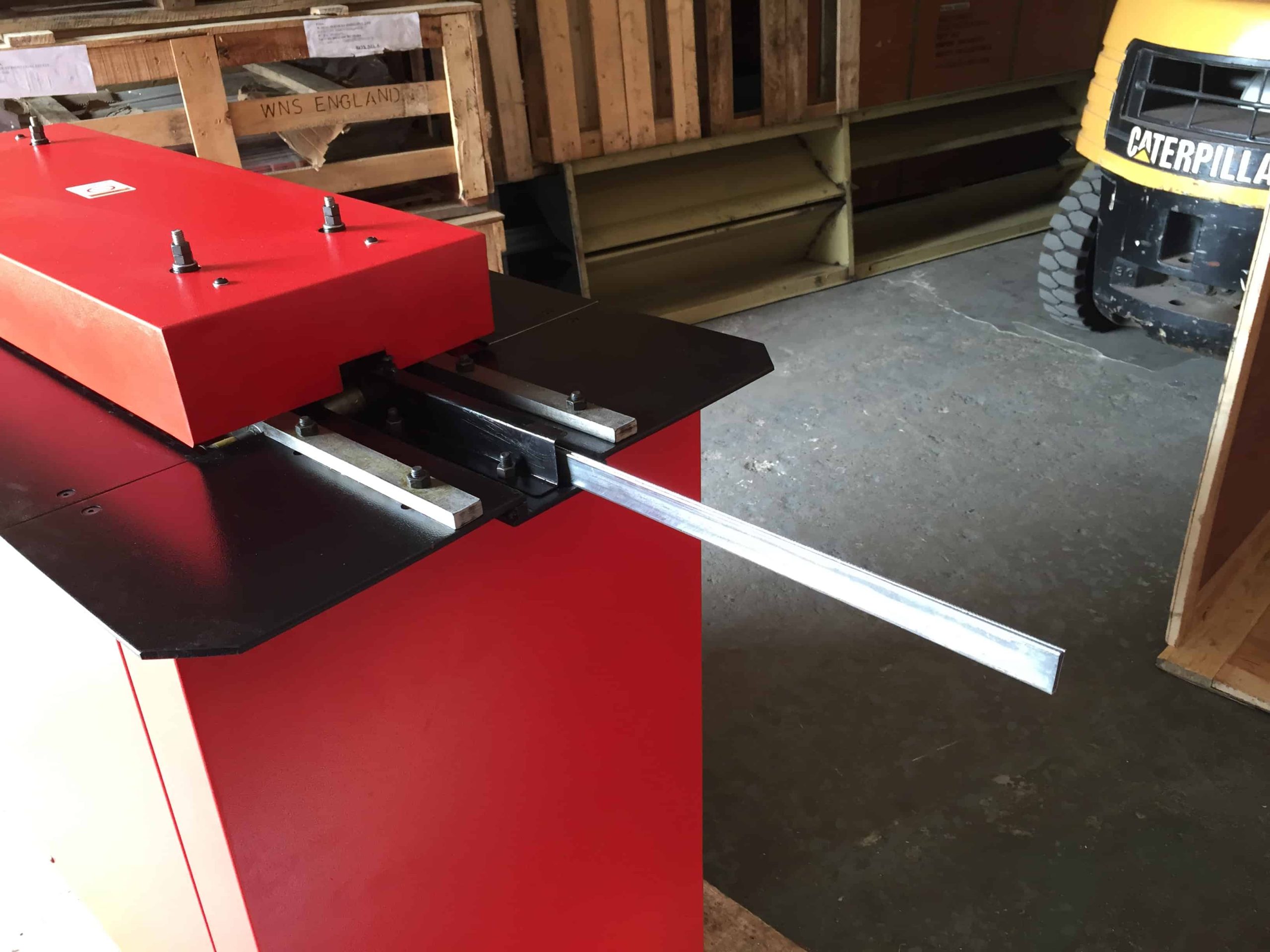

WNS 20swg (1.0mm) ‘S’ CLEAT ROLLFORMERS (FSC20) are 9 station machines and are principally used in the HVAC industry for joining two ducts together in conjunction with drive cleat and plain seam rolls.  Flat ‘S’ cleat rolls are fitted inboard with external double extended shafts, onto which many auxiliary rolls can be fitted.

WNS Rollformers are manufactured with all steel side plates.  The shafts, forming rolls, gears and guide fences are all hardened, and needle bearings are fitted throughout.

Additional Auxiliary Rolls Available:
• Small Pittsburgh Lock (APL)
• Double Seam
• Drive Cleat
• Plain Seam
• Right Angle Flange
• Standing Seam
• 3 in 1 Rolls
• Safe Edge
• Closed Double Seam



Additional information

Weight 1250 kg
SPECIFICATIONS
Model: FSC20
Stations: 9 (with Auxiliary Shafts)
Maximum Thickness: 20swg (1.0mm) Capacity Mild Steel
Speed: 8.0m/min
Supply Voltage: 415v, 3 Phase Electrics
Motor Power: 2HP, 1.5Kw
Dimensions – machine (apx): 1650mm x 650mm x 900mm (l x w x h)
Dimensions – packing (apx): 1650mm x 720mm x 130mm (l x w x h)
Weights – net/gross (apx): 300Kg/380Kg



SMALL PITTSBURGH LOCK ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness: 22swg (0.8mm) Mild Steel
Approximate Material Used: 25mm
Seam Width: 10mm
Pocket Depth: 8.5mm



DOUBLE SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  18swg (1.2mm) Mild Steel
Approximate Material Used:  32mm
Seam Width:  13mm



DRIVE CLEAT ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  20swg (1.0mm) Mild Steel
Approximate Material Used: 54mm
Seam Width:  29mm



PLAIN SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  20swg (1.0mm) Mild Steel
Approximate Material Used:  11mm
Seam Width:  10mm



RIGHT ANGLE FLANGE ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  16swg (1.6mm) Mild Steel
Approximate Material Used:  11mm
Seam Width:  –



STANDING SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  54mm
Seam Width:  –



3 IN 1 ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  –
Seam Width:  –



SAFE EDGE ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  –
Seam Width:  8.0mm



CLOSED DOUBLE SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness: 18swg (1.2mm) Mild Steel
Approximate Material Used:  32mm
Seam Width:  13mm

*subject to rolls. **please see Terms & Conditions. ***fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
