Manufactured by W. NEAL SERVICES LTD for over 35 years.
  • 18swg (1.2mm) Capacity Mild Steel
  • 7 Stations
  • Industry Standard Sized Joints & Locks
  • Hardened Guides

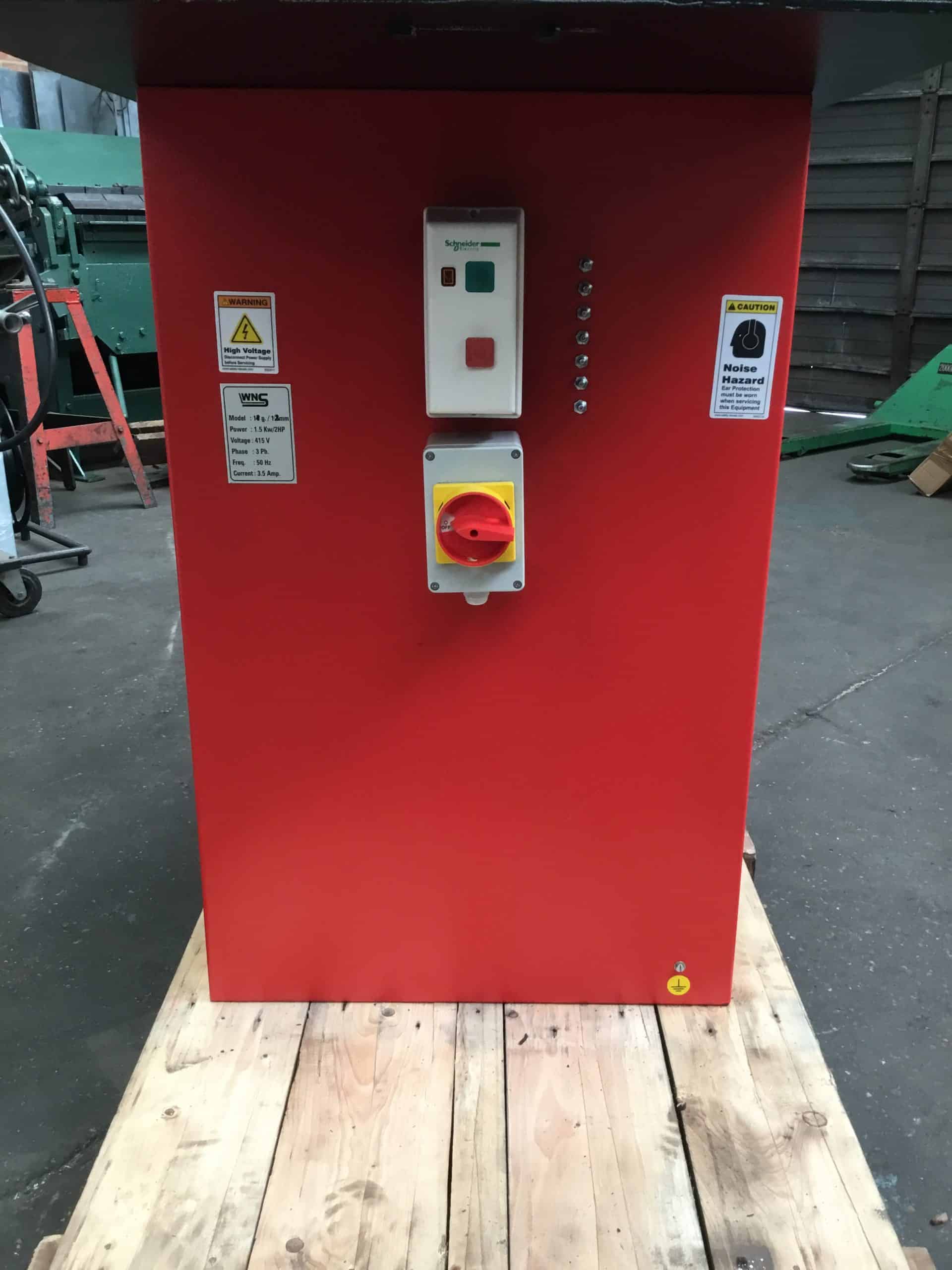

  • DOL Starter & Isolator
  • Separate Emergency Stop
  • 415v, 3 Phase Electrics
  • Quality Design & Build
  • Manufactured Since 1981
  • Original & Traditional Pittsburgh Lock Lockformer Design
  • Industry Standard Sized Parts & Components
  • British Standard – CE Marked
  • 12 Month Warranty*
  • Worldwide Delivery**
  • Part Exchange Considered
  • Optional Flanging Attachment
  • Additional Auxiliary Rolls Available
  • Spare Parts Stocked
  • 110v & 240v Single Phase Models also Available
  • Pneumatic (Air) Operated Model Made to Order


MACHINERY WANTED CHAT TO US ON 01702 542558 OR UPLOAD A PHOTO OF YOUR MACHINE(S) BY CLICKING HERE.



Description

W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery for over 35 years.

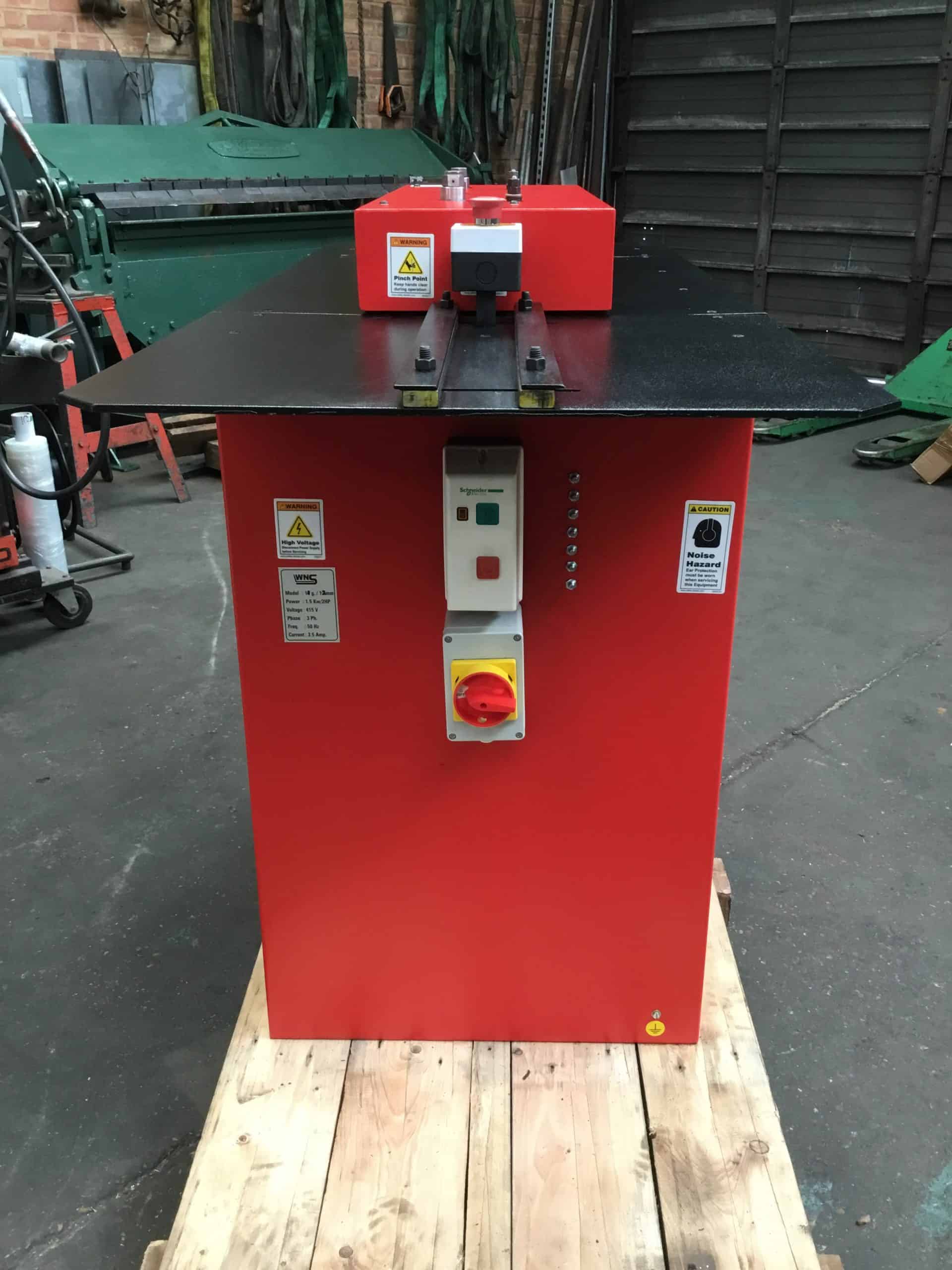

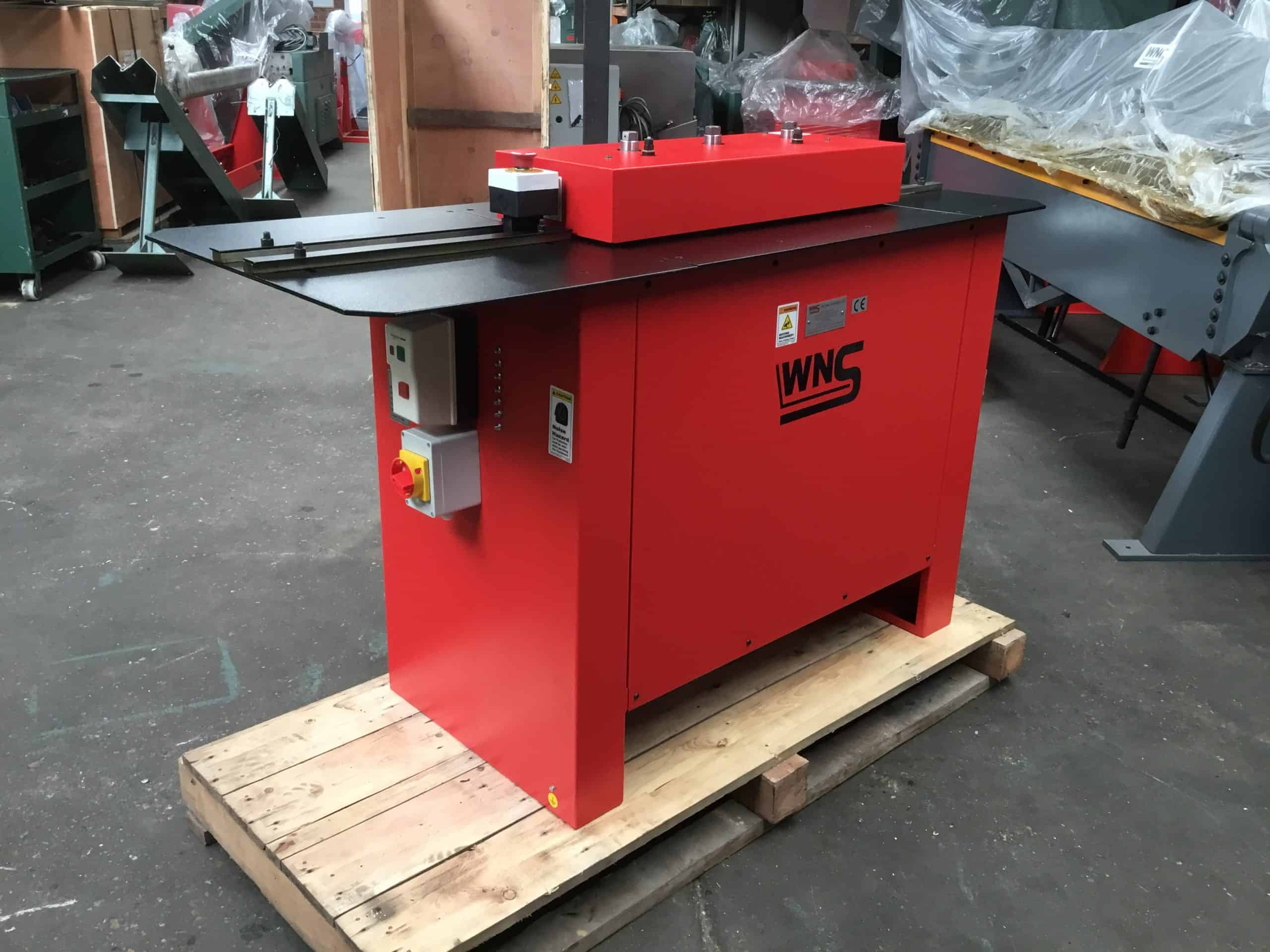

WNS 18swg (1.2mm) PITTSBURGH LOCK ROLLFORMERS (RF18) are 7 station machines and are principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. Pittsburgh Lock rolls and auxiliary shafts are fitted as standard with the option of a flanging attachment if required. The ‘lock’ is formed in one pass and a flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK SEAM CLOSER / LOCKER (SC12) or with a WNS 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMER (AH18). Additional forming rolls, such as double seam rolls, drive cleat rolls, etc. can be fitted onto the auxiliary shafts. A flanging attachment is also available and can be fitted as an optional extra. This enables a right angle to be formed on curved, straight and irregular shapes. The attachment is fitted with a tilting head to enable complete circles to be formed.

WNS Rollformers are manufactured with all steel side plates. The shafts, forming rolls, gears and guide fences are all hardened, and needle bearings are fitted throughout.

Please note: Flanging attachment shown in the detailed photographs and video is an optional extra and not included as standard.

Additional Auxiliary Rolls Available:
• Small Pittsburgh Lock (APL)
• Double Seam
• Drive Cleat
• Plain Seam
• Right Angle Flange
• Standing Seam
• 3 in 1 Rolls
• Safe Edge
• Closed Double Seam





Additional information

Weight 1250 kg
Dimensions 157 × 71 × 132 cm
WNS 18swg PITTSBURGH LOCK ROLLFORMER
SPECIFICATIONS
Model: RF18
Stations: 7 (with Auxiliary Shafts)
Maximum Thickness: 18swg (1.2mm) Mild Steel
Speed: 6.0m/min
Motor Power: 2HP, 1.5kW
Supply Voltage: 415v, 3 Phase Electrics
Dimensions – machine (apx): 1450mm x 615mm x 1000mm (l x w x h)
Dimensions – packing (apx): 1570mm x 710mm x 1320mm (l x w x h)
Weights – net/gross (apx):
265Kg/325Kg



PITTSBURGH LOCK ROLLS (FITTED AS STANDARD)
SPECIFICATIONS
Maximum Thickness: 26swg – 18swg (0.5mm – 1.2mm) Mild Steel
Approximate Material Used: 30mm (subject to knock over edge)
Seam Width: 11mm/12mm
Pocket Depth: 10mm



FLANGING ATTACHMENT (OPTIONAL EXTRA)
SPECIFICATIONS
Maximum Thickness: 18swg (1.8mm) Mild Steel
Minimum Corner Radius: 50mm
Flanging Attachment Direction: Left to Right



SMALL PITTSBURGH LOCK ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness: 22swg (0.8mm) Mild Steel
Approximate Material Used: 25mm
Seam Width: 10mm
Pocket Depth: 8.5mm



DOUBLE SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS

Maximum Thickness:  18swg (1.2mm) Mild Steel
Approximate Material Used:  32mm
Seam Width:  13mm



DRIVE CLEAT ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness: 20swg (1.0mm) Mild Steel
Approximate Material Used: 54mm
Seam Width: 29mm



PLAIN SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  20swg (1.0mm) Mild Steel
Approximate Material Used:  11mm
Seam Width:  10mm



RIGHT ANGLE FLANGE ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  18swg (1.2mm) Mild Steel
Approximate Material Used:  11mm
Seam Width:  –



STANDING SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  54mm
Seam Width:  –



3 IN 1 ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  –
Seam Width:  –



SAFE EDGE ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  –
Seam Width:  8.0mm



CLOSED DOUBLE SEAM ROLLS (OPTIONAL AUXILIARY ROLLS)
SPECIFICATIONS
Maximum Thickness: 18swg (1.2mm) Mild Steel
Approximate Material Used:  32mm
Seam Width:  13mm

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
