Manufactured by W. NEAL SERVICES LTD since 1981.
  • 18swg (1.2mm) Capacity Mild Steel
  • 7 Stations
  • Industry Standard Sized Joints & Locks
  • Shaft Size 7/8”
  • Hardened Guides
  • DOL Starter & Isolator
  • Separate Emergency Stop
  • 415v, 3 Phase Electrics
  • Quality Design & Build
  • Manufactured Since 1981
  • Original & Traditional Pittsburgh Lock Lockformer Design
  • Industry Standard Sized Parts & Components
  • British Standard – CE Marked
  • Spare Parts Stocked
  • 12 Month Warranty*
  • Worldwide Delivery**


Description

W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery since 1981.

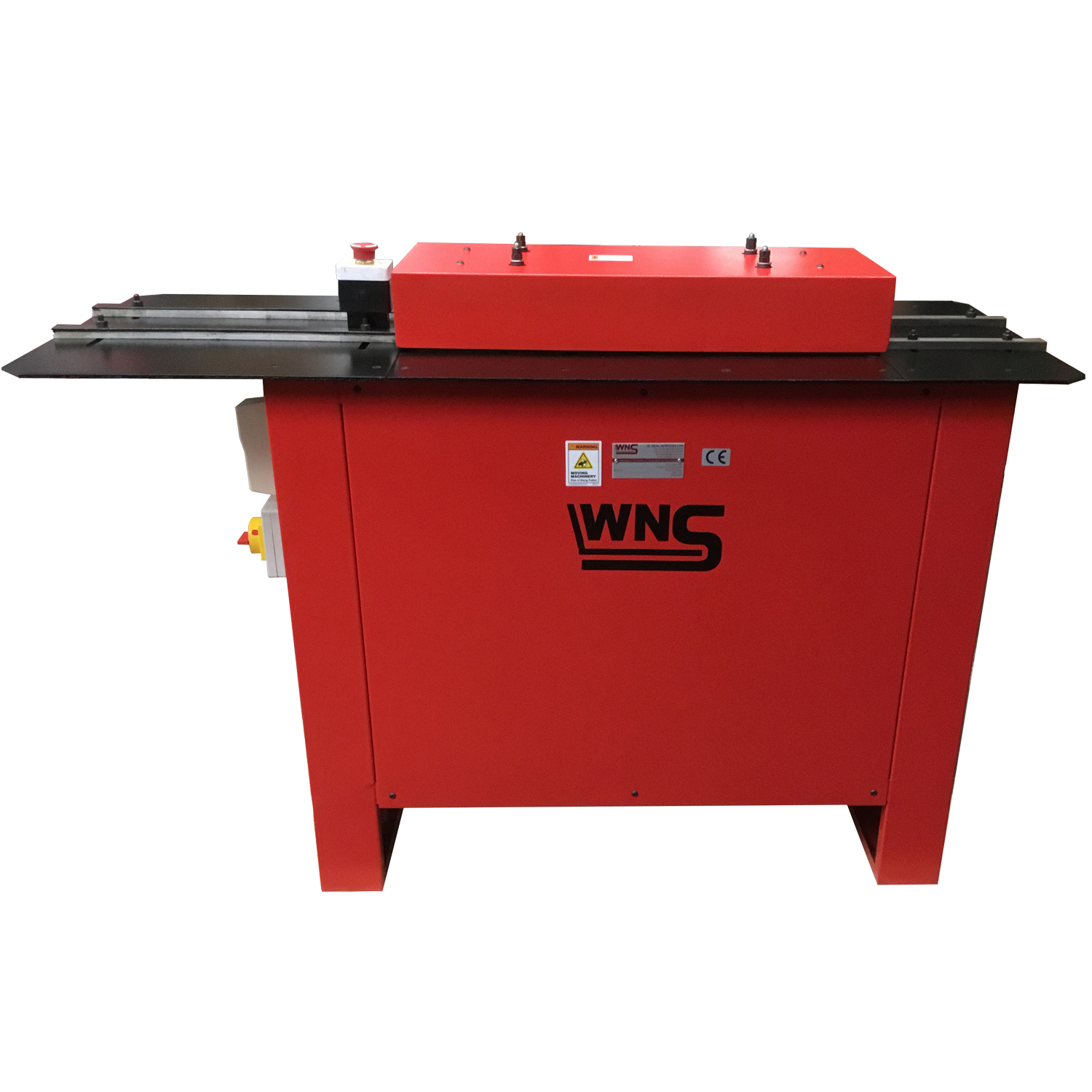

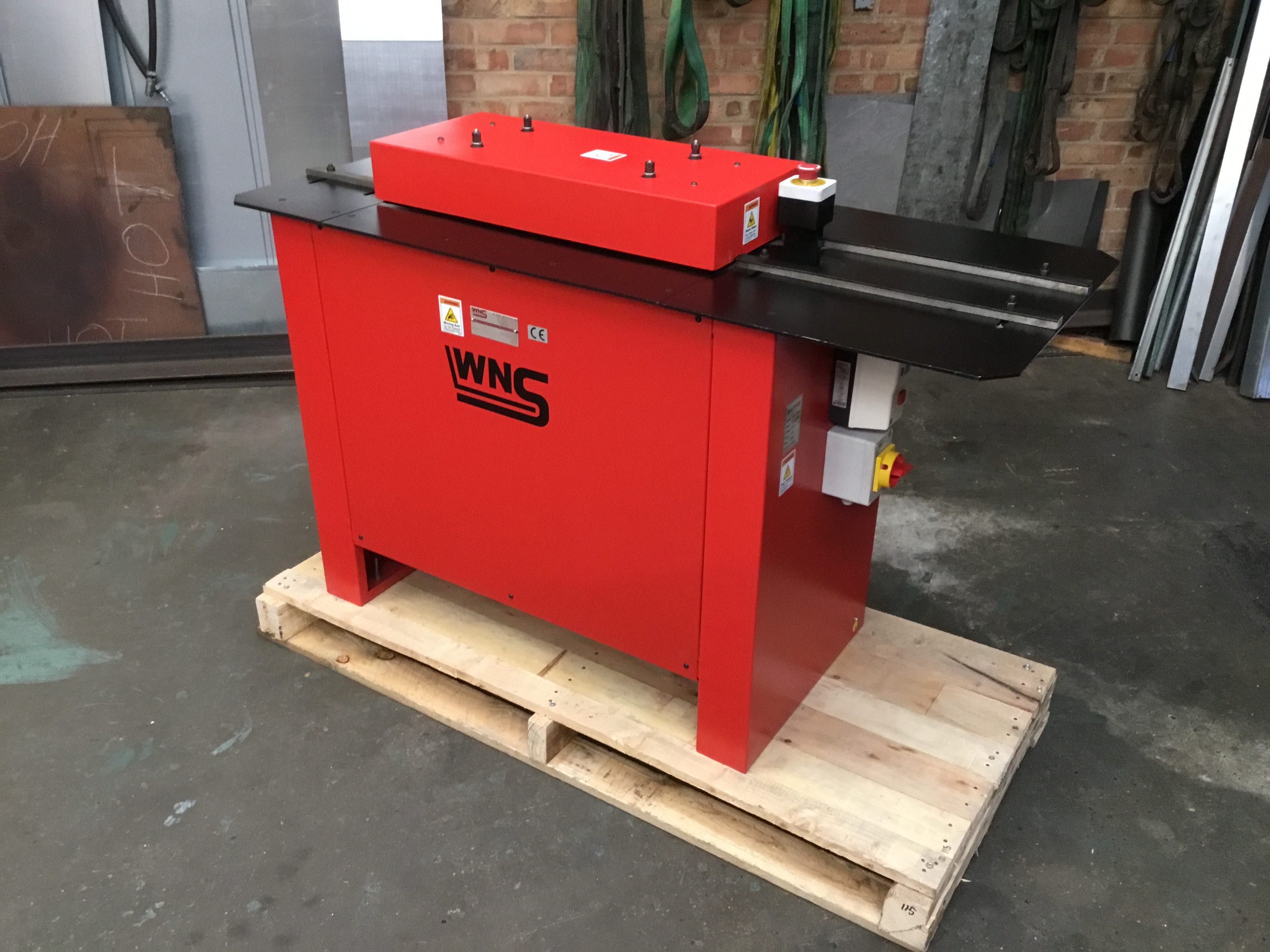

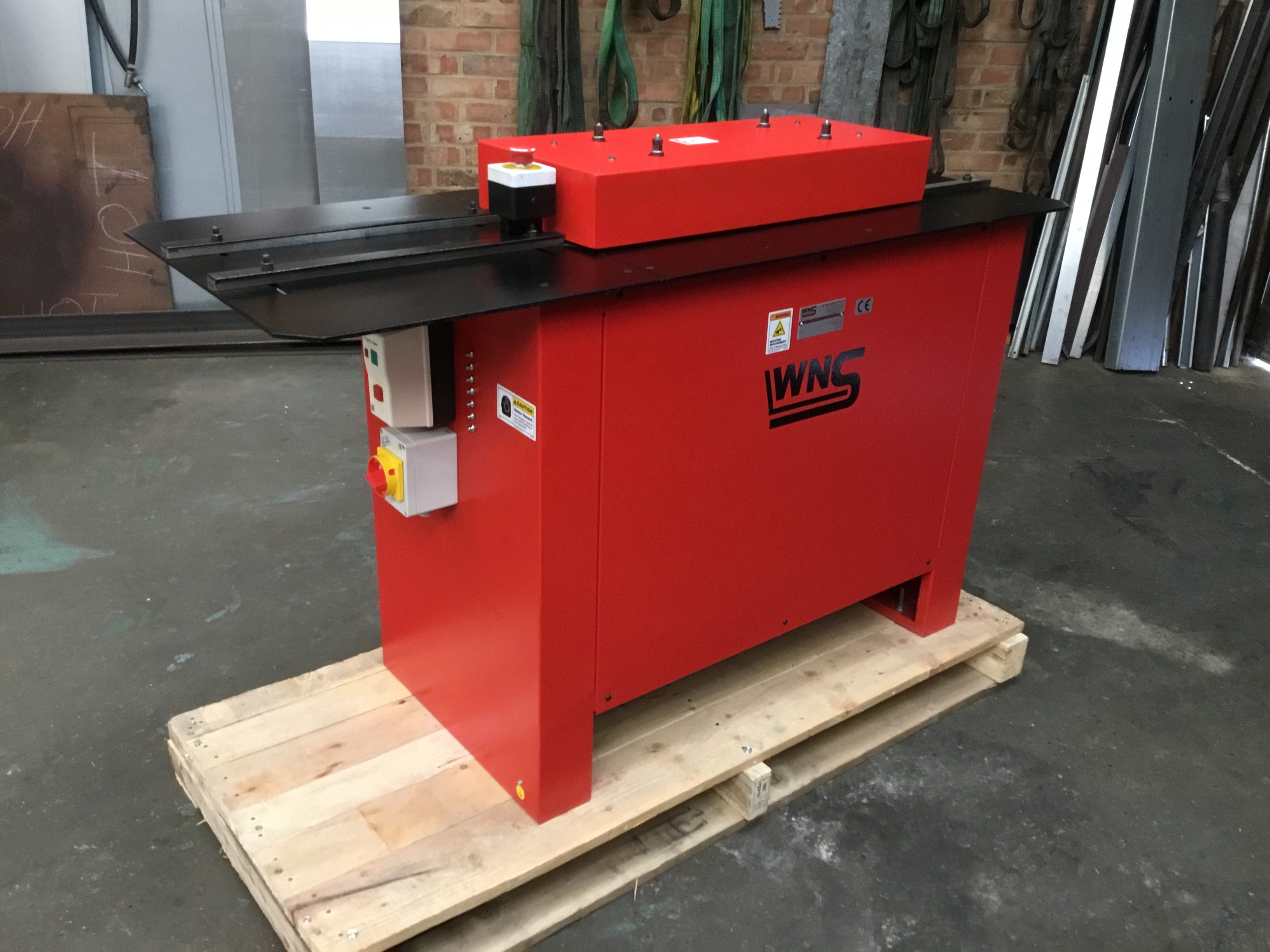

WNS 18swg (1.2mm) DOUBLE EXTENDED SHAFT ROLLFORMERS (DE18) are 7 station machines principally used in the HVAC industry. These machines allows 2 sets of auxiliary rolls to be fitted at the same time. Rolls available include small Pittsburgh lock (APL), drive cleat, double seam, plain seam, right angle flange, standing seam, 3 in 1, safe edge and closed double seam.

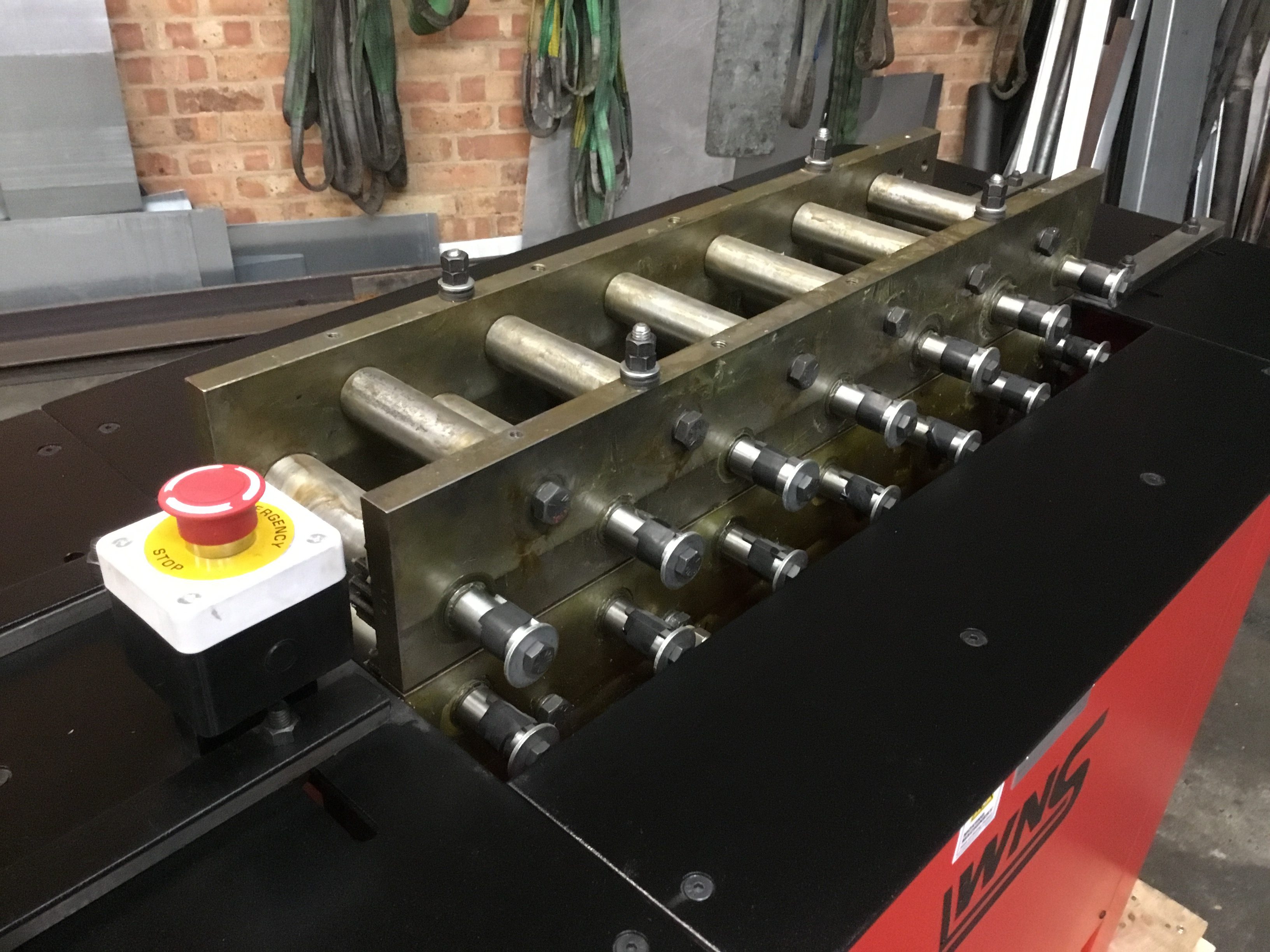

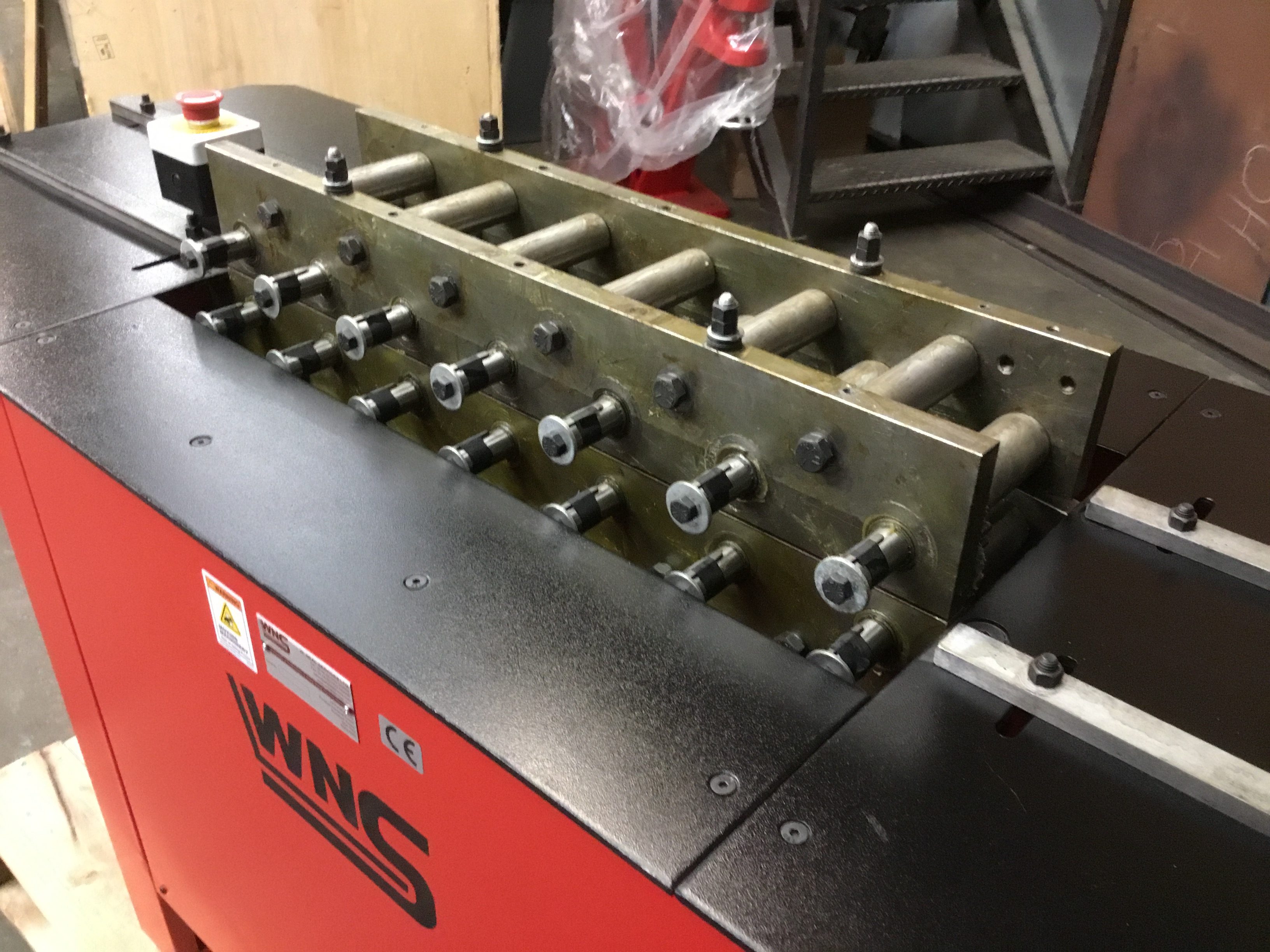

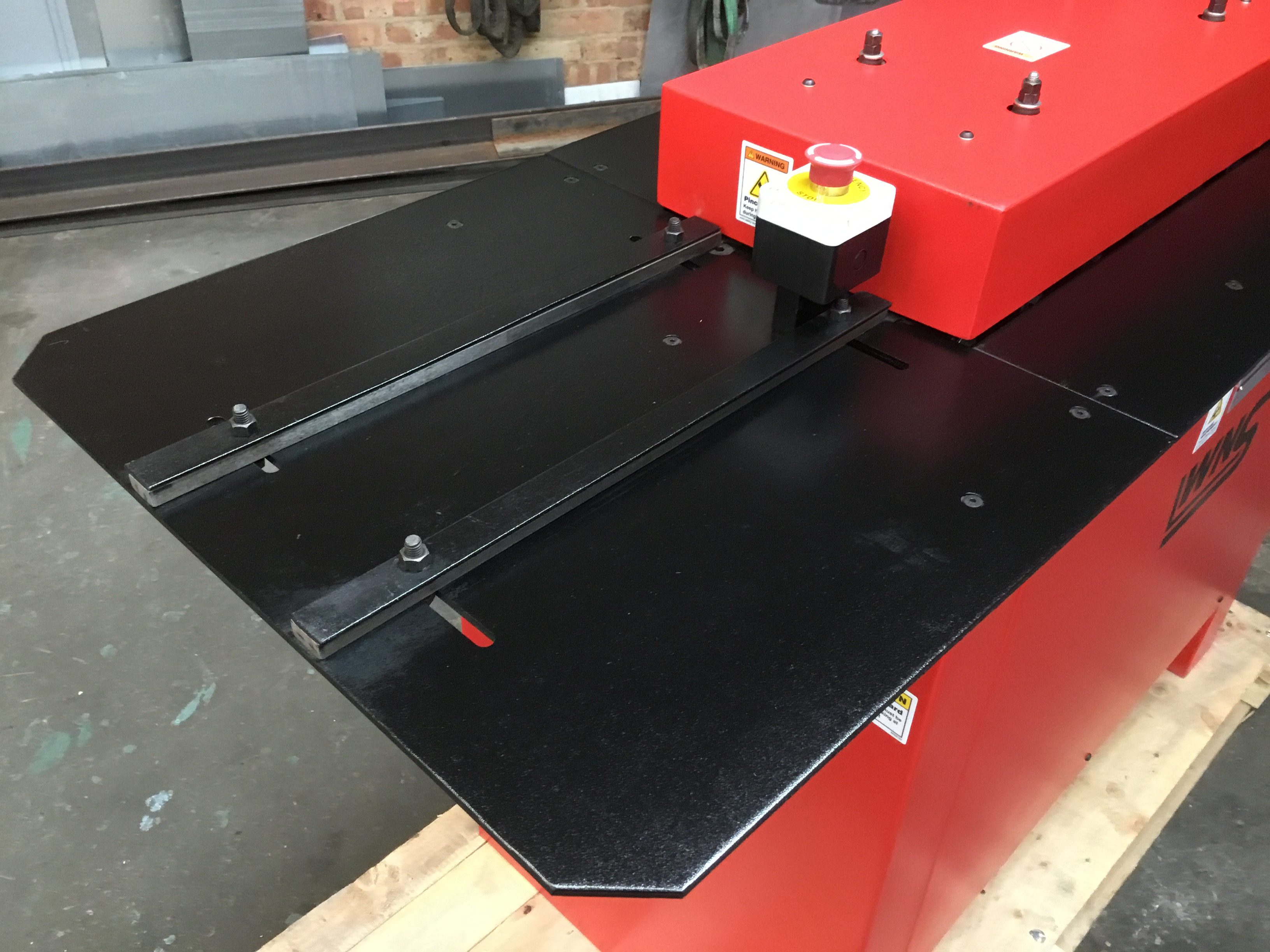

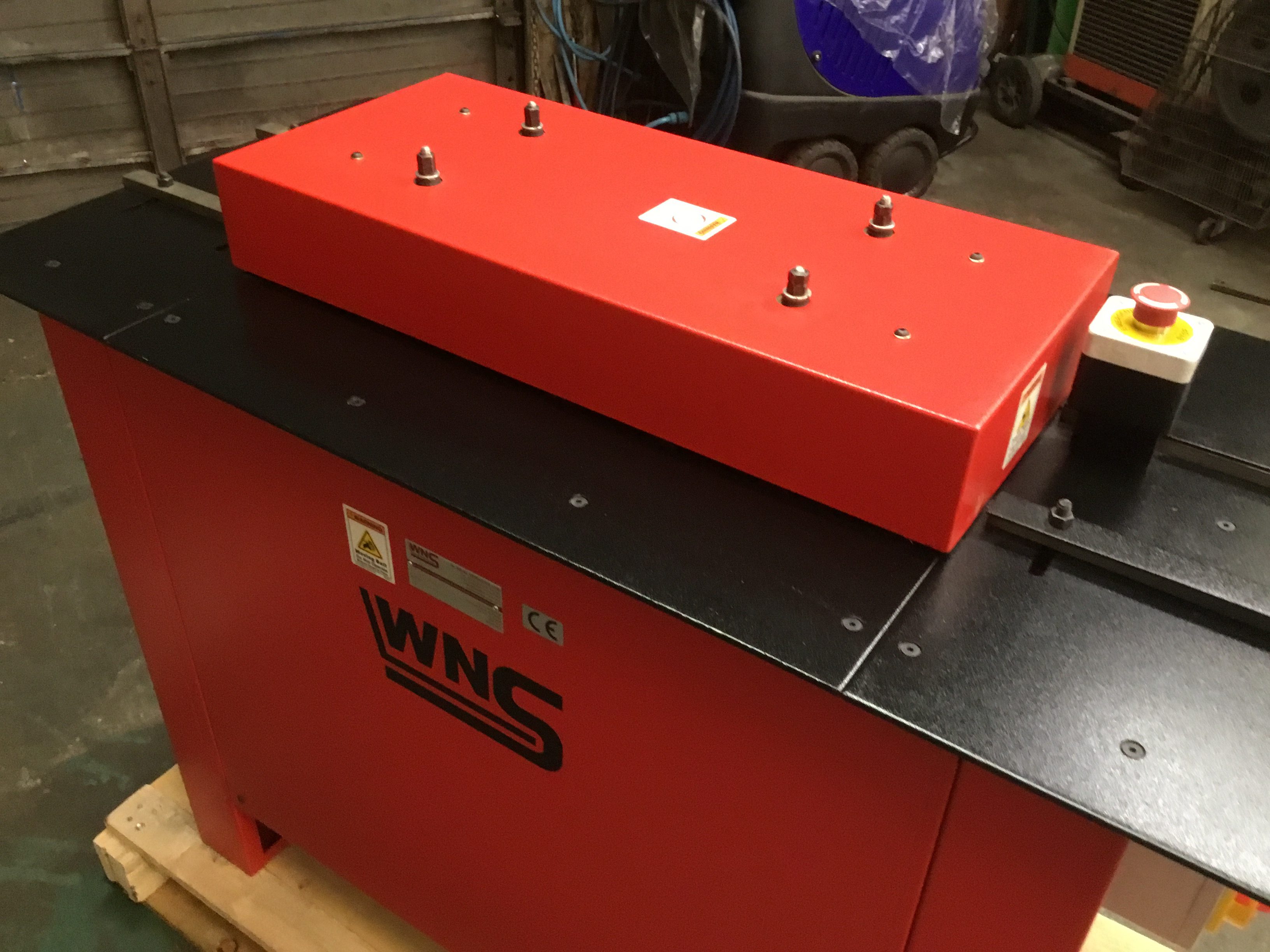

WNS rollformers are manufactured with all steel side plates. The shafts, forming rolls, gears and guide fences are all hardened, and needle bearings are fitted throughout.

Please note: Auxiliary rolls are an optional extra and not included as standard.

Additional Auxiliary Rolls Available:
• Small Pittsburgh Lock (APL)
• Double Seam
• Drive Cleat
• Plain Seam
• Right Angle Flange
• Standing Seam
• 3 in 1 Rolls
• Safe Edge
• Closed Double Seam





Additional information

Weight 1250 kg
Dimensions 157 × 71 × 132 cm
SPECIFICATIONS – GENERAL
Model: DE18
Stations: 7 (with Auxiliary Shafts)
Maximum Thickness: 18swg (1.2mm) Mild Steel
Speed: 6.0m/min
Motor Power: 2HP, 1.5kW
Supply Voltage: 415v, 3 Phase Electrics
Dimensions – machine (apx): 1450mm x 615mm x 1000mm (l x w x h)
Dimensions – packing (apx): 1570mm x 710mm x 1320mm (l x w x h)
Weights – net/gross (apx):
275Kg/335Kg



SPECIFICATIONS – SMALL PITTSBURGH (Optional Auxiliary Rolls)
Maximum Thickness: 22swg (0.8mm) Mild Steel
Approximate Material Used: 25mm
Seam Width: 10mm
Pocket Depth: 8.5mm



SPECIFICATIONS –  DOUBLE SEAM (Optional Auxiliary Rolls)
Maximum Thickness:  18swg (1.2mm) Mild Steel
Approximate Material Used:  32mm
Seam Width:  13mm



SPECIFICATIONS – DRIVE CLEAT (Optional Auxiliary Rolls)
Maximum Thickness: 20swg (1.0mm) Mild Steel
Approximate Material Used: 54mm
Seam Width: 29mm



SPECIFICATIONS –  PLAIN SEAM (Optional Auxiliary Rolls)
Maximum Thickness:  20swg (1.0mm) Mild Steel
Approximate Material Used:  11mm
Seam Width:  10mm



SPECIFICATIONS –  RIGHT ANGLE FLANGE (Optional Auxiliary Rolls)
Maximum Thickness:  18swg (1.2mm) Mild Steel
Approximate Material Used:  11mm
Seam Width:  –



SPECIFICATIONS –  STANDING SEAM (Optional Auxiliary Rolls)
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  54mm
Seam Width:  –



SPECIFICATIONS –  3 in 1 (Optional Auxiliary Rolls)
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  –
Seam Width:  –



SPECIFICATIONS –  SAFE EDGE (Optional Auxiliary Rolls)
Maximum Thickness:  22swg (0.8mm) Mild Steel
Approximate Material Used:  –
Seam Width:  8.0mm



SPECIFICATIONS –  CLOSED DOUBLE SEAM (Optional Auxiliary Rolls)
Maximum Thickness: 18swg (1.2mm) Mild Steel
Approximate Material Used:  32mm
Seam Width:  13mm

*please see Terms & Conditions. **fees apply.

All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
