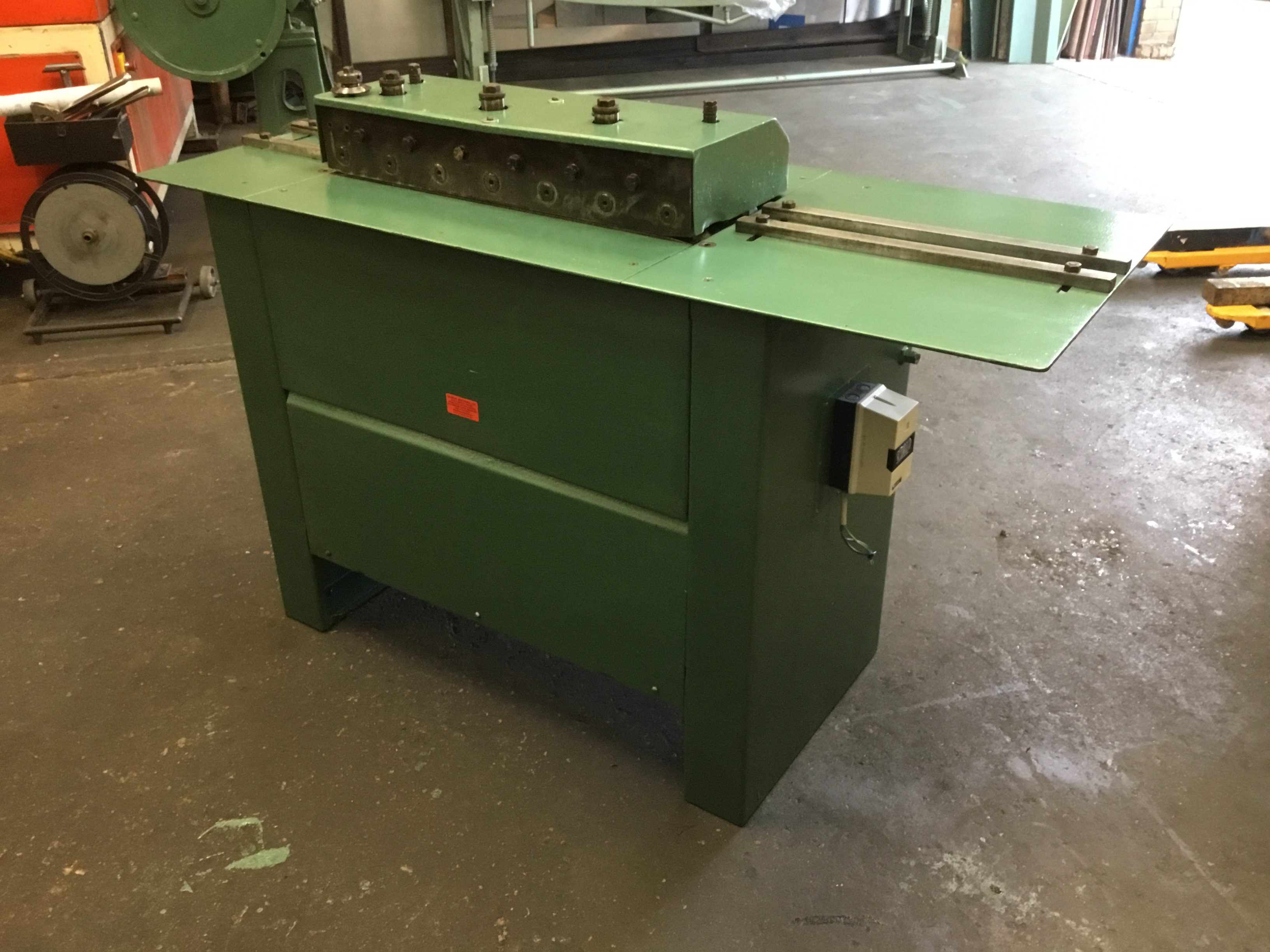

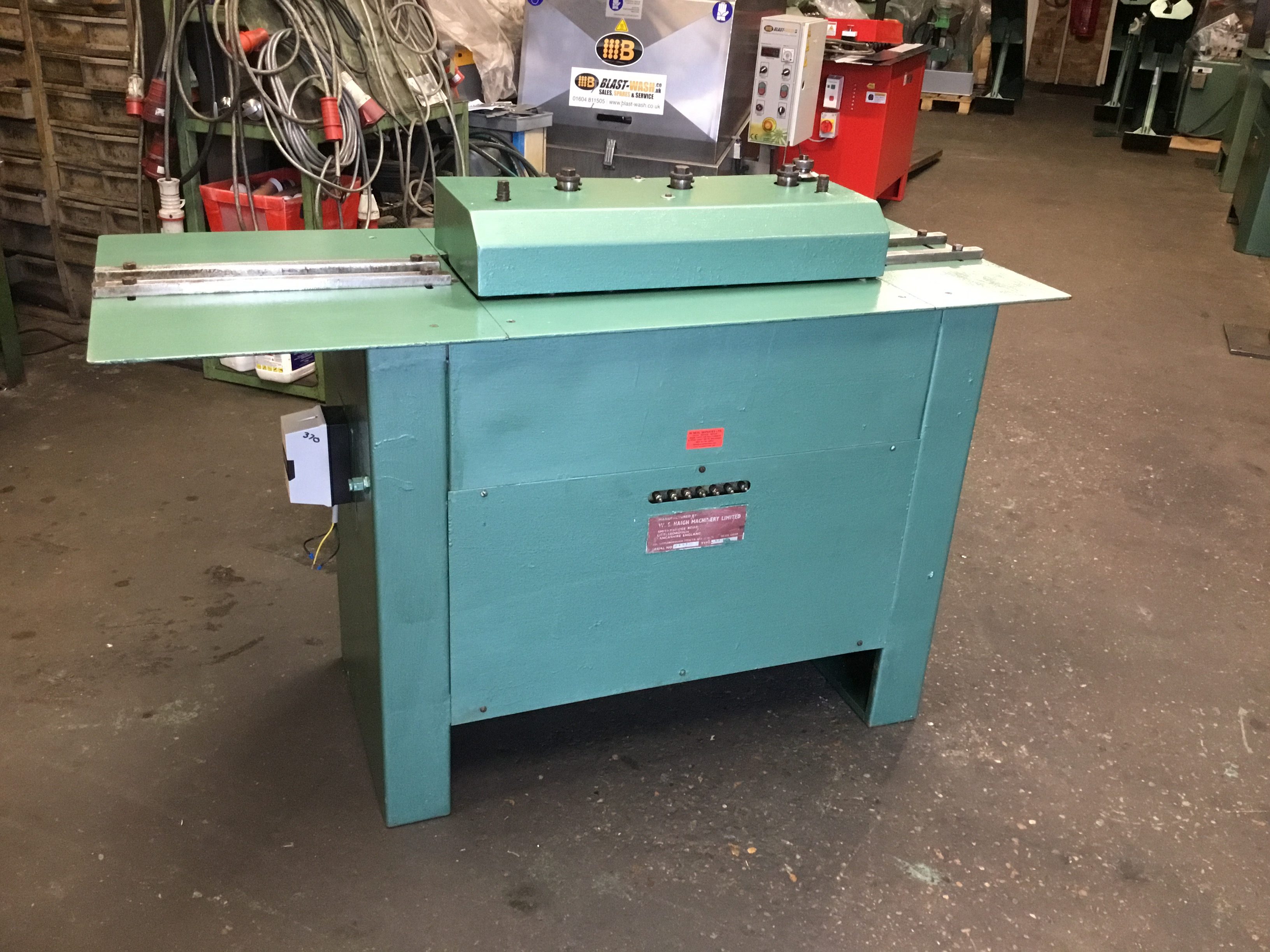

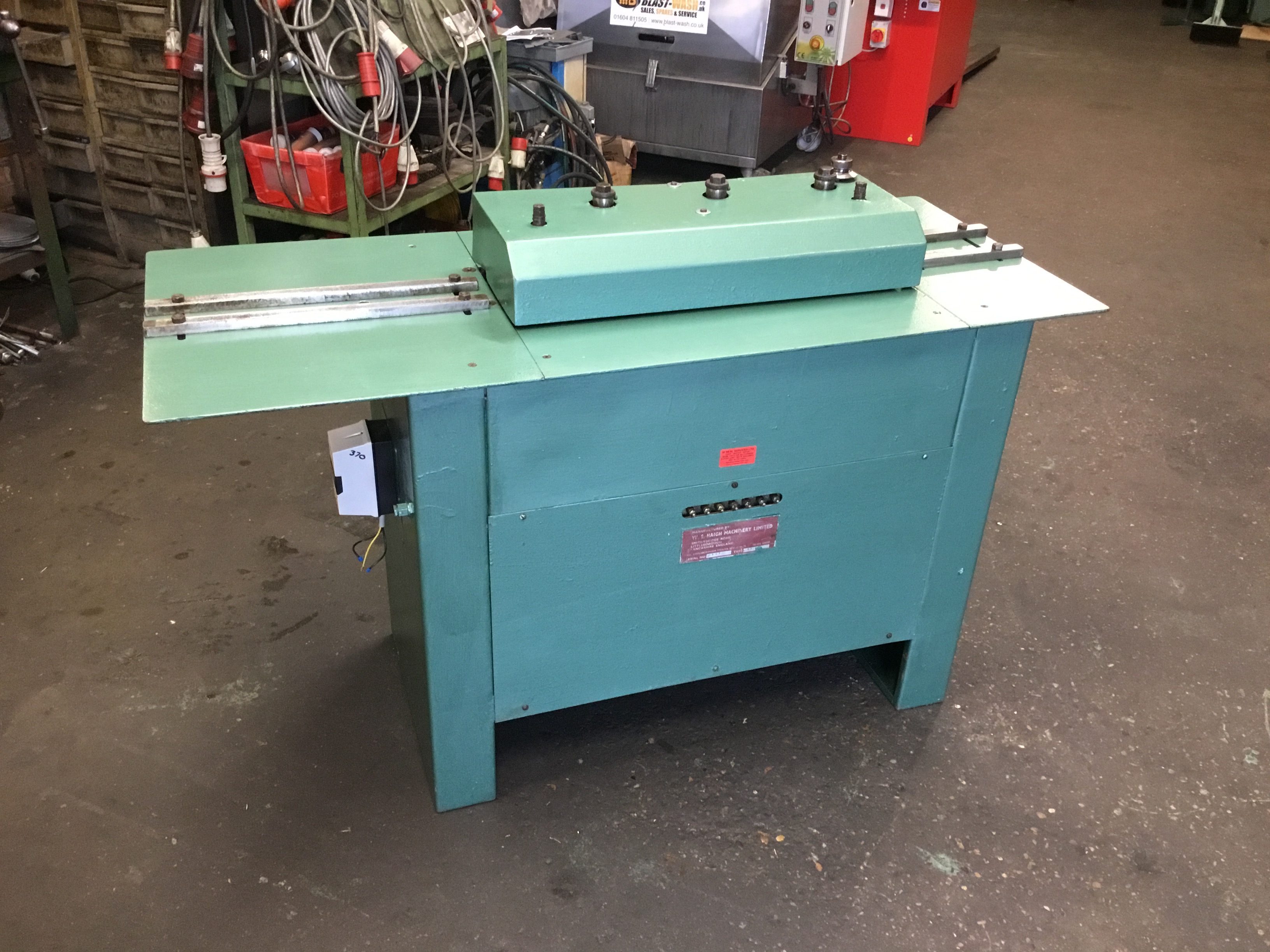

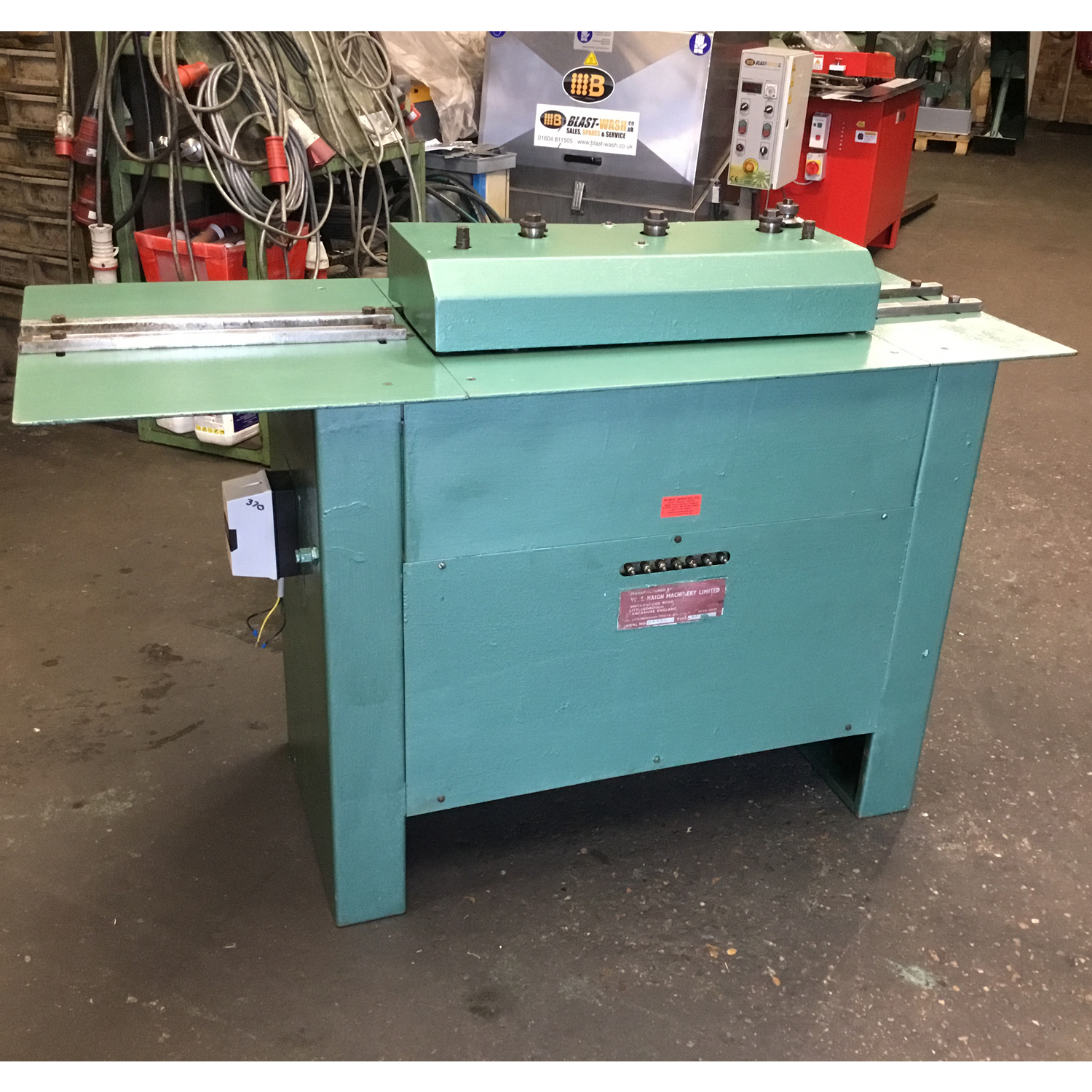

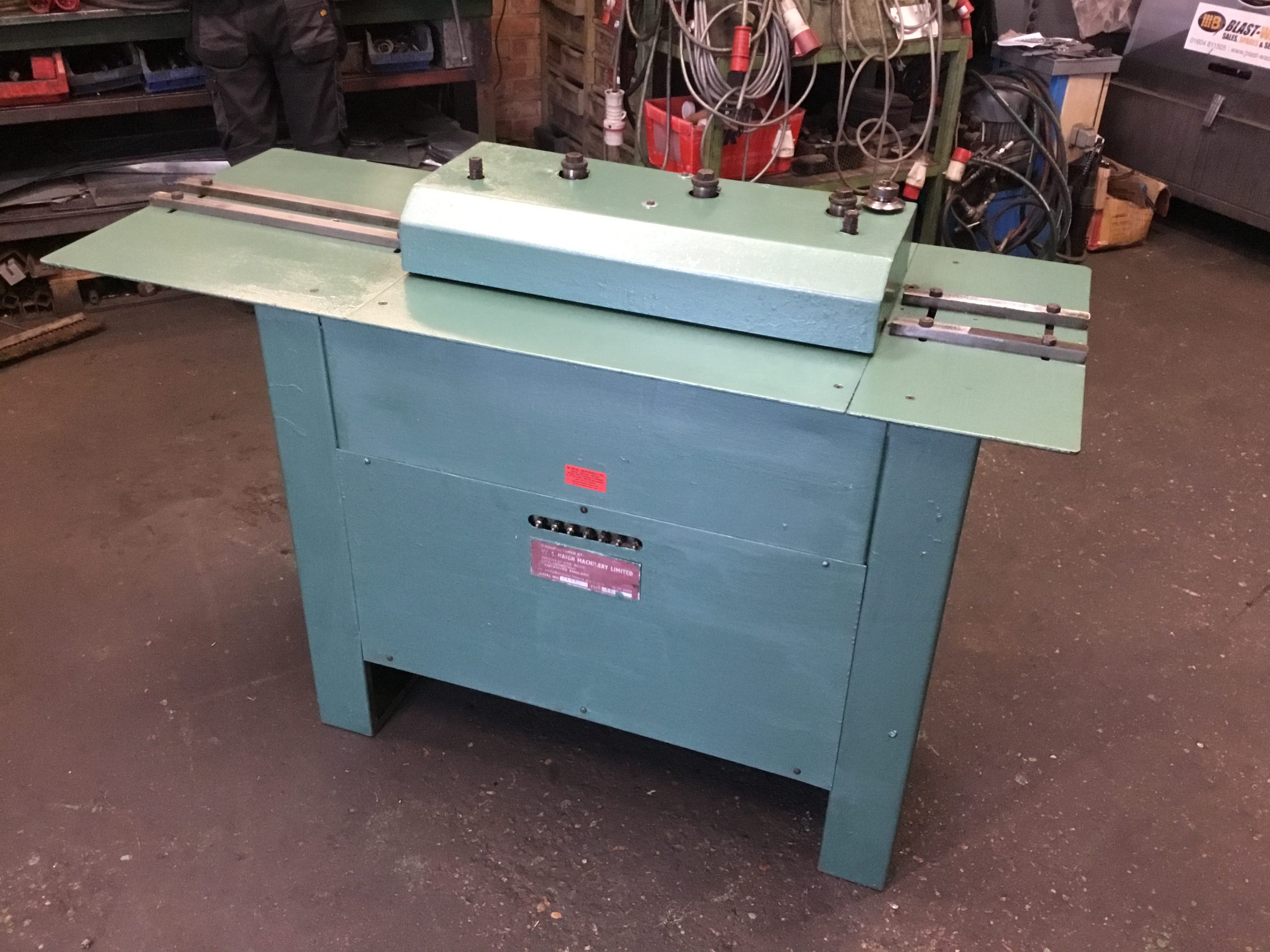

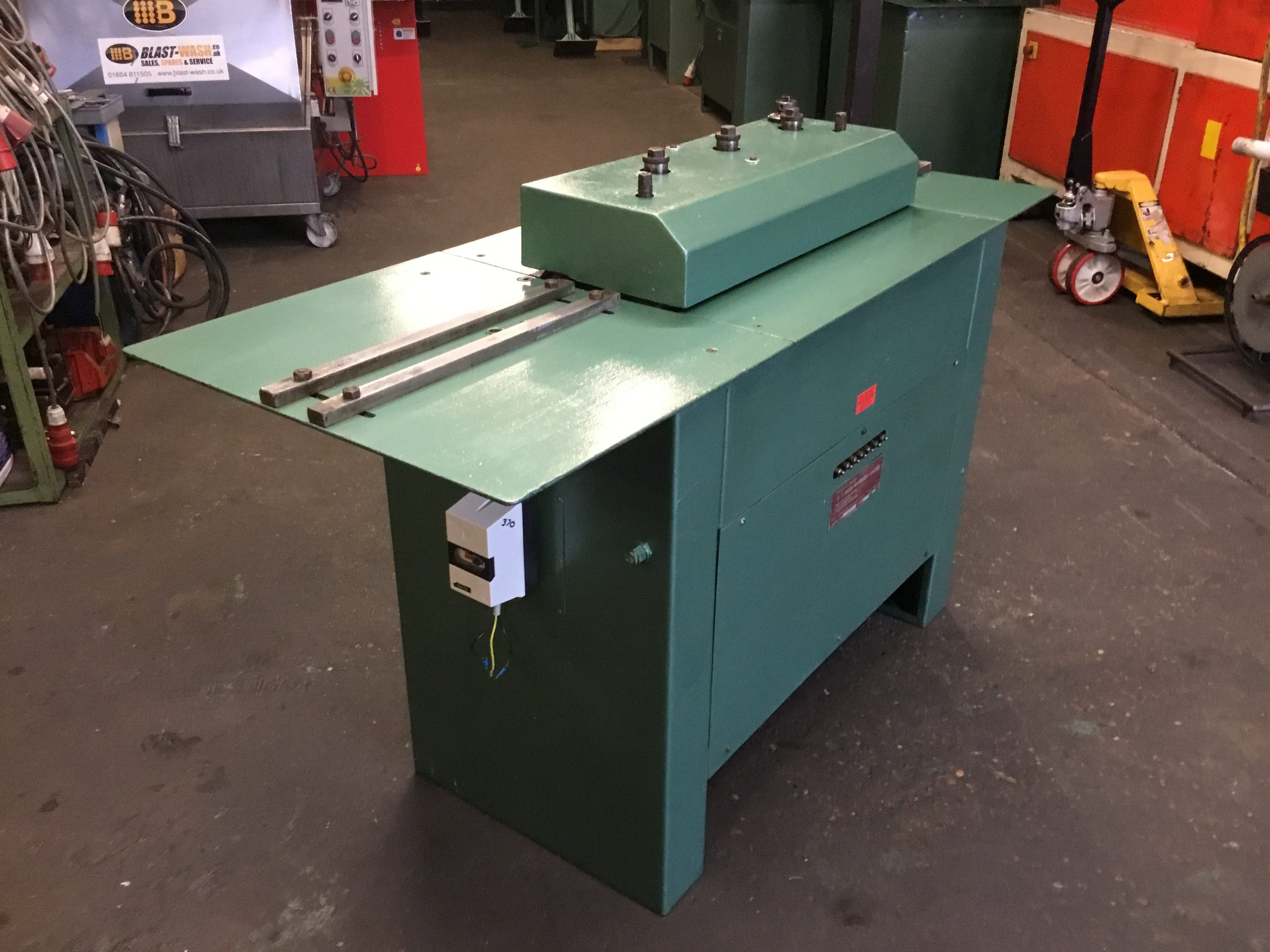

HAIGH 16swg (1.6mm) PITTSBURGH LOCK LOCKFORMER ROLLFORMERS (REF: 370sp) are 7 station machines and are principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. This machine comes complete with Pittsburgh lock rolls & double seam rolls and has 240v, single phase electrics. The ‘lock’ is formed in one pass and a flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK SEAM CLOSER / LOCKER (SC10/SC12) or with a  WNS 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMER (AH18).
USED/RECONDITIONED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available Rollformers/Lockformers, please click here.
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONSÂ | |
| Model: | REF: 370sp |
| Stations: | 7 (with Auxiliary Shafts) |
| Maximum Thickness: | 16swg (1.6mm) Mild Steel |
| Supply Voltage: | 240v, Single Phase Electrics |
| Dimensions – machine (apx): | 1480mm x 610mm x 1020mm (l x w x h) |
| SPECIFICATIONS – PITTSBURGH LOCK ROLLS | |
| Maximum Thickness: | 26swg – 16swg (0.5mm – 1.6mm) Mild Steel |
| Approximate Material Used: | 32mm – subject to knock over edge |
| Seam Width: | 13mm |
| Pocket Depth: | 11mm |
| SPECIFICATIONS – DOUBLE SEAM ROLLS | |
| Maximum Thickness: | 18swg (1.2mm) Mild Steel |
| Approximate Material Used: | 21mm |
| Seam Width: | 11mm |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
