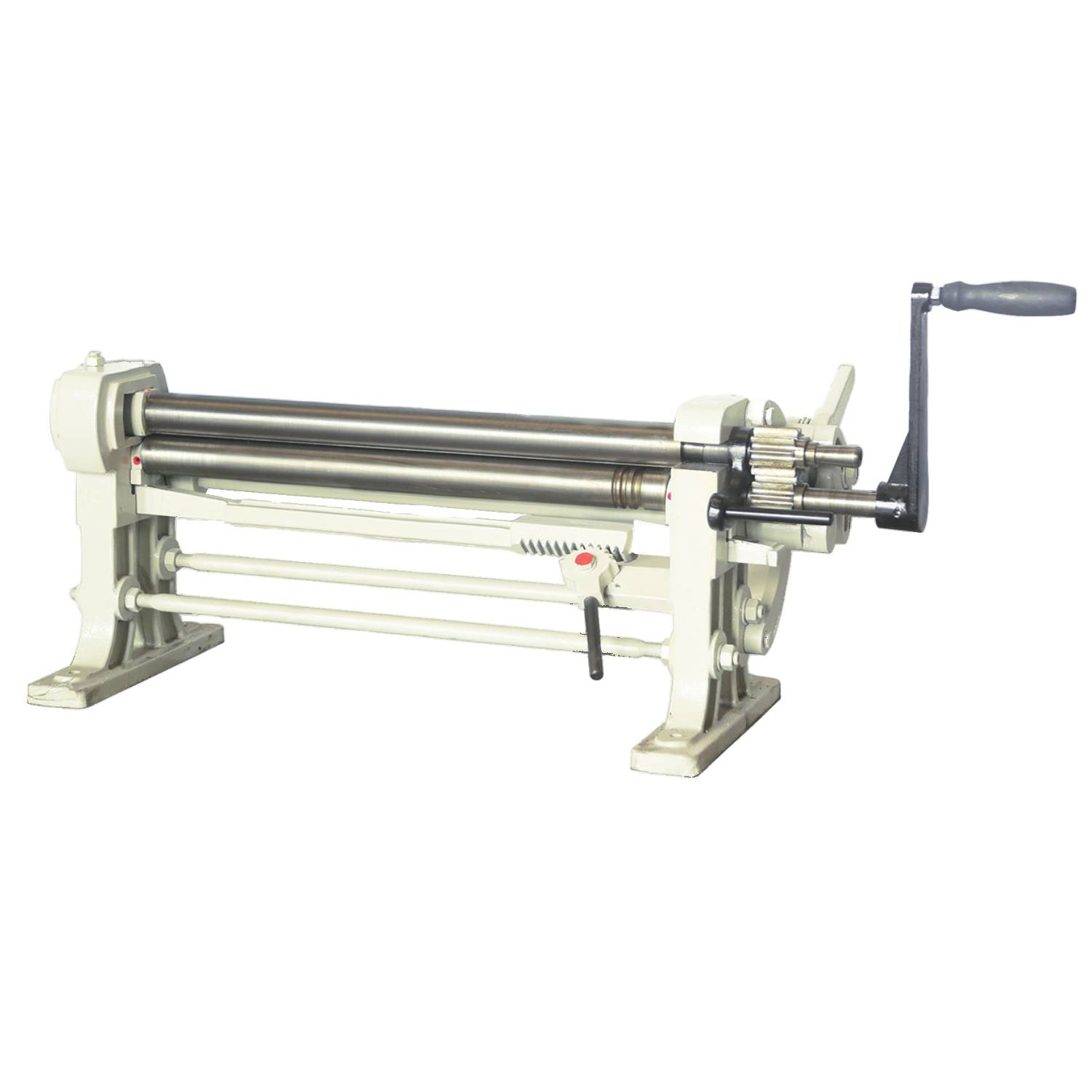

ISITAN HAND BENDING ROLLS (BR610/46I) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls are curves as it comes into contact with the third (back) forming roll. These rolls are equipped with 3 x wiring grooves and also have the following features: top slip with a quick release top roll, quick back roll adjustment, SAE 1050 quality certified steel rolls with high tensile strength and cast iron main frame.
Please note images shown are stock images.
To view all of our bending rolls, please click here.
To view all of our used/reconditioned machines please click here.
| Weight | 250 kg |
|---|
| SPECIFICATIONS | |
| Model: | BR610/46I |
| Roll Size: | 600mm Roll Length x 46mm Roll Diameter |
| Maximum Thickness: | 1.2mm Capacity Mild Steel |
| Rolls: | Top Slip With Quick Release Top Roll |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 10.0mm | |
| Main Frame: | Cast Iron |
| Dimensions – machine (apx): | 900mm x 500mm x 400mm (l x w x h) |
| Weight – net (apx): | 90Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
