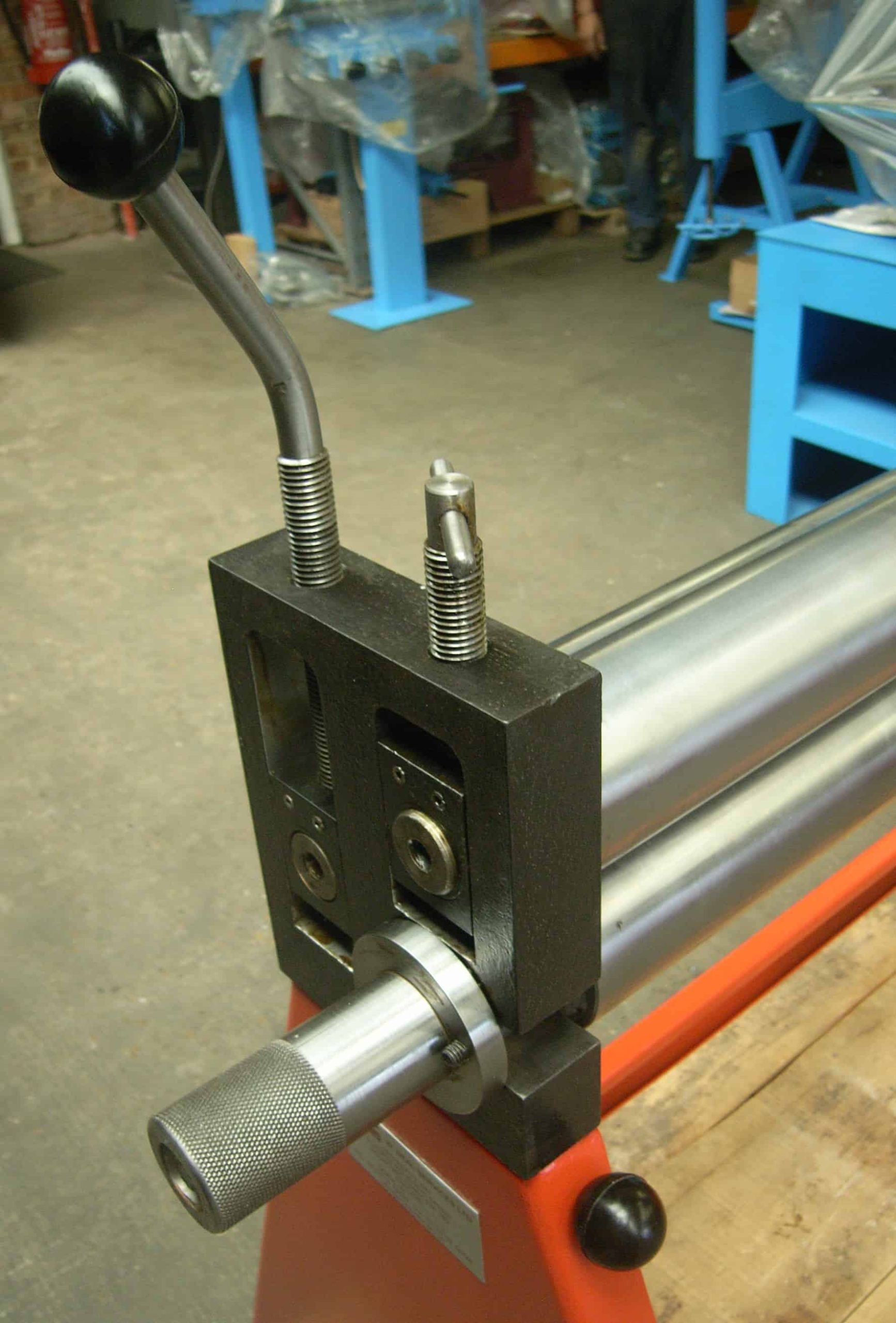

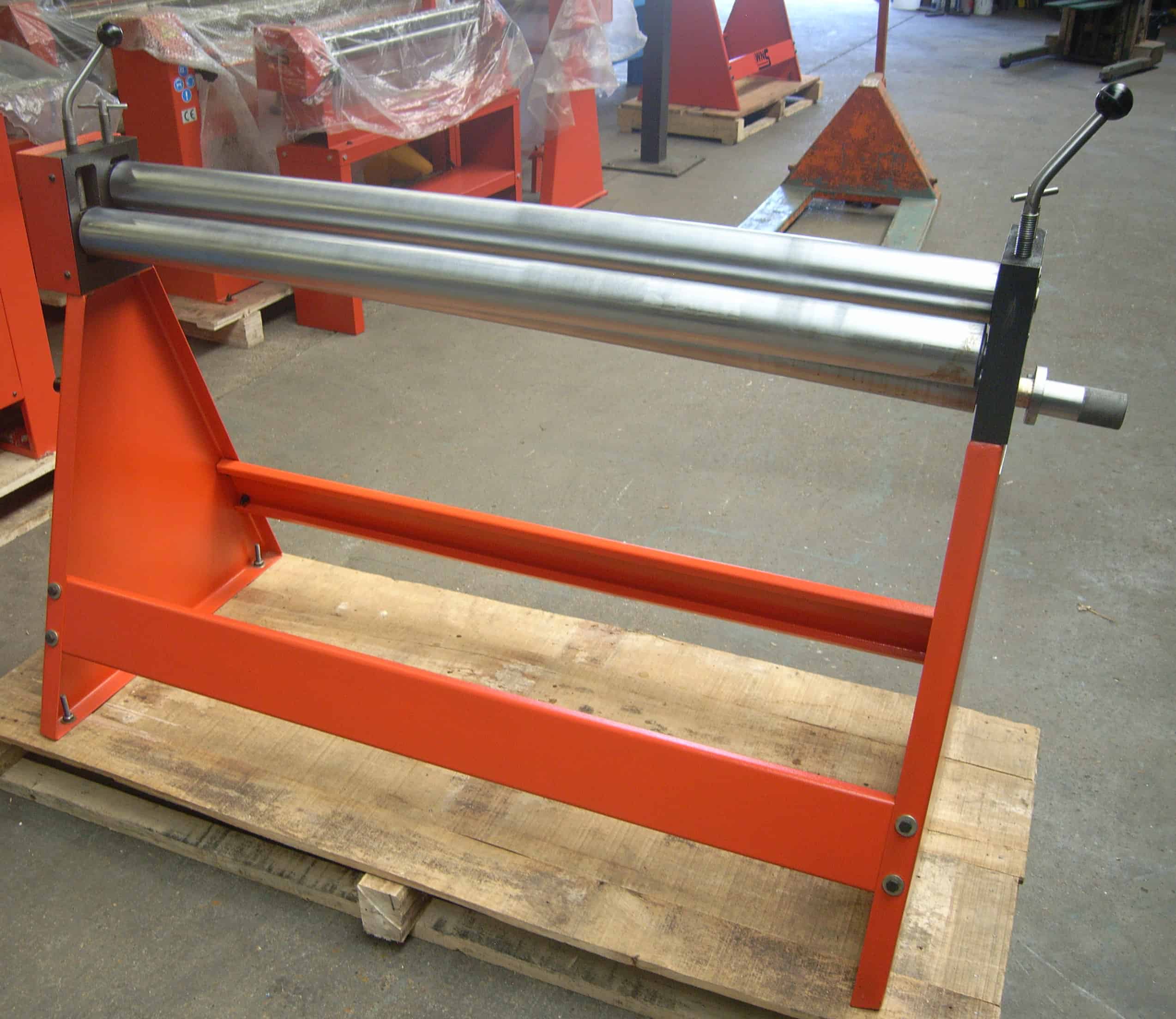

Hand Bending Rolls 1300mm x 75mm

Manufactured by W. NEAL SERVICES LTD
  • 1300mm Roll Length
  • 75mm Roll Diameter
  • 1.5mm Capacity Mild Steel
  • Bottom Slip
  • Edwards Style Pyramid Frame

Description

Manufactured by W. NEAL SERVICES LTD

WNS INITIAL PINCH HAND BENDING ROLLS (BR1300/75wns) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR1300/75wns has a 1300mm Roll Length, 75mm Roll Diameter and can accommodate Mild Steel up to 1.5mm thick. The rolls are bottom slip, with an Edwards Style fabricated steel frame.





Additional information

Weight 1250 kg
 SPECIFICATIONS
Model: BR1300/75wns
Roll Size: 1300mm Roll Length x 75mm Roll Diameter
Maximum Thickness: 1.5mm Mild Steel
Rolls: Bottom Slip
Frame: Fabricated Steel Frame
Dimensions – machine (apx): 1600mm x 660mm 1100mm (l x w x h)
Dimensions – packing (apx): 1760mm x 800mm x 1300mm (l x w x h)
Weights – net/gross (apx): 220Kg/300Kg



All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
