WNS Power Bending Rolls 1535mm x 120mm x 3.5mm (PBR1535/120J)

Power Bending Rolls


Description

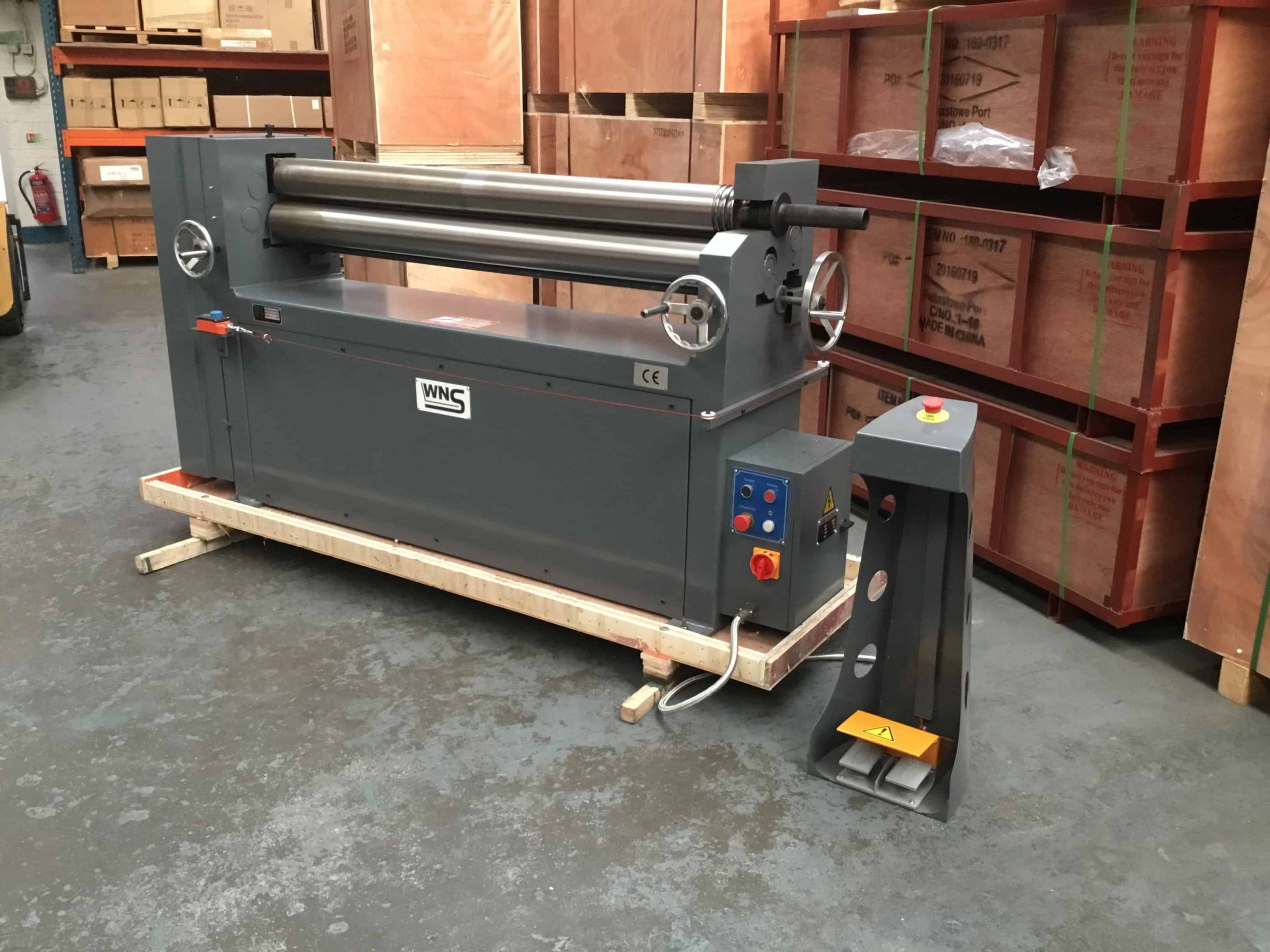

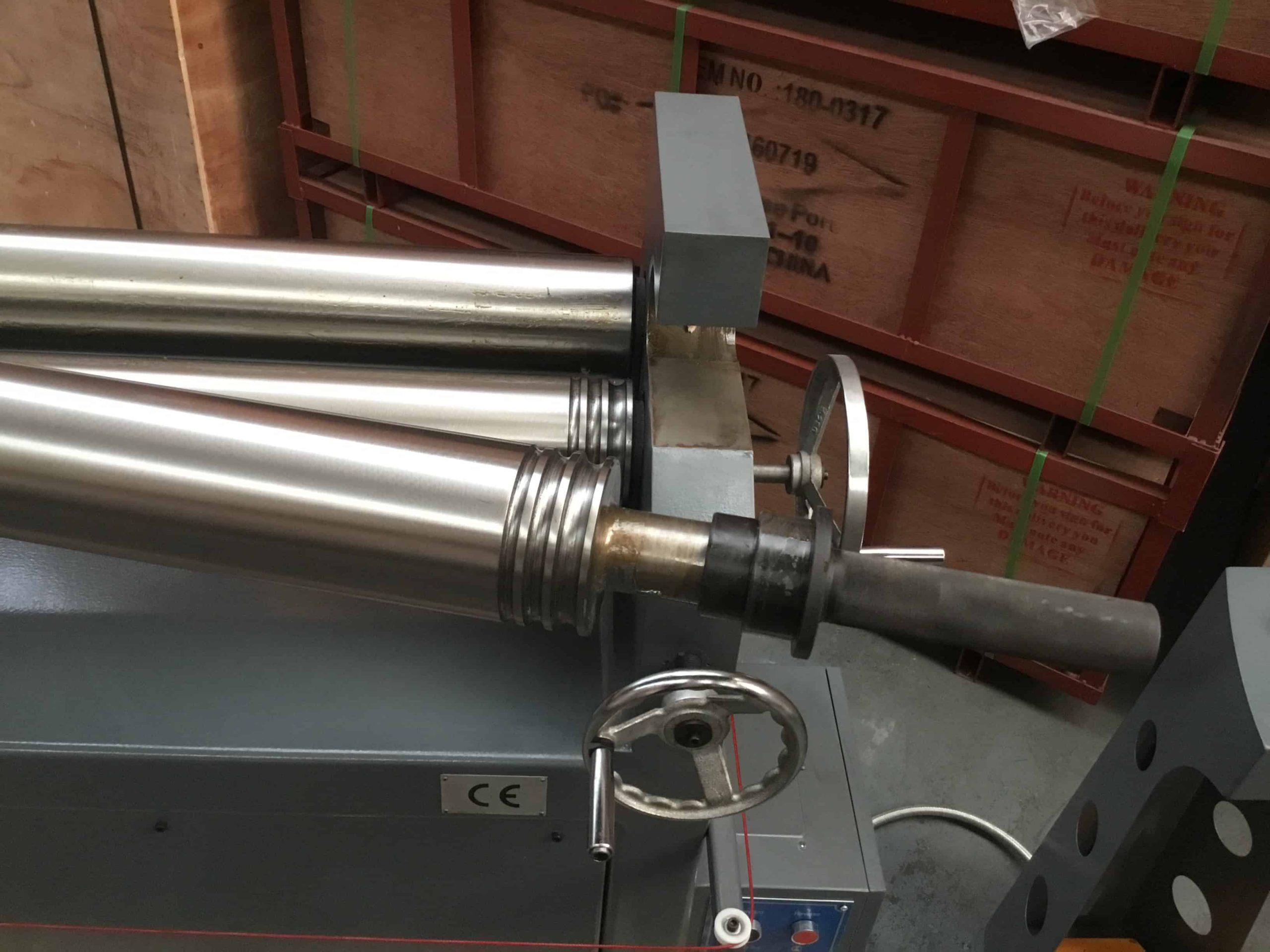

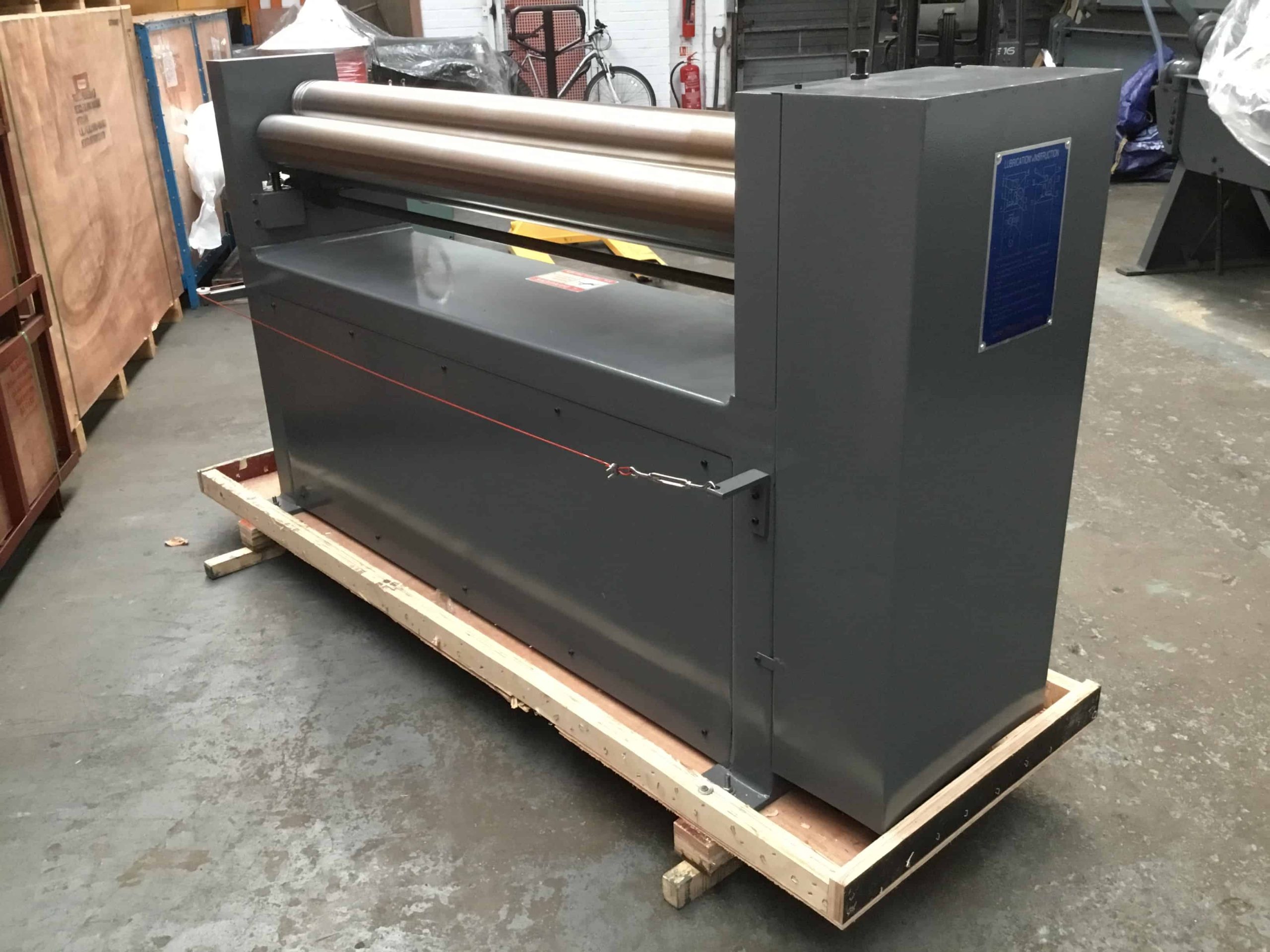

WNS POWER BENDING ROLLS (PBR1535/120J) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The PBR1535/120J has a 1535mm Roll Length, 120mm Roll Diameter and can accommodate Mild Steel up to 3.5mm thick. The rolls are top slip and equipped with 3 Wiring Grooves.

View Literature





SPECIFICATIONS
Model: PBR1535/120J
Roll Size: 1535mm Roll Length x 120mm Roll Diameter
Maximum Thickness: 3.5mm Mild Steel
Rolls: Top Slip

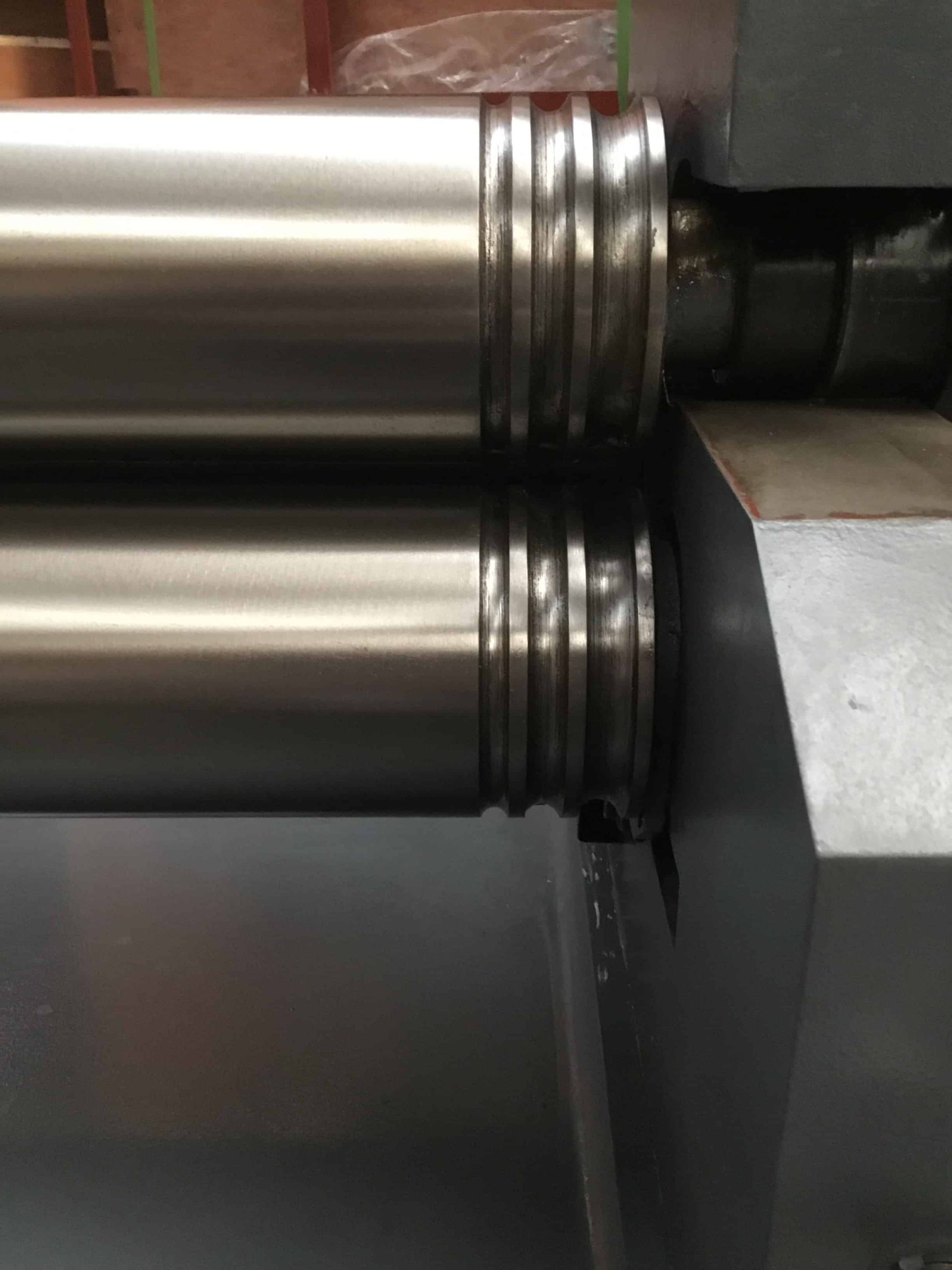

Wiring Grooves (x3): 8.0mm
12mm
15mm
Motor Power: 2.2kW
Supply Voltage: 415v, 3 Phase
Dimensions – machine (apx): 2140mm x 600mm x 1150mm (l x w x h)
Dimensions – packing (apx): 2260mm x 740mm x 1260mm (l x w x h)
Weights – net/gross (apx): 750Kg/950kg


All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.

Reviews

There are no reviews yet.

Be the first to review “WNS Power Bending Rolls 1535mm x 120mm x 3.5mm (PBR1535/120J)”

Your email address will not be published. Required fields are marked *

SKU: PBR1535/120J

WNS Power Bending Rolls 1535mm x 120mm x 3.5mm (PBR1535/120J)

£5,380.00 excluding VAT

  • 1535mm Roll Length x 120mm Roll Diameter
  • 3.5mm Capacity Mild Steel
  • 3 x Wiring Grooves
  • 415v, 3 Phase
  • Top Slip

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
