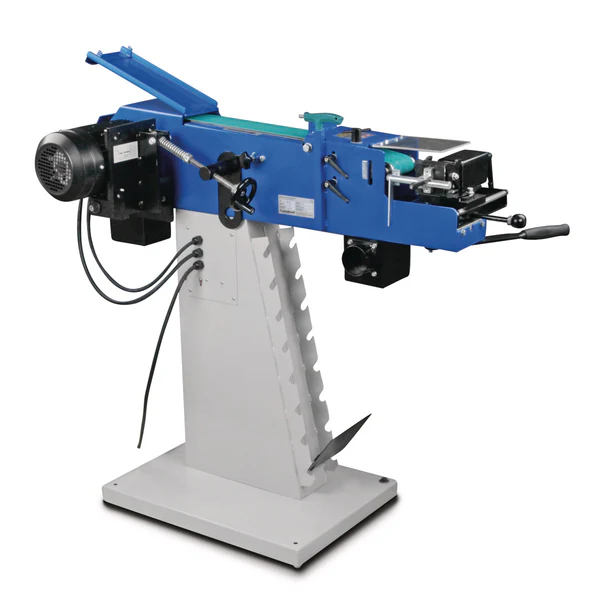

METALLKRAFT Belt Tube Grinder/Linisher 2000mm x 100mm

  • 2000mm x 100mm Belt Size
  • 30 – 90 ° and 0 ° – 60 ° Adjustable Grinding Angles
  • 2 x Belt Speeds
  • 2.5/3.3kW Motor Power
  • 415v, 3 Phase Electrics, 50Hz

Description

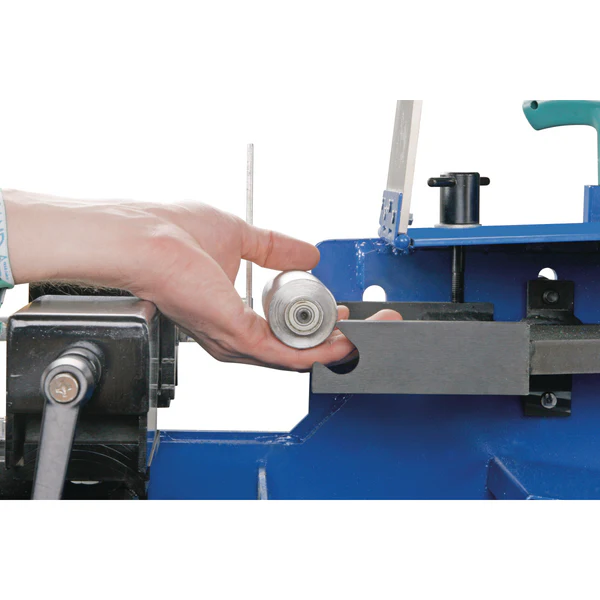

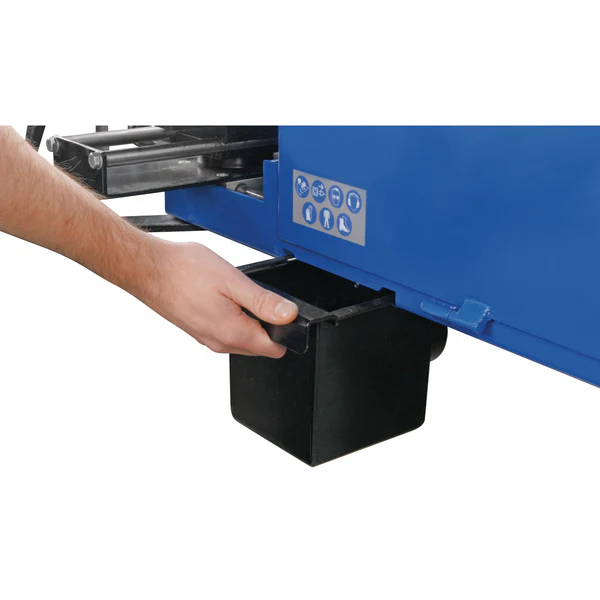

METALLKRAFT BELT TUBE GRINDERS / LINISHERS (MBG100) have a belt size of 2000mm long x 100mm wide. These machines are designed for efficient deburring, featuring a practical workpiece support and a chip collecting container. Its user-friendly operation is enhanced by an easily adjustable clamping device, with rotating clamping jaws that securely hold square tubes, round tubes, and flat steel. The grinding angles are adjustable from 30° to 90° and 0° to 60°, allowing for versatile applications. A quick-change holder enables fast and tool-free tensioner replacement, while larger and improved roller bearings ensure durability. Integrated grinding wheel holders in the base provide convenient storage, and a wide range of grinding wheels for different pipe diameters is available as accessories. Users can quickly switch between pipe grinding and belt grinding, supported by a powerful engine. Most settings can be adjusted without tools, with an operating tool included for added convenience. The large, hinged protective glass offers an optimal field of vision, while two belt speeds (15 m/s for stainless steel and aluminum, 30 m/s for steel) allow for precise material adaptation. Additionally, two easily removable chip collecting containers and a 70mm extraction nozzle ensure effective dust and debris management.





Additional information

Weight 1000 kg
SPECIFICATIONS
Model: MBG100
Belt Size: 2000mm Long x 100mm Wide
Adjustable Grinding Angles: 30 – 90 ° and 0 ° – 60 °
Belt Speeds (x 2): 15 m/s
30 m/s
Circumferential Belt Speed: 150mm
Motor Speeds ( x 2): 1400/2800min-¹
Motor Power: 2.5/3.3kW
Supply Voltage: 415v, 3 Phase Electrics, 50Hz
Dimensions – machine (apx): 1250mm x 750mm x 1140mm
Weights – net(apx): 159Kg

All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.

W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
