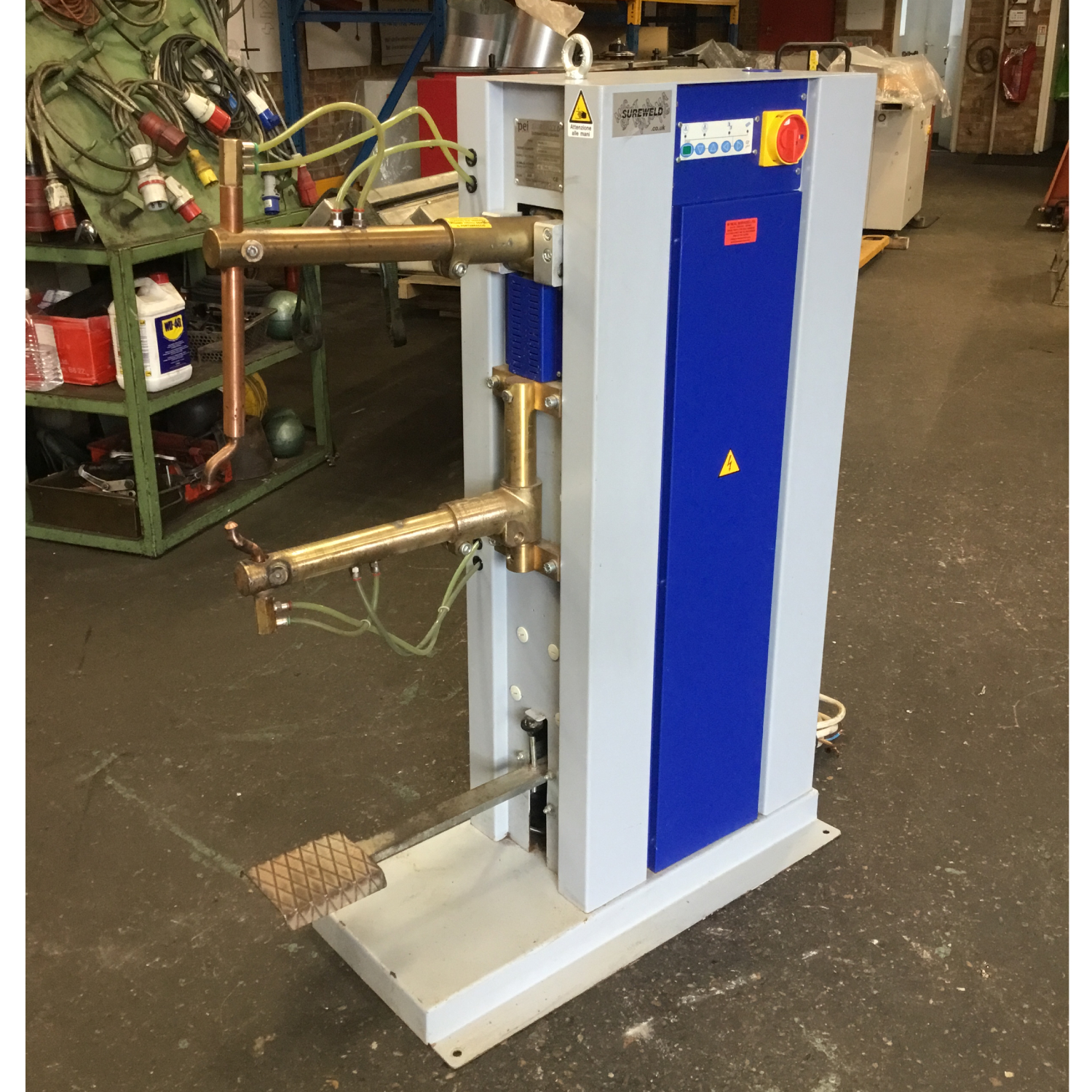

SUREWELD PEI POINT PB126/C2 PEDESTAL SPOT WELDERS (PSW06) are easy to use and ideal for all metal welding. This machine is mechanically foot operated and has a maximum welding capacity of 2.5mm mild steel. The upper arm is adjustable for depth and lower arm adjustable for height.
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | PSW06 |
| Maximum Welding Capacity: | 2.5mm Capacity Mild Steel |
| Nominal Power @ 50% Duty Cycle: | 25kVA |
| Maximum Welding Current: | 9.2kA |
| Electrode Force: | 144daN |
| Throat Gap / Height Of Arms: | 340mm |
| Length Of Arms: | 450mm |
| Diameter Of Arms: | 45mm |
| Delayed Fuse: | 45A |
| Supply Voltage: | 415v, 2 Phase Electrics, 50Hz |
| Maximum Short Circuit Current: | 11.5kA |
| Dimensions – machine (apx): | 1000mm x 450mm x 1280mm (l x w x h) |
| Weights – net/gross (apx): | 130Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
