Hand Bending Rolls 1520mm x 75mm

Hand Bending Rolls


Description

Manufactured by W. NEAL SERVICES LTD

WNS INITIAL PINCH HAND BENDING ROLLS (BR1520/75wns) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR1520/75wns has a 1520mm Roll Length, 75mm Roll Diameter and can accommodate Mild Steel up to 1.2mm thick. The rolls are bottom slip, with an Edwards Style fabricated steel frame.

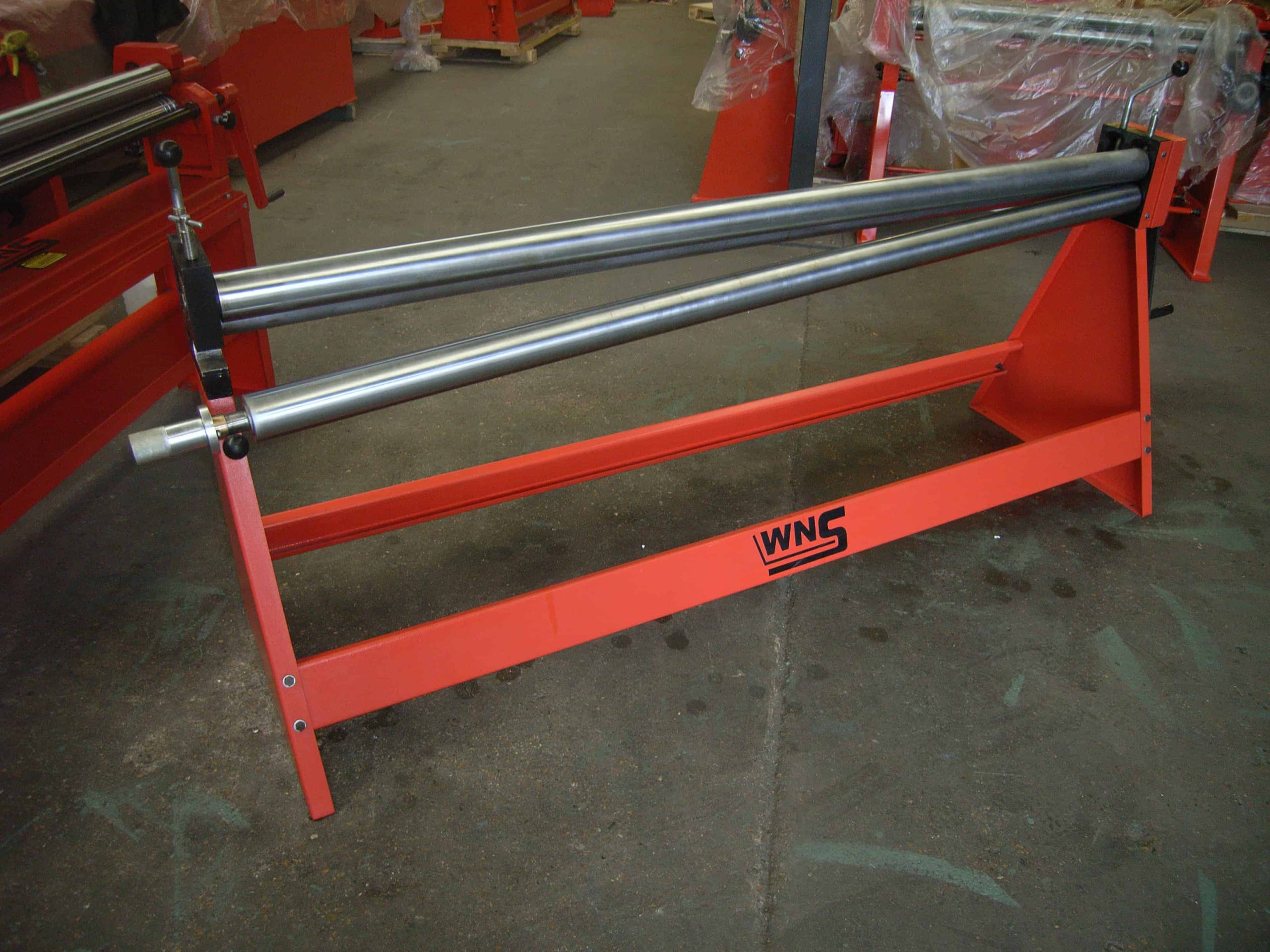

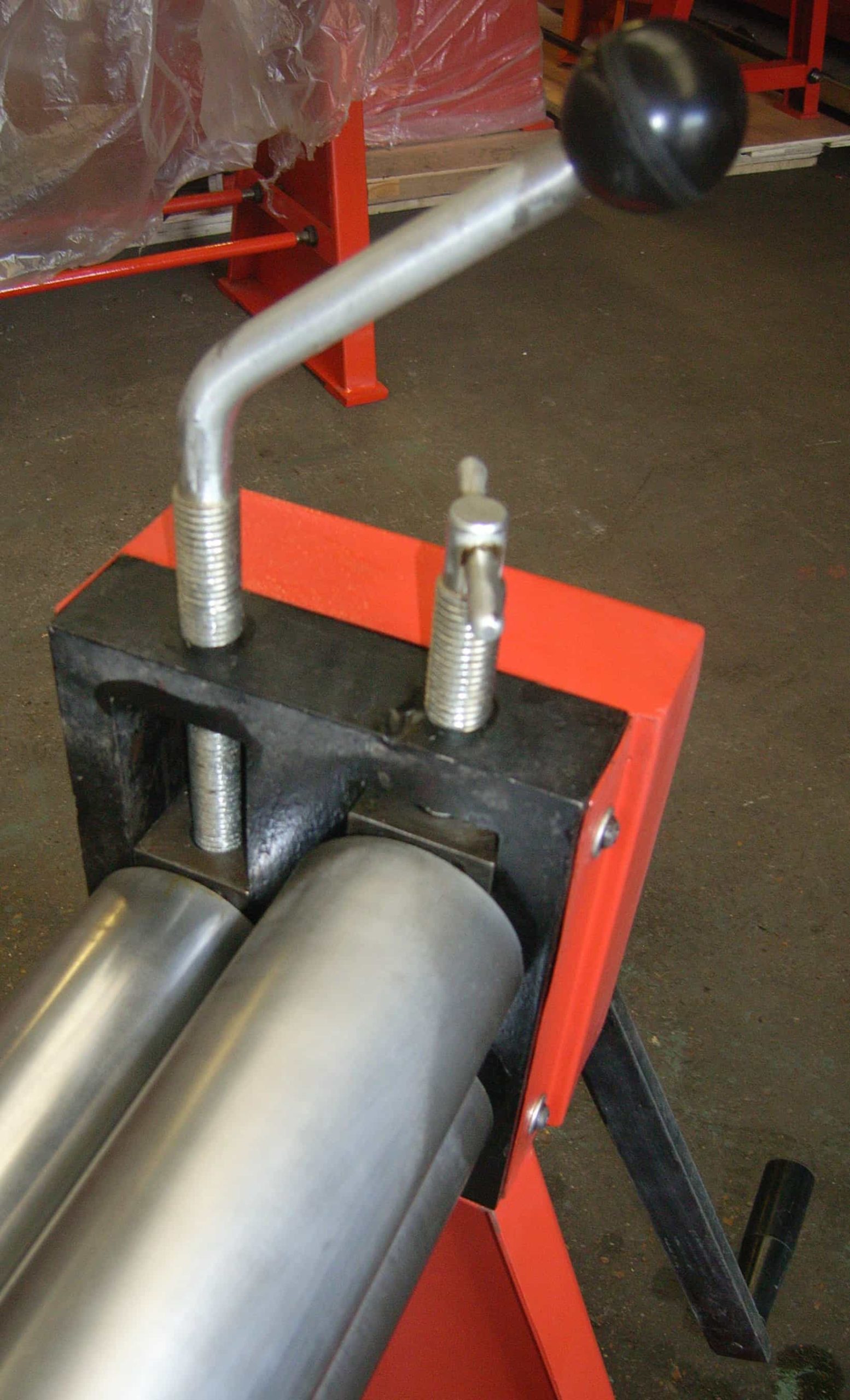

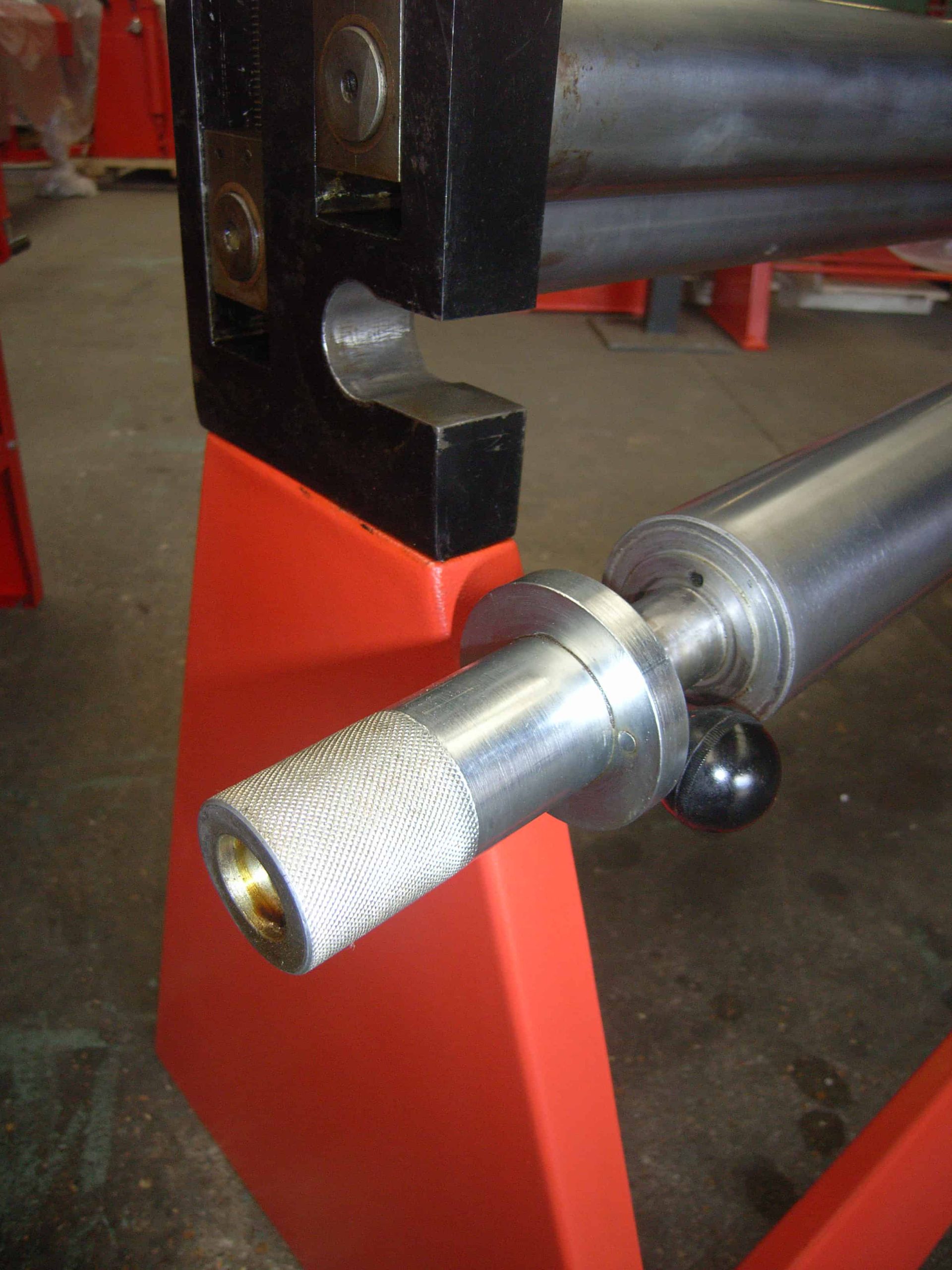

Please note, photographs are of the WNS Bending Rolls (BR2000/75wns).


View Literature



Additional information

Weight 1250 kg
SPECIFICATIONS
Model: BR1520/75wns
Roll Size: 1520mm Roll Length x 75mm Roll Diameter
Maximum Thickness: 1.2mm Mild Steel
Rolls: Bottom Slip
Frame: Fabricated Steel Frame
Dimensions – machine (apx): 1900mm x 670mm x 1120mm (l x w x h)
Dimensions – packing (apx): 1800mm x 850mm x 1300mm (l x w x h)
Weights – net/gross (apx): 300Kg/380Kg

All capacities are based on the use of Rollforming quality Mild Steel unless otherwise stated. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. *For warranty terms please see our full Terms & Conditions. E&OE.

Reviews

There are no reviews yet.

Be the first to review “Hand Bending Rolls 1520mm x 75mm”

Your email address will not be published. Required fields are marked *

SKU: BR1520/75wns

Hand Bending Rolls 1520mm x 75mm

£1,400.00 excluding VAT

Manufactured by W. NEAL SERVICES LTD

  • 1520mm Roll Length x 75mm Roll Diameter
  • 1.2mm Capacity Mild Steel
  • Bottom Slip
  • Edwards Style Pyramid Frame

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
