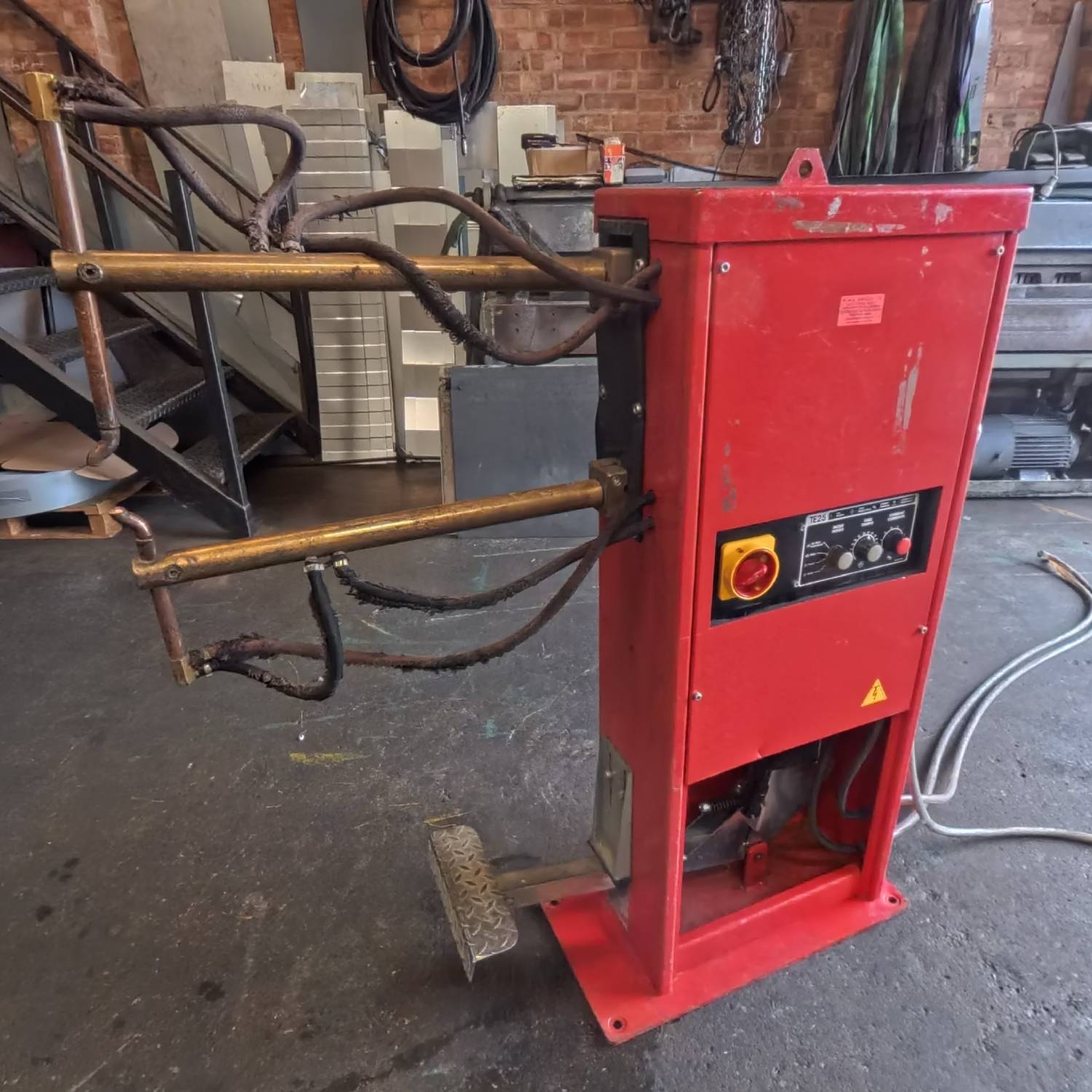

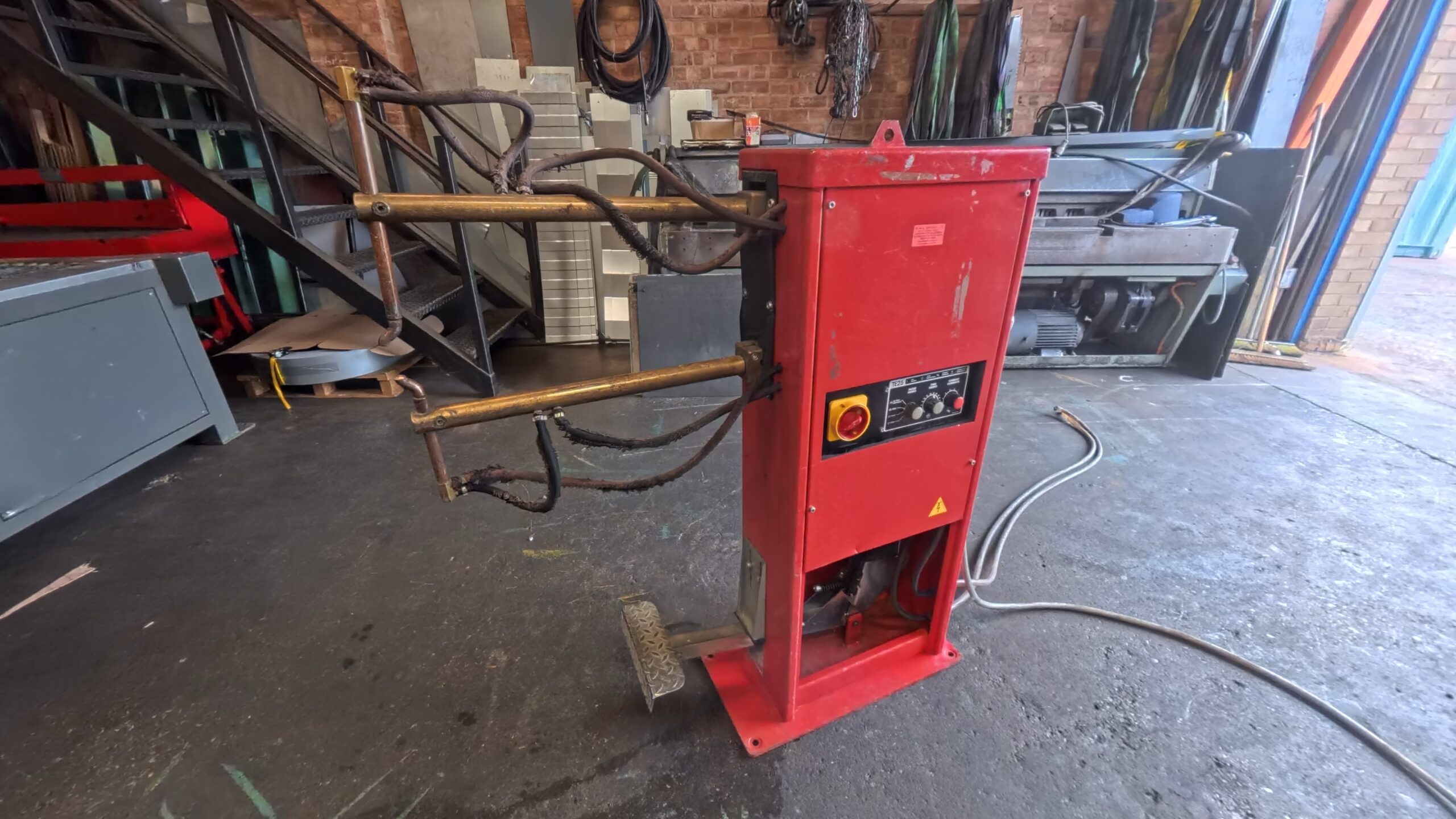

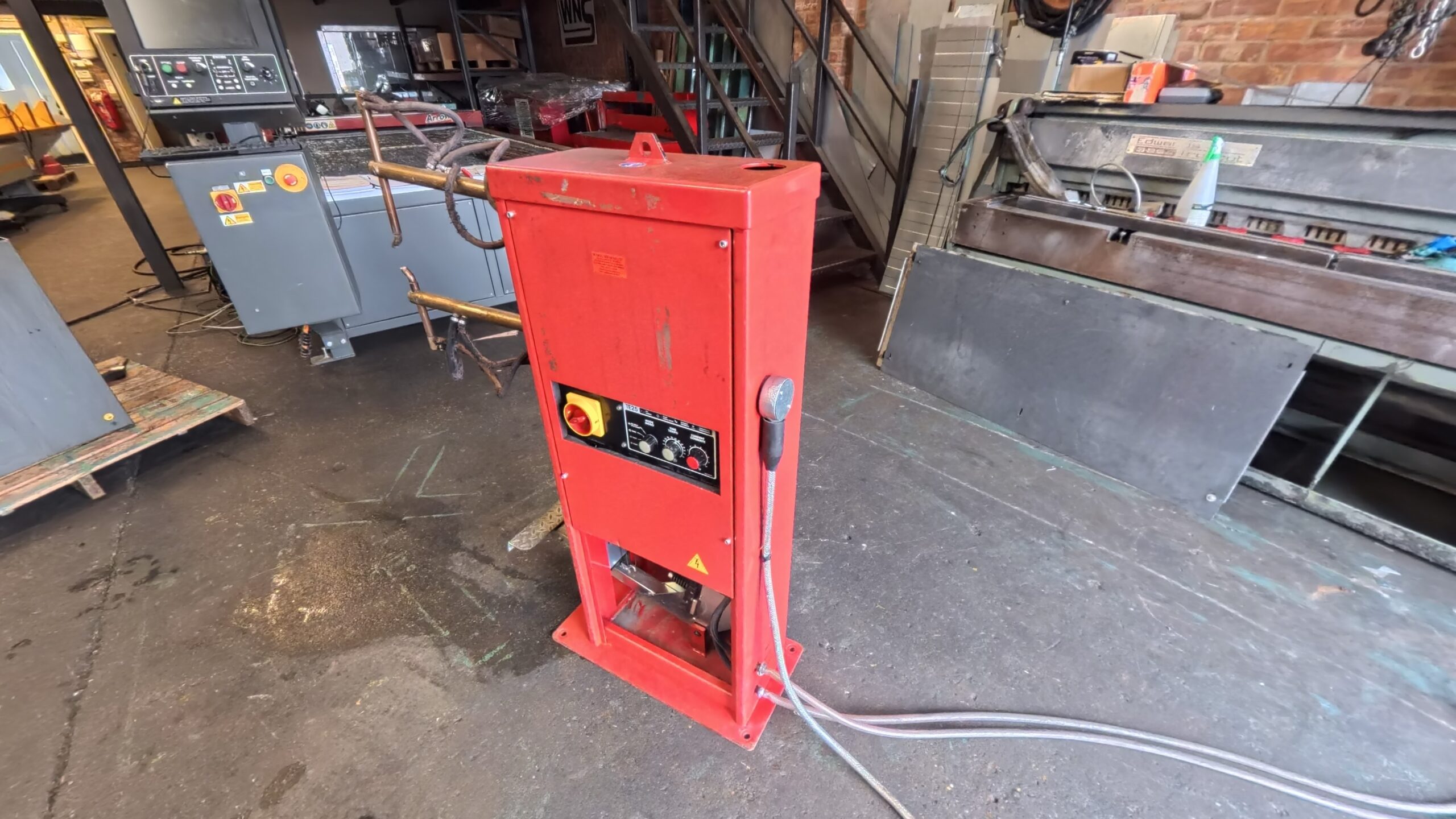

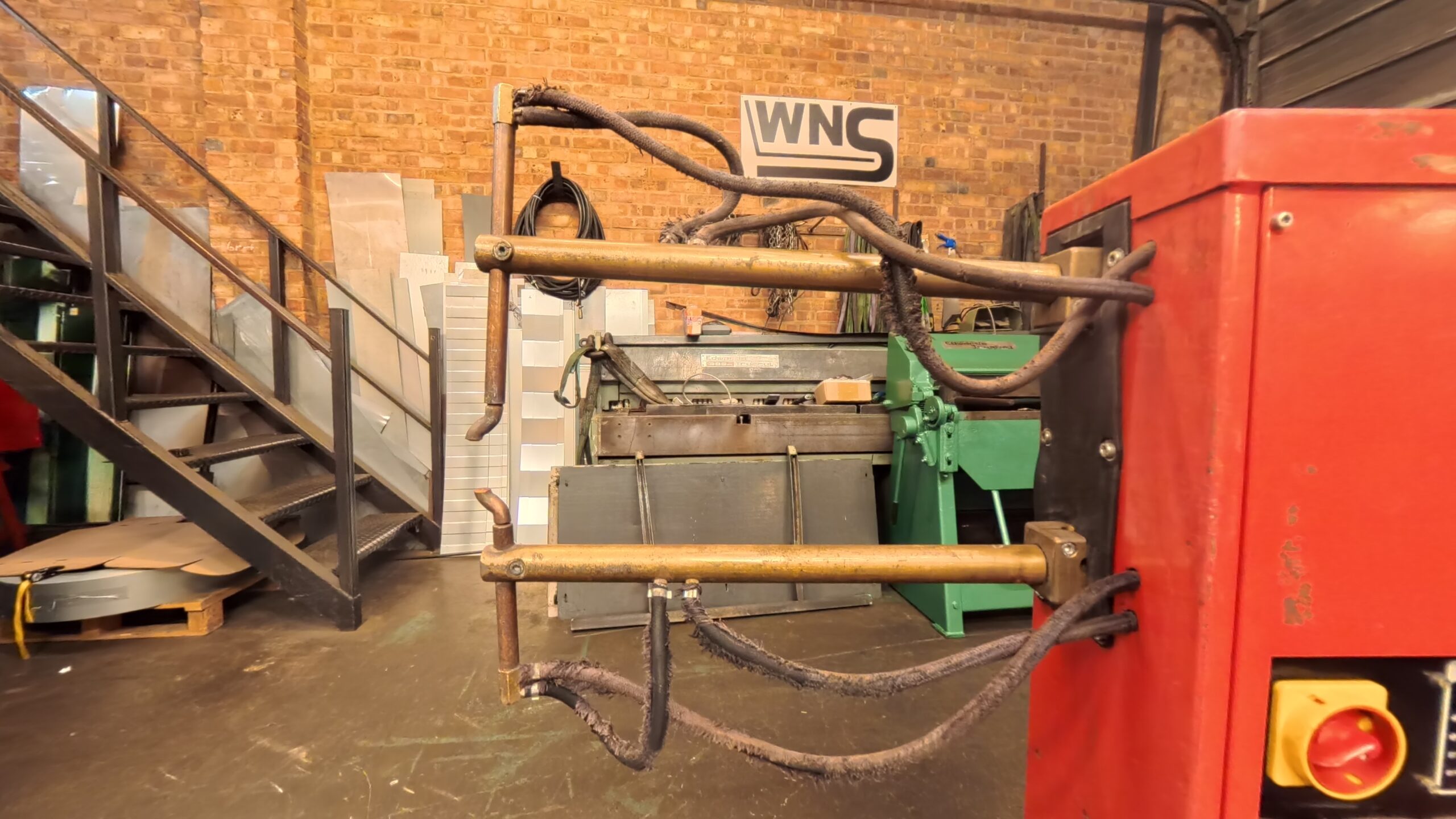

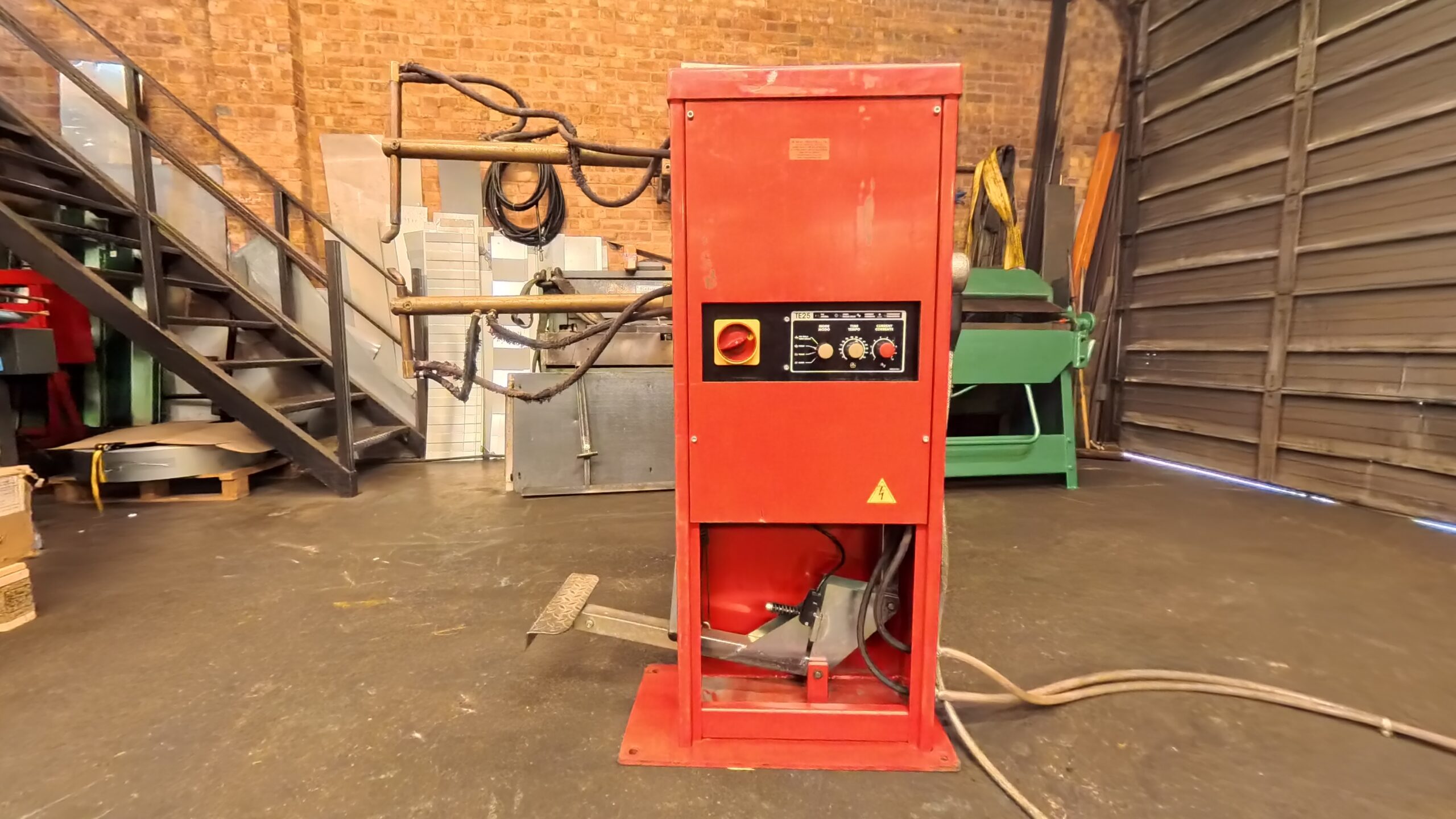

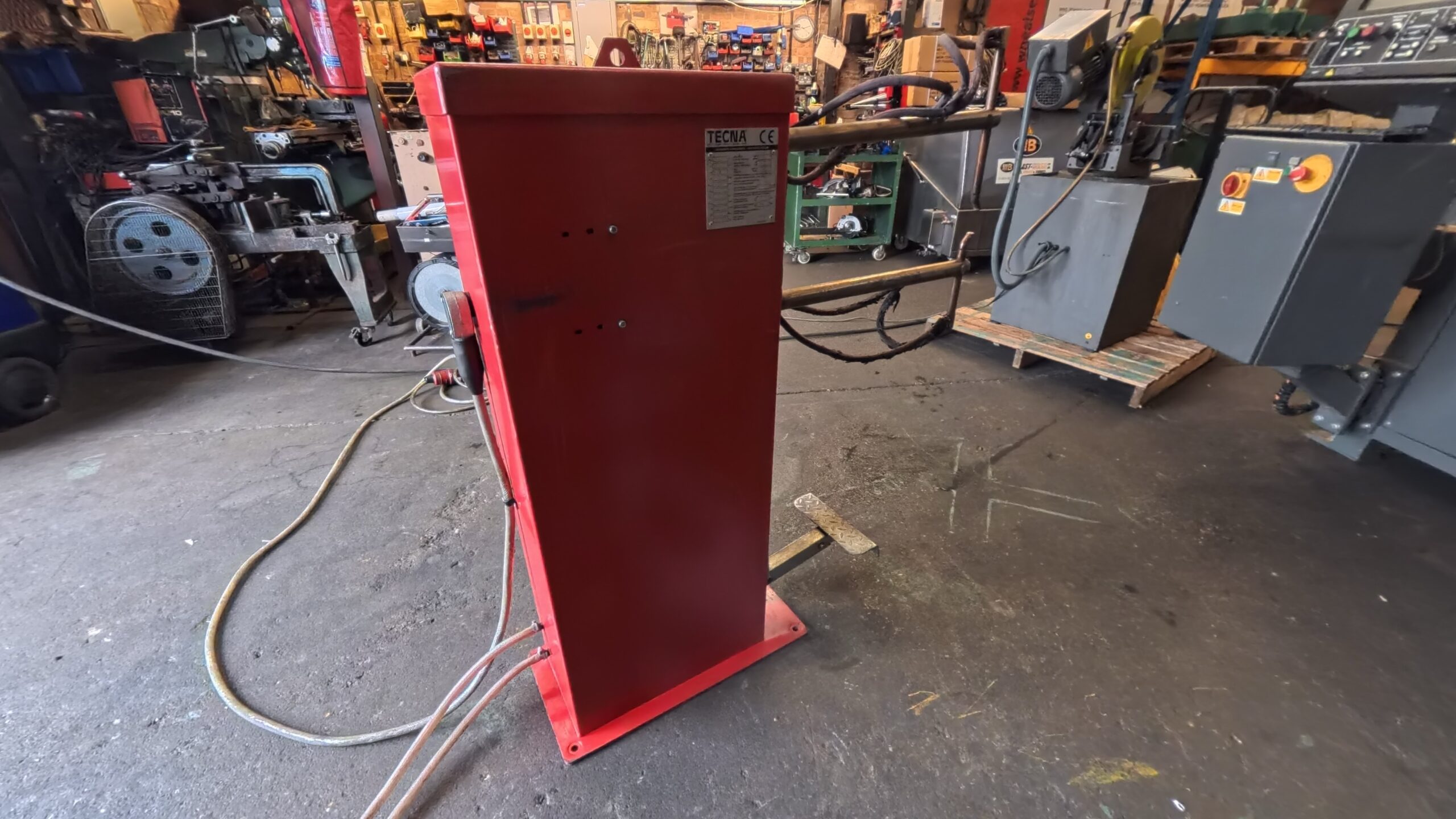

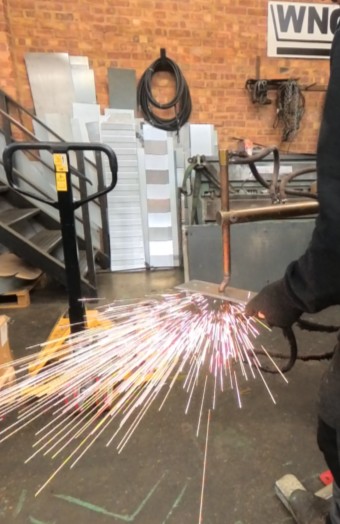

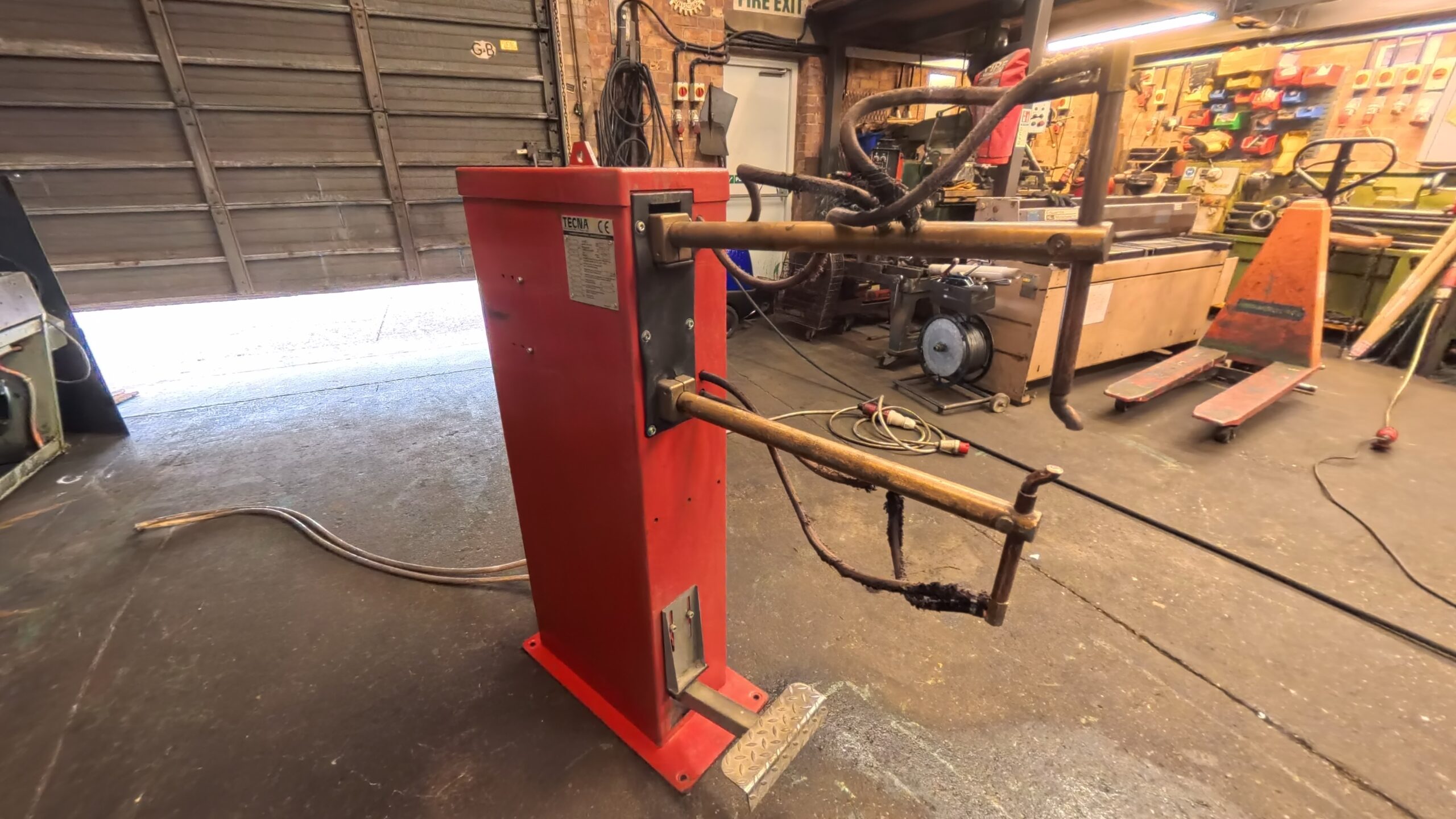

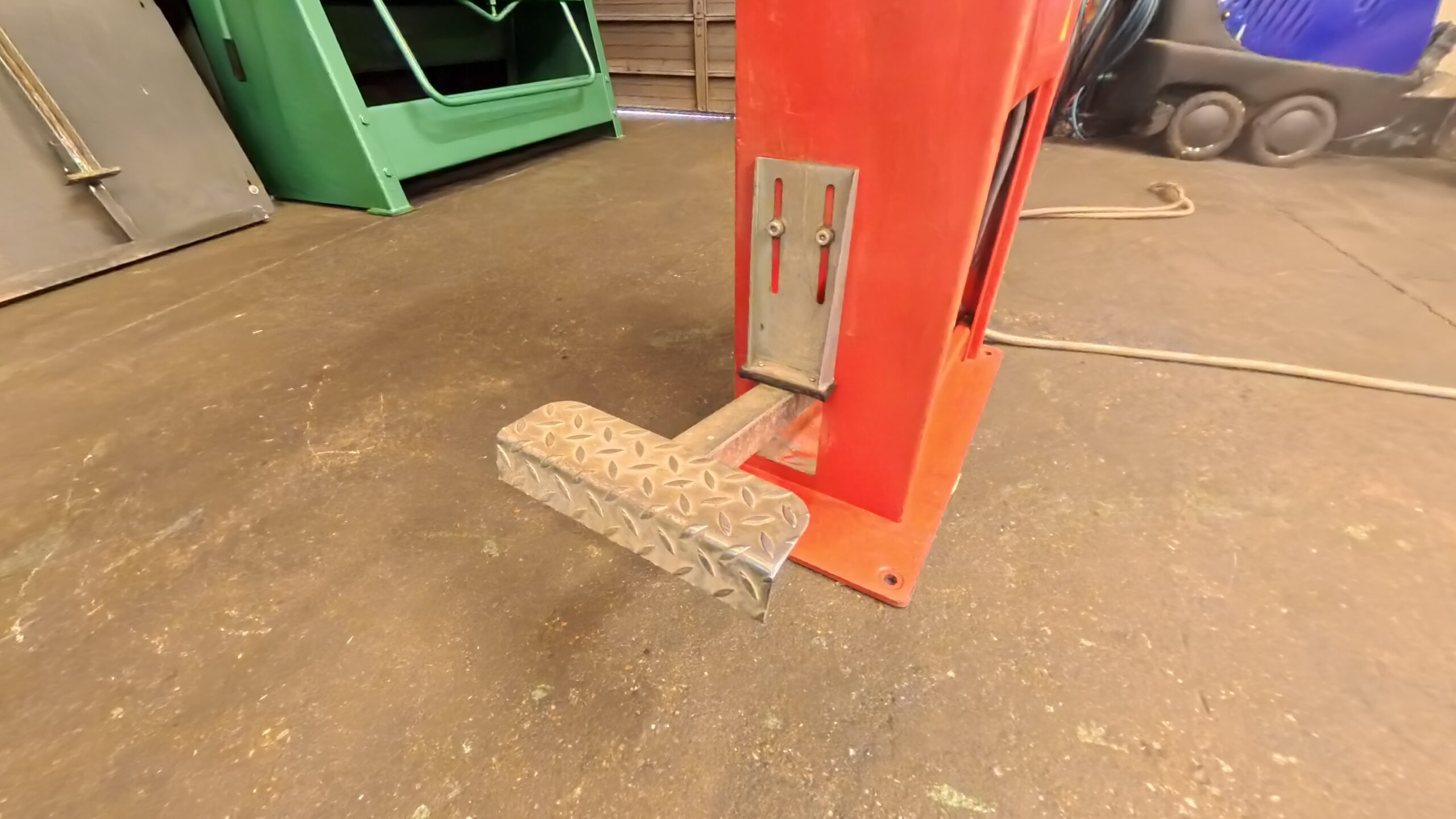

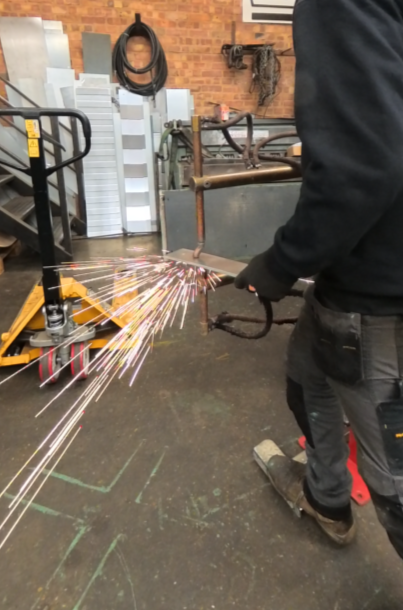

TECNA 3406 PEDESTAL FOOT OPERATED RESISTANCE SPOT WELDERS (TSW04) are easy to use and ideal for all metal welding. This machine is mechanically foot operated and has a 22” throat gap/arm height. These welders have a 16 kVA nominal power at 50% duty cycle, and 11.8 kA maximum secondary short-circuit current. The machine features swinging arms, a maximum electrode force of 240 daN and water cooling.
USED
This is a used machine and is in full working order.
Machine is ‘Sold as Seen’.
No returns on this item – sorry!
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our Used/Reconditioned machines please click here.

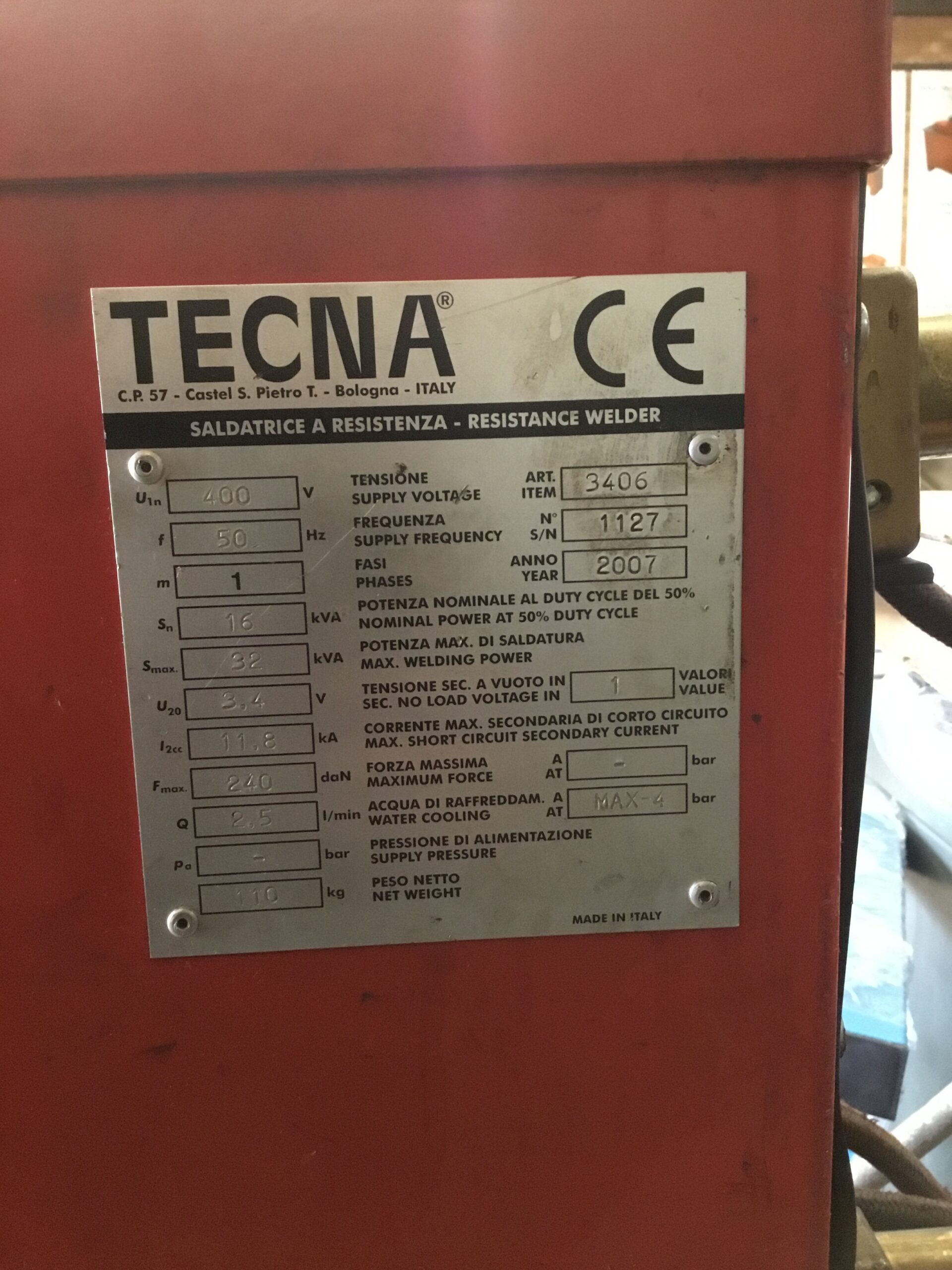

| SPECIFICATIONS | |
| SKU: | TSW04 |
| Model: | 3406 |
| Nominal Power @ 50% Duty Cycle: | 16kVA |
| Maximum Welding Current: | 32kVA |
| Maximum Electrode Force: | 240 daN |
| Short-Circuit Current: | 11.8 kA |
| Throat Gap / Height Of Arms: | 22″ |
| Water Cooling: | 2.5 L/min |
| Supply Voltage: | 415v, Single Phase Electrics, 50Hz |
| Dimensions – machine (apx): | 1050mm x 300mm x 1260mm (l x w x h) |
| Weight – net (apx): | 110Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
