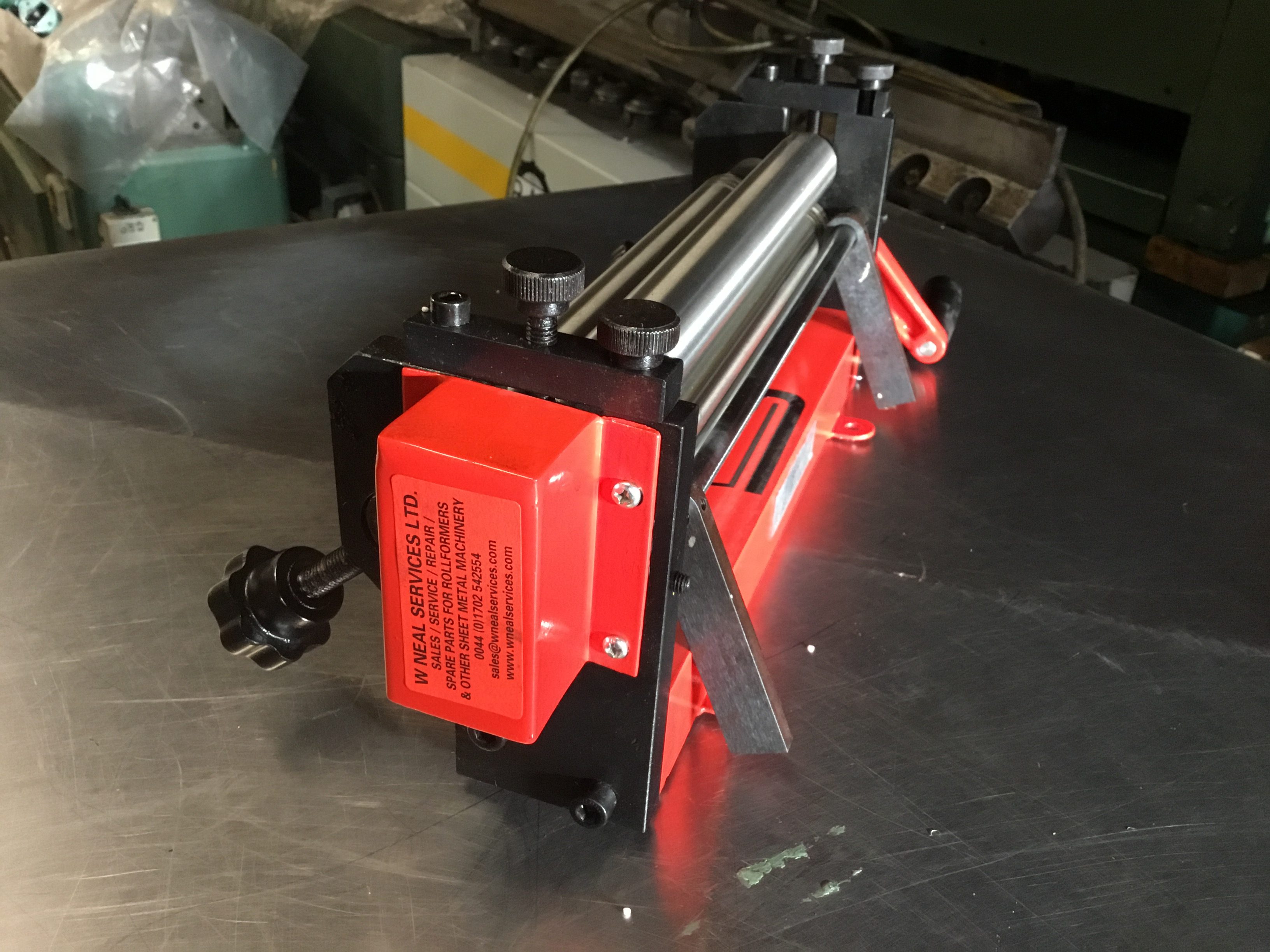

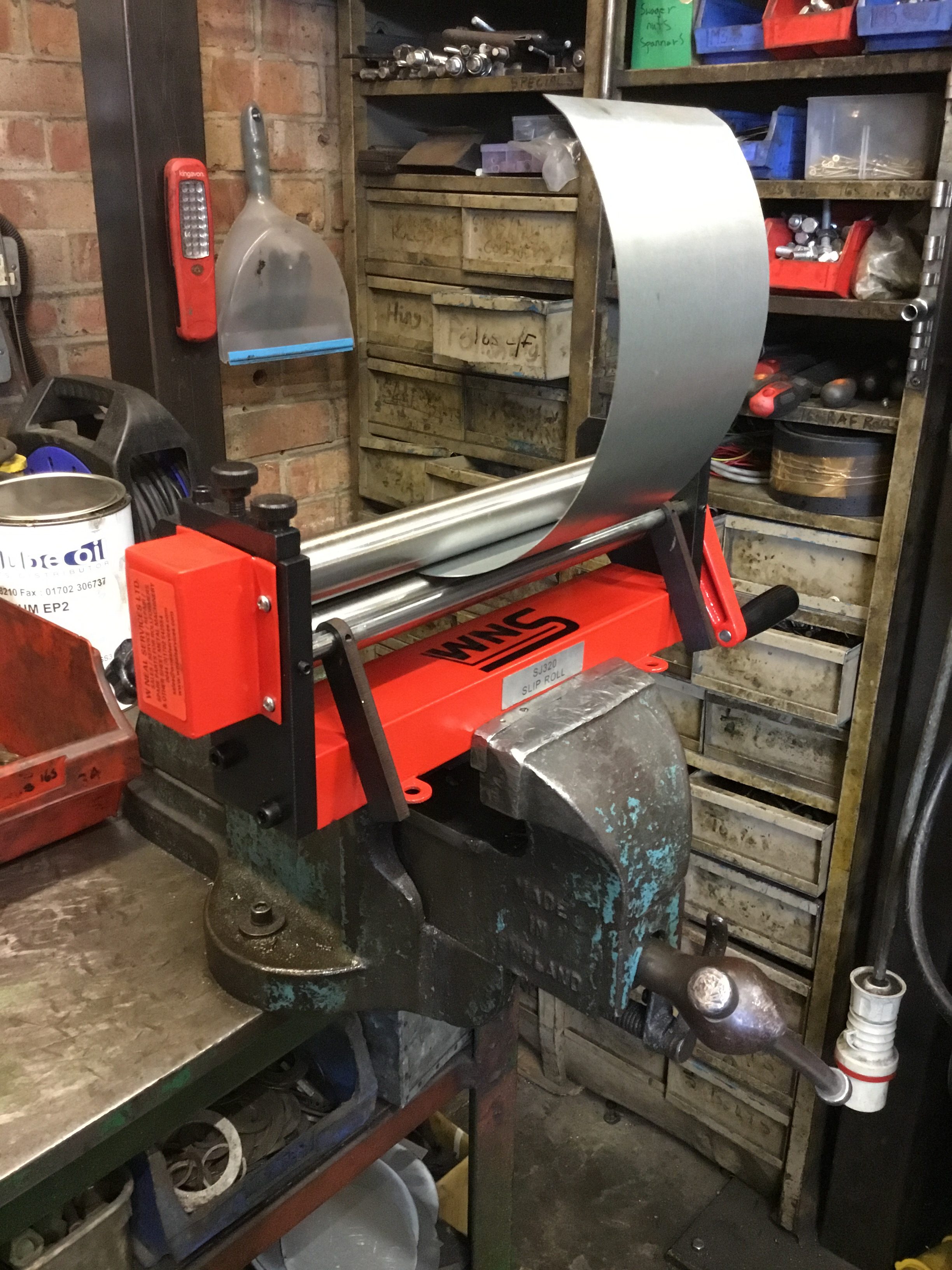

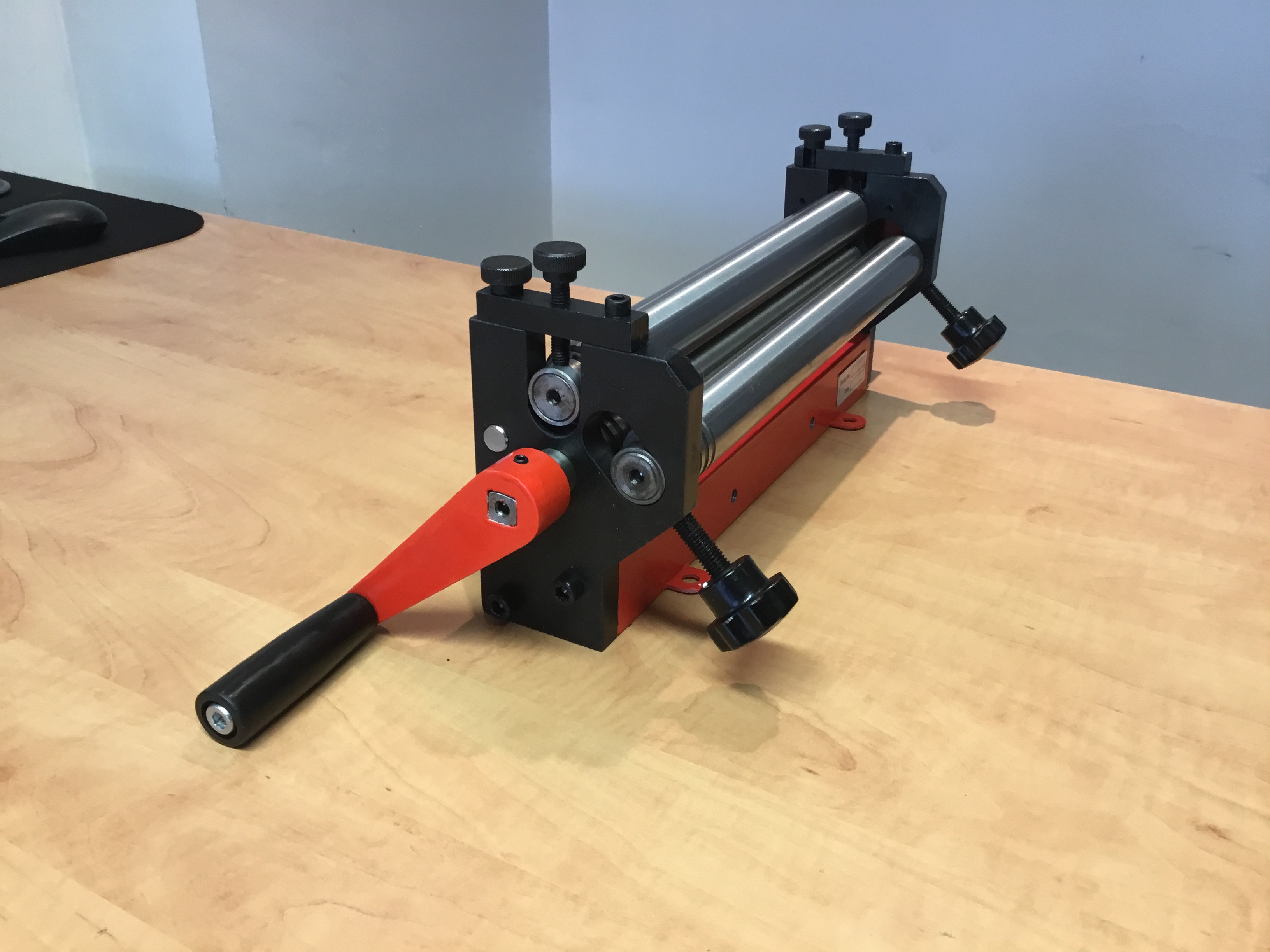

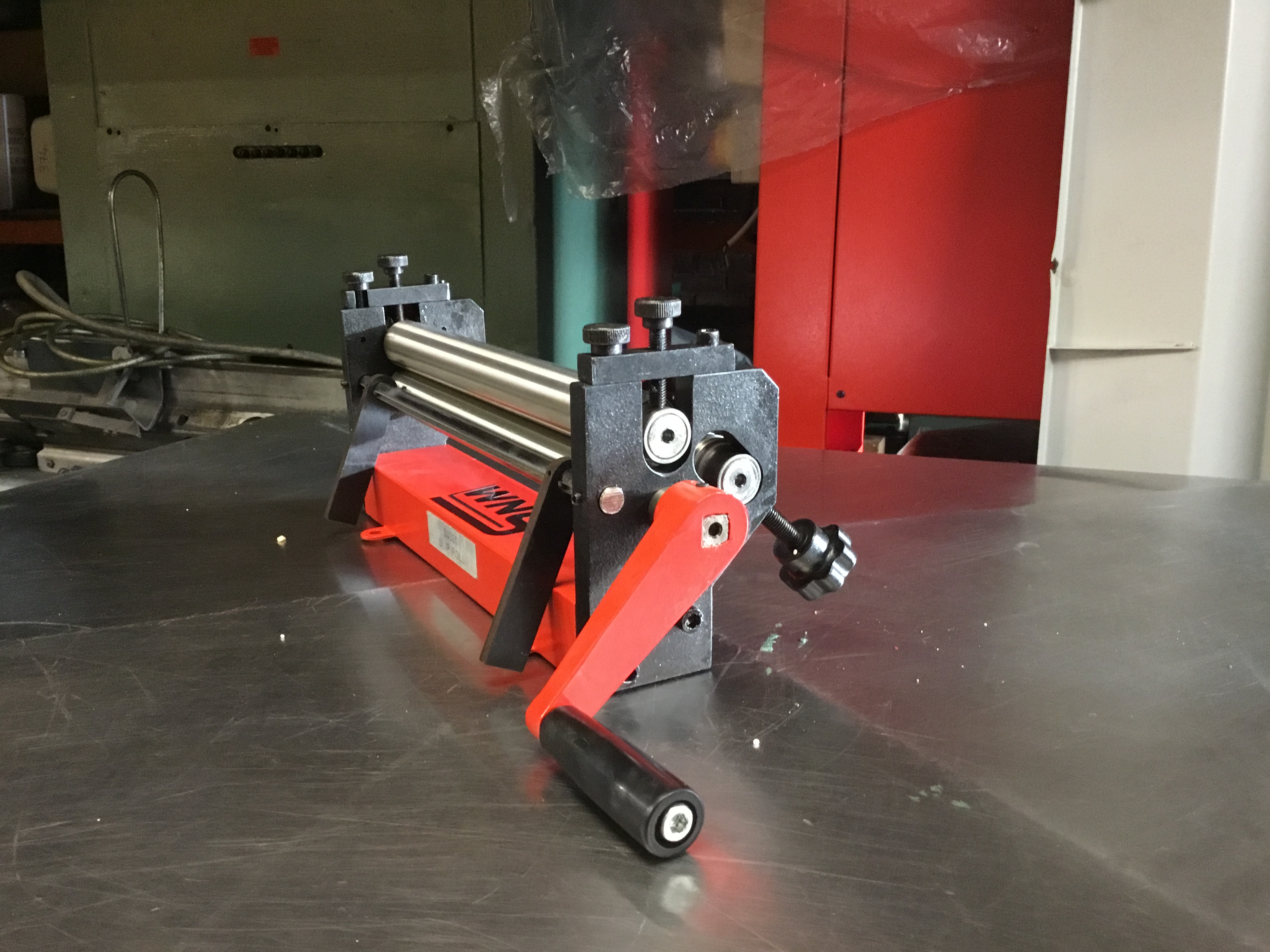

WNS INITIAL PINCH BENCH BENDING ROLLS (BR320/32) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR320/32 has a 320mm roll length, 32mm roll diameter and can accommodate mild steel up to 1.0mm thick. These rolls are top slip and are equipped with 3 wiring grooves.
| Weight | 14 kg |
|---|
| SPECIFICATIONS | |
| Model: | BR320/32 |
| Rolling Size: | 320mm Roll Length x 32mm Roll Diameter |
| Maximum Thickness: | 1.0mm Mild Steel |
| Rolls: | Top Slip |

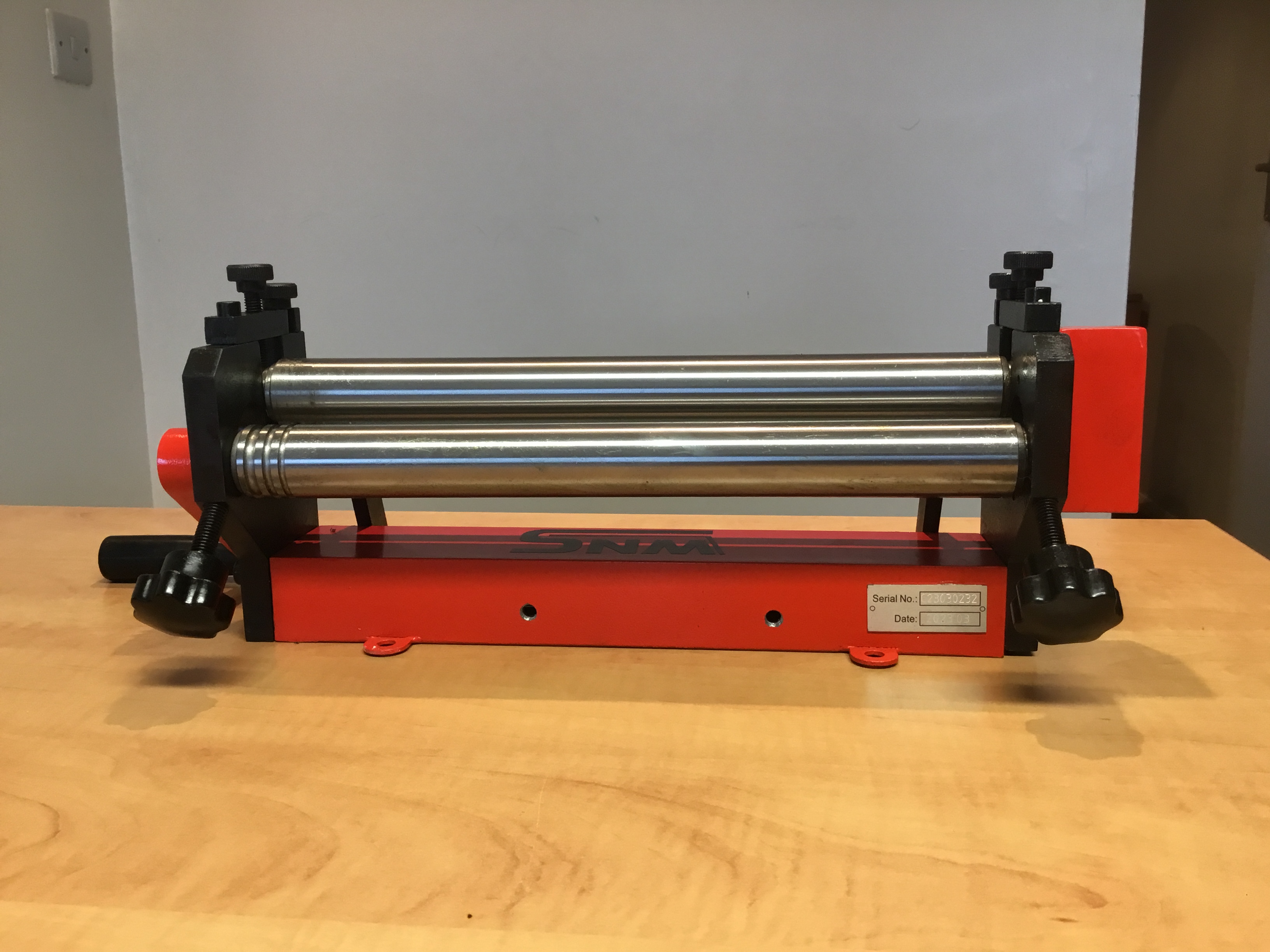

| Wiring Grooves (x 3): | 3.0mm |
| 4.0mm | |
| 5.0mm | |
| Dimensions – machine (apx): | 430mm x 160mm x 210mm (l x w x h) |
| Dimensions – packing (apx): | 480mm x 220mm x 180mm (l x w x h) |
| Weights – net/gross (apx): | 13Kg/14Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
