WNS 710mm English Wheeling Machine (EW710)

English Wheeling Machines


WNS English Wheeling Machines are used predominantly for the restoration of bodywork on cars, planes and motorcycles, though can be used for many other purposes. The available throat depths range from 1100mm to 700mm.

Description

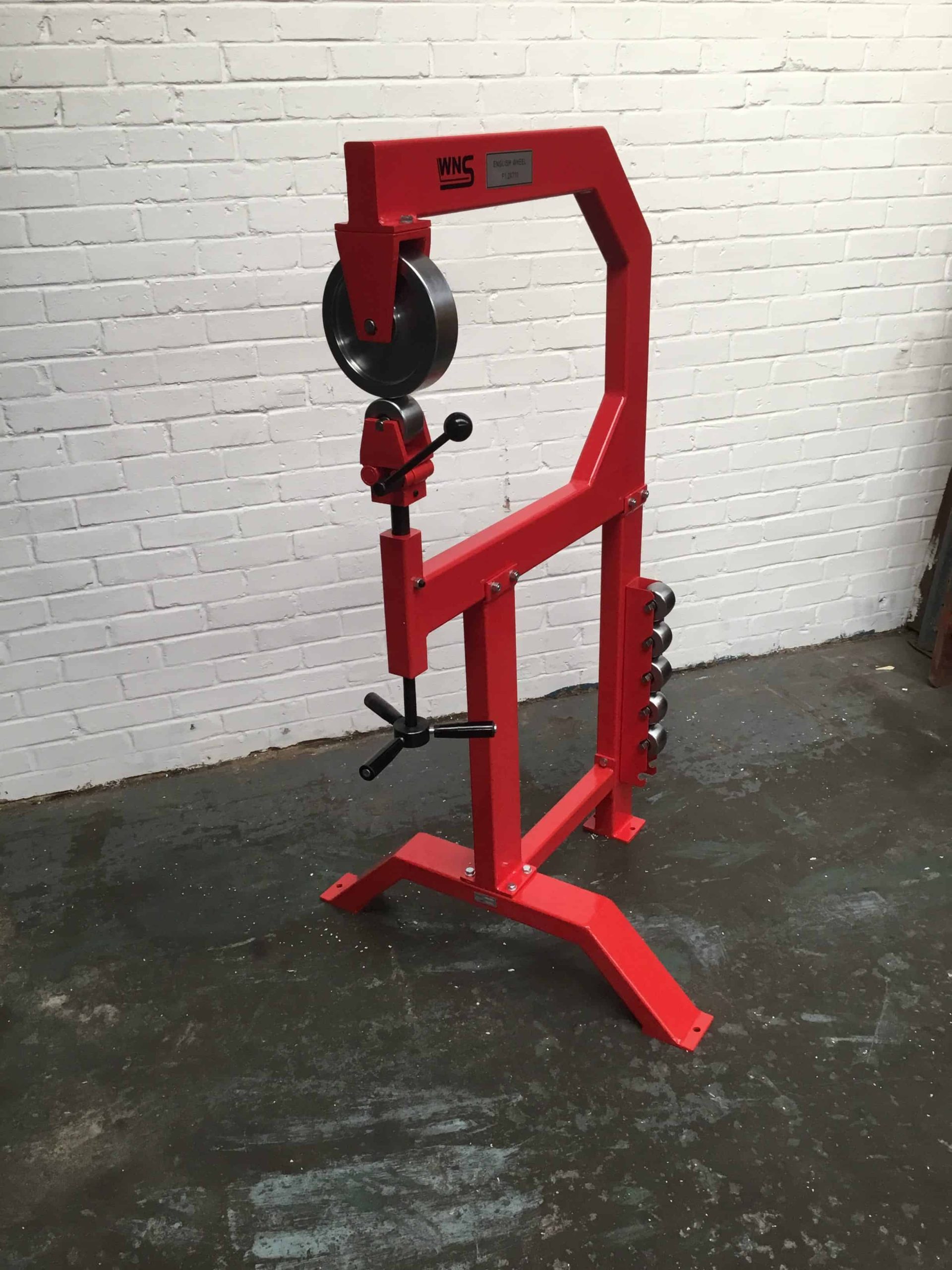

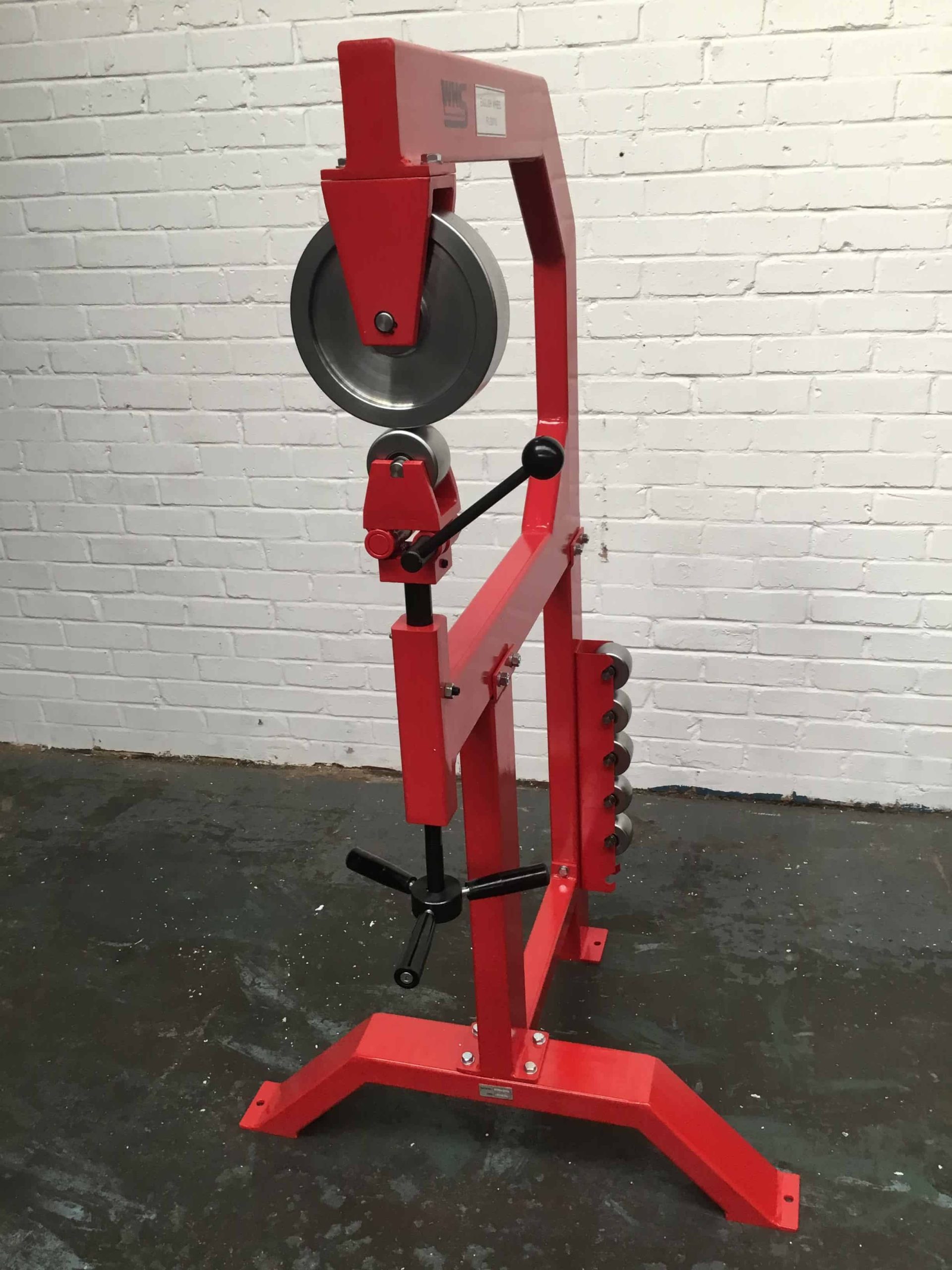

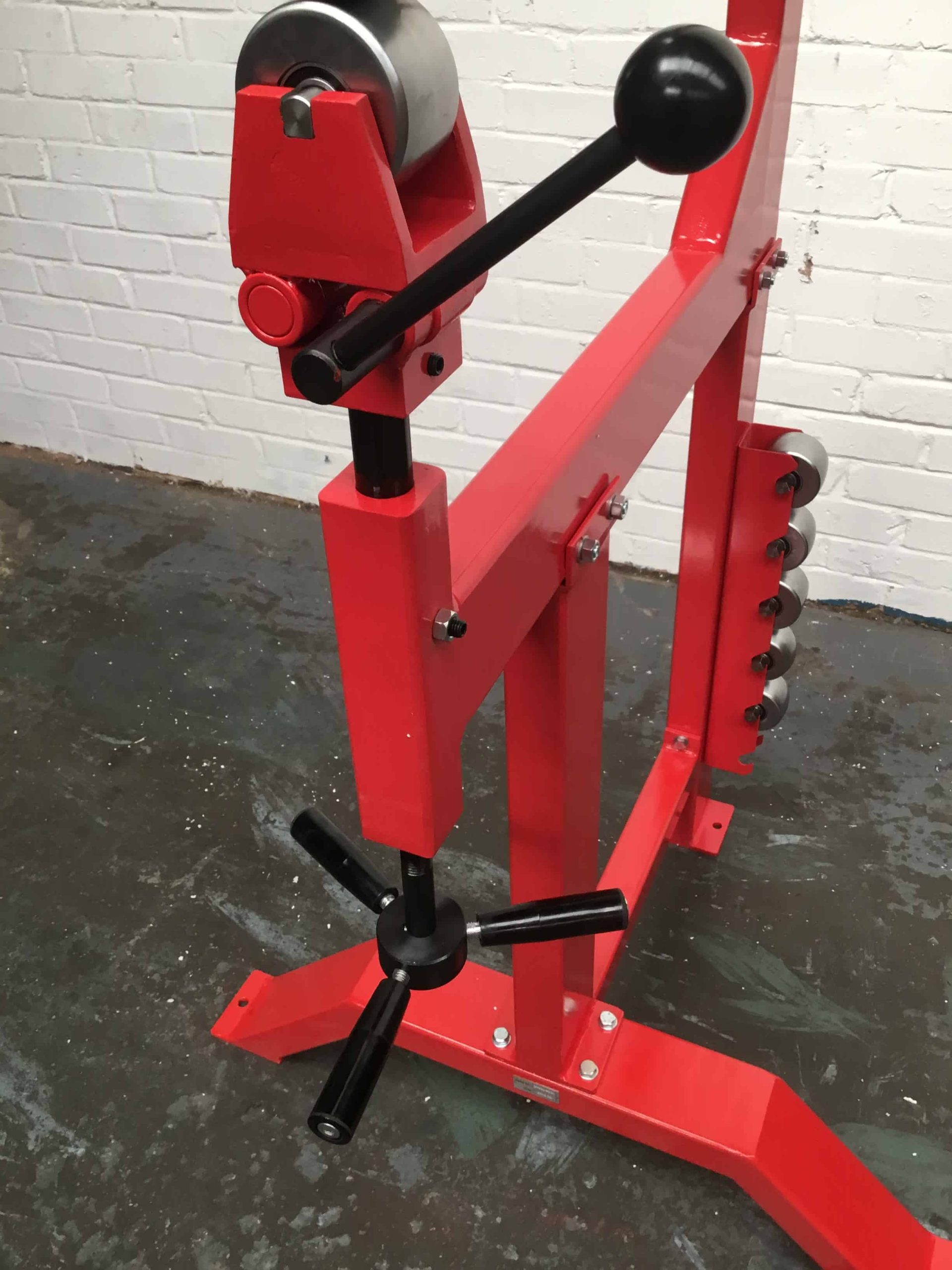

WNS ENGLISH WHEELING MACHINE (EW710) is used predominantly for the restoration of bodywork on cars, planes and motorcycles, though can be used for many other purposes. This machine has a 710mm Throat and can accommodate mild steel up to 1.5mm thick. The EW710 comes complete with 1 Top Wheel & 6 Lower Wheels.


View Literature



Additional information

Weight 81 kg
SPECIFICATIONS
Model: EW710

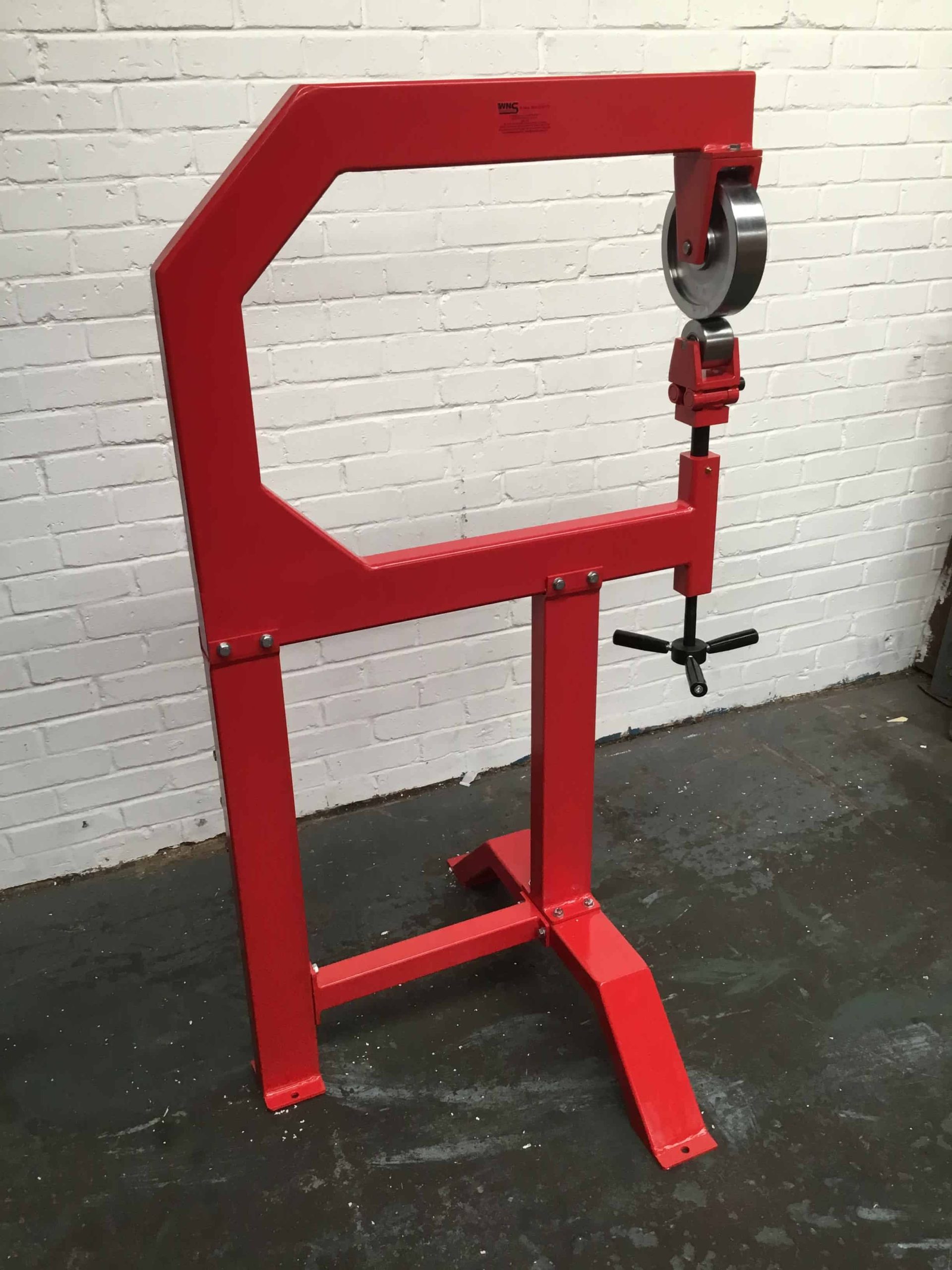

Throat Depth: 710mm
Maximum Thickness: 1.5mm Mild Steel

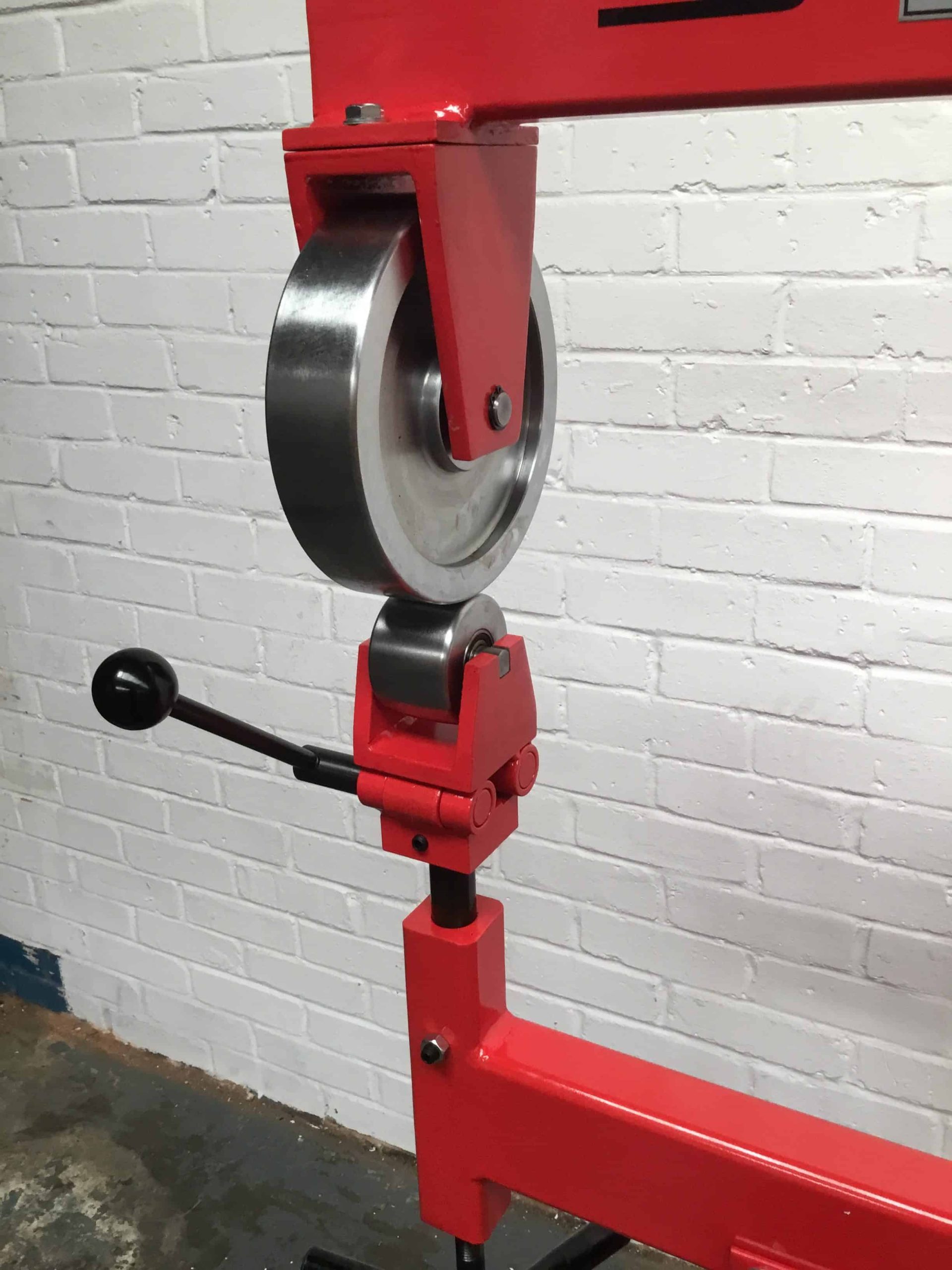

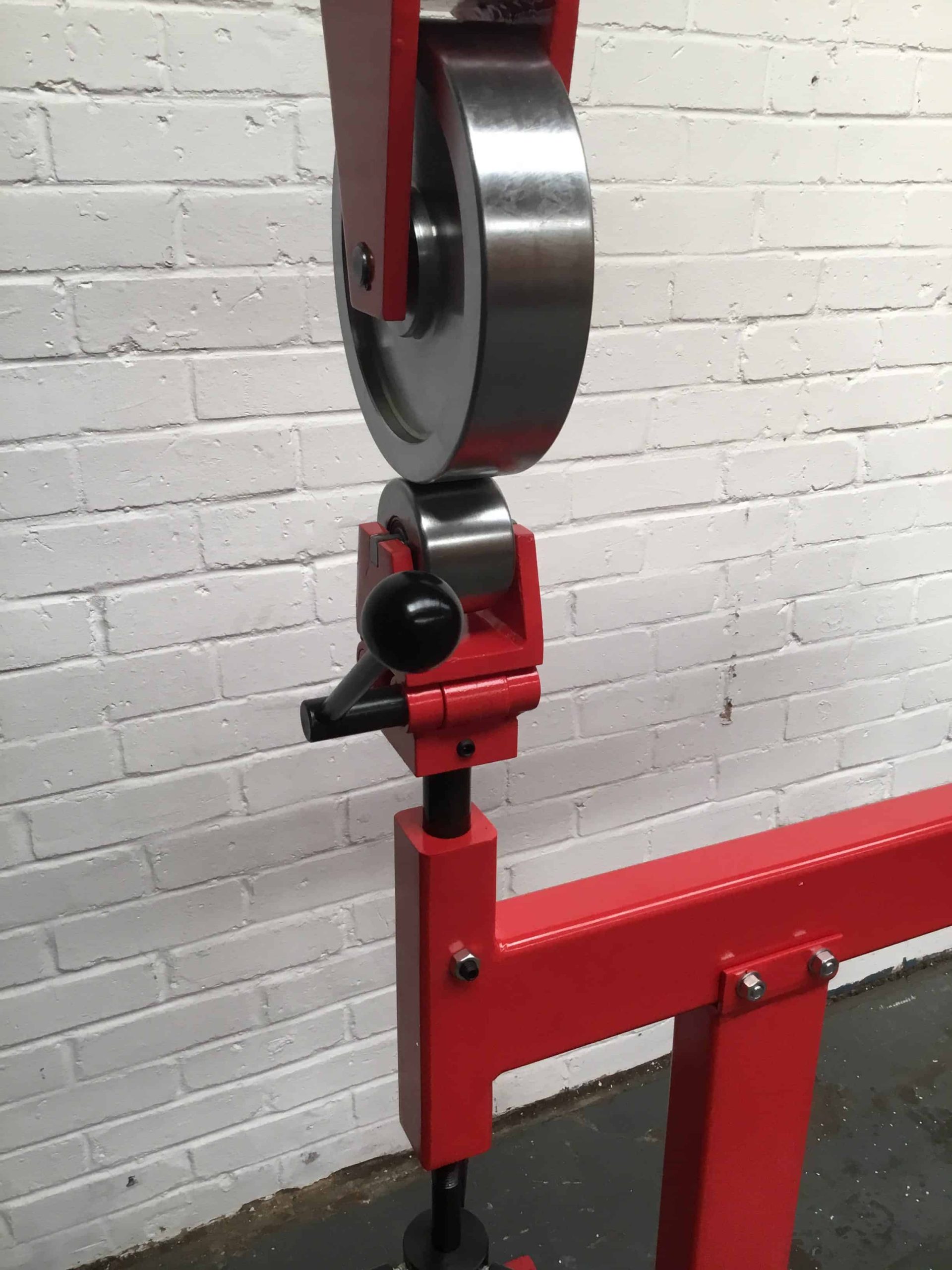

Top Wheels (x 1): 60mm Wide x 198mm Diameter

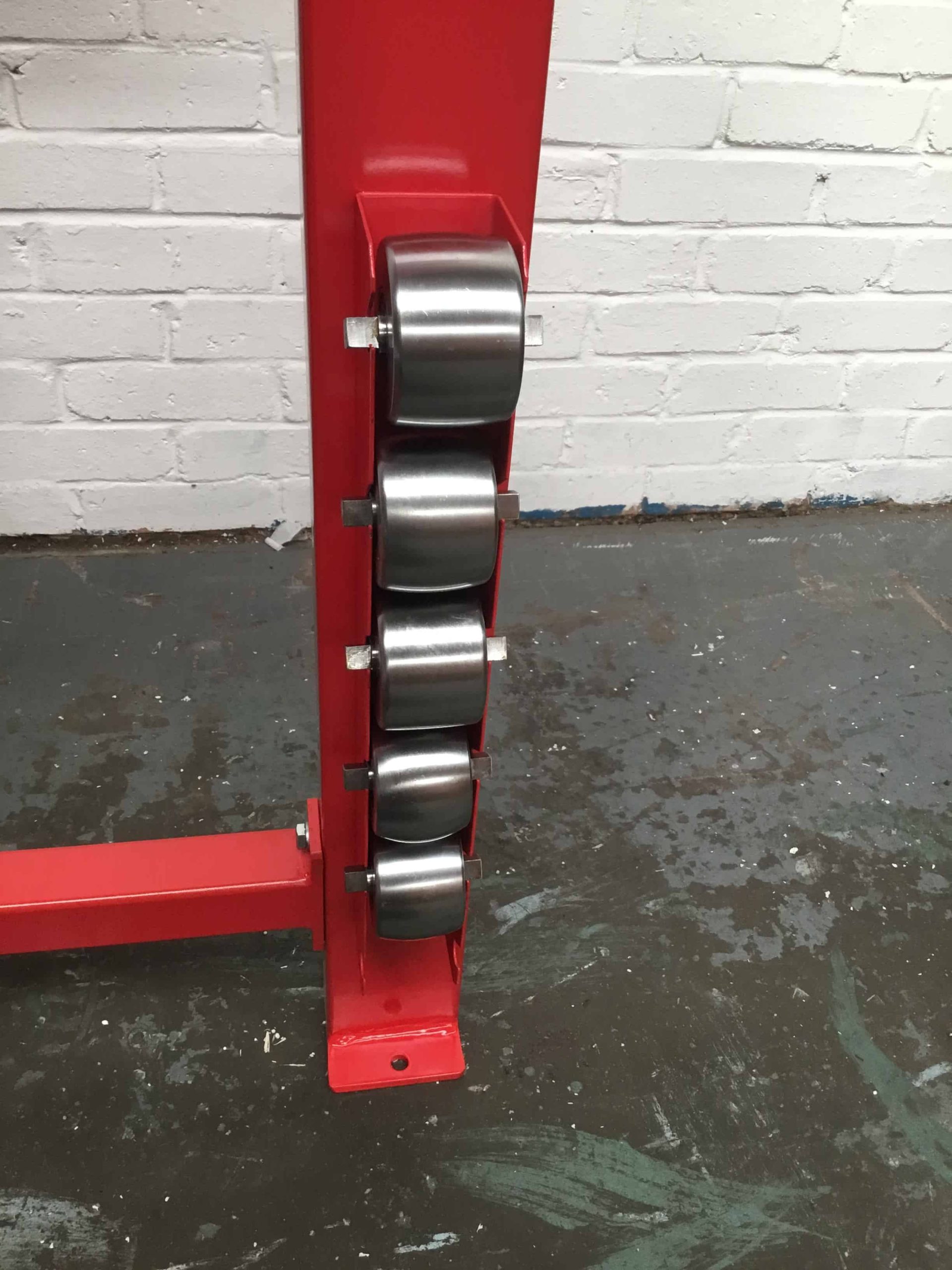

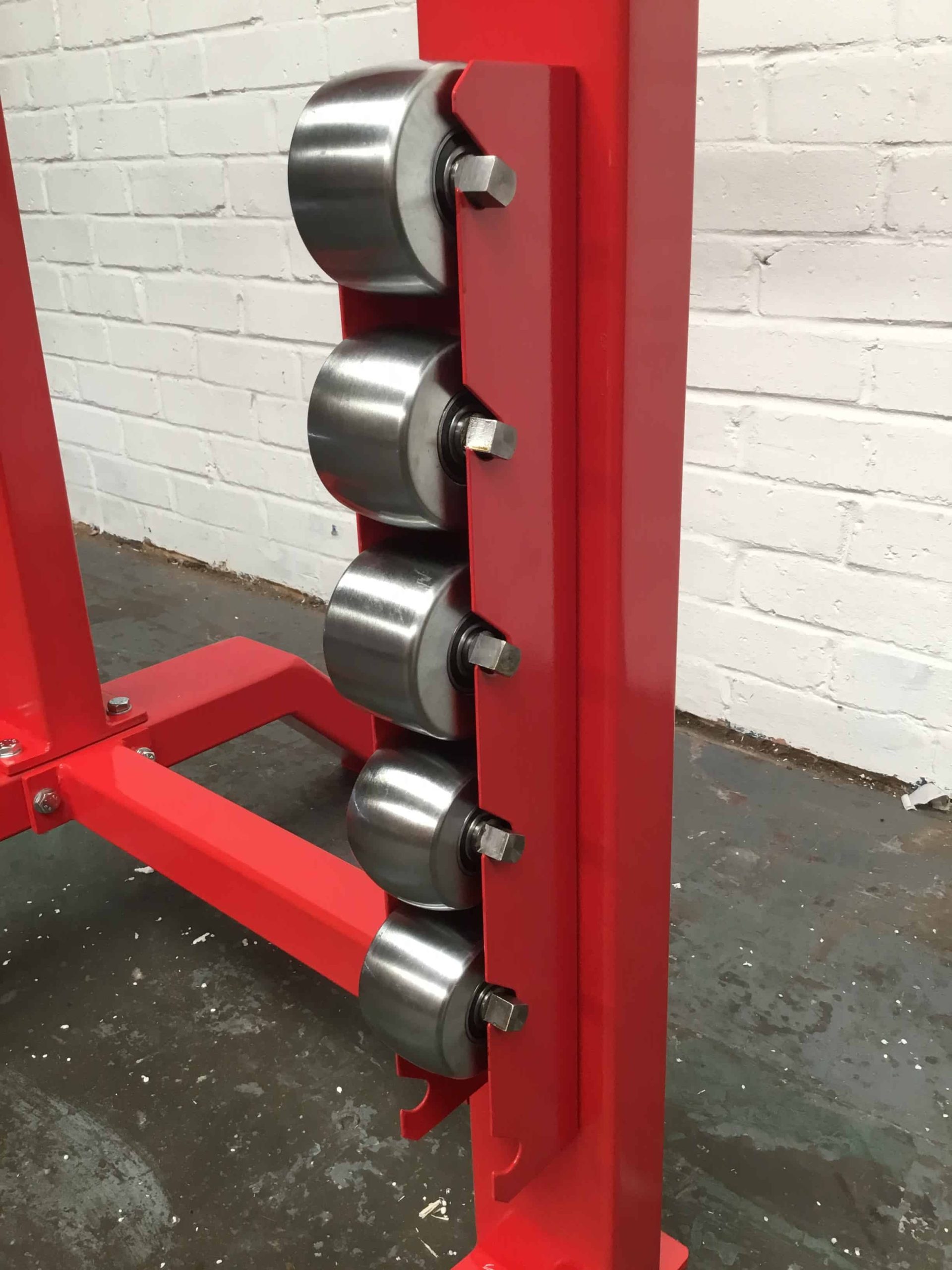

Lower Wheels (x 6):

50.8mm Radius
76.2mm Radius
101.6mm Radius
152.4mm Radius
203.2mm Radius
304.8mm Radius
Frame: Steel
Dimensions – machine (apx): 870mm x 870mm x 1530mm (l x w x h)
Dimensions – packing (apx): 890mm x 800mm x 240mm (l x w x h)
Weights – net/gross (apx): 77Kg/81Kg

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.

SKU: EW710

WNS 710mm English Wheeling Machine (EW710)

Out of stock

12 Month Warranty

  • 700mm Throat
  • 1.5mm Capacity Mild Steel
  • 1 x Top Wheel
  • 6 x Lower Wheels

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.

Related Products...

  • WNS 1100mm English Wheeling Machine (EW1100) WNS 1100mm English Wheeling Machine (EW1100)

    WNS 1100mm English Wheeling Machine (EW1100)

    Find Out More
    SKU: EW1100
  • WNS 1000mm English Wheeling Machine (EW1000) WNS 1000mm English Wheeling Machine (EW1000)

    £900.00 excluding VAT

    WNS 1000mm English Wheeling Machine (EW1000)

    Find Out More
    SKU: EW1000

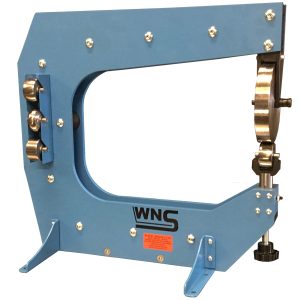

  • English Wheeling Machine 400mm Throat English Wheeling Machine 400mm Throat
