WNS Hand Bending Rolls 1300mm x 75mm

£1,860.00

(excl. VAT)

WNS Hand Bending Rolls 1300mm x 75mm

£1,860.00

(excl. VAT)

WNS Hand Bending Rolls 1300mm x 75mm

£1,860.00

(excl. VAT)

Process

Gallery

Need help with this machine?

If you’re not sure this machine will do the job you need it for or you simply have questions about it, we can help. Call or email us using the buttons below:

Download WNS Brochure

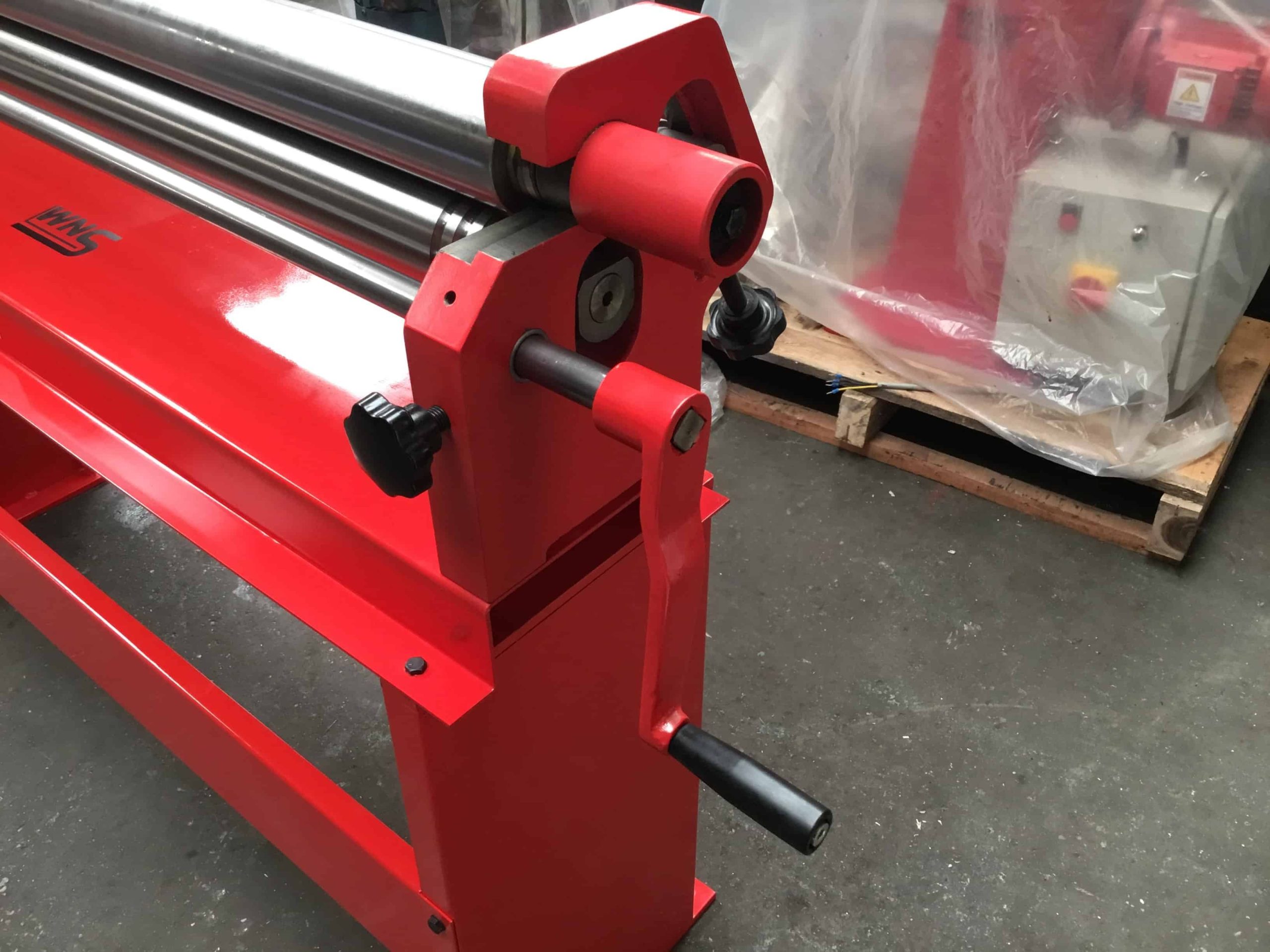

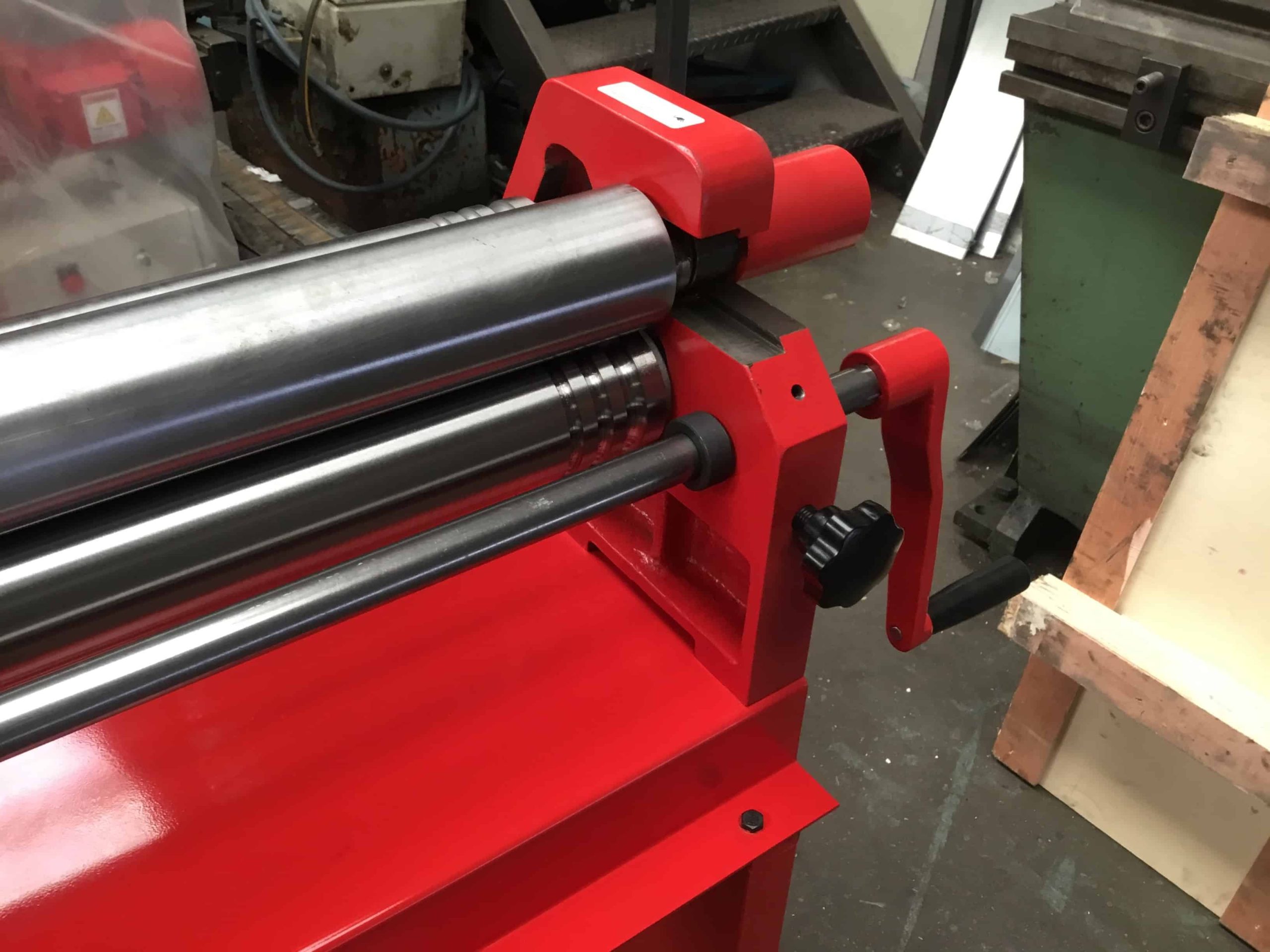

WNS Hand Bending Rolls 1300mm x 75mm

  • 1300mm Length x 75mm Roll Diameter
  • 1.5mm Capacity Mild Steel
  • 3 x Wiring Grooves
  • Top Slip with Quick Release Top Roll
  • Cast Iron Roll End Frame
  • c/w Fabricated Steel Stand
  • 12 Month’s Warranty*

Description

WNS INITIAL PINCH HAND BENDING ROLLS (BR1300/75) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR1300/75 has a 1300mm roll length, 75mm roll diameter and can accommodate mild steel up to 1.5mm thick. These rolls are equipped with 3 wiring grooves and have the following features: top slip with a quick release top roll, independent back roll adjustment, cast iron roll end frame, high strength steel rolls, hardened steel gears and a fabricated steel stand.



Additional information

Weight 1250 kg
SPECIFICATIONS
Model:  BR1300/75
Roll Size: 1300mm Roll Length x 75mm Roll Diameter
Maximum Thickness: 1.5mm Mild Steel
Rolls: Top Slip
Wiring Grooves (x 3): 7.0mm
9.0mm
12.0mm
Stand: Fabricated Steel
Roll End Frame: Cast Iron
Dimensions – machine (apx): 1670mm x 400mm x 1100mm (l x w x h)
Dimensions – packing (apx): 1700mm x 430mm x 1200mm (l x w x h)
Weight (apx): 225Kg/257Kg



All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
