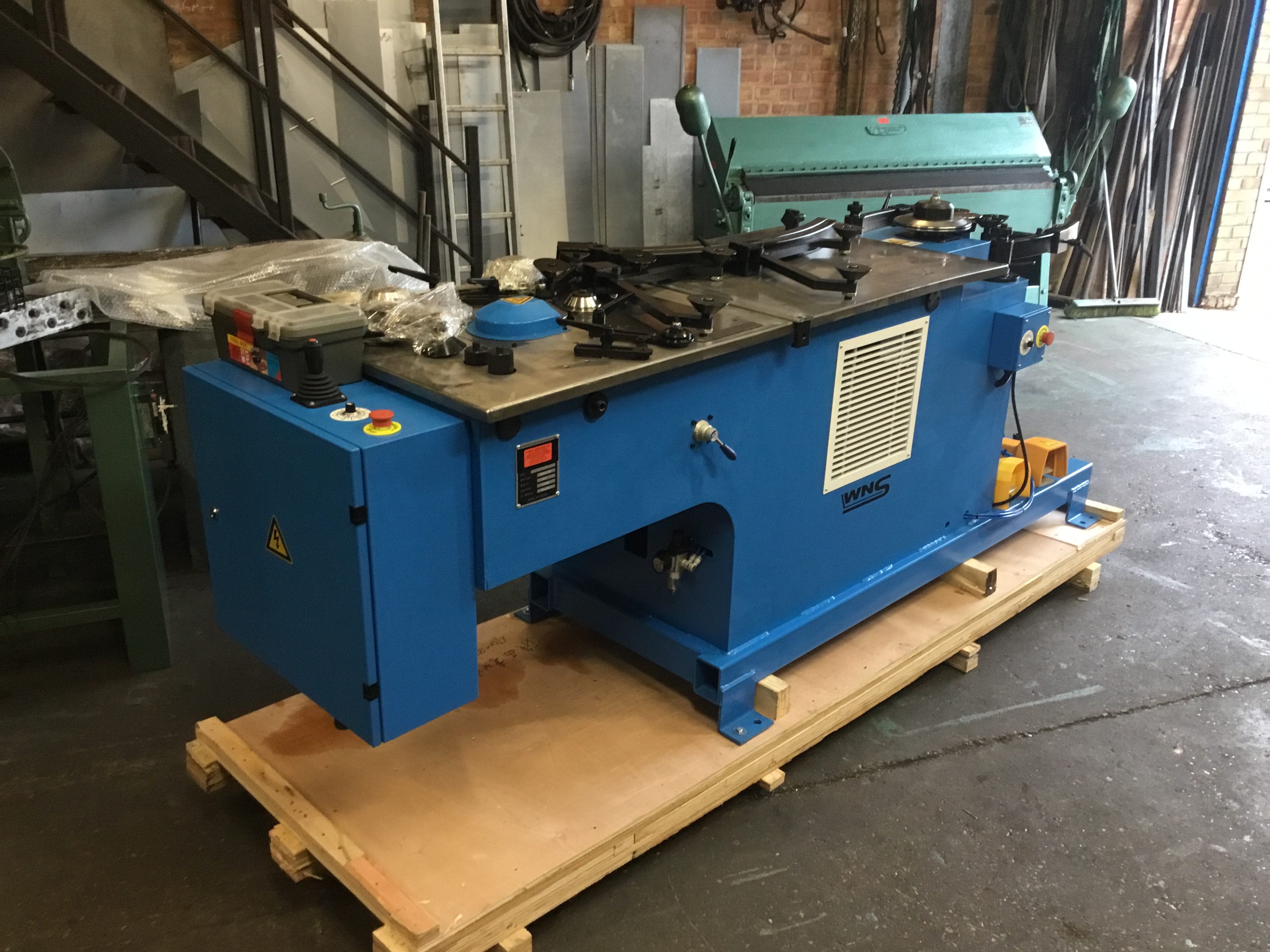

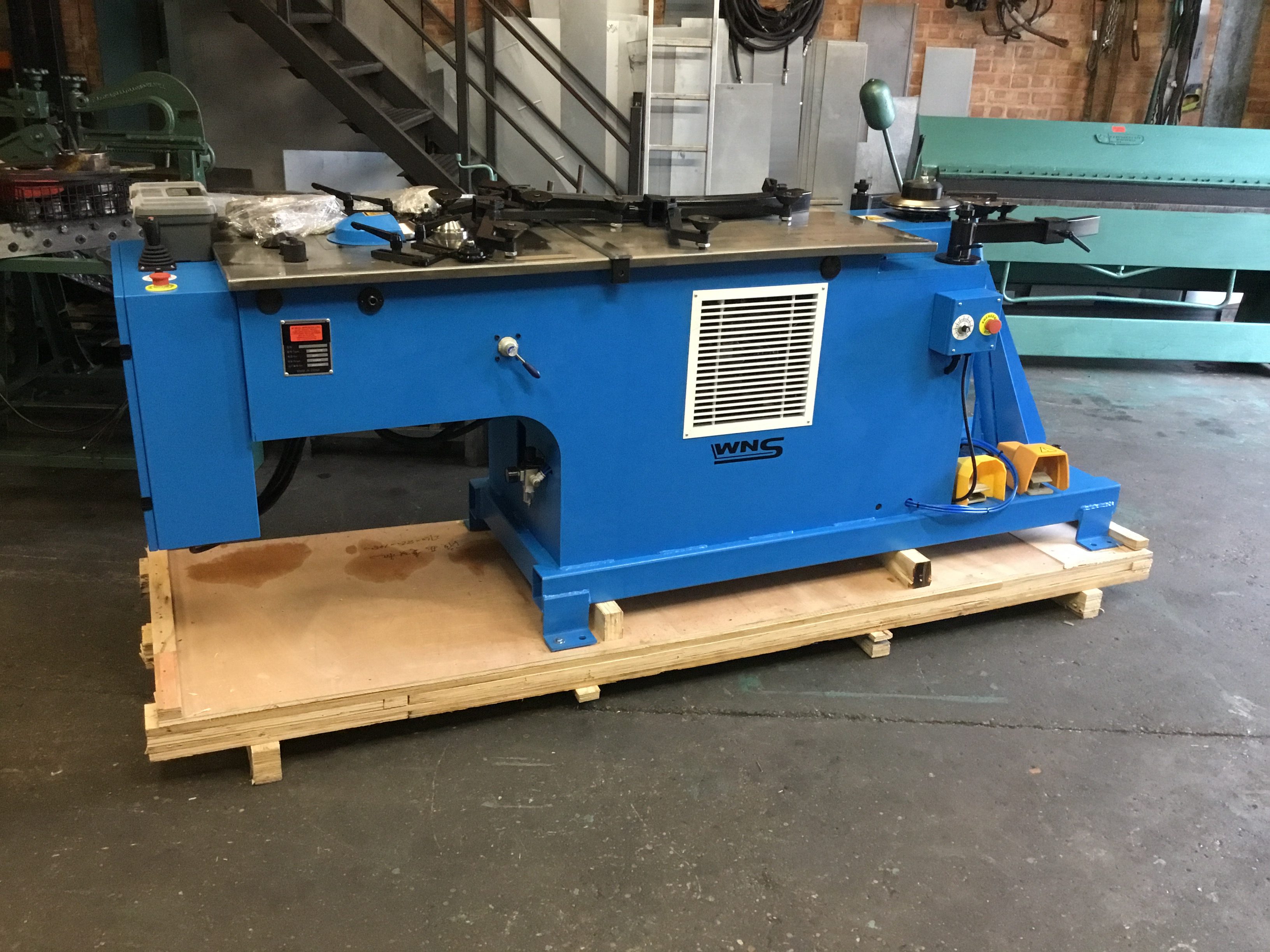

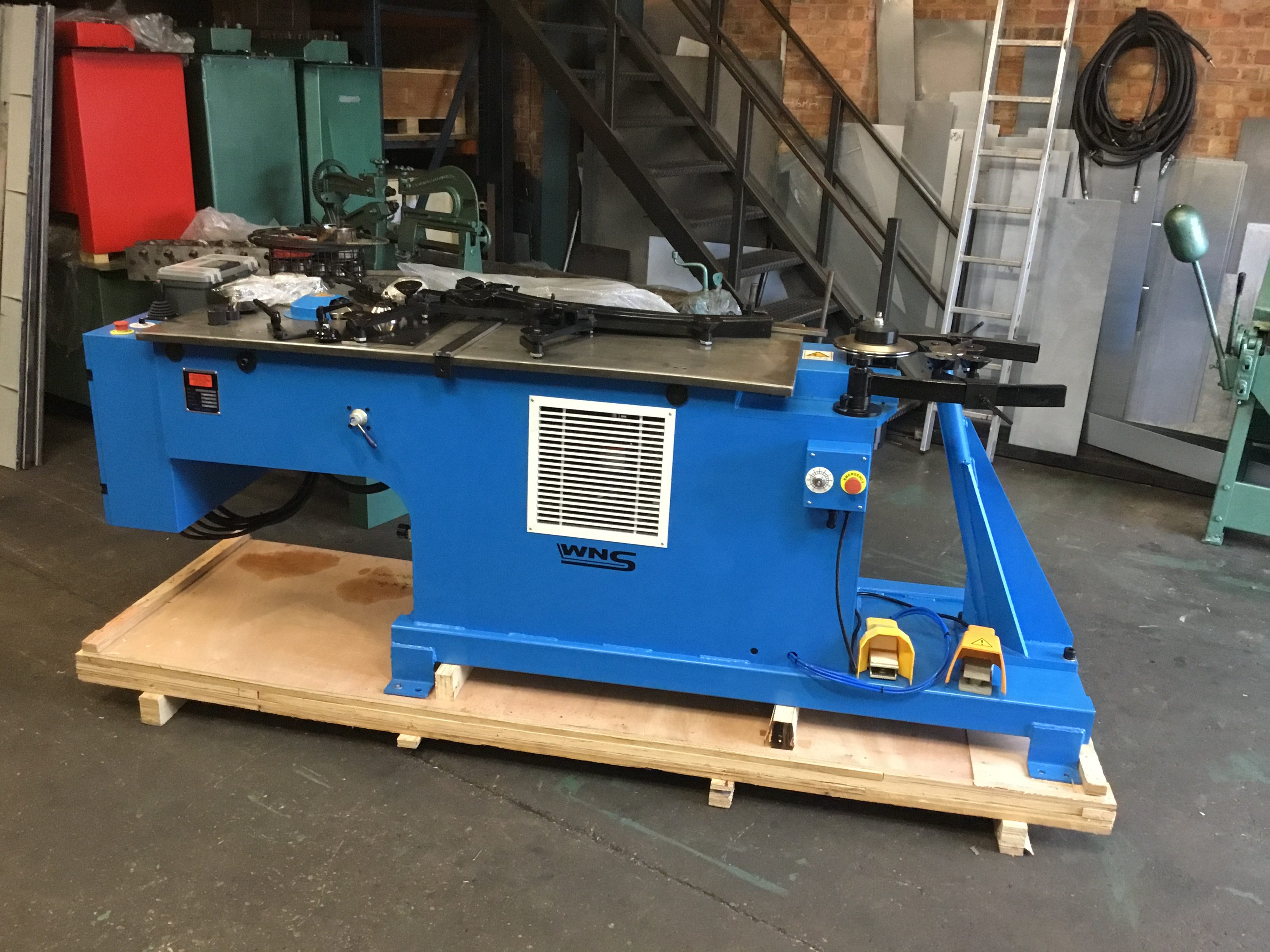

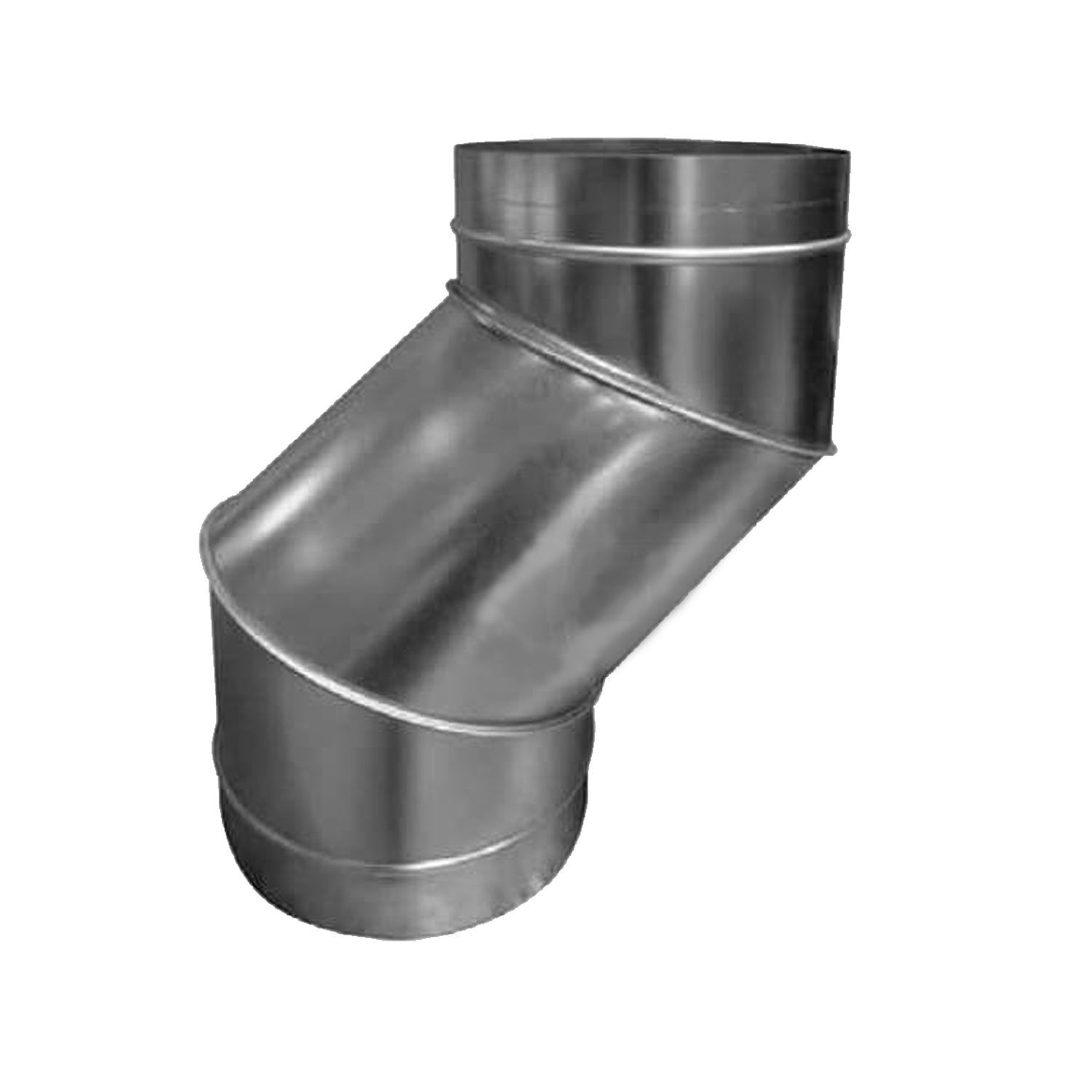

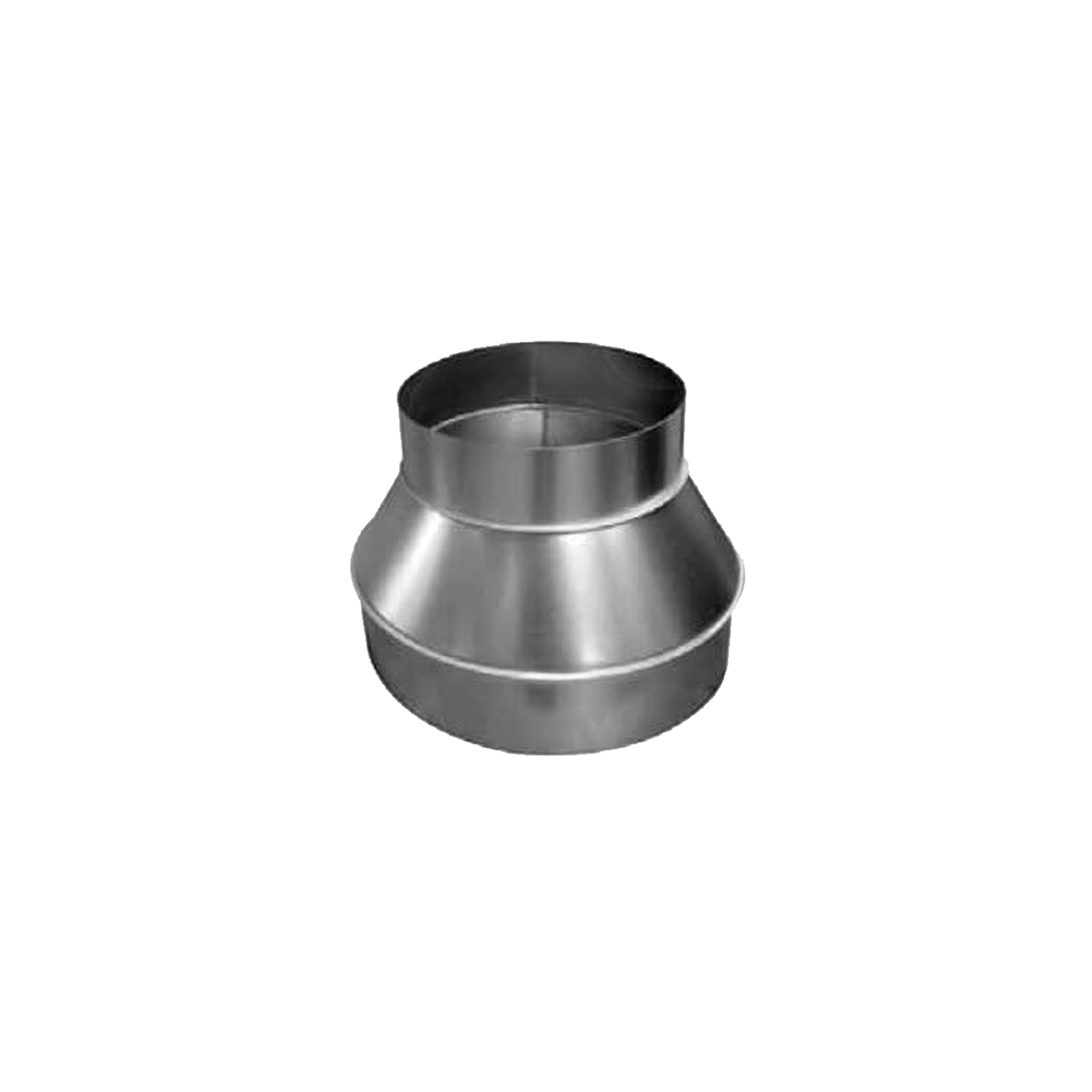

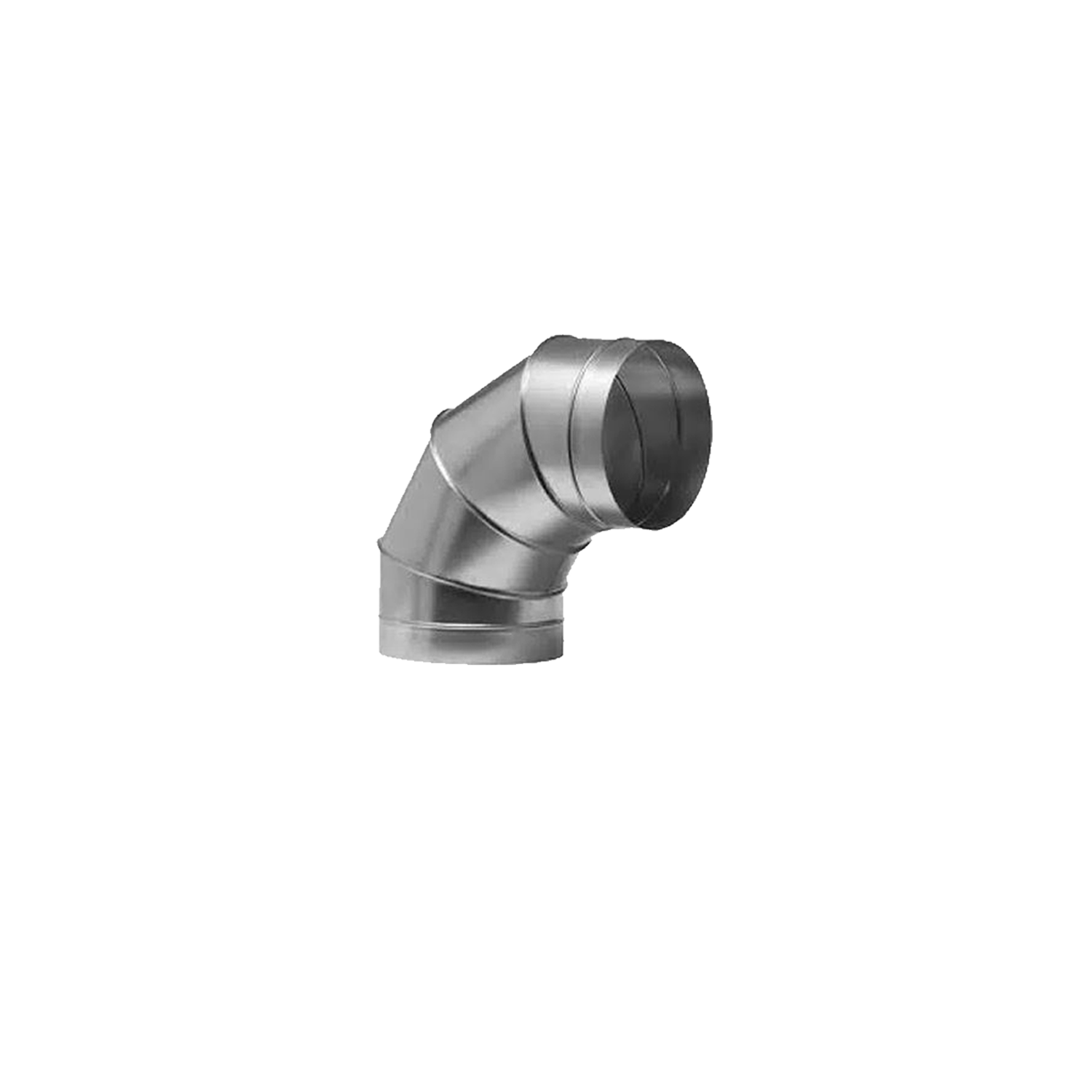

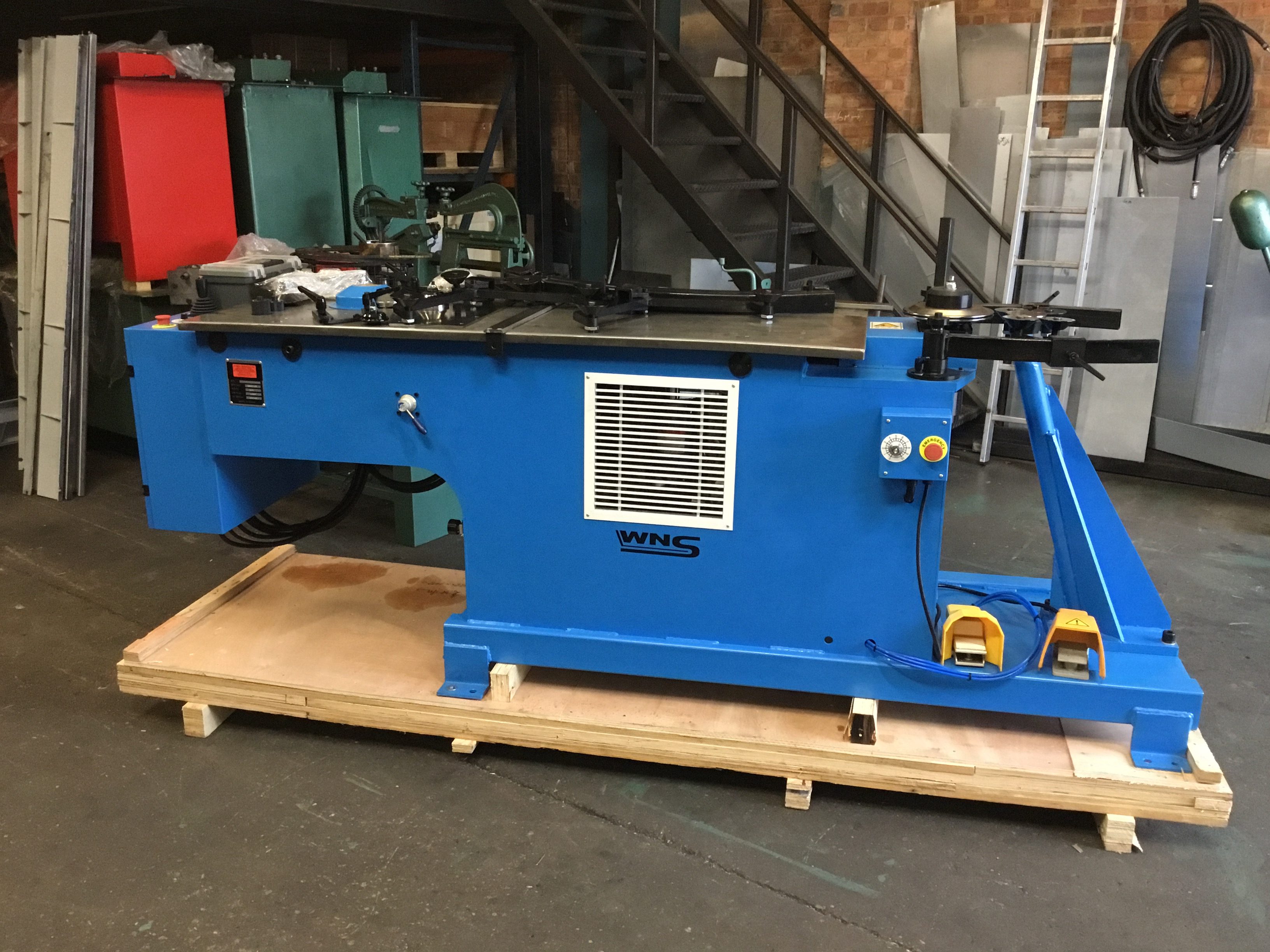

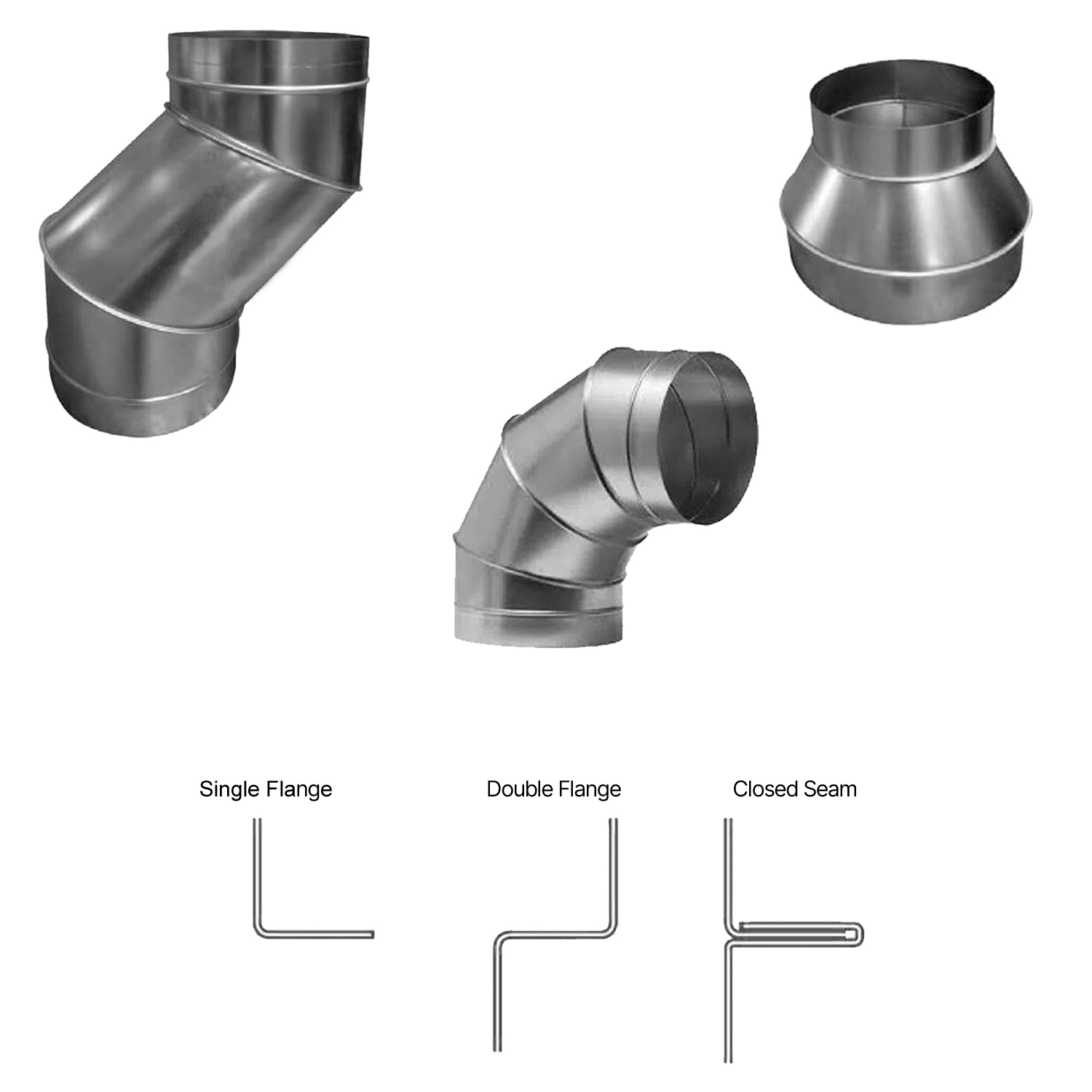

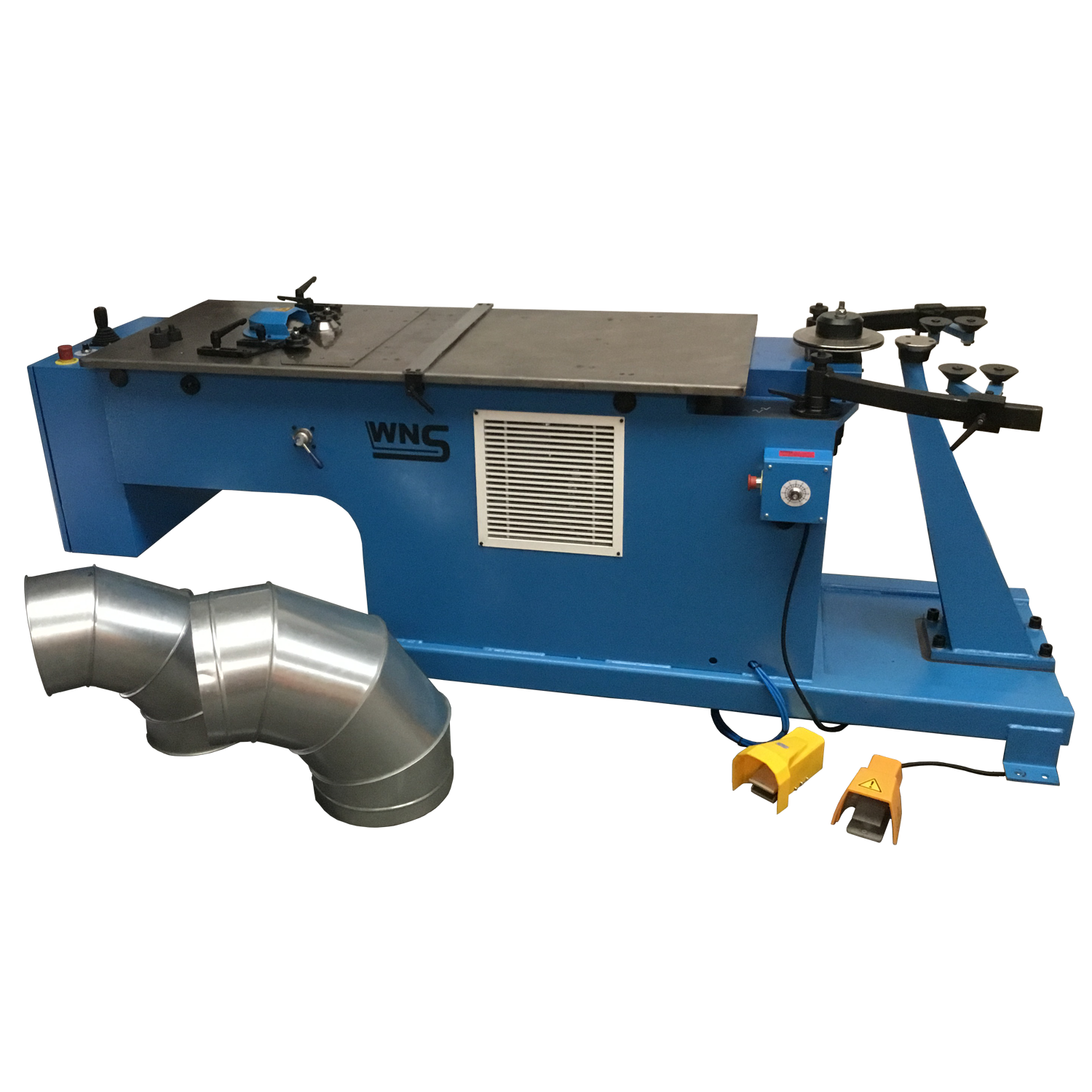

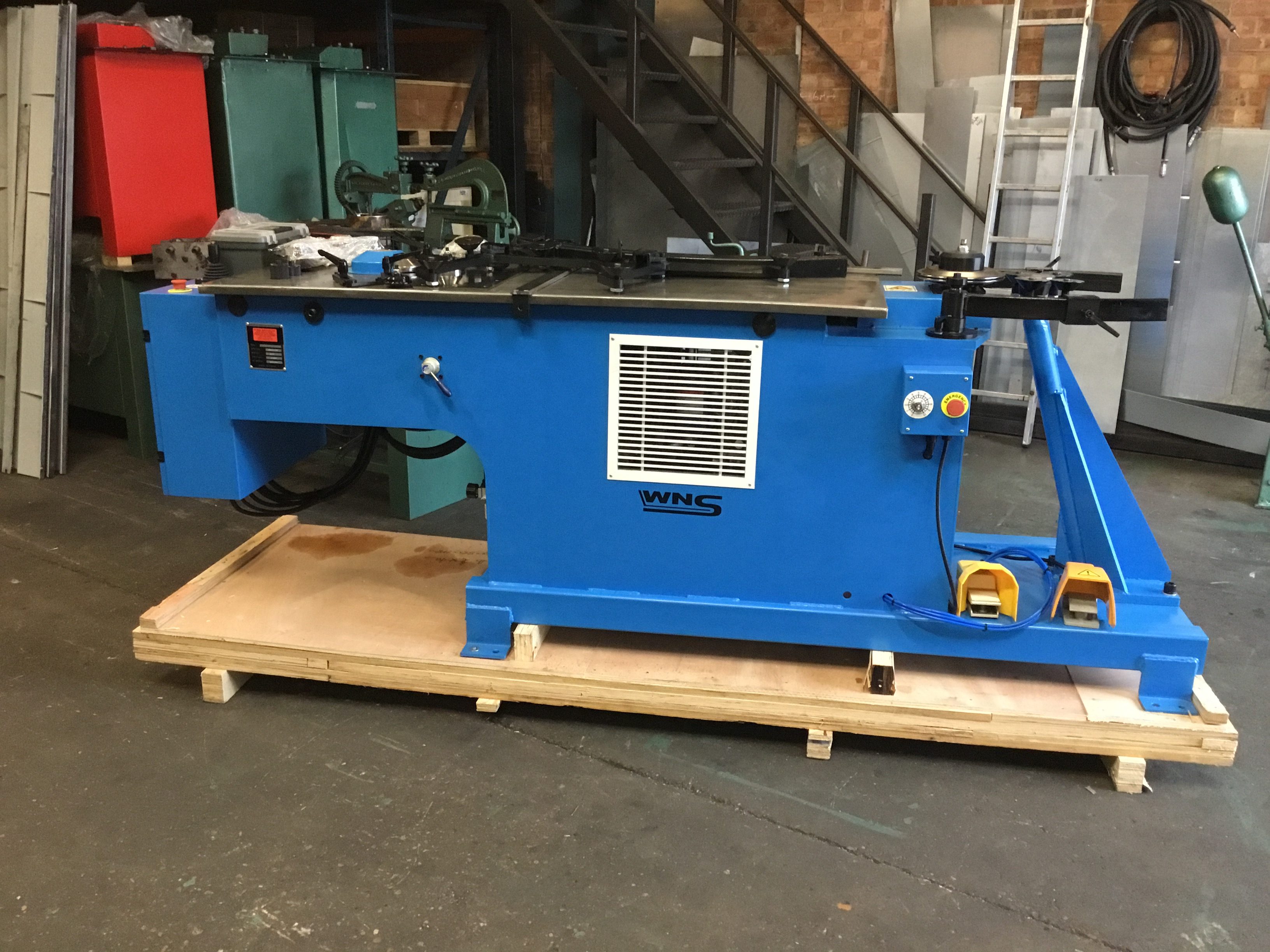

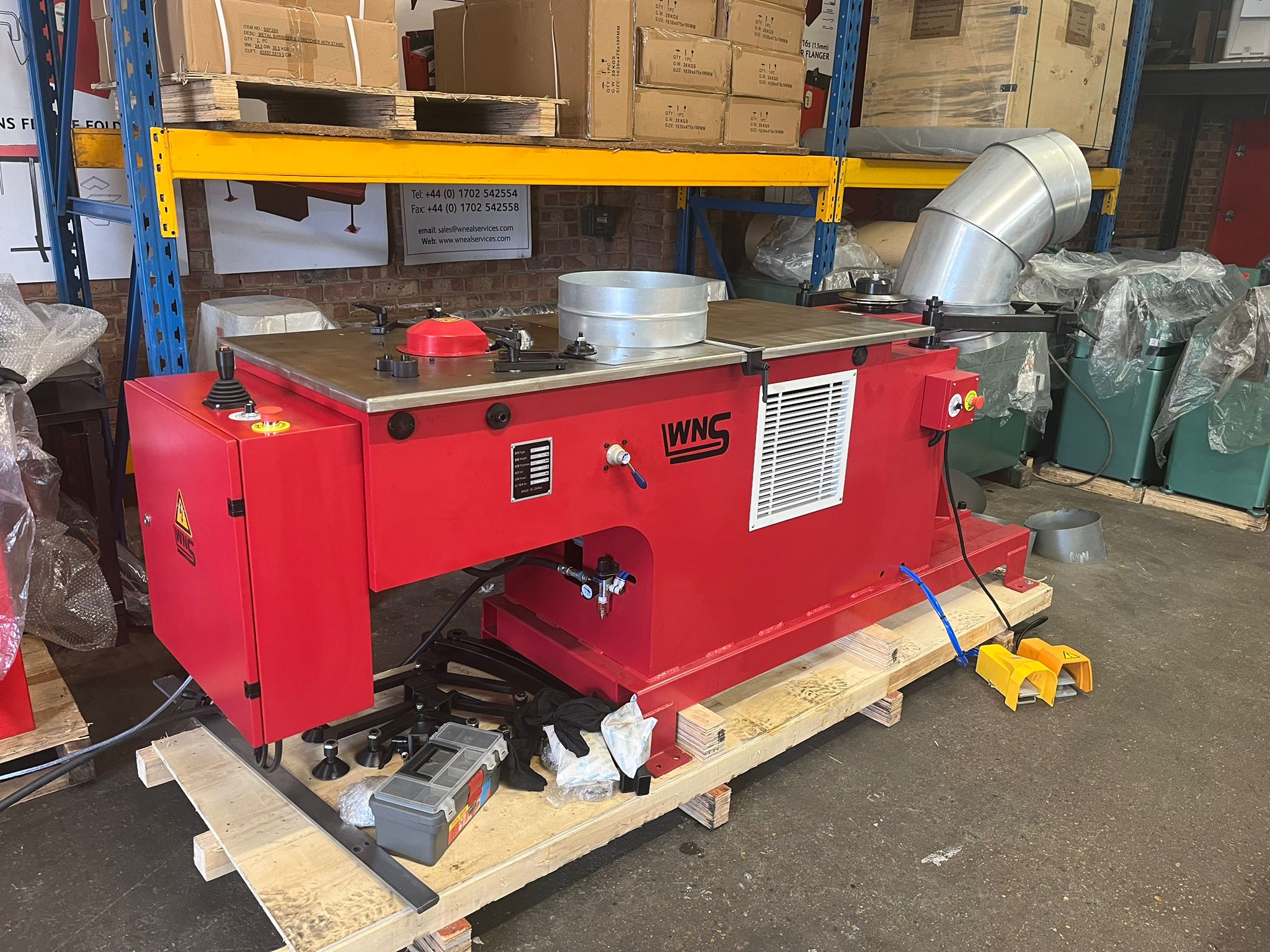

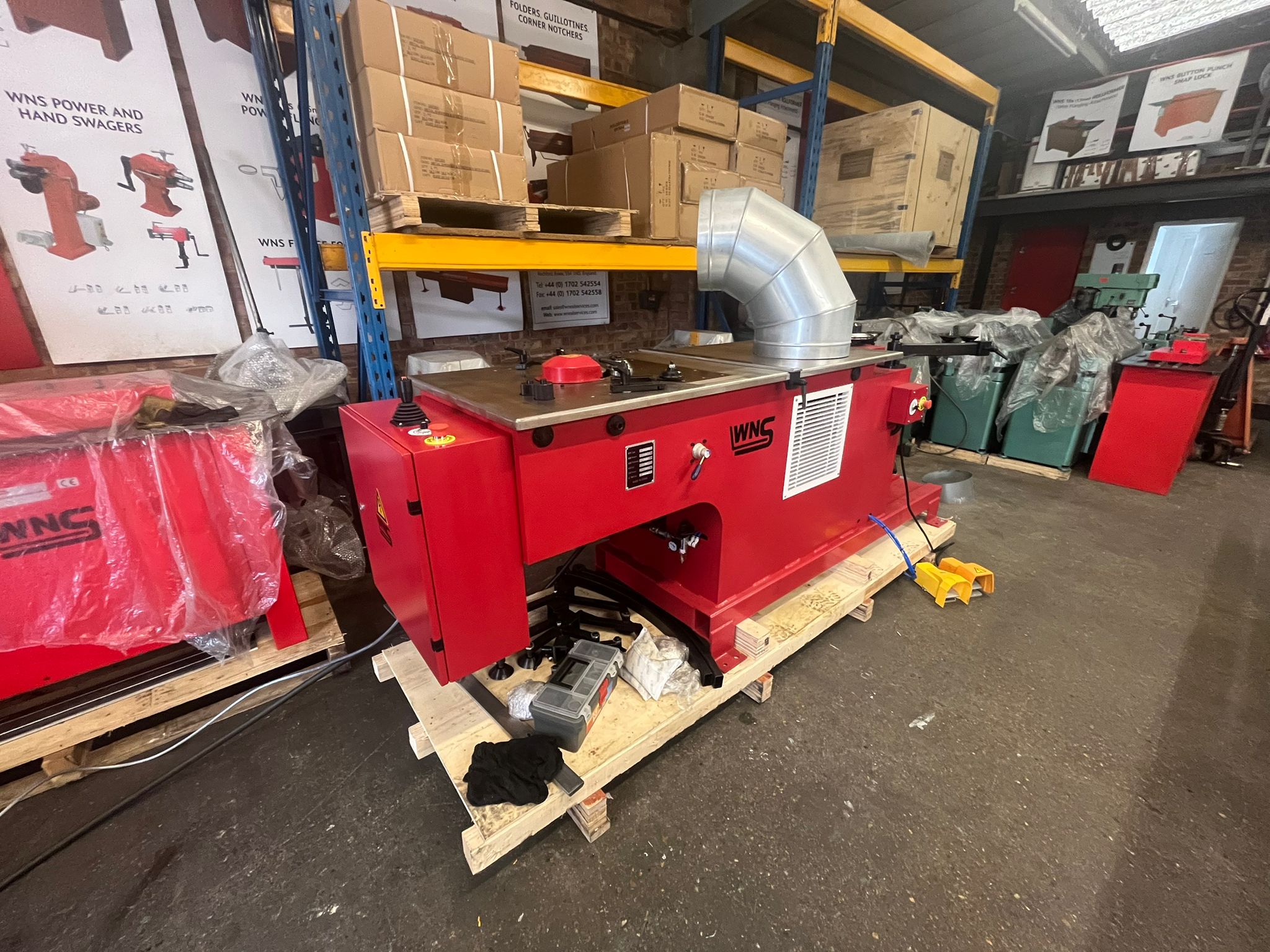

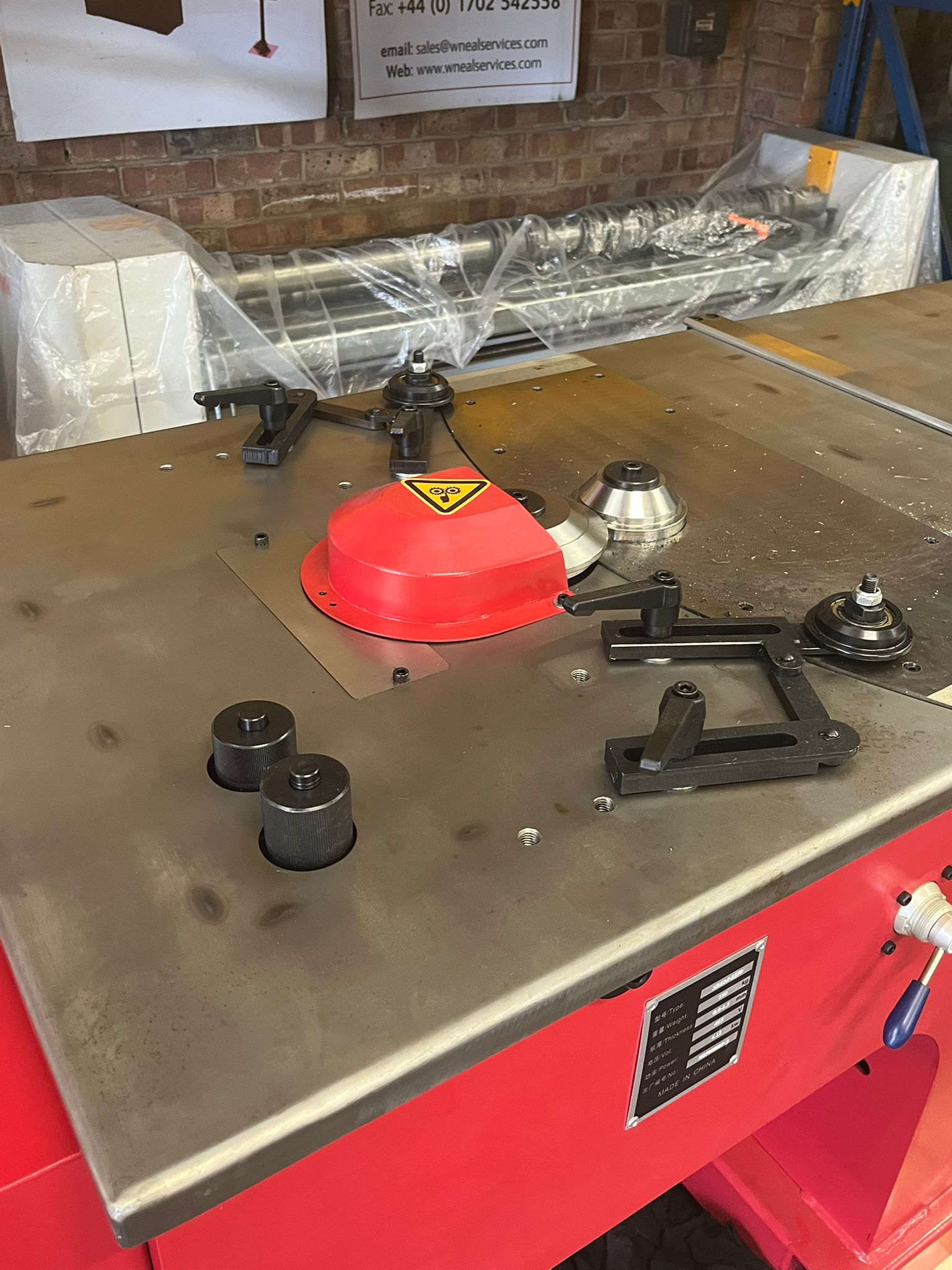

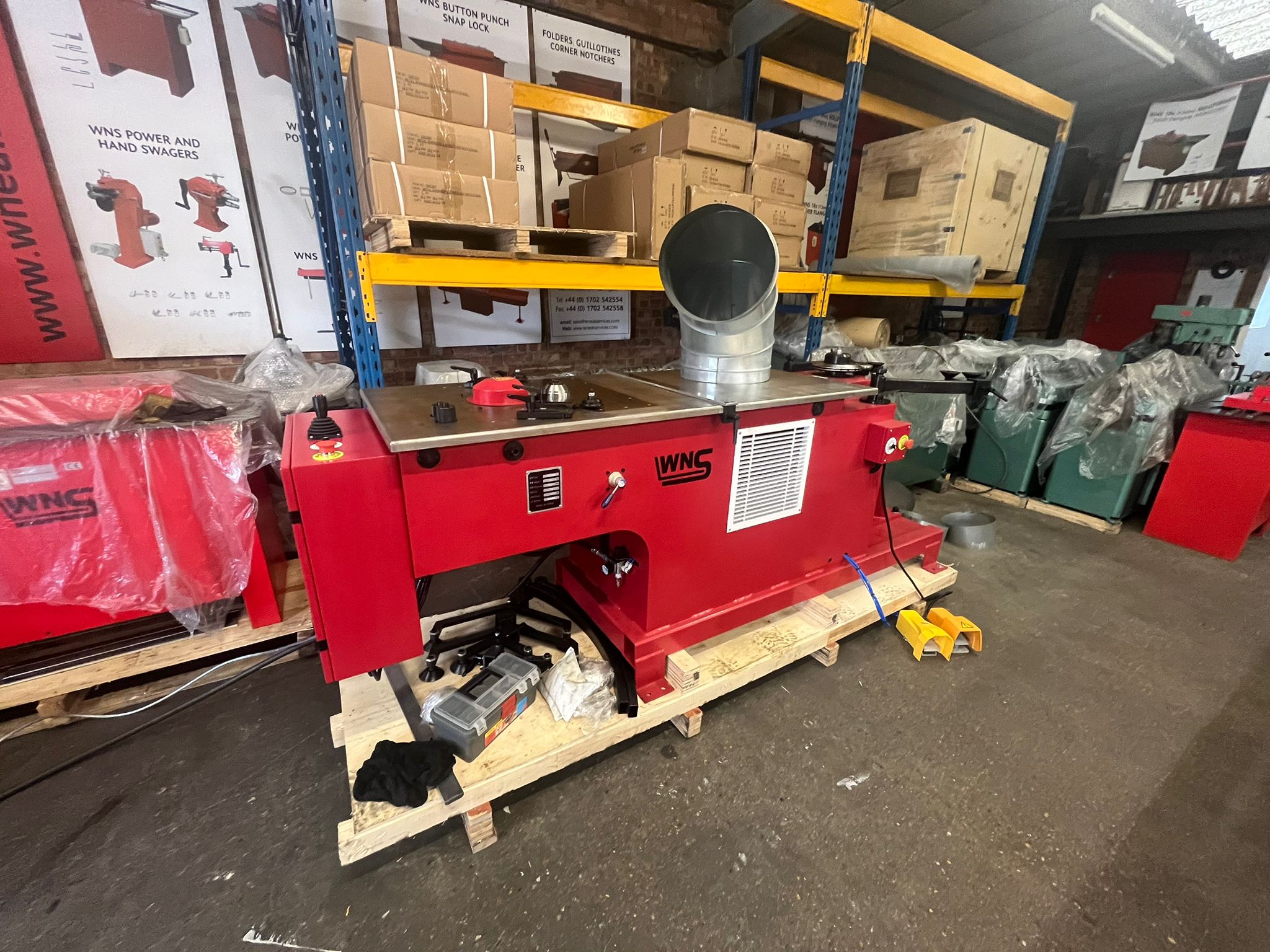

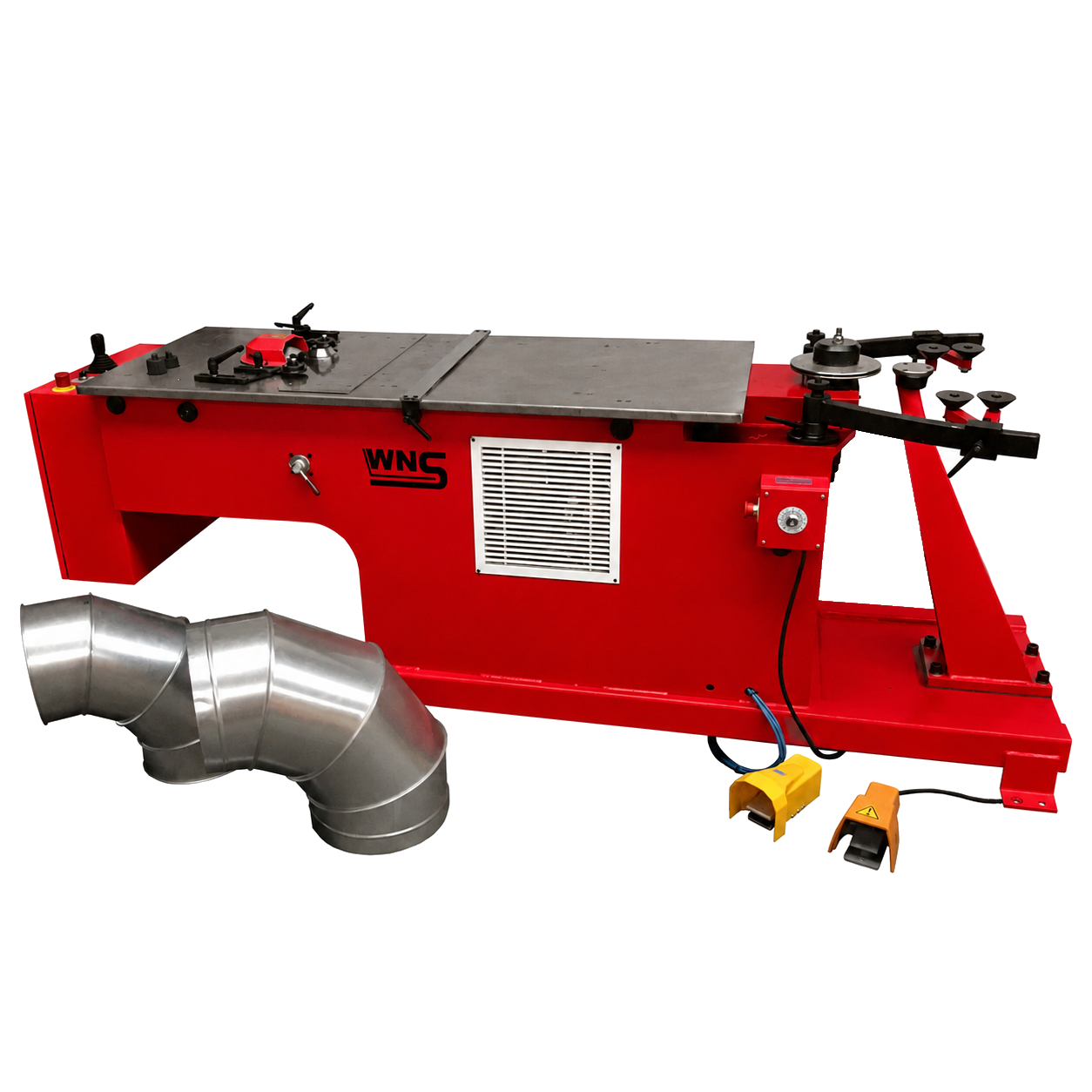

WNS HYDRAULIC GORELOCKERS / ELBOW MAKER DUCTING COMBI MACHINES (GL1250) are principally used in the HVAC/ductwork industry for producing standing lockseam elbows, end caps and reducers. This dual-ended machine enables high productivity and versatility with two individual workstations: a flanging station and seam closing station. This allows continuous operation without the need for time-consuming adjustments. The standing seam eliminates welding to a single longitudinal seam while enhancing structural rigidity.

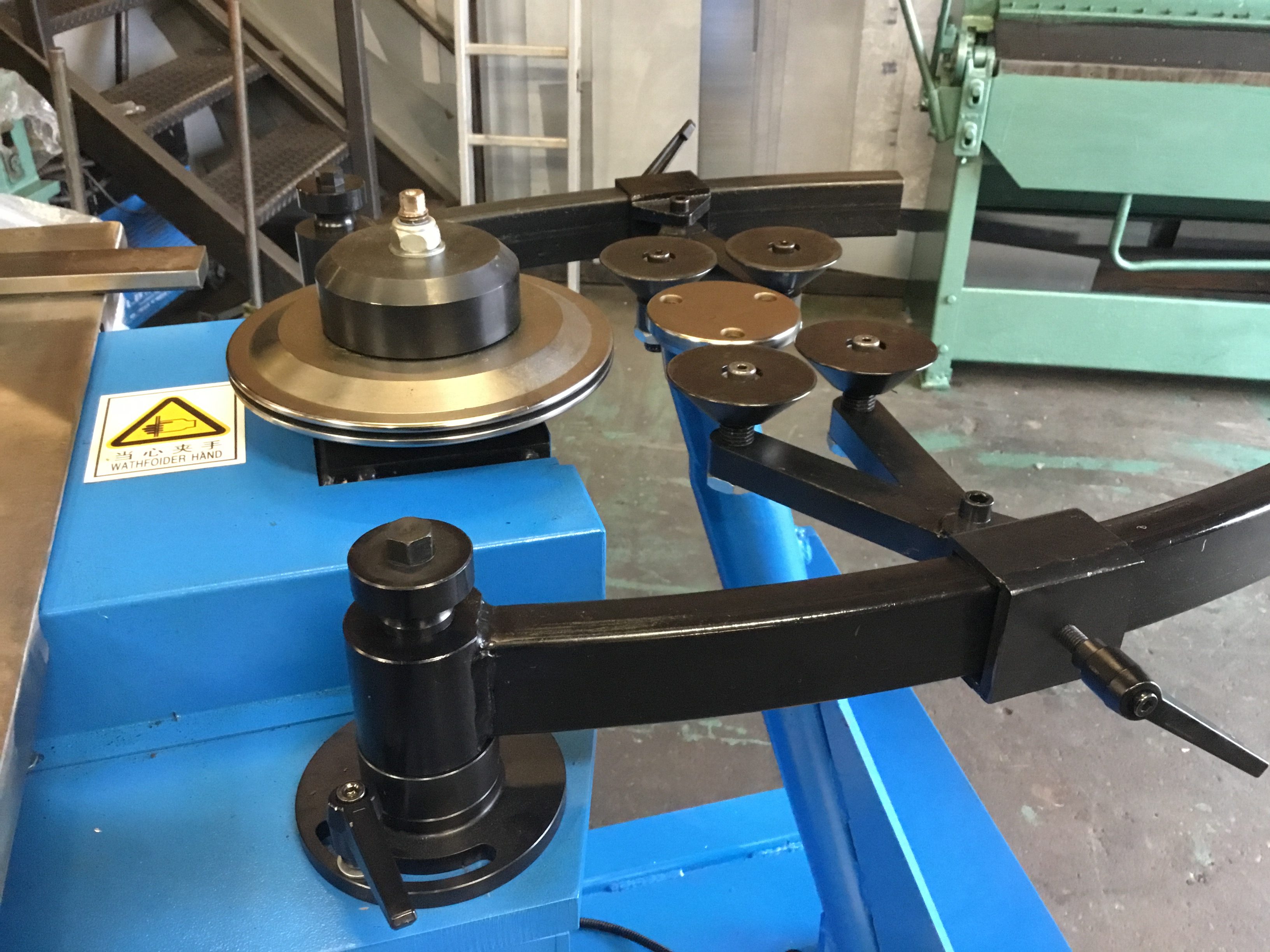

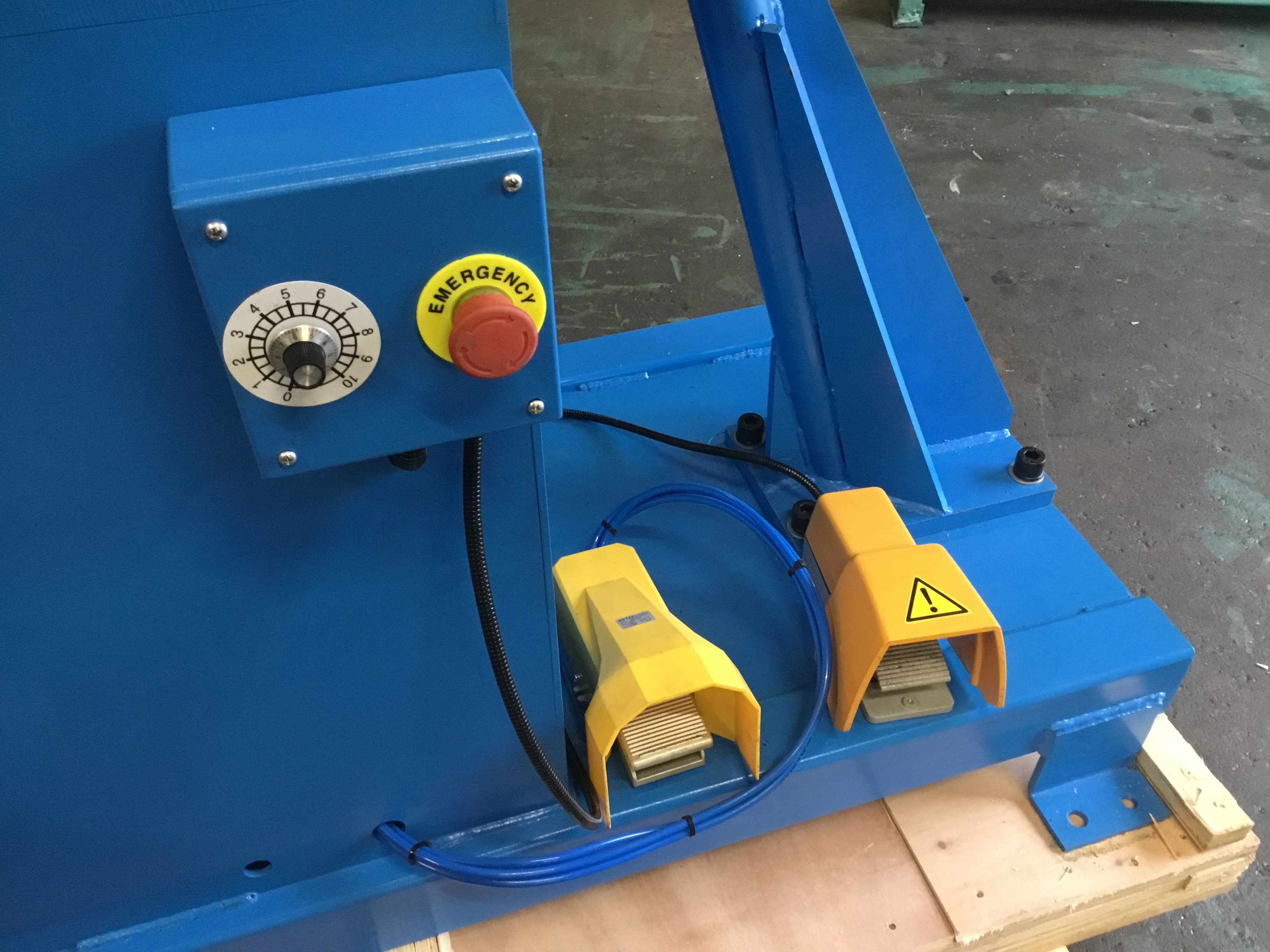

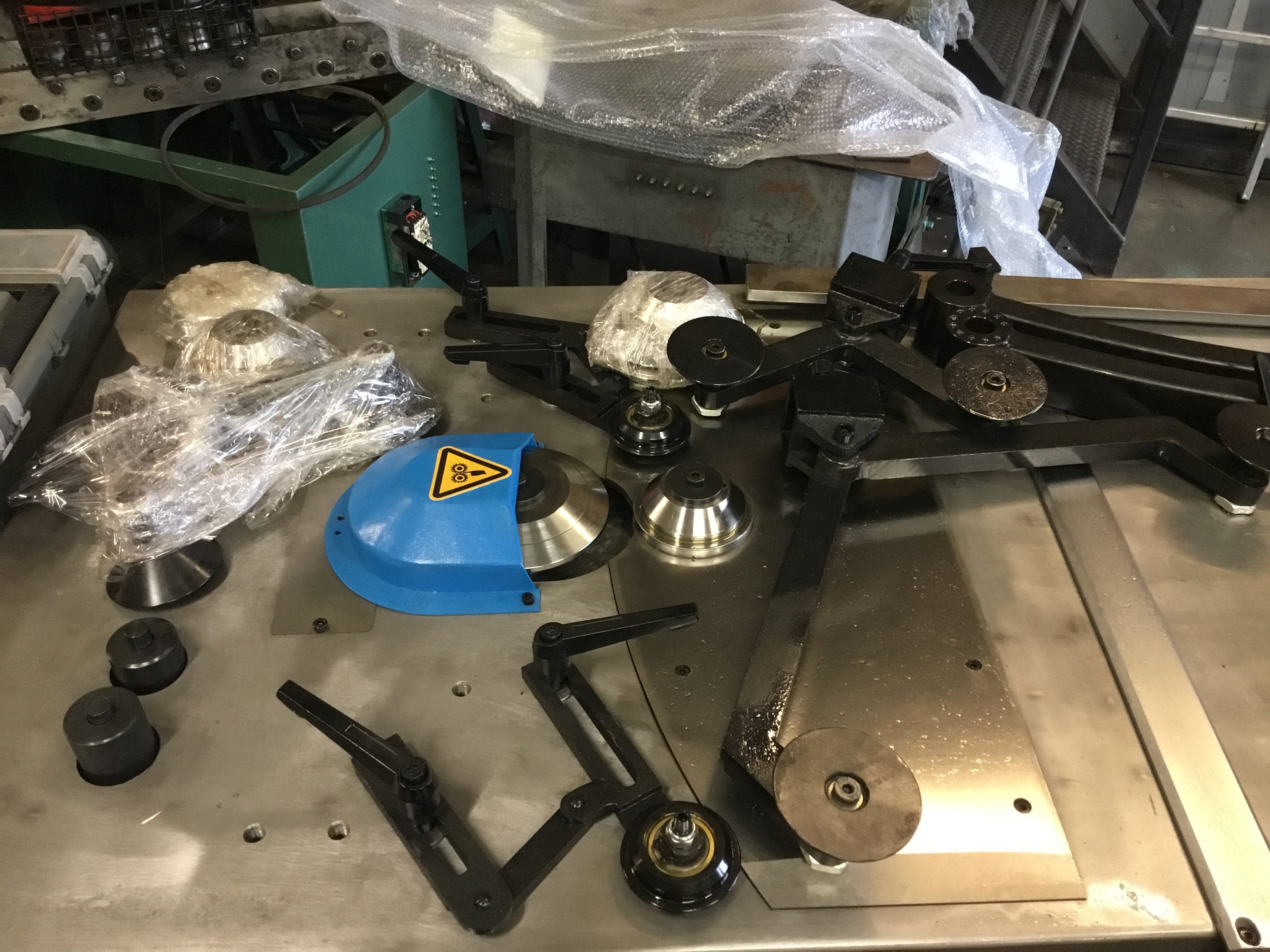

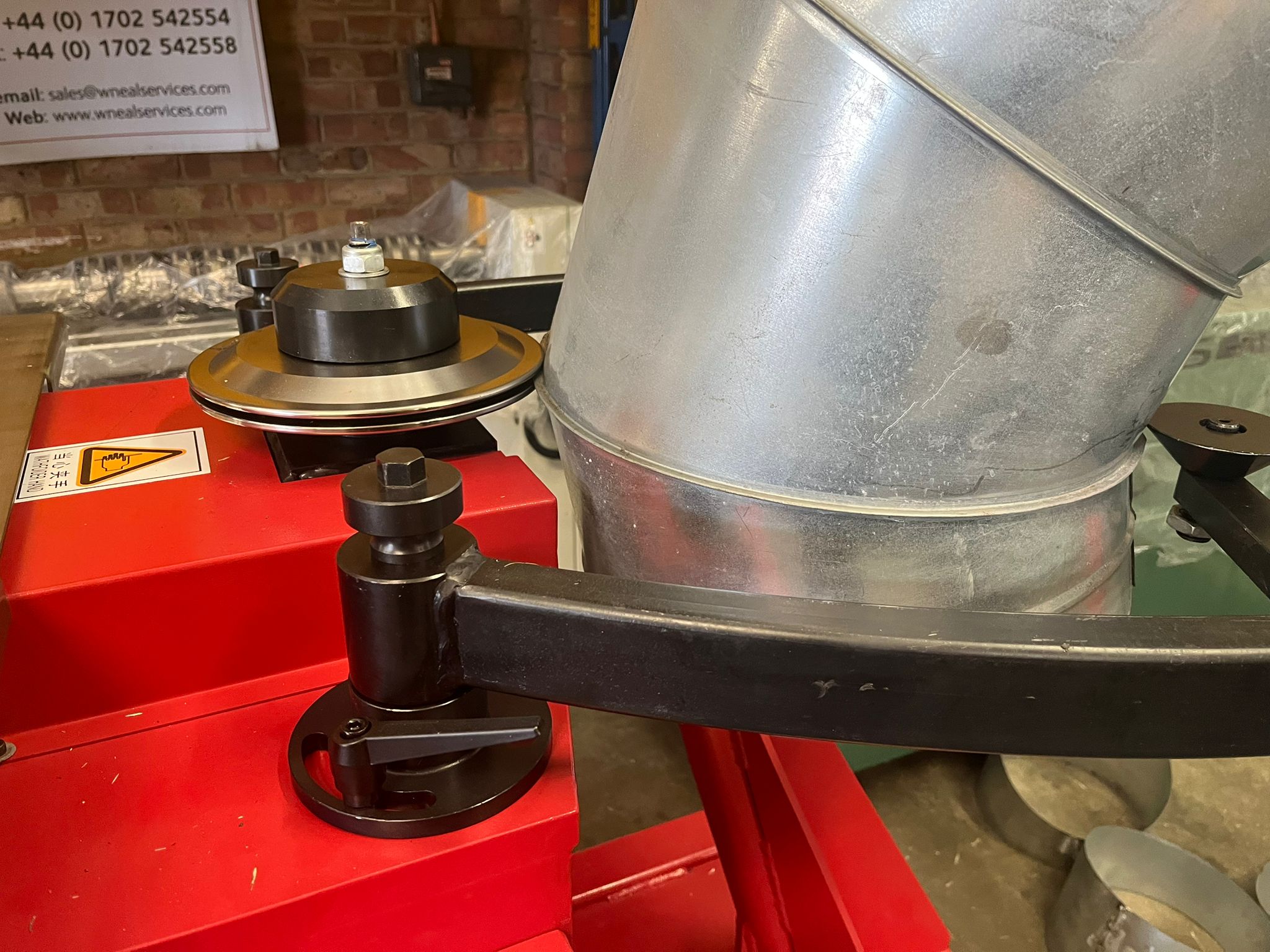

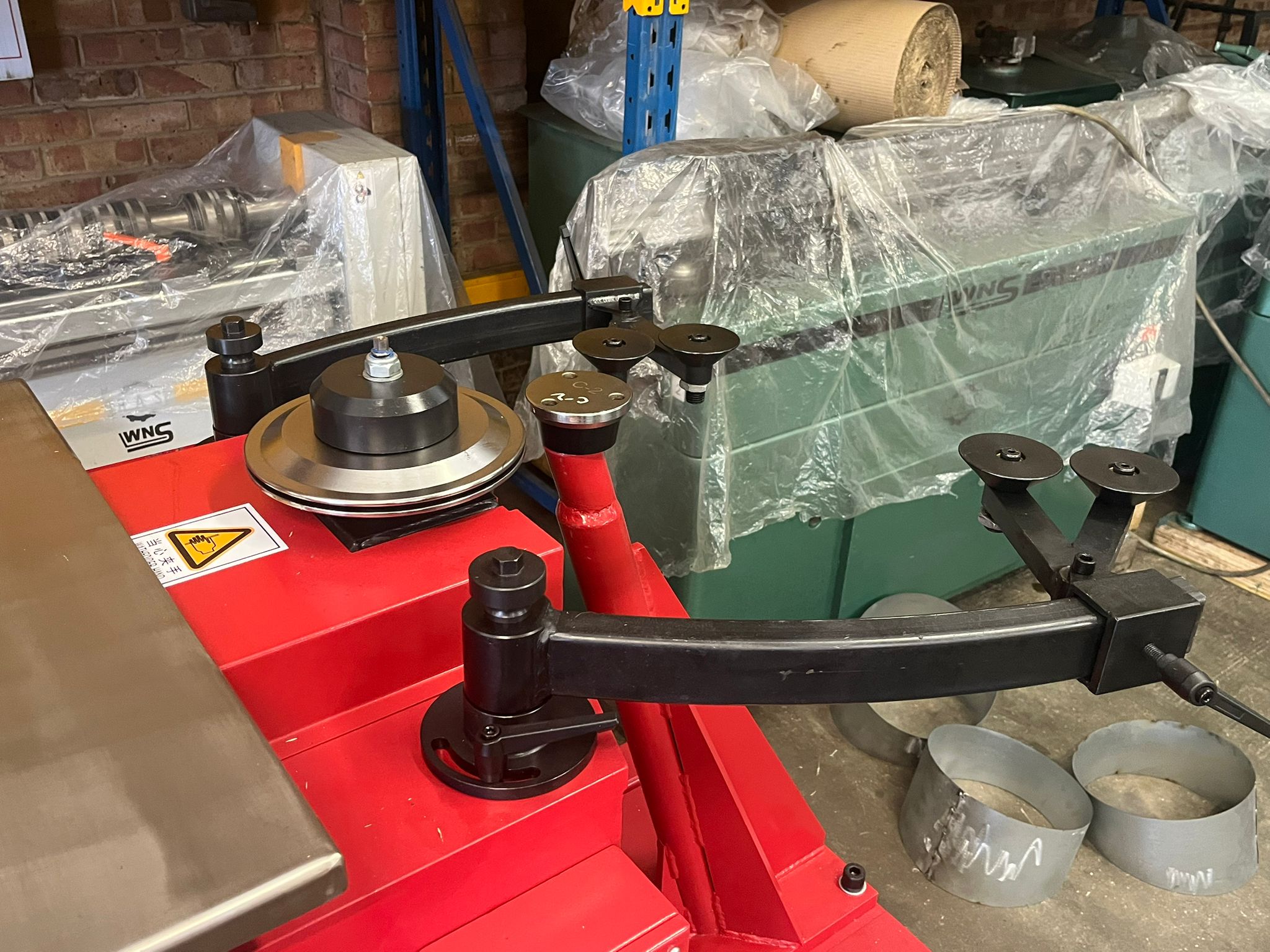

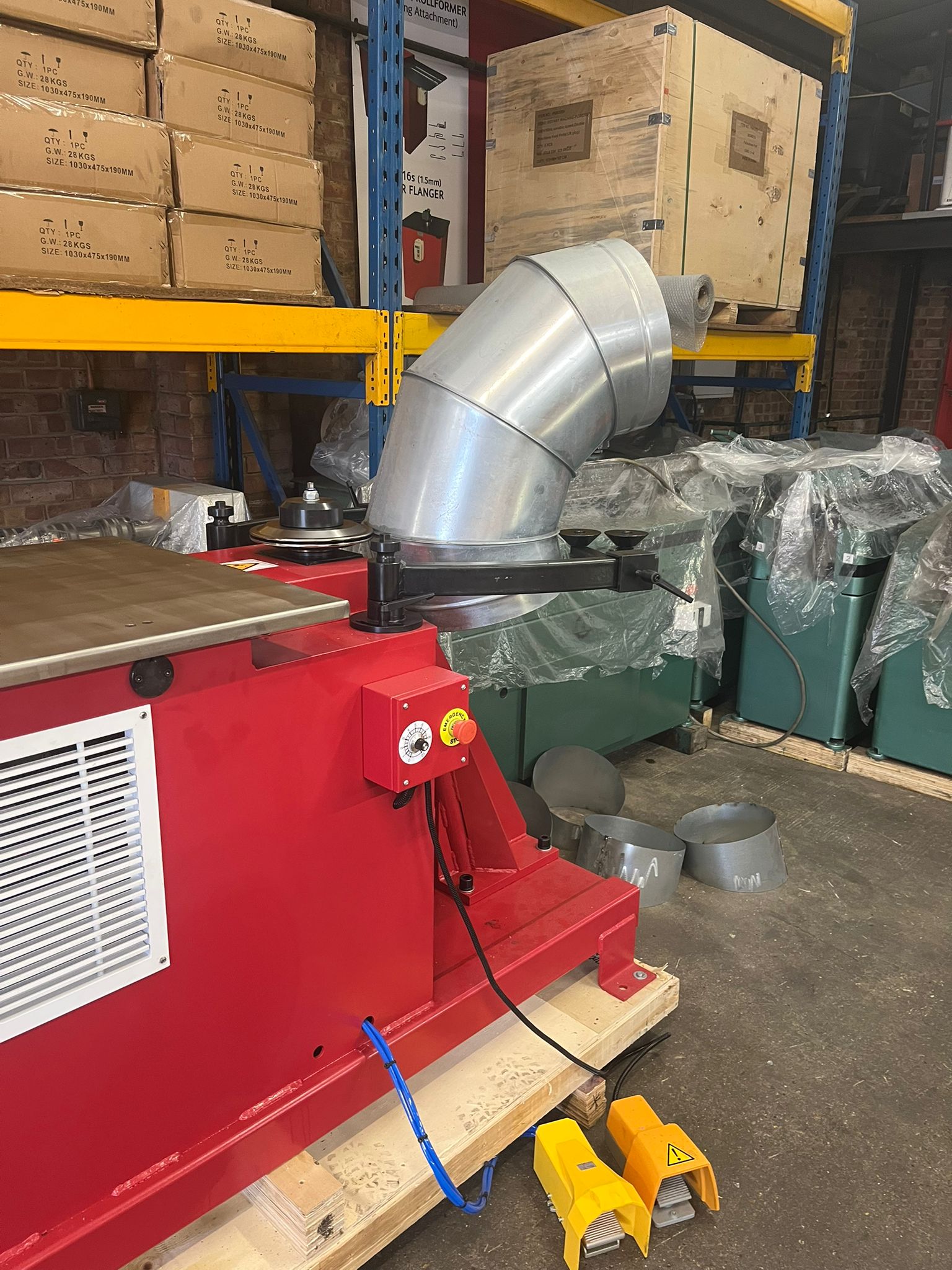

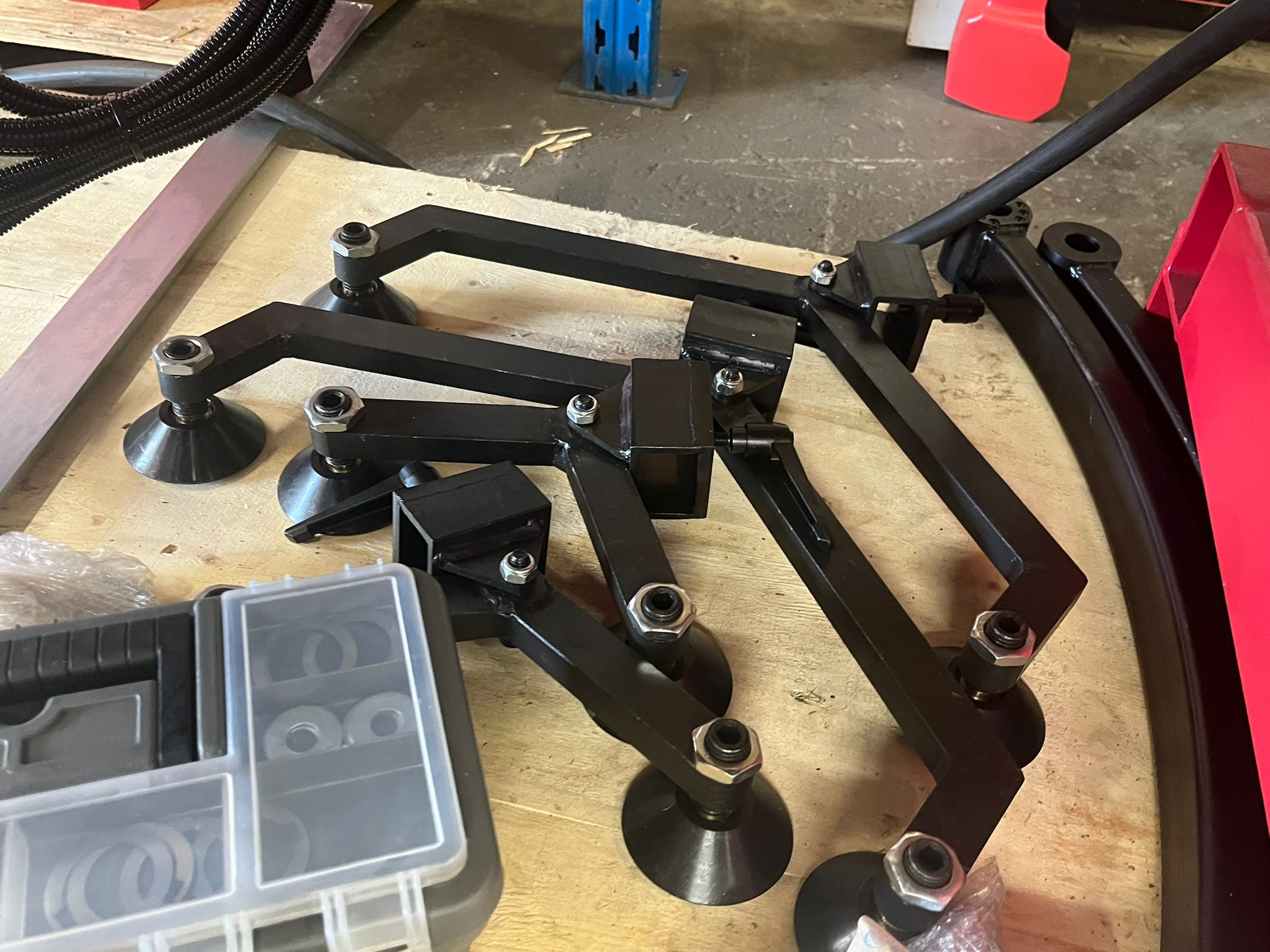

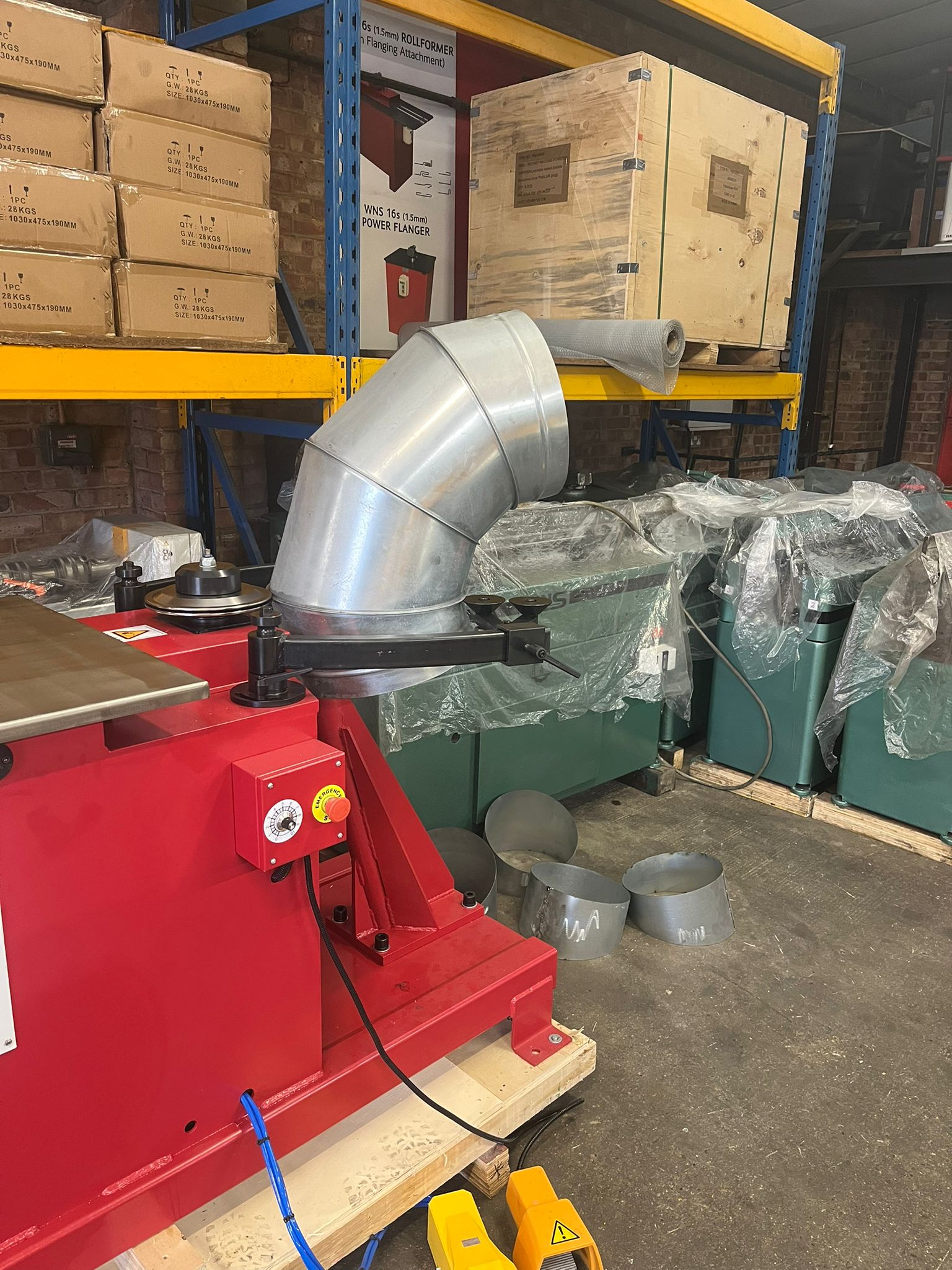

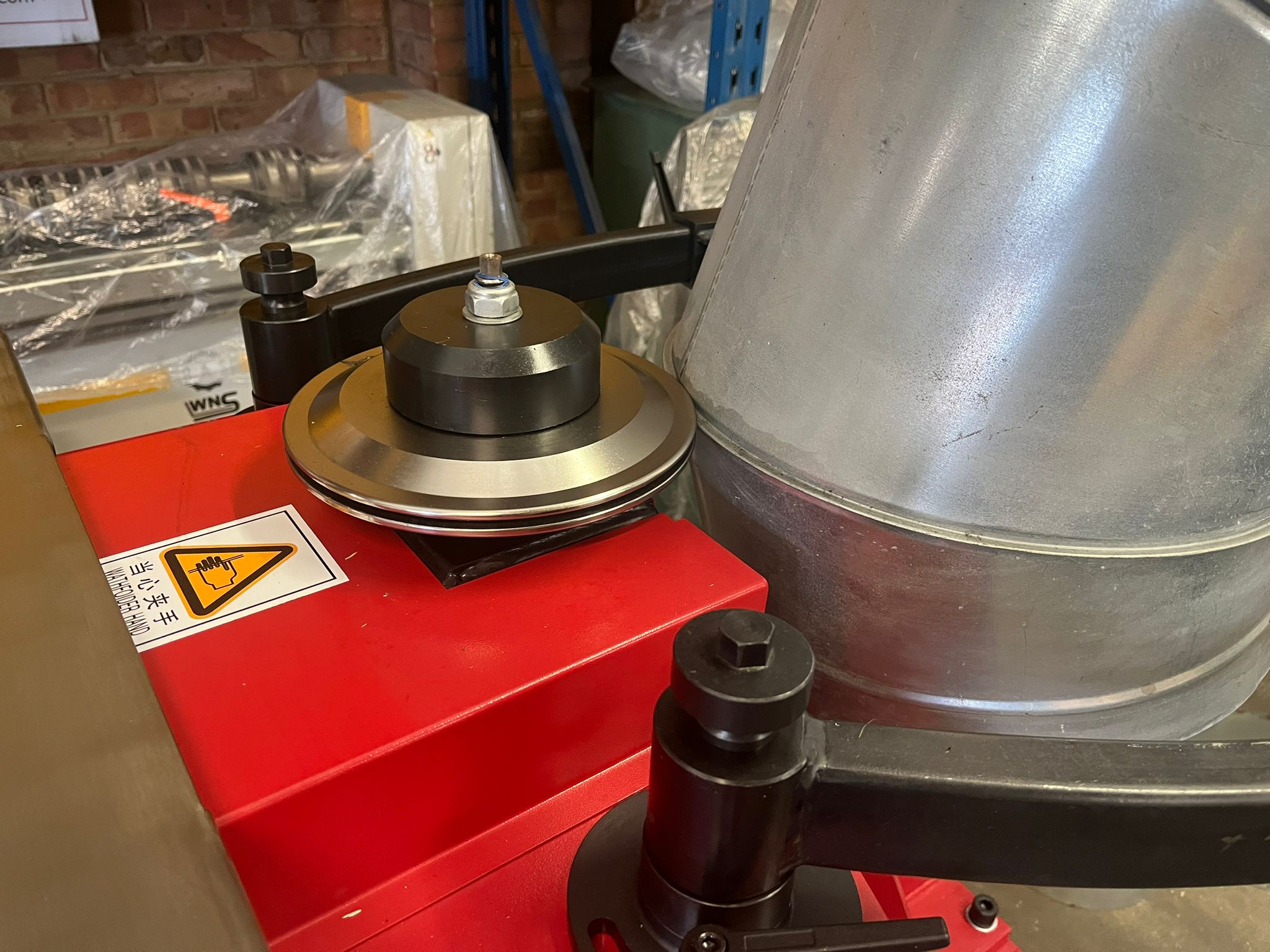

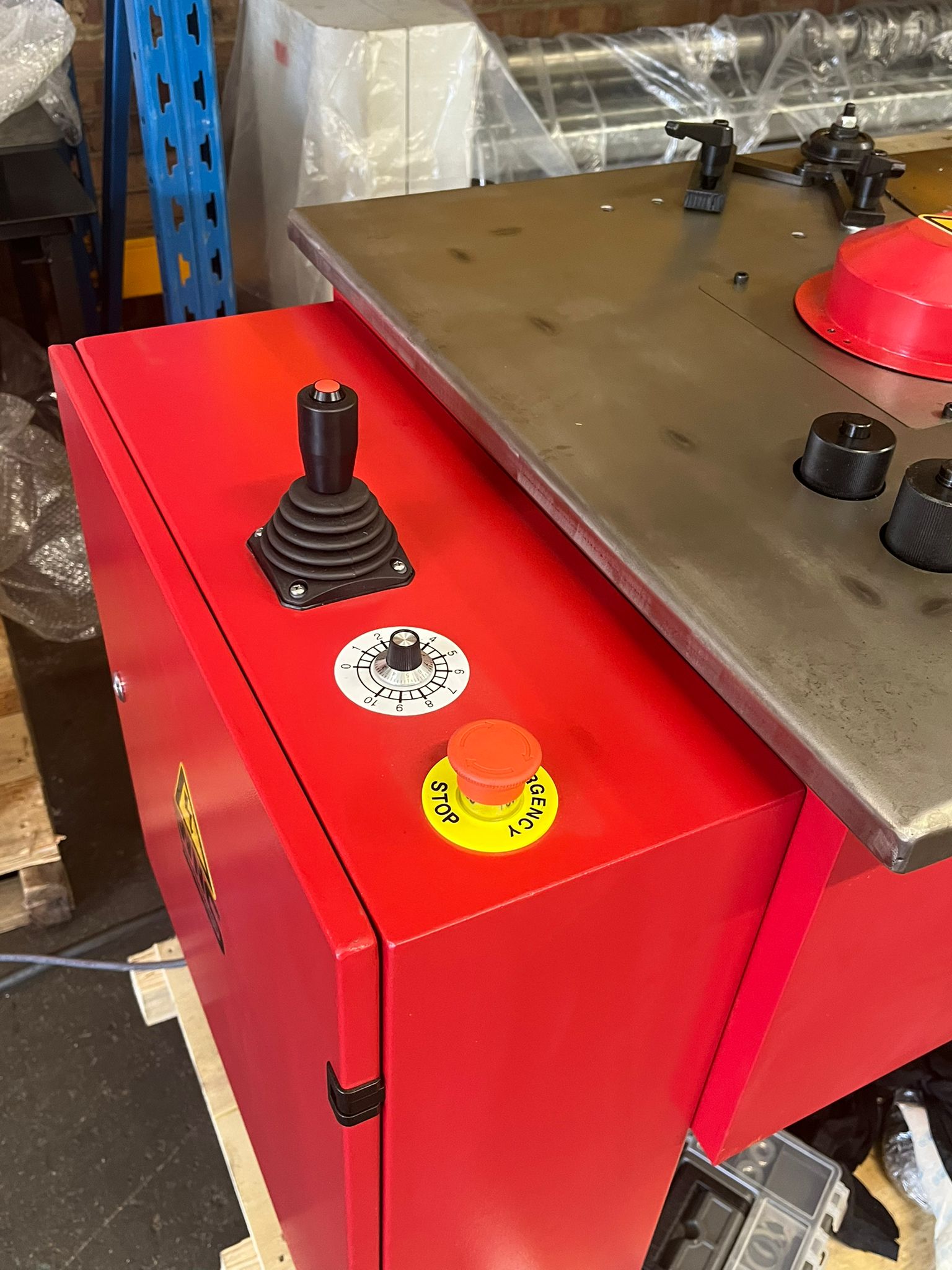

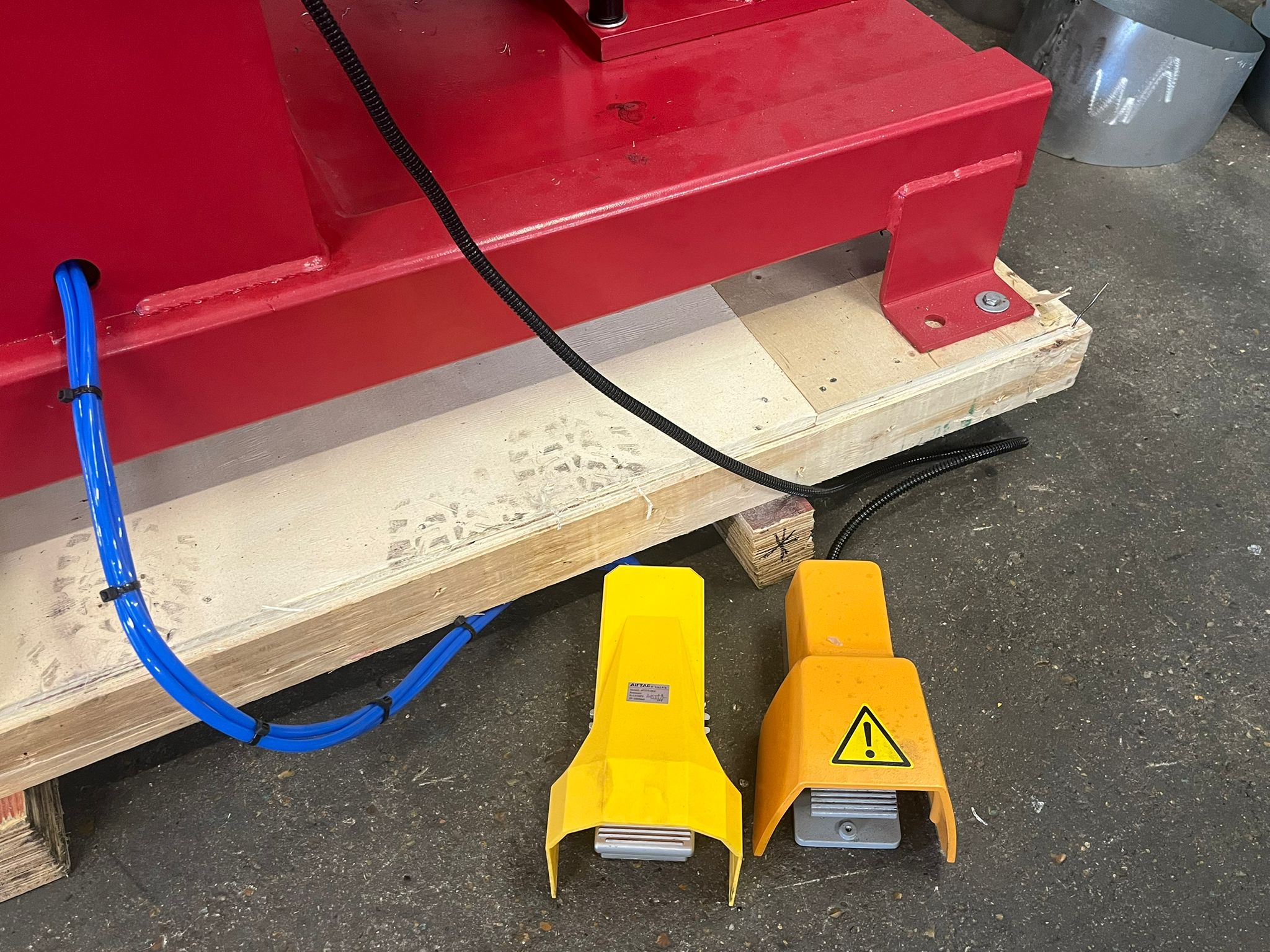

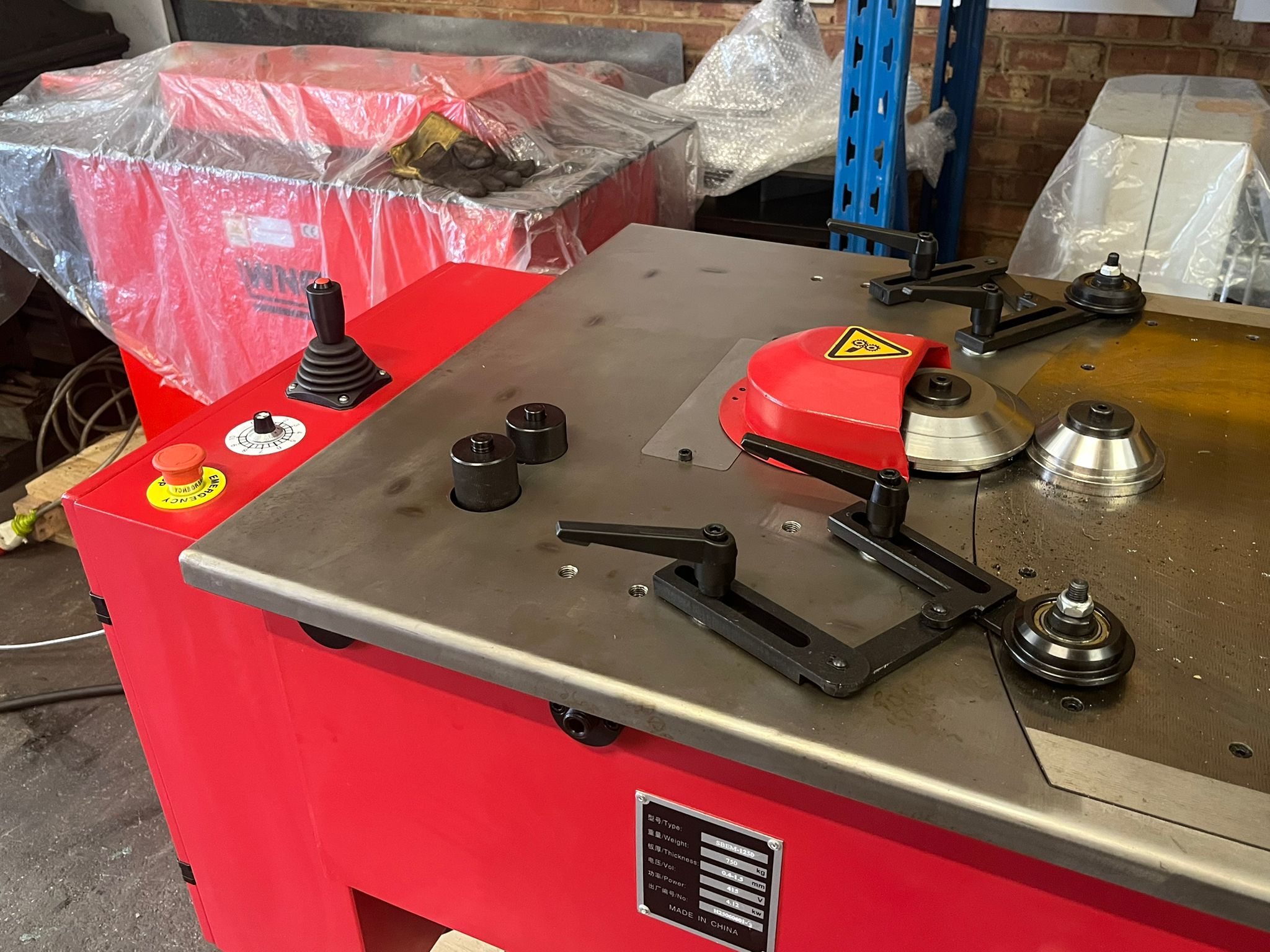

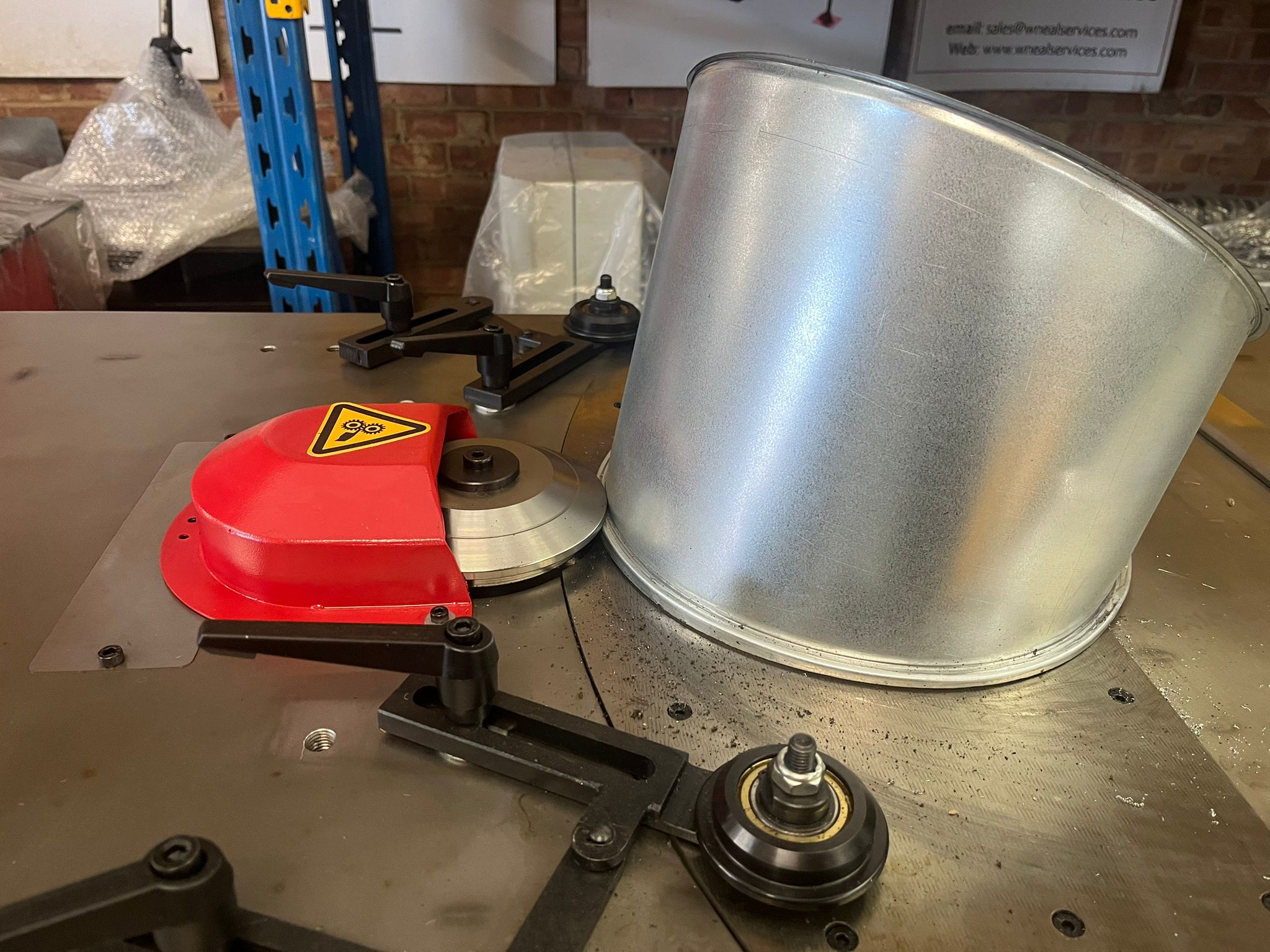

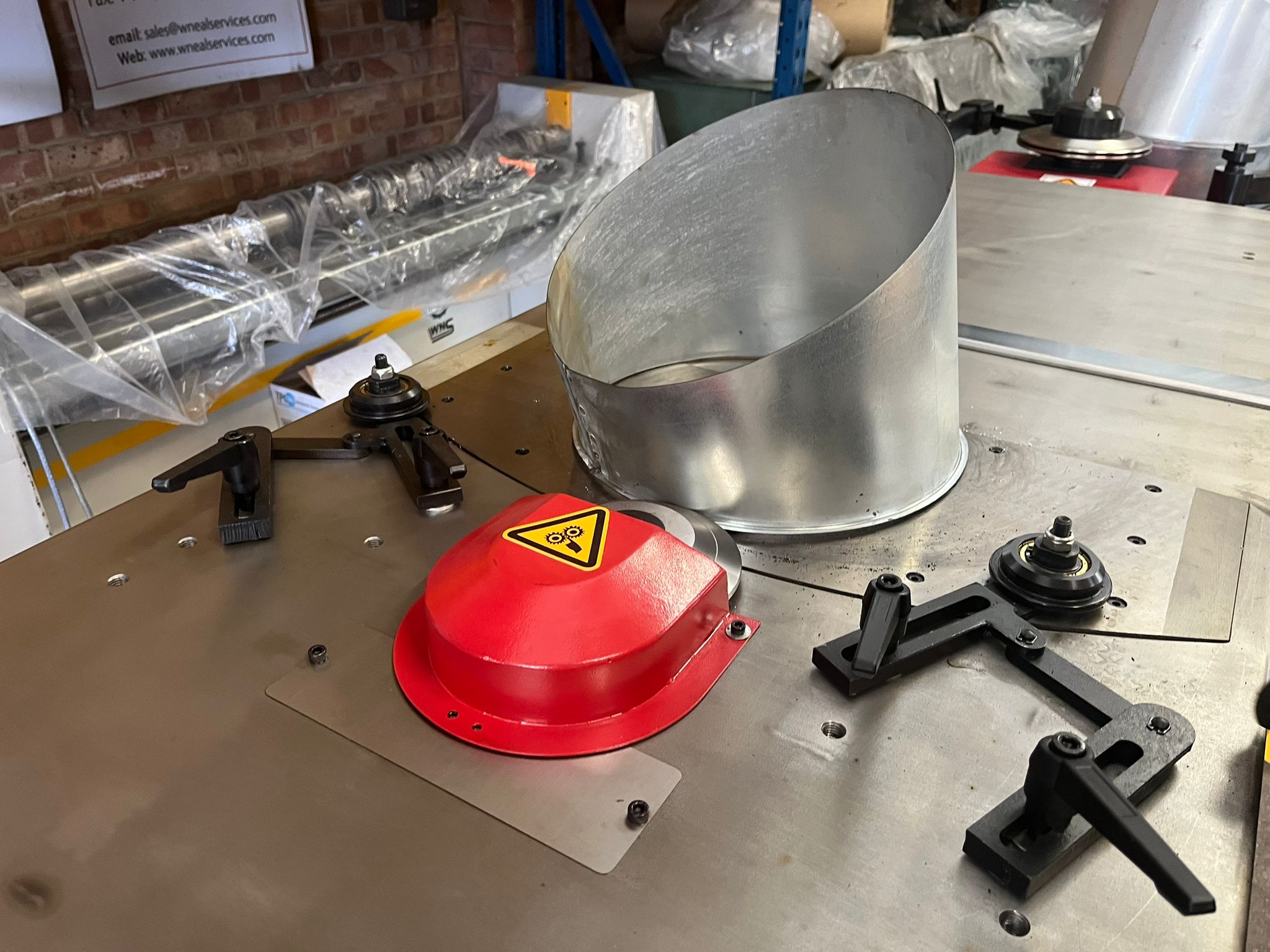

There is a hardened wear plate beneath the flanging station rollers and all hydraulic and electrical circuits are built with quality European components. The closing station is controlled by a foot pedal and the flanging station is controlled by a hand joystick, giving the user accurate speed and pressure control. The pneumatic support arms ensure that the ducts are held firmly in place as the hydraulically powered workstations join the seams together.
| SPECIFICATIONS | |
| Model: | GL1250 |
| Diameter Range: | 125mm – 1250mm |
| Maximum Thickness: | 0.4mm – 1.2mm Capacity Black Steel |
| 0.4mm – 1.2mm Galvanized Steel | |
| 0.4mm – 0.8mm Stainless Steel | |
| 0.4mm – 1.2mm Aluminium | |
| Width Of Strip: | Standard 137mm |
| Forming Speed: | 120m/min Maximum |
| Hydraulic Oil Capacity: | 55L |
| Consumption of Compressed Air: | 75L Per Hour At 6 Bar |
| Motor Power: | 4kW |
| Cooling Fan Power: | 120W |
| Supply Voltage: | 415v, 3 Phase Electrics, 50Hz, 11 Amps Per Phase |
| Dimensions – machine (apx): | 2700mm x 900mm x 1100mm (l x w x h) |
| Dimensions – packaging (apx): | 2800mm x 900mm x 1400mm (l x w x h) |
| Weight – net/gross (apx): | 850Kg / 1000Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
