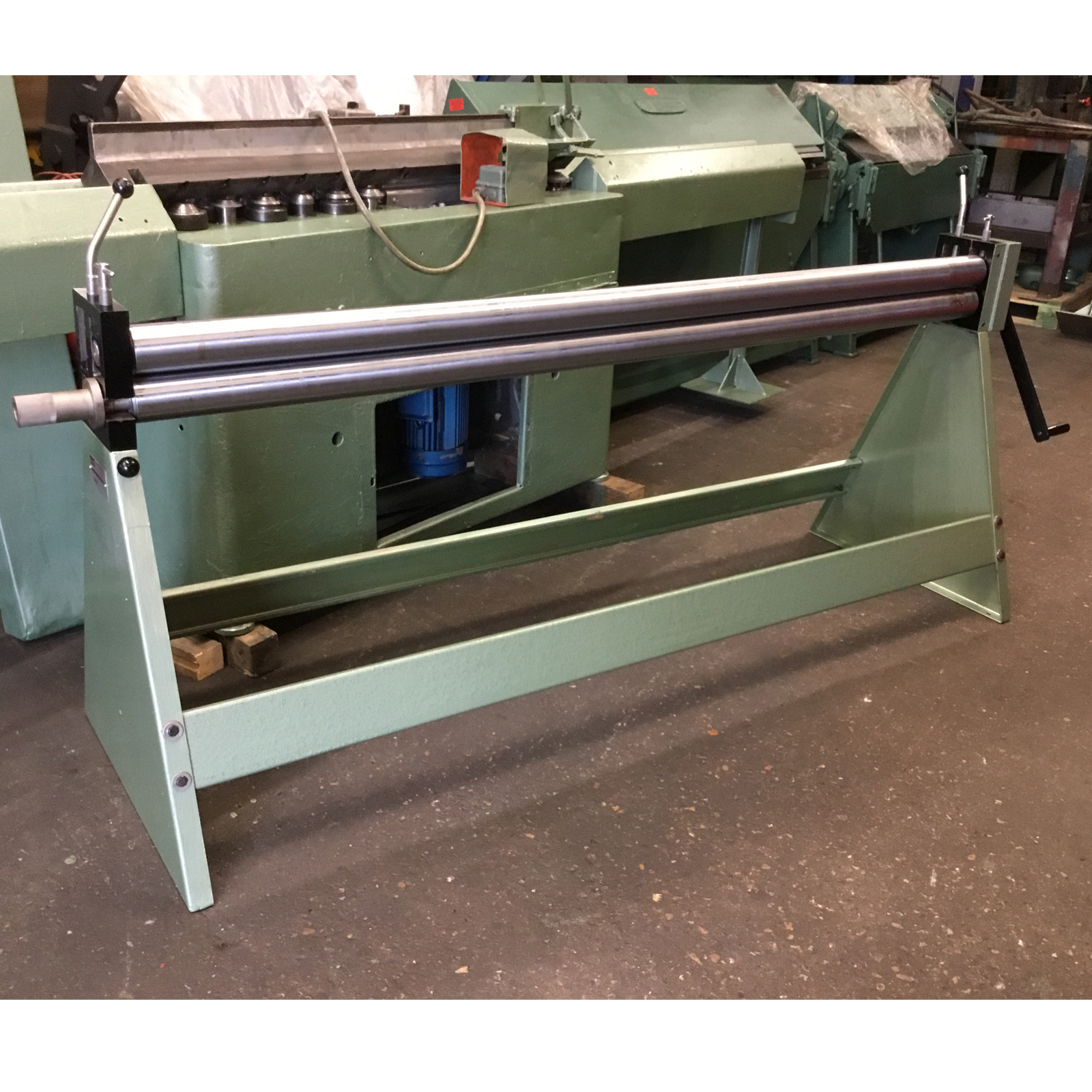

WNS INITIAL PINCH HAND BENDING ROLLS (BR2000-01) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. This machine has a 2000mm roll length, 75mm roll diameter and can accommodate mild steel up to 1.0mm thick. The rolls are bottom slip, with an Edwards style fabricated steel frame.
USED/RECONDITIONED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
| SPECIFICATIONS | |
| Model: | BR2000-01 |
| Roll Size: | 2000mm Roll Length x 75mm Roll Diameter |
| Maximum Thickness: | 1.0mm Mild Steel |
| Rolls: | Bottom Slip |
| Frame: | Fabricated Steel |
| Dimensions – machine (apx): | 2530mm x 650mm x 1100mm (l x w x h) |
| Weights – net (apx): | 350Kg |
*please see Terms & Conditions. **fees apply.
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
