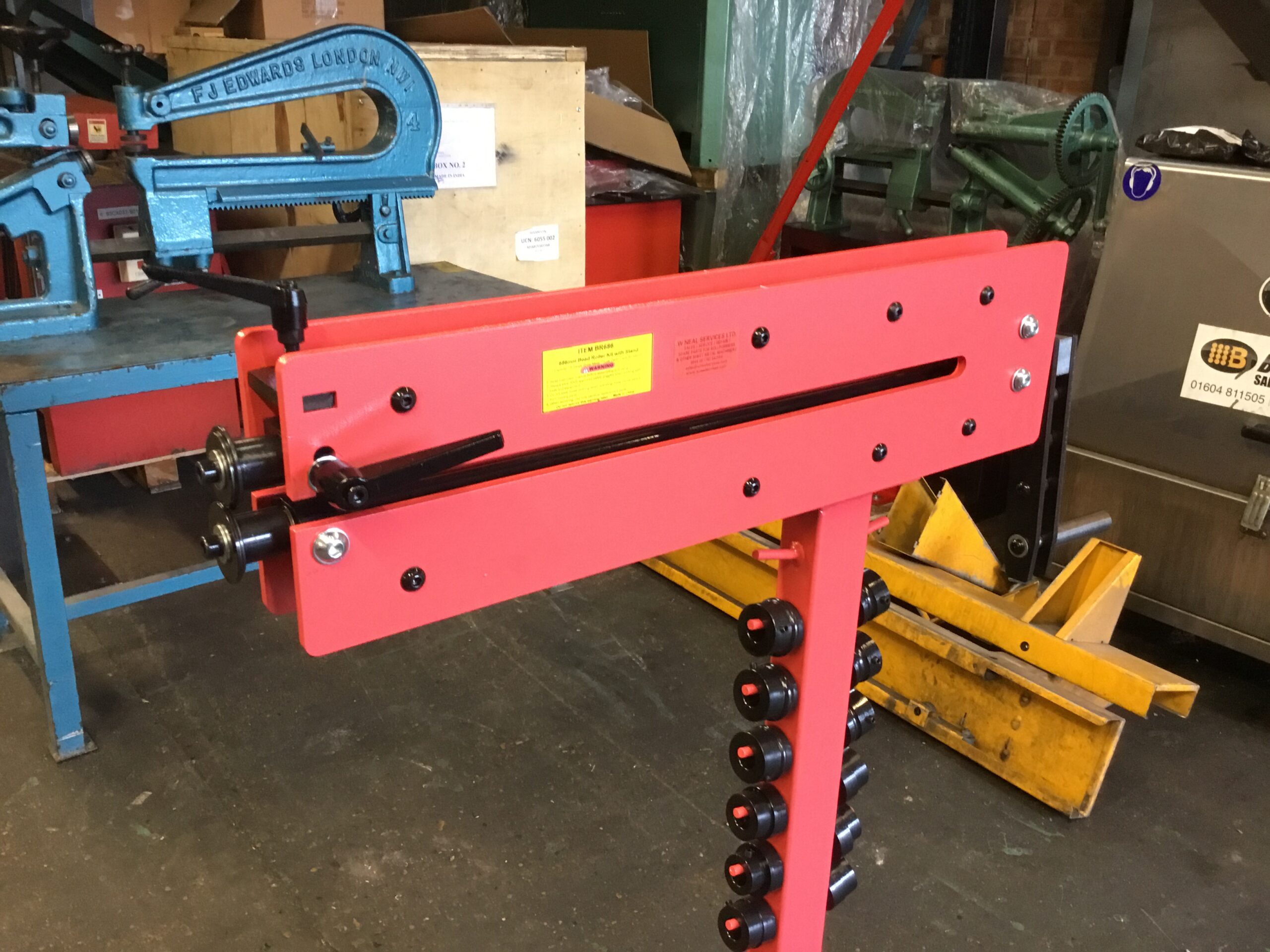

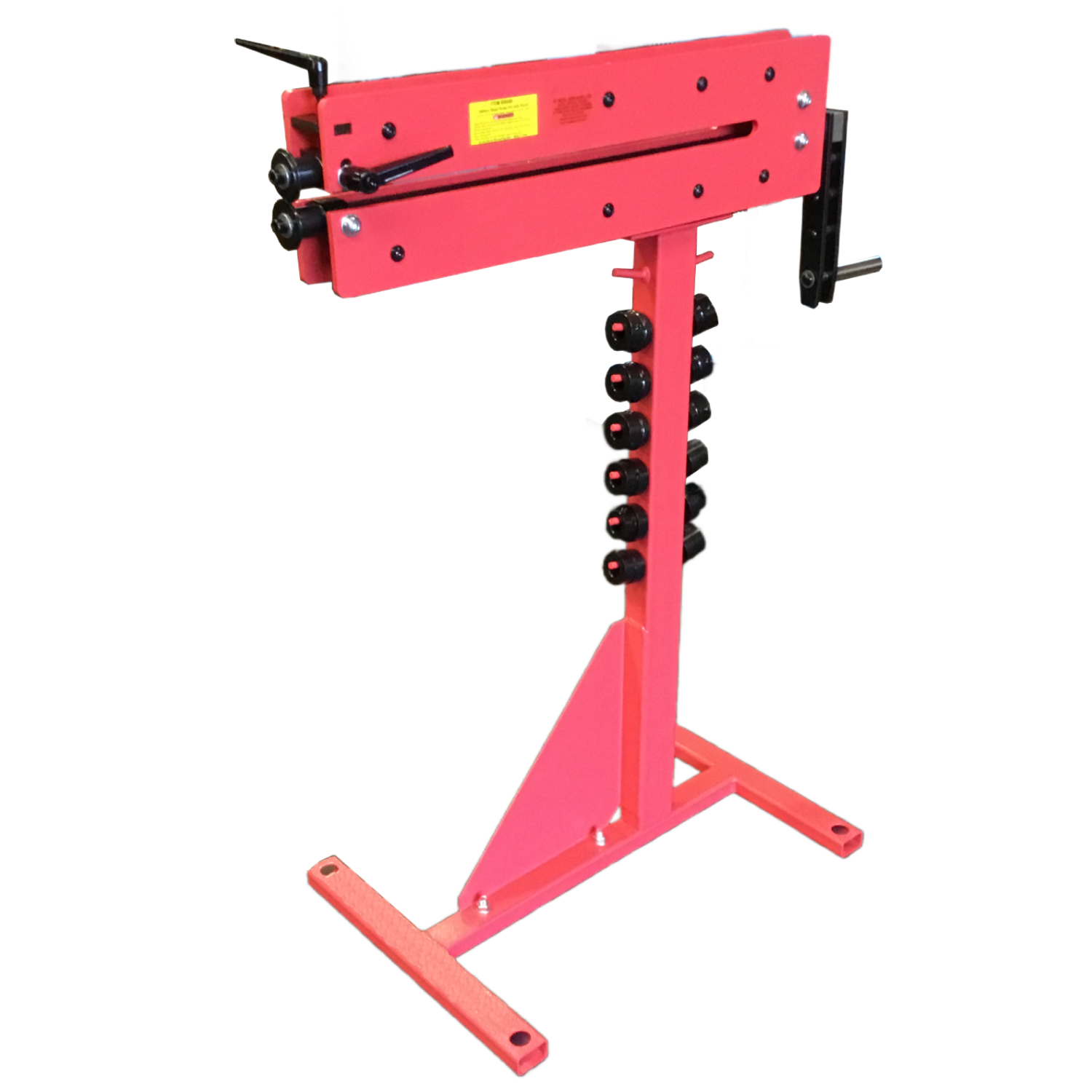

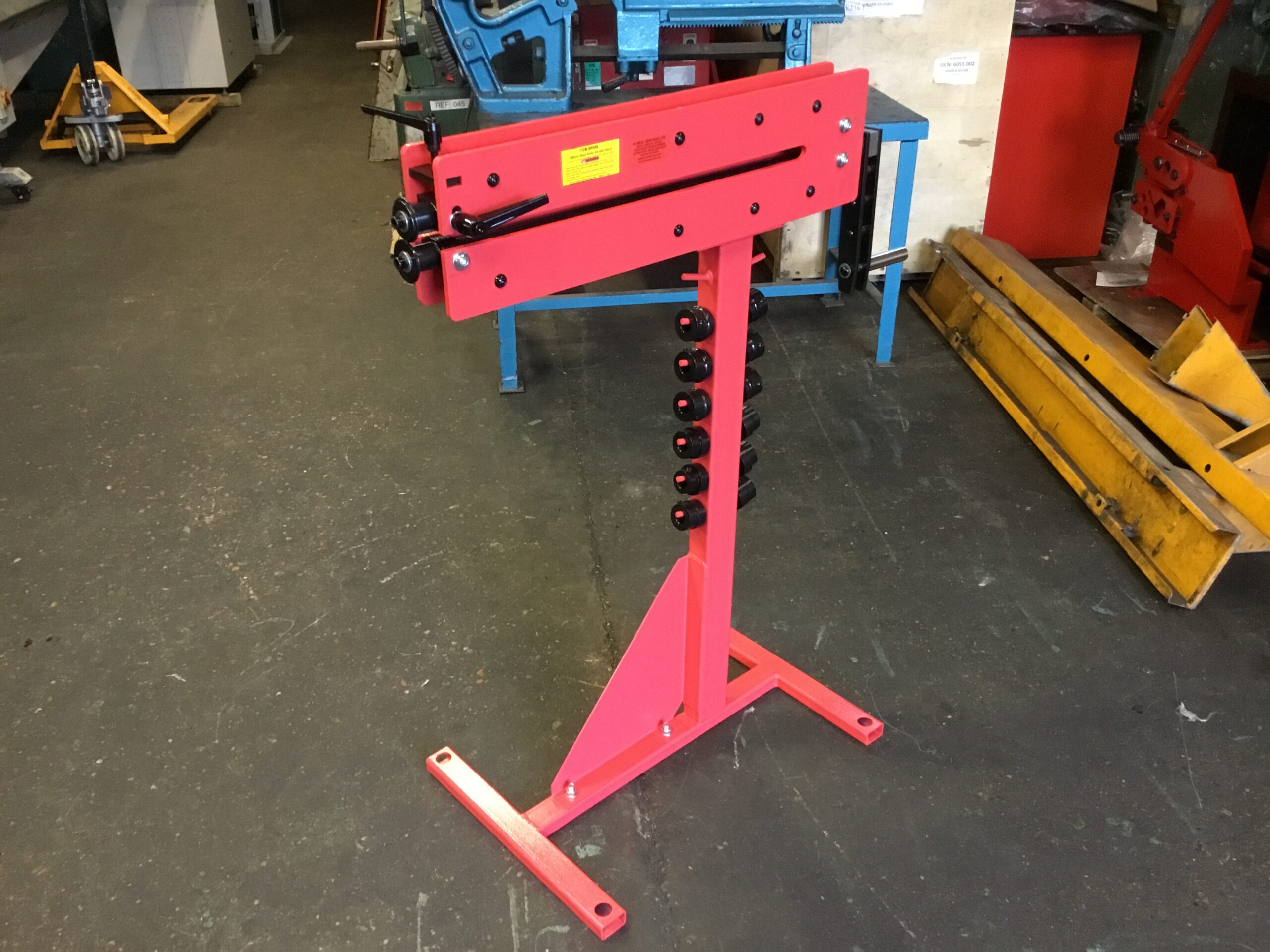

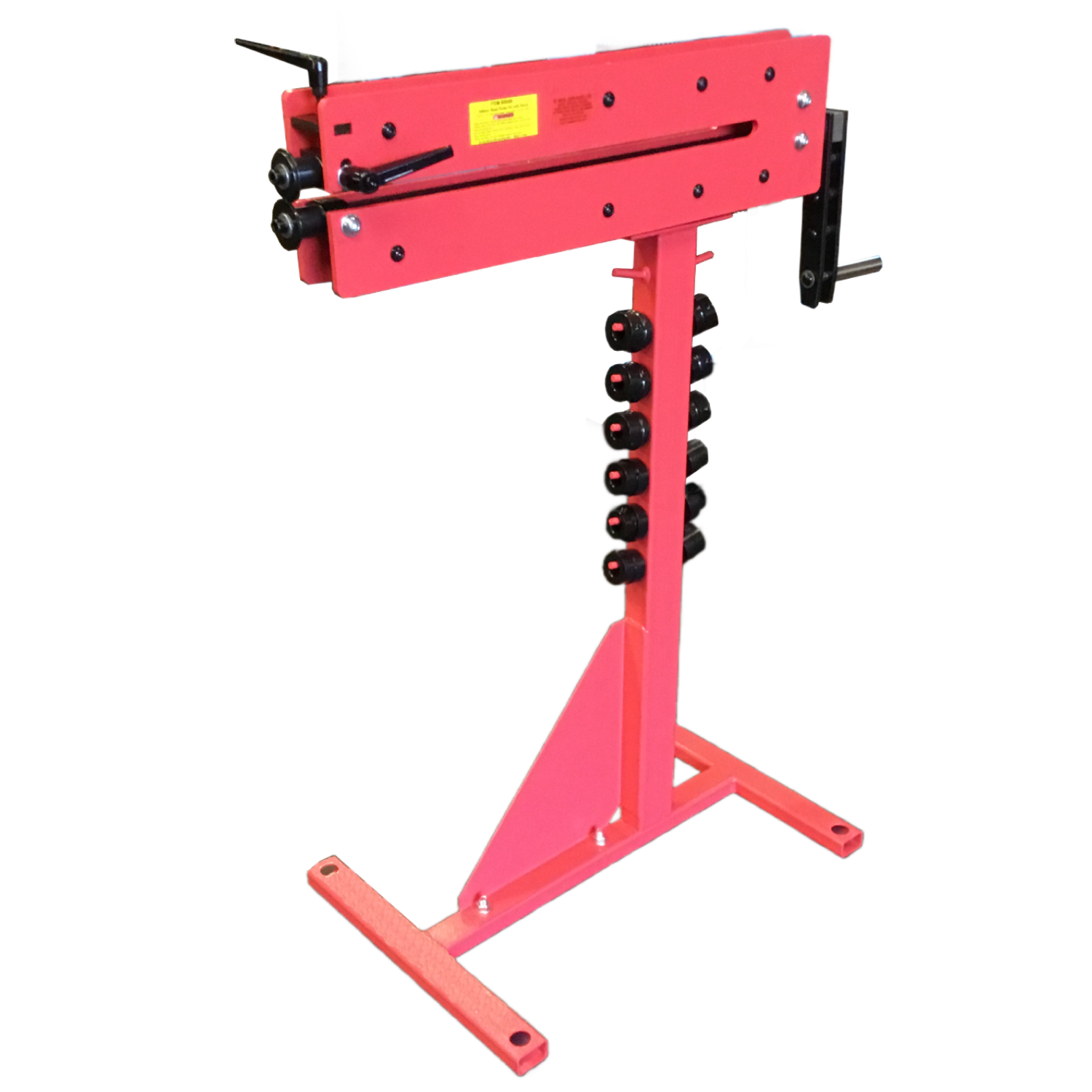

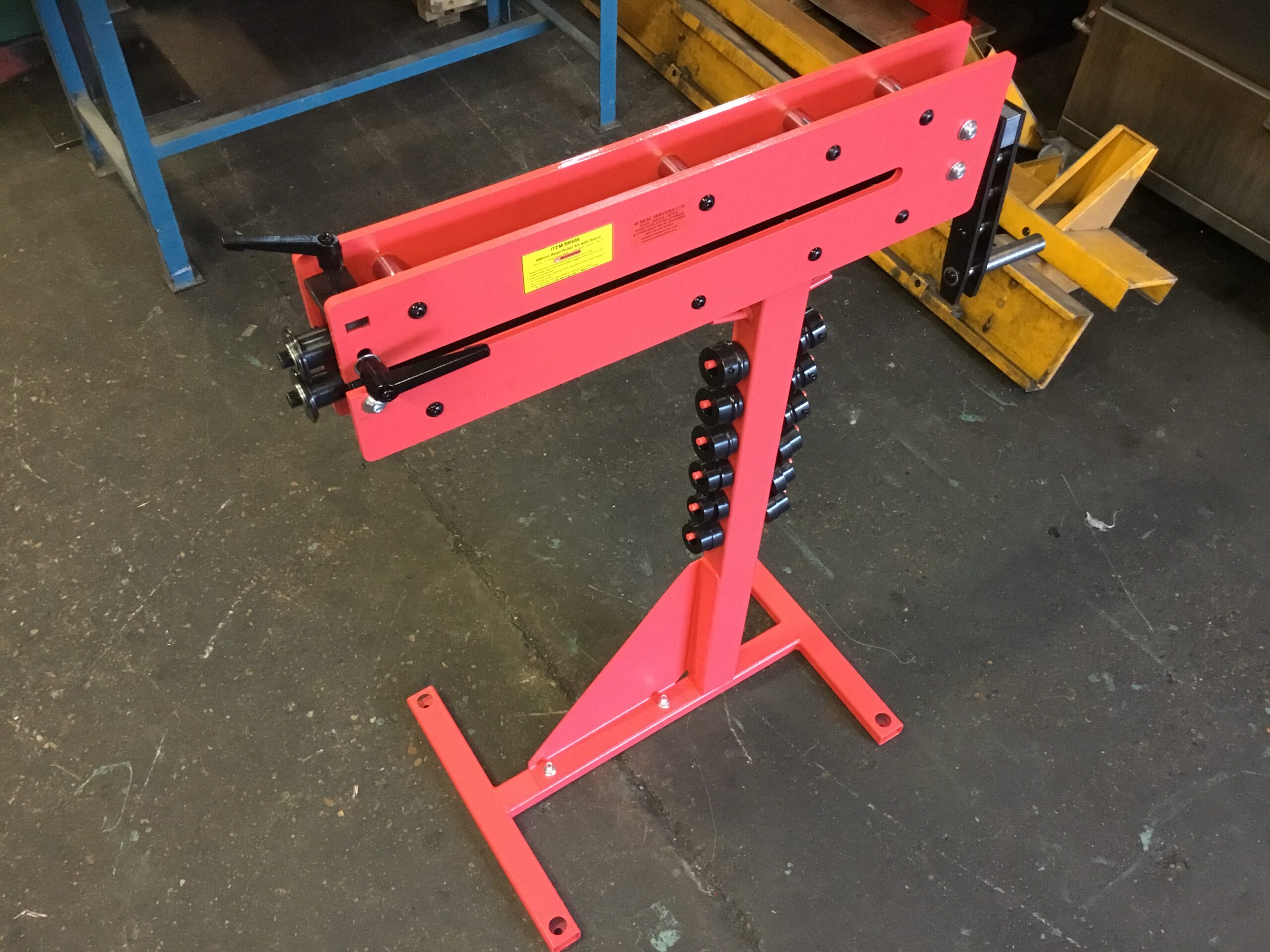

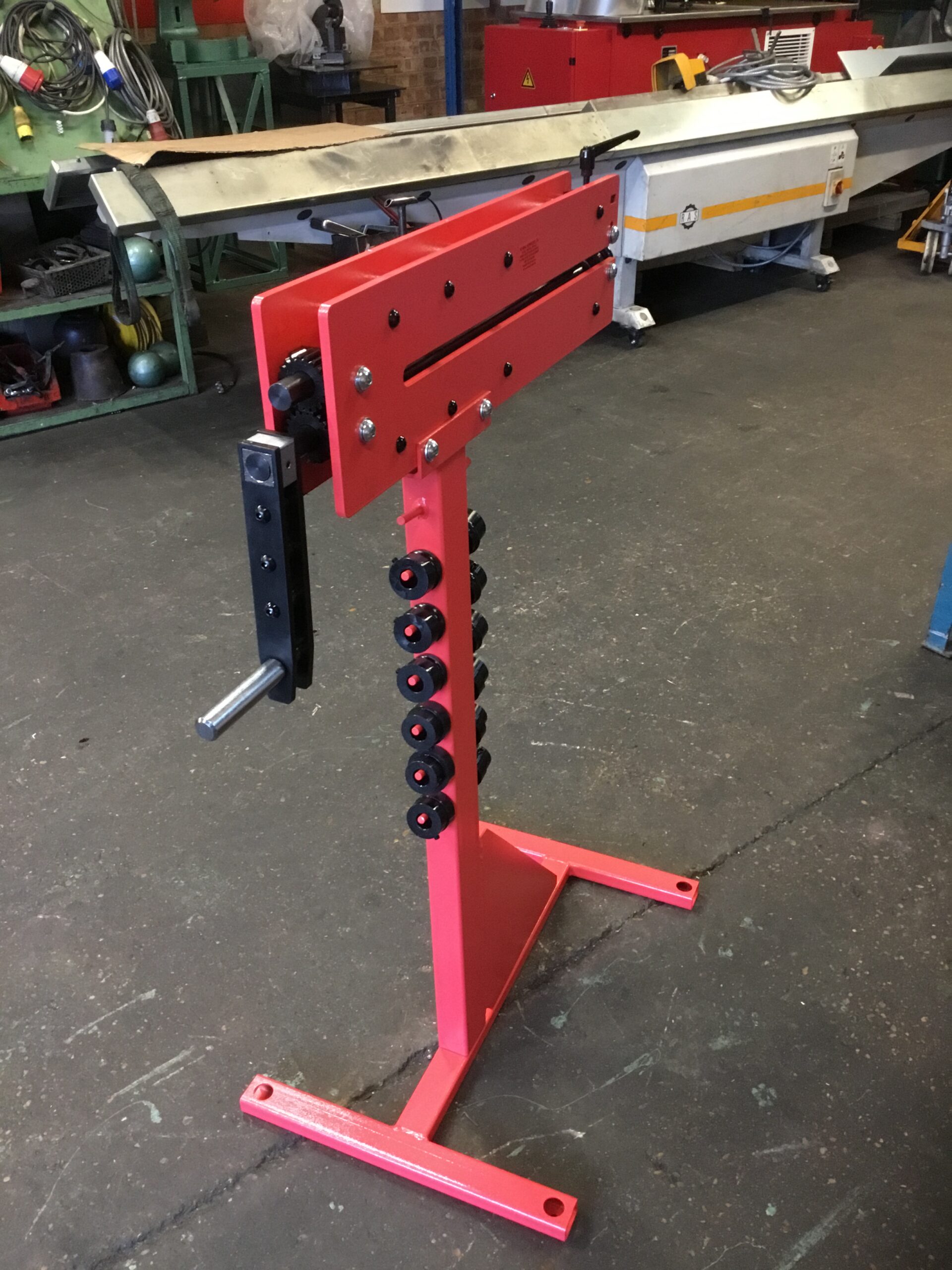

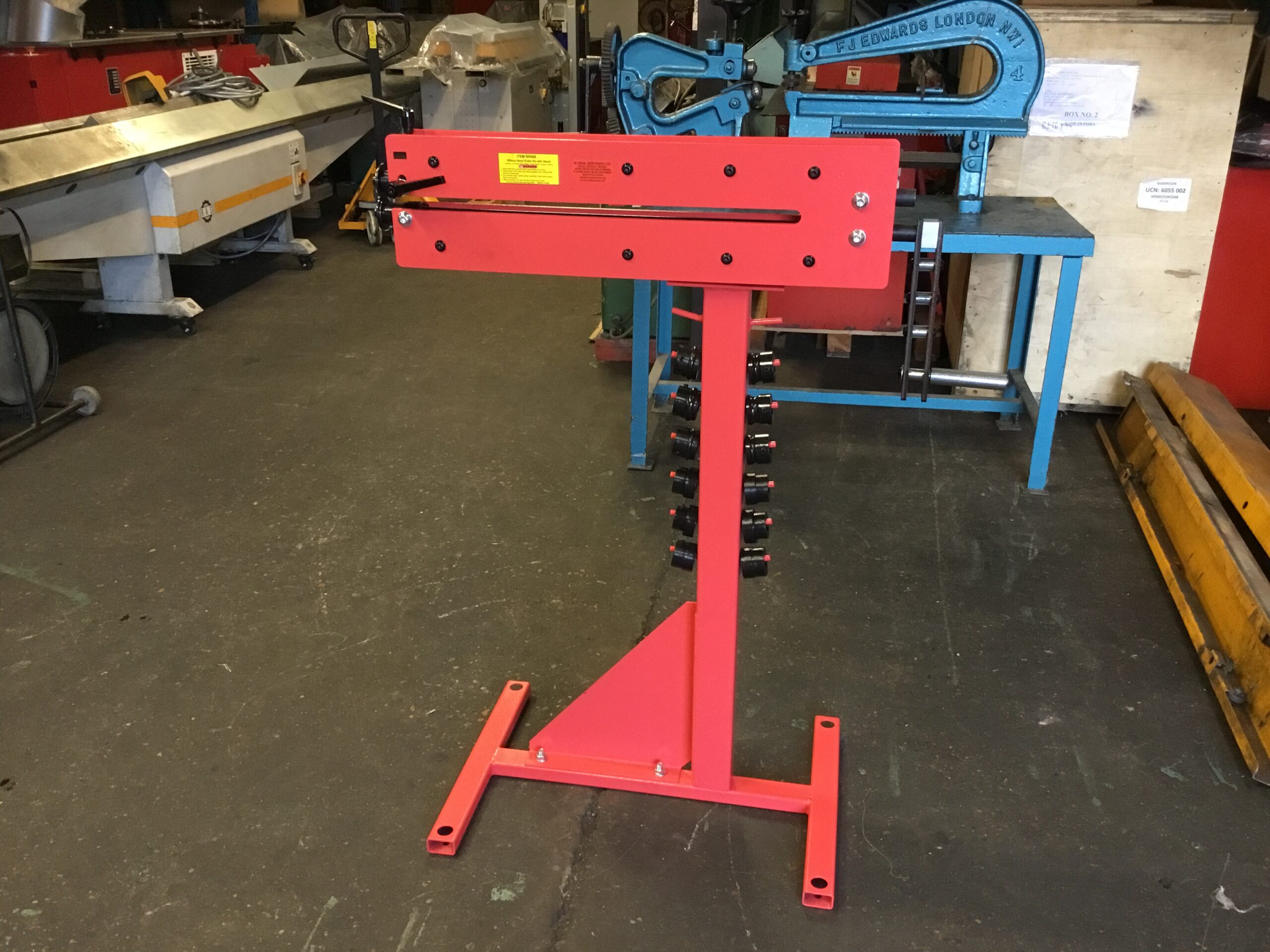

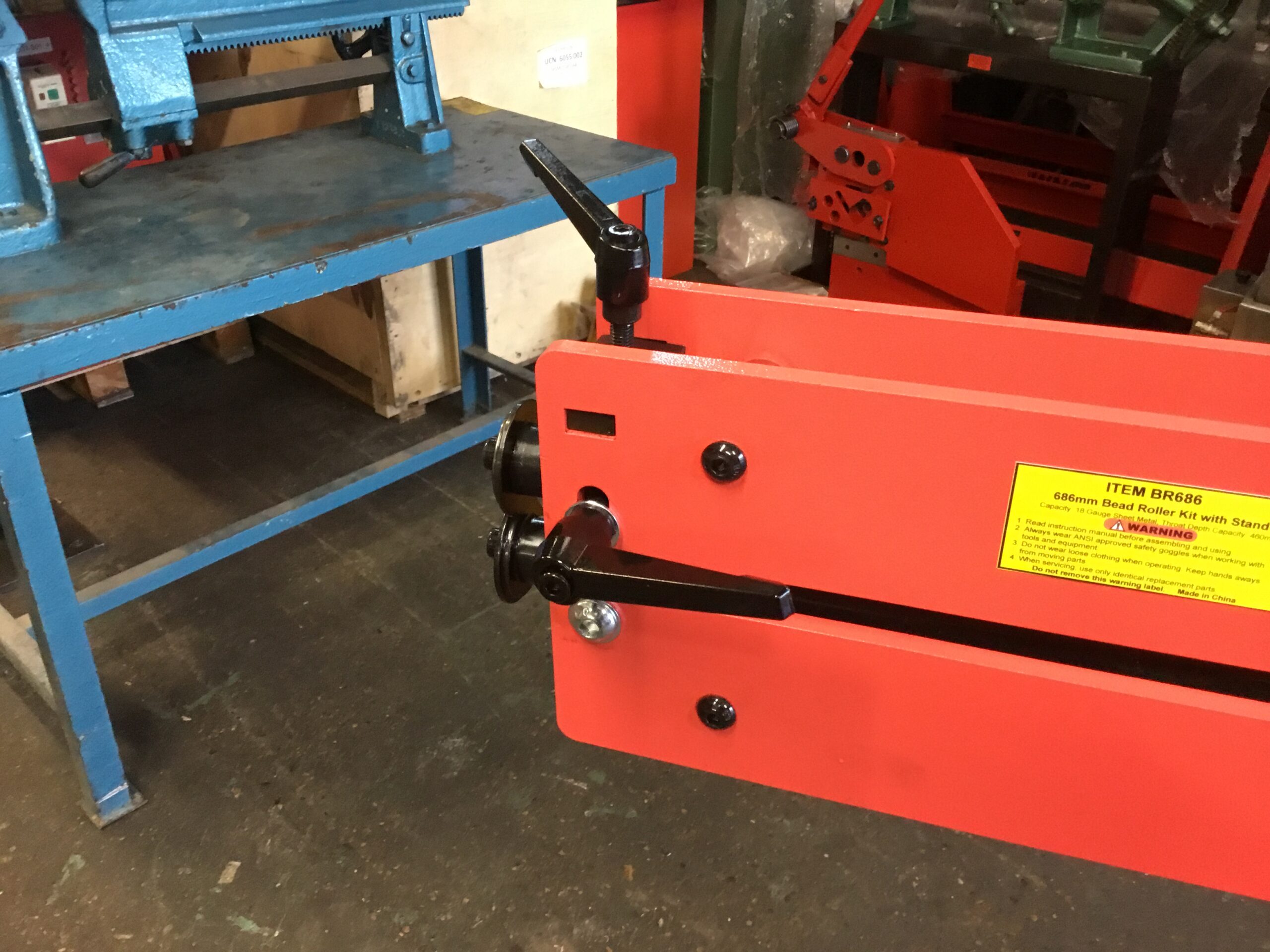

WNS MANUAL BEAD ROLLERS (BR650) are principally used for swaging, beading and forming of sheet metal. The BR650 has a 650mm throat and can accommodate mild steel up to 1.2mm thick. This machine comes complete with 7 sets of rolls.
| Weight | 57 kg |
|---|
| SPECIFICATIONS | |
| Model: | BR650 |
| Throat Depth: | 650mm |
| Maximum Thickness: | 1.2mm Capacity Mild Steel |

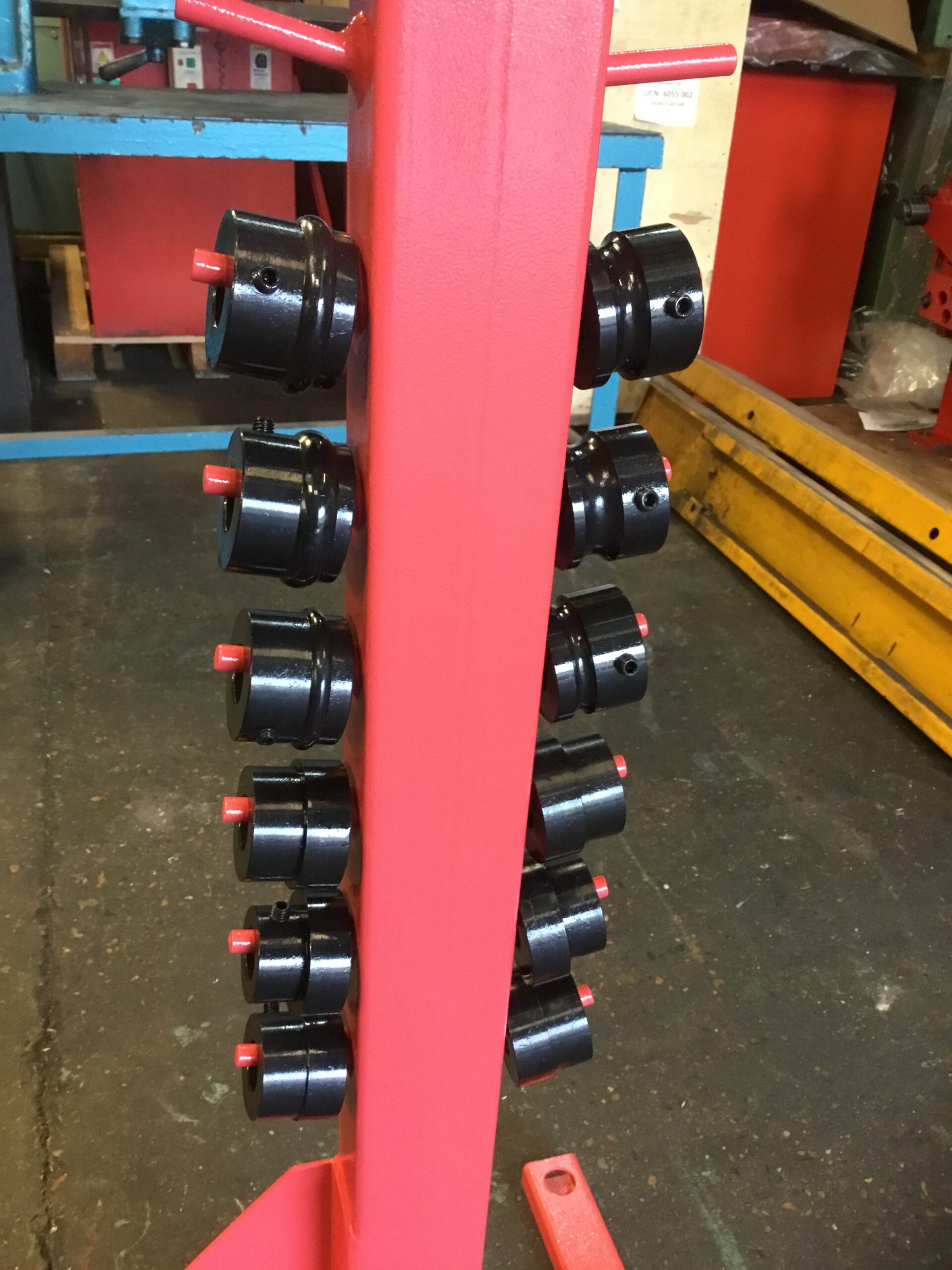

| Bead/Swage Rolls (x 3): | 6.35mm (1/4”) |
| 9.0mm (3/8”) | |
| 12.7mm (1/2”) | |
| Flange/Stepped Rolls (x 3): | 1.6mm (1/16”) |
| 3.0mm (1/8”) | |
| 6.35mm (1/4”) | |
| Offset Rolls (x 1): | 1 x Set |
| Roll – Inside Diameter: | 22mm |
| Roll – Outside Diameter: | 50mm – 55mm |
| Shaft Diameter: | 22mm |

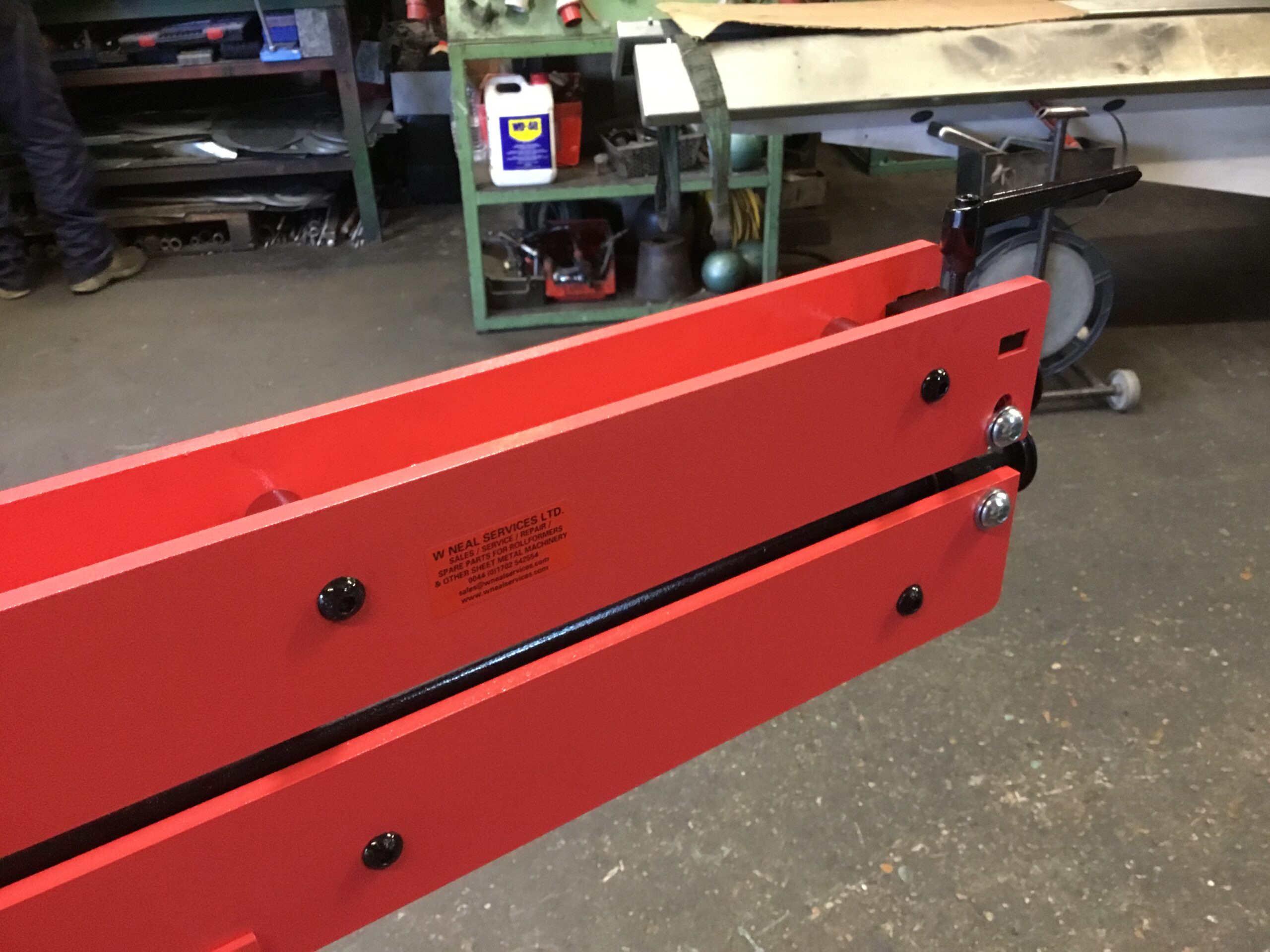

| Machine Body: | 10mm Thick Steel |
| Handle Length (apx): | 240mm |
| Dimensions – machine (with handle): | 1000mm x 500mm x 1240mm (l x w x h) |
| Dimensions – packing (apx): | 1020mm x 550mm x 160mm (l x w x h) |
| Weights – net/gross (apx): | 54Kg/55.5Kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
