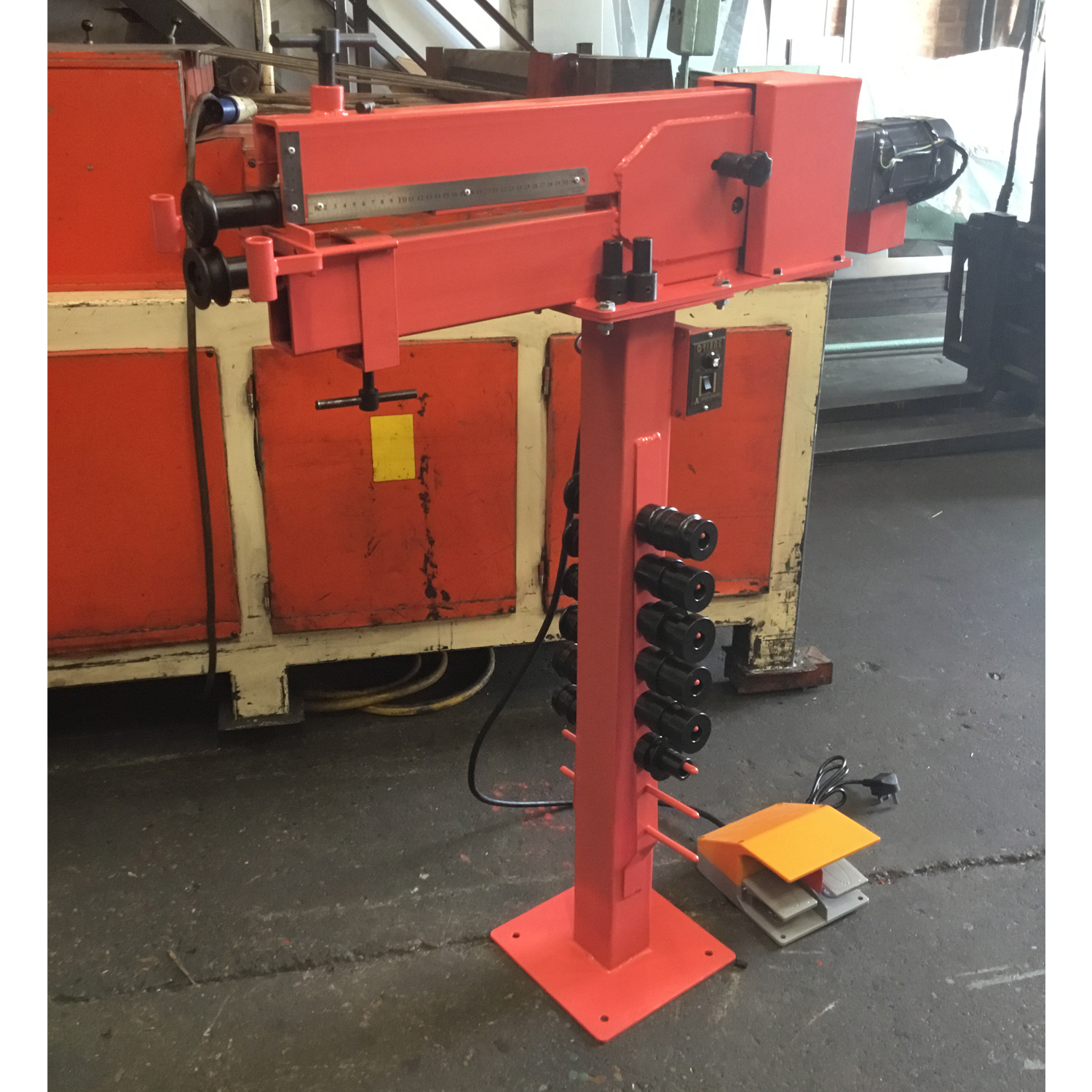

WNS POWER BEAD ROLLERS (PBR395V-2) are principally used for swaging, beading and forming of sheet metal. The PBR395V has a 395mm (15″) throat and can accommodate mild steel up to 1.0mm thick. This machine comes complete with 13 sets of rolls (including wiring, swaging, flanging, stepped, closing and ogee), a stand, an adjustable guide fence, and an adapter for 22mm ID rolls. This bead roller has a forward & reverse foot pedal, and a variable speed switch up to 17rpm.
WNS blank rolls are available separately, enabling users to machine their choice of custom roll sets.
SECONDS
This is a new machine used a handful of times for demonstration purposes
This machine is in full working order but is without it’s original packaging.
Machine is ‘Sold as Seen’.
No returns on this item – sorry!
Viewing welcome prior to purchase.
| Weight | 250 kg |
|---|
| SPECIFICATIONS |
|||
| Model: | PBR395V-2 | ||
| Throat Depth: | 395mm (15″) | ||
| Maximum Thickness: | 1.0mm Capacity Mild Steel | ||
| Wiring/Swage Rolls (x 5): | 4.0mm | 6.35mm | 9.5mm |
| 12mm | 15mm | ||
| Flange/Stepped Rolls (x 4): | 1.6mm | 3.0mm | 6.35mm |
| 9.5mm | |||
| Stepped Rolls (x 2): | 2 Sets | ||
| Closing Rolls (x 1): | 1 Set | ||
| Ogee Rolls (x 1): | 1 Set | ||
| Roll – Inside Diameter: | 20mm | ||
| Roll – Outside Diameter: | 50mm – 55mm | ||
| Shaft Diameter: | 20mm (22mm with Adapter) | ||
| Direction: | Forward & Reverse Foot Pedal | ||
| Speed – Variable: | 0 – 17rpm | ||
| Motor Power: | 180w | ||
| Supply Voltage: | 240v, Single Phase, 50Hz | ||
| Dimensions – machine (apx): | 1070mm x 260mm x 1270mm (l x w x h) | ||
| Dimensions – packaging (apx): | 1160mm x 530mm x 380mm (l x w x h) | ||
| Weights – net/gross (apx): | 65Kg/69Kg | ||
*fees apply.
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
