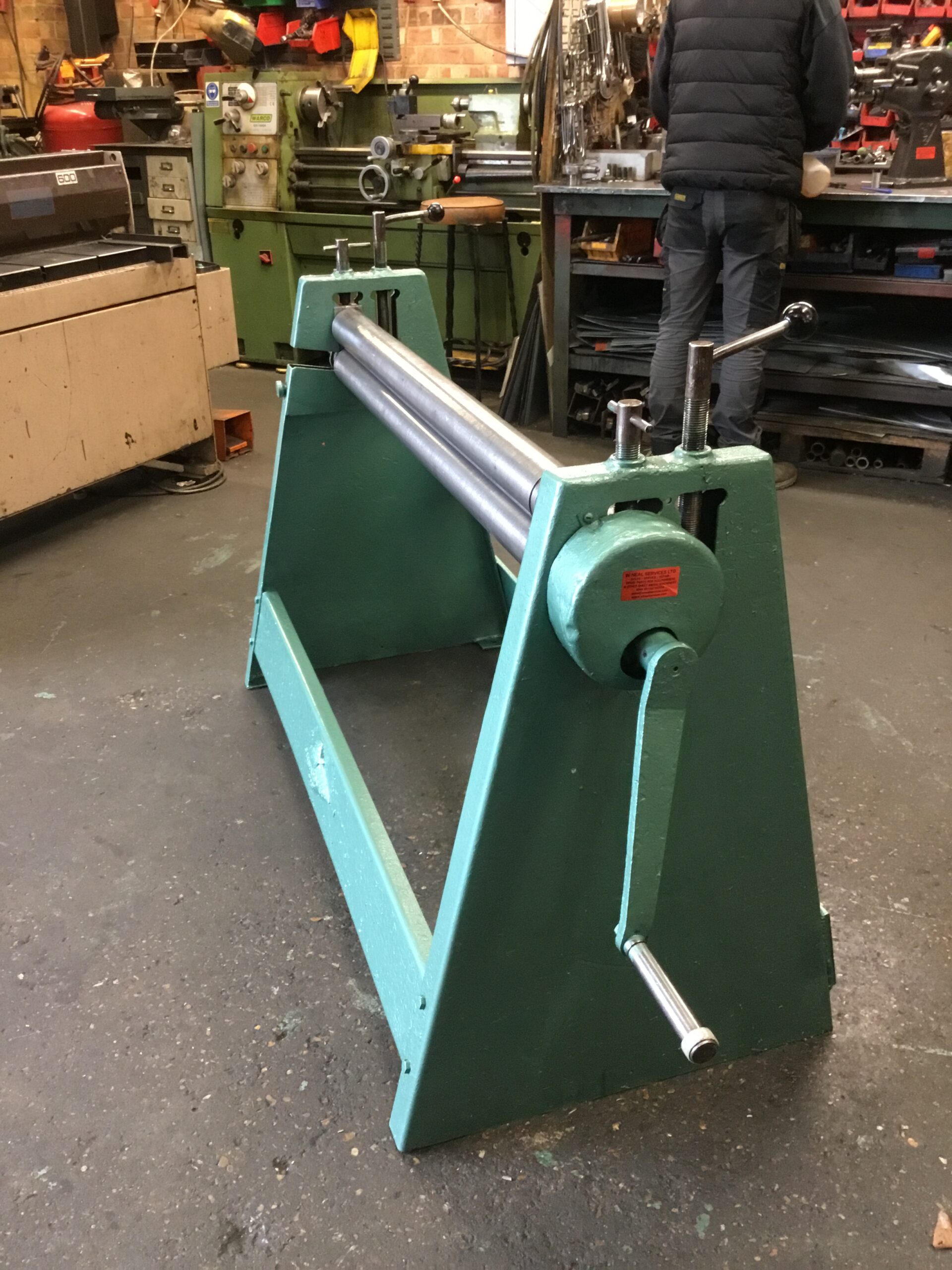

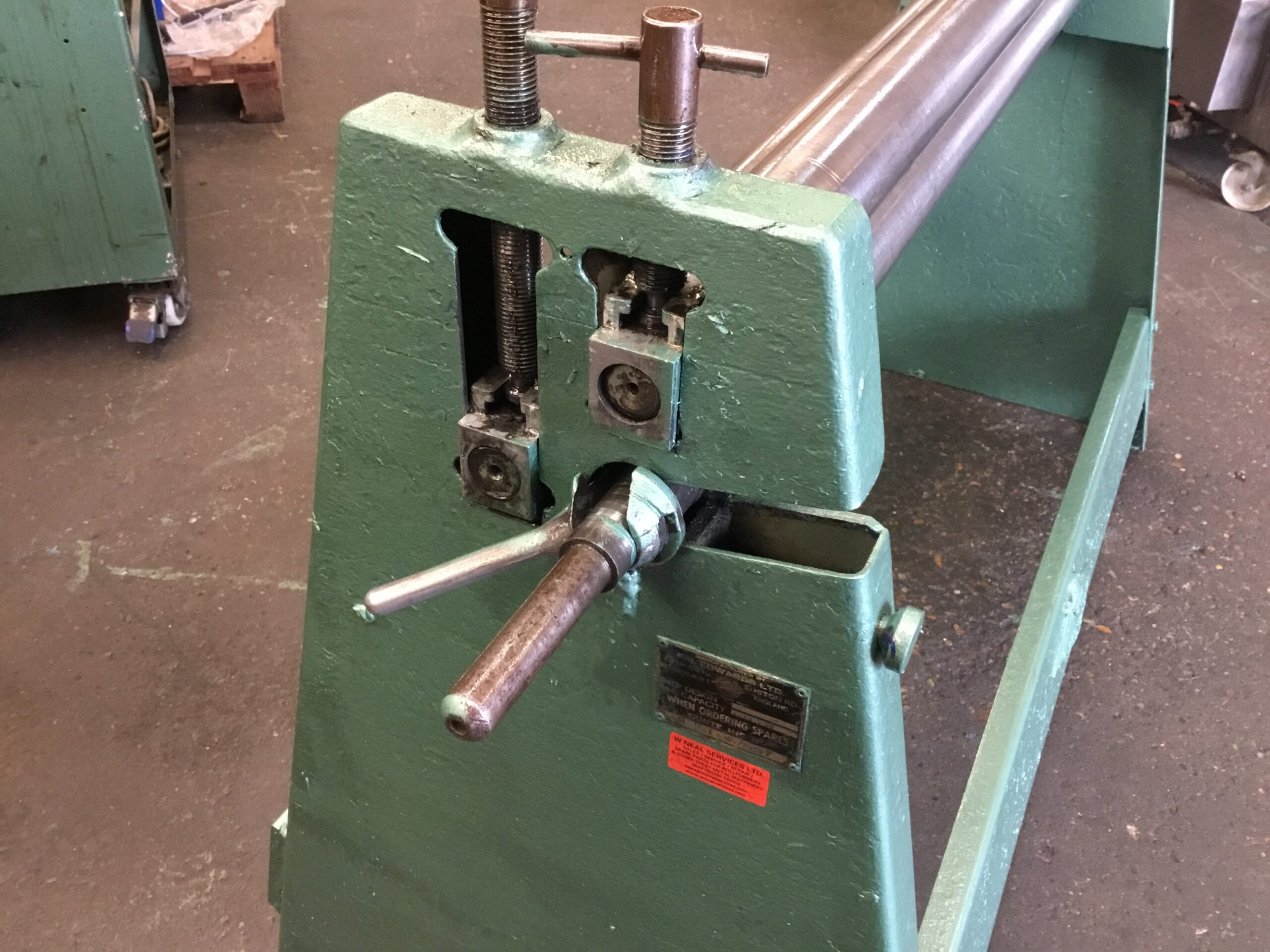

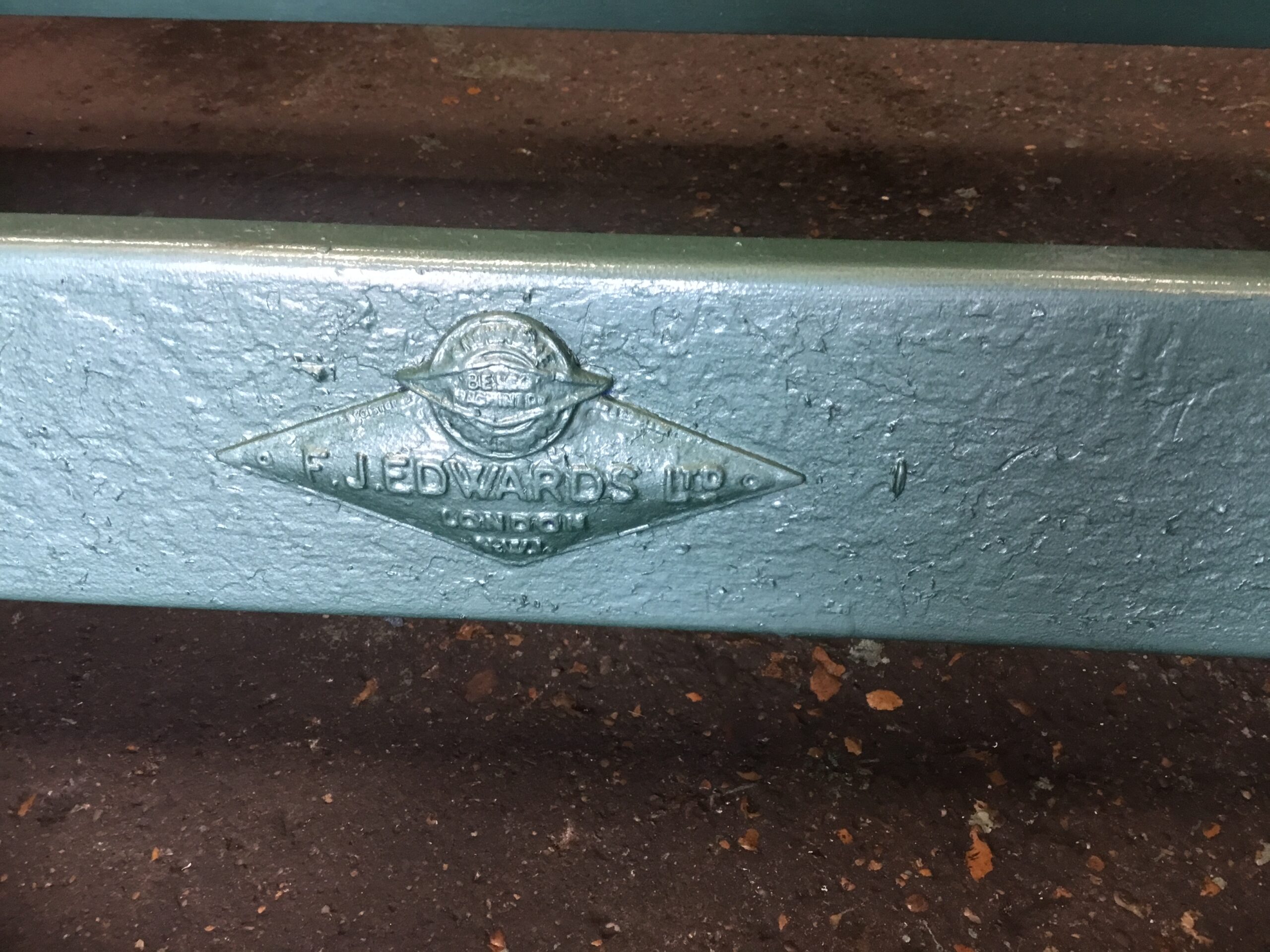

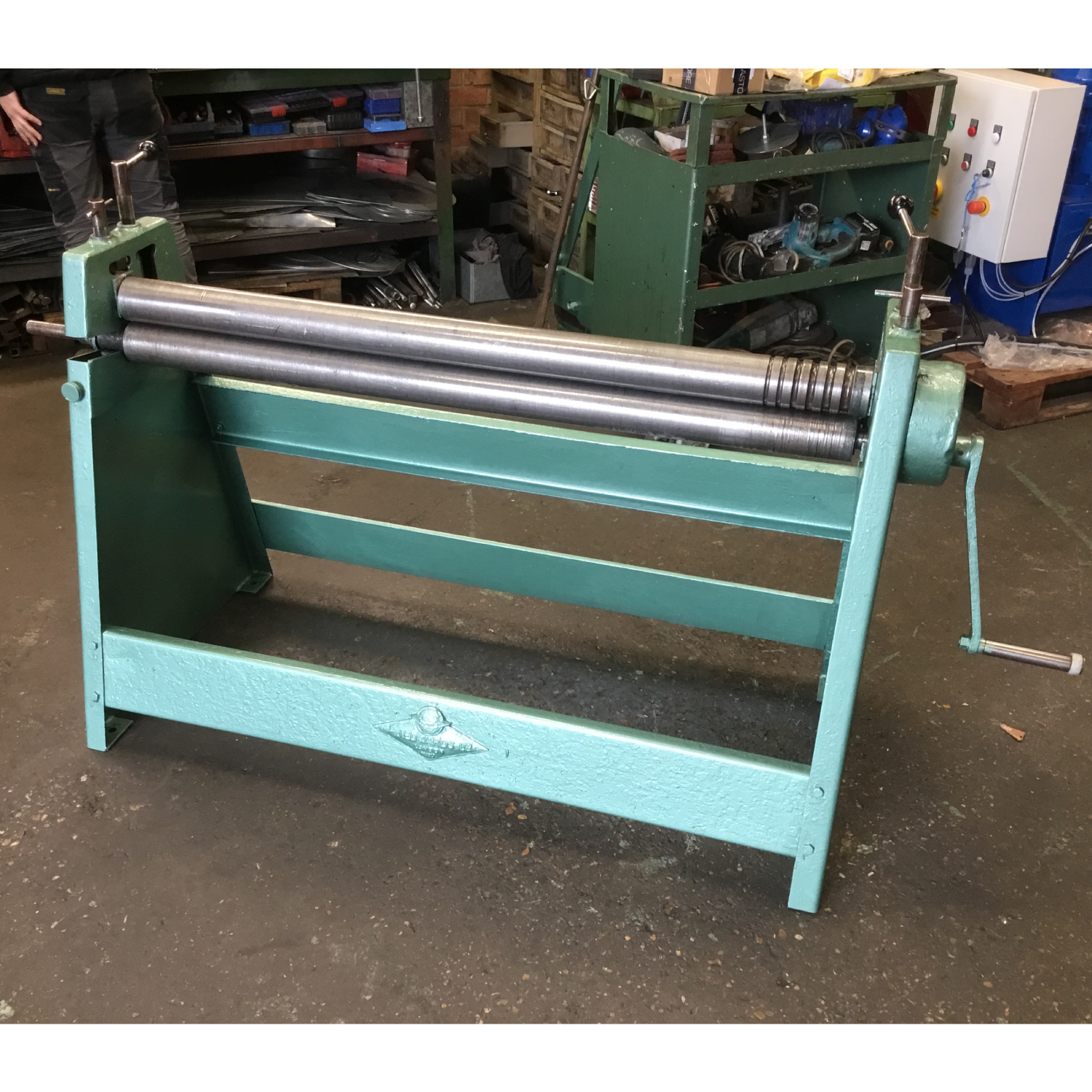

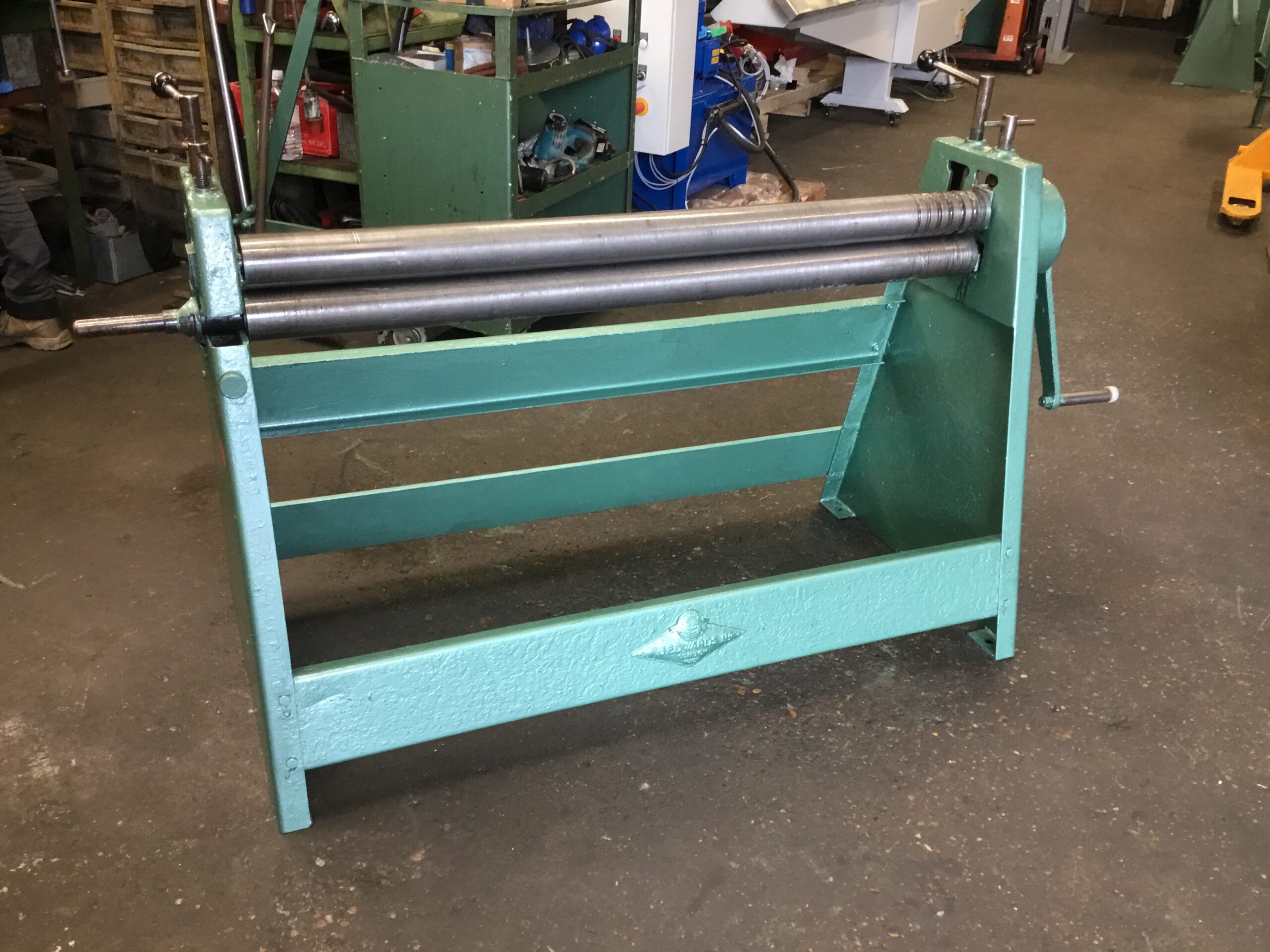

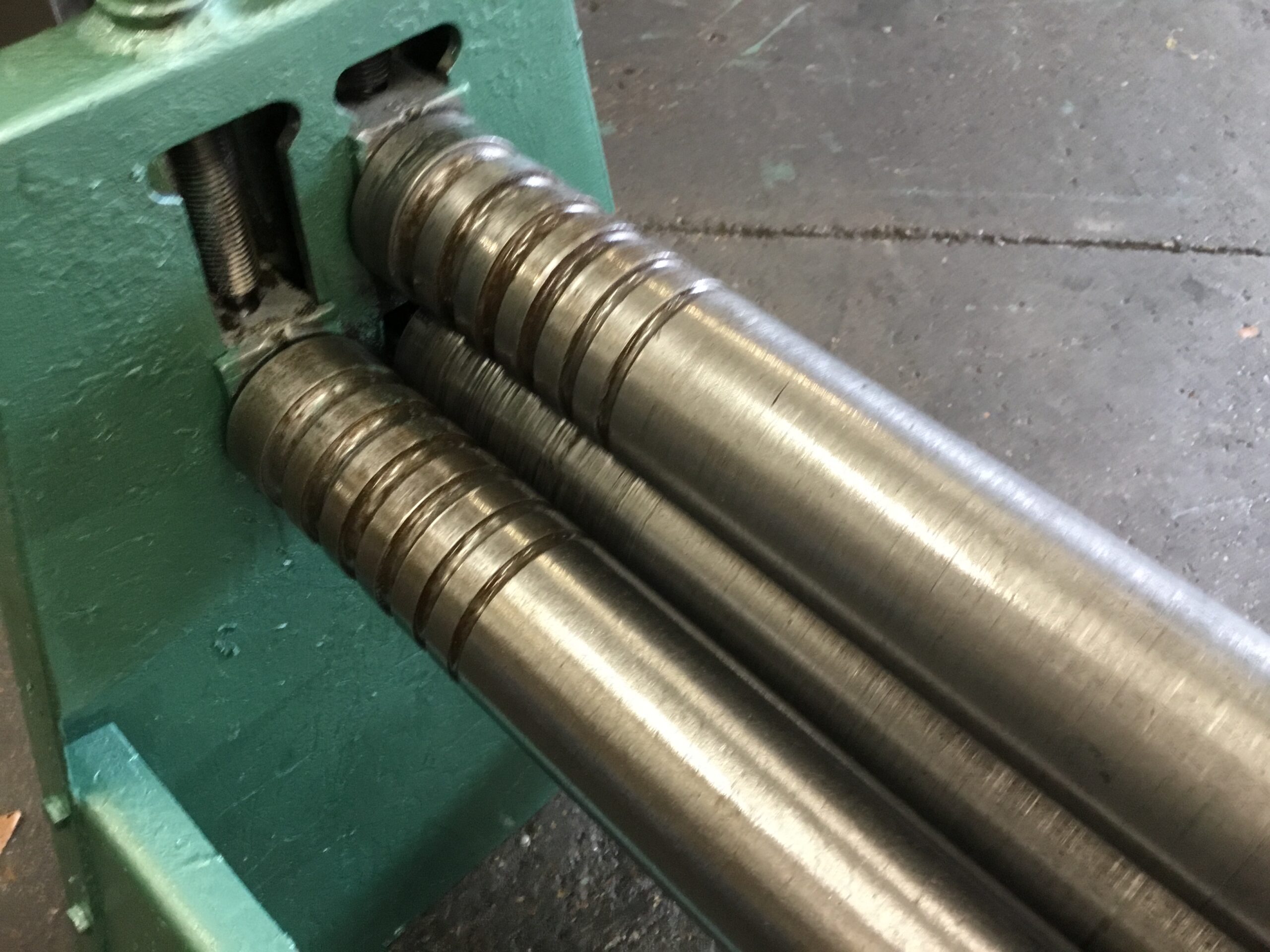

F.J. EDWARDS HAND BENDING ROLLS (EBR07) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. This machine has a 1240mm (4ft) roll length, 75mm (3”) roll diameter and can accommodate mild steel up to 1.6mm thick. These rolls are bottom slip and are complete with 6 x wiring grooves.
USED
This is a used machine and is in full working order.

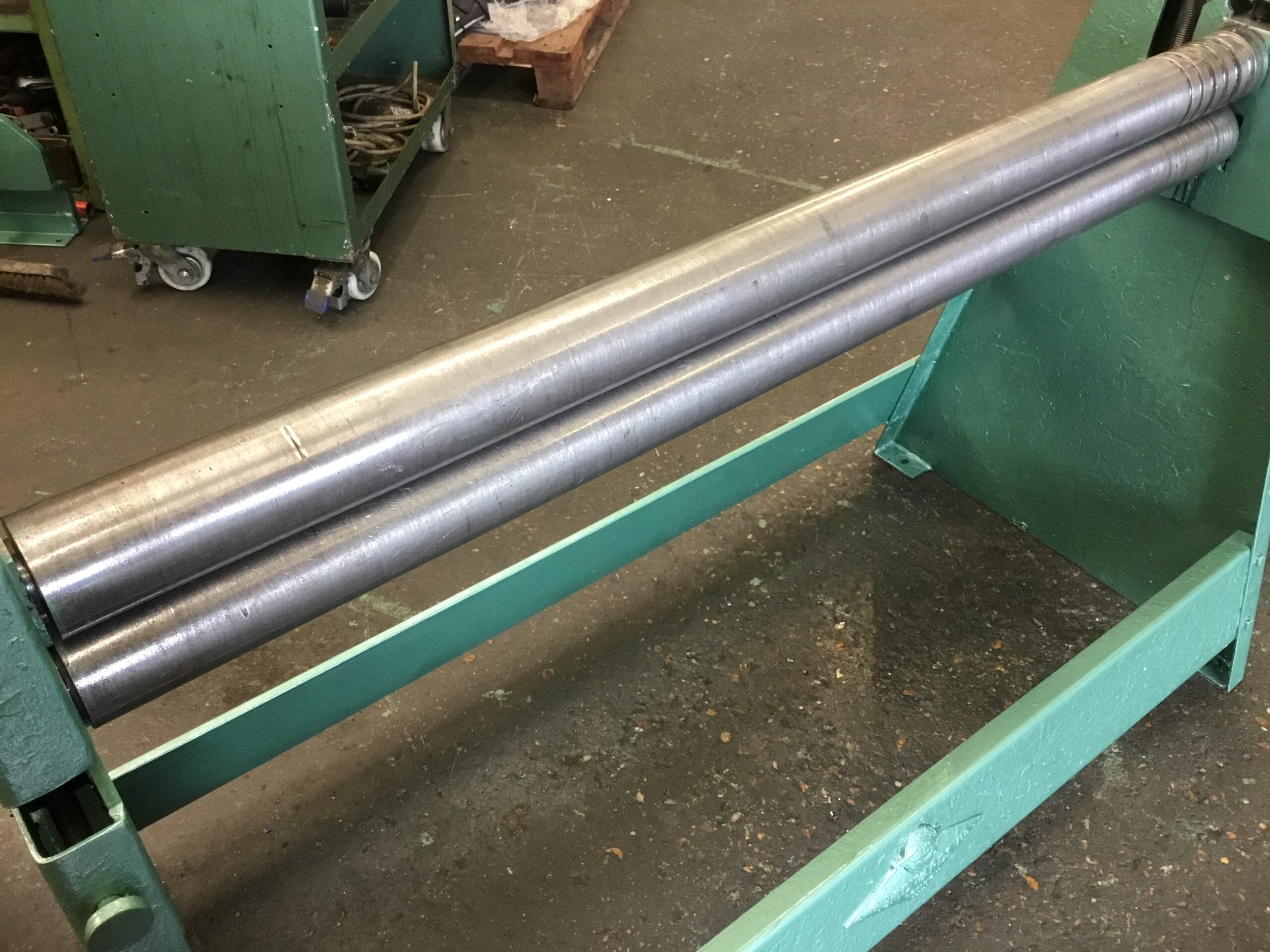

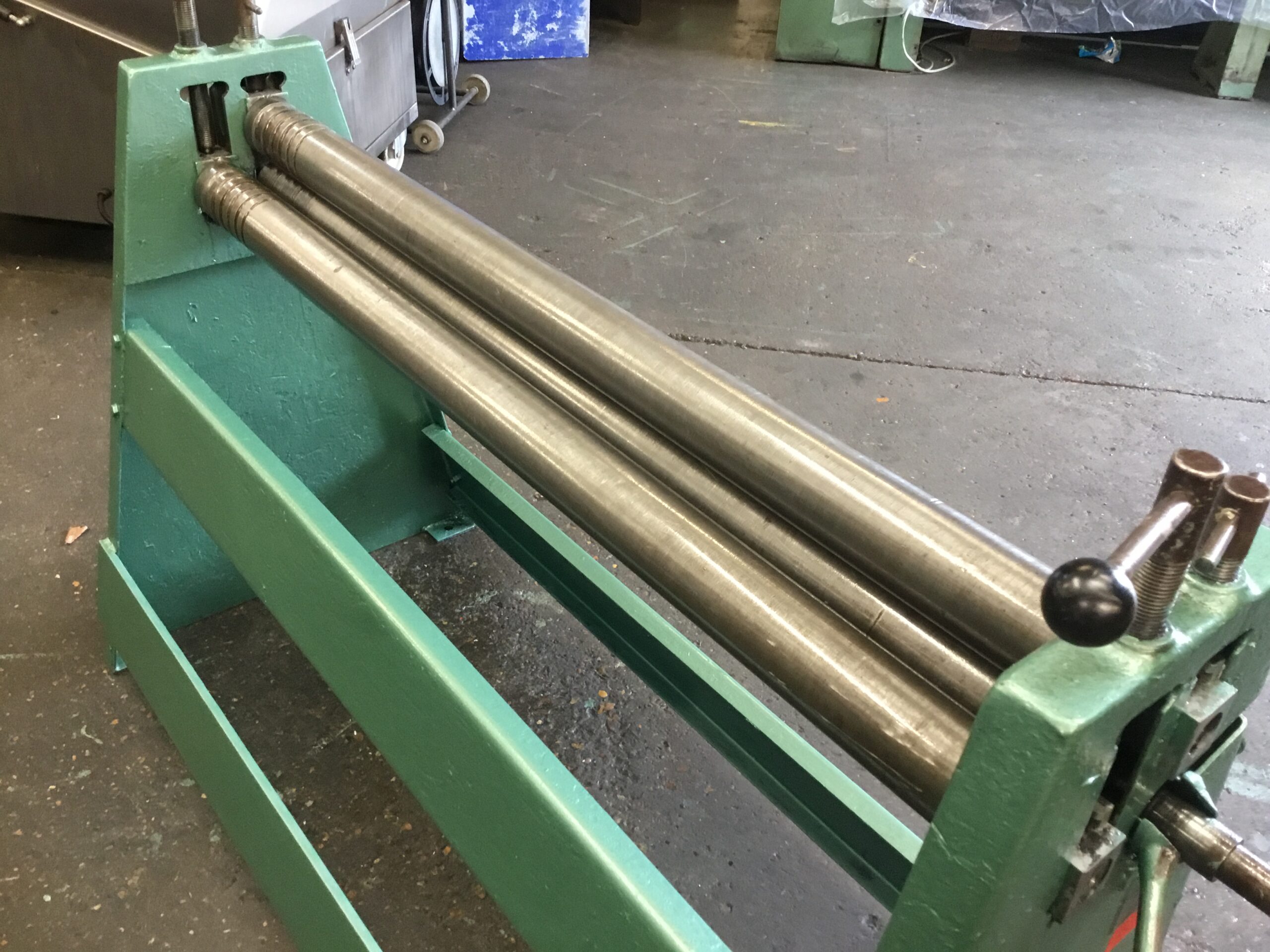

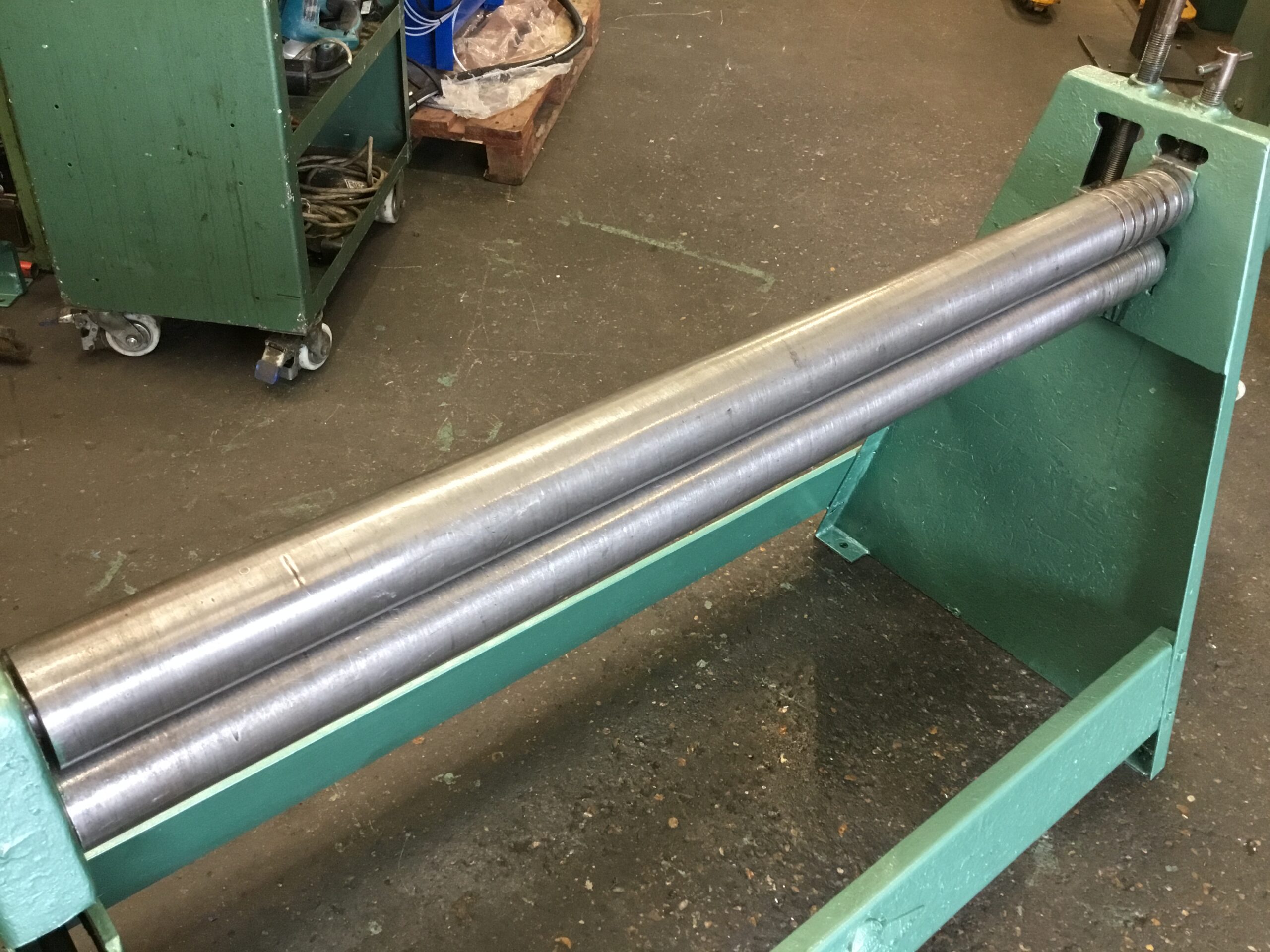

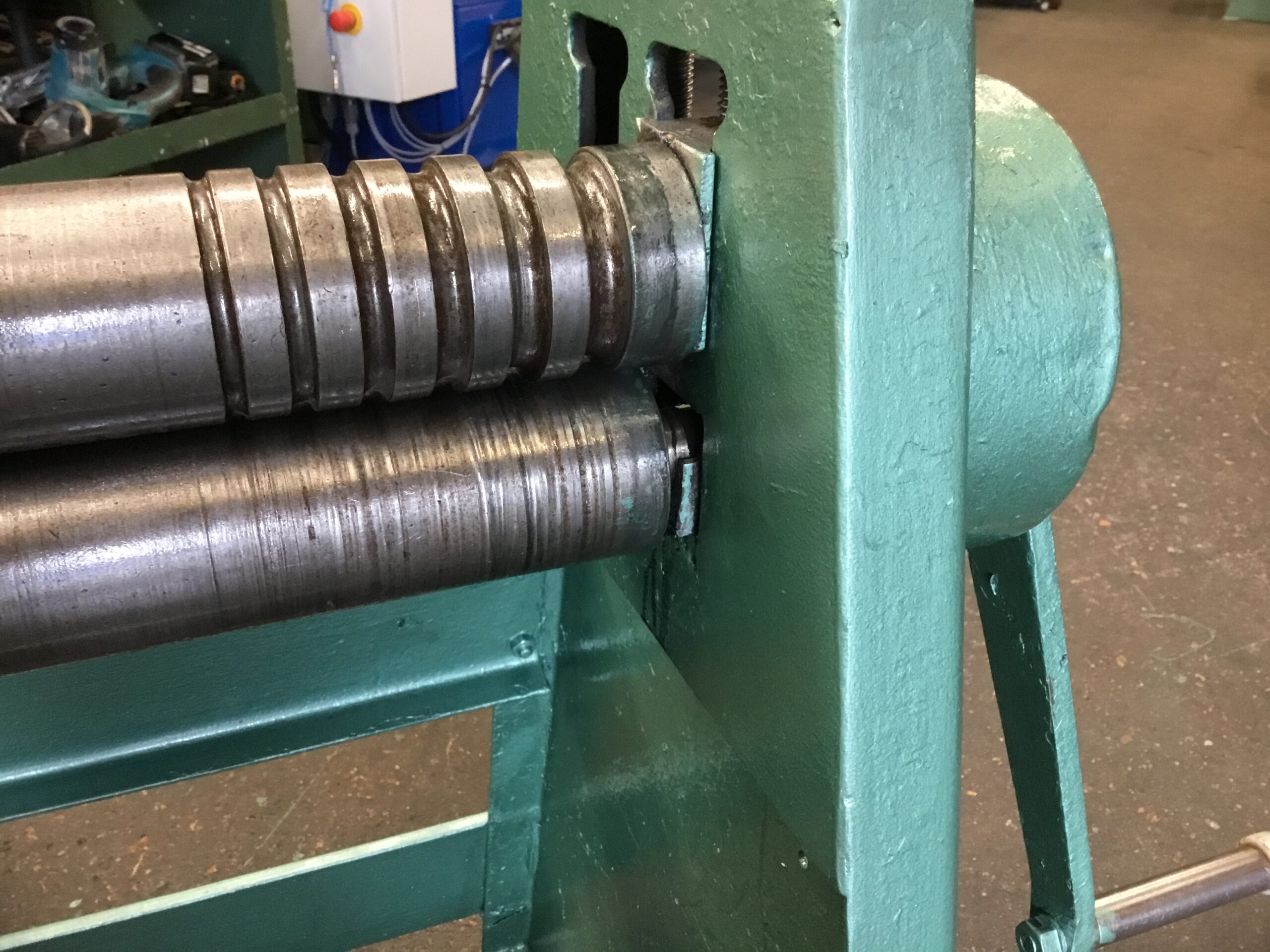

A few marks on the rolls consistent with age (please see photos)
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our bending rolls, please click here.
To view all of our used/reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | EBR07 |
| Roll Size: | 1240mm (4ft) Roll Length x 75mm (3”) Roll Diameter |
| Maximum Thickness: | 1.6mm Capacity Mild Steel |
| Rolls: | Bottom Slip |
| Wiring Grooves (x 6): | 6.0mm |
| 7.5mm | |
| 9.5mm | |
| 11mm | |
| 12mm | |
| 14mm | |
| Dimensions – machine inc handle (apx): | 1900mm x 600mm x 1000mm (l x w x h |
| Weight – net (apx): | 150kg |
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
