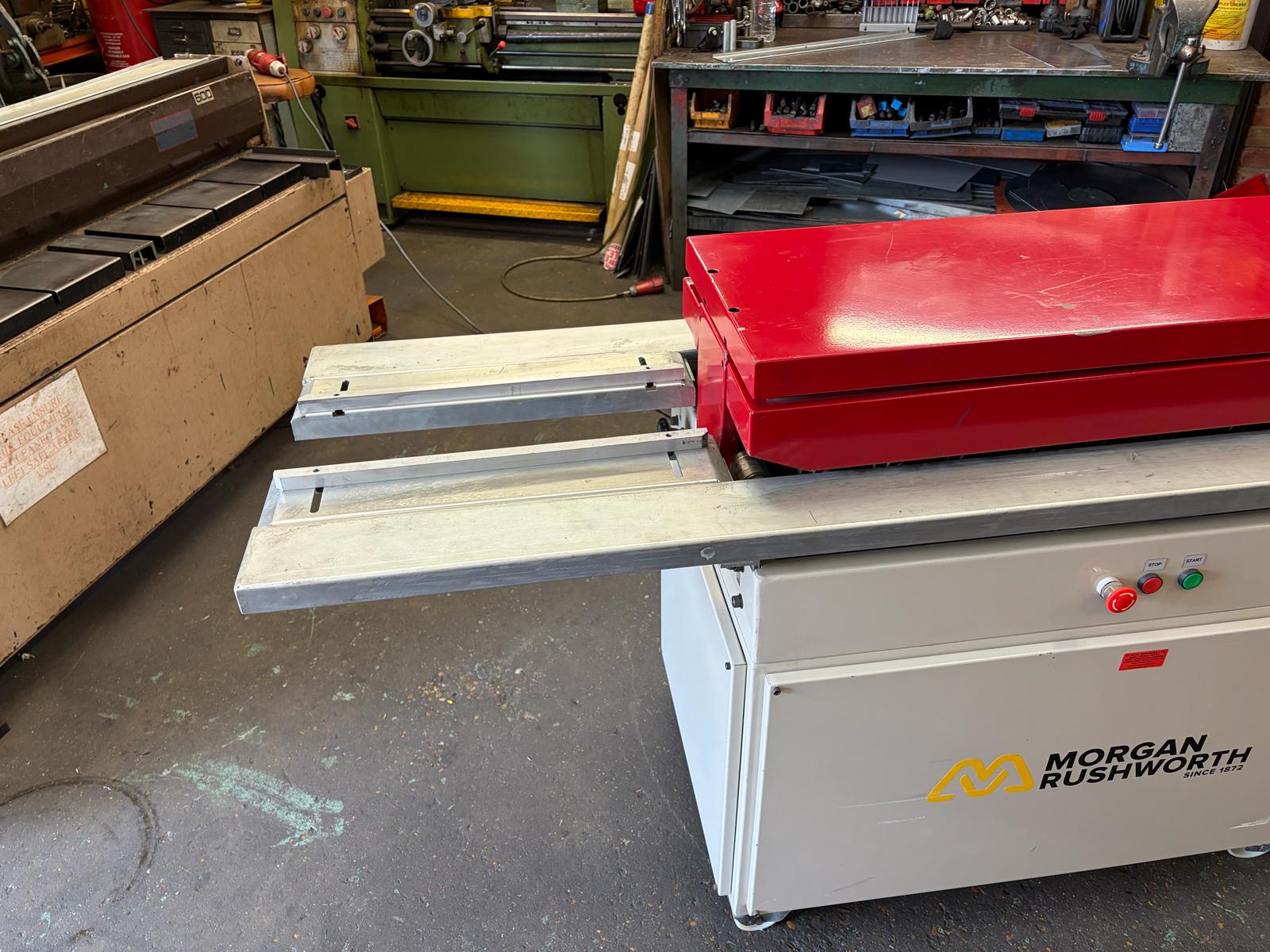

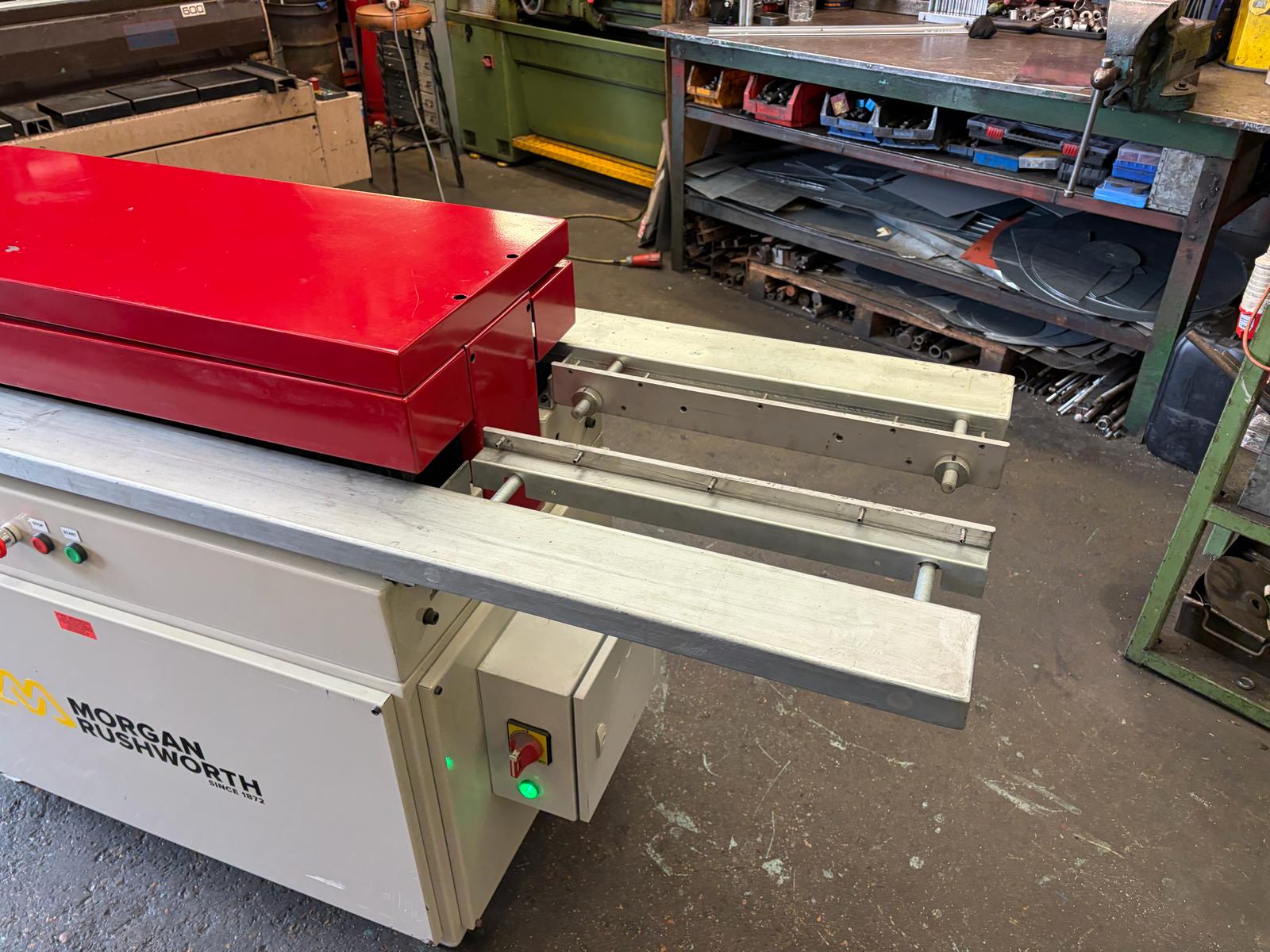

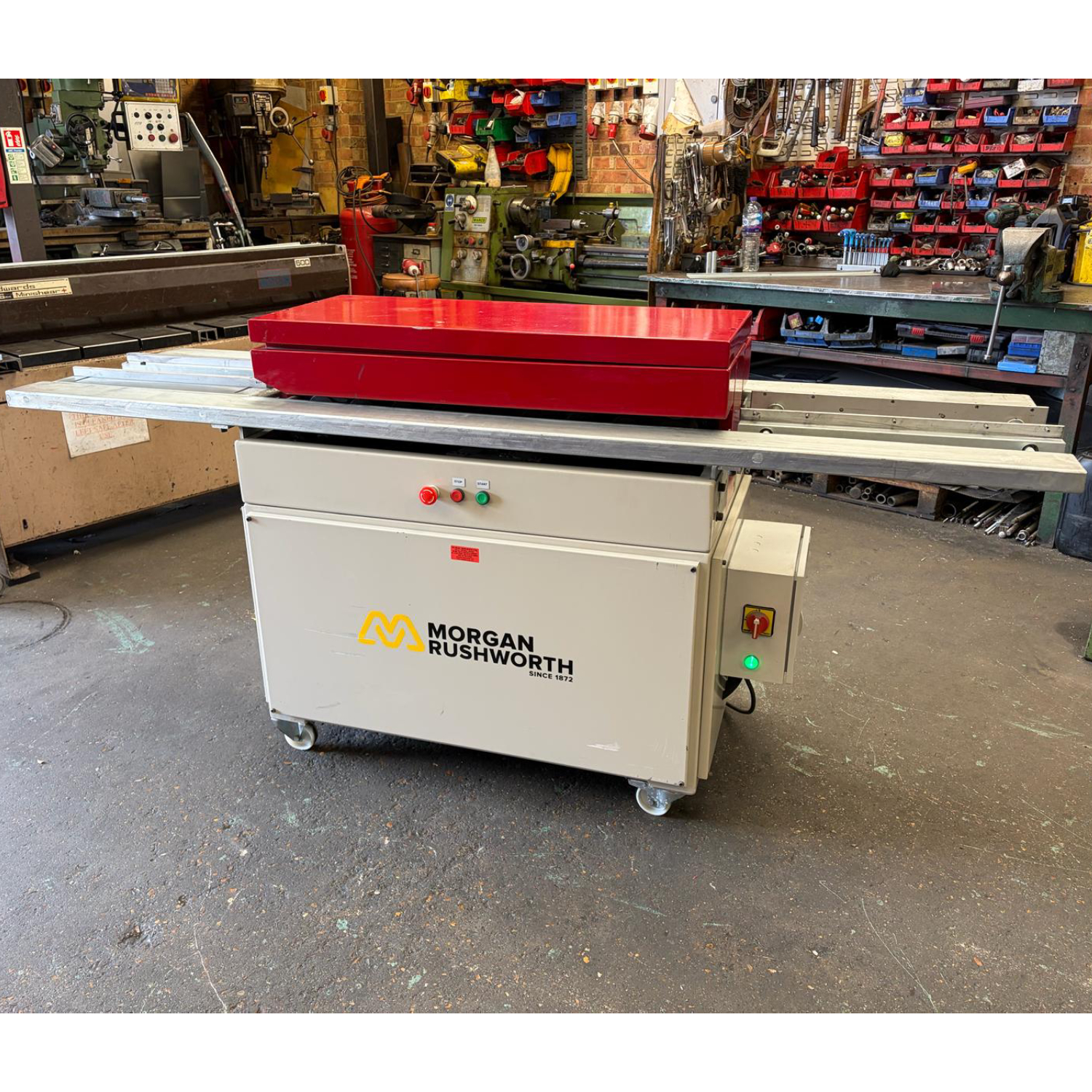

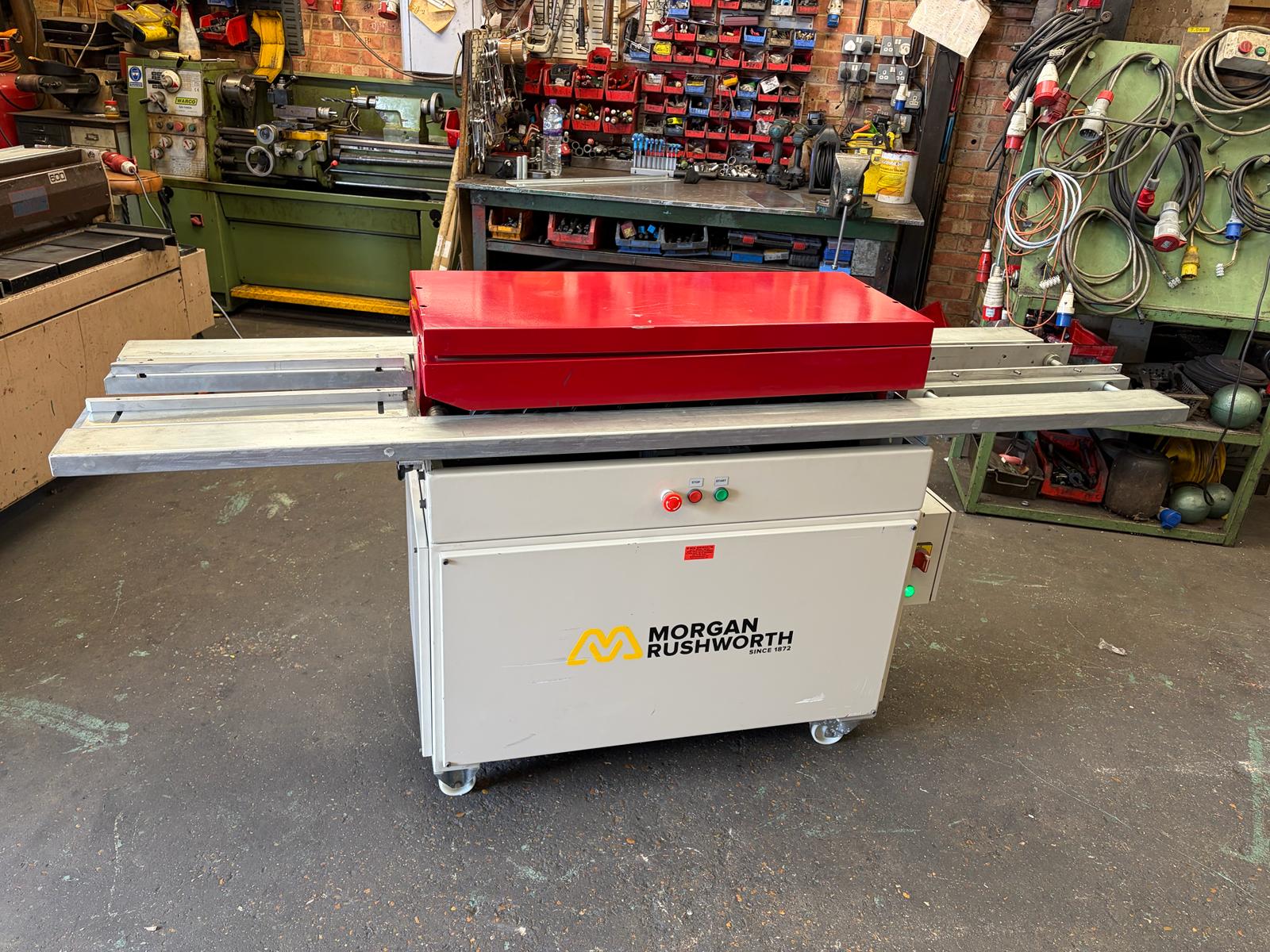

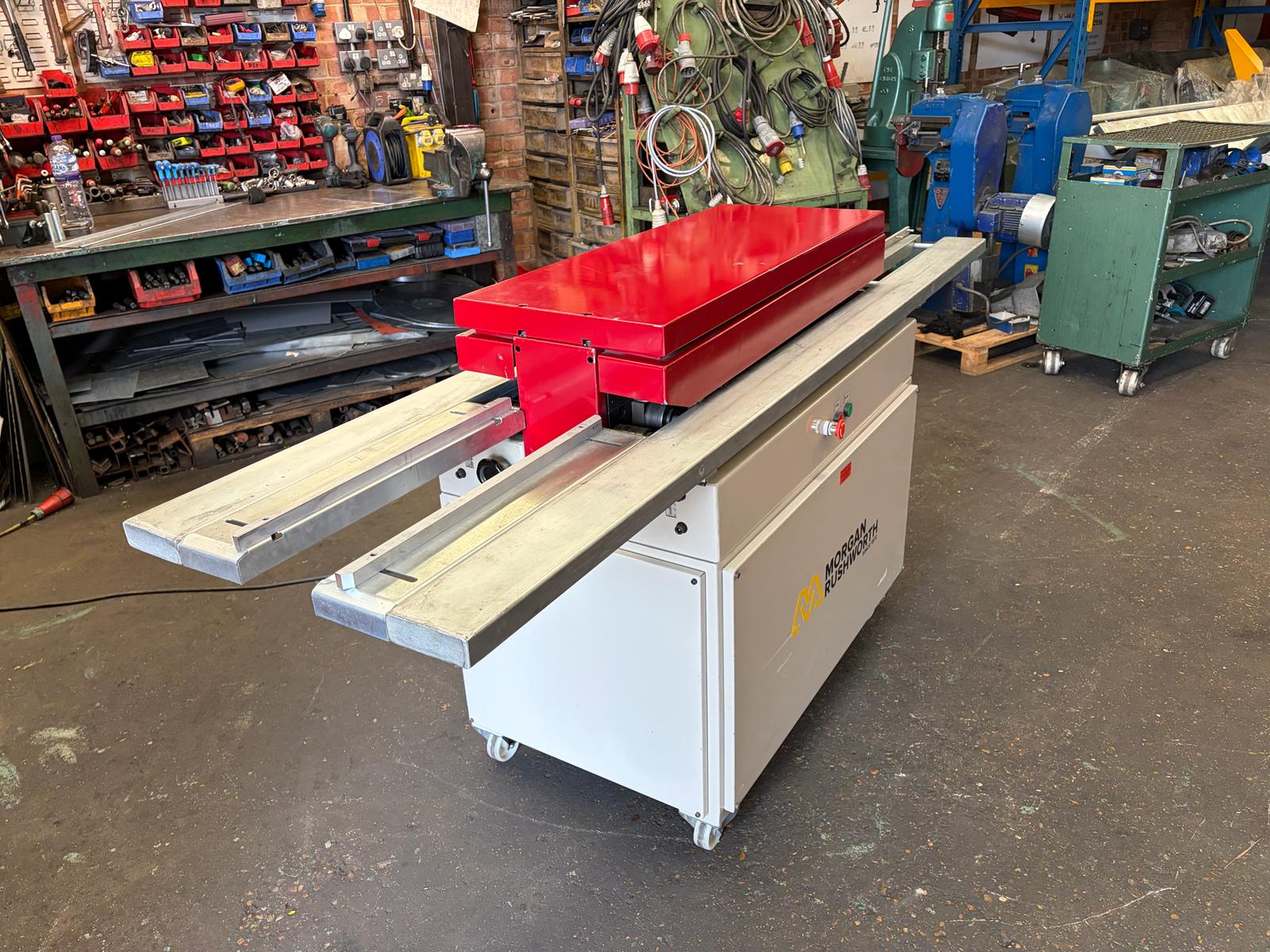

MORGAN RUSHWORTH RFX 9/1.2 18swg (1.2mm) PITTSBURGH LOCK ROLLFORMERS (REF: 419) are 7 station machines and are principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. This machine comes complete with Pittsburgh lock rolls & right angle flange rolls, and has 415v, 3 phase electrics with neutral & earth.
The ‘lock’ is formed in one pass and a flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK SEAM CLOSER / LOCKER (SC10), (SC12) or alternatively with a WNS 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMER (AH18).
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available rollformers/lockformers, please click here.
To view all of our used/reconditioned machines please click here.
Â
| SPECIFICATIONS – GENERAL | |

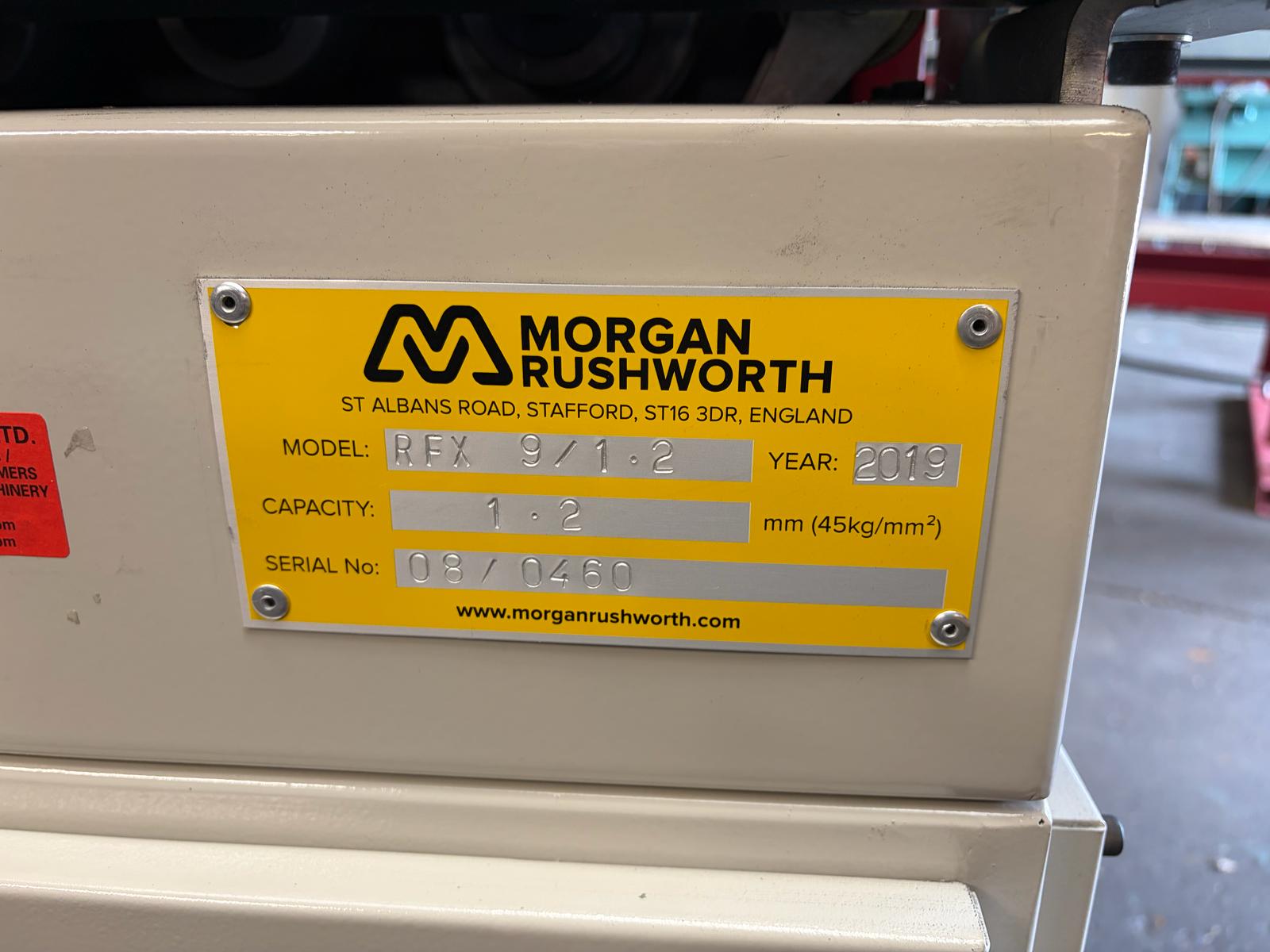

| Model: | REF: 419 (RFX 9/1.2) |
| Stations: | 7 (with Auxiliary Shafts) |
| Maximum Thickness: | 18swg (1.2mm) Capacity Mild Steel |
| Supply Voltage: | 415v, 3 Phase Electrics Neutral & Earth |
| Dimensions – machine (apx): | 2200mm x 620mm x 1060mm (l x w x h) |
| Weight – Net (apx): | 290Kg |
| SPECIFICATIONS – PITTSBURGH LOCK ROLLS (FITTED AS STANDARD) |
|
| Maximum Thickness: | 26swg – 18swg (0.5mm – 1.2mm) Mild Steel |
| Approximate Material Used: | 30mm – subject to knock over edge |
| Seam Width: | 11-12mm |
| Pocket Depth: | 10mm |
| SPECIFICATIONS – RIGHT ANGLE FLANGE ROLLS |
|
| Maximum Thickness: | 18swg (1.2mm) Mild Steel |
| Approximate Material Used: | Â 11mm |
| Flange Height: | 12mm Maximum |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
