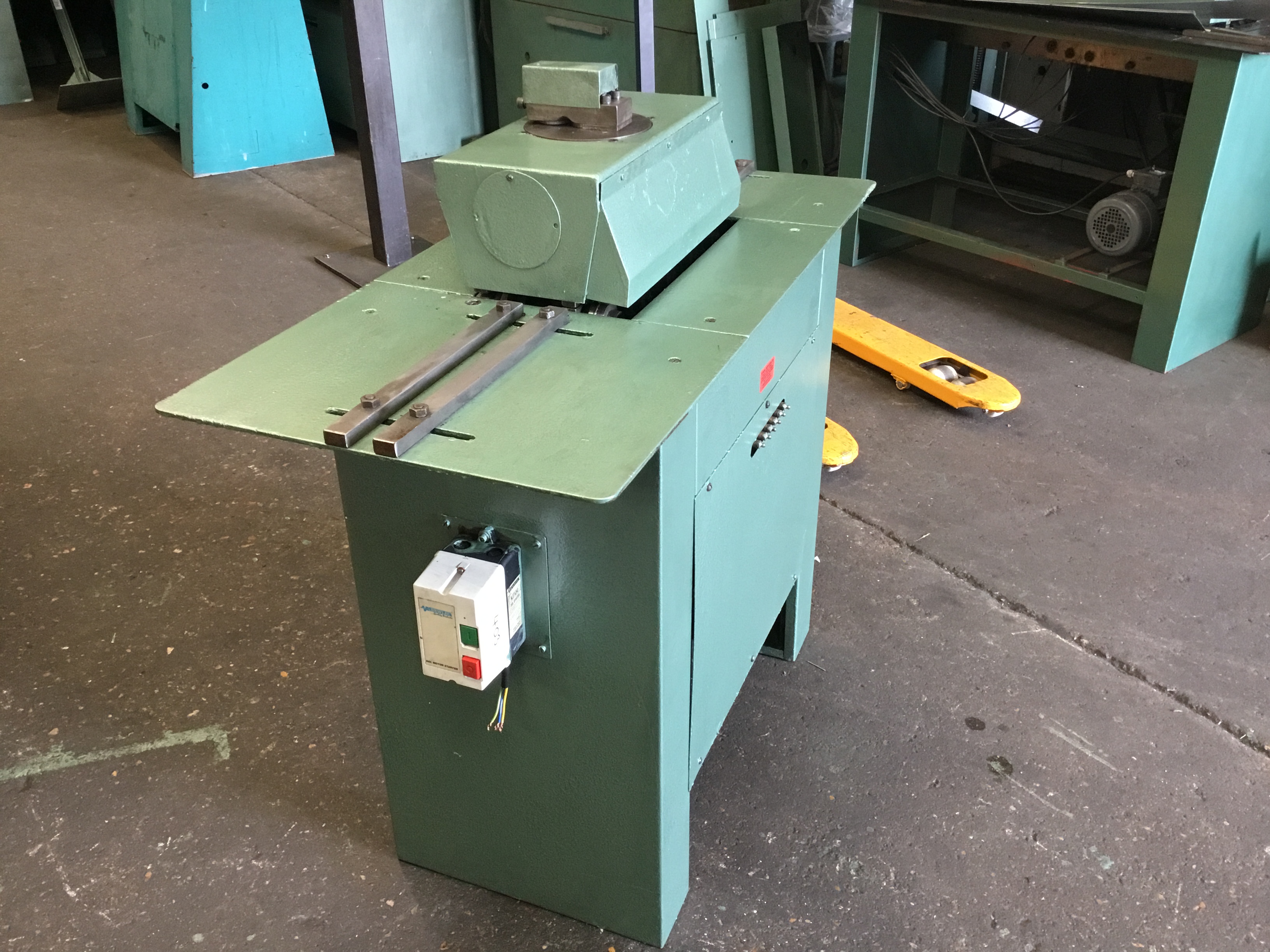

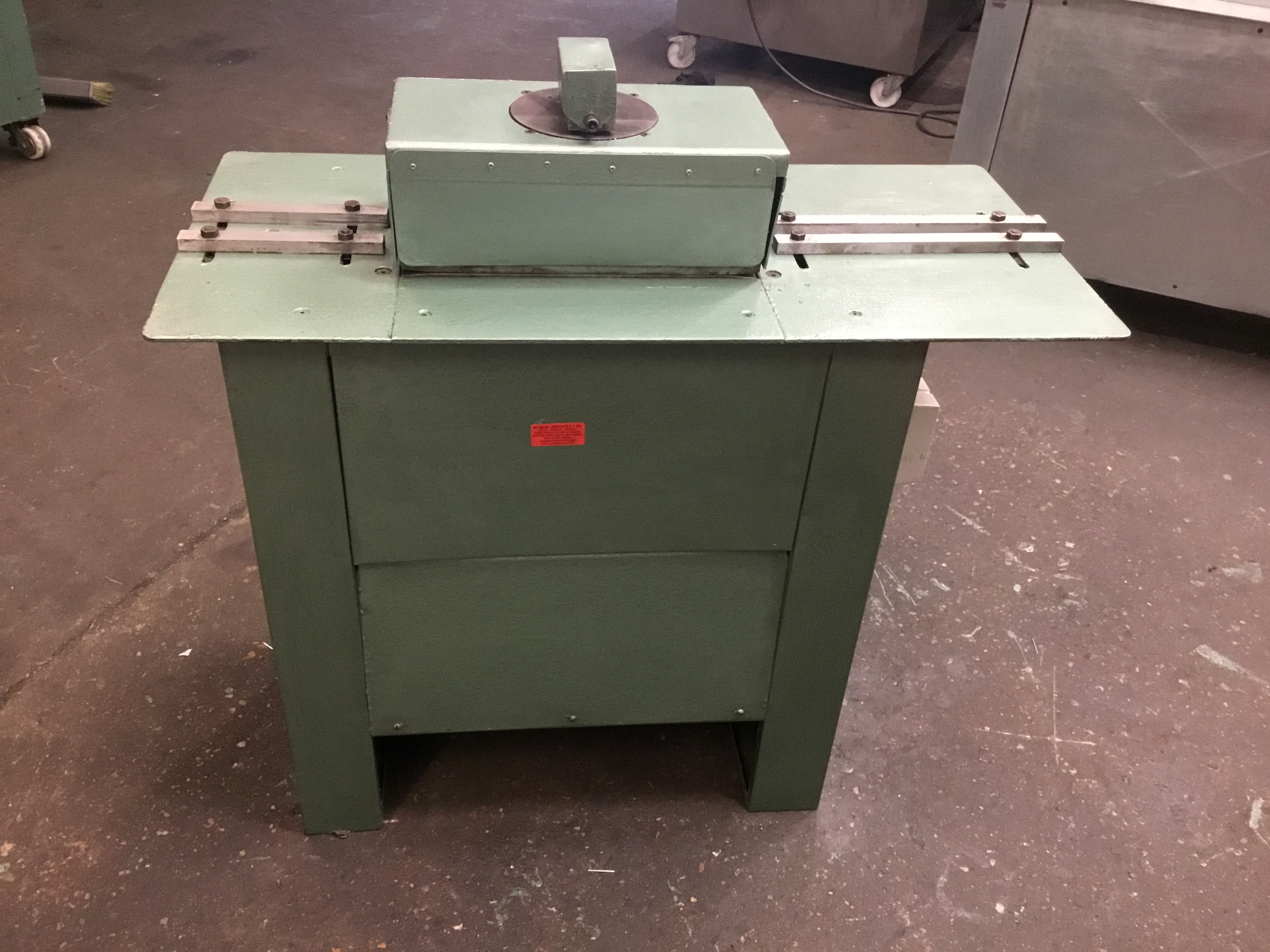

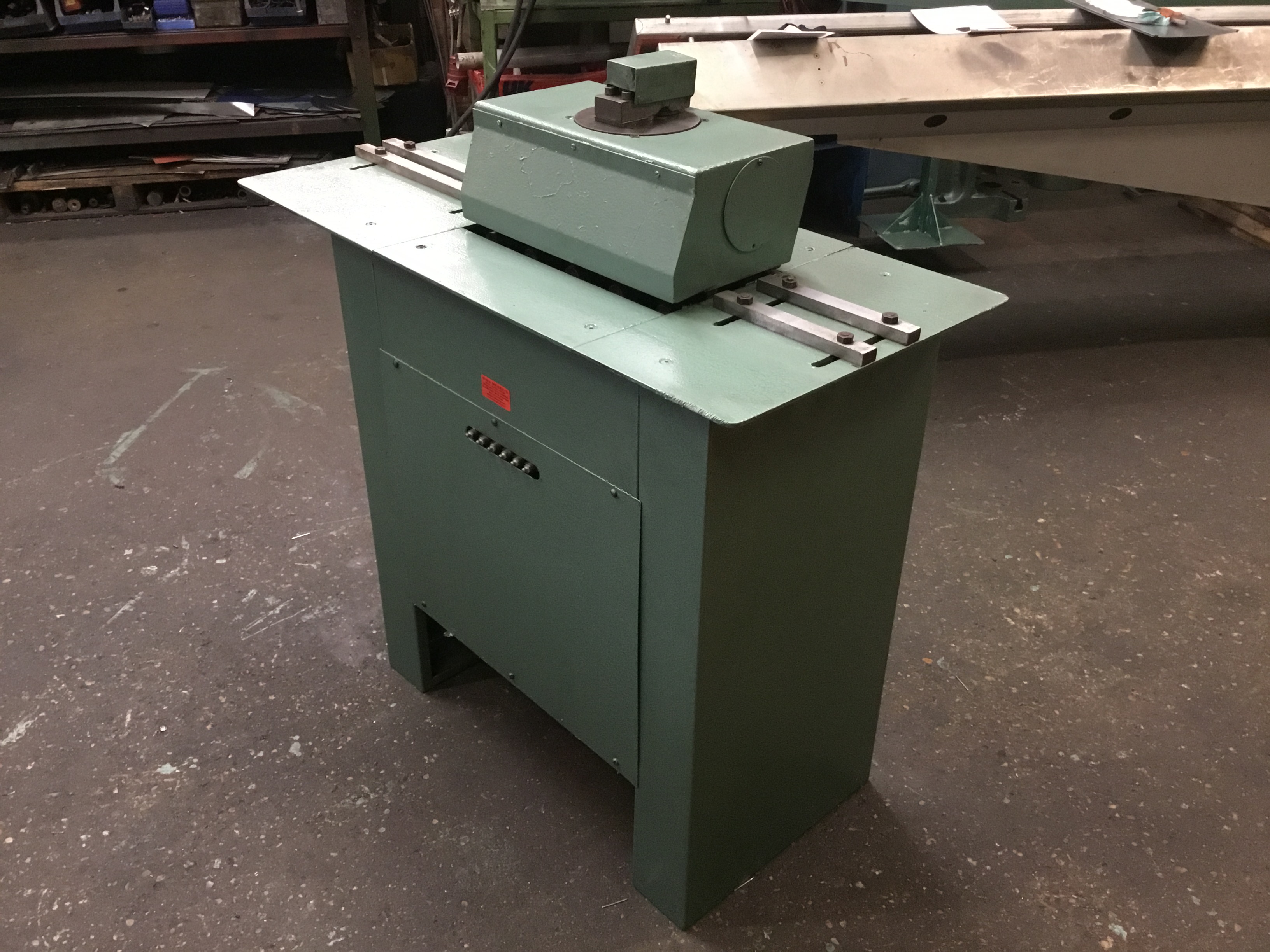

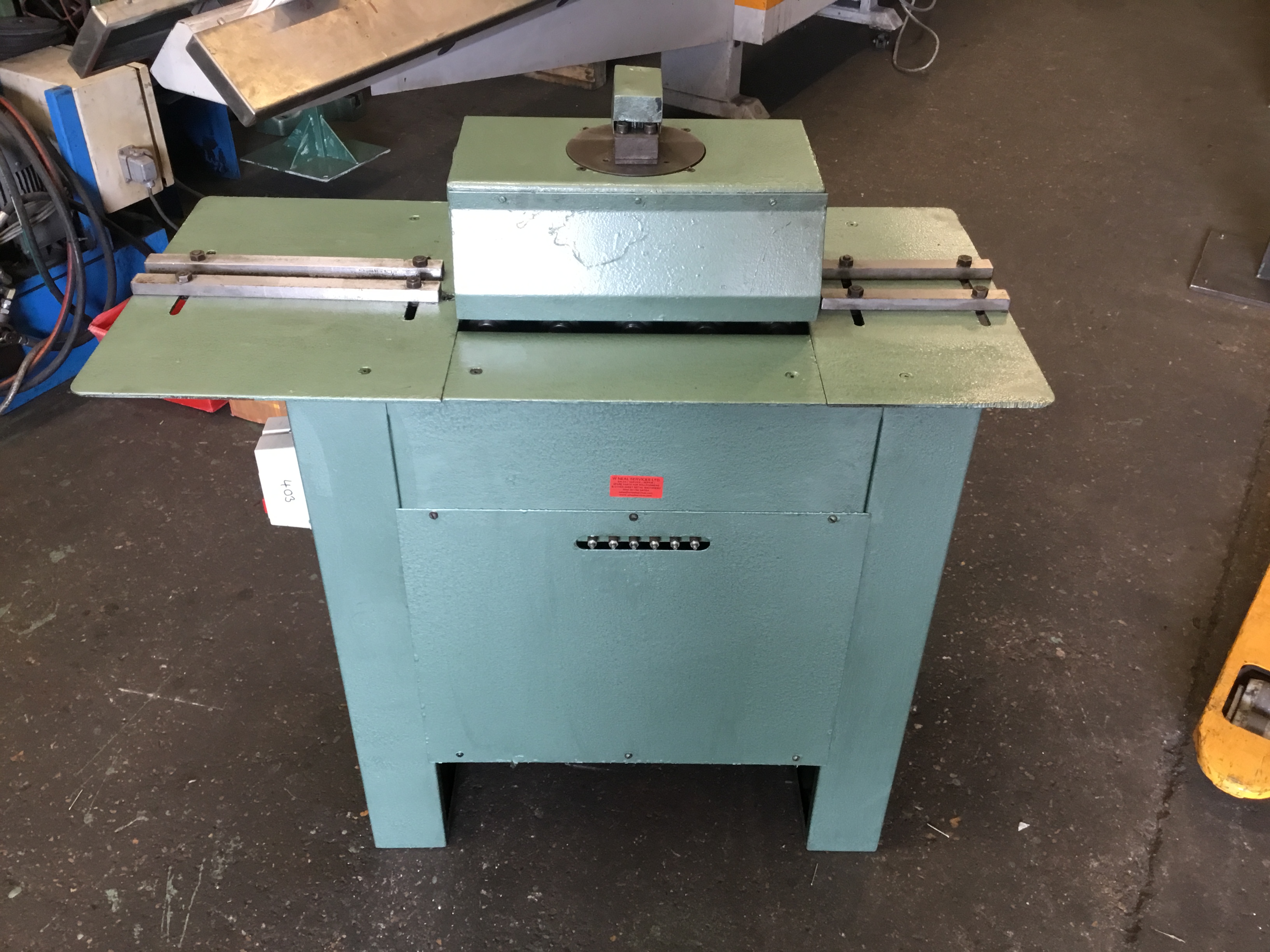

SHORTE 20swg (1.0mm) PITTSBURGH LOCK LOCKFORMER ROLLFORMERS (REF: 403) are 5-station machine and principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. This machine is complete with Pittsburgh lock rolls, flanging attachment and double seam rolls. This machine has 240v, single phase electrics.
Additional Auxiliary Rolls Compatible & Available:
• Double Seam
• Drive Cleat
• Right Angle Flange
USED/RECONDITIONED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available Rollformers/Lockformers, please click here.
To view all of our Used/Reconditioned machines please click here.
Â
| SPECIFICATIONS – GENERAL | |
| Model: | REF: 403 |
| Stations: | 5 (with Auxiliary Shafts) |
| Maximum Thickness: | 20swg (1.0mm) Capacity Mild Steel |
| Supply Voltage: | 240v, Single Phase Electrics |
| Dimensions – machine (apx): | 1130mm x 510mm x 1060mm (l x w x h) |
| Weight – Net (apx): | 175Kg |
| SPECIFICATIONS – PITTSBURGH LOCK ROLLS (FITTED AS STANDARD) |
|
| Maximum Thickness: | 20swg (1.0mm) Mild Steel |
| Approximate Material Used: | 25mm – subject to knock over edge |
| Seam Width: | 10mm |
| Pocket Depth: | 8.5mm |
| SPECIFICATIONS –Â AUTOGUIDE FLANGING ATTACHMENT |
|
| Maximum Thickness: | Â 20swg (1.0mm) Mild Steel |
| Minimum Radius: | Â 100mm |
| Approximate Material Used: | 6.0mm |
| Fkange Height: | 6.0mm |
| Flanging Attachment Direction: | Â Left to Right |
| SPECIFICATIONS –Â DOUBLE SEAM ROLLS |
|
| Maximum Thickness: | Â 22swg (0.8mm) Mild Steel |
| Approximate Material Used: | Â 20mm |
| Seam Width: | Â 10mm |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
