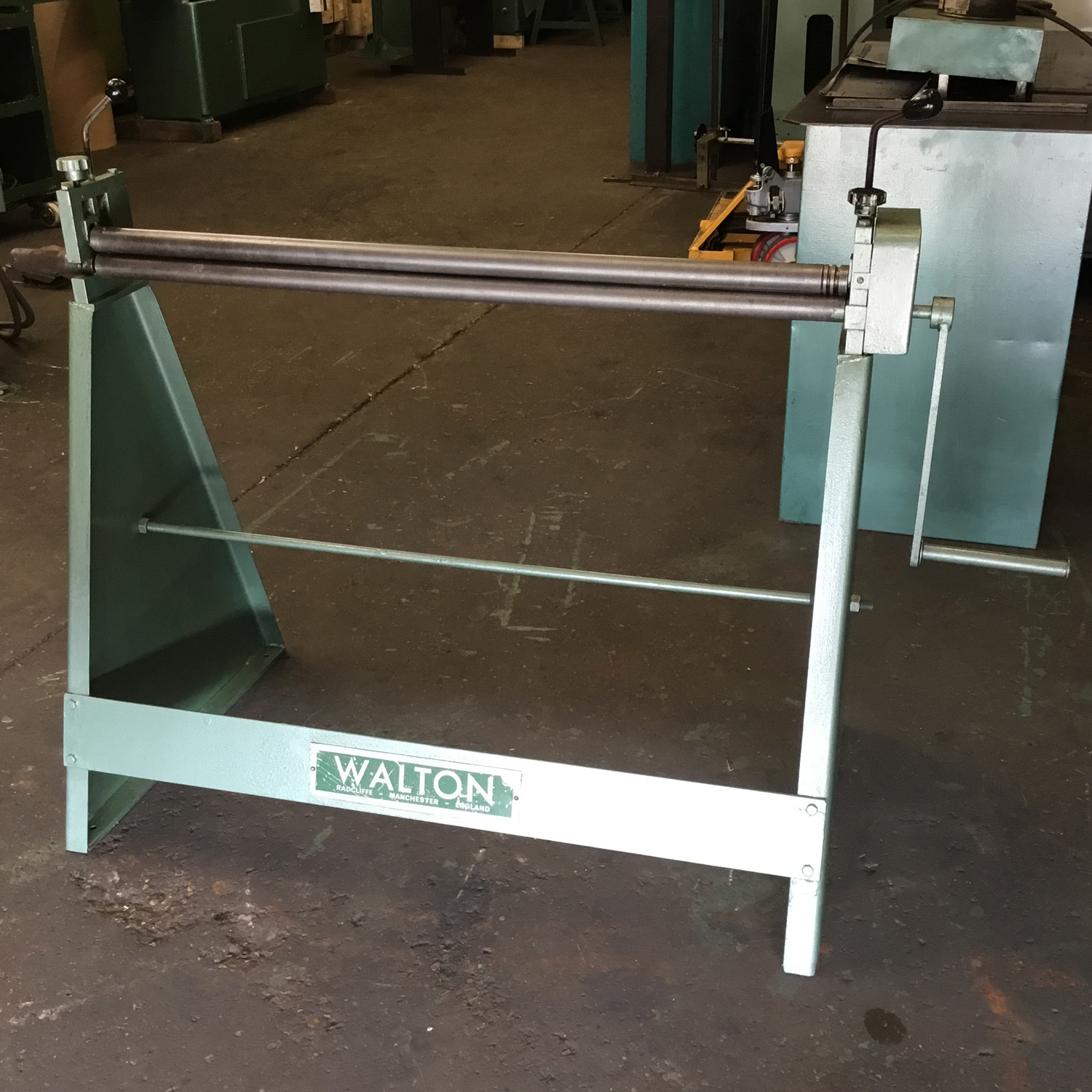

WALTONS HAND BENDING ROLLS (WBR1020) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. This machine has a 1020mm roll length, 35mm roll diameter and can accommodate mild steel up to 1.0mm thick. The rolls are bottom slip and come complete with 3 x wiring grooves.
USED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available Bending Rolls, please click here.
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | WBR1020 |
| Roll Size: | 1020mm Roll Length x 35mm Roll Diameter |
| Maximum Thickness: | 1.0mm Capacity Mild Steel |
| Rolls: | Bottom Slip |
| Wiring Grooves (x 3): | 2.0mm |
| 4.0mm | |
| 5.0mm | |
| Dimensions – machine (apx): | 1400mm x 600mm x 1100mm (l x w x h) |
| Weight – net (apx): | 100kg |
*please see Terms & Conditions. **fees apply.
All capacities are based on the use of quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
