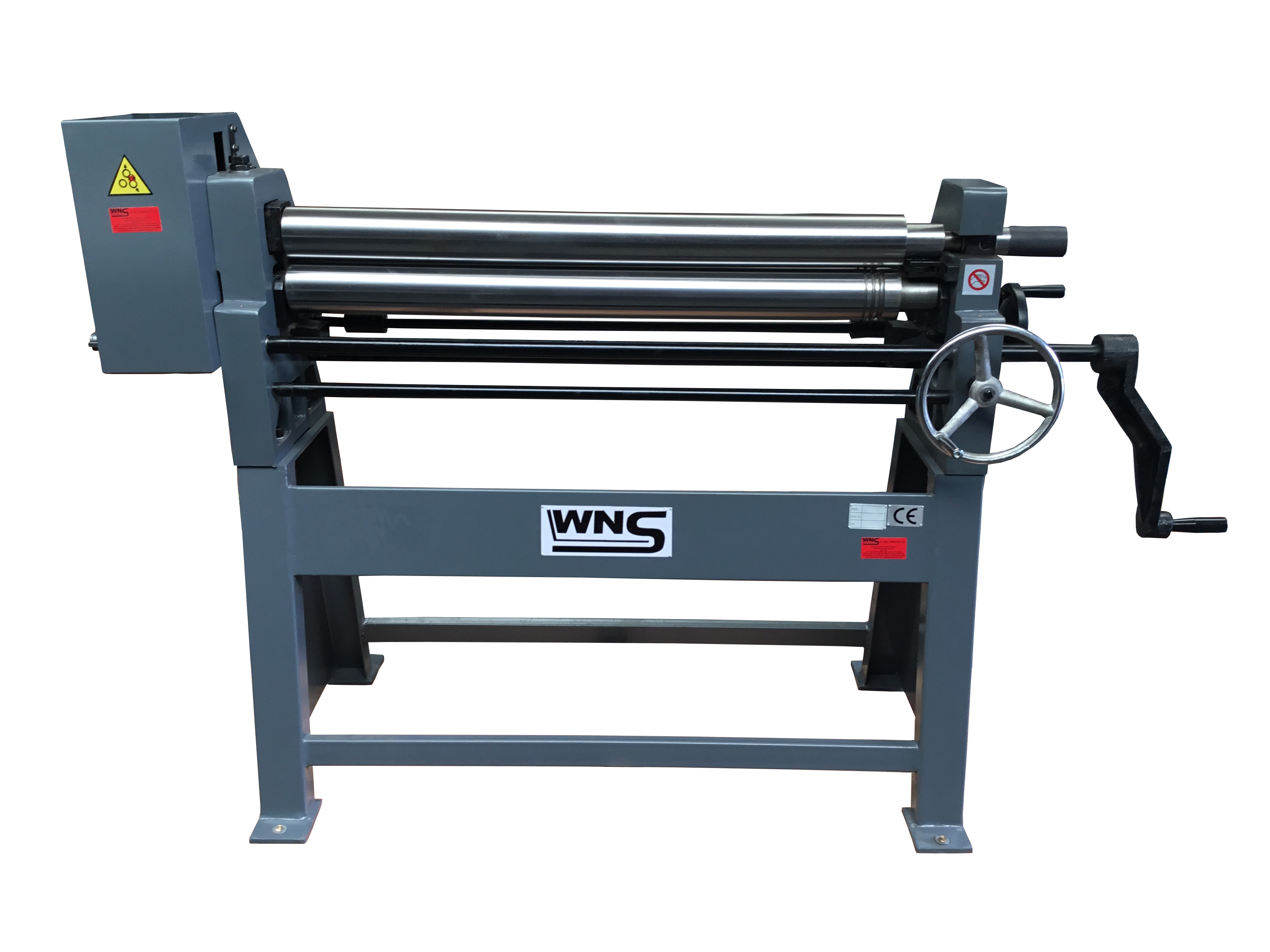

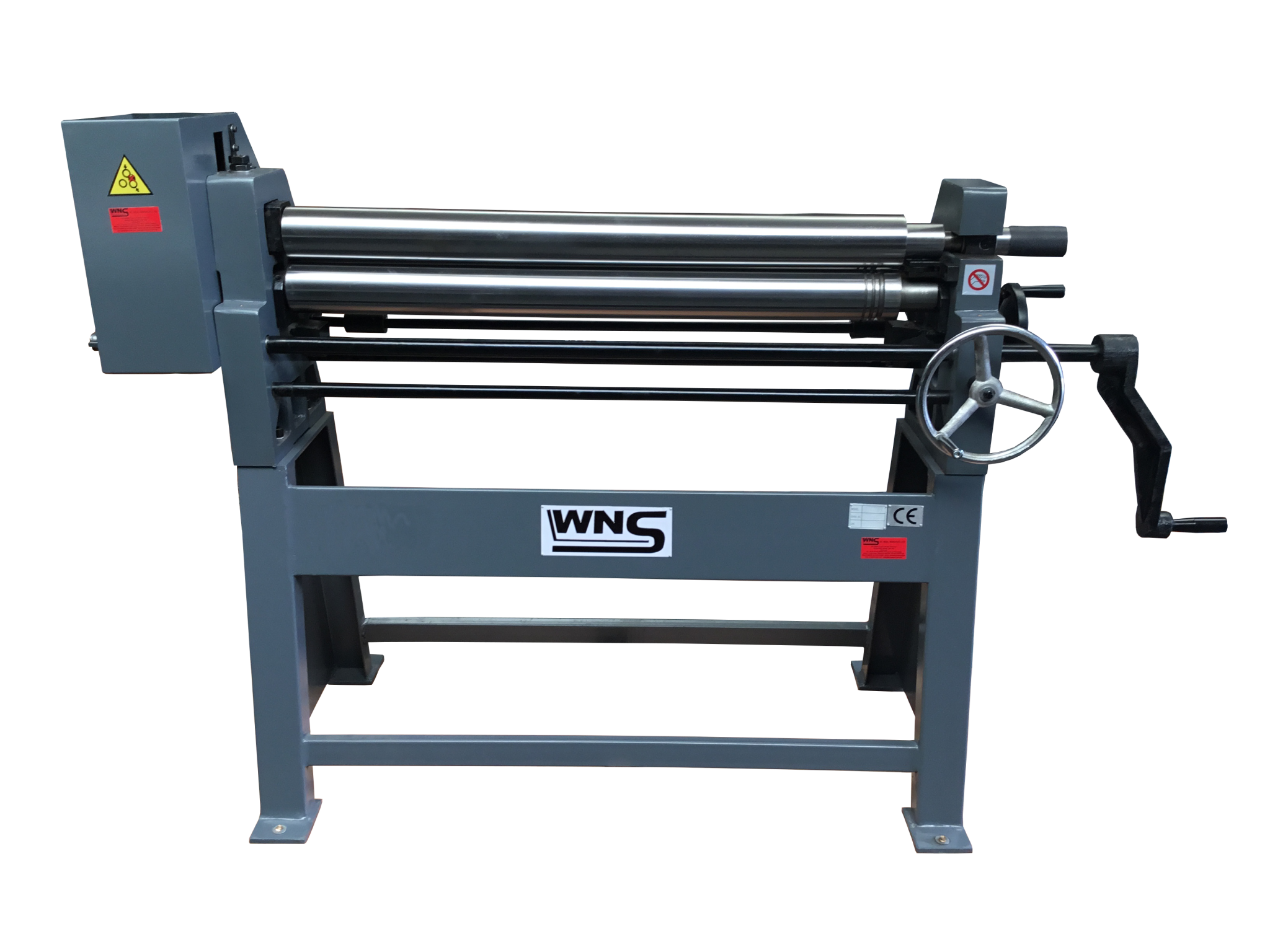

WNS INITIAL PINCH HAND BENDING ROLLS (BR1270/90J) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The BR1270/90J has a 1270mm roll length, 90mm roll diameter and can accommodate mild steel up to 2.5mm thick. These rolls are equipped with 3 wiring grooves and top slip with a quick release top roll. They also feature a quick back roll adjustment, cast iron roll end frame and a fabricated steel stand.
These bending rolls are manufactured with high strength steel rolls and hardened steel gears for ease of forming heavier/thicker gauged materials with a 4:1 ratio.

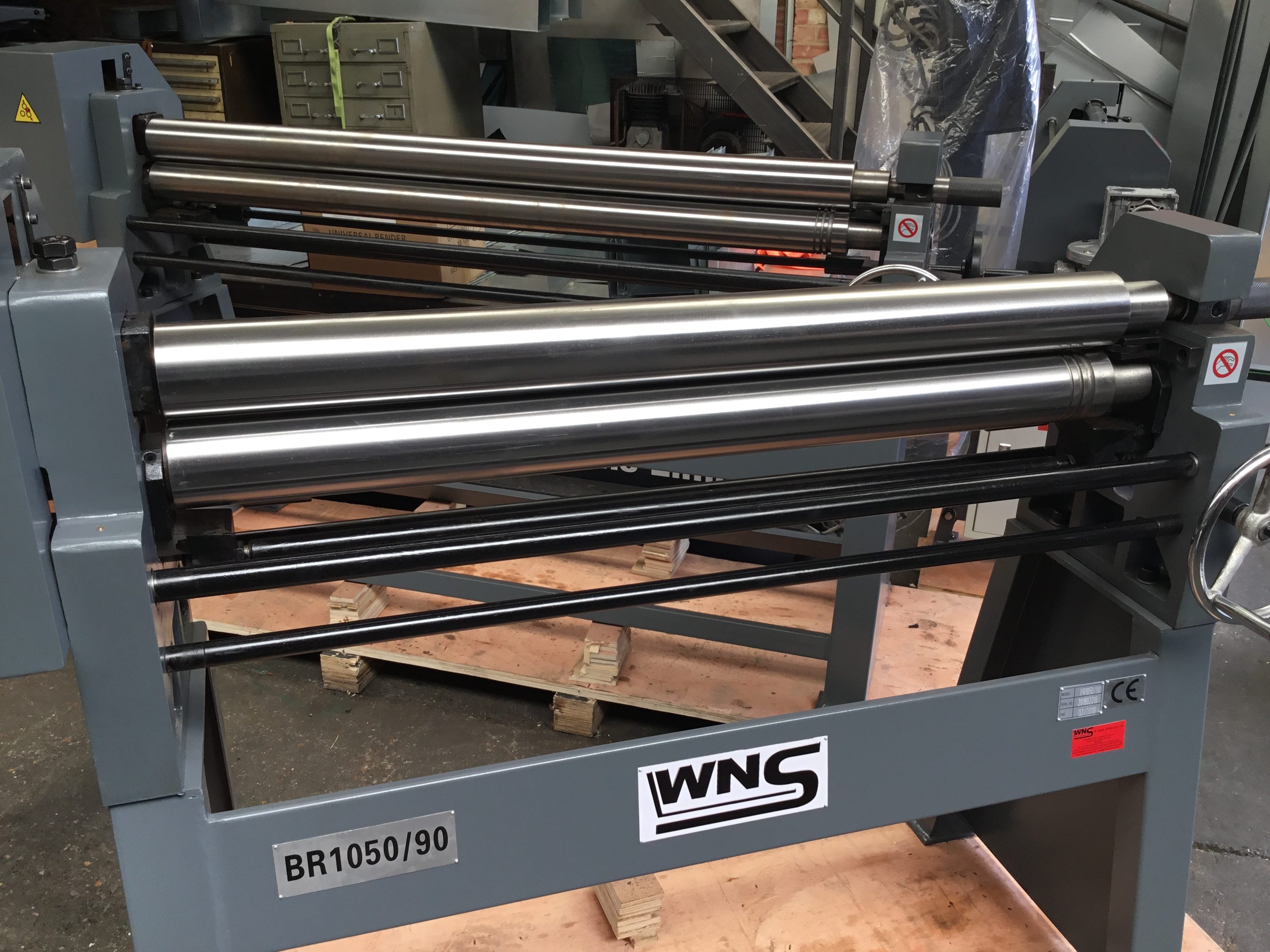

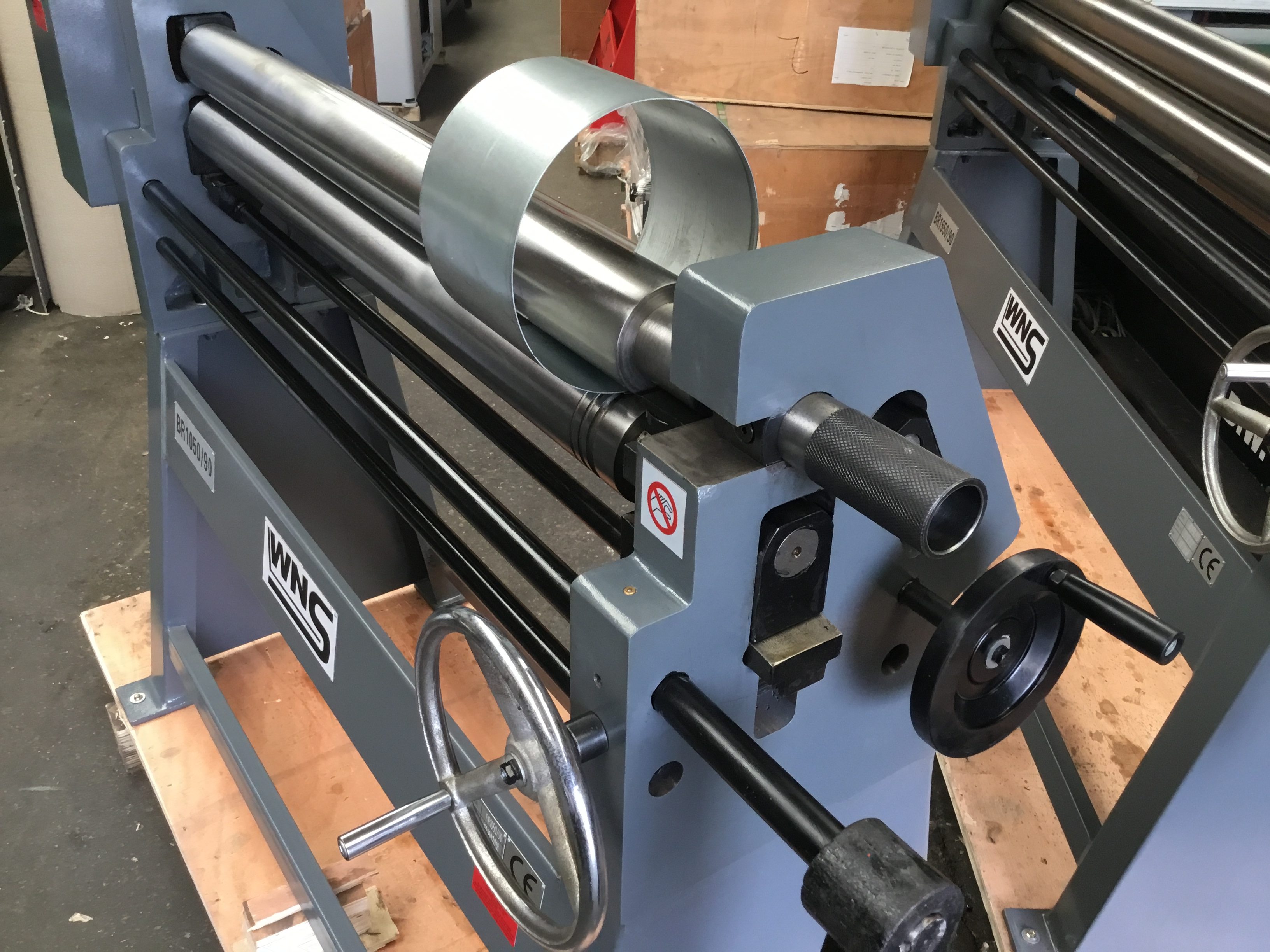

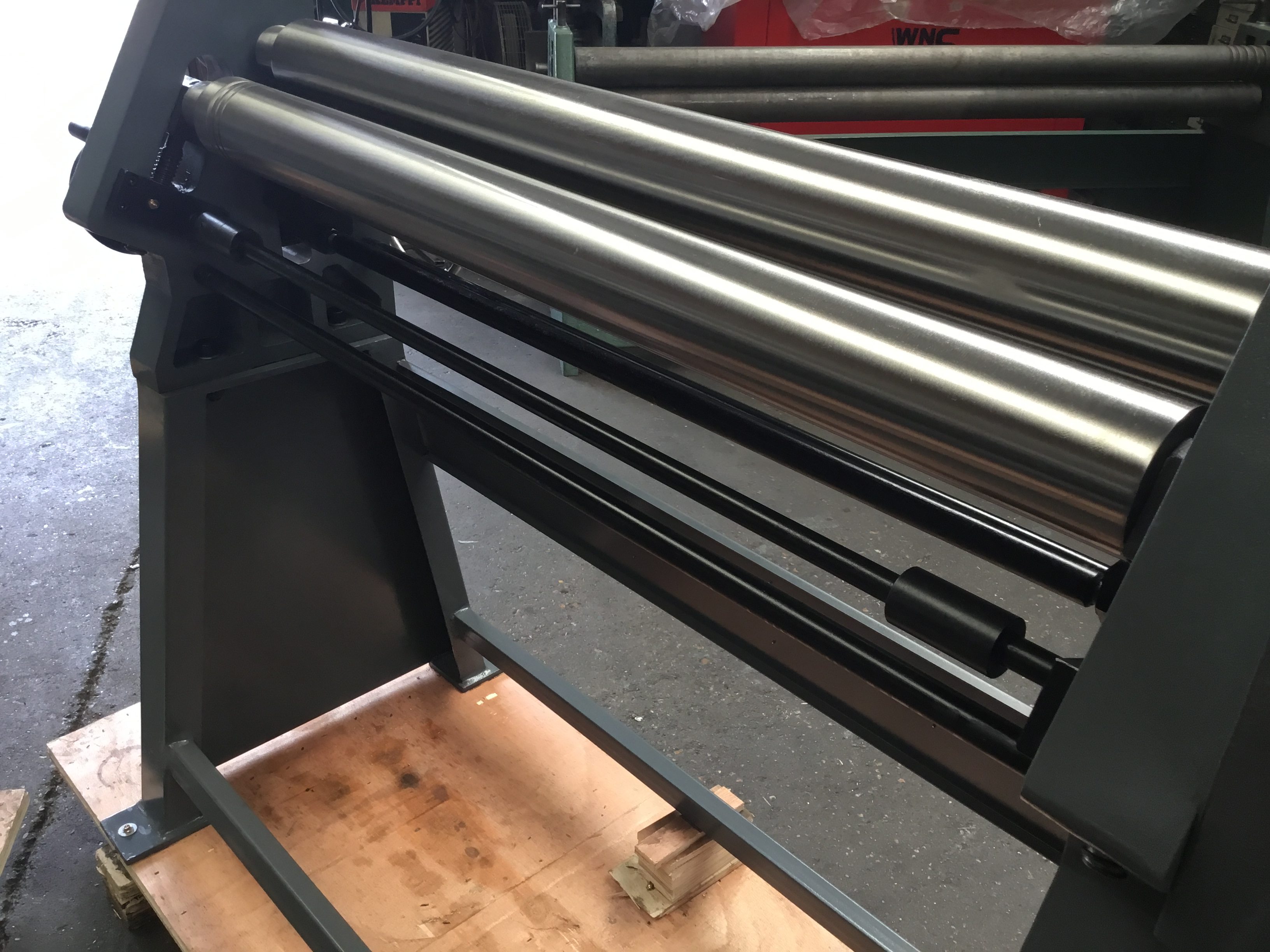

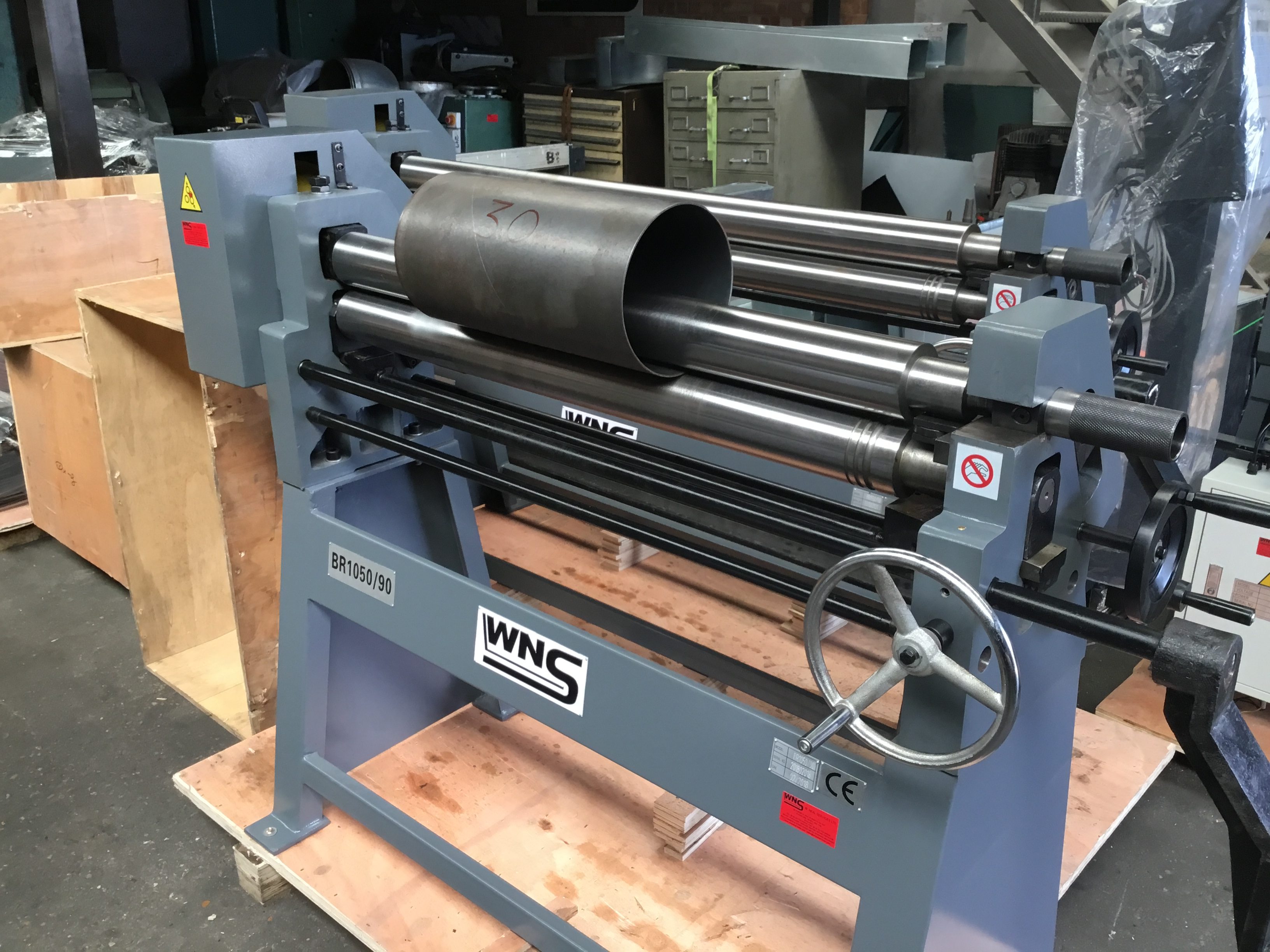

Please note, the photographs shown are of the BR1050/90J.
| Weight | 1750 kg |
|---|
| SPECIFICATIONS | |
| Model: | BR1270/90J |
| Roll Size: | 1270mm Roll Length x 90mm Roll Diameter |
| Maximum Thickness: | 2.5mm Mild Steel |
| Rolls: | Top Slip |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 10mm | |
| Stand: | Fabricated Steel |
| Roll End Frame: | Cast Iron |
| Dimensions – machine (apx): | 1960mm x 680mm x 1300mm (l x w x h) |
| Dimensions – packing (apx): | 2030mm x 710mm x 1360mm (l x w x h) |
| Weights – net/gross (apx): | 550Kg/600Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
