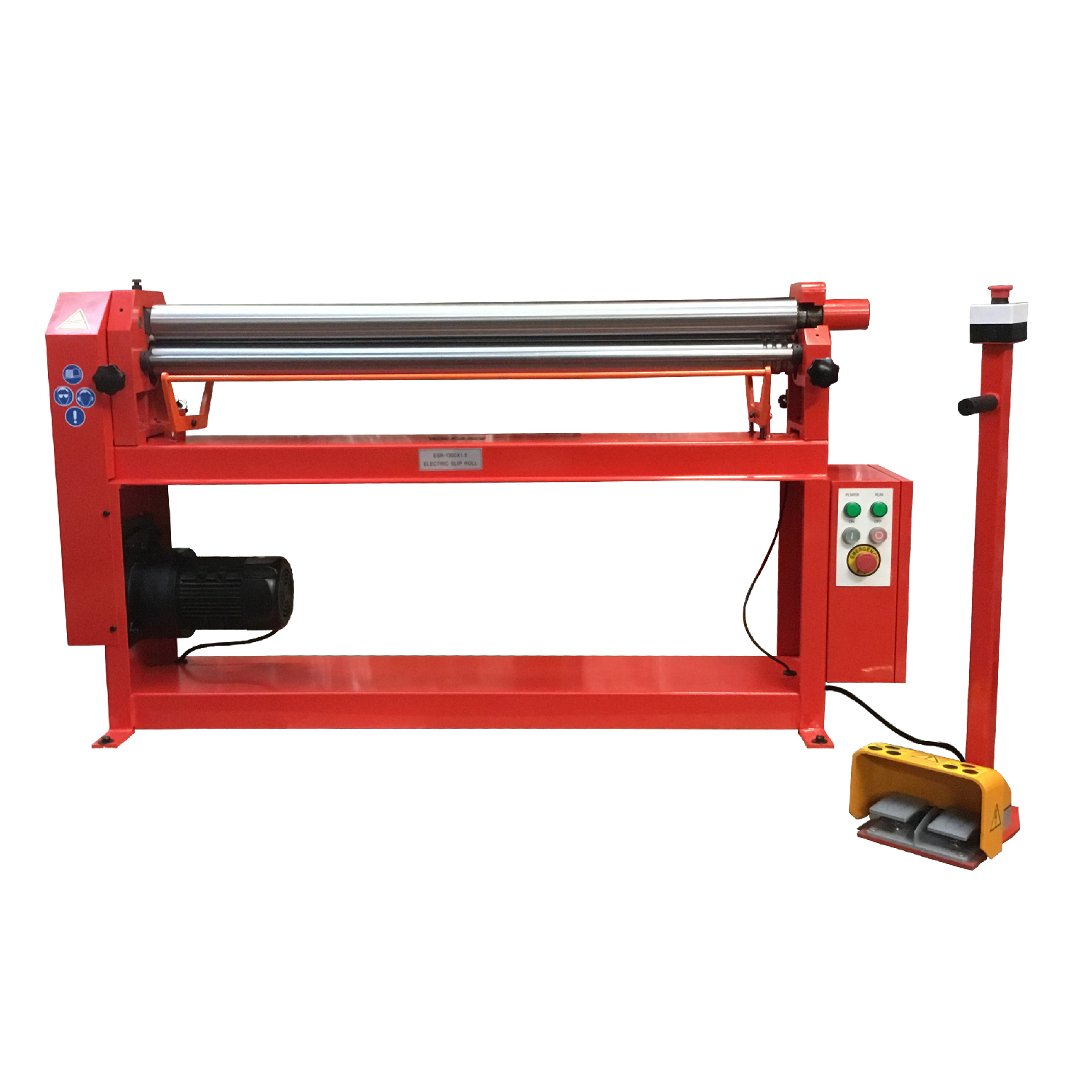

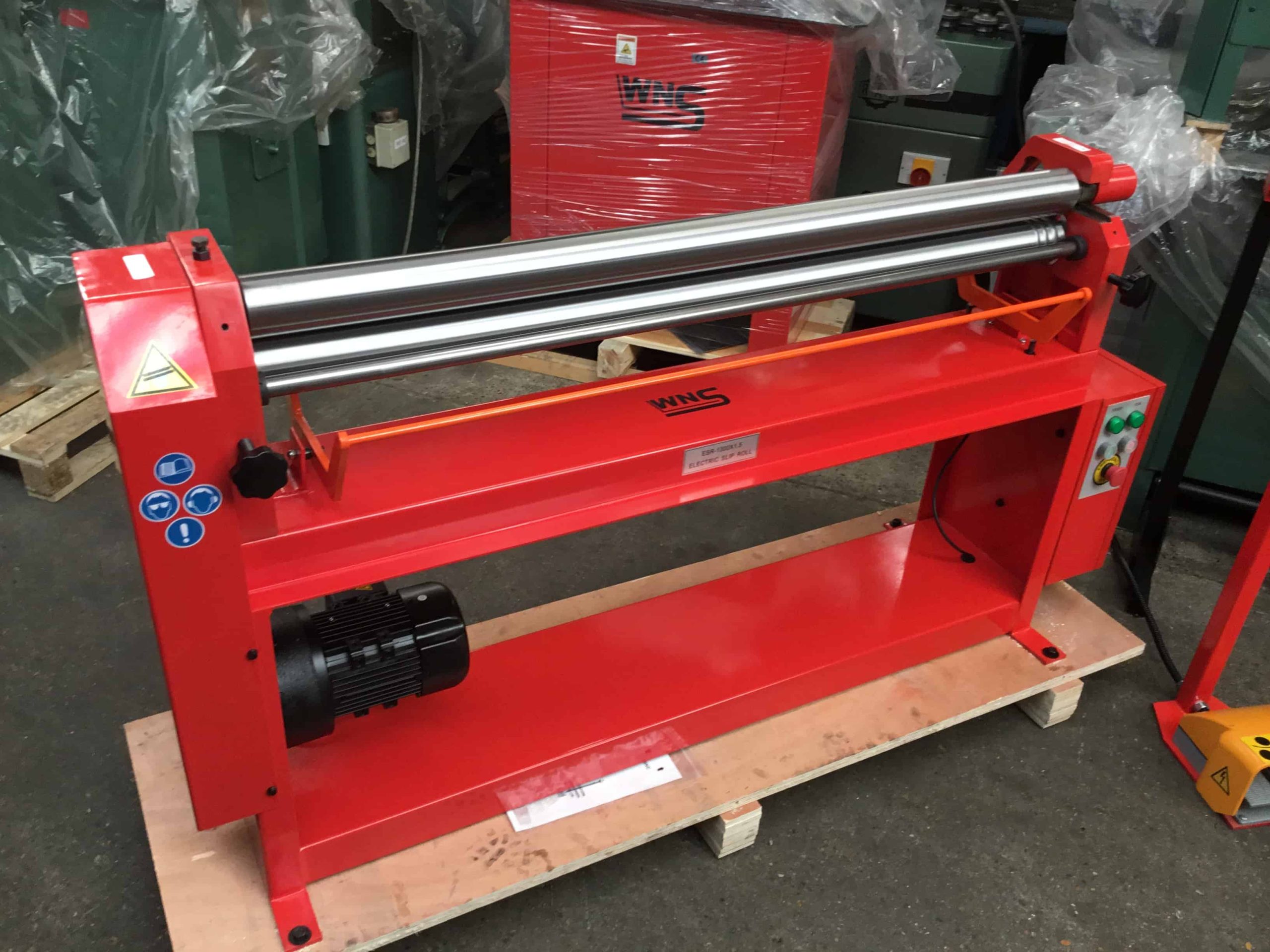

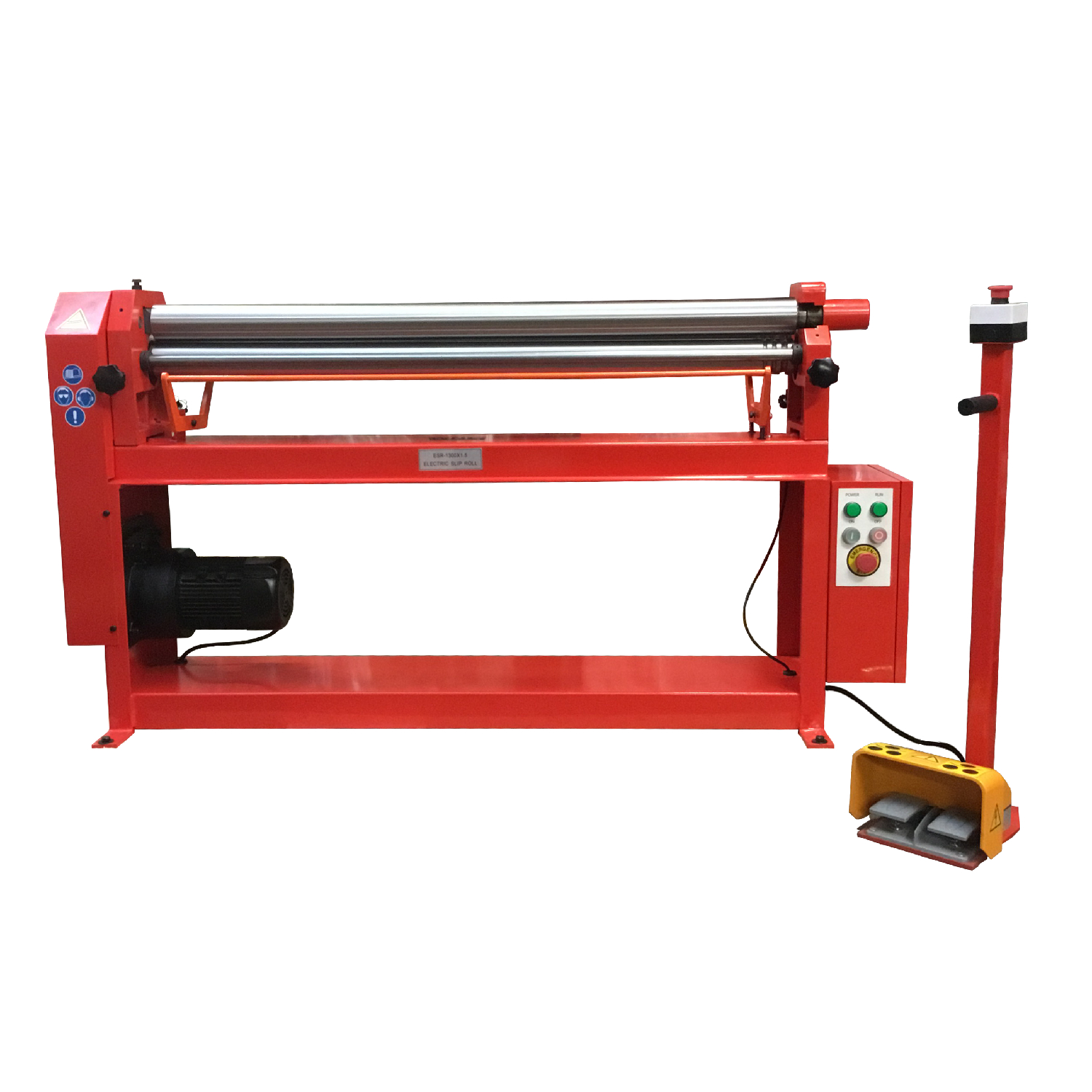

Power Bending Rolls 1300mm x 75mm x 1.5mm

Power Bending Rolls


Description

WNS POWER BENDING ROLLS (PBR1300/75) are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. The PBR1300/75 has a 1300mm roll length, 75mm roll diameter and can accommodate mild steel up to 1.5mm thick. The rolls are top slip, equipped with 3 wiring grooves and the back roll is adjustable for (limited) coning.


View Literature



Additional information

Weight 1250 kg
Dimensions 180 x 65 x 110 cm
SPECIFICATIONS
Model: PBR1300/75
Roll Size: 1300mm Roll Length x 75mm Roll Diameter
Maximum Thickness: 1.5mm Mild Steel
Rolls: Top Slip
Wiring Grooves (x3): 8.0mm
9.0mm
12mm
Frame: Fabricated Steel, Cast Iron End Frame
Motor Power: 0.75kW
Supply Voltage: 415v, 3 Phase
Dimensions – machine (apx): 1650mm x 500mm x 900mm (l x w x h)
Dimensions – packing (apx): 1800mm x 650mm x 1100mm (l x w x h)
Weights – net/gross (apx): 280Kg/340Kg

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary. All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are not to scale. E&OE.

Reviews

There are no reviews yet.

Be the first to review “Power Bending Rolls 1300mm x 75mm x 1.5mm”

Your email address will not be published. Required fields are marked *

SKU: PBR1300/75

Power Bending Rolls 1300mm x 75mm x 1.5mm

  • 1300mm Roll Length
  • 75mm Roll Diameter
  • 1.5mm Capacity Mild Steel
  • Top Slip
  • Quick Release
  • 3 x Wiring Grooves
  • Fabricated Steel Frame
  • Cast Iron End Frame
  • 415v, 3 Phase

Find out more or call us 01702 542 554

Worldwide shipping available.

Opening hours 08:30 to 17:30 Monday to Friday.
