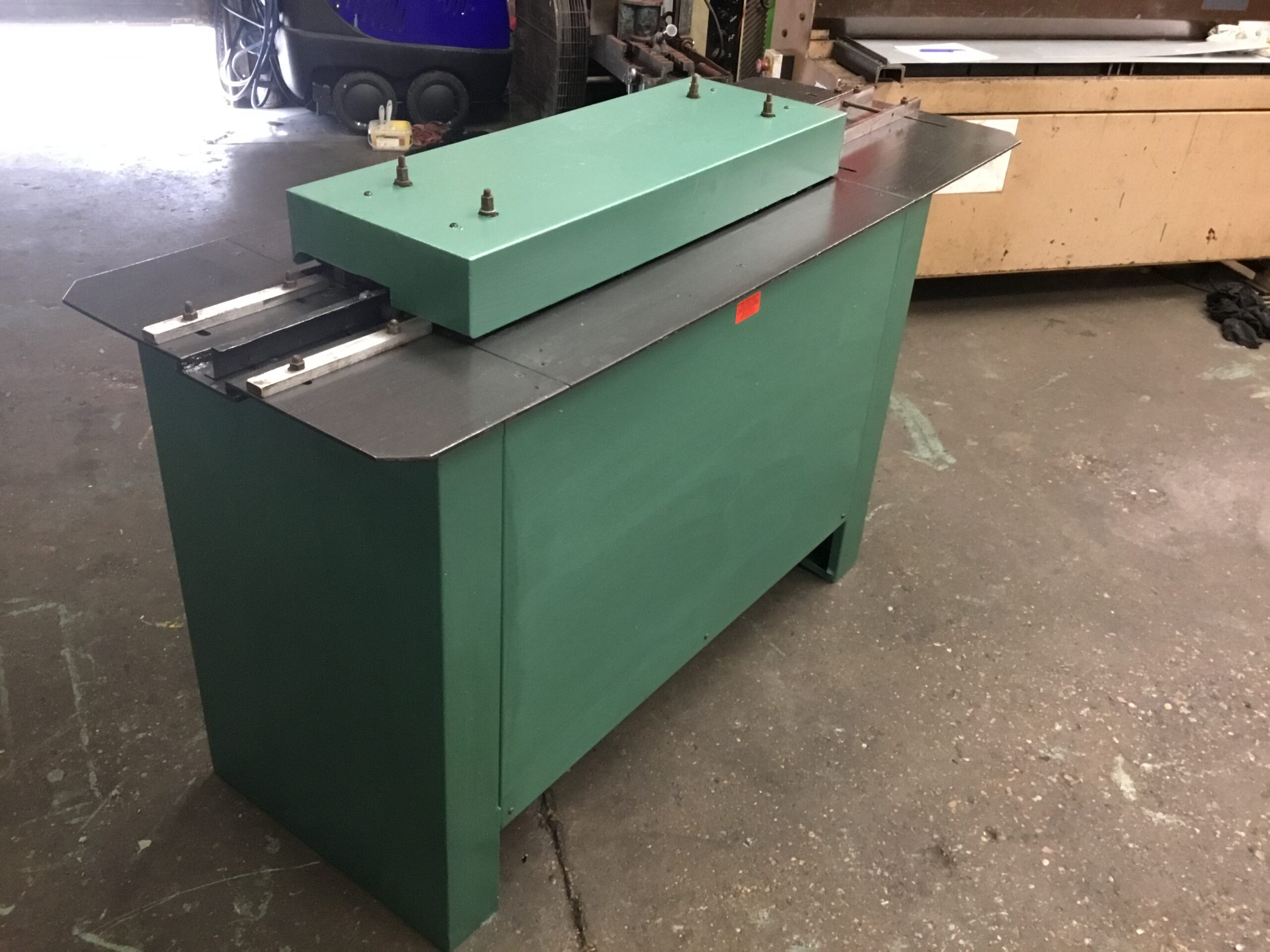

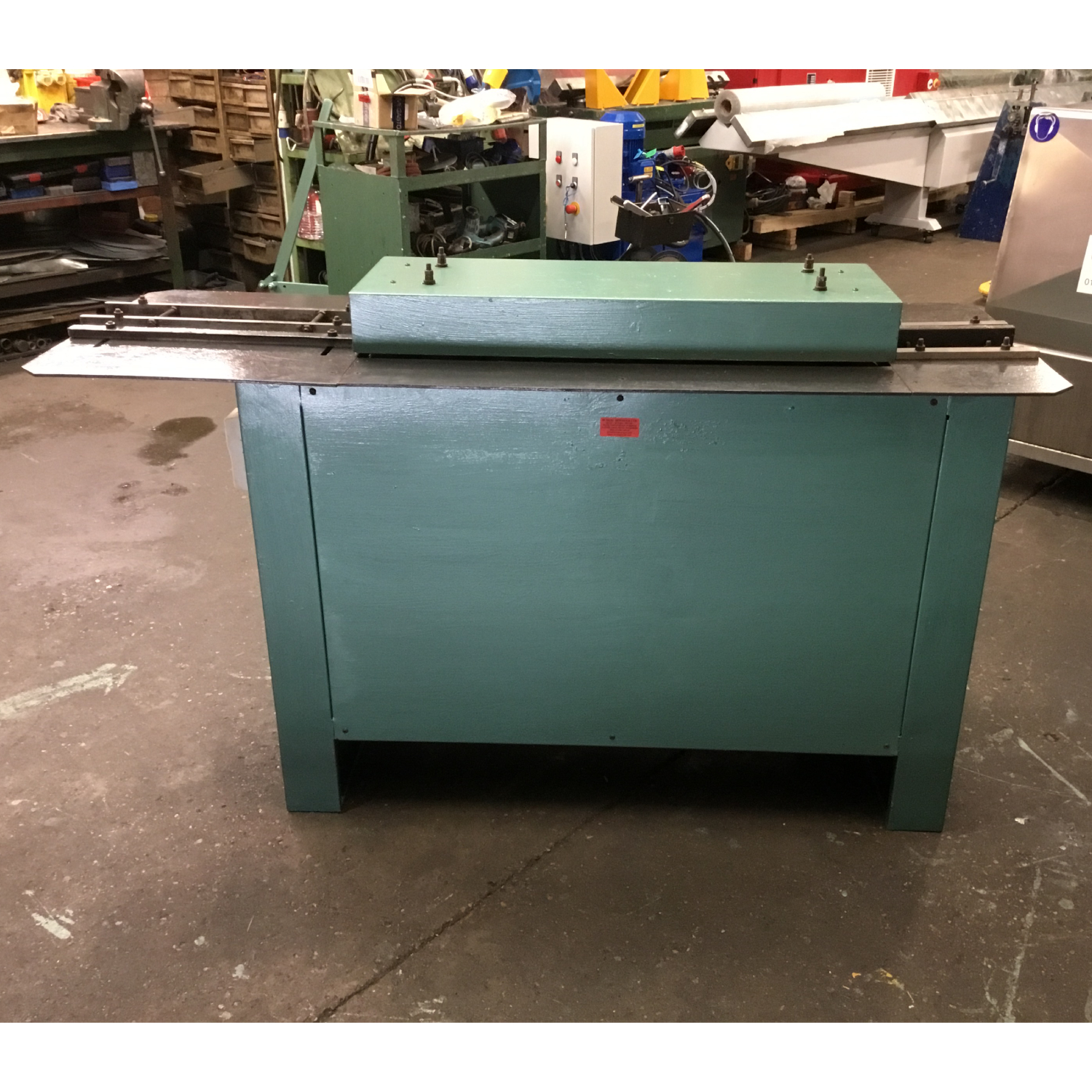

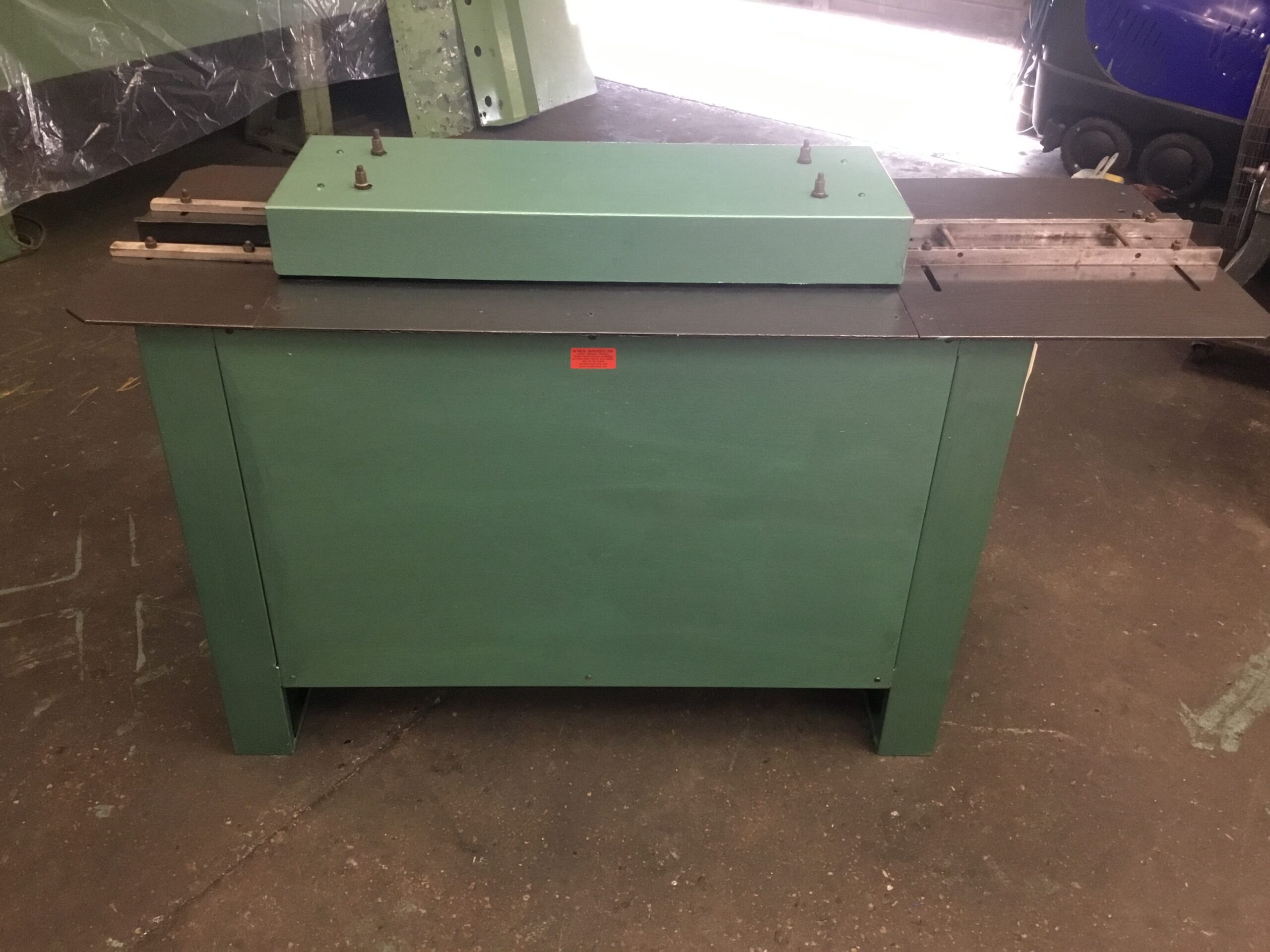

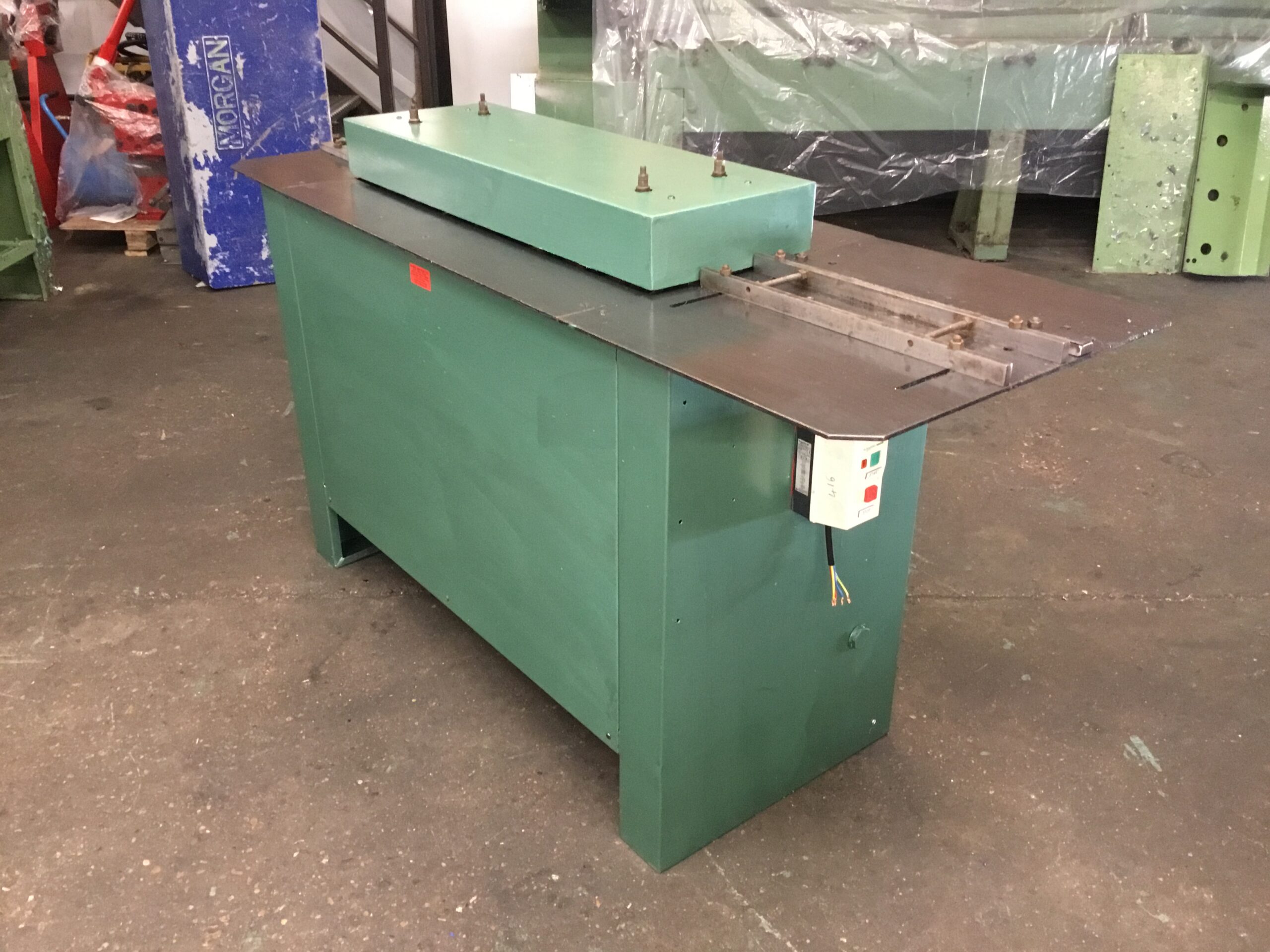

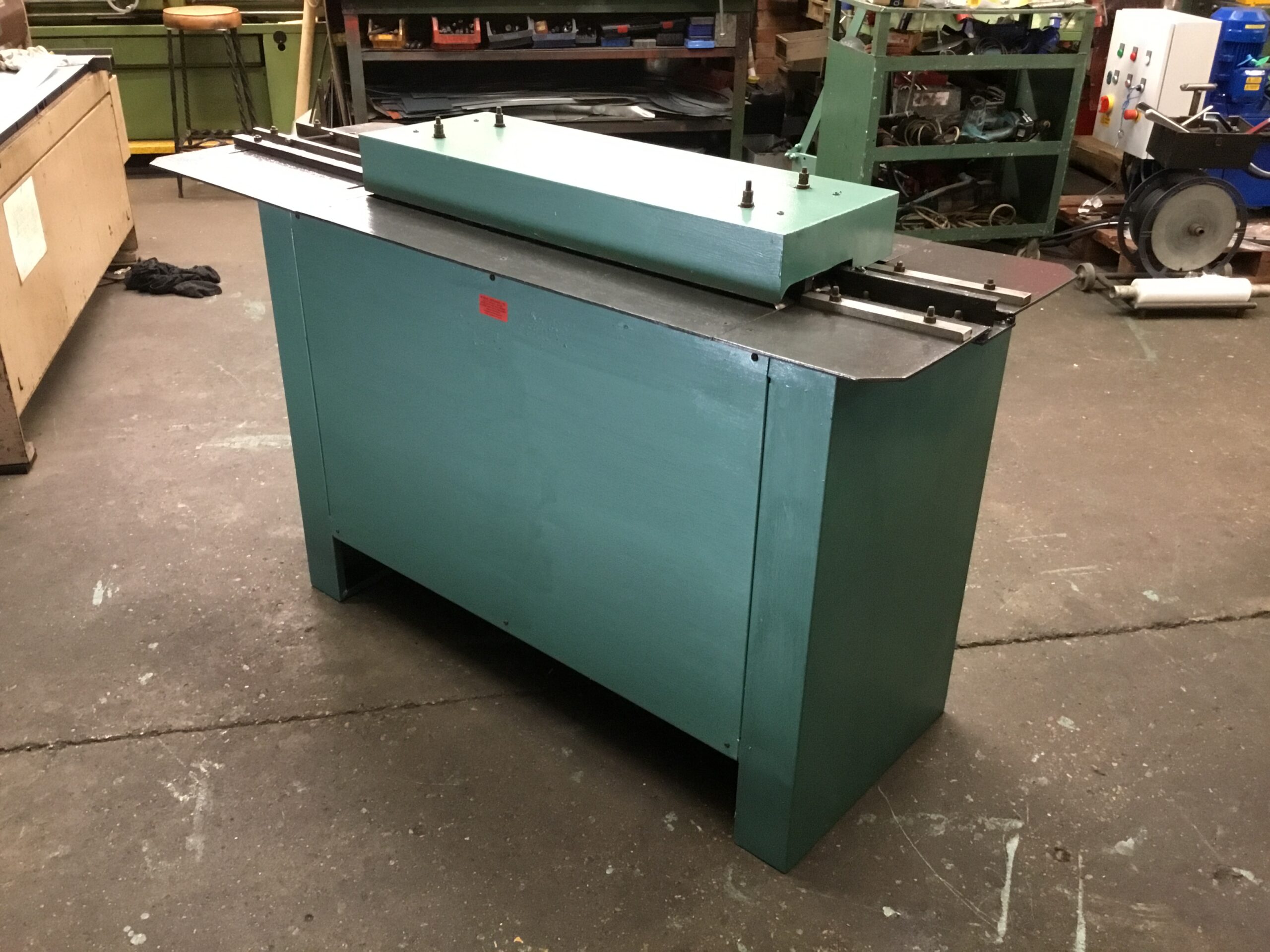

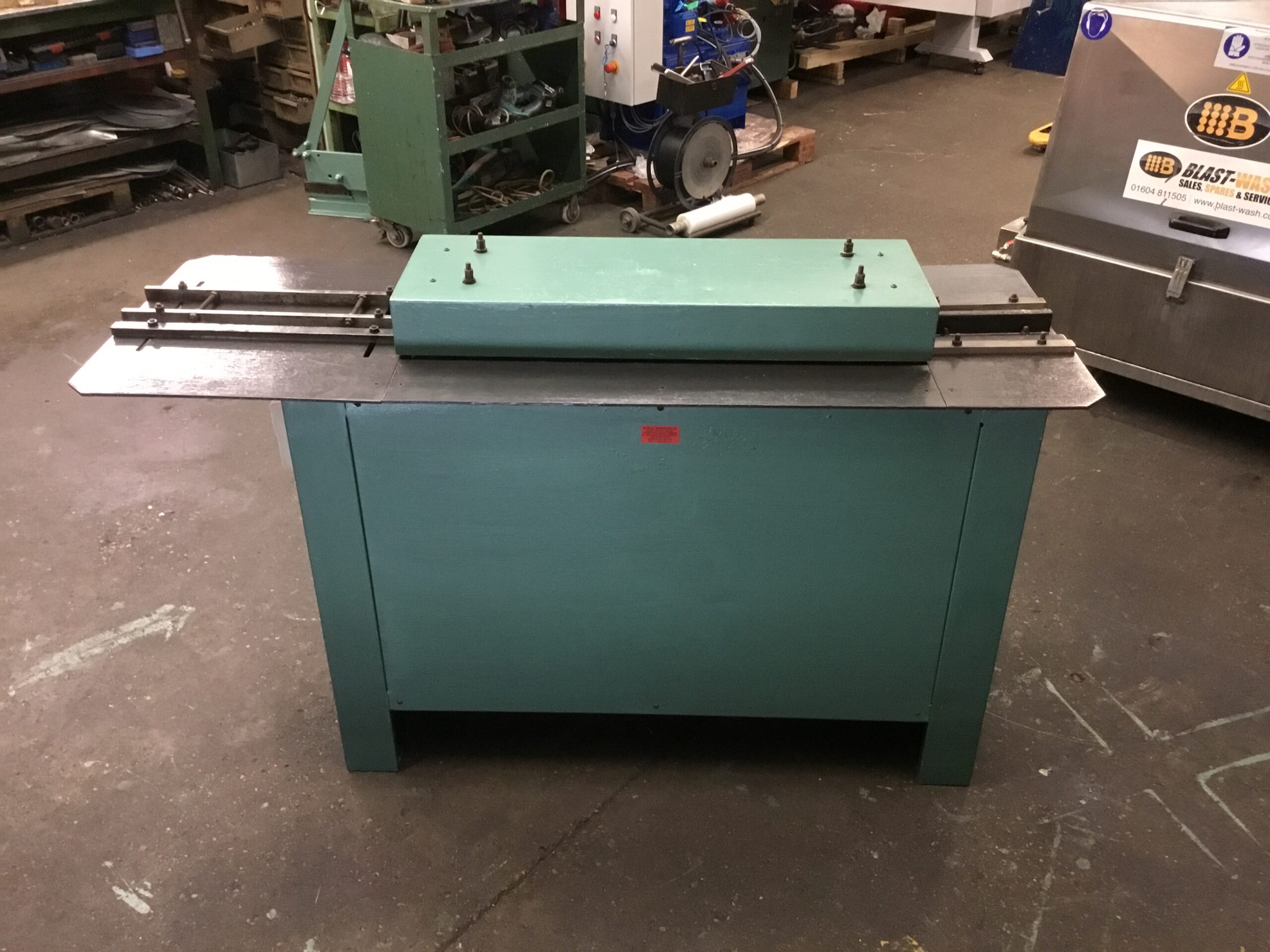

WNS S CLEAT DOUBLE EXTENDED SHAFT ROLLFORMER (REF: 416) is a 7 station machine principally used in the HVAC industry and has 415v, 3 phase electrics. This machine comes complete with 20swg S Cleat rolls (1.0mm capacity mild steel) & 22swg APL rolls (0.8mm capacity mild steel).
WNS rollformers are manufactured with all steel side plates. The shafts, forming rolls, gears and guide fences are all hardened, and needle bearings are fitted
throughout.
Additional Auxiliary Rolls Available:
• Small Pittsburgh Lock (APL)
• Drive Cleat
• Double Seam
• Plain Seam
• Right Angle Flange
• Standing Seam
• 3 in 1 Rolls
• Safe Edge
• Closed Double Seam
USED/RECONDITIONED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available Rollformers/Lockformers, please click here.
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONS – GENERAL | |
| Model: | REF: 416 |
| Stations: | 7 |
| Maximum Thickness (S Cleat): | 20swg (1.0mm) Capacity Mild Steel |
| Maximum Thickness (APL): | 22swg (0.8mm) Capacity Mild Steel |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1650mm x 615mm x 1000mm (l x w x h) |
| Weight – net (apx): | 300Kg |
| DRIVE CLEAT ROLLS – SPECIFICATIONS | |
| Maximum Thickness: | Â 20swg (1.0mm) Mild Steel |
| Approximate Material Used: | 92mm |
| Seam Width: | Â 27mm |
| SMALL PITTSBURGH LOCK (APL) ROLLS – SPECIFICATIONS | |
| Maximum Thickness: | 22swg (0.8mm) Mild Steel |
| Approximate Material Used: | 25mm |
| Seam Width: | 10mm |
| Pocket Depth: | 8.5mm |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
