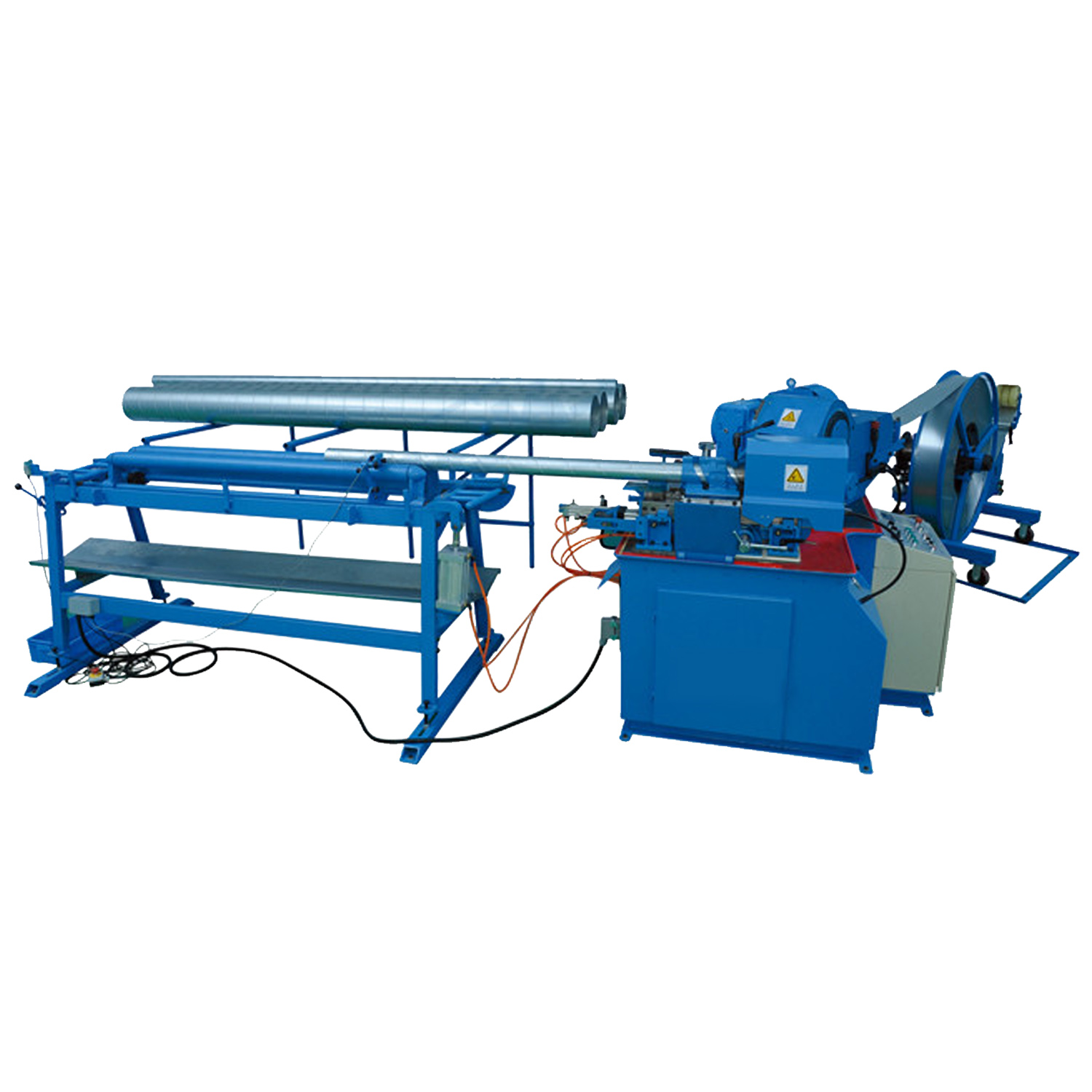

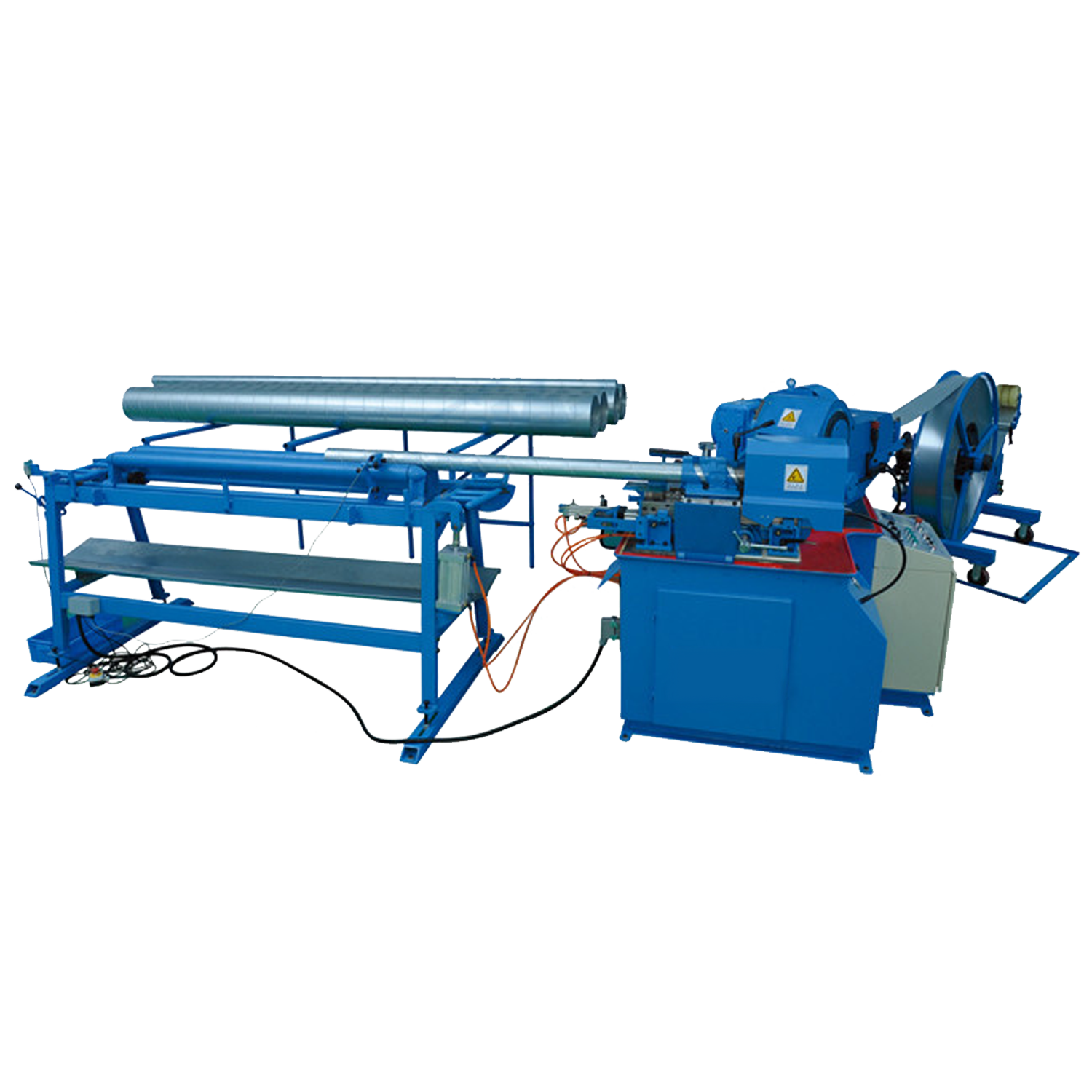

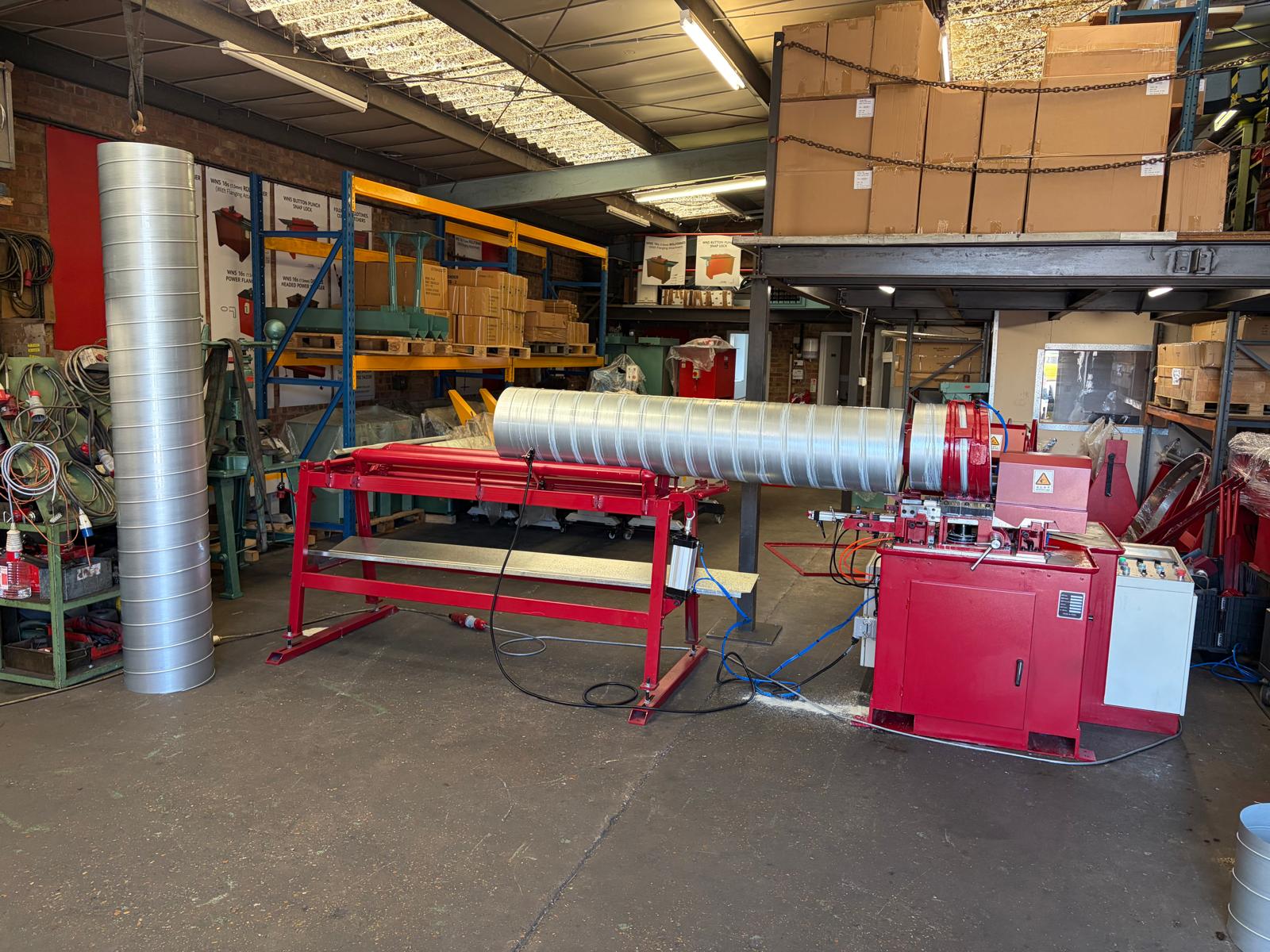

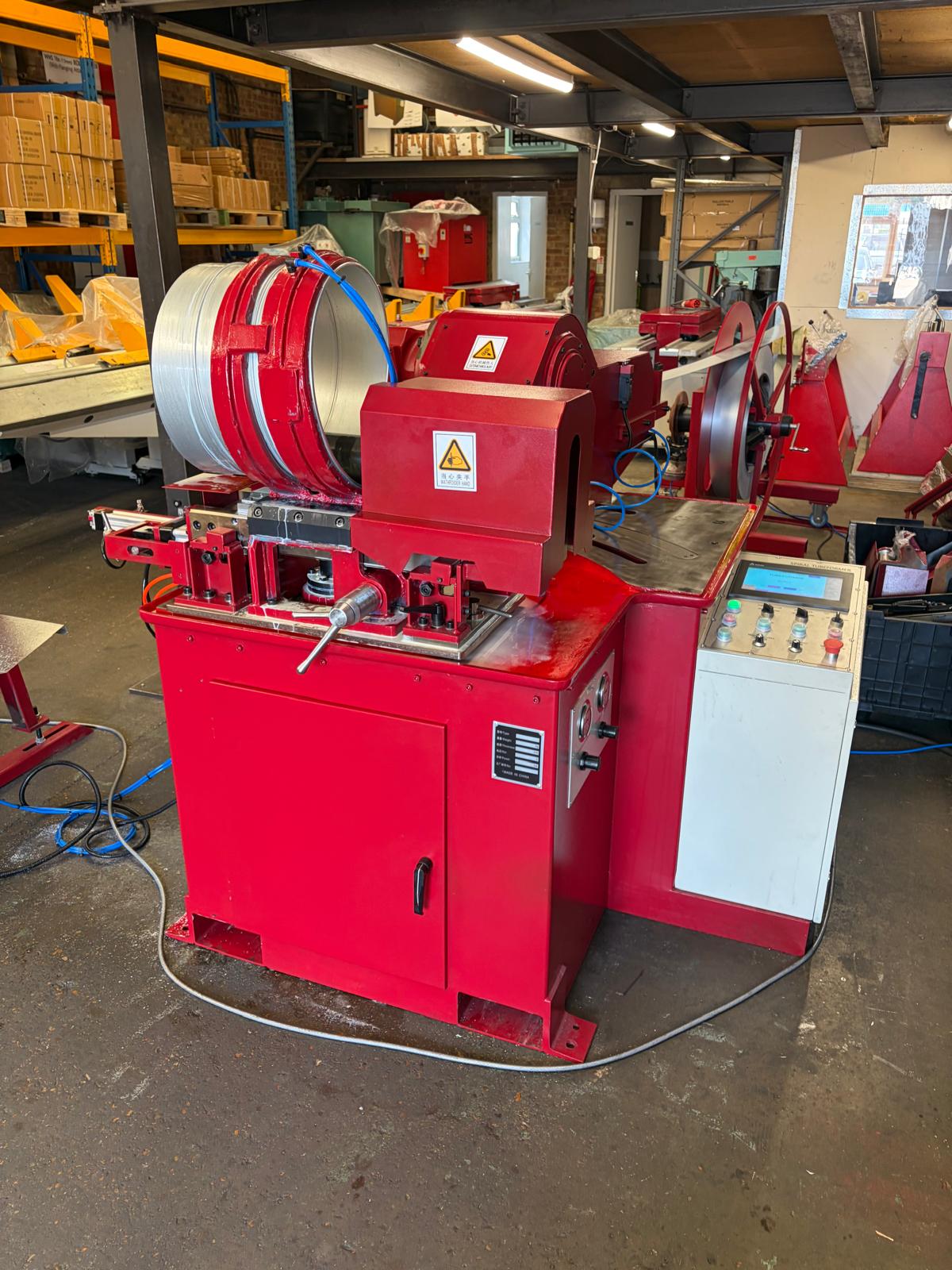

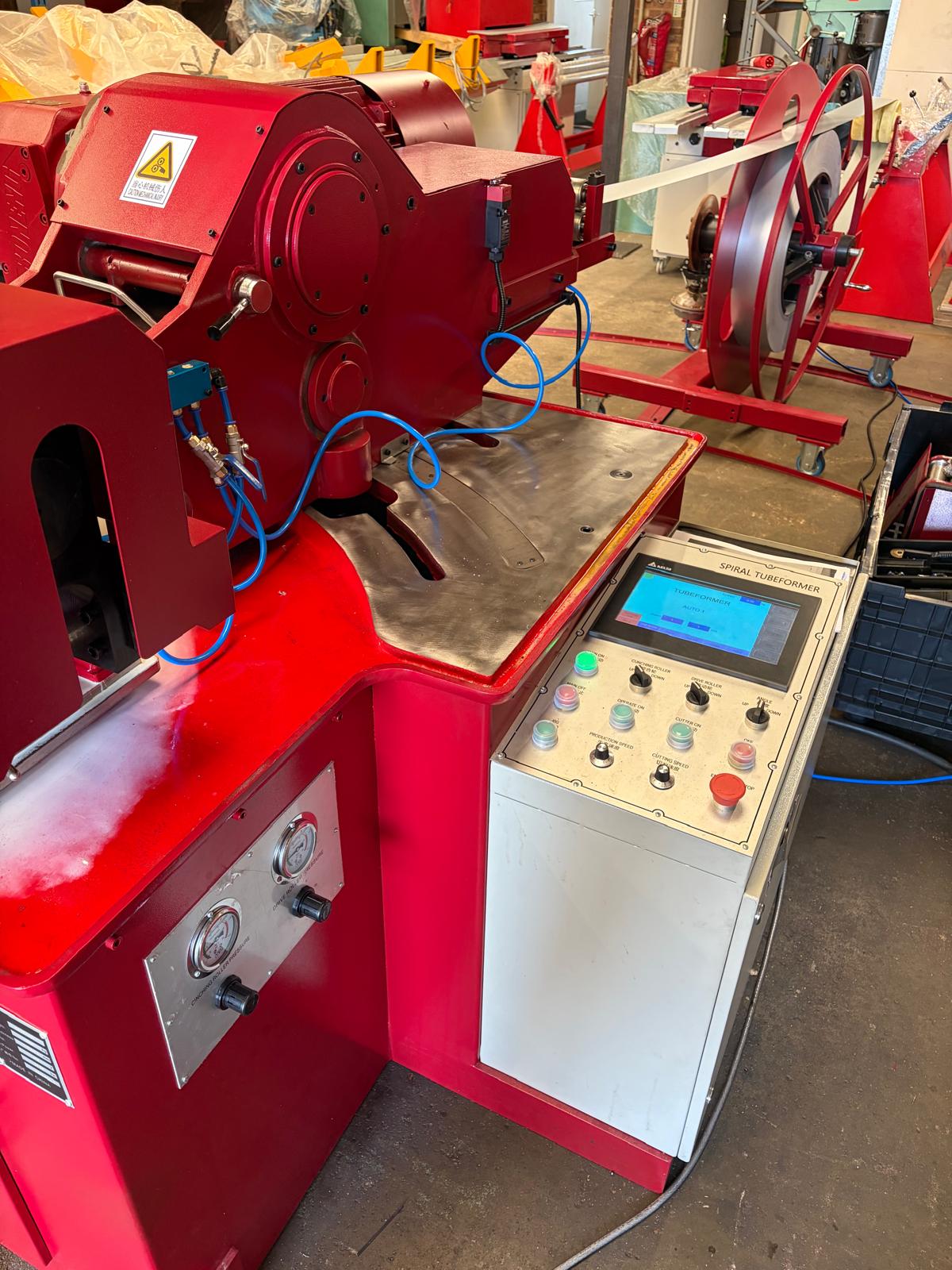

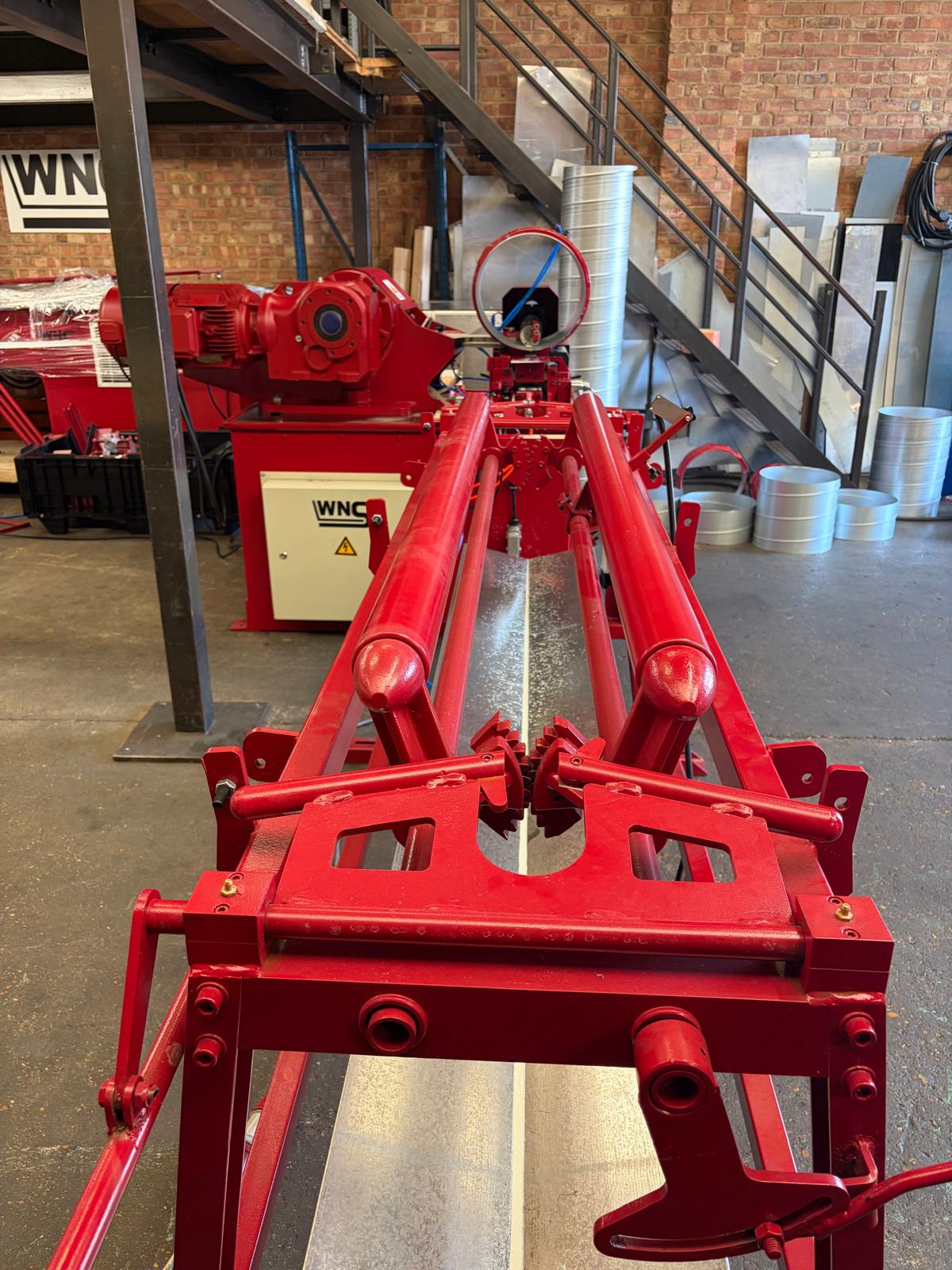

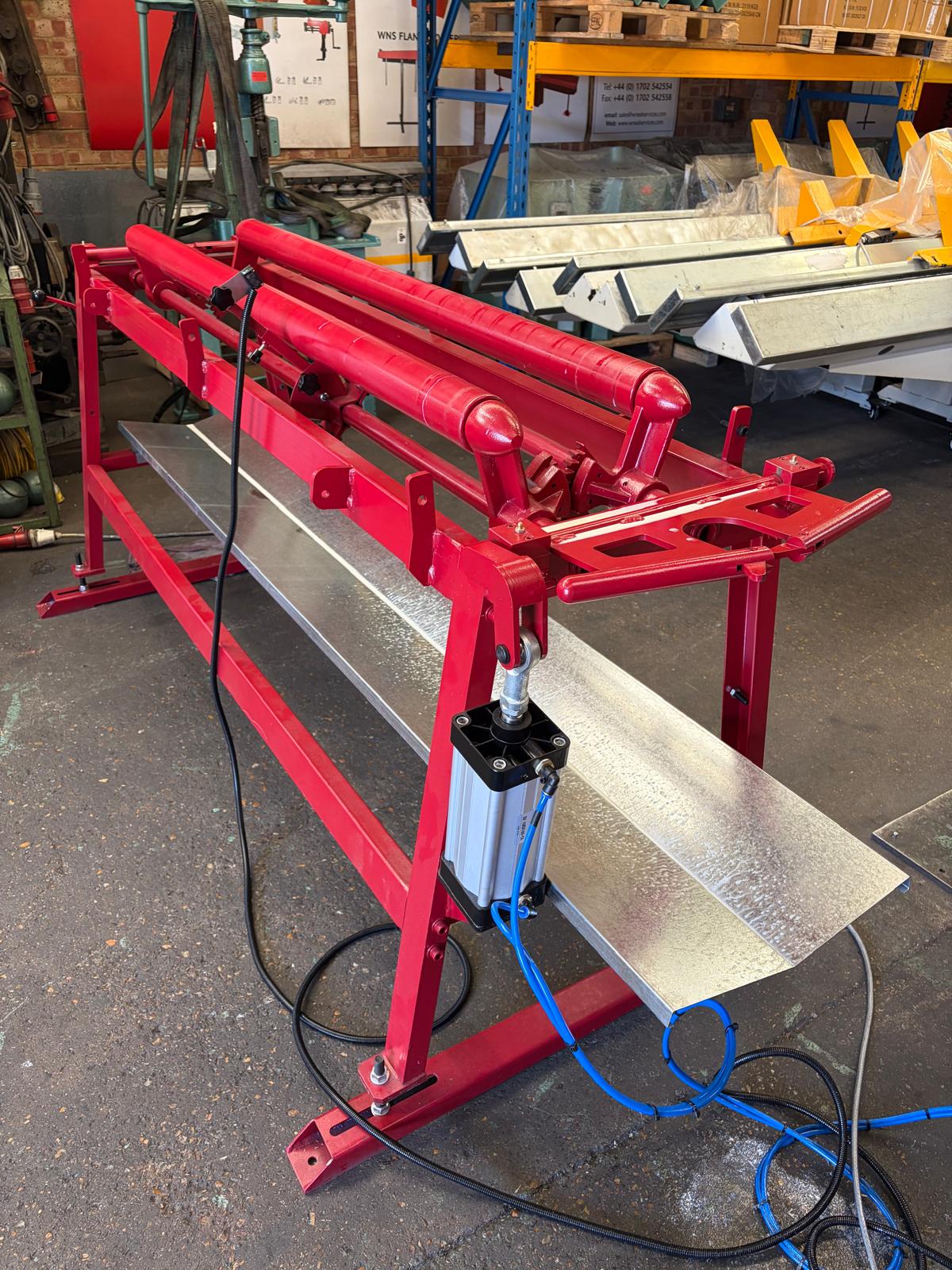

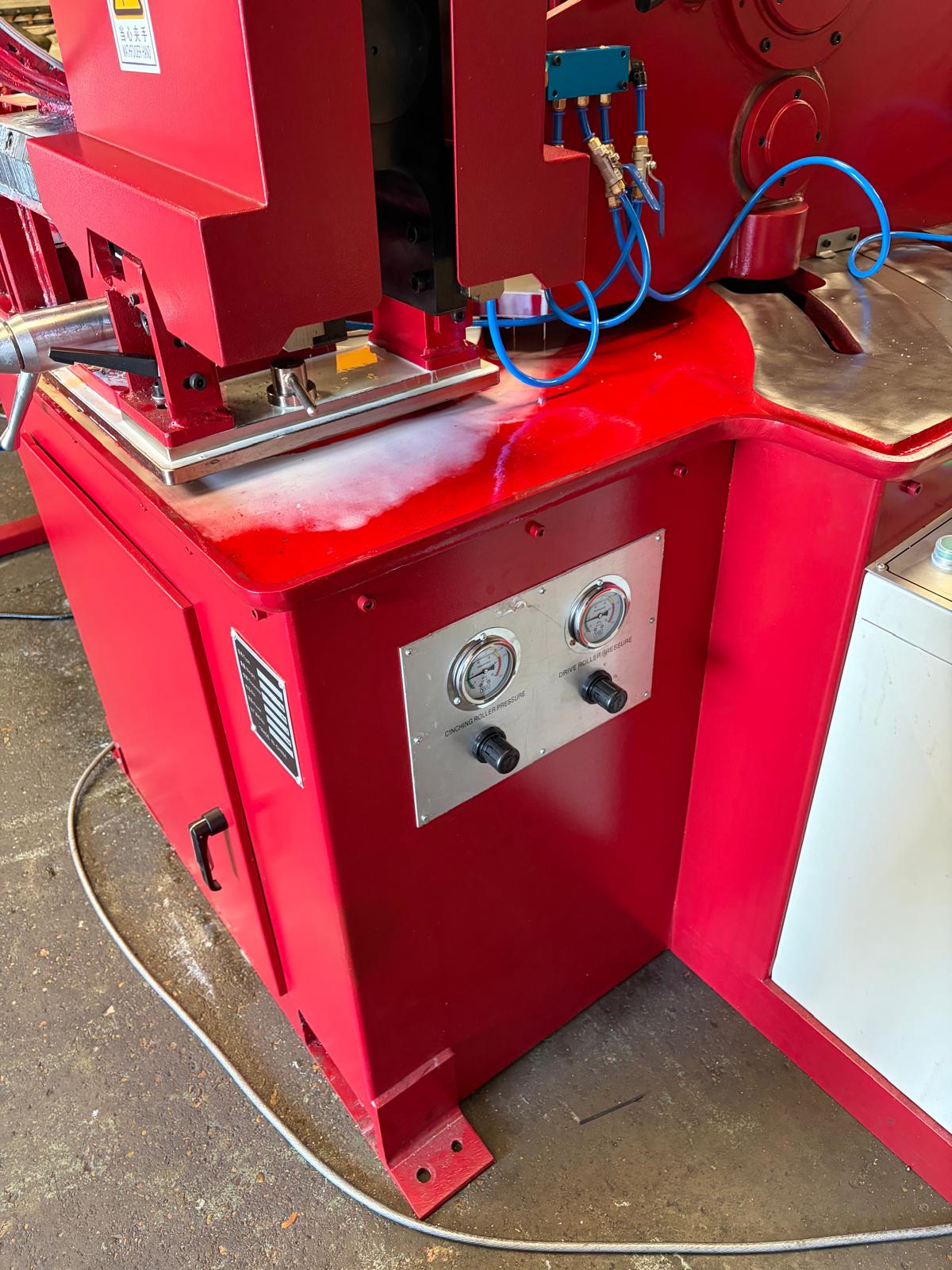

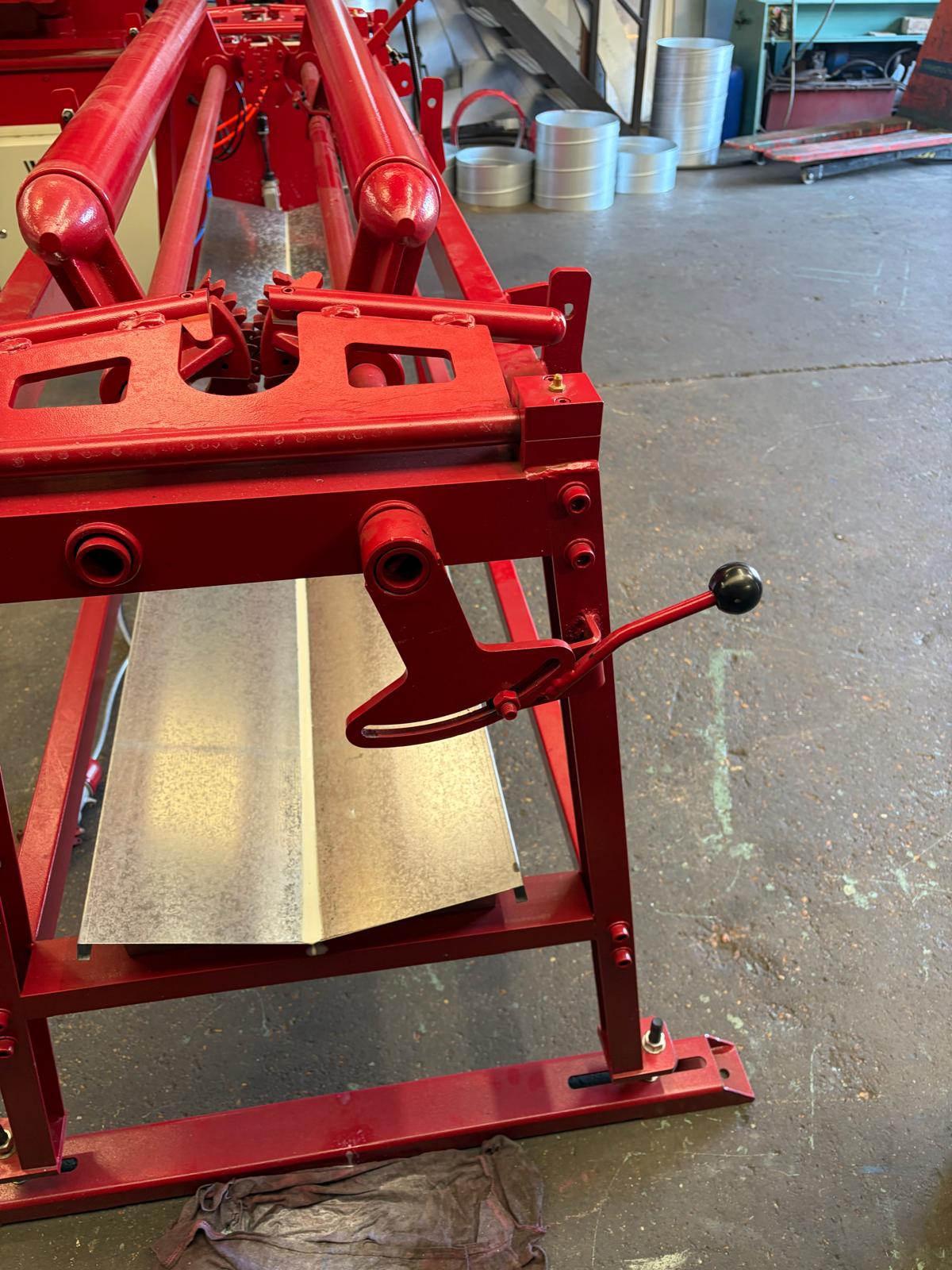

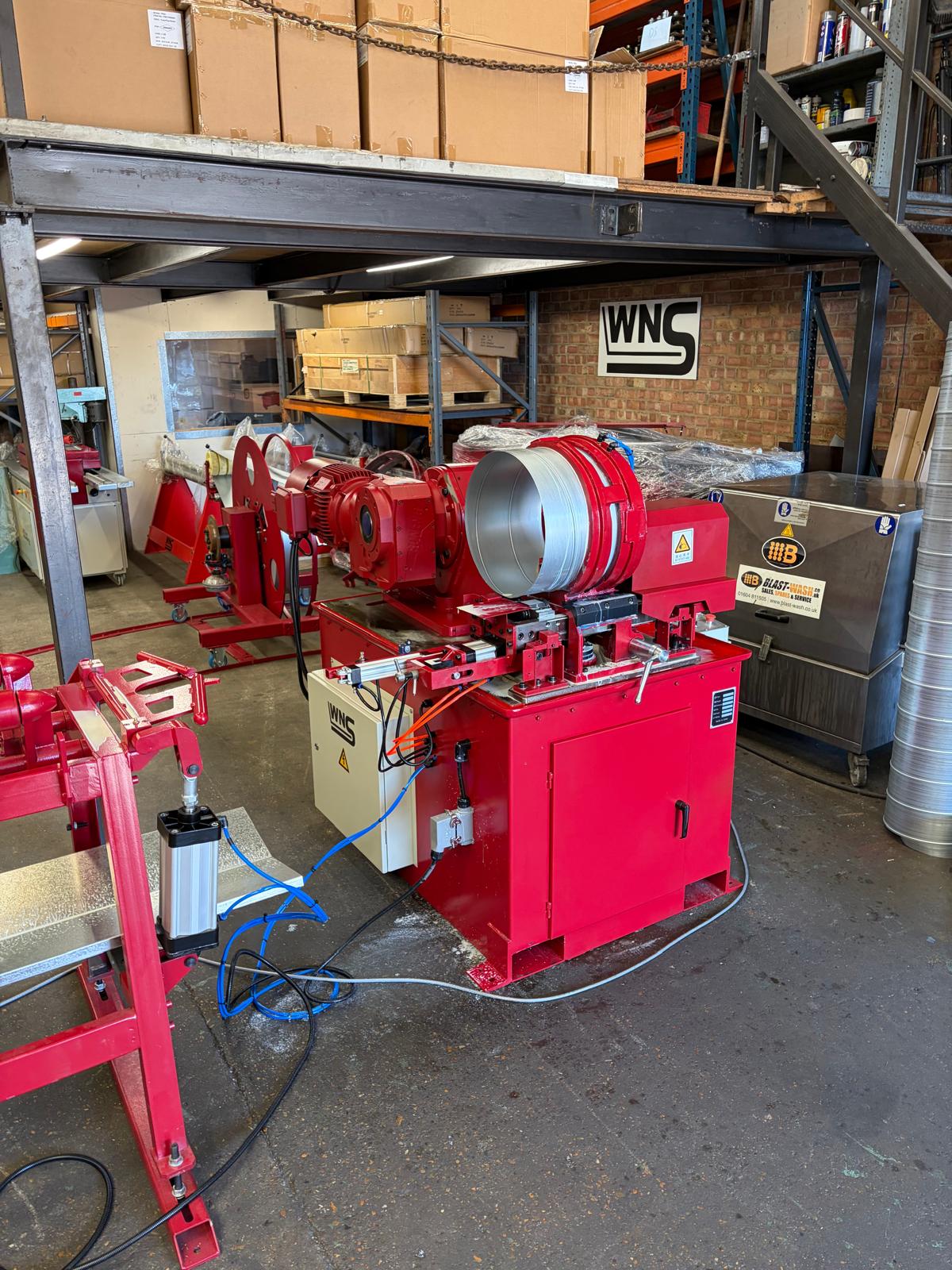

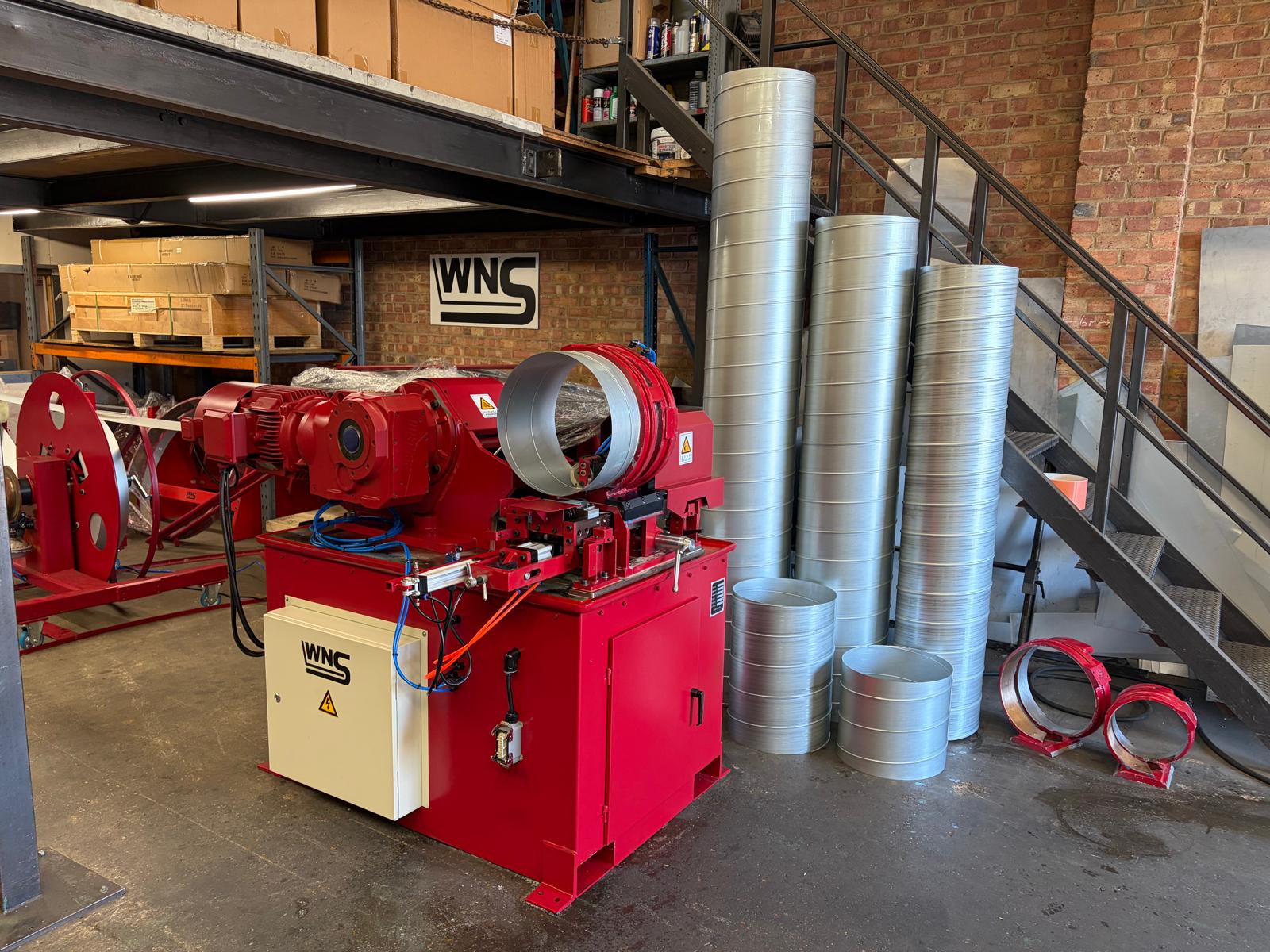

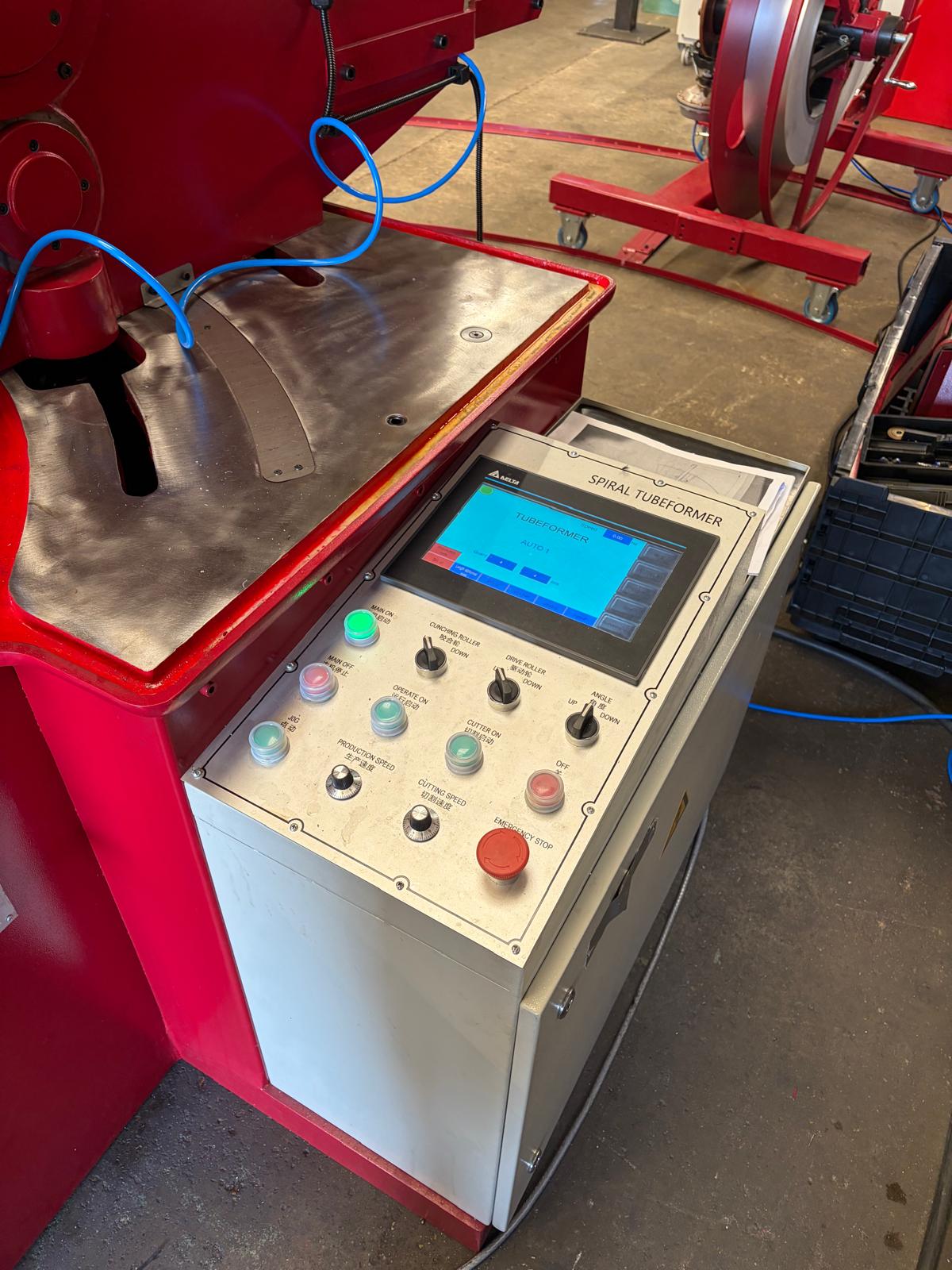

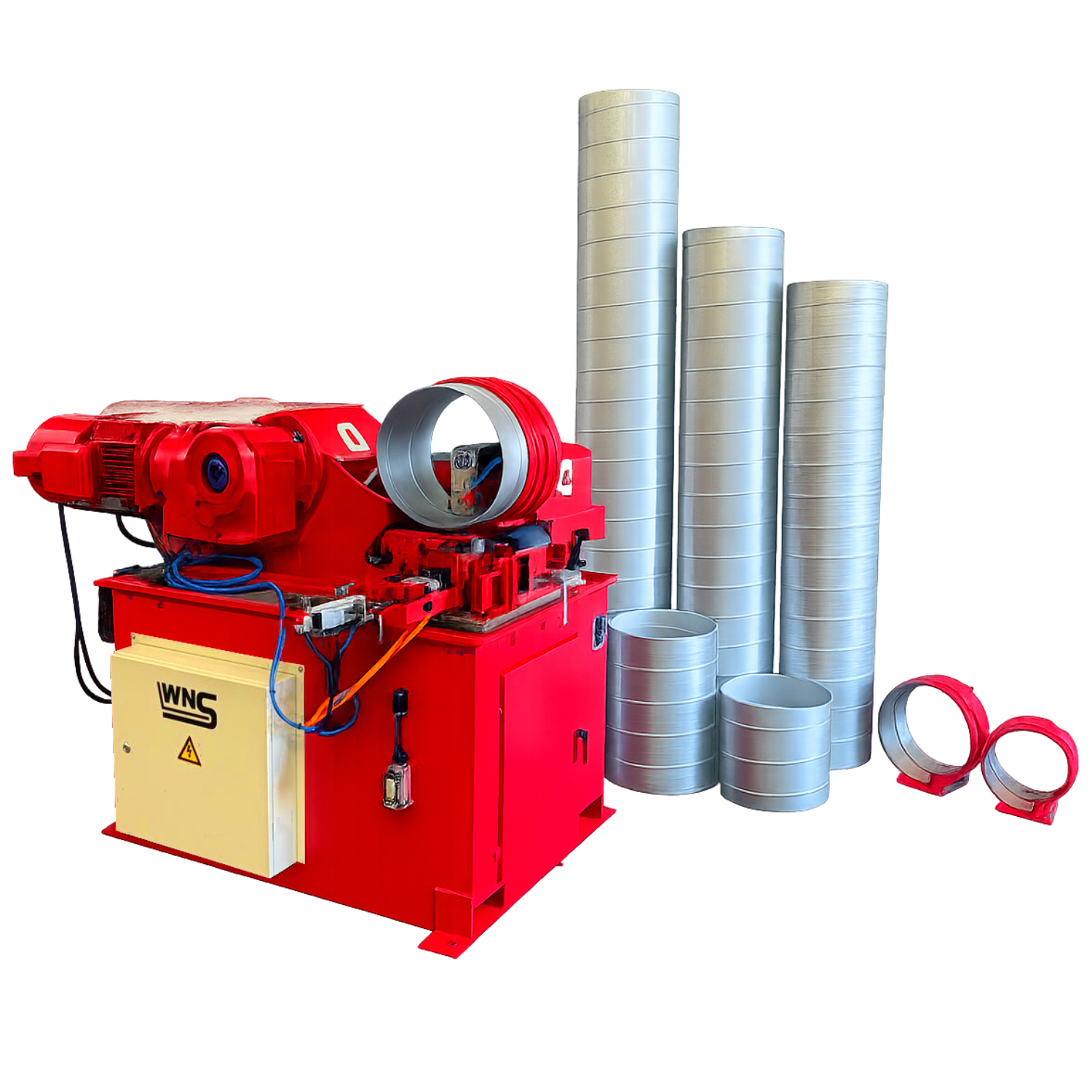

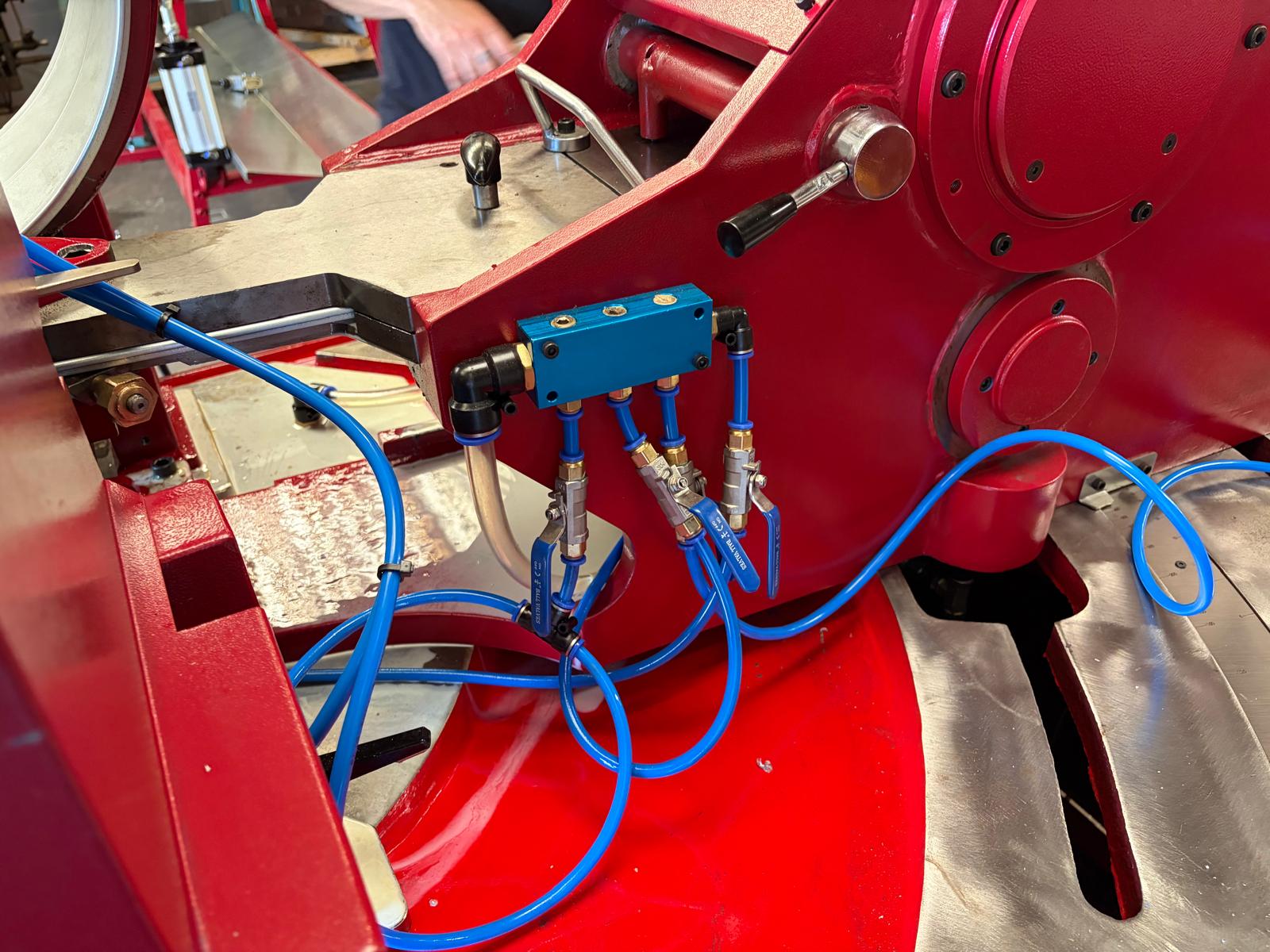

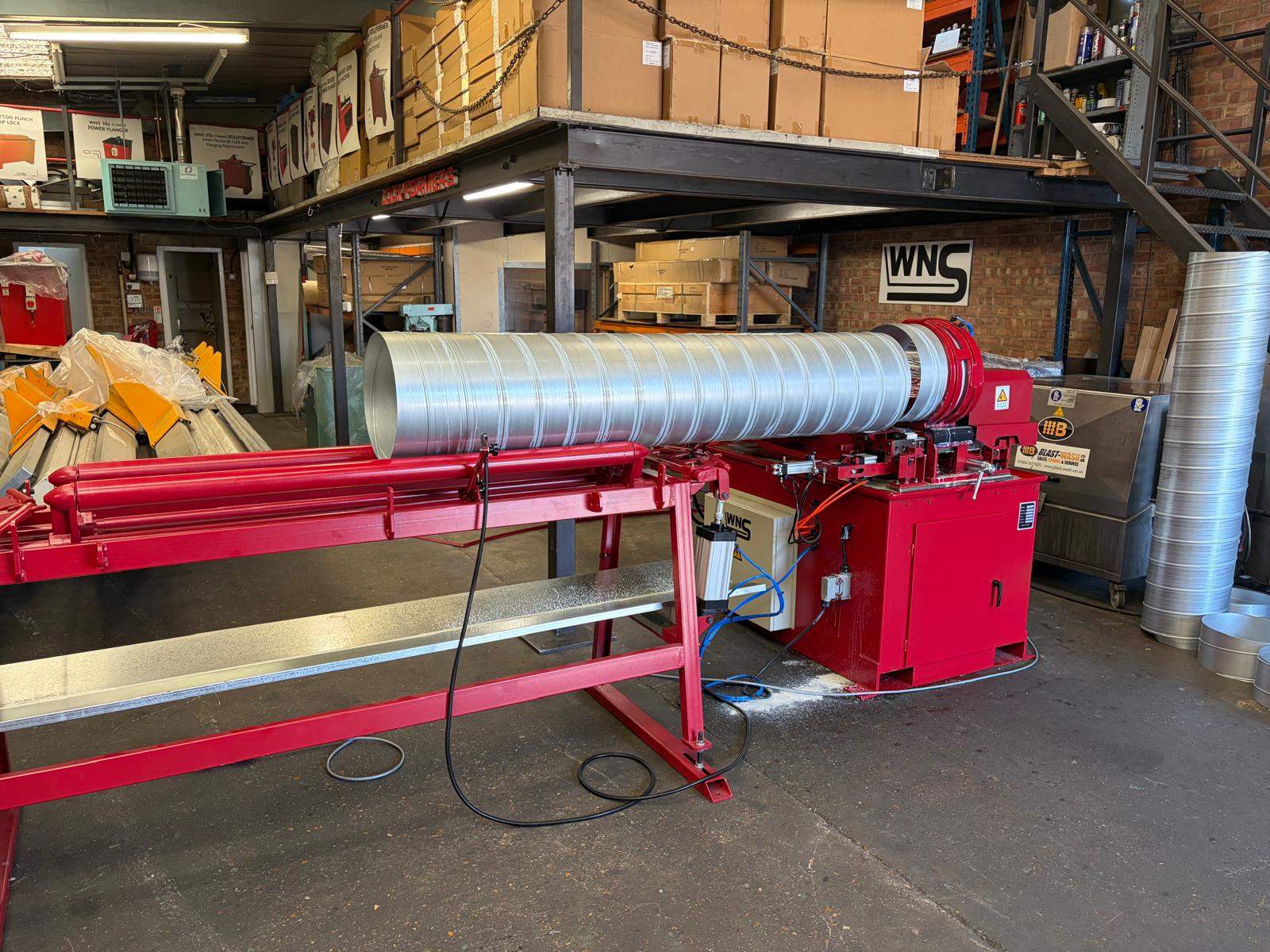

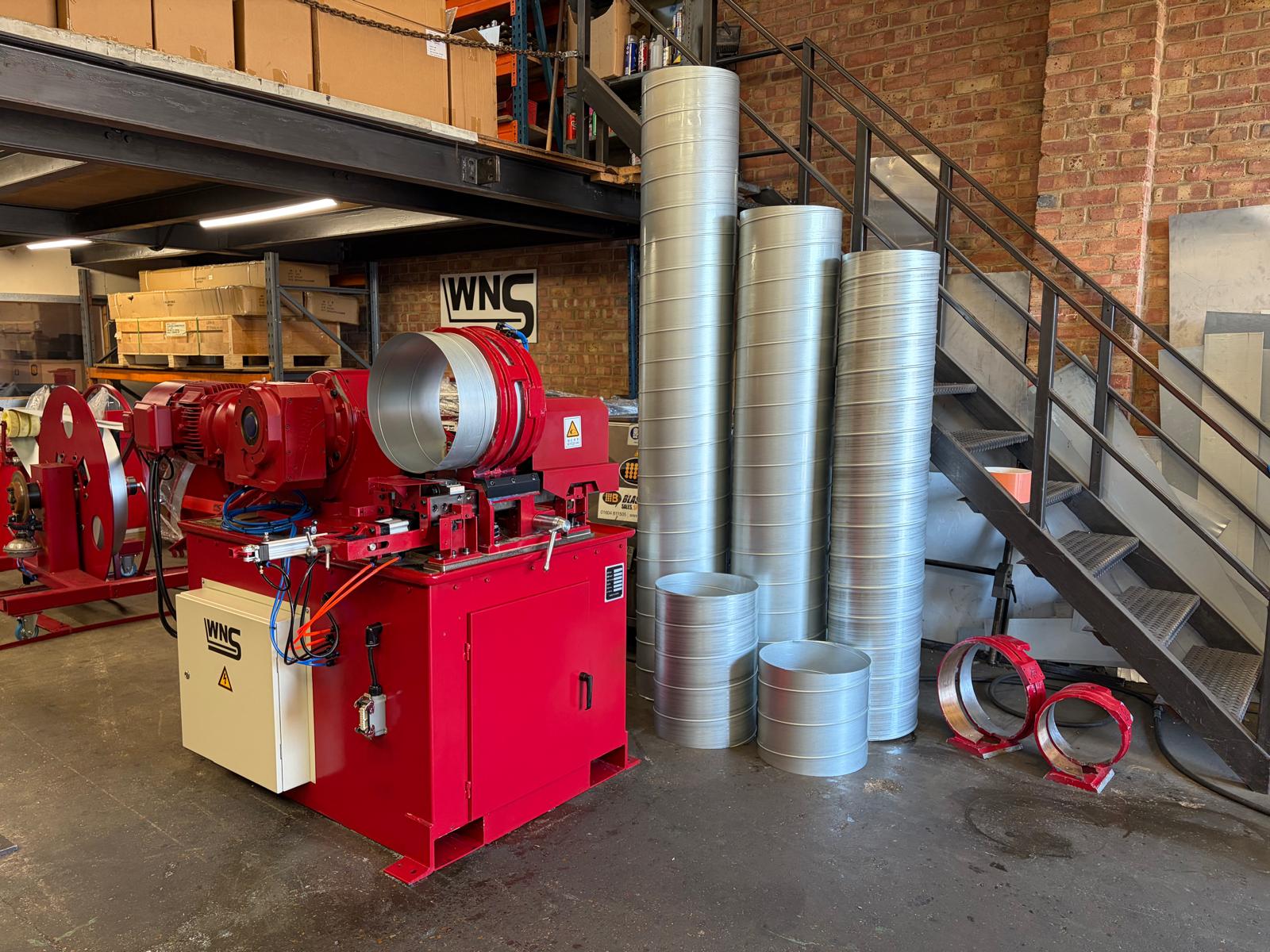

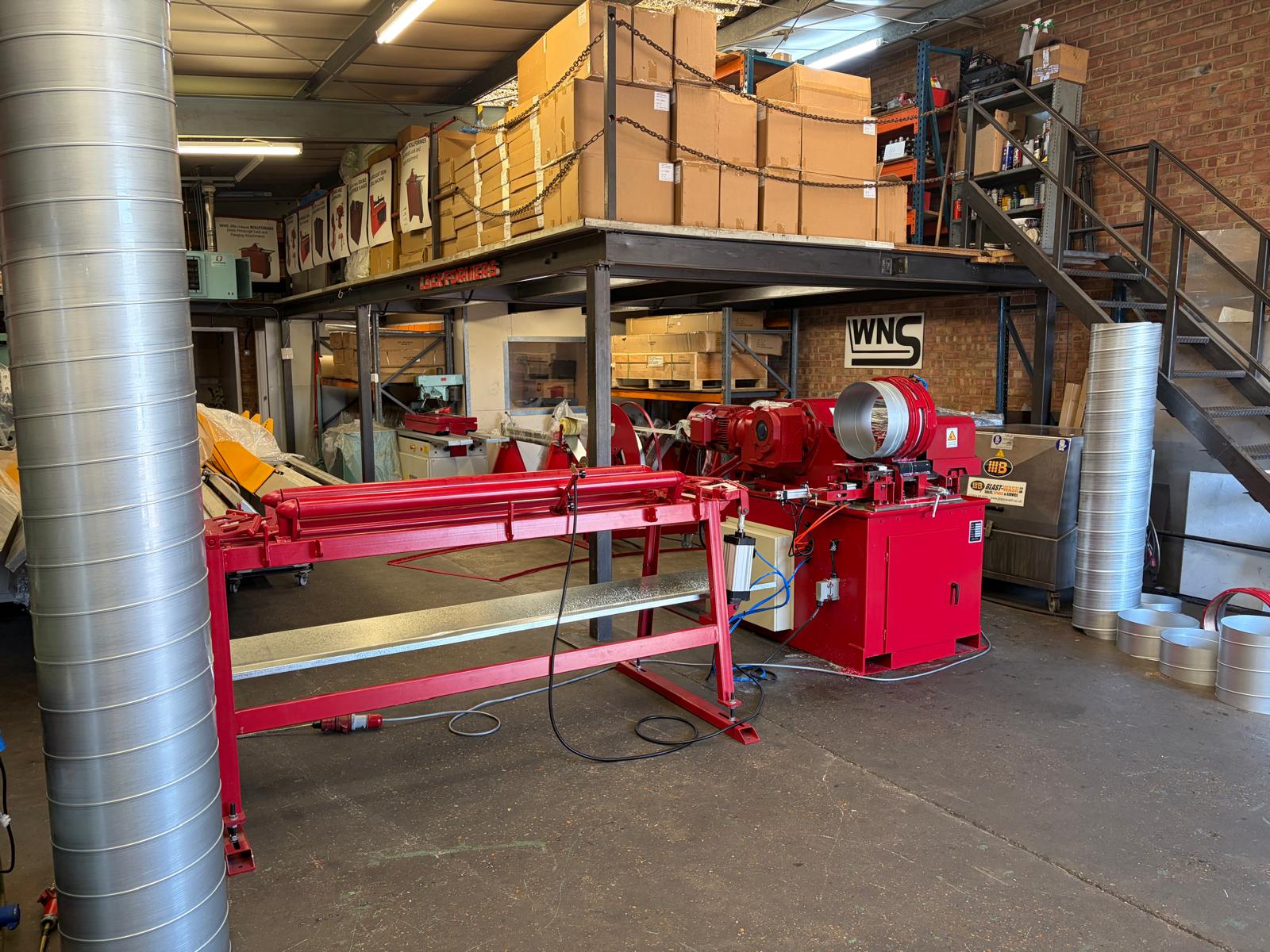

WNS SPIRAL TUBEFORMER (STF1600) is a high-performance spiral duct forming machine designed for precision and efficiency in HVAC and sheet metal applications. The modular design of the system offers customers the flexibility to configure the machine according to their specific requirements by selecting from a range of available options. The frequency-controlled main drive enables smooth acceleration and nearly silent operation.

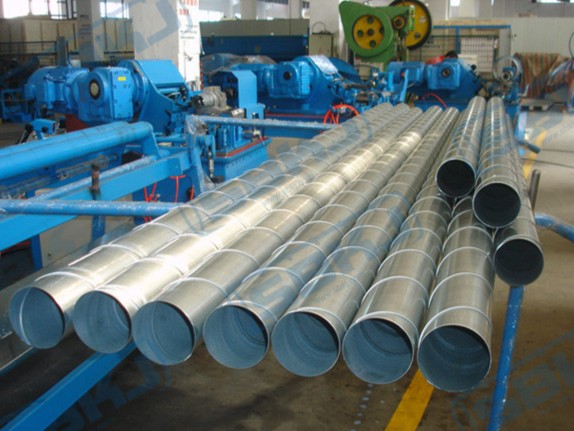

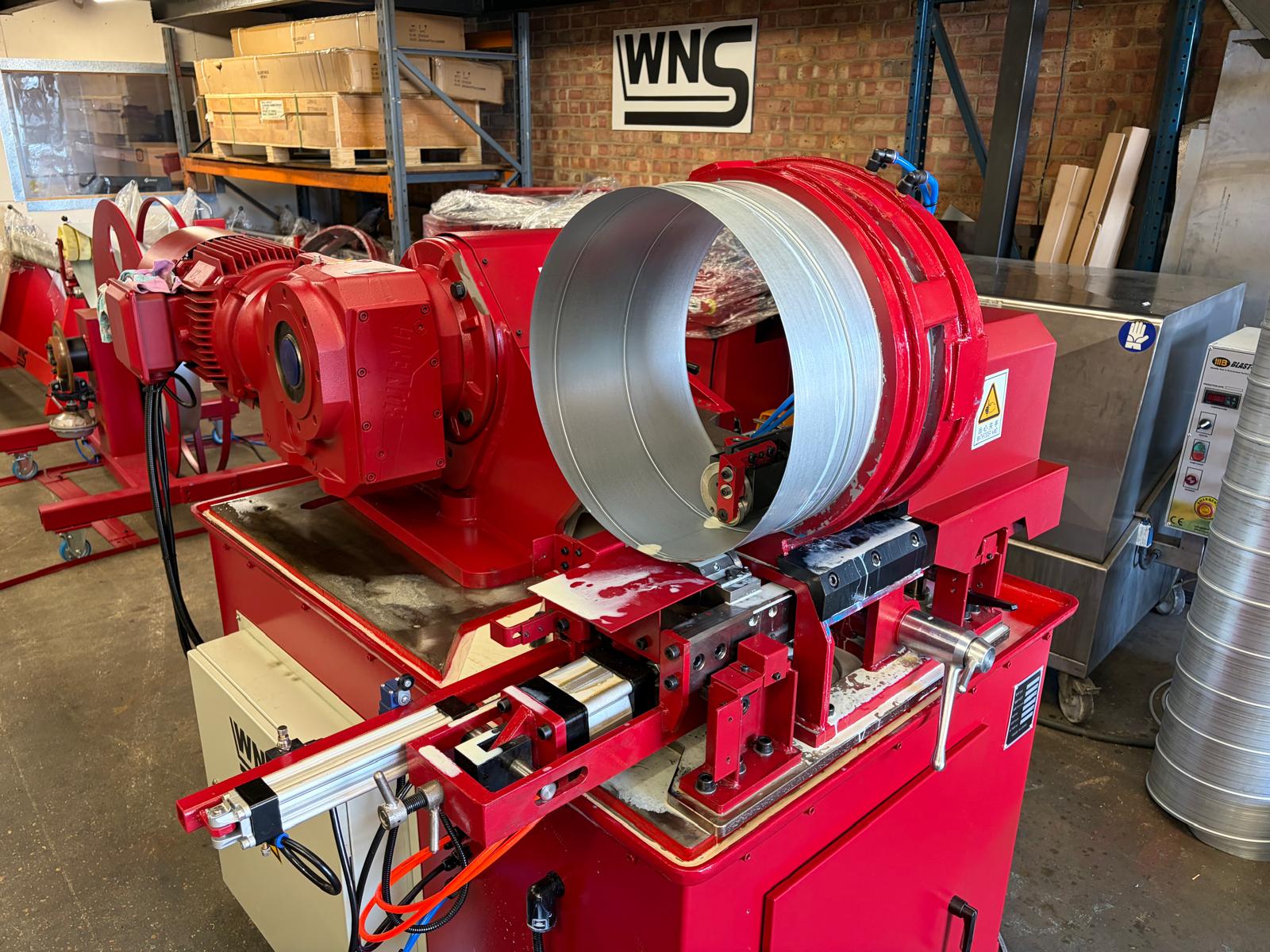

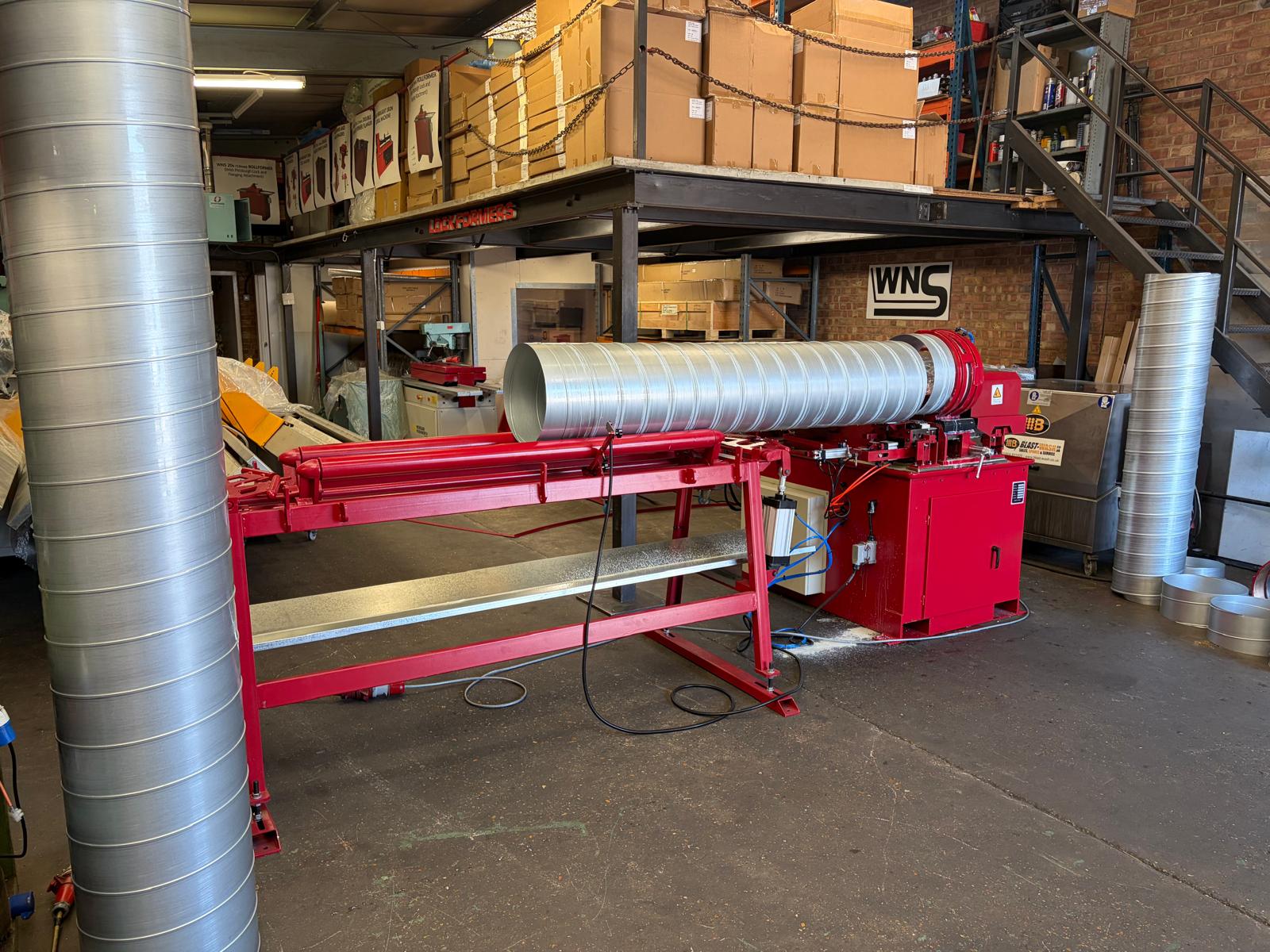

A key feature is the flying slitter, which precisely cuts tubes to length without generating noise or hot sparks typically associated with conventional saws. This process results in clean tube ends, eliminating the need for deburring.

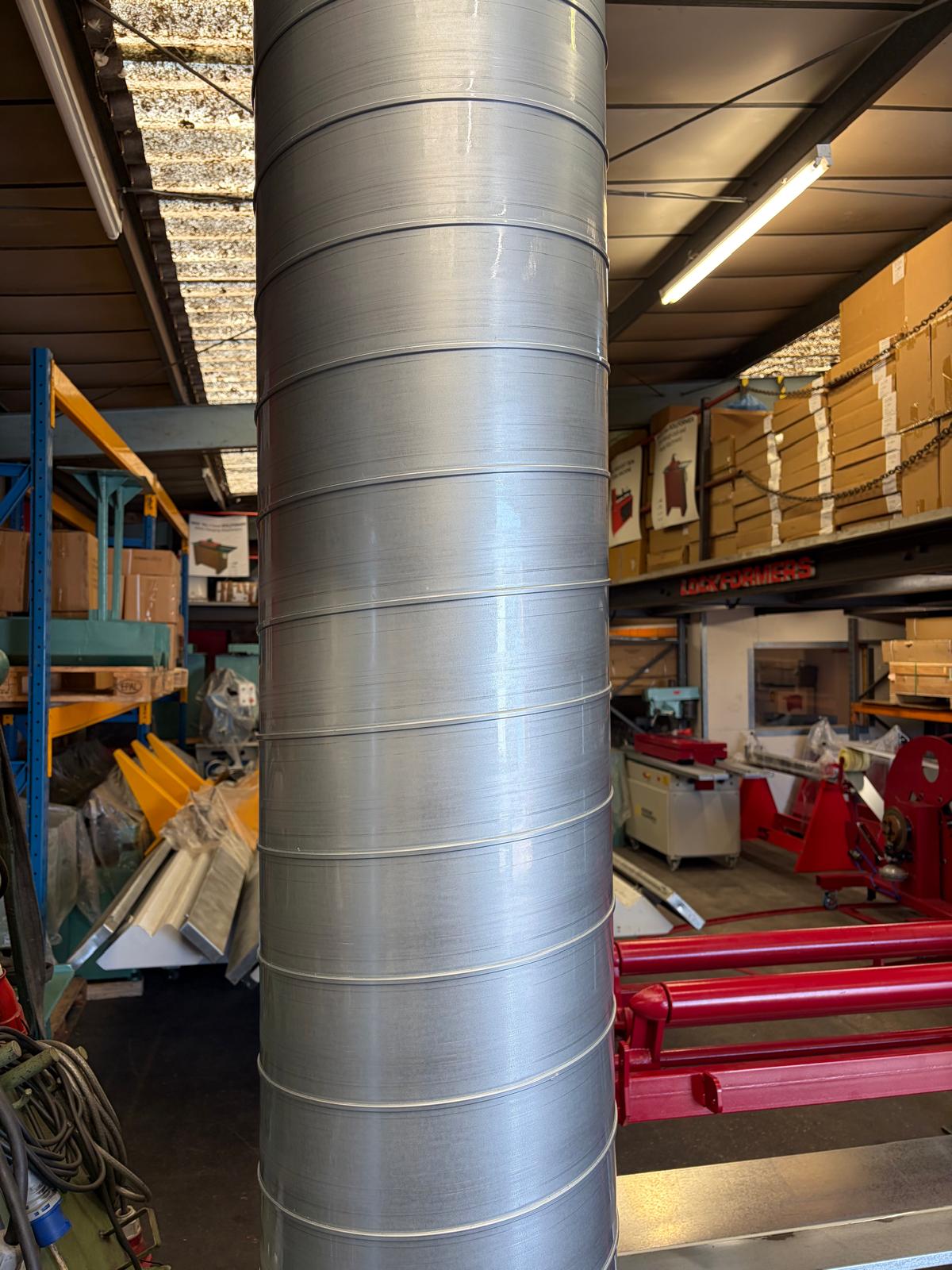

Engineered to meet the demands of HVAC applications, the system is compatible with mild steel, galvanized steel, stainless steel, and aluminium. Additionally, the integrated corrugation unit enhances tube rigidity, particularly for larger diameters, while reducing material costs.

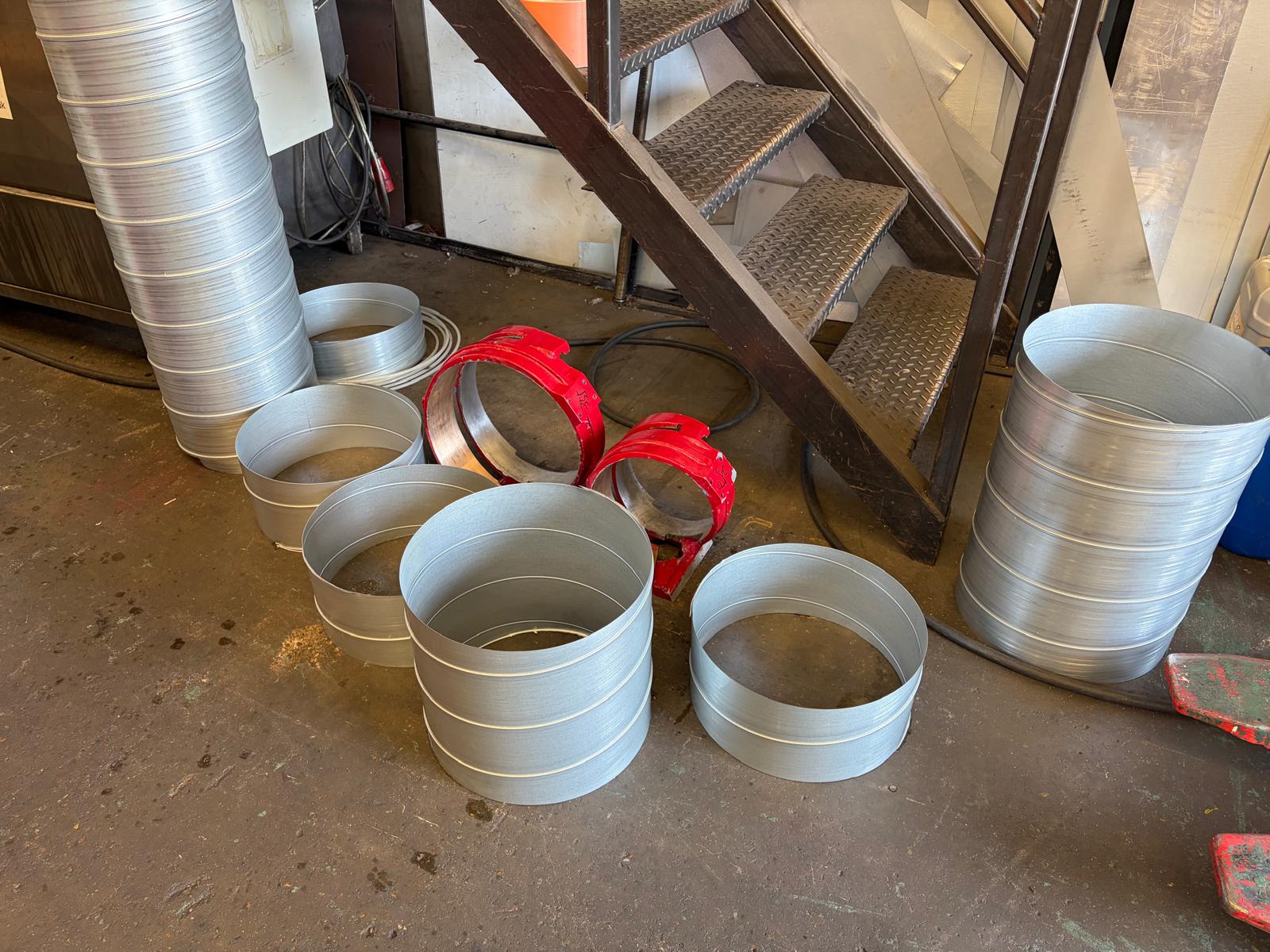

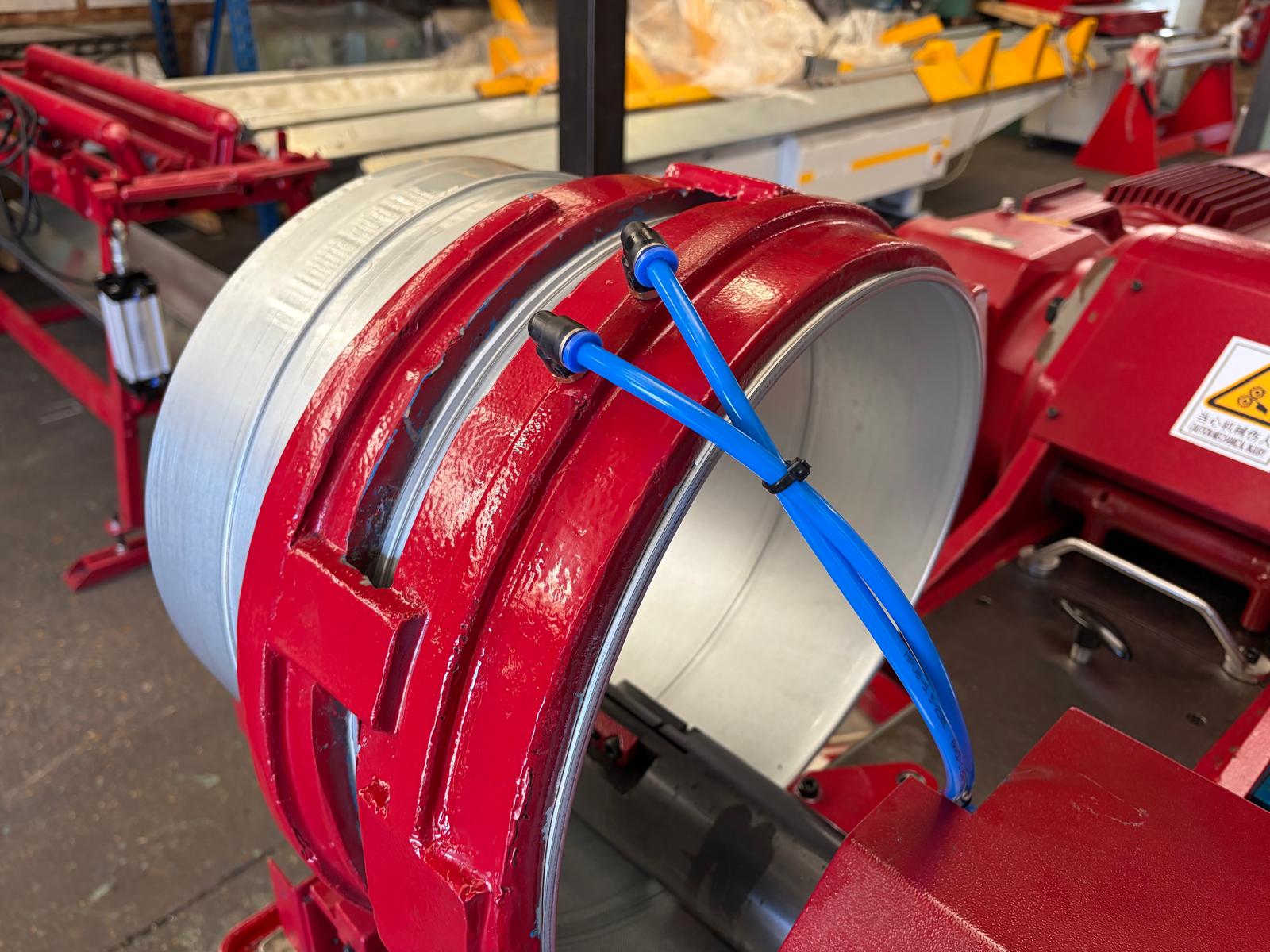

Forming Head Ranges
80-200mm
201-400mm
401-600mm
601-800mm
801-1000mm
1001-1250mm
1251-1600mm

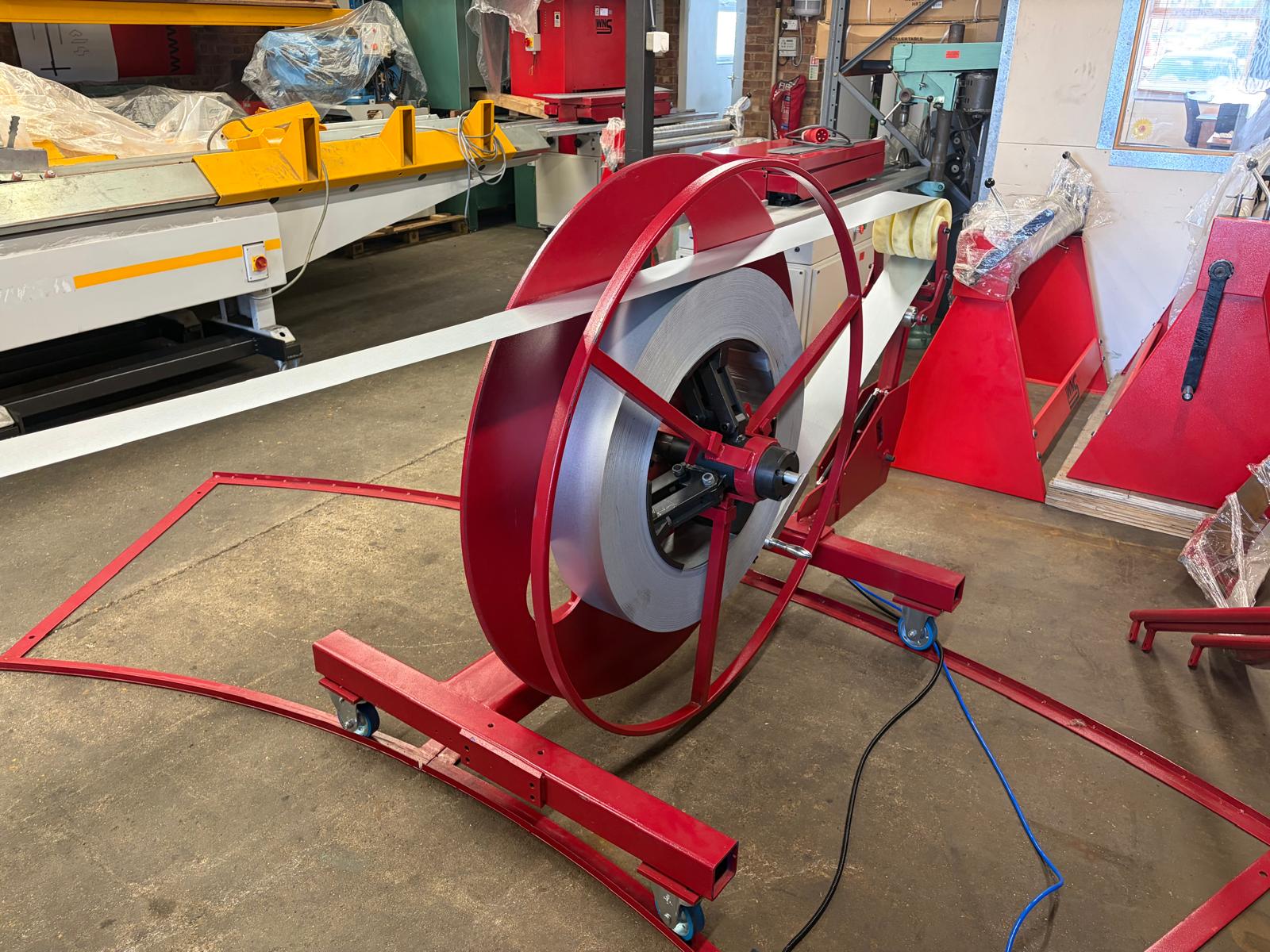

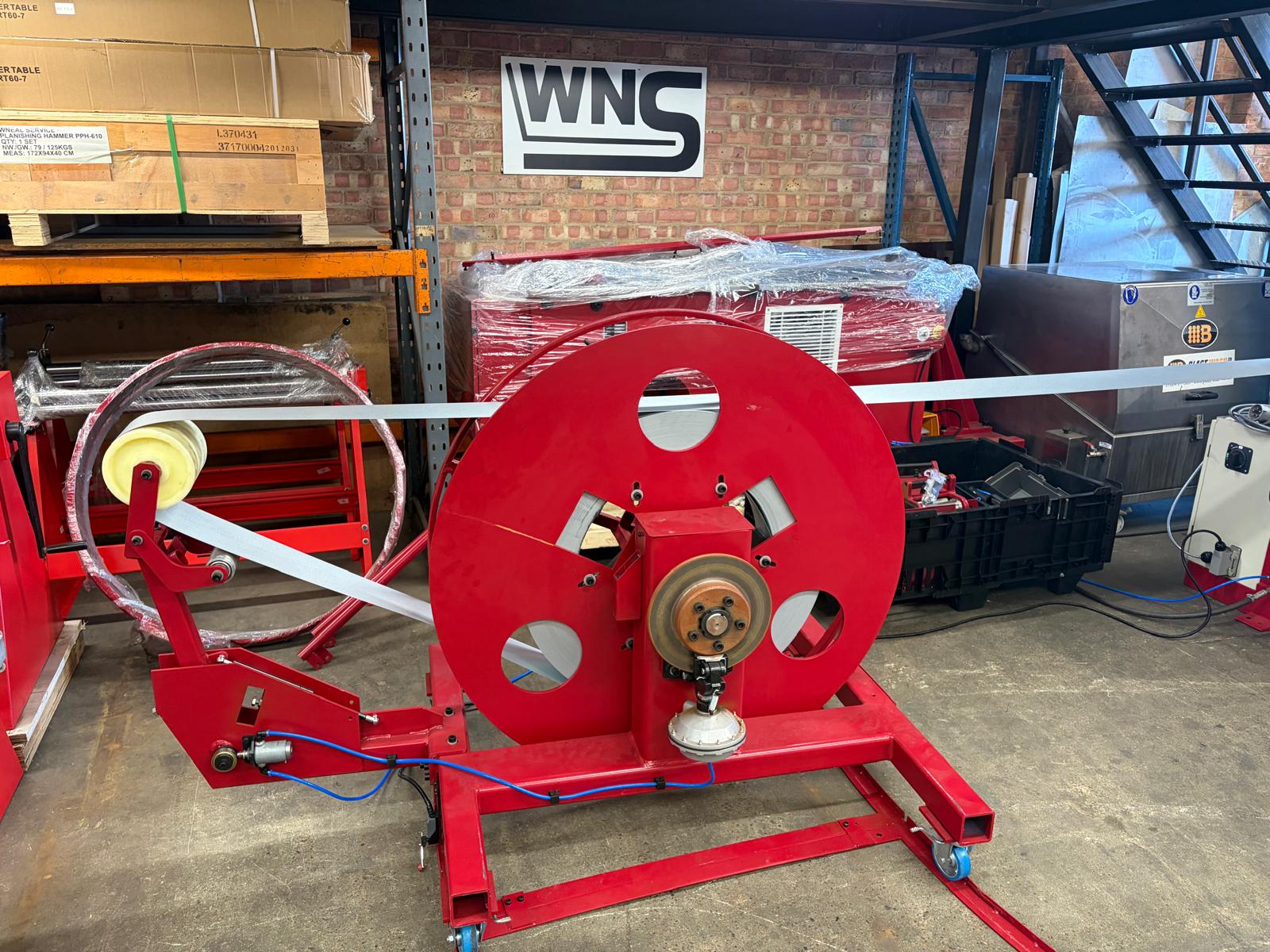

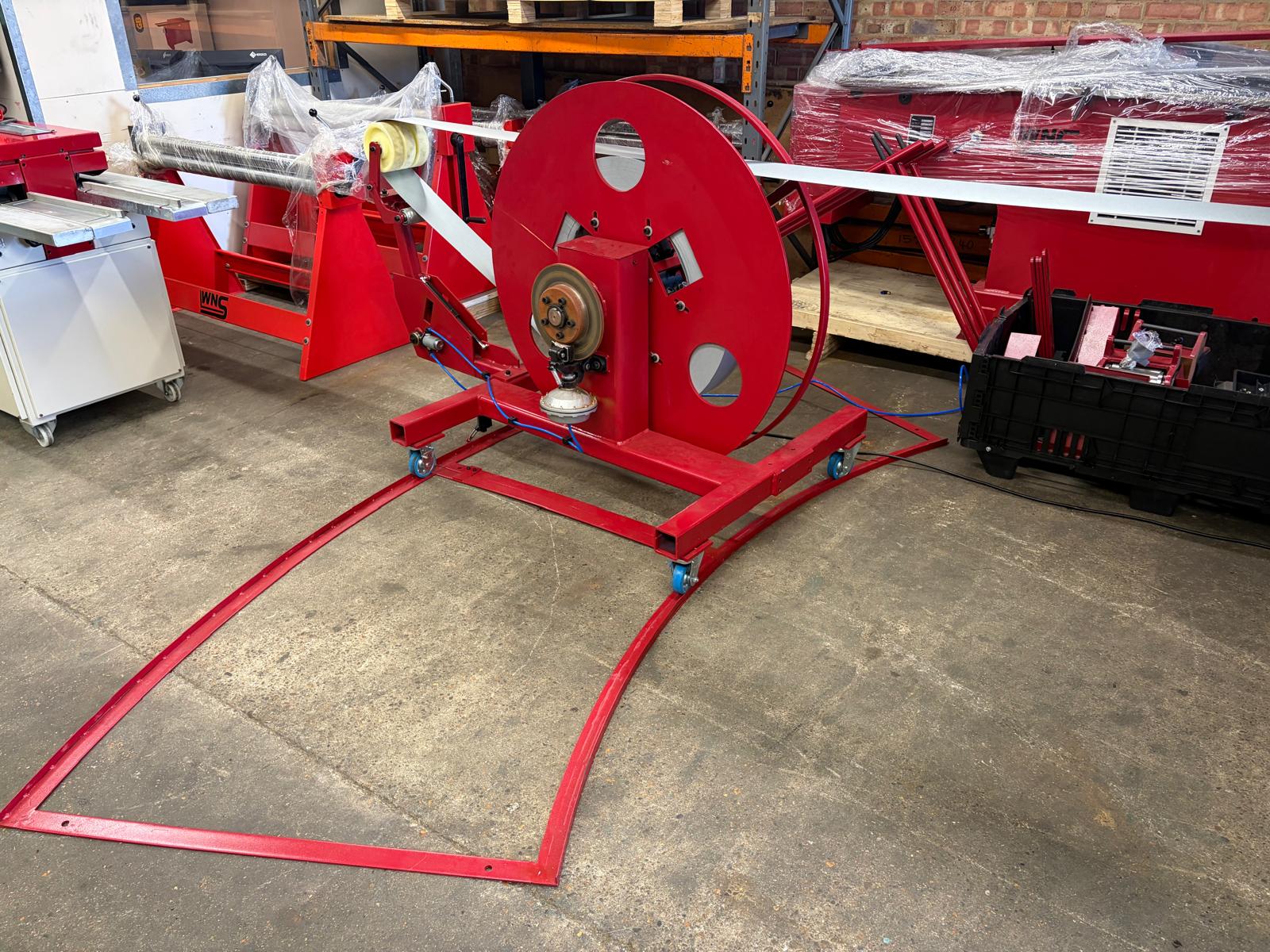

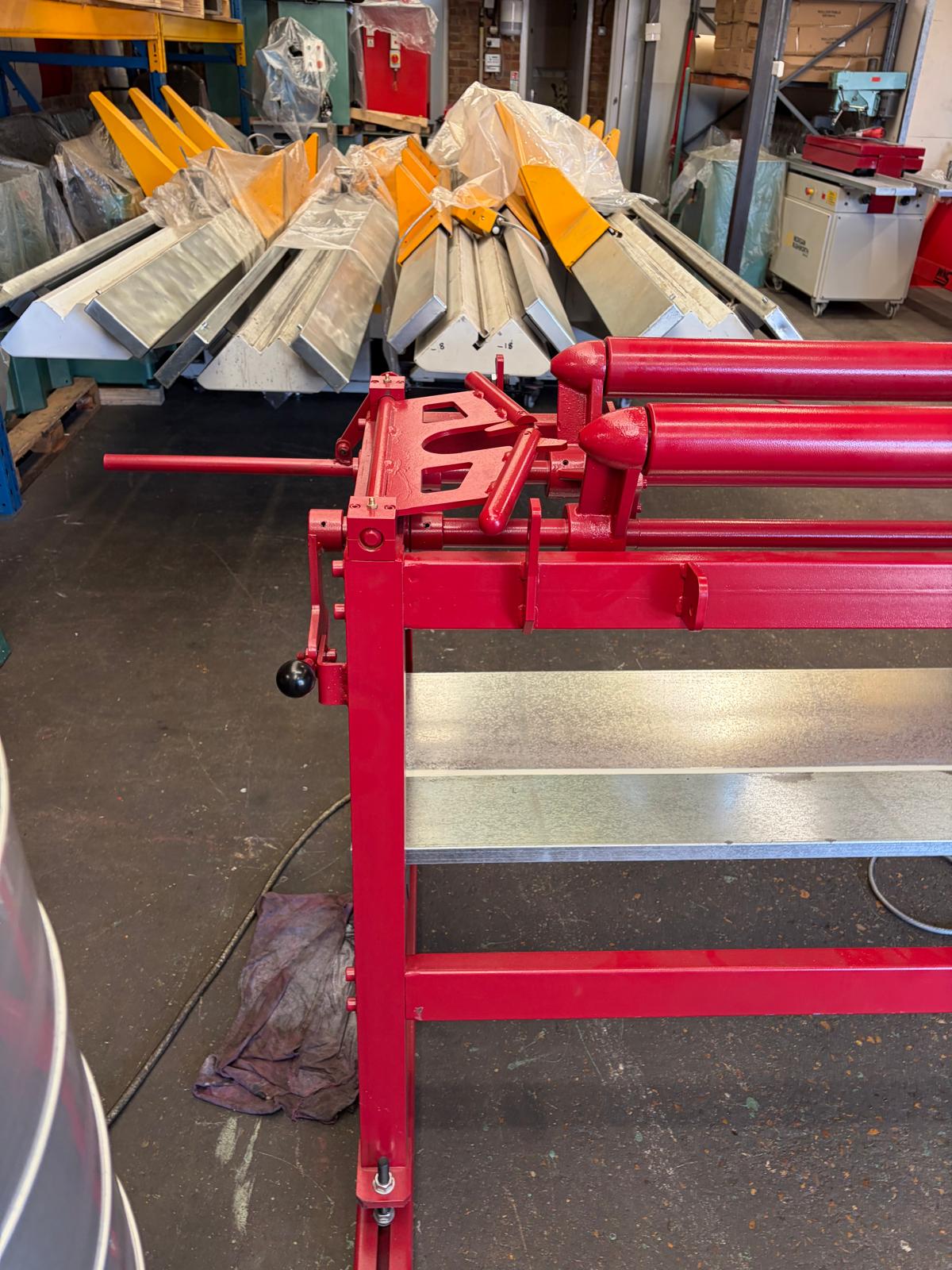

| SPECIFICATIONS | |
| Model: | STF1600 |
| Tube Diameter Range: | 80mm – 1600mm |
| Maximum Thickness: | 0.4mm – 1.3mm Capacity Galvanized Steel |
| 0.4mm – 0.8mm Capacity Stainless Steel | |
| 0.4mm – 1.3mm Capacity Aluminium | |
| Width Of Strip: | Standard 137mm – 0.4mm – 1.0mm Capacity |
| Standard 140mm – 1.1mm – 1.3mm Capacity | |
| Cutting System: | Slitter Cutter |
| Steel Coil – Minimum Inside Diameter: | 430mm |
| Steel Coil – Maximum Inside Diameter: | 530mm |
| Steel Coil – Maximum Weight: | 1 Tonne |
| Maximum Working Speed: | 60m/min |
| Air Consumption: | 0.8MPA |
| Supply Voltage: | 415v, 3 Phase Electrics, 50Hz, 12kw, 30 Amps Per Phase |
| Dimensions – Machine (apx): | 1900mm x 2050mm x1500mm (l x w x h) |
| Dimensions – Decoiler (apx): | 1780mm x 1130mm x 1250mm (l x w x h) |
| Dimensions – Run-out Table (apx): | 2700mm x 950mm x 1200mm (l x w x h) |
| Weight – net (apx): | 2900Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
