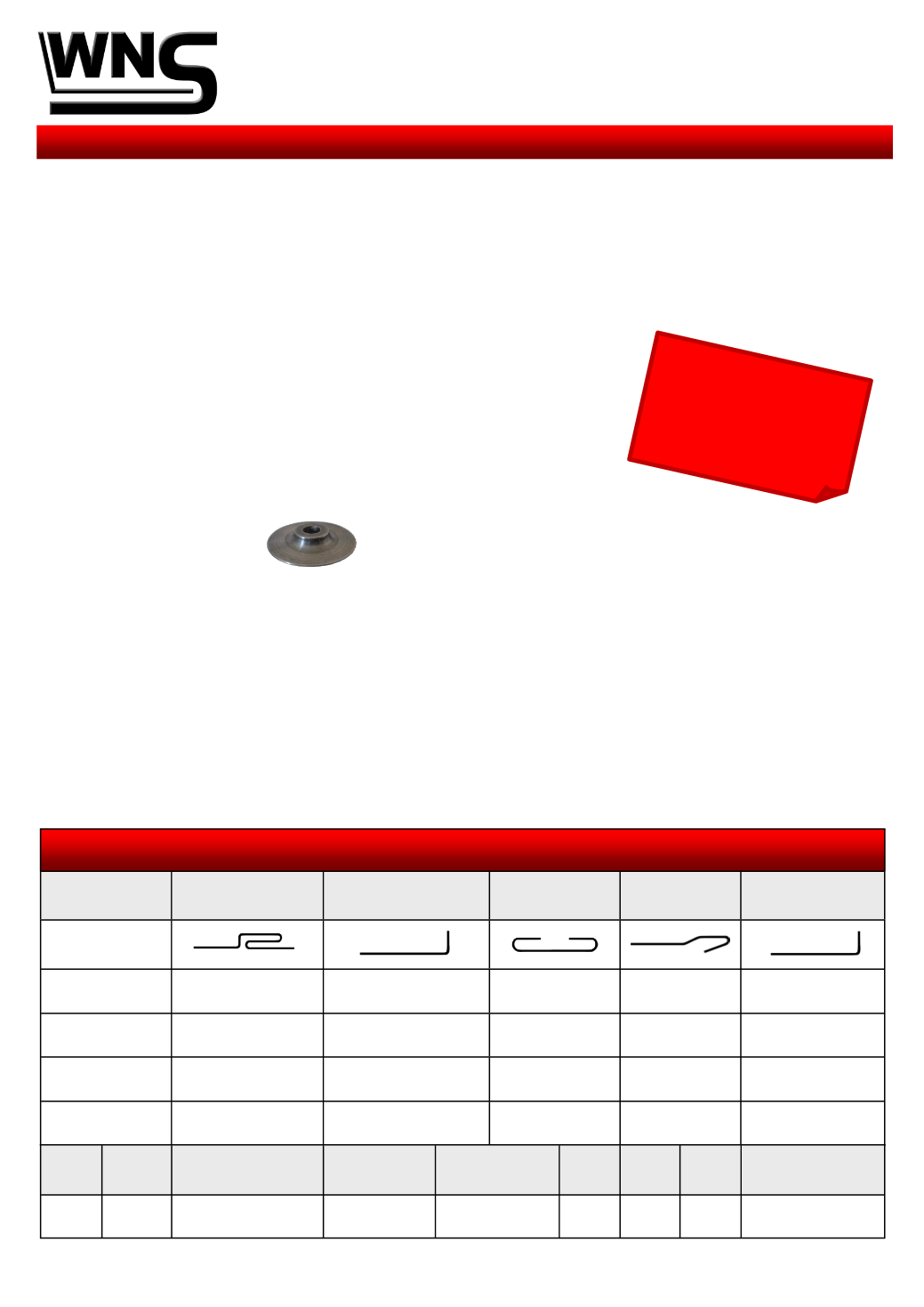

All capacities are based on the use of Rollforming quality Mild Steel. All specifications, dimensions & weights are approximate & are to be used as a guide. Colours may vary.
All prices are subject to delivery costs and applicable VAT. W. Neal Services Ltd reserves the right to alter any specifications. Please note products are NOT to scale. E&OE.
CE
SPECIFICATIONS
Auxiliary Rolls:
Pittsburgh Lock
Rolls Fitted Inboard:
Drive Cleat*:
Double Seam*: Right Angle Flange*:
Right Angle Flange
(Formed on the Flanging Attachment)
:
Profiles:
(Standard)
Maximum Thickness:
20swg (1.0mm)
1.0mm
0.8mm
1.0mm
1.0mm
Material Used:
25mm
(Subject to knock over edge)
54mm
20mm
6.0mm+
6.0mm
Seam Width:
10mm
29mm
10mm
-
-
Flange Height:
-
-
-
6.0mm
6.0mm
* Optional Rolls which can be fitted to auxiliary shafts
WNS
20swg (1.0mm) PITTSBURGH LOCK ROLLFORMERS are 5 station machines. They are principally used in the
HVAC industry for joining sheet metal at right angles on straight and curved duct sections. Pittsburgh Lock Rolls, Auxiliary
Shafts and an AUTO GUIDE FLANGING ATTACHMENT are fitted as standard. The ‘lock’ is formed in one pass and a
flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK
AIR CLOSING HAMMER
Additional forming rolls, such as DOUBLE SEAM ROLLS, DRIVE CLEAT ROLLS, etc.
can be fitted onto the Auxiliary Shafts. The AUTO GUIDE FLANGING ATTACHMENT enables the forming of a right angle
on curved, straight and irregular shapes. WNS Rollformers are manufactured with all steel side plates. The shafts,
forming rolls, gears and guide fences are all hardened, and needle bearings are fitted throughout.
Manufacturers of Rollformers & Sheet Metal Working Machinery
00 44 (0) 1702 542554
00 44 (0) 1702 542558
Ma n u f a c t u r e d b y W. NEAL SERV I CES L TD
WNS
20swg (1.0mm) Pittsburgh Lock Rollformer.
c/w Autoguide Flanging Attachment.
415v, 3 Phase.
(RF20-FA)
WNS
20swg (1.0mm) Opening Roll.
(OR20)
Model:
Speed:
Flanging Attachment
Direction:
Motor Power:
Supply Voltage: Length: Width: Height: Weights - net/gross:
RF20
7.0m/min
Left to Right
1HP, 0.75kW
415v, 3 Phase
1067mm 508mm 1067mm
125Kg/180Kg
Other Voltages
& Pneumatic
Operated Machines
available on request.
