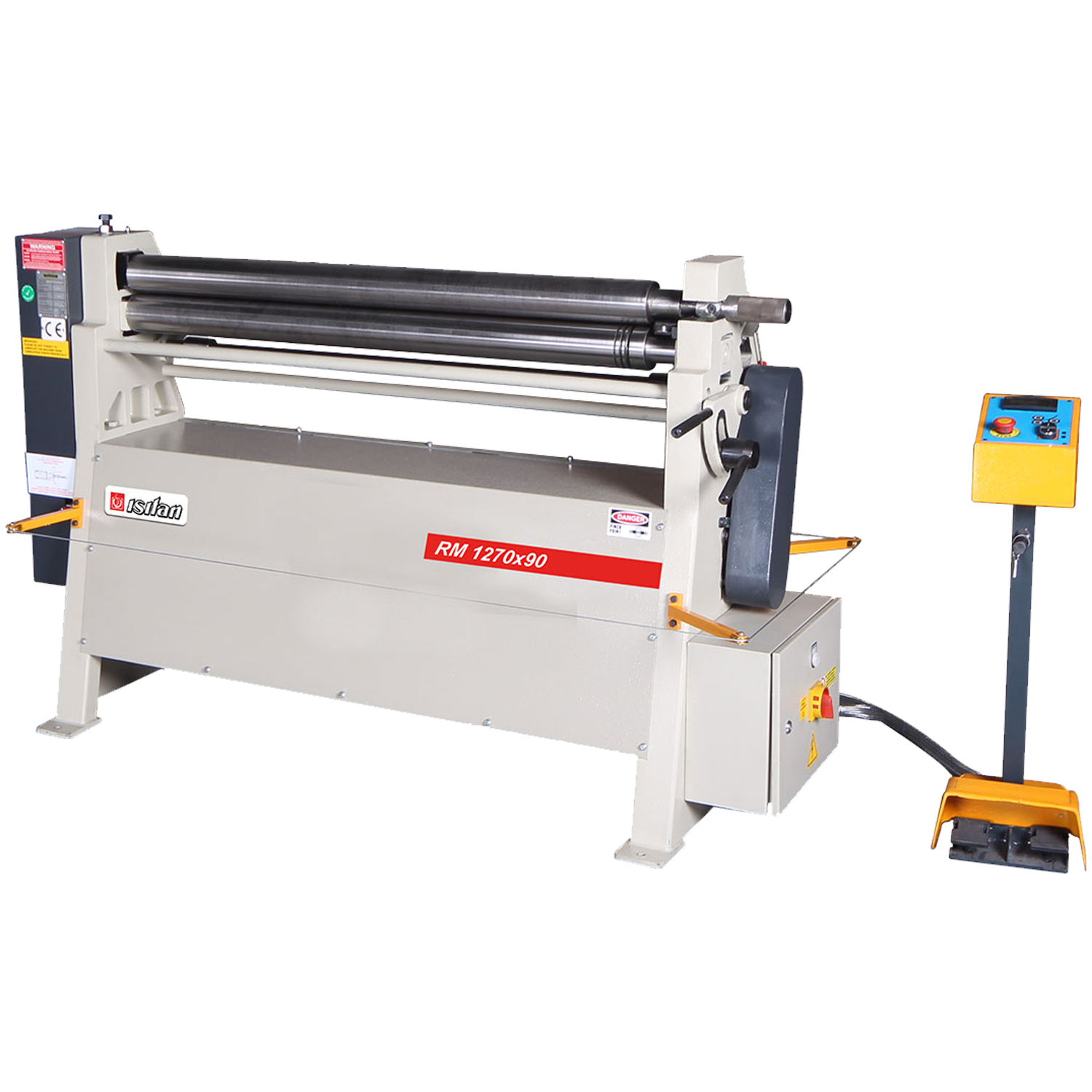

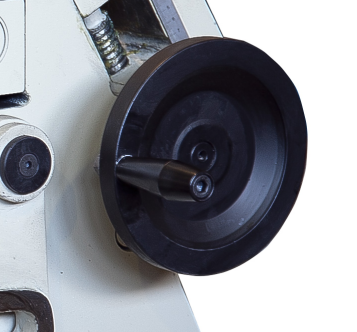

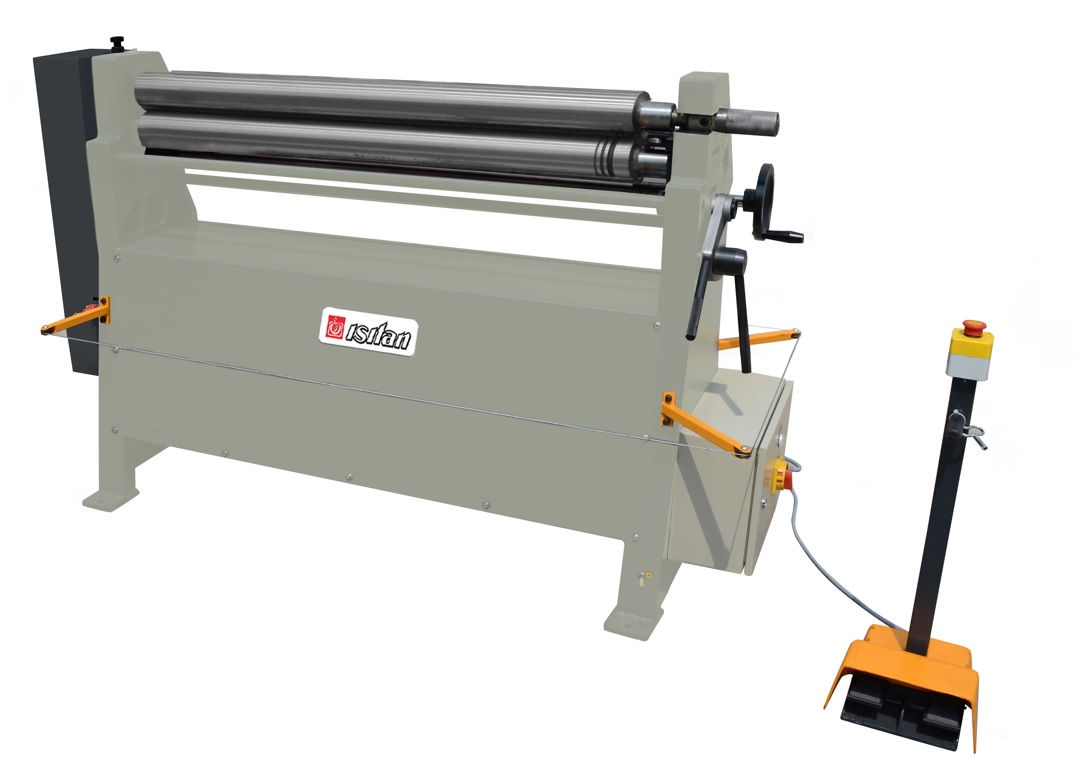

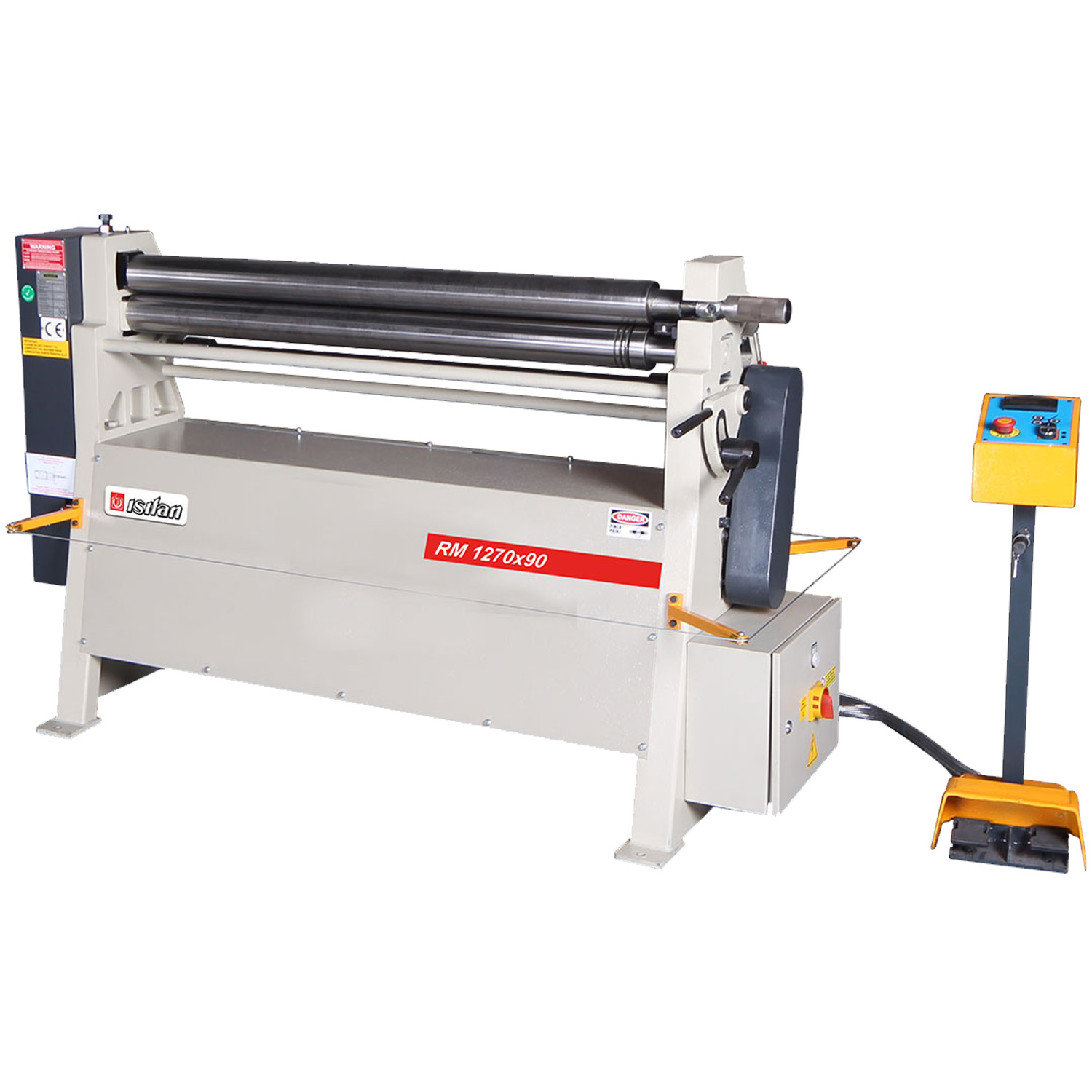

ISITAN POWER BENDING ROLLS are principally used for rolling tubes/cylinders in sheet metal. The metal is ‘pinched’ between two rolls and curves as it comes into contact with the third (back) forming roll. These rolls are equipped with 3 x wiring grooves and offer precision bending with brake motor. The top and bottom rolls are powered by a single gearbox & chain gear system. They also have the following features: top slip with a quick release top roll, quick back roll adjustment, SAE 1050 quality certificated steel rolls with high tensile strength, cast iron main frame, forward & reverse foot pedal, conical bending device, manual drop-end and a fabricated steel stand.
Models Available:
1050mm Roll Length x 90mm Roll Diameter x 3.0mm Capacity Mild Steel (PBR1050/90I) Prices from £4950.00*
1270mm Roll Length x 90mm Roll Diameter x 2.5mm Capacity Mild Steel (PBR1270/90I) Prices from £5100.00*
1550mm Roll Length x 90mm Roll Diameter x 2.0mm Capacity Mild Steel (PBR1550/90I) Prices from £5350.00*
2050mm Roll Length x 95mm Roll Diameter x 1.5mm Capacity Mild Steel (PBR2050/95I) Prices from £5950.00*
Optional Extras Available:
Hardened Rolls

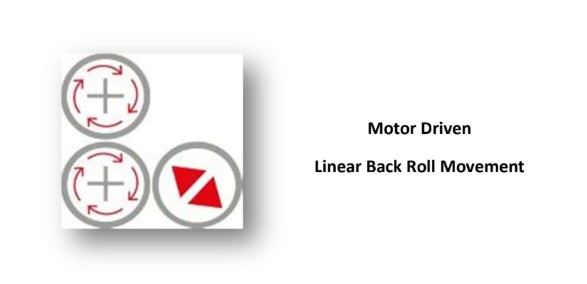

Motorised Back Roll
Digital Read-out
*Prices shown are for the standard rolls without any of the above optional extras
Please note images shown are stock images and may vary dependant on any optional extras fitted.
| Weight | 750 kg |
|---|---|
| Dimensions | N/A |
| Model: | 1050mm x 90mm x 3.0mm Capacity (PBR1050/90I), 1270mm x 90mm x 2.5mm Capacity (PBR1270/90I), 1550mm x 90mm x 2.0mm Capacity (PBR1550/90I), 2050mm x 95mm x 1.5mm Capacity (PBR2050/95I) |
| SPECIFICATIONS | |
| Model: | PBR1050/90I |
| Roll Size: | 1050mm Length x 90mm Diameter |
| Maximum Thickness: | 3.0mm Capacity Mild Steel |
| Rolls: | Top Slip With Quick Release Top Roll |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 9.0mm | |
| Main Frame: | Cast Iron |
| Stand: | Fabricated Steel |
| Direction: | Forward & Reverse Foot Pedal |
| Speed: | Single – 6.0mm/min |
| Motor Power: | 1.1kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1630mm x 700mm x 1200mm (l x w x h) |
| Weight – net (apx): | 480Kg |
| SPECIFICATIONS | |
| Model: | PBR1270/90I |
| Roll Size: | 1270mm Length x 90mm Diameter |
| Maximum Thickness: | 2.5mm Capacity Mild Steel |
| Rolls: | Top Slip With Quick Release Top Roll |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 9.0mm | |
| Main Frame: | Cast Iron |
| Stand: | Fabricated Steel |
| Direction: | Forward & Reverse Foot Pedal |
| Speed: | Single – 6.0mm/min |
| Motor Power: | 1.1kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1850mm x 700mm x 1200mm (l x w x h) |
| Weight – net (apx): | 520Kg |
| SPECIFICATIONS | |
| Model: | PBR1550/90I |
| Roll Size: | 1550mm Length x 90mm Diameter |
| Maximum Thickness: | 2.0mm Capacity Mild Steel |
| Rolls: | Top Slip With Quick Release Top Roll |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 9.0mm | |
| Main Frame: | Cast Iron |
| Stand: | Fabricated Steel |
| Direction: | Forward & Reverse Foot Pedal |
| Speed: | Single – 6.0mm/min |
| Motor Power: | 1.5kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 2130mm x 700mm x 1200mm (l x w x h) |
| Weight – net (apx): | 580Kg |
| SPECIFICATIONS | |
| Model: | PBR2050/95I |
| Roll Size: | 2050mm Length x 95mm Diameter |
| Maximum Thickness: | 1.5mm Capacity Mild Steel |
| Rolls: | Top Slip With Quick Release Top Roll |
| Wiring Grooves (x 3): | 4.0mm |
| 6.0mm | |
| 9.0mm | |
| Main Frame: | Cast Iron |
| Stand: | Fabricated Steel |
| Direction: | Forward & Reverse Foot Pedal |
| Speed: | Single – 6.0mm/min |
| Motor Power: | 1.5kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 2630mm x 700mm x 1200mm (l x w x h) |
| Weight – net (apx): | 715Kg |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
