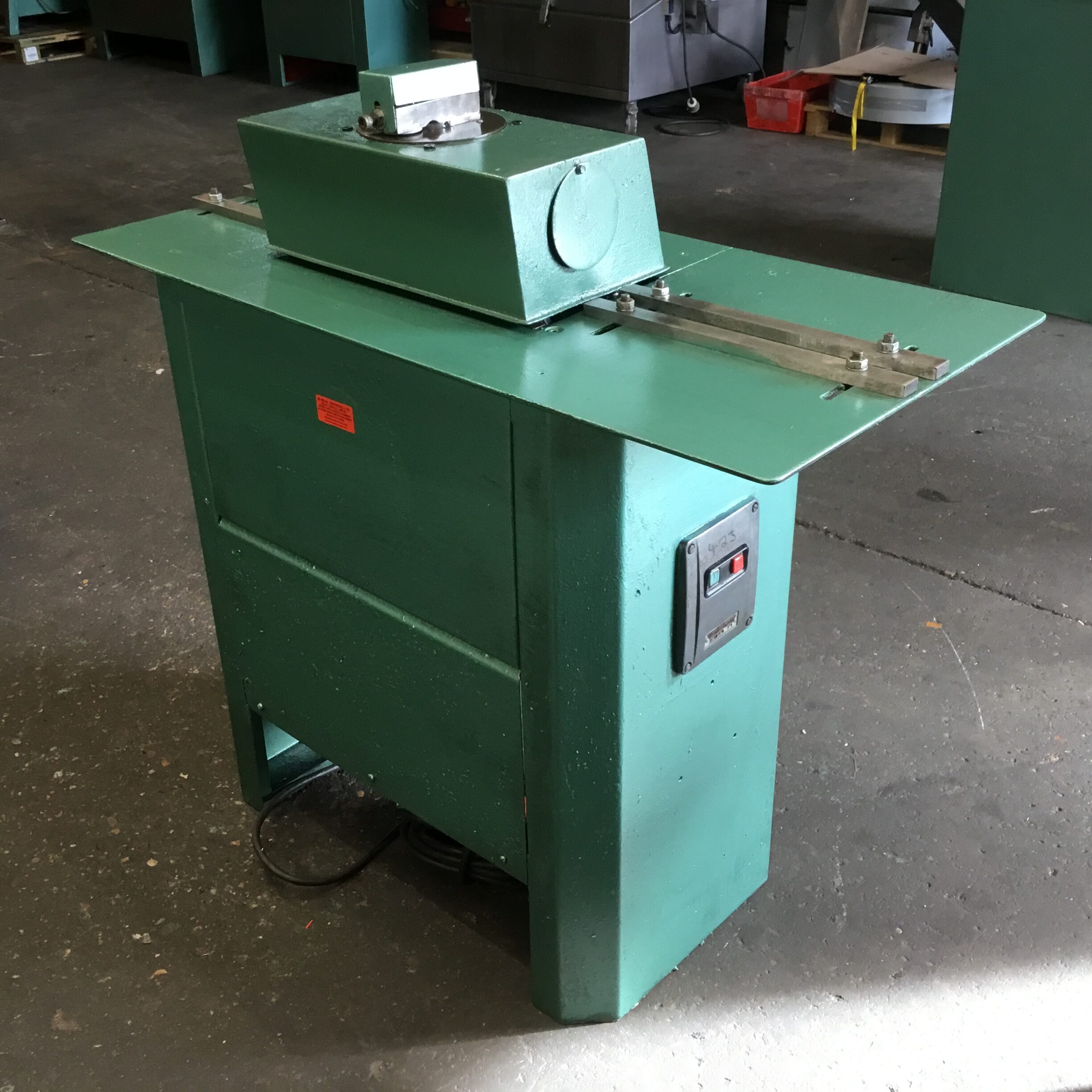

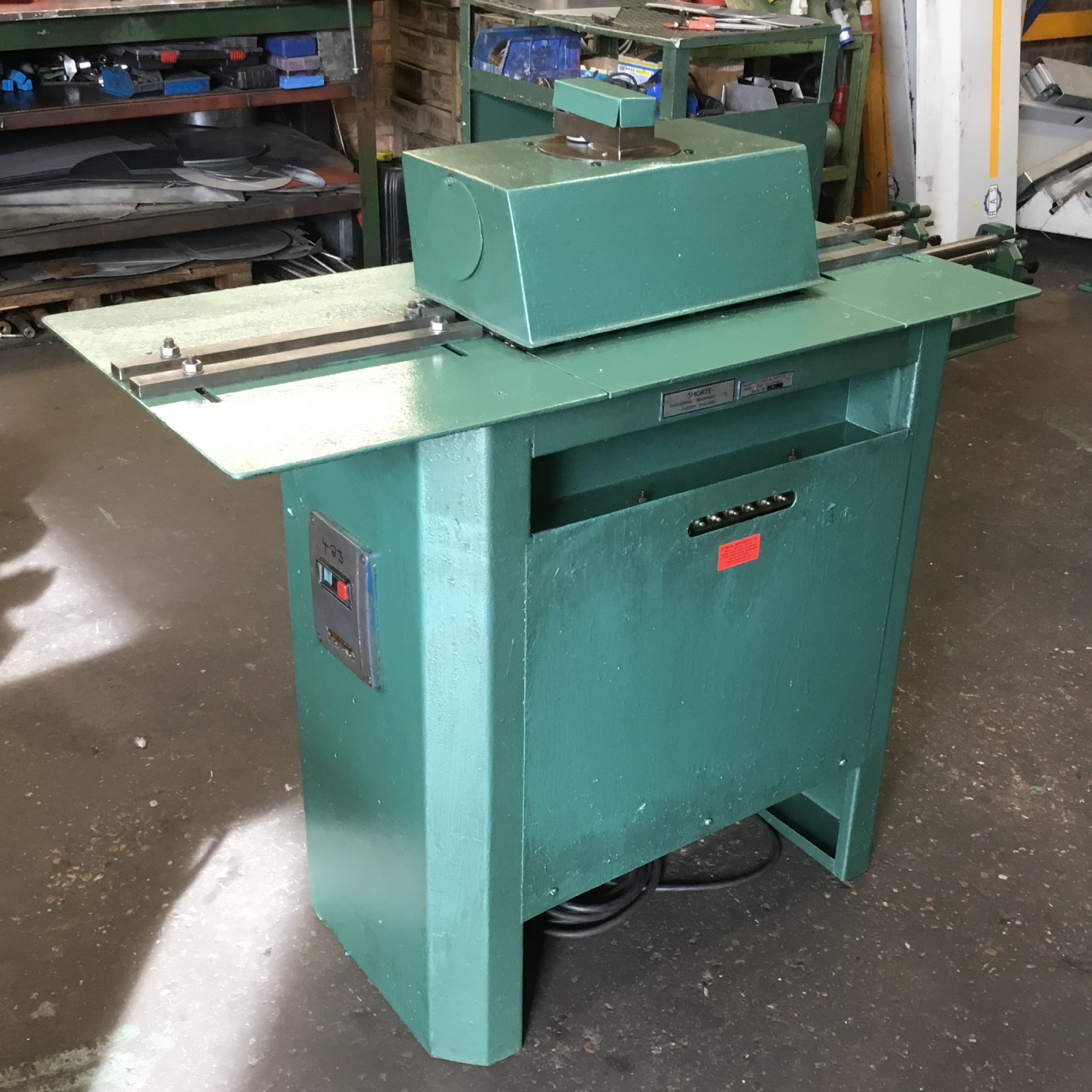

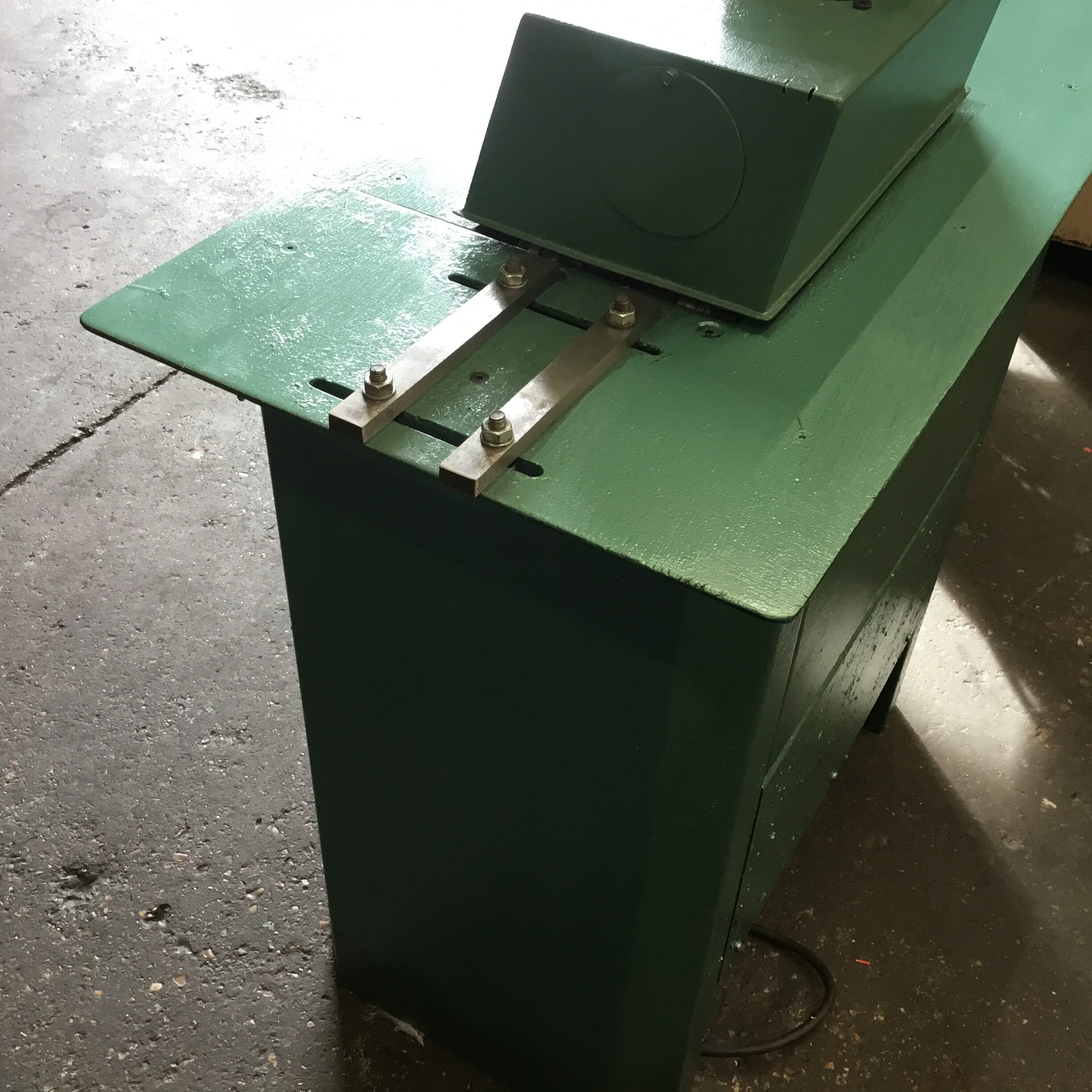

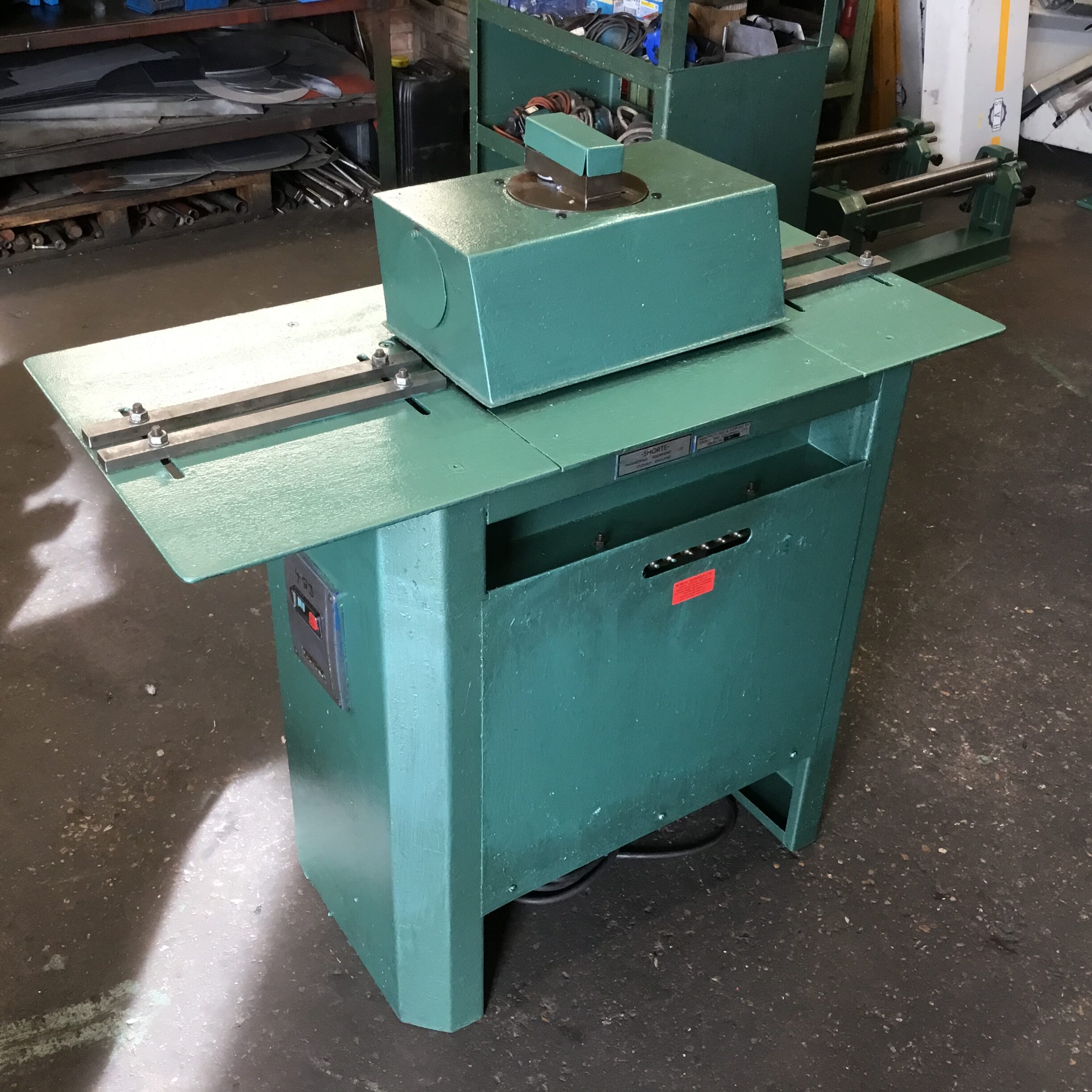

SHORTE 20swg (1.0mm) PITTSBURGH LOCK LOCKFORMERS ROLLFORMERS RF20 (REF: 423) are 5 station machines and are principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. This machine comes complete with Pittsburgh lock rolls, flanging attachment and has 415v, 3 phase electrics.
The ‘lock’ is formed in one pass and a flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK SEAM CLOSER / LOCKER (SC10), (SC12) or alternatively with a WNS 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMER (AH18).
USED/RECONDITIONED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
To view all of our available rollformers/lockformers, please click here.
To view all of our used/reconditioned machines please click here.
Â
| SPECIFICATIONS | |
| SKU: | REF: 423 |
| Model: | RF20-FA |
| Stations: | 5 (with Auxiliary Shafts) |
| Maximum Thickness: | 20swg (1.0mm) Capacity Mild Steel |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1070mm x 510mm x 1100mm (l x w x h) |
| Weight – net (apx): |
175Kg |
| PITTSBURGH LOCK ROLLS SPECIFICATIONS |
|
| Material Thickness: | 20wg (1.0mm) Capacity Mild Steel |
| Approximate Material Used: | 25mm – subject to knock over edge |
| Seam Width: | 10mm |
| Pocket Depth: | 8.5mm |

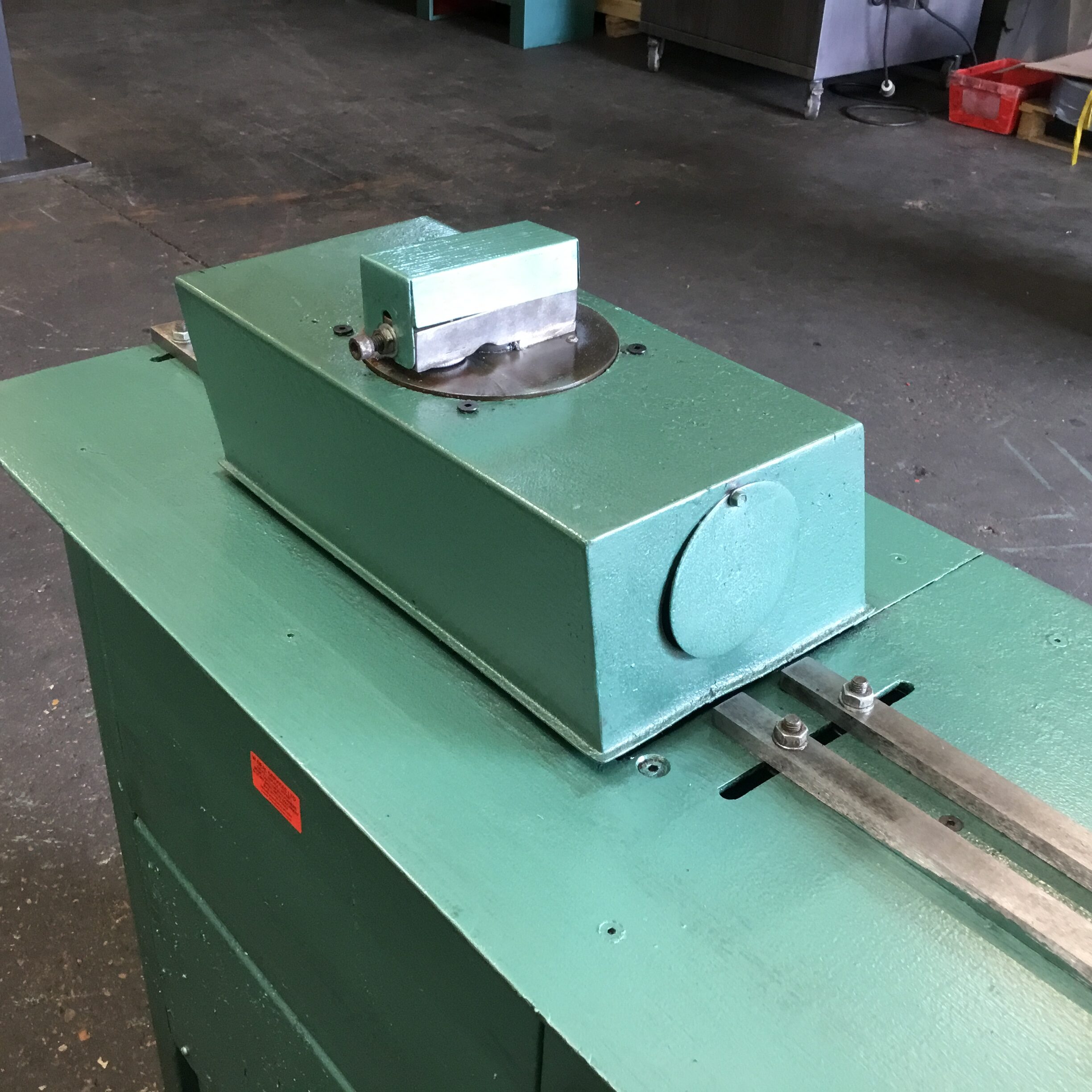

| FLANGING ATTACHMENT SPECIFICATIONS |
|
| Maximum Thickness: | 20swg (1.0mm) Capacity Mild Steel |
| Minimum Radius: | 100mm |
| Approximate Material Used: | 6.0mm |
| Flange Height: | 6.0mm |
| Flanging Attachment Direction: | Right To Left |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
