Manufactured by W. NEAL SERVICES LTD since 1981.
*please see Terms & Conditions. **fees apply.
W. NEAL SERVICES LTD – Manufacturing Rollforming Machinery since 1981.

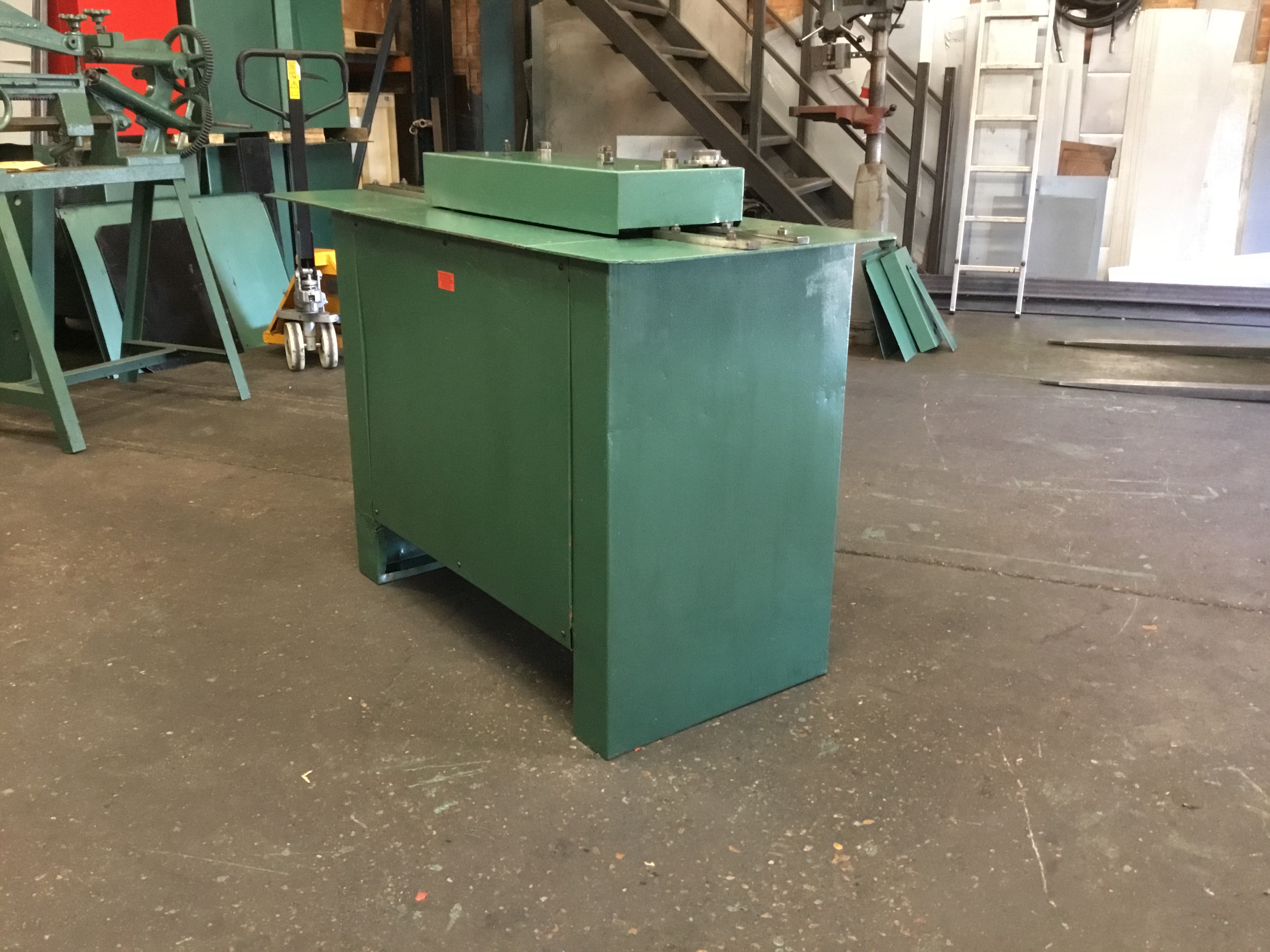

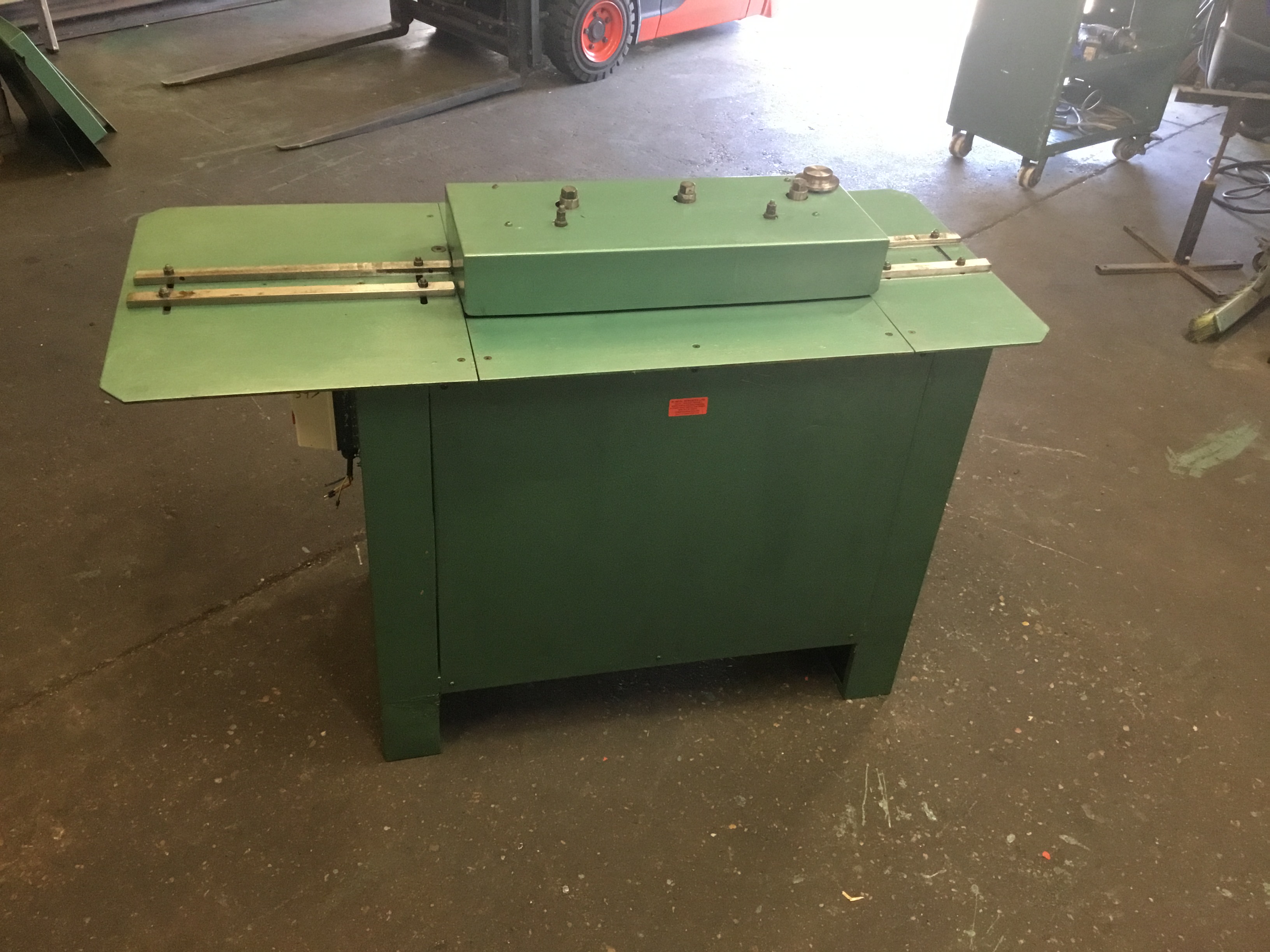

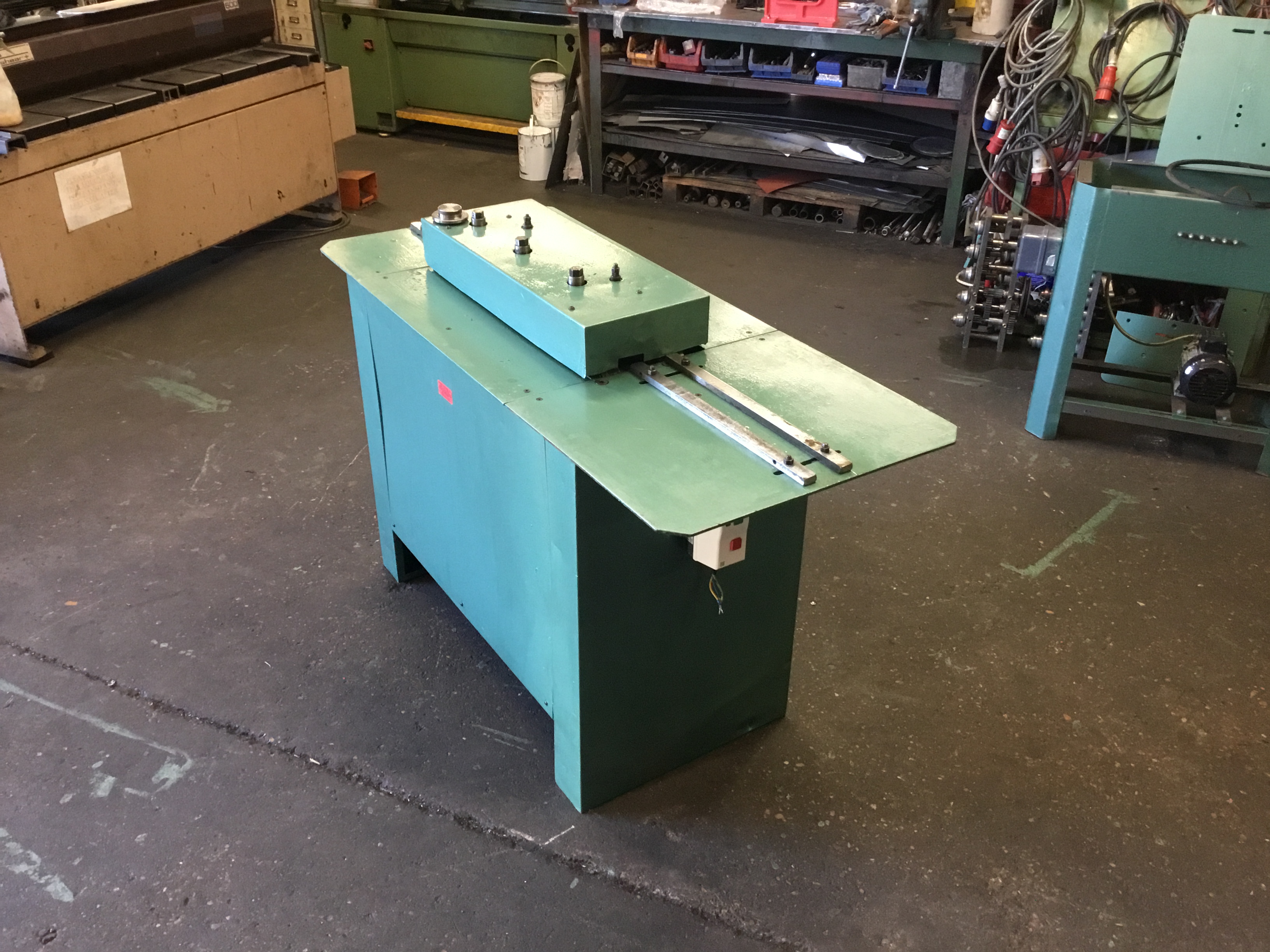

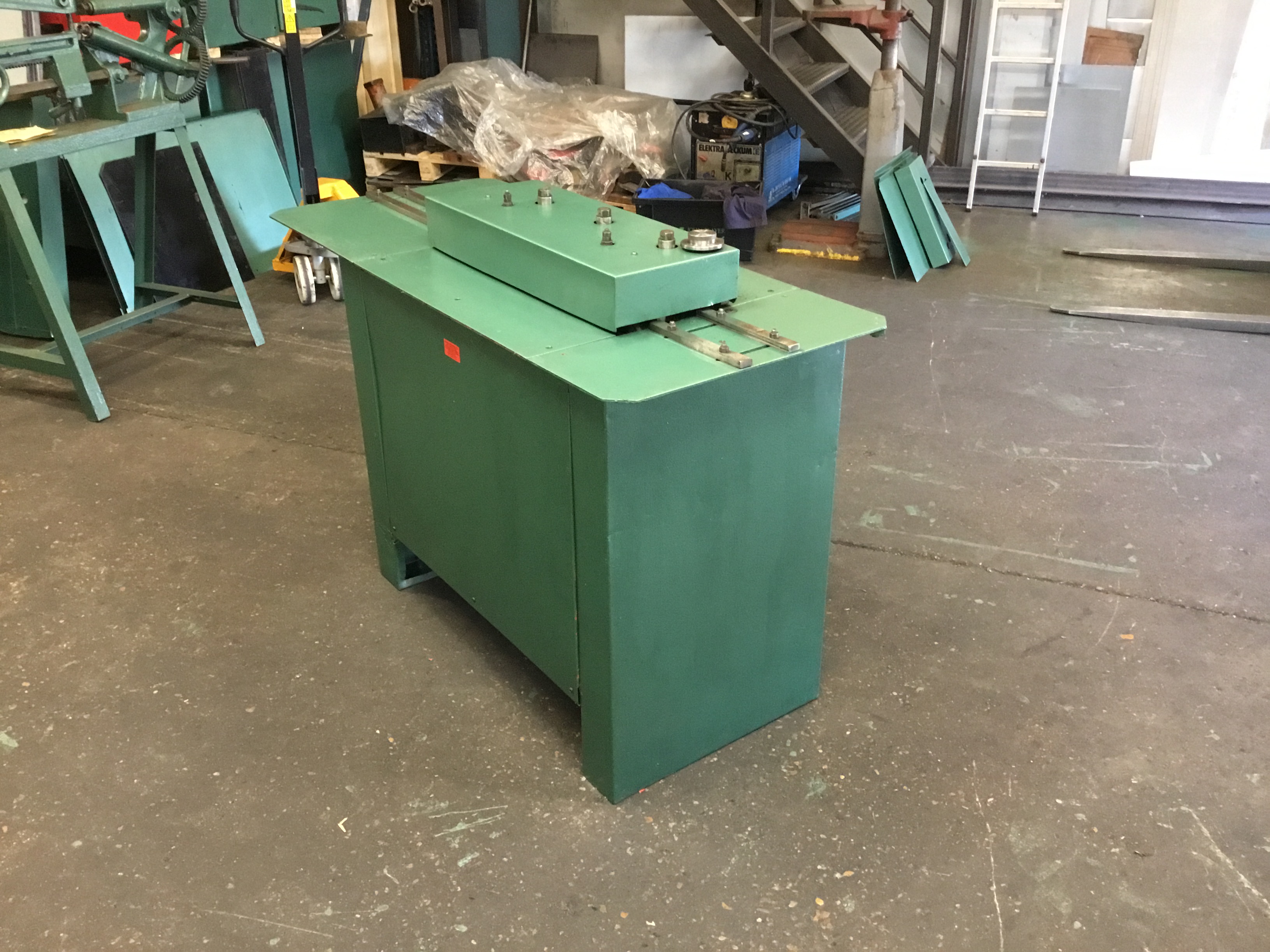

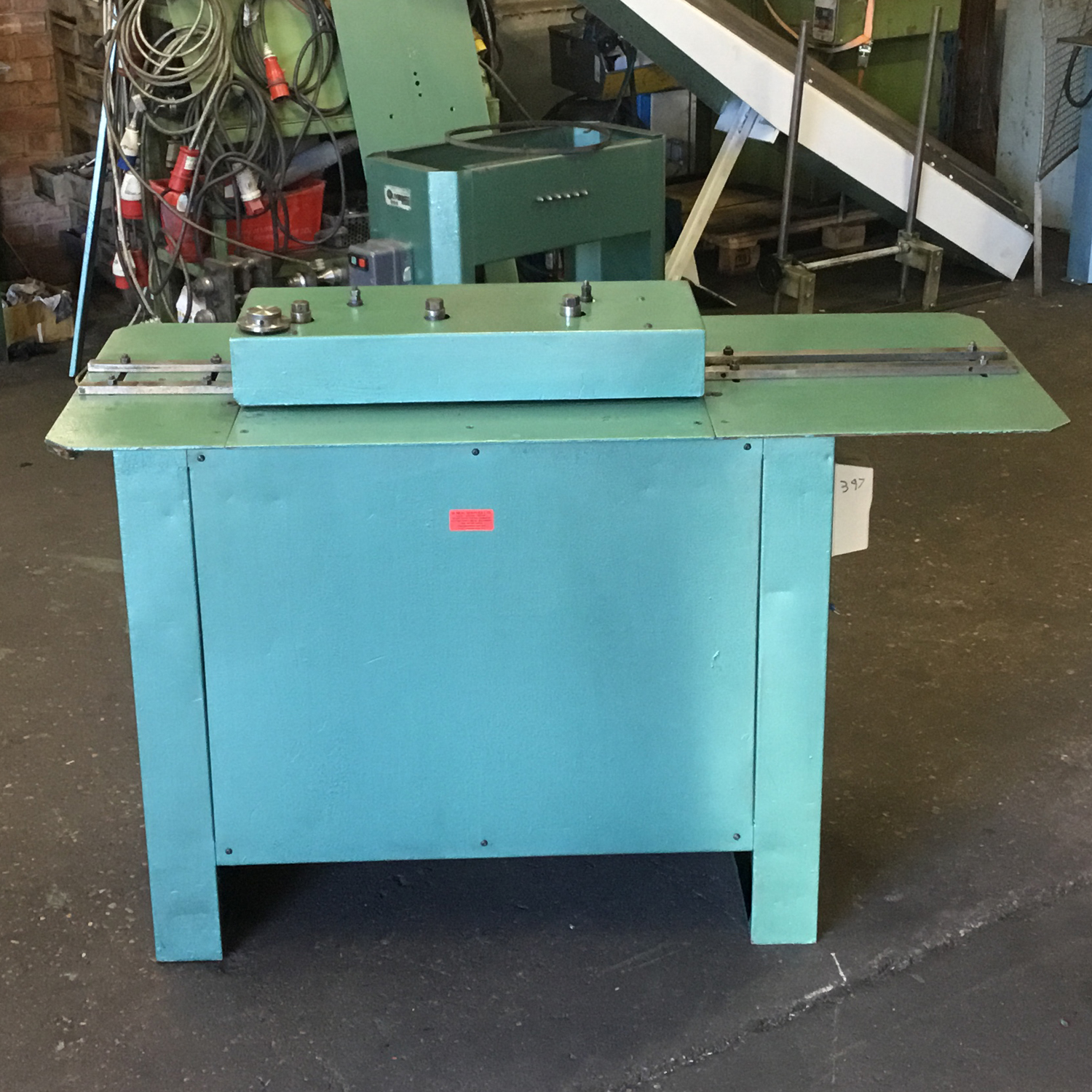

WNS 16swg (1.6mm) PITTSBURGH LOCK LOCKFORMER ROLLFORMERS RF16 (REF: 397) are 7 station machines and are principally used in the HVAC industry for joining sheet metal at right angles on straight and curved duct sections. This machine comes complete with Pittsburgh lock rolls, double seam rolls and has 415v, 3 phase electrics. The ‘lock’ is formed in one pass and a flange is inserted into the pocket. The edge is then hammered over either manually or with a WNS PITTSBURGH LOCK SEAM CLOSER / LOCKER (SC12) or with a WNS 18swg (1.2mm) PITTSBURGH LOCK AIR CLOSING HAMMER (AH18).
WNS rollformers are manufactured with all steel side plates. The shafts, forming rolls, gears and guide fences are all hardened, and needle bearings are fitted throughout.
Additional Auxiliary Rolls Available:
• Small Pittsburgh Lock (APL)
• Drive Cleat
• Double Seam
• Plain Seam
• Right Angle Flange
• Standing Seam
• 3 in 1 Rolls
• Safe Edge
• Closed Double Seam
USED/RECONDITIONED
This is a used machine and is in full working order.
Viewing welcome prior to purchase.
Delivery can be arranged (fees apply).
TTo view all of our available Rollformers/Lockformers, please click here.
To view all of our Used/Reconditioned machines please click here.
| SPECIFICATIONS | |
| Model: | REF: 397 (RF16) |
| Stations: | 7 (with Auxiliary Shafts) |
| Maximum Thickness: | 16swg (1.6mm) Mild Steel |
| Speed: | 6.0m/min |
| Motor Power: | 2HP, 1.5kW |
| Supply Voltage: | 415v, 3 Phase Electrics |
| Dimensions – machine (apx): | 1450mm x 610mm x 1020mm (l x w x h) |
| Weight – (apx): | 250Kg |
| SPECIFICATIONS – PITTSBURGH LOCK ROLLS | |
| Maximum Thickness: | 26swg – 16swg (0.5mm – 1.6mm) Mild Steel |
| Approximate Material Used: | 32mm – subject to knock over edge |
| Seam Width: | 13mm |
| Pocket Depth: | 11mm |
| SPECIFICATIONS – DOUBLE SEAM ROLLS | |
| Maximum Thickness: | 18swg (1.2mm) Mild Steel |
| Approximate Material Used: | 21mm |
| Seam Width: | 11mm |
All capacities are based on the use of rollforming quality mild steel unless otherwise stated. All specifications, dimensions and weights are approximate and are to be used as a guide. Colours may vary. Please note photographs/drawings are not to scale. All prices are subject to delivery costs and applicable VAT.
W. Neal Services Ltd reserves the right to alter any specifications. For warranty terms please see our full Terms & Conditions. E&OE.
